CLASS Customer Load Active System Services Victoria Turnham LCNI - PowerPoint PPT Presentation

Mar 21, 2023 •253 likes •408 views

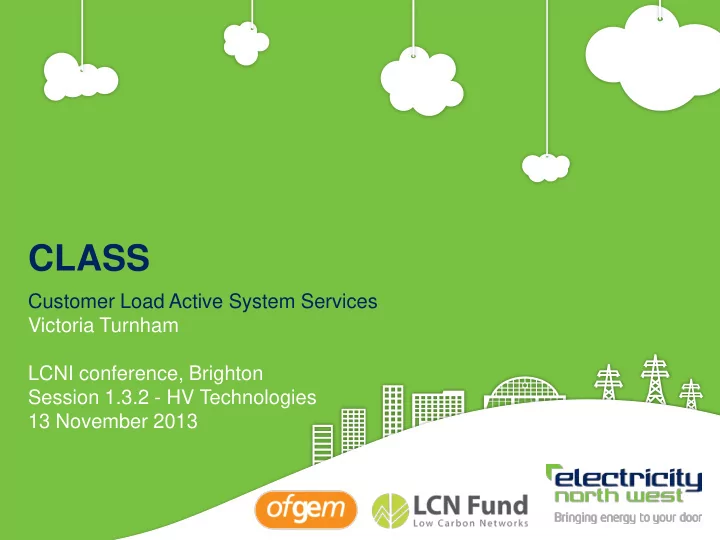

CLASS Customer Load Active System Services Victoria Turnham LCNI conference, Brighton Session 1.3.2 - HV Technologies 13 November 2013 1 Customer Load Active System Services Maximise use of existing assets Offer new Innovative services

  1. CLASS Customer Load Active System Services Victoria Turnham LCNI conference, Brighton Session 1.3.2 - HV Technologies 13 November 2013 1

  2. Customer Load Active System Services Maximise use of existing assets Offer new Innovative services and solutions Delivering choice for to real value to the future problems customers Generate Proven value for technology CLASS customers deployable now today 2 Customer Load Active System Services - Expert Panel Presentation

  3. Back to school for a moment . . . This fundamental relationship is at the heart of CLASS But how will it change over time as customers adopt new devices? How could we use this relationship in a smart way to benefit customers? 3 Customer Load Active System Services - Expert Panel Presentation

  4. How does it work 00:03:00 00:00:08 00:00:08 2% 2% The cost £ to make your cup of tea is always the same! 20,000 homes in a town “A problem shared 200,000 homes is a problem halved in a city . . .” 26 million across the UK What problems could we solve ? 4

  5. CLASS proposes to harness thousands of tiny changes at just the right time 2% decrease in demand 2% decrease in demand 2% increase in demand at peak times Lower balancing costs Lower energy costs Lower network costs Reduced carbon Faster connections Today Tomorrow Future High peak demand Response and reserve Wind following 5

  6. The CLASS trials Objective Technique Establish voltage/demand Load modelling Raise & lower tap position relationship Demand response for peak Demand response Lower tap position reduction Primary response to reduce demand when frequency falls on the Switch out transformer transmission network Frequency response Secondary response to reduce demand after primary response Lower tap position above Absorb high voltages that occur on Reactive power Stagger tap position the transmission network 6

  7. CLASS system overview Autonomous Electricity transmission substation controller operator Project control 60 primary XA21 ™ PowerOn Fusion™ Dashboard substations SCADA ICCP PowerOn Fusion ™ Dashboard 7

  8. The technology Smart voltage control relay in major substations linked to control centre Allows voltage to be adjusted to drive demand changes. Automatically stabilises network frequency. Keeps voltages at safe levels on transmission and distribution networks with high amount of DG Advanced Network Management System Links DNO control centre to National Grid control centre. Advanced dashboard measures real time availability. Allows demand and voltage control call off when required Harnessing world class technology in a innovative solution 8

  9. CLASS system overview Autonomous Electricity transmission substation controller operator Project control 60 primary XA21 ™ PowerOn Fusion™ Dashboard substations Scada ICCP PowerOn Fusion ™ Dashboard 9

  10. CLASS system overview Autonomous Electricity transmission substation controller operator Project control 60 primary XA21 ™ PowerOn Fusion™ Dashboard substations Scada ICCP PowerOn Fusion ™ Dashboard 10

  11. The CLASS dashboard Demand % Frequency control T11 Voltage Control Mvars MW Boost Reduction Group Tap/Current T12 Tap/Current Stage 1 Stage 2 Stage 1 Stage 2 Stage 3 Half Full Half Full 6 4 0.4 0.8 1.2 2 4 2 4 South manch Enabled Activated Enabled Enabled Activated Disabled Enabled Enabled 3 2 0.2 0.4 0.6 1 2 1 2 T11 Trafford 6/400A 11.1kV T12 Enabled Activated Enabled Enabled Activated Disabled Enabled Enabled 6/400A 3 2 0.2 0.4 0.6 1 2 1 2 T11 Monton 6/400A 11kV T12 Enabled Activated Enabled Enabled Activated Disabled Enabled Enabled 6/400A 0 0 0 0 0 0 0 0 0 T11 Mount st 6/400A 10.9kV T12 Inhibited Inhibited Inhibited Inhibited Inhibited Inhibited Inhibited 6/400A 11

  12. CLASS system overview Autonomous Electricity transmission substation controller operator Project control 60 primary XA21 ™ PowerOn Fusion™ Dashboard substations Scada ICCP PowerOn Fusion ™ Dashboard 12

  13. ICCP (Inter Control Centre Protocol) DNO control centre National Grid control centre Dashboard Control call Measures real Demand and voltage time availability control call off 13

  14. CLASS: Customer Load Active System Services V & D data V & D data Exploiting Reinforcement underpins underpins assets, innovative deferral, Carbon savings network network thinking and tiny response and lower management management changes at just balancing and customer bills now and into now and into the right time voltage control the future the future New Financial and Technical World class understanding carbon savings of a fundamental innovation technology for customers relationship CLASS will deliver savings to DNO customers and across the supply chain 14
