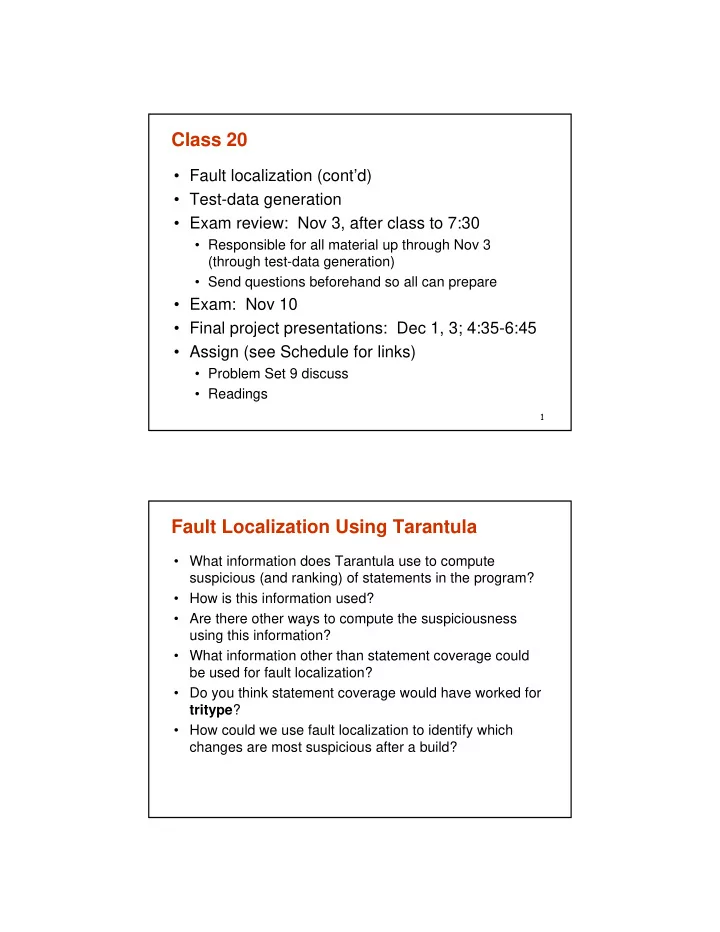

Class 20

• Fault localization (cont’d)
• Test-data generation
• Exam review: Nov 3, after class to 7:30
• Responsible for all material up through Nov 3

(through test-data generation)

• Send questions beforehand so all can prepare
• Exam: Nov 10
• Final project presentations: Dec 1, 3; 4:35-6:45
• Assign (see Schedule for links)
• Problem Set 9 discuss
• Readings

Fault Localization Using Tarantula

• What information does Tarantula use to compute

suspicious (and ranking) of statements in the program?

• How is this information used?
• Are there other ways to compute the suspiciousness

using this information?

• What information other than statement coverage could

be used for fault localization?

• Do you think statement coverage would have worked for

tritype?

• How could we use fault localization to identify which

changes are most suspicious after a build?

Improving Fault-localization Efficiency

P Execute Debug failed tests P’ all tests pass Execute Debug failed tests P’’ Pi is failure-free Execute …

• Are all failing tests caused by the same fault?
• Are all failing tests caused by the same fault?
• Can we associate groups of tests with different

faults?

• Are all failing tests caused by the same fault?
• Can we associate groups of tests with different

faults?

• Can we reduce debugging effort by considering

these groups individually?

• Are all failing tests caused by the same fault?
• Can we associate groups of tests with different

faults?

• Can we reduce debugging effort by considering

these groups individually?

• Can we reduce debugging effort by considering

these groups simultaneously?

mid() { int x,y,z,m; 1:read(“Enter 3 integers:”,x,y,z); 2:m = z; 3:if (y<z) 4: if (x<y) 5: m = y; 6: else if (x<z) 7: m = y; 8:else 9: if (x>y) 10: m = z; 11: else if (x>z) 12: m = x; 13:print(“Middle number is:”, m); } 3,3,5 1,2,3 3,2,2 5,5,5 1,1,4 5,3,4 P P P P F h h h h h h h h h h h h h h h h h h h h h h h h h h h h h h h h h h h h h h h h Pass/fail Status 3,2,1 2,1,3 5,4,2 5,2,6 h h h h h h h h h h h h h h h h h h h h h h h h h h h h P P F F F t1 t2 t3 t4 t5 t6 t7 t8 t9 t10

Improving Fault-localization Efficiency

3,3,5 1,2,3 3,2,2 5,5,5 1,1,4 5,3,4 P P P P F h h h h h h h h h h h h h h h h h h h h h h h h h h h h h h h h h h h h h h h h Pass/fail Status 3,2,1 2,1,3 5,4,2 5,2,6 h h h h h h h h h h h h h h h h h h h h h P P F F F mid() { int x,y,z,m; 1:read(“Enter 3 integers:”,x,y,z); 2:m = z; 3:if (y<z) 4: if (x<y) 5: m = y; 6: else if (x<z) 7: m = y; 8:else 9: if (x>y) 10: m = z; 11: else if (x>z) 12: m = x; 13:print(“Middle number is:”, m); } t1 t2 t3 t4 t5 t6 t7 t8 t9 t10

Improving Fault-localization Efficiency

h h h h h h h

Debugging Process

P Execute Debug failed tests P’ all tests pass Execute Debug failed tests P’’ Pi is failure-free Pj is failure-free Execute … P Execute Debug some failed tests P’ all tests pass Execute some failed tests…

Debugging Process

P Execute Debug failed tests P’ all tests pass Execute Debug failed tests P’’ Pi is failure-free Pj is failure-free Execute … P Execute Debug some failed tests P’ all tests pass Execute some failed tests… Execute P Debug Debug P’ all tests pass

…

Pk is failure-free some failed tests some failed tests

Hierarchy of Bugs

Faults often dominate each other Failing test cases are first caused by a set of initial faults Once initial faults are fixed, other faults manifest themselves

Time Fault 1 Fault 2 Fault 3 Fault 4 Fault 5 Fault 6 Fault 7 Fault 8

Pk is failure-free

Debugging Process

P Execute Debug failed tests P’ all tests pass Execute Debug failed tests P’’ Pi is failure-free Pj is failure-free Execute … P Execute Debug some failed tests P’ all tests pass Execute some failed tests… Execute P Debug Debug P’ all tests pass

…

some failed tests some failed tests

Potential benefits:

• Reduced time to failure-free

program

• Less “noise” in locating each

fault

• Better utilization of developer

effort Potential costs

• Overhead to partition test

cases

• Multiple debuggers

(developers)

Debugging Process

P Execute Debug failed tests P’ all tests pass Execute Debug failed tests P’’ Pi is failure-free Pj is failure-free Execute … P Execute Debug some failed tests P’ all tests pass Execute some failed tests… Execute P Debug Debug P’ all tests pass

…

Pk is failure-free some failed tests some failed tests

Crucial problem:

• Partitioning failed tests into

groups of similar behavior— focus on different faults

• fault-focusing clusters

Crucial problem:

• Partitioning failed tests into

groups of similar behavior— focus on different faults

• fault-focusing clusters of failed

test cases

Fault-focusing Clusters—Overview

t06 t07 t09 t08 t10 t08 t07 t04 t09 t02 t05 t01 t03 t10

Fault-focusing clusters:

• Clusters of failing test cases
• Clusters failing in similar way
• Each cluster targeting a different fault

Test Cases

Fault-focusing Clusters

t07 t09 t08 t10 t06 t04 t02 t05 t01 t03

Test Cases

t06 t04 t02 t05 t01 t03

Specialized Test Suites

Specialized test suites: Fault-focusing clusters combined with passing test cases

Fault-focusing Clusters

t07 t09 t08 t10

Specialized Test Suites

Developer Developer t06 t04 t02 t05 t01 t03 t06 t04 t02 t05 t01 t03

Specialized test suites: Fault-focusing clusters combined with passing test cases Specialized test suites: Fault-focusing clusters combined with passing test cases

• Find faults one at a

using specialized test suites

Fault-focusing Clusters

t07 t09 t08 t10 t06 t04 t02 t05 t01 t03

Test Cases

t06 t04 t02 t05 t01 t03

Specialized Test Suites

Developer 1 Developer 2 t06 t04 t02 t05 t01 t03 t06 t04 t02 t05 t01 t03

Specialized test suites: Fault-focusing clusters combined with passing test cases

• Find faults one at a

using specialized test suites

• Find faults at the same

time (in parallel) using specialized test suites

Fault-focusing Clusters

Execution Clustering Fault Localization

failed test cases execution information specialized test suites suspiciousness and ranks

Fault-focusing Clusters

Clustering by behavior models Dynamic information

• profiles (branch, method-method, …)
• only failed tests

Statistical analysis, machine learning

• generate models for each execution
• cluster models

Fault-localization for stopping point Execution Clustering Fault Localization

failed test cases execution information specialized test suites suspiciousness and ranks

t07-09 t07-09-08-10 t08-010

Clustering Behavior Models

• Models: discrete-time Markov chains (DTMCs) from profiles

(branch, method,…)

• Clustering: iterative with two most similar according to Sim1

Sim1: sum of absolute difference between matching transitions in DTMCs being compared

Most difficult problem of clustering is determining a good stopping criterion?

t07 t08 t09 t10

Most difficult problem of clustering is determining a good stopping criterion? What is a good stopping point for the clustering for fault-focused clusters?

Fault Localization for Stopping Point

t07-09 t07-09-08-10 t08-10 t07 t08 t09 t10

Fault Localization for Stopping Point

t07-09 t07-09-08-10 t08-10 t07 t08 t09 t10

B A B A Sim U I = 2

Fault Localization for Stopping Point

t07-09 t07-09-08-10 t08-10 t07 t08 t09 t10

t06 t08 t07 t04 t09 t02 t05 t01 t03 t10

t07-09-08-10

B A B A Sim U I = 2

rank

mid() { int x,y,z,m; 1:read(“Enter 3 integers:”,x,y,z); 2:m = z; 3:if (y<z) 4: if (x<y) 5: m = y; 6: else if (x<z) 7: m = y; 8:else 9: if (x>y) 10: m = z; 11: else if (x>z) 12: m = x; 13:print(“Middle number is:”, m); } 3,3,5 1,2,3 3,2,2 5,5,5 1,1,4 5,3,4 P P P P F

• Pass/fail Status

3,2,1 2,1,3 5,4,2 5,2,6

• P P F

F F

Tarantula: Fault Localization

//bug //bug suspiciousness 0.50 0.50 0.50 0.43 0.00 0.50 0.60 0.60 0.60 0.75 0.00 0.00 0.50 t1 t2 t3 t4 t5 t6 t7 t8 t9 t10

Fault Localization for Stopping Point

t07-09 t07-09-08-10 t08-10 t07 t08 t09 t10

t06 t08 t07 t04 t09 t02 t05 t01 t03 t10

t07-09-08-10

10 9 8 7

t06 t07 t04 t09 t02 t05 t01 t03

t07-09

B A B A Sim U I = 2

rank rank

mid() { int x,y,z,m; 1:read(“Enter 3 integers:”,x,y,z); 2:m = z; 3:if (y<z) 4: if (x<y) 5: m = y; 6: else if (x<z) 7: m = y; 8:else 9: if (x>y) 10: m = z; 11: else if (x>z) 12: m = x; 13:print(“Middle number is:”, m); } 3,3,5 1,2,3 3,2,2 5,5,5 1,1,4 5,3,4 P P P P

• Pass/fail Status

3,2,1 5,4,2

• P P F

F

Fault-focusing Cluster 1

//bug //bug suspiciousness 0.50 0.50 0.50 0.00 0.00 0.00 0.00 0.75 0.75 0.86 0.00 0.00 0.50 t1 t2 t3 t4 t5 t6 t7 t8 t9 t10

Fault Localization for Stopping Point

t07-09 t07-09-08-10 t08-10 t07 t08 t09 t10

t06 t08 t07 t04 t09 t02 t05 t01 t03 t10

t07-09-08-10

10 9 8 7

t06 t07 t04 t09 t02 t05 t01 t03

t07-09

10 9 8 1 B A B A Sim U I = 2

5 3 2 = Sim

rank rank .60

Fault Localization for Stopping Point

t07-09 t07-09-08-10 t08-10 t07 t08 t09 t10

t06 t08 t07 t04 t09 t02 t05 t01 t03 t10

t07-09-08-10

10 9 8 7

t06 t08 t04 t10 t02 t05 t01 t03

t08-10

B A B A Sim U I = 2

rank rank .60

mid() { int x,y,z,m; 1:read(“Enter 3 integers:”,x,y,z); 2:m = z; 3:if (y<z) 4: if (x<y) 5: m = y; 6: else if (x<z) 7: m = y; 8:else 9: if (x>y) 10: m = z; 11: else if (x>z) 12: m = x; 13:print(“Middle number is:”, m); } 3,3,5 1,2,3 3,2,2 5,5,5 1,1,4 5,3,4 P P P P F

• Pass/fail Status

2,1,3 5,2,6

• P P

F //bug //bug suspiciousness 0.50 0.50 0.50 0.60 0.00 0.67 0.75 0.00 0.00 0.00 0.00 0.00 0.50

Fault-focusing Cluster 2

t1 t2 t3 t4 t5 t6 t7 t8 t9 t10

Fault Localization for Stopping Point

t07-09 t07-09-08-10 t08-10 t07 t08 t09 t10

t06 t04 t10 t02 t05 t01 t03

t08-10

7 6 4 1 B A B A Sim U I = 2

7 1 2 = Sim

t06 t08 t07 t04 t09 t02 t05 t01 t03 t10

t07-09-08-10

10 9 8 7

rank rank .14 .60

t08

Fault Localization for Stopping Point

t07-09 t07-09-08-10 t08-10 t07 t08 t09 t10

B A B A Sim U I = 2

.14 .60

7 6 4 1

rank

t06 t04 t10 t02 t05 t01 t03

t08-10

t08 t06 t04 t02 t05 t01 t03

t08

7 6 4 1

rank

t08

Fault Localization for Stopping Point

t07-09 t07-09-08-10 t08-10 t07 t08 t09 t10

B A B A Sim U I = 2

.14 .60

7 6 4 1

rank

t06 t04 t10 t02 t05 t01 t03

t08-10

t08

Fault Localization for Stopping Point

t07-09 t07-09-08-10 t08-10 t07 t08 t09 t10

B A B A Sim U I = 2

4 4 2 = Sim

.14 .60 1.00

7 6 4 1

rank

t06 t04 t10 t02 t05 t01 t03

t08-10

t08

rank

t06 t04 t02 t05 t01 t03

t08

7 6 4 1

rank

t08

Fault Localization for Stopping Point

t07-09 t07-09-08-10 t08-10 t07 t08 t09 t10

B A B A Sim U I = 2

4 4 2 = Sim

.14 .60 1.00

7 6 4 1

rank

t06 t04 t10 t02 t05 t01 t03

t08-10

t08

rank

t06 t04 t02 t05 t01 t03

t10

7 6 4 1

rank

t10

1.00

Fault Localization for Stopping Point

t07-09 t07-09-08-10 t08-10 t07 t08 t09 t10 .14 .60 1.00 1.00

• Composite is similar (above threshold) to

both of its constituents so clustering stops at this level

• Result is two clusters: {t07, t09}, {t08, t10}

Fault Localization for Stopping Point

t07-09 t07-09-08-10 t08-10 t07 t08 t09 t10 .14 .60 1.00 1.00

• Composite is similar (above threshold) to

both of its constituents so clustering stops at this level

• Result is two clusters: {t07, t09}, {t08, t10}

mid() { int x,y,z,m; 1:read(“Enter 3 integers:”,x,y,z); 2:m = z; 3:if (y<z) 4: if (x<y) 5: m = y; 6: else if (x<z) 7: m = y; 8:else 9: if (x>y) 10: m = z; 11: else if (x>z) 12: m = x; 13:print(“Middle number is:”, m); } 3,3,5 1,2,3 3,2,2 5,5,5 1,1,4 5,3,4 P P P P

• Pass/fail Status

3,2,1 5,4,2

• P P F

F

Fault-focusing Cluster 1

//bug //bug suspiciousness 0.50 0.50 0.50 0.00 0.00 0.00 0.00 0.75 0.75 0.86 0.00 0.00 0.50 t1 t2 t3 t4 t5 t6 t7 t8 t9 t10

mid() { int x,y,z,m; 1:read(“Enter 3 integers:”,x,y,z); 2:m = z; 3:if (y<z) 4: if (x<y) 5: m = y; 6: else if (x<z) 7: m = y; 8:else 9: if (x>y) 10: m = z; 11: else if (x>z) 12: m = x; 13:print(“Middle number is:”, m); } 3,3,5 1,2,3 3,2,2 5,5,5 1,1,4 5,3,4 P P P P F

• Pass/fail Status

2,1,3 5,2,6

• P P

F //bug //bug suspiciousness 0.50 0.50 0.50 0.60 0.00 0.67 0.75 0.00 0.00 0.00 0.00 0.00 0.50

Fault-focusing Cluster 2

t1 t2 t3 t4 t5 t6 t7 t8 t9 t10 mid() { int x,y,z,m; 1:read(“Enter 3 integers:”… 2:m = z; 3:if (y<z) 4: if (x<y) 5: m = y; 6: else if (x<z) 7: m = y; 8:else 9: if (x>y) 10: m = z; 11: else if (x>z) 12: m = x; 13:print(“Middle number is:”… } //bug //bug

Visualization of Specialized Test Suites

mid() { int x,y,z,m; 1:read(“Enter 3 integers:”… 2:m = z; 3:if (y<z) 4: if (x<y) 5: m = y; 6: else if (x<z) 7: m = y; 8:else 9: if (x>y) 10: m = z; 11: else if (x>z) 12: m = x; 13:print(“Middle number is:”… } //bug //bug

Cluster 1 Cluster 2

Empirical Study

Variables

NSTS: Finding faults using non-specialized test suites STS-S: Finding faults using specialized test suites STS-P: Finding faults using specialized test suites in parallel

Measures

D: total developer effort FF: total effort to failure-free program

Subject

SPACE

• 6000 LOC
• 100 8-fault versions; > 1000 derivative versions)

Method

For each of 100 8-fault versions, debug until failure-free, using Non specialized test suite Specialized test suite both sequential and parallel

D: Total Developer Effort

• Using specialized test suites based on fault-focusing

cluster is less expensive, on average, than not using specialized test suites

• Benefit holds when performing
• fault localization sequentially (one developer)
• fault localization in parallel (multiple developers)

FF: Total Effort to Failure-free

Sample Source Sample mean Sample standard deviation 99% confidence interval lower bound 99% confidence interval upper bound FFNSTS 36.26 22.86 30.83 41.69 FFSTS-S 26.16 22.58 20.80 31.53 FFSTS-P 18.29 14.00 14.96 21.62

Using specialized test suites and performing the fault localization sequential or in parallel can provide significant savings over using non specialized test suites

Summary of Results

For SPACE Using specialized test suites is usually less expensive than using non-specialized test suites

• Total developer effort is reduced for both sequential

and parallel modes

• Time to a failure-free program is reduced without

negatively affecting the total developer effort

41

Automatic Test Data Generation

42

Test Data Generation

Ferguson and Korel described three categories of test-data generation What are they?

43

Test Data Generation

Ferguson and Korel described three categories of test-data generation

• 1. Random—randomly select from universe of inputs
• 2. Goal-oriented—select test data to execute a given

entity (e.g., statement, branch, def-use pair) irrespective of the path taken

• 3. Path-oriented—select a program path and

generate test data that will execute that path; path can be selected automatically or selected by the user
