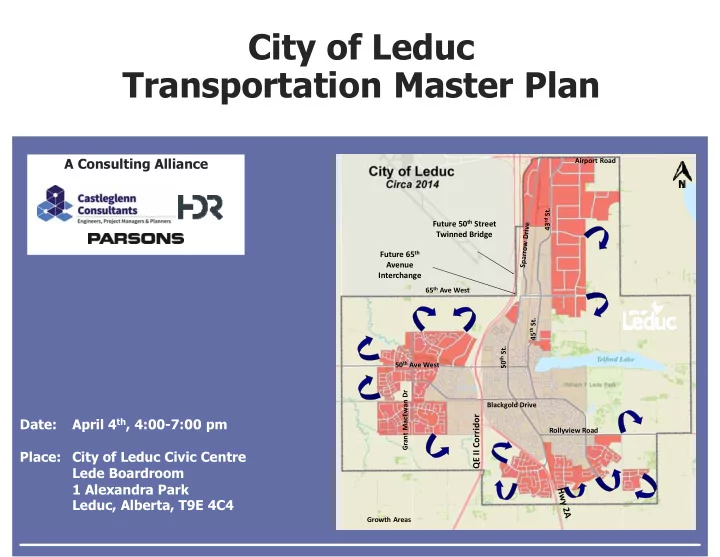

City of Leduc Transportation Master Plan A Consulting Alliance Airport Road 43 rd St. Future 50 th Street Twinned Bridge Future 65 th Avenue Interchange 65 th Ave West 45 th St. 50 th St. 50 th Ave West Grant MacEwan Dr Blackgold Drive QE

slide-1
SLIDE 1

Future 65th Avenue Interchange

QE II Corridor

Airport Road 43rd St. 65th Ave West 50th Ave West

Future 50th Street Twinned Bridge

Blackgold Drive Grant MacEwan Dr 50th St. Rollyview Road 45th St. Growth Areas

Date: April 4th, 4:00-7:00 pm Place: City of Leduc Civic Centre Lede Boardroom 1 Alexandra Park Leduc, Alberta, T9E 4C4

City of Leduc Transportation Master Plan

A Consulting Alliance

slide-2
SLIDE 2

Agenda

1. Introduction and Project Team 2. Background 3. TMP Function and Objectives 4. Project Methodology 5. Existing and Proposed Land Uses 6. Existing Conditions – Transit, Multi-Way, Heavy Vehicle Routes, Morning and Afternoon Peak Hour Congestion Levels 7. Transportation Modeling 8. Traffic Impact Assessment 9. Functional Design of Corridors

  • 10. Sample TMP Policy Statements
  • 11. Where Do We Go From Here?
slide-3
SLIDE 3
  • 1. Introduction and Project Team

PROJECT MANAGEMENT (CGC) (HDR) (PAR) Castleglenn Consultants Inc. HDR Inc. Parsons (TS) (ACI) (BT) (CTS) Traffic Solutions Ltd. Acoustical Consultants Inc. Bytown Engineering Cellint

  • Mr. Arthur Gordon

(CGC) Transportation Planning, Traffic Engineering, Modelling Traffic Impact Assessment And Evaluation Functional Corridor Analysis Community Input And Public Involvement

  • Mr. Gordon - Mr. Raj (CGC)
  • Mr. Matti - Ms. Gervais

(CGC)

  • Mr. Tamanini - Ms. Fatema

(CGC)

  • Ms. Gervais - Ms. Soardi (CGC)
Relevant Studies / Document Review External Land Use Plans Existing Roadway Network Analysis Parks, Public Space Integration Goods Movement (Truck Network) Regional Network Interface Traffic Forecasting / Modeling Network Alternatives Evaluation Roadway Integration with Land Use Parking Strategy Management Community Impacts Safety and Security Sustainable Solutions Emergency Routing Railway Impacts Traffic Counts and Data Collection Transportation Economics Traffic Calming Cost Benefit Analyses Future Roadway Network Collection of Background

Information

Review of Existing Studies &

Materials

Trip Generation Travel Demand Simulation &

Forecasting

Staging the Developments Impact to Adjacent Connection

Roads

Traffic Operations Assessment "Do Nothing" Scenario Evaluate New Roadway

Network Configurations

Viability of Roadway Network

Alternatives

Intersection Capacity Analysis High-Level Corridor Analysis Ancillary Development Impacts Access Management Strategy

Evaluation

Evaluation Criteria / Guidelines Conceptual Intersection

Improvements

Approvals Process Required Staged Improvements Design Standards Roadway Design Review Upgrades to Routes Potential Widenings Safety Assessment Road Classification Policy Intersection Design Roundabout Design Engineering Assessments Right of Way Requirements Evaluation of design alternatives Cost Estimates of Alternatives Functional Corridor Plans

Production

ROW Plans Signage Infrastructure Maintenance Storm Water Drainage Assessment Environmental Overview Liase with municipalities, citizens,

local businesses, industry and community

Coordinate in Detail Public Open

Houses

Consultations (EIA, CPR, UDI etc.) Website Information and Online

Collection Feedback

Schedule Topics and timelines Promote exchange of ideas and group

problem-solving

Media relations and Public Notification Invitations, Fact / Comment Sheets Provide Poster with clear information Feedback to Stakeholders and Public Minutes of Meetings Public Involvement Program Report

Functional Corridor Planning & High Speed Transit Value Added

  • Mr. S. Power - Mr. K. Whirfield

(PAR)

  • Mr. Steve Taylor (BT)

Transit, Active Transportation

Functional Design Activities HS Transit Design Value Planning Value Engineering
  • Mr. J. Hubbell - Mr. I. MacLeod

(HDR)

  • Mr. Paul Chan (TS)
Active Transportation System Transit (Inter-Municipal) Transit (Intra-Municipal) Strategic Policy Statements

Noise Study

Traffic Operations Rail Operations Impact
  • Mr. Patrick Froment (ACI)
  • Mr. Yossi Kaplan (CTS)
Environmental Noise Monitor Noise Impact Assessment Macro O-D Information Collection
slide-4
SLIDE 4

The City of Leduc has experienced sustained growth.

  • Average annual growth over last decade has been 6-to-7% in all sectors.
  • Approximate number of residential permits:
  • 460 units in 2012;
  • 500 units in 2013 (10% increase);
  • 640 units in 2014 (26% increase);
  • 350 units in 2015 (45% decrease); and
  • 220 units in 2016 (36% decrease).

CONCLUSION: The pace of development is slowing.

  • Energy sector decline has affected the pace of development, but provides the opportunity to:
  • Update, develop & refine the City’s TMP;
  • Develop a proactive approach to the internal transportation planning process; and
  • Guide infrastructure objectives of the municipality.
  • 2. We Are Growing!
slide-5
SLIDE 5

The TMP will...

  • Function as an implementation tool that supports the overall Municipal Development Plan’s goals,
  • bjectives and high-level policies;
  • Examine various transportation corridors to ensure effective development of transportation

infrastructure to support Leduc’s future growth;

  • Establish roadway planning initiatives, provide for contingencies and establish targets for roadway

improvements; and

  • Guide and coordinate future urban growth decisions and infrastructure investment.
  • 3. TMP Function and Objectives

TRANSPORTATION MASTER PLAN (Land Use, Transportation Modeling, Transit, Cycling, Multi-Way) TRAFFIC IMPACT ASSESSMENT (Meadowview and Robinson Communities) FUNCTIONAL CORRIDOR ANALYSIS (Functional Corridor Planning, Transit, Noise Assessment) PROJECT

slide-6
SLIDE 6
  • 4. Project Methodology

Transportation Master Plan

  • Assemble/review background

information;

  • Determine existing local travel

trends and operations;

  • Review/update Strategic Policy

Statements;

  • Review operations of CP

Railway corridors;

  • Review transit service and multi-

way system operations;

  • Review/update heavy vehicle

route network;

  • Undertake travel demand

forecasting and modeling;

  • Establish a long-term (2044)

roadway network. Functional Corridor Analysis

  • 42nd/43rd Street (Allard Ave to

Airport Rd);

  • Grant MacEwan Blvd (South of

City Boundary to 65th Ave);

  • 65th Ave W (74th St to Hwy 2);
  • 65th Ave E (Hwy 2 to Rge Rd

250);

  • Black Gold Dr (50th St to Grant

McEwan Blvd);

  • South East Boundary Rd (Hwy

2A to East Boundary);

  • Transit corridor (EIA to Leduc);
  • Noise attenuation requirements;

and

  • Planning level cost estimates.

Traffic Impact Assessment

  • Assemble/review background

information;

  • Review Area South-East Leduc

ASP and develop forecasts;

  • Undertake travel demand

forecasting and modeling;

  • Assess existing conditions and

development impacts;

  • Evaluate traffic impacts of

supporting roadways and network configurations;

  • Define the viability of roadway

network alternatives;

  • Recommend staged

improvements.

slide-7
SLIDE 7
  • 5. Existing and Proposed Land Uses
  • The study has incorporated

all planned developments within the City.

  • South and West:

Mostly residential developments.

  • North and East:

Mostly business and industrial developments.

  • A phasing strategy was

developed for each growth area.

  • Estimates included:
  • Population/employment

growth relationships; and

  • Several horizon years.
  • Consultation was

undertaken with development proponents and City staff.

City of Leduc IDP (2014) Woodbend OP (2016) 65th Avenue West AVS (2015) Deer Valley ASP (2008) Westhaven ASP (2002) Suntree ASP (2013) Brightwell ASP (2014) Windrose ASP (1999) Blackstone ASP (2014) Southfork ASP (2014) Meadowview/Tribute SE Leduc ASP (2014) Robinson ASP (2013) Emery and Eaton Concept Plan (2016) Rolleyview & Blackgold NE SE 2549-25-W4 ASP (2001) Lakeside Industrial Park ASP (2014) Harvest Industrial Park ASP (2010) Leduc Energy Park Concept Plan (2016) Cathton Farm ASP (2013) Saurahb Park Outline Plan (2006) Sawridge Business Park ASP (2013) West Area ASP (2016)

slide-8
SLIDE 8

West Area & Woodbend:

  • Four quarter sections on the west side of the City of Leduc covering ~700 ac.
  • Largely residential and low-density in nature. Higher densities are anticipated

closer to the future 65th Avenue West corridor.

  • Commercial and institutional land uses are located closer to 50th Ave.
  • Additional plans have been recently developed for the quarter section just

north of 50th Ave (Woodbend).

City of Leduc West Developments

Source: Brightwell ASP (Stantec, 2016), Blackstone ASP (Stantec, 2014), Woodbend Outline Plan (Select, 2016), West Area ASP Update (Select, 2016)

Blackstone & Brightwell:

  • Residential development,

south of 50th Ave, east and west of Grant McEwan Blvd. ~300 ac.

West Area Woodbend Brightwell Blackstone

slide-9
SLIDE 9

City of Leduc Southeast Developments

Source: Southfork ASP (Stantec, 2014), South East Leduc ASP (Al-Terra, 2014), Robinson Overall Unit/Lot Count (IBI, 2016)

Largely residential, with a mix of low-density and medium-density developments. Southfork: West of Hwy 2A and east of Hwy 2. ~ 500 ac. Meadowview/Tribute: East of Hwy 2A, south of Rollyview and west of C.W. Gaetz Rd. ~ 300 ac. Robinson: South of Rollyview Rd and east of C.W. Gaetz Rd. ~ 150 ac.

Southfork Meadowview & Tribute Robinson

slide-10
SLIDE 10

Sawridge Business Park, Harvest Industrial Park and Lakeside Industrial:

  • North of Telford Lake. ~ 550 ac.
  • Mostly business employment and industrial

development with green space protected.

City of Leduc East Developments

Source: Sawridge Business Park ASP (FOCUS, 2013), Harvest Industiral Park ASP (Welder Eng., 2010), Lakeside Industrial ASP (Watkins, 2014),

Alberta Aerotropolis Viability Study (MXD Development Strategists & Stantec, 2015) , Eaton and Emery ASP, Figure 4 (IBI, 2016)

Eaton and Emery:

  • South of Rollyview Rd and east of C.W. Gaetz Blvd. ~ 160 ac.
  • Residential, commercial and business developments.

Harvest Industrial Park Sawridge Business Park Lakeside Industrial Eaton and Emery

Telford Lake Southern District:

  • East, between Telford Lake and the City of

Leduc Boundary. ~ 500 ac.

  • Hub for transportation & logistics, agri-

business and other Aerotropolis land uses.

slide-11
SLIDE 11

Saurahb Park, Cathton-Farm and Leduc Energy Park:

  • North of 65th Avenue, west of Rge

Rd 250 (future Nisku Spine Rd), and south of Airport Rd.

  • Largely employment and industrial

developments with some commercial land uses.

  • Area represents ~ 900 ac. with

developments having already

  • ccurred along, and west of, 39th

Street.

  • Some development has already

taken place within Saurahb Park and Cathton-Farm.

City of Leduc North Developments

Source: Saurahb Park OP (Durrance Projects Ltd, et al., 2006), Cathton-Farm Air Leduc Industrial Park OP (Stantec, 2013), Leduc Energy Park OP, Figure 4 (Stantec, 2016)

Cathton-Farm Air Leduc Industrial Park Leduc Energy Park Saurahb Park

slide-12
SLIDE 12
  • South of 65th Ave and west of Hwy 2. ~500 ac.
  • Commercial, Public/Semi Public and Residential land uses are compatible with noise contour data.
  • Development focus will be towards aerospace and aviation, life sciences, transportation and logistics.

(Source: Alberta Aerotropolis Viability Study, May 2015, MXD Development Strategists and Stantec)

  • Integration with Edmonton International Airport initiatives.
  • Intended to work in concert with the 65th Avenue West corridor.

Alberta Aerotropolis Development (City Lands)

Source: Land Use Bylaw 809-2013, Leduc, Alberta

slide-13
SLIDE 13

06‐Apr‐17

  • 6. Leduc Transit Routes and Ridership

Route 1, 70% Route 2, 13% Route 3, 7% Route 4, 9%

Leduc Transit Ridership Distribution

Park & Ride

Transit ridership has increased steadily from 33,100 riders in 2011 to 68,600 in 2016. Route 1 terminates at Century Park LRT Station in Edmonton

  • All weekday routes provide 30 minute

service frequency. Service is provided by four 40-foot buses and three 28-foot buses.

  • LATS provides daily service to seniors and

adults with cognitive/physical disabilities

  • n an as-required and shuttle basis.

Service is provided by five cutaway buses.

slide-14
SLIDE 14

06‐Apr‐17

  • 6. The Multi-Way Pathway System

Multi-Way Path Lengths Primary Path: ~55km Secondary Path: ~8 km Nature Trail: ~1 km

  • Primary Path: 3.0 m

wide, asphalt. Cleared of snow in winter.

  • Secondary Path: 1.8 m

wide, asphalt or concrete.

  • Nature Trail: Width varies

upon location and type, typically gravel.

slide-15
SLIDE 15

06‐Apr‐17

  • 6. Heavy Vehicle Routes
  • Heavy vehicle truck routes are

designated by the City of Leduc.

  • Heavy vehicles must follow the

route network within City limits.

  • Destinations that are not

directly on the route must be reached by taking the most direct and practical way from the nearest truck route.

  • With the advent of a 65th

Avenue crossing, the need for the 50th Street SB and 50th Avenue WB routes are to be examined.

slide-16
SLIDE 16
  • 6. Morning Peak Hour Congestion Levels

2016 AM Peak Hour

65th Ave E. Airport Rd Rollyview Rd. 42nd / 43rd St 50th Ave

Hourly volumes adjusted to reflect peak traffic conditions. Airport Rd & 43rd St Current Configuration: 2-Way Stop Control Constrained Movements: NB-LT , NB-Th, SB-LT , SB-Th Planned Improvements: Current project envisions widened Airport Rd and prohibited NB- LT , NB-TH, SB-LT , SB-TH and WB-LT movements Vehicles Impacted: ~200 veh-per-hour Grant McEwan Blvd & Suntree Prom Current Configuration: 2-Way Stop Control Constrained Movements: All EB movements Future Improvements: Traffic signal control Vehicles Impacted: ~370 veh-per-hour 50th St & Bella Coola Dr Current Configuration: 1-Way Stop Control Constrained Movements: All EB movements Future Improvements: Widened 50th St to 4-lane cross-section with dedicated NB-LT Vehicles Impacted: ~110 veh-per-hour

Edmonton International Airport

AIRPORT ROAD

Bella Coola Dr 50th St Suntree Prom Grant McEwan Blvd

Proposed Airport Rd/43rd Street Intersection Improvements

Airport Rd & Range Rd 250 Current Configuration: 2-Way Stop Control Constrained Movements: All NB & SB movements Future Improvements: Traffic signal control Vehicles Impacted: ~125 veh-per-hour Airport Rd & 36th St Current Configuration: 2-Way Stop Control Constrained Movements: All NB & SB movements Future Improvements: Traffic signal control Vehicles Impacted: ~135 veh-per-hour

slide-17
SLIDE 17

Suntree Prom Grant McEwan Blvd

  • 6. Afternoon Peak Hour Congestion Levels

Airport Rd & 43rd St Current Configuration: 2-Way Stop Control Constrained Movements: NB-LT , NB-Th, SB-LT , SB-Th Planned Improvements: Current project envisions widened Airport Rd and prohibited NB- LT , NB-TH, SB-LT , SB-TH and WB-LT movements Vehicles Impacted: ~395 veh-per-hour Airport Rd & 36th St Current Configuration: 2-Way Stop Control Constrained Movements: All NB & SB movements Future Improvements: Traffic signal control Vehicles Impacted: ~440 veh-per-hour 43rd St & Allard Ave Current Configuration: 2-Way Stop Control Constrained Movements: All WB movements Future Improvements: Traffic signal control Vehicles Impacted: ~390 veh-per-hour Grant McEwan Blvd & Suntree Prom Current Configuration: 2-Way Stop Control Constrained Movements: All EB movements Future Improvements: Traffic signal control Vehicles Impacted: ~50 veh-per-hour 50th St & Bella Coola Dr Current Configuration: 1-Way Stop Control Constrained Movements: All EB movements Future Improvements: Widened 50th St to 4-lane cross-section with dedicated NB-LT Vehicles Impacted: ~55 veh-per-hour Black Gold Dr & Alton Dr Current Configuration: 4-Way Stop Control Constrained Movements: All WB movements Planned Improvements: Traffic signal control Vehicles Impacted: ~690 veh-per-hour

AIRPORT ROAD

Proposed Airport Rd/43rd Street Intersection Improvements

Black Gold Dr Alton Dr

2016 PM Peak Hour

65th Ave E. Airport Rd Rollyview Rd. 42nd / 43rd St 50th Ave

Hourly volumes adjusted to reflect peak traffic conditions.

Edmonton International Airport Bella Coola Dr 50th St

slide-18
SLIDE 18
  • 7. Transportation Modeling
  • Visum Transportation Demand Model is being developed.
  • 2016 base year traffic volumes are being simulated and

calibrated with current traffic counts.

  • Work has been undertaken with the City of Leduc, Leduc

County and the City of Edmonton to prepare land use estimates for the 2025, 2035 and 2044 future horizon years. Visum Zone System

  • Travel demand forecasts are

being produced for each horizon year using residential dwellings/population and employment estimates.

slide-19
SLIDE 19
  • 7. 2044 Growth Forecast

Residential Dwellings Employment

  • Existing (2016) Employment
  • Forecast (2044) Employment
  • Existing (2016) Residential Dwellings
  • Forecast (2044) Residential Dwellings
slide-20
SLIDE 20
  • 8. Traffic Impact Assessment

Proposed Meadowview Park & Tribute Developments Existing (2016): ~900-1000 units Forecast (2044): ~2300-2400 units

(area outlined in red)

TIA goals

  • Assure efficient and effective traffic operations for the proposed and existing communities on the

existing and planned arterial roadways.

  • Assure the development proponents and the City of a realistic “go-forward” plan that addresses

each sequential stage of the developments identifying target thresholds for required transportation infrastructure.

Southfork Caledonia South Park Corinthia Park

Proposed Robinson Development Existing (2016): ~200-300 units Forecast (2044): ~1100-1200 units

(area outlined in blue)

slide-21
SLIDE 21
  • Item 1…
  • Item 2…

Rollyview Rd CW Gaetz Rd Robinson Dr Southfork Dr Caledonia Dr

  • Item 1…
  • Item 2…

Rollyview Rd CW Gaetz Rd Robinson Dr Southfork Dr Caledonia Dr

  • 8. TIA Network Phasing

Rollyview Rd CW Gaetz Rd Robinson Dr Southfork Dr Caledonia Dr Boundary Rd

Phase 3: 30-Year Horizon – Boundary Rd connection from CW Gaetz to Robinson Dr and Hwy 2A Realignment Phase 1: 10-Year Horizon – Boundary Rd connection from 50th St to Coady Blvd Phase 2: 20-Year Horizon – Boundary Rd connection from Coady Blvd to CW Gaetz Rd

Boundary Rd Boundary Rd

slide-22
SLIDE 22

06‐Apr‐17

  • 9. Functional Design of Corridors

42nd/43rd Street Grant MacEwan Blvd 65th Avenue West 65th Avenue East Black Gold Drive East Boundary Road Conceptual Future Transit Corridor

slide-23
SLIDE 23
  • 10. TMP Policy Statements

Environmental Sustainability The City should make provision for environmentally sustainable modes of transportation within a multi-modal transportation system, including high quality active transportation facilities and transit services. These are intended to provide a convenient and feasible alternative to the use of the private automobile, thus encouraging modal shift, with the increased use of these modes of transportation resulting in improved air quality, health benefits and reduction in greenhouse gas emissions. Economic Development The City should develop its transportation network to support development nodes and industrial areas, by ensuring efficient connections to a local multi-modal transportation system and a wider regional transportation system. The City should ensure that convenient access to/from places and events of interest in the region is provided by all modes (or combinations of modes) of transport. Existing Neighbourhoods The City’s planning policies should encourage a more compact form of development in existing neighbourhoods, which will lead to less of a requirement for new infrastructure to be provided, and more efficient utilization of infrastructure: for example, shorter average trip lengths can be more feasible by sustainable transportation modes.

  • Strategic Policy Statements are intended to be used as guidelines for municipal planning

and work in concert with the Municipal Development Plan Policy.

  • Sample draft policy statements are provided as examples below.
slide-24
SLIDE 24
  • 11. Where Do We Go From Here?

Contacts:

  • Arthur Gordon, Principal, 403-252-9303, agordon@castleglenn.ca
  • Josiane Gervais, Transportation Planning Engineer, 403-252-9303, jgervais@castleglenn.ca
  • Krysten Else, Executive Administrative Assistant, 403-252-9303, kelse@castleglenn.ca
  • Complete traffic modeling for the City of Leduc and define travel demand forecasts for the short-

term, medium-term and long-term transportation horizons.

  • Complete Robinson and Meadowview Traffic Impact Assessment.
  • Prepare Functional Corridor plans.
  • Public Open House No. 2 anticipated for Autumn 2017.

Thank you!

  • For your interest and involvement in the study;
  • For your comments, concerns and issues raised; and
  • For the opportunity to familiarize you with the mandate and scope of this project.
