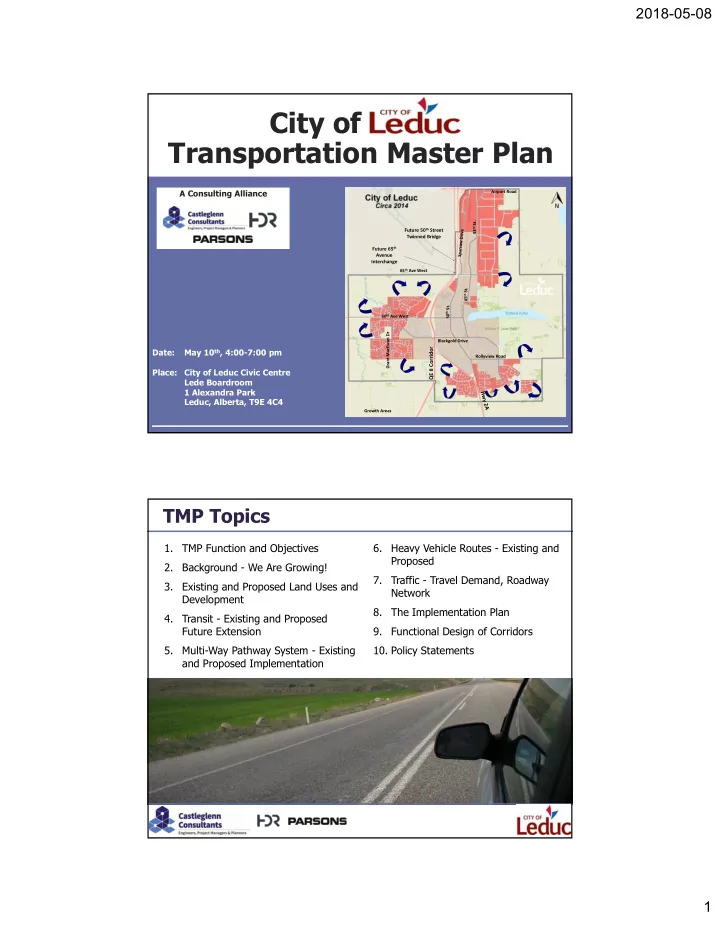

City of Leduc Transportation Master Plan A Consulting Alliance - - PDF document

2018-05-08 1

Future 65th Avenue Interchange

QE II Corridor

Airport Road 43rd St. 65th Ave West 50th Ave West Future 50th Street Twinned Bridge Blackgold Drive Grant MacEwan Dr 50th St. Rollyview Road 45th St. Growth Areas

Date: May 10th, 4:00-7:00 pm Place: City of Leduc Civic Centre Lede Boardroom 1 Alexandra Park Leduc, Alberta, T9E 4C4 A Consulting Alliance

City of Leduc Transportation Master Plan

TMP Topics

1. TMP Function and Objectives 2. Background - We Are Growing! 3. Existing and Proposed Land Uses and Development 4. Transit - Existing and Proposed Future Extension 5. Multi-Way Pathway System - Existing and Proposed Implementation 6. Heavy Vehicle Routes - Existing and Proposed 7. Traffic - Travel Demand, Roadway Network 8. The Implementation Plan 9. Functional Design of Corridors

• 10. Policy Statements

2018-05-08 2

The Transportation Master Plan...

• Functions as an implementation tool that

supports the overall Municipal Development Plan’s goals, objectives and high-level policies;

• Examined various transportation corridors to

ensure effective development of transportation infrastructure to support Leduc’s future growth;

• Establishes roadway planning initiatives,

provide for contingencies and establish targets for roadway improvements; and

• Guides and coordinates future urban growth

decisions and infrastructure investment.

• 1. TMP Function and Objectives

TRANSPORTATION MASTER PLAN

• Land Use
• Transportation Modeling
• Transit
• Heavy Vehicle Routes
• Multi-Way (Cycling, Pedestrian

etc.)

FUNCTIONAL CORRIDOR ANALYSIS

• Functional Corridor

Planning

• Transit

2018 TMP

This Transportation Master Plan...

• Update the City’s 2013

TMP

• Plan for the City’s future

growth & infrastructure.

• Develop a blueprint for

the future transportation network.

• Develop strategic

transportation policy statements. Identify and improve the

• transportation network
• multi-way system,
• heavy vehicle routes; &
• rapid transit corridors.

Enhance the City’s

• Pedestrian connectivity

Roadway connectivity &

• inter-regional

transportation network.

The City of Leduc has experienced sustained growth.

• Approximate number of residential permits:
• 460 units in 2012;
• 500 units in 2013 (10% increase);
• 640 units in 2014 (26% increase);
• 350 units in 2015 (45% decrease);
• 220 units in 2016 (36% decrease); and
• 330 units in 2017 (46% increase).
• 2. Background: We Are Growing!

CONCLUSION: The pace of development has slowed over the last 3-years but we continue to grow.

• Energy sector decline has affected the pace
• f development, but provides the
• pportunity to:
• update, develop & refine the City’s TMP;
• develop a proactive approach to the

internal transportation planning process; and

• guide infrastructure objectives of the

municipality.

Source: Municipal Census Infographic (2017) - City of Leduc website.

2018-05-08 3

• 2. Long Term Growth Forecast

Long Term (S1) Employment 2016 Employment 2044 Employment Long Term (S1) Residential Dwellings 2016 Residential Dwellings 2044 Residential Dwellings

Metric Short‐Term Medium term Long Term Residential Dwellings 13,400 (+2,100) 16,700 (+3,300) 20,500‐to‐21,800 (+3,850‐to‐5,100) Retail Employment 6,600 (+1,000) 8,000 (+1,400) 9,300‐to‐9,900 (+1,300‐to‐1,900) Non‐Retail Employment 14,000 (+3,100) 2,0000 (+6,000) 25,300‐to‐33,000 (+5,300‐to‐13,000) Population 35,900 (+4,750) 44,200 (+8,350) 54,200‐to‐57,400 (+10,000‐to‐13,200)

• 3. Existing and Proposed Land Uses
• The study has incorporated

all planned developments within the City. South and West:

• Mostly residential

developments. North and East:

• Mostly business and

industrial developments.

• A phasing strategy was

developed for each growth area.

• Consultation was

undertaken with development proponents and City staff.

City of Leduc IDP (2014) Woodbend OP (2016) 65th Avenue West AVS (2015) Deer Valley ASP (2008) Westhaven ASP (2002) Suntree ASP (2013) Brightwell ASP (2014) Windrose ASP (1999) Blackstone ASP (2014) Southfork ASP (2014) Meadowview/Tribute SE Leduc ASP (2014) Robinson ASP (2013) Emery and Eaton Concept Plan (2016) Rolleyview & Blackgold NE SE 2549-25-W4 ASP (2001) Lakeside Industrial Park ASP (2014) Harvest Industrial Park ASP (2010) Leduc Energy Park Concept Plan (2016) Cathton Farm ASP (2013) Saurahb Park Outline Plan (2006) Sawridge Business Park ASP (2013) West Area ASP (2016)

QE II Corridor

50th Ave West

2018-05-08 4

• 3. Existing and Proposed Developments

WEST DEVELOPMENTS West Area & Woodbend

• Four-quarter sections: 700

acres

• low-density residential with

higher densities closer to the 65th Ave West corridor.

• Commercial and institutional

land uses are located closer to 50th Avenue.

• Additional plans have been

recently developed for the quarter section north of 50th Ave (Woodbend). Blackstone & Brightwell

• 300 acre residential

development,

• south of 50th Ave, east and

west of Grant McEwan Blvd. 65th AVENUE PROPOSED DEVELOPMENT (City Lands)

• South of 65th Avenue and west of Hwy 2: 500 acres.
• Commercial, Public/Semi Public and Residential land uses are compatible with noise contour data.
• Development focus will be towards aerospace and aviation, life sciences, transportation and

logistics.

• Integration with Edmonton International Airport initiatives.
• Intended to work in concert with the 65th Avenue West corridor.

EAST DEVELOPMENTS Sawridge Business Park, Harvest Industrial Park and Lakeside Industrial

• North of Telford Lake: 550 acres.
• Mostly business employment and

industrial development with green space protected. Telford Lake Southern District

• East, between Telford Lake & City

boundary: 500 acres.

• Hub for transportation & logistics,

agri-business and other commercial/industrial land uses. Eaton and Emery

• South of Rollyview Road and east
• f C.W. Gaetz Blvd: 160 acres
• Residential, commercial and

business developments. NORTH-EAST DEVELOPMENTS Saurahb Park, Cathton-Farm and Leduc Energy Park

• Area: 900 acres with developments along, and

west of, 39th Street.

• Includes area N of 65th Avenue, W of Range

Road 250, and S of Airport Road.

• Largely employment and industrial

developments with commercial land uses.

• Some development has already taken place

within Saurahb Park and Cathton-Farm. SOUTH-EAST DEVELOPMENTS Southfork

• West of Hwy 2A and east of Hwy 2: 500 acres.

Meadowview/Tribute

• East of Hwy 2A, south of Rollyview Road and

west of C.W. Gaetz Road: 300 acres. Robinson

• South of Rollyview Road and east of C.W. Gaetz

Road: 150 acres. + 4,000 acres Development Potential identified 5/8/2018

• 4. Existing Transit Routes and Ridership

Park & Ride

Transit boardings has almost tripled: From 33,100 riders in 2011 to 90,500 in 2017.

Route 1 (red) terminates at Century Park LRT Station in Edmonton Leduc Transit Ridership Distribution

Route 1: 70.0% Route 2: 14.1% Route 4: 7.8% Route 3: 6.4% Route 5: 1.7%

All weekday routes provide 30 minute service

• frequency. Service is provided by three 40-foot

buses and four 28-foot buses. Leduc Assisted Transportation Services (LATS) also provides daily service to seniors and adults with cognitive/physical disabilities on an as-required basis.

2018-05-08 5

5/8/2018

• 4. Future Transit Initiatives

Goal: Explore the possible development of a Transit Corridor (TC) to/from Leduc’s west side and identify potential alignments. Benefits: Develop a stronger synergy between transit and land use by encouraging Transit Oriented Developments (TOD’s). Background: Relevant Studies & Plans

• Edmonton International Airport Master Plan 2010-2035

(2010)

• Aerotropolis Integrated Land Use Compatibility Plan (2011)
• City of Leduc Municipal Plan (2012)
• City of Leduc Transportation Master Plan (2013)
• Alberta Aerotropolis Viability Study (2015)
• Queen Elisabeth II and 65th Avenue [Leduc] Interchange

Functional Planning Study (2016)

Potential rapid transit alignments into west Leduc.

“A”: Grand MacEwan Boulevard “B”: West periphery (Deer Valley, West Haven

and Suntree Estates)

“C”: Central (integrated within NW 33, Crystal Creek,

Woodbend and SW28, NW21 communities)

“D”: 74th Street Proposed Potential Options: 4 corridors were assessed

5/8/2018

• 4. Transit Corridor Alternatives

Transit Corridor (RTC) Extension Options PROs & CONs based on:

• Existing and Future Conditions
• City of Edmonton Transit Oriented Development Guidelines (2012)

A: Grand MacEwan Boulevard

Optimum catchment area for RTC, equidistant from the western city limit and the QEII Corridor. Existing development (single family residential dwellings along curvilinear cul-de-sac neighborhood street and backyards or side yards facing the corridor) does not support the ridership required. Significant redevelopment would be required to support increased transit ridership. Parking Management Plan would be required.

B: West periphery (Deer Valley, West Haven

and Suntree Estates)

Opportunities to develop compact mixed-use TOD at strategic locations. Amendments to ASP’s would be required for future developments to the east side of the corridor. Re-development along this alignment is very unlikely as these communities are relatively new. Parking management may be required.

C: Central (Integrated within NW 33, Crystal

Creek, Woodbend and SW28, NW21 communities)

The area is next to be developed. Limited opportunity to amend the existing ASP’s and outline plans. The RTC would serve the entire west community. Consistent with the conceptual landuse as presented in the Aerotropolis integrated land use compatibility plan. Opportunity to consider parki’n’ride stations to increase ridership.

D: 74 Street - PREFERRED -

These lands are currently underdeveloped. Opportunity to amend the existing MDP and ASPs to conform with and support the establishment of a future RPT. Planned urban uses on the west side of the corridor (County land). Urban/Rural interface remains to be determined. Current ASPs propose primary residential. Opportunities for significant intermunicipal planning and development coordination.

2018-05-08 6

5/8/2018

• 5. Multi-Way Pathway System

Multi-Way Path Lengths Primary Path: ~55km Secondary Path: ~8 km Nature Trail: ~1 km

• Primary Path: 3.0 m

wide, asphalt. Cleared of snow in winter.

• Secondary Path: 1.8 m

wide, asphalt or concrete.

• Nature Trail: Width

varies upon location and type, typically gravel.

5/8/2018

• 6. Existing Heavy Vehicle Routes
• Heavy vehicle truck routes are designated by the City of Leduc
• Heavy vehicles must follow the most direct and practical way from the nearest truck route to their

destination.

New 65th Ave Phase 1

• East-west QE II Crossing

via new 50th Street twinned bridge

• New Airport Perimeter

Road corridor

• SB QE II Access via

SB On-Ramp Short-Term: Heavy Vehicle Route Network 2018 Heavy Vehicle Route Network QE II Corridor

50th Avenue

QE II Corridor

50th Avenue Rollyview Road 65th Ave East Rollyview Road 65th Ave East

2018-05-08 7

5/8/2018

• 6. Existing & Proposed Heavy Vehicle Routes

Long Term: Heavy Vehicle Route Network Ultimate Term: Heavy Vehicle Route Network

Heavy Vehicle Route Design Goals:

• Remove Trucks from CBD and Residential Neighborhoods;
• Provide congestion-free, continuous, and direct Heavy Vehicle Routes; and
• Connect industrial areas and activity centers with Hwy 2 / future Terwillegar South Extension

New 65th Ave Interchange (Phase 2)

• Direct QE II Crossing
• Access to new 65th Ave West

Corridor New 74th Street

• North-South Option
• Adjacent to agricultural land

Remove Black Gold East/46th Street Spine Road

• Direct connection

to Industrial Developments Realigned Hwy 39

• Continuous East-West Corridor

from Industrial to By-pass SE Boundary Road

• South City Bypass
• Access to future South Terwilegar

Remove 50th Street, Rollyview Road & Old Hwy 2A if interchange relocated Remove 74th Street & 50th Ave to the west

QE II Corridor

50th Avenue

QE II Corridor

Remove 50th St SB & 50th Ave WB at time of new 65th Avenue Interchange (Phase 2) Spine Road

• Alternative to

Rollyview Road

• Direct Access

ffrom/to Hwy 2A 50th Avenue

Afternoon Peak Hour (2017)

• 7. Existing (2017) Travel Demand

Morning Peak Hour (2017)

QE II Corridor

50th Avenue

QE II Corridor

50th Avenue

Current Problem Areas

• 50th Ave NB On-Ramp (AM)
• 50th Ave SB Off-Ramp (PM)
• 50th Ave EB (AM)
• 50th Ave WB (PM)
• QE II NB (AM)
• QE II SB (PM)
• 50th Street
• Hwy 2A NB On-Ramp (AM)
• Hwy 2A SB Off Ramp (PM)

2018-05-08 8

• 7. What if Nothing is Done for 30 years?

Morning Peak Hour (Long Term) Afternoon Peak Hour (Long Term)

QE II Corridor

50th Avenue

QE II Corridor

50th Avenue

Slow Slow

5/8/2018

• Transit Infrastructure must be improved
• Larger Network-wide Infrastructure is required
• Hwy 2 II Widening (Core & Collector Lanes)
• Direct Access Ramps at Airport Road Interchange
• New Expanded Hwy 2A interchange
• Terwillegar South Extension
• 65th Avenue Interchange (Phase I and II)
• Parallel North-South Corridors
• Spine Road South Extension to SE Boundary Road
• Airport Perimeter Road to 65th Avenue
• Municipal Development Initiatives
• 74th Street
• Grant MacEwan Widening
• Black Gold Drive Widening
• SE & SW Boundary Roads
• 65th Avenue East and West
• 43/45th Street Widening
• Airport Road: Additional widening
• 7. Infrastructure Required

2018-05-08 9

• 7. Long Term: Improvements In-Place

Morning Peak Hour Afternoon Peak Hour

QE II Corridor

50th Avenue

QE II Corridor

50th Avenue

Slow Slow

QE II Corridor

50th Avenue 65th Avenue East 65th Avenue West Spine Road Black Gold Drive Rollyview Road Grant MacEwan Blvd 50th street

• 7. Roadway Classification

2018 City of Leduc Transportation Network and Roadway Classification

The “Existing” City of Leduc Network is comprised of:

• 55 lane-km of Collector Roadways
• lower speed corridors
• connect neighbourhoods with

higher capacity arterials

• Connections to local streets and
• ther collectors;
• 120 lane-km of Arterial Roadways
• accommodate higher traffic

volumes

• connects neighborhoods
• connects to major Highway

corridors

• limited access is provided from

private lots onto arterials

2018-05-08 10

• 7. Long Term: Future Roadway Network

The Long Term Network would see: + 75 lane-km of New Arterial Roadways + 70 lane-km of New Collector Roadways;

Inter-municipal/other agency projects include.

• QE II Realignment, widened collector-new

core lanes.

• New 65th Avenue Interchange (Phase 1 and 2)
• New 50th Avenue Interchange
• Improved Airport Road Interchange
• Spine Road South Extension (to Rollyview Road)

Municipal Projects Include.

• New 65th Avenue West Corridor
• Grant MacEwan North and South Extension
• Southwest Boundary Road
• 74th Street Corridor (between 65th Ave West and

Southwest Boundary Road)

QE II Corridor

50th Avenue 65th Avenue East 65th Avenue West Spine Road Black Gold Drive Rollyview Road Grant MacEwan Blvd 50th street 74th Street 34th Street Southwest Boundary Road Southeast Boundary Road

Future City of Leduc Transportation Network and Roadway Classification Map

• 7. Ultimate Roadway Network

The following new infrastructure is envisioned.

• Hwy 2 II Widening
• Direct Access Ramps

at Airport Road Interchange

• New Hwy 2A

interchange

• Terwillegar South

Extension

• Spine Road South

Extension to SE Boundary Road

QE II Corridor 65th Avenue West 65th Avenue East 50th Avenue Spine Road 74th Street 74th Street Conceptual Terwillegar (170th Street) South Extension Spine Road Extension

Ultimate City of Leduc Transportation Network and Roadway Classification Map

Alberta Transportation \ Other

2018-05-08 11

5/8/2018

• 8. Implementation Plan

QE II Corridor 50th Avenue 65th Avenue East 65th Avenue West Spine Road Southeast Boundary Road Grant MacEwan Black Gold Drive

Short Term Improvements

(<10 years)

• 65th Ave / 50th Street Twinned Bridge (Phase I);
• New 65th Ave West Corridor
• Extend 65th Ave East to Spine Road;
• Extend Spine Road to South of 65th Ave East;
• Grant MacEwan Dr. extension to north;
• New Southeast Boundary Road;
• Coady Blvd extension to new Southeast

Boundary Road;

• Widen Grant MacEwan south of 50th Ave to

Black Gold;

• Widened 43rd Street to 4 lanes from 82nd Ave to

south of Allard;

• 43rd & 45th Street Traffic Signal;
• 50th Street & Bella Coola Traffic Signal
• 50th Street & Hwy 2A SB-RT Improvement
• Grant MacEwan & Suntree Traffic Signal

5/8/2018

• 8. Implementation Plan

QE II Corridor 50th Avenue 65th Avenue East 65th Avenue West Spine Road Southeast Boundary Road Grant MacEwan Black Gold Drive

Medium Term Improvements

(10-to-20 years)

• 65th Interchange (Phase II);
• 65th Ave Corridor extended west to 74th

Street to form continuous east-west connection;

• Extend Spine Road to Rollyview Road;
• Widen 65th Ave East to 6 lanes to the CP Rail

Tracks, 4 lanes to Spine Road

• Widen 65th Ave West to 4 lanes from the QE

II to Grant MacEwan;

• Grant MacEwan Dr. Widening from 65th Ave

to Bridgeport Gate

• A 2-lane 74th Street to complete a second

north-south connection between 65th Ave and Grant MacEwan;

• Grant MacEwan & Bridgeport Gate Traffic

Signal;

• 50th Ave SB Off Ramp Twinning

2018-05-08 12

5/8/2018

• 8. Implementation Plan

QE II Corridor 50th Avenue 65th Avenue East 65th Avenue West Spine Road Southeast Boundary Road Grant MacEwan Black Gold Drive Rollyview Road

Long Term Improvements

(20-to-30 years)

• New Southwest Boundary Road between 74th

Street and the Blackstone Development;

• 74th Street extension southwards to new

Southwest Boundary Road;

• Grant MacEwan extension to new Southwest

Boundary Road;

• Grant MacEwan widening to complete 4-lane

corridor from Suntree to 65th Ave West;

• Widened 50th Ave corridor from Bridgeport

Crossing to 74th Street;

• Widened 50th Street corridor
• Widened Rollyview Road corridor;
• Grant MacEwan & Spruce Blvd Traffic Signal
• SE Boundary Rd & Caledonia Traffic Signal
• Airport Road Improvements

Interchange Improvements

• 50th Ave Improvements;
• Airport Road Interchange Improvements

5/8/2018

• 9. Functional Design of Corridors

42nd/43rd Street Grant MacEwan Blvd 65th Avenue West 65th Avenue East Black Gold Dr. S.E. Boundary Rd S.W. Boundary Rd

Solution Criteria

Transportation Service

• Assure that the transportation network can safely and

efficiently move both people and goods.

• Assure that the transportation network provides enhanced

connectivity within the City and to/from surrounding areas.

• Assure that the transportation system promote a variety of

travel choices. Natural Environment

• Minimize impacts to natural environment areas, i.e. local

streams and aquatic resources;

• Minimize noise and air quality impacts

Policy Environment

• Assure Compatibility with Provincial Plans
• Assure Compatibility with County Plans
• Assure Compatibility with Municipal growth plans.

Socio-Economic Environment

• Minimize property requirements
• Supports the existing and potential business community
• Maximize land development potential
• Provide opportunities for planned future growth

Financial Implications

• Minimize capital and maintenance costs,
• Minimize effect to the municipal tax base.

Objectives

• Define ultimate requirements for each required corridor.
• Avoid expensive future retrofits.
• Provide for sequential staging of the corridors.
• Residents and stakeholders will have the opportunity to

familiarize and comment on the TMP. QE II Corridor QE II Corridor

2018-05-08 13

Current Configuration

• 2-way, 2-lane, rural cross-section

Future Improvement

• 2-way, 4-lane, rural cross-section
• 6m painted median
• 2 traffic signal controlled intersections

(Allard Avenue and 43rd Street)

Staging

• Study area length: 1.7Km
• Single stage, with widening of the existing

corridor to the east side

Triggers

• City of Leduc East Industrial Growth (Saurahb Park,

Cathton Farms, Leduc Energy Park)

• Leduc County Industrial Growth (Saunders lake)
• North-South demand adjacent to QE II

5/8/2018

• 9. Functional Design of Corridors

43rd Street Corridor

Allard Avenue to 82nd Avenue

 To QE II Airport Rd 43rd Street

Construction Estimate: $ 6.7M Current Configuration

• 2-way, 2-lane Roadway
• rural configuration south of 50th

Ave., urban configuration north of 50th Ave. (2.2 km)

NEW 65th Avenue West

5/8/2018

• 9. Functional Design of Corridors

Grant MacEwan Boulevard North

65th Avenue West to Black Gold Drive

Triggers Construction Estimate: $ 21.6M

• development of 65th Ave Phase 1 & 2;
• 65th Ave West Developments (Aerotropolis, West Area)

Future Improvement

• 2-way, 4-lane divided roadway
• 6m raised median
• urban configuration
• Traffic signal controlled intersections

(50th Ave., Black Gold Dr.)

Staging

• widening of the existing

corridor both sides

2018-05-08 14

Current Configuration

• 2-way, 2-lane Roadway
• rural configuration south of 50th Ave., urban

configuration north of 50th Ave.

Future Improvement

• 2-way, 4-lane undivided roadway
• urban cross-section
• Traffic signal control (Suntree Blvd, Spruce Blvd, 38th Ave, SW

Boundary Road)

5/8/2018

• 9. Functional Design of Corridors

Grant MacEwan Boulevard South

Black Gold Drive to SW Boundary Road

Staging

widening of the existing corridor west side

Triggers

• Residential Developments to the South

(Blackstone, Brightwell)

5/8/2018

• 9. Functional Design of Corridors

Current Configuration

• 2-way, 2-lane Street

Future Improvement

• 2-way, 4-lane Street
• 6m raised median
• Urban cross-section
• Traffic signal control

(Grant MacEwan (Completed), Alton Drive (Completed), and 50th Street Modifications)

Staging

• Roadway widened on south side

Black Gold Drive Corridor (1/2)

50th Street & Black Gold Drive ONLY ONE STAGE: WIDENING TO THE SOUTH

Triggers

• East-West Leduc traffic growth
• Development of West Residential lands

Accommodating the Future QE II Realignment

Construction Estimate: $ 8.8M

2018-05-08 15

5/8/2018

• 9. Functional Design of Corridors

Black Gold Drive (2/2)

Option 1: 4-lane undivided.

First Stage: UNDER Existing QEII Corridor

(a detailed survey is required to choose the best configuration)

Second Stage: UNDER New QE II Corridor

• QE II realignment will require new Black Gold Drive bridges. An

upgrade to a 4-lane urban divided configuration is possible.

Black Gold Dr./ 50th Ave Intersection Improvements

Option 2: Widening the intersection to the

• South. This would

require CP RoW.

Provision for Widening Under QE II

• 4-lane urban cross-section (Stage 1 – detailed survey req’d)
• QE II ultimate realignment and new bridges

4-lane urban cross-section (Stage 2)

50th Avenue Intersection Improvement

• 2-way, 4-lane street
• 6m raised median
• urban cross-section
• Widening to south requiring CP Rail lands

Current Configuration

• No existing roadway

Future Improvement

• 2-way, 4-lane Arterial Rd
• Urban divided configuration
• 6m raised median
• 3m Multi-Use Trail on the north side
• Provision for noise protection (berm/wall)
• Traffic signal controlled intersections
• (HWY 2A, Caledonia Dr., and Coady Blvd)

5/8/2018

• 9. Functional Design of Corridors

South East Boundary Road Corridor

Hwy 2A to Coady Boulevard (1.0km)

Potential Staging

• Hwy 2A to Caledonia (1st Priority)
• Caledonia to Coady Blvd. (2nd Priority)

Triggers

• SE Residential Developments

 To Highway 2A To CW Gaetz and Future Spine Road 

Construction Estimate: $ 8.3M

(Meadowview/Tribute, Robinson, Eaton & Emery)

2018-05-08 16

Current Configuration

• No existing roadway

Future Improvement

• Study Area Length: 0.9 Km
• 2-way, 4-lane Arterial Roadway
• Provision for future traffic signal

(Coady Blvd and CW Gaetz Rd.)

Triggers

• Southeast Residential Developments

(Robinson, Eaton & Emery)

• Ultimate Truck Route to connect to Spine

Road South Extension

Staging

• Coady to CW. Gaetz and beyond (Later Stage)

5/8/2018

• 9. Functional Design of Corridors

South East Boundary Road Corridor:

Coady Boulevard to 290m E of Robinson (1.3km)

To Future Spine Road   To Highway 2A

Construction Estimate: $ 7.6M

Access subject to ongoing neighbourhood planning ROW for future Hwy 2A ROW for future Hwy 2A

5/8/2018

• 9. Functional Design of Corridors

South West Boundary Road Corridor

74th Street to Grant MacEwan (1.6Km)

Current Configuration - No existing Roadway

Bridge or culvert

• Southwest Residential Developments

(Blackstone, Brightwell, West Area)

• Grant MacEwan South Extension
• Hwy 2A Westerly Extension

Construction Estimate: $ 11.0M

Triggers

Provision for possible Hwy 2A West Extension

Future Improvement

• 2-way, 2-lane undivided local road
• Rural configuration
• 3m Multi-Use Trail along South

side

• Includes two signalized

intersections (Grant MacEwan & 74th Street)

• Includes Bridge or culvert

2018-05-08 17

5/8/2018

• 9. Functional Design of Corridors

Current Configuration

• 2-way, 2-lane Gravel Roadway

Future Improvement

• 2-way, 6-lane Rural Arterial Roadway
• 6m raised median
• 3m Multi-Use Trail along the south side
• Traffic Signal Control at

Discovery Way and Grant MacEwan

Triggers

• Phase 1 & 2 of 65th Ave. Interchange
• 65th Avenue Aerotropolis Development to

the South, West Area Development;

• Future EIA Development to the north

65th West Avenue Corridor

200m E of Discover Way to 120m E of 74th Street

Possible Staging

• 1. 2-Lane R/D (N) from Grant MacEwan to 54th St.
• 2. 2-Lane R/D (S) from 74th St. to Grant MacEwan.
• 3. 4-Lane R/D (N) from Grant MacEwan to 54th St.
• 4. 4-Lane R/D (N) from 74th St. to Grant MacEwan.
• 5. 6-lane U/D from Grant MacEwan to 54th St.
• 6. 6-lane U/D from 74th St. to Grant MacEwan.

65th Avenue West Grant MacEwan

Construction Estimate: $ 24.1M

5/8/2018

• 9. Functional Design of Corridors

65th East Avenue Corridor

Staging

• Stage I: 2 lanes from 39th to Spine Rd.
• Stage II: 2-lane to 4-lane R/UD
• Stage III : 4-lane R/UD to 6-lane Urban/D

Current Configuration

• 2-way, 4-lane west of 45th Street
• 2-way, 2-lane from E of 45th St. to 39th St.
• 2-way, 2-lane gravel road from 39th Street

towards Spine road (RR250)

Construction Estimate: $ 19M

• Major Industrial Developments (Telford Lake, Saunders Lake)
• Phase 1 & Phase 2 of 65th Avenue Interchange
• Spine Road South Extension from Airport Road thru to SE Boundary Rd

Triggers

65th Avenue East

2018-05-08 18

• 10. TMP Policy Statements

Environmental Sustainability

The City should:

• Provide environmentally

sustainable modes of transportation within a multi- modal transportation system that would include provision for high quality active transportation facilities, and transit services;

• Provide opportunities, in

partnership with community

• rganization, for meaningful

public participation regarding the City’s guiding principles and indicators for environmental sustainability as it concerns transportation and transit planning, infrastructure and services.

Local Economic Development

The City should foster “local” economic development initiatives through:

• Undertaking initiatives that ensure

that all areas are accessible by all modes of transportation;

• Assuring that new developments

having access to municipal roadways are well-planned in terms

• f adequate on-site parking,

loading/unloading facilities and on- site circulation routes; and

• Assuring that an adequate supply
• f on-street parking is provided for

those areas where off-street parking cannot be provided such as the downtown core.

High Quality, Safe and Accessible Public Open Spaces

The City, in concert with its “High Quality, Safe and Accessible Public Open Spaces” policies, should:

• Ensure that all modes of

transport, including roadways, the Multiway network, pedestrian and cycling facilities (including links to transit routes) are treated as an integral part of Leduc’s transportation system, with high priority given to visibility, accessibility, safety, maintenance, snow clearing / ice control and lighting.

• Strategic Policy Statements are intended to be used as guidelines for municipal planning and work

in concert with the Municipal Development Plan Policy.

• Sections of the proposed policy statements are provided as examples below.
• 11. Where Do We Go From Here?

Contacts:

• Arthur Gordon, Principal, 403-252-9303, agordon@castleglenn.ca
• Jake Berube, Transportation Specialist, 403-252-9303, jberube@castleglenn.ca
• Collect and Address Public Comments, Questions an Concerns.
• Finalize study findings, conclusions and recommendations.

Thank you!

• For your interest and involvement in the study;
• For your comments, concerns and issues raised; and
• For the opportunity to familiarize you with the mandate and scope of this

project.
