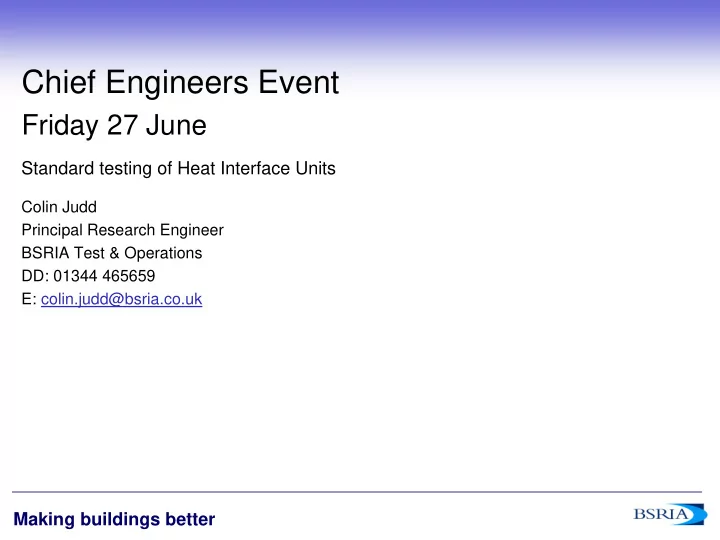

Chief Engineers Event

Friday 27 June

Standard testing of Heat Interface Units

Colin Judd Principal Research Engineer BSRIA Test & Operations DD: 01344 465659 E: colin.judd@bsria.co.uk

2

Making buildings better

Subjects being covered

• Laboratory based testing of HIUs
• European Standard and test method used for HIU testing
• Examples of HIU configurations
• Site based testing of HIUs
• The future of HIU testing?

Introduction

3

Making buildings better

Tests carried out

• Thermal performance – cooling, heating and domestic hot

water

• Differential pressure across primary and secondary circuits
• Plate deflection within the heat exchanger
• Power drawn by integral pump and controls
• Dead – head pressure across the integral pump

Laboratory Testing

4

Making buildings better

• Primary circuit

– Volume flow rate – Inlet temperature – Outlet temperature

• Secondary circuit

– Volume flow rate – Inlet temperature – Outlet temperature

Thermal Performance Test

HIU

5

Making buildings better

• Focuses on plate heat exchanger only
• Does not include chilled water conditions
• A range of test temperatures listed
• Multiple test points for heating and domestic hot water
• Requires primary/secondary imbalance of ≤ 3%

European Standard & Test Method

Test Standard BS EN 1148:1998

“Heat exchangers - Water to water heat exchangers for district heating - Test procedures for establishing the performance data”

6

Making buildings better

• Consist of:

– Two endplates – A set of internal plates – Primary inlet and outlet – Secondary inlet and outlet

Plate Heat Exchanger

Thermal envelope

7

Making buildings better

• HIUs can consist of:

– Multiple plate heat exchangers – Pipework – Integral pump – Expansion vessels – Two port control valves – Flow regulating valves – Thermostatic valves – Heat meters

Heat Interface Units

Thermal envelope

8

Making buildings better

European Standard & Test Method

BSRIA test method

• Bespoke document
• Applies the relevant sections of BS EN 1148
• Specifies all the test points
• Covers additional tests

9

Making buildings better

• Single plate heat exchanger

– Space cooling only – Space heating only

• Single plate heat exchanger

– Two-port control valve

• Hot water cylinder
• Space heating

HIU Configurations

• Twin plate heat exchanger

– Common primary – Two-port control valve – Space heating – Domestic hot water

• Cylinder
• Instantaneous

10

Making buildings better

HIU Configurations

11

Making buildings better

• LTHW and CHW in one skid

– 20+ floors – One HIU on each floor

3 m

Plantroom HIUs

12

Making buildings better

• Same principal as lab based testing
• Challenges

– Accessibility – Installing sensors – Achieving a load – Achieving stable conditions

Site Based Testing

13

Making buildings better

HIU

5.0 5.5 6.0 6.5 7.0 7.5 8.0 8.5 9.0 9.5 10.0 10.5 11.0 11.5 12.0 12.5 13.0 13.5 14.0 10:25 10:30 10:35 10:40 10:45 10:50 10:55 11:00 Temperature (°C) Time Primary inlet Primary outlet Secondary inlet Secondary outlet

13.5°C 10.5°C 7.5°C ∆T = 3.0°C ∆T = 3.0°C

Here is a little quiz before we break for the Q and A session Site Based Testing

14

Making buildings better

• Where does the industry stand on HIU testing in the future?
• Are there any additional requirements for HIU testing?
• Is there a need for an industry agreed Standard?

The Future
