CHICAGO PLAN COMMISSION Department of Planning and Development 2653 N CLARK STREET AND 537 W DRUMMOND PLACE 43 RD WARD THE NHP FOUNDATION 07/16/2020 Community Area Snap Shot COMMUNITY AREA INFORMATION: Lincoln Park Community Area

slide-1
SLIDE 1

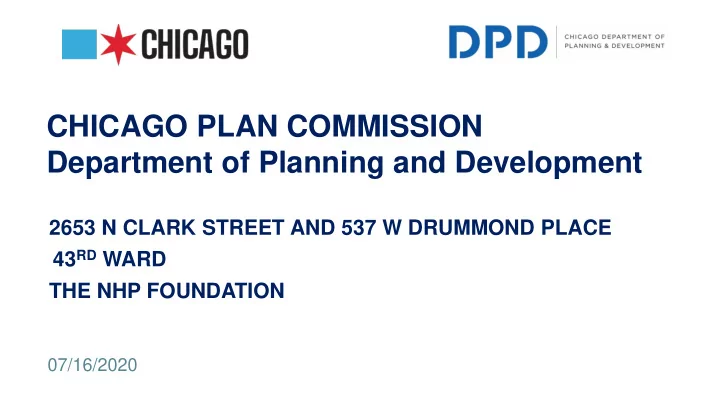

CHICAGO PLAN COMMISSION Department of Planning and Development

2653 N CLARK STREET AND 537 W DRUMMOND PLACE

43RD WARD

THE NHP FOUNDATION

07/16/2020

slide-2
SLIDE 2

Community Area Snap Shot

COMMUNITY AREA INFORMATION:

  • Lincoln Park Community Area
  • Lincoln Park Total Population: 67,710
  • Hotel - Built in 1906 as a 2000+ Seat Theatre and 3-Story, 64-room Hotel
  • Theatre razed in 1960s
  • Hotel remained as Single Room Occupancy (SRO) Hotel
  • Median Income $99,685
  • TOD Location with access to 56% more jobs than average TOD site
  • Less than 10% of the population lives in poverty
  • Several new mixed-use market rate developments within 2 blocks of the

Covent.

  • There is no new or renovated affordable housing proposed or developed

within a ½ mile of the Covent.

2

slide-3
SLIDE 3
  • North Planning Region
  • Lincoln Park Community Area – Demographic Information:
  • 67,710 total population with 32,336 households and an average

household size of 2.1

  • The majority (44.4%) of the population is between 20-34
  • 48.6% of the population holds a Bachelor’s Degree and 34.9% a

Graduate or Professional Degree

  • 46.4% of the population takes transit to work

Planning Context

slide-4
SLIDE 4

4

LAND USE CONTEXT PLAN SITE

slide-5
SLIDE 5

5

SITE CONTEXT PLAN SITE

slide-6
SLIDE 6

Community Area Snap Shot

6

Mid-rise mixed- use market rate prevalence

slide-7
SLIDE 7

7

AERIAL VIEW FROM WEST DIRECTION

slide-8
SLIDE 8

AERIAL VIEW FROM SOUTHWEST DIRECTION

slide-9
SLIDE 9

CATALYZE

10

VIBRANT NEIGHBORHOODS ON THE SOUTH AND WEST SIDES

Austin Humboldt Park North Lawndale New City Bronzeville

(North Kenwood, Oakland, Grand Boulevard, Douglas Park) (Pullman & West Pullman) 9

Project Timeline + Community Outreach

  • Application filed November 13, 2019
  • Community meetings:
  • August 26, 2019 with Park West Community Association
  • October 2, 2019 Community-Wide Meeting
slide-10
SLIDE 10

CATALYZE

10

VIBRANT NEIGHBORHOODS ON THE SOUTH AND WEST SIDES

Austin Humboldt Park North Lawndale New City Bronzeville

(North Kenwood, Oakland, Grand Boulevard, Douglas Park) (Pullman & West Pullman) 10

PHOTO OF EXISTING STREET CONTEXT

Pedestrian Context

slide-11
SLIDE 11

11

PHOTO OF EXISTING STREET CONTEXT

Pedestrian Context

slide-12
SLIDE 12

12

Pedestrian Context

PHOTO OF EXISTING STREET CONTEXT

slide-13
SLIDE 13

13

SITE + GROUND FLOOR PLAN

slide-14
SLIDE 14

14

TYPICAL FLOOR PLAN

slide-15
SLIDE 15

15

ROOF PLAN

slide-16
SLIDE 16

16

BUILDING ELEVATION NORTH

slide-17
SLIDE 17

17

BUILDING ELEVATION EAST

slide-18
SLIDE 18

18

BUILDING ELEVATION SOUTH

slide-19
SLIDE 19

19

BUILDING ELEVATION WEST

slide-20
SLIDE 20

20

BUILDING WEST/EAST SECTION

slide-21
SLIDE 21

21

BUILDING NORTH/SOUTH SECTION

slide-22
SLIDE 22

22

FAÇADE SECTIONS

slide-23
SLIDE 23

23

TRANSPORTATION, TRAFFIC, AND PARKING

slide-24
SLIDE 24
  • The site is located in an area that is well served by a variety
  • f transportation options available from the Chicago Transit

Authority (CTA) trains and buses.

  • Divvy bike sharing docks are located immediately across the

street on Clark Street (17 docks) and to the south at Wrightwood Avenue (West) with 15 docks.

  • The traffic impact study for the proposed redevelopment of

2653 North Clark Street the Covent Hotel and Post Office parking lot shows a nominal increase in area traffic volumes that will not adversely impact area traffic conditions.

  • For pedestrian safety, accessible ramps should be installed
  • n the northwest and southwest corners of

Drummond/Lehman along with a high visibility crosswalk across Drummond Place.

  • The proposed parking supply of 52 spaces will adequately

serve the site.

24

TRAFFIC STUDY

slide-25
SLIDE 25

The project complies with Pedestrian- Oriented and Urban Design Guidelines by:

  • Creating landscaped sidewalks and

adding planted areas.

  • Activating the street front with glazing and

active uses on the ground floor.

  • Breaking the mass of the building down to

a smaller scale with metal panel reveals and brick piers.

  • Creating façade depth with masonry piers

and detailing similar to surrounding buildings.

  • Using secondary design elements to

define the podium and mark the main building entry.

25

URBAN DESIGN

slide-26
SLIDE 26

26

OPEN SPACE + LANDSCAPING

slide-27
SLIDE 27

27

BUILDING MATERIALS

slide-28
SLIDE 28

28

SUSTAINABLE DEVELOPMENT POLICY – COVENT

slide-29
SLIDE 29

29

SUSTAINABLE DEVELOPMENT POLICY – NEW CONSTRUCTION

slide-30
SLIDE 30

30

  • Stormwater Management was designed to comply with the City of Chicago 2016 Regulations

for Sewer Construction and Stormwater Management.

  • The City’s Stormwater Management Spreadsheet Tool was used to perform the calculations.
  • Stormwater management is being handled using two (2) 69” CMP that total 213.50 linear feet

and backfilled with aggregate.

  • Total volume provided is 7,028 cubic feet.
  • The system will discharge through 3” vortex restrictor.
  • Due to the limited development area and relatively high groundwater table, water quality

requirements could not be met.

  • This resulted in oversizing the stormwater detention system per City guidelines

STORMWATER MANAGEMENT ORDINANCE COMPLIANCE

slide-31
SLIDE 31

31

AFFORDABLE REQUIREMENTS ORDINANCE

  • Covent Hotel to be 100% affordable
  • 84 units in new construction building (8-unit requirement)
  • Two 1-BR units to be provided on-site
  • Fee in lieu of $132,411 per unit ($794,466 total) for

remaining 6 units that will help facilitate the Covent rehabilitation

slide-32
SLIDE 32

32

  • 420 new construction jobs
  • 7 permanent jobs
  • $49,000,000.00 development cost
  • $485,000.00 annual real estate taxes
  • Hiring goals of:
  • 26% MBE
  • 6% WBE
  • 50% City residents

ECONOMIC AND COMMUNITY BENEFITS

slide-33
SLIDE 33

CATALYZE

10

VIBRANT NEIGHBORHOODS ON THE SOUTH AND WEST SIDES

Austin Humboldt Park North Lawndale New City Bronzeville

(North Kenwood, Oakland, Grand Boulevard, Douglas Park) (Pullman & West Pullman) 33

DPD Recommendations

 The proposed planned development promotes economically beneficial development patterns that are compatible with the character of existing neighborhood;  Promotes transit, pedestrian and bicycle use, ensures accessibility for persons with disabilities and minimizes conflicts with existing traffic patterns in the vicinity, the subject site is considered a transit served location due to the proximity to the Sherian/Lake Shore Avenue Bus Corridor – specifically being within ¼ mile of a bus stop at Sheridan/Diversey;  The proposal follows Building Orientation and Massing suggestions contain in the Zoning Ordinance including bringing the proposed buildings edges up to the street frontages providing large transparent store front windows to create an active building wall adjacent to the public rights of way;  All sides and areas of the buildings that are visible to the public should be treated with materials, finishes, and architectural details that are of high-quality and appropriate for use on primary public-right-of-way-facing façade
