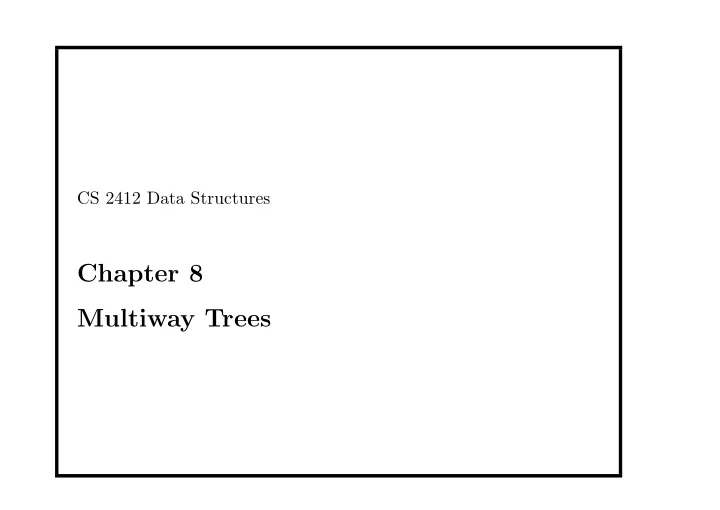

CS 2412 Data Structures

Chapter 8 Multiway Trees

slide-2
SLIDE 2

This chapter studies multiway trees. These trees can be used for external search. When searched data is big, it is not suitable to load all the data to memory. Search in high-speed memory is much faster than search in external devices (hard discs, CD etc.) The idea of external search: each time read in a block of information to the memory and decide what is the next block we should search on.

Data Structure 2015

  • R. Wei

2

slide-3
SLIDE 3

Definition An m-way tree has the following properties.

  • Each node has 0 to m subtrees.
  • A node with k < m subtrees contains k subtrees and k − 1 data

entries.

  • The keys of the data entries are ordered:

key1 ≤ key2 ≤ · · · ≤ keyk−1.

  • The key values in the first subtree (0th subtree) are all less

than key1; the key values in the ith subtrees are all greater than or equal to keyi but less than keyi+1.

  • All subtrees are themselves multiway trees.

A 2-way tree is a BST.

Data Structure 2015

  • R. Wei

3

slide-4
SLIDE 4

Data Structure 2015

  • R. Wei

4

slide-5
SLIDE 5

Data Structure 2015

  • R. Wei

5

slide-6
SLIDE 6

We also want the multisay tree to be balance. Definition A B-tree is an m-way tree with the following additional properties:

  • The root is either a leaf or it has 2 to m subtrees.
  • All internal nodes have at least ⌈m/2⌉ nonnull subtrees.
  • All leaf nodes are at the same level.
  • A leaf node has at least ⌈m/2⌉ − 1 entries.

Data Structure 2015

  • R. Wei

6

slide-7
SLIDE 7

Data Structure 2015

  • R. Wei

7

slide-8
SLIDE 8

Data structure of B-tree. The structure of m-way tree: an entry of a node contains data and a pointer to its right subtree. A node contains the first pointer to the subtree with entries less than the key of the first entry, a count

  • f the number of entries currently in the node, and an array of
  • entries. The array can be of size m.

Main operations for B-trees are: insert, delete, traverse and search.

Data Structure 2015

  • R. Wei

8

slide-9
SLIDE 9

Data Structure 2015

  • R. Wei

9

slide-10
SLIDE 10

B-tree insertion: B-tree insertion takes place at a leaf node.

  • Locate the leaf node where the data can be inserted.
  • If the node is not full (has less than m − 1 entries), insert the

data to this node.

  • If the node is full (called overflow condition), split the node

into two node. A B-tree grows from the bottom up.

Data Structure 2015

  • R. Wei

10

slide-11
SLIDE 11

Example Insert 11, 21, 14, 78, 97 to a B-tree of order 5:

Data Structure 2015

  • R. Wei

11

slide-12
SLIDE 12

The algorithm of B-tree insert:

  • If the B-tree is empty, then create the root and insert the first

entry.

  • If the B-tree is not empty, call the insert node algorithm which

finds the location, insert it and do necessary update (if

  • verflow, then split and install the median entry to the parent

etc.).

  • If the root needs to split, then create a new root.

Data Structure 2015

  • R. Wei

12

slide-13
SLIDE 13

Algorithm BTreeInsert( tree, data) if (tree empty) create new node set left subtree of node to null move data to first entry in new node set subtree of first entry to null set tree root to address of new node set number of entries to 1 else insertNode(tree, data, upEntry) end if if (tree higher) create new node move upEntry to first entry in new node set left subtree of the new node to tree set tree root to new node set number of entries to 1 end if

Data Structure 2015

  • R. Wei

13

slide-14
SLIDE 14

Data Structure 2015

  • R. Wei

14

slide-15
SLIDE 15

Data Structure 2015

  • R. Wei

15

slide-16
SLIDE 16

Algorithm searchNode(nodePtr, target) if (target < key in first entry) return 0 end if set walker to number of entries -1 loop (targer < entry key[walker]) decrement walker end loop return walker This function returns the index to entry with key ≤ target, or 0 if the key < first entry in node.

Data Structure 2015

  • R. Wei

16

slide-17
SLIDE 17

Algorithm splitNode (node, entryNdx, newEntryLow, upEntry) create new node move high entries to new node if (entryNdx < minimum entries) inset upEntry in new node end if move median data to upEntry make new node first Ptr the right subtree of median data make new node the right subtree of upEntry

Data Structure 2015

  • R. Wei

17

slide-18
SLIDE 18

Data Structure 2015

  • R. Wei

18

slide-19
SLIDE 19

Data Structure 2015

  • R. Wei

19

slide-20
SLIDE 20

Data Structure 2015

  • R. Wei

20

slide-21
SLIDE 21

Data Structure 2015

  • R. Wei

21

slide-22
SLIDE 22

B-tree deletion: B-tree deletion is a little more complicated than insertion.

  • Search for the data to be deleted. If can’t find, then print an

error message and quit.

  • If the data is found, then delete the data. Two cases need to

consider: the data at leaf node or non-leaf node.

  • If an underflow (a leaf node has less than ⌈m/2⌉ − 1 entries or

an internal node has less than ⌈m/2⌉ nonull subtrees) occurred after the data deletion, then adjustment must be done.

Data Structure 2015

  • R. Wei

22

slide-23
SLIDE 23

The following algorithm delete an entry. Some situations are considered: empty tree, the root is empty after deletion. Leave the details about how to treat underflow to algorithm delete. Algorithm BTreeDelete (tree, dltKey) if (tree empty) return false end if delete (tree, dltKey, success) if (success) if(tree number of entries zero) set tree to left subtree end if end if return success

Data Structure 2015

  • R. Wei

23

slide-24
SLIDE 24

Data Structure 2015

  • R. Wei

24

slide-25
SLIDE 25

6 end if 6 end if 7 return underflow end delete

Data Structure 2015

  • R. Wei

25

slide-26
SLIDE 26

The following algorithm deletes the entry from a leaf node and returns the value of underflow. Algorithm deleteEntry (node, entryNdx) delete entry at entryNdx from node shift entries after delete to left if (number of entries less minimum, entries) return true else retrun false end if

Data Structure 2015

  • R. Wei

26

slide-27
SLIDE 27

When deleting an entry in an internal node, we must find substitute data. We use the immediate predecessor, which is the largest node on the left subtree of the entry to be deleted. In the subtree, the largest node is the rightmost subtree. Algorithm deleteMid (node, entryNdx, subtree) if (no rightmost subtree) //predecessor in a leaf node move predecessor’s data to deleted entry set underflow if node entries less minimum else set underflow to deleteMid(node, entryNdx, right subtree) if (underflow) set underflow to reFlow(root, entryNdx) end if end if return underflow

Data Structure 2015

  • R. Wei

27

slide-28
SLIDE 28

When a node is underflow, we need to do some adjustment which we call reflow. Suppose one of the subtree contains unerflow node, two situations need to consider:

  • If the other subtree has more entries than the minimum

number, than we just move some entry to the underflow node, which we call it balance.

  • If the other subtree only has minimum number of entries, then

we need to combine two node to one node together with the root entry. This is called combine.

Data Structure 2015

  • R. Wei

28

slide-29
SLIDE 29

Algorithm reflow (root, entryNdx) if (rightTree entries greater minimum entries) borrowRight (root, entryNdx, leftTree, rightTree) set underflow to false else if (leftTree entries greater minimum entries) borrowLeft (root, entryNdx, leftTree, rightTree) set underflow to false else combine (root, entryNdx, leftTree, rightTree) if (root numEntries less minimum entries) set underflow to true else set underflow to false end if end if return underflow

Data Structure 2015

  • R. Wei

29

slide-30
SLIDE 30

Data Structure 2015

  • R. Wei

30

slide-31
SLIDE 31

Algorithm borrowLeft(root, entryNdx, left, right) shift all elements one to the right move root data to first entry in right move right first pointer to right subtree of first entry move left last right pointer to right first pointer move left last entry data to root at entryNdx In above algorithm, when an entry is moved the according pointers are also adjusted. (To see that, consider the underflow node is not a leaf node). The algorithm of borrowRight is similar.

Data Structure 2015

  • R. Wei

31

slide-32
SLIDE 32

Data Structure 2015

  • R. Wei

32

slide-33
SLIDE 33

Algorithm combine (root, entryNdx, left, right) move parent entry to first open entry in left subtree move right subtree first subtree to moved parent left subtree move entries from right subtree to end of left subtree shift root data to left

Data Structure 2015

  • R. Wei

33

slide-34
SLIDE 34

Example

Data Structure 2015

  • R. Wei

34

slide-35
SLIDE 35

Data Structure 2015

  • R. Wei

35

slide-36
SLIDE 36

Similar to BST, the traversal of a B-tree uses inorder. The difference is that except of leaf nodes, the data in a node is not processed at the same time.

Data Structure 2015

  • R. Wei

36

slide-37
SLIDE 37

Algorithm BTreeTraversal (root) set scanCount to 0 set nextSubTree to root left subtree loop (scanCount <= number of entries) if (nextSubTree not null) BTreeTraversal (nextSubTree) end if if (ScanCount < number of entries) process (entry[scanCount]) set nextSubTree to current entry right subtree end if increment scanount end loop

Data Structure 2015

  • R. Wei

37

slide-38
SLIDE 38

The B-tree search algorithm follow the similar idea of search a binary tree. But we need find the node and then find the entry in that node. In this case, we need to return both the node and the location of the entry in that node. Recursive method are used for finding the node. At the node found, compare from the last entry to the first entry.

Data Structure 2015

  • R. Wei

38

slide-39
SLIDE 39

Data Structure 2015

  • R. Wei

39

slide-40
SLIDE 40

Data Structure 2015

  • R. Wei

40

slide-41
SLIDE 41

typedef struct { void* dataPtr; struct node* rightPtr; } ENTRY; typedef struct node { struct node* firstPtr; int numEntries; ENTRY entries[ORDER - 1]; } NODE; typedef struct { int count; NODE* root; int (*compare) (void* argu1, void* argu2); } BTREE;

Data Structure 2015

  • R. Wei

41

slide-42
SLIDE 42

void* BTree_Search (BTREE* tree, void* targetPtr) { if (tree->root) return _search (tree, targetPtr, tree->root); else return NULL; } // BTree_Search

Data Structure 2015

  • R. Wei

42

slide-43
SLIDE 43

void* _search (BTREE* tree, void* targetPtr, NODE* root) { int entryNo; if (!root) return NULL; if (tree->compare(targetPtr, root->entries[0].dataPtr) < 0) return _search (tree, targetPtr, root->firstPtr); entryNo = root->numEntries - 1; while (tree->compare(targetPtr, root->entries[entryNo].dataPtr) < 0) entryNo--; if (tree->compare(targetPtr, root->entries[entryNo].dataPtr) == 0) return (root->entries[entryNo].dataPtr); return (_search (tree, targetPtr, root->entries[entryNo].rightPtr)); } // _search

Data Structure 2015

  • R. Wei

43

slide-44
SLIDE 44

void BTree_Traverse (BTREE* tree, void (*process) (void* dataPtr)) { // Statements if (tree->root) _traverse (tree->root, process); return; } // end BTree_Traverse

Data Structure 2015

  • R. Wei

44

slide-45
SLIDE 45

void _traverse (NODE* root, void (*process) (void* dataPtr)) { int scanCount; NODE* ptr; scanCount = 0; ptr = root->firstPtr; while (scanCount <= root->numEntries) { if (ptr) _traverse (ptr, process); // Subtree processed -- get next entry if (scanCount < root->numEntries) { process (root->entries[scanCount].dataPtr); ptr = root->entries[scanCount].rightPtr; } // if scanCount scanCount++; } // if return; } // _traverse

Data Structure 2015

  • R. Wei

45

slide-46
SLIDE 46

void BTree_Insert (BTREE* tree, void* dataInPtr) { bool taller; NODE* newPtr; ENTRY upEntry; if (tree->root == NULL) // Empty Tree. Insert first node if (newPtr = (NODE*)malloc(sizeof (NODE))) { newPtr->firstPtr = NULL; newPtr->numEntries = 1; newPtr->entries[0].dataPtr = dataInPtr; newPtr->entries[0].rightPtr = NULL; tree->root = newPtr; (tree->count)++; for (int i = 1; i < ORDER - 1; i++)

Data Structure 2015

  • R. Wei

46

slide-47
SLIDE 47

{ newPtr->entries[i].dataPtr = NULL; newPtr->entries[i].rightPtr = NULL; } // for * return; } // if malloc else printf("Overflow error 100 in BTree_Insert\a\n"), exit (100); taller = _insert (tree, tree->root, dataInPtr, &upEntry); if (taller) { // Tree has grown. Create new root newPtr = (NODE*)malloc(sizeof(NODE)); if (newPtr)

Data Structure 2015

  • R. Wei

47

slide-48
SLIDE 48

{ newPtr->entries[0] = upEntry; newPtr->firstPtr = tree->root; newPtr->numEntries = 1; tree->root = newPtr; } // if newPtr else printf("Overflow error 101\a\n"), exit (100); } // if taller (tree->count)++; return; } // BTree_Insert

Data Structure 2015

  • R. Wei

48

slide-49
SLIDE 49

bool _insert (BTREE* tree, NODE* root, void* dataInPtr, ENTRY* upEntry) { int compResult; int entryNdx; bool taller; NODE* subtreePtr; if (!root) { (*upEntry).dataPtr = dataInPtr; (*upEntry).rightPtr = NULL; return true; // tree taller } // if NULL tree entryNdx = _searchNode (tree, root, dataInPtr); compResult = tree->compare(dataInPtr, root->entries[entryNdx].dataPtr);

Data Structure 2015

  • R. Wei

49

slide-50
SLIDE 50

if (entryNdx <= 0 && compResult < 0) // in node’s first subtree subtreePtr = root->firstPtr; else // in entry’s right subtree subtreePtr = root->entries[entryNdx].rightPtr; taller = _insert (tree, subtreePtr, dataInPtr, upEntry); if (taller) { if (root->numEntries >= ORDER - 1) { // Need to create new node _splitNode (root, entryNdx, compResult, upEntry); taller = true;

Data Structure 2015

  • R. Wei

50

slide-51
SLIDE 51

} // node full else { if (compResult >= 0) // New data >= current entry -- insert after _insertEntry(root, entryNdx + 1, *upEntry); else // Insert before current entry _insertEntry(root, entryNdx, *upEntry); (root->numEntries)++; taller = false; } // else } // if taller return taller; } // _insert

Data Structure 2015

  • R. Wei

51

slide-52
SLIDE 52

void _splitNode (NODE* node, int entryNdx, int compResult, ENTRY* upEntry) { int fromNdx; int toNdx; NODE* rightPtr; rightPtr = (NODE*)malloc(sizeof (NODE)); if (!rightPtr) printf("Overflow Error 101 in _splitNode\a\n"), exit (100); if (entryNdx < MIN_ENTRIES) fromNdx = MIN_ENTRIES; else fromNdx = MIN_ENTRIES + 1; toNdx = 0; rightPtr->numEntries = node->numEntries - fromNdx;

Data Structure 2015

  • R. Wei

52

slide-53
SLIDE 53

while (fromNdx < node->numEntries) rightPtr->entries[toNdx++] = node->entries[fromNdx++]; node->numEntries = node->numEntries

  • rightPtr->numEntries;

if (entryNdx < MIN_ENTRIES) { if (compResult < 0) _insertEntry (node, entryNdx, *upEntry); else _insertEntry (node, entryNdx + 1, *upEntry); } // if else { _insertEntry (rightPtr, entryNdx - MIN_ENTRIES,

Data Structure 2015

  • R. Wei

53

slide-54
SLIDE 54

*upEntry); (rightPtr->numEntries)++; (node->numEntries)--; } // else upEntry->dataPtr = node->entries[MIN_ENTRIES].dataPtr; upEntry->rightPtr = rightPtr; rightPtr->firstPtr = node->entries[MIN_ENTRIES].rightPtr; return; } // _splitNode

Data Structure 2015

  • R. Wei

54

slide-55
SLIDE 55

bool BTree_Delete (BTREE* tree, void* dltKey) { bool success; NODE* dltPtr; if (!tree->root) return false; _delete (tree, tree->root, dltKey, &success); if (success) { (tree->count)--; if (tree->root->numEntries == 0) { dltPtr = tree->root;

Data Structure 2015

  • R. Wei

55

slide-56
SLIDE 56

tree->root = tree->root->firstPtr; free (dltPtr); } // root empty } // success return success; } // BTree_Delete

Data Structure 2015

  • R. Wei

56

slide-57
SLIDE 57

bool _delete (BTREE* tree, NODE* root, void* dltKeyPtr, bool* success) { NODE* leftPtr; NODE* subTreePtr; int entryNdx; int underflow; if (!root) { *success = false; return false; } // null tree entryNdx = _searchNode (tree, root, dltKeyPtr); if (tree->compare(dltKeyPtr, root->entries[entryNdx].dataPtr) == 0) {

Data Structure 2015

  • R. Wei

57

slide-58
SLIDE 58

*success = true; if (root->entries[entryNdx].rightPtr == NULL) underflow = _deleteEntry (root, entryNdx); else { if (entryNdx > 0) leftPtr = root->entries[entryNdx - 1].rightPtr; else leftPtr = root->firstPtr; underflow = _deleteMid (root, entryNdx, leftPtr); if (underflow) underflow = _reFlow (root, entryNdx); } // else internal node } // else found entry

Data Structure 2015

  • R. Wei

58

slide-59
SLIDE 59

else { if (tree->compare (dltKeyPtr, root->entries[0].dataPtr) < 0) subTreePtr = root->firstPtr; else subTreePtr = root->entries[entryNdx].rightPtr; underflow = _delete (tree, subTreePtr, dltKeyPtr, success); if (underflow) underflow = _reFlow (root, entryNdx); } // else not found * return underflow; } // _delete

Data Structure 2015

  • R. Wei

59

slide-60
SLIDE 60

bool _deleteMid (NODE* root, int entryNdx, NODE* subtreePtr) { int dltNdx; int rightNdx; bool underflow; if (subtreePtr->firstPtr == NULL) { // leaf located. Exchange data & delete leaf dltNdx = subtreePtr->numEntries - 1; root->entries[entryNdx].dataPtr = subtreePtr->entries[dltNdx].dataPtr;

  • -subtreePtr->numEntries;

underflow = subtreePtr->numEntries < MIN_ENTRIES; } // if leaf

Data Structure 2015

  • R. Wei

60

slide-61
SLIDE 61

else { // Not located. Traverse right for predecessor rightNdx = subtreePtr->numEntries - 1; underflow = _deleteMid (root, entryNdx, subtreePtr->entries[rightNdx].rightPtr); if (underflow) underflow = _reFlow (subtreePtr, rightNdx); } // else traverse right return underflow; } // _deleteMid

Data Structure 2015

  • R. Wei

61

slide-62
SLIDE 62

bool _reFlow (NODE* root, int entryNdx) { NODE* leftTreePtr; NODE* rightTreePtr; bool underflow; if (entryNdx == 0) leftTreePtr = root->firstPtr; else leftTreePtr = root->entries[entryNdx - 1].rightPtr; rightTreePtr = root->entries[entryNdx].rightPtr; if (rightTreePtr->numEntries > MIN_ENTRIES) { _borrowRight (root, entryNdx, leftTreePtr, rightTreePtr); underflow = false; } // if borrow right else {

Data Structure 2015

  • R. Wei

62

slide-63
SLIDE 63

// Can’t borrow from right--try left if (leftTreePtr->numEntries > MIN_ENTRIES) { _borrowLeft (root, entryNdx, leftTreePtr, rightTreePtr); underflow = false; } // if borrow left * else { // Can’t borrow. Must combine nodes. _combine (root, entryNdx, leftTreePtr, rightTreePtr); underflow = (root->numEntries < MIN_ENTRIES); } // else combine } // else borrow right return underflow; } // _reFlow

Data Structure 2015

  • R. Wei

63

slide-64
SLIDE 64

void _borrowRight (NODE* root, int entryNdx, NODE* leftTreePtr, NODE* rightTreePtr) { int toNdx; int shifter; toNdx = leftTreePtr->numEntries; leftTreePtr->entries[toNdx].dataPtr = root->entries[entryNdx].dataPtr; leftTreePtr->entries[toNdx].rightPtr = rightTreePtr->firstPtr; ++leftTreePtr->numEntries; root->entries[entryNdx].dataPtr = rightTreePtr->entries[0].dataPtr;

Data Structure 2015

  • R. Wei

64

slide-65
SLIDE 65

rightTreePtr->firstPtr = rightTreePtr->entries[0].rightPtr; shifter = 0; while (shifter < rightTreePtr->numEntries - 1) { rightTreePtr->entries[shifter] = rightTreePtr->entries[shifter + 1]; ++shifter; } // while

  • -rightTreePtr->numEntries;

return; } // _borrowRight

Data Structure 2015

  • R. Wei

65

slide-66
SLIDE 66

void _combine (NODE* root, int entryNdx, NODE* leftTreePtr, NODE* rightTreePtr) { int toNdx; int fromNdx; int shifter; toNdx = leftTreePtr->numEntries; leftTreePtr->entries[toNdx].dataPtr = root->entries[entryNdx].dataPtr; leftTreePtr->entries[toNdx].rightPtr = rightTreePtr->firstPtr; ++leftTreePtr->numEntries;

  • -root->numEntries;

fromNdx = 0; toNdx++; while (fromNdx < rightTreePtr->numEntries)

Data Structure 2015

  • R. Wei

66

slide-67
SLIDE 67

leftTreePtr->entries[toNdx++] = rightTreePtr->entries[fromNdx++]; leftTreePtr->numEntries += rightTreePtr->numEntries; free (rightTreePtr); shifter = entryNdx; while (shifter < root->numEntries) { root->entries[shifter] = root->entries[shifter + 1]; shifter++; } // while return; } // _combine

Data Structure 2015

  • R. Wei

67

slide-68
SLIDE 68

BTREE* BTree_Create (int (*compare) (void* argu1, void* argu2)) { BTREE* tree; tree = (BTREE*) malloc (sizeof (BTREE)); if (tree) { tree->root = NULL; tree->count = 0; tree->compare = compare; } // if return tree; } // BTree_Create

Data Structure 2015

  • R. Wei

68

slide-69
SLIDE 69

void BTree_Print (BTREE* tree) { _print (tree->root, 0); return; } // BTree_PRINT void _print (NODE* root, int level) { int scanCount; NODE* ptr; void* voidPtr; // Statements if (root) {

Data Structure 2015

  • R. Wei

69

slide-70
SLIDE 70

scanCount = root->numEntries - 1; while (scanCount >= 0) { ptr = root->entries[scanCount].rightPtr; // Test for subtree if (ptr) _print (ptr, level + 1); // Subtree processed -- print current entry printf("(%02d)", level); for (int i = 1; i <= level; i++ ) printf (" ." ); voidPtr = root->entries[scanCount].dataPtr; printf("%4d", *((int*)voidPtr));

Data Structure 2015

  • R. Wei

70

slide-71
SLIDE 71

printf("\t--Node: %p\n", root); scanCount--; } // while // Process first pointer if (root->firstPtr) _print (root->firstPtr, level + 1); } // if root return; } // BTree_Print

Data Structure 2015

  • R. Wei

71

slide-72
SLIDE 72

Some special B-tree and variations:

  • 2-3 Tree: a B-tree of order 3. (suitable for internal search)
  • 2-3-4 Tree: a B-tree of order 4. (suitable for internal search)
  • B*tree: when a node overflows, instead of being split

immediately, the data are tried to redistribute among the node’s siblings.

  • B+tree: Some data need to be processed both randomly and
  • sequentially. In a B+tree, data are all stored in leaf nodes. The

key in the internal node are just for searching. Each leaf node has one additional pointer pointed to the next leaf node.

Data Structure 2015

  • R. Wei

72

slide-73
SLIDE 73

Data Structure 2015

  • R. Wei

73

slide-74
SLIDE 74

Data Structure 2015

  • R. Wei

74

slide-75
SLIDE 75

Data Structure 2015

  • R. Wei

75

slide-76
SLIDE 76

Tries A trie is a multiway tree which is used to search keys as a sequence

  • f characters (letters or digits, for example).

For example, if we want to search a key begin, then we first find b, then find be, then beg, and so on. In this way, the root has 26 children. And each node may have at most 26 children. So it is based on a 26-way tree. In English, there are no words beginning with ‘bb’, ‘bc’ or , ‘bf’, ‘bg’, · · · . So the according nodes can be pruned.

Data Structure 2015

  • R. Wei

76

slide-77
SLIDE 77

Data Structure 2015

  • R. Wei

77

slide-78
SLIDE 78

To prune the tree, we cut all of the branches that are not needed. For example, if no key starts with letter X, then at level 0 the X pointer is null. Similarly, after the letter Q, the only valid letter is

  • U. So all the pointers in the Q branch except U are set to null.

As an example, we display a tries which only contains 5 letters A, B, C, E, and T. A node contains an array of 5. The node itself pointer to the letter if the letter exists. In this example, most pointers are null.

Data Structure 2015

  • R. Wei

78

slide-79
SLIDE 79

Data Structure 2015

  • R. Wei

79

slide-80
SLIDE 80

Algorithm searchTrie (dictionary, word) set root to dictionary set ltrNdx to 0 loop (root not null) if (root entry equals word) return true end if if (ltrNdx > = word length) return false end if set chNdx to word[ltrNdx] set root to chNdx subtree increment ltrNdx end loop return false

Data Structure 2015

  • R. Wei

80
