Change Management Board Meeting October 19 th , 2010 Video Conference: CO- Burns Video Bridge 3 Audio: 850 - 414 4660 10/12/2010 Change Management Board 1 Welcome and Call for Quorum Eric Gordin, CMB Chairman 10/12/2010 Change

slide-1
SLIDE 1

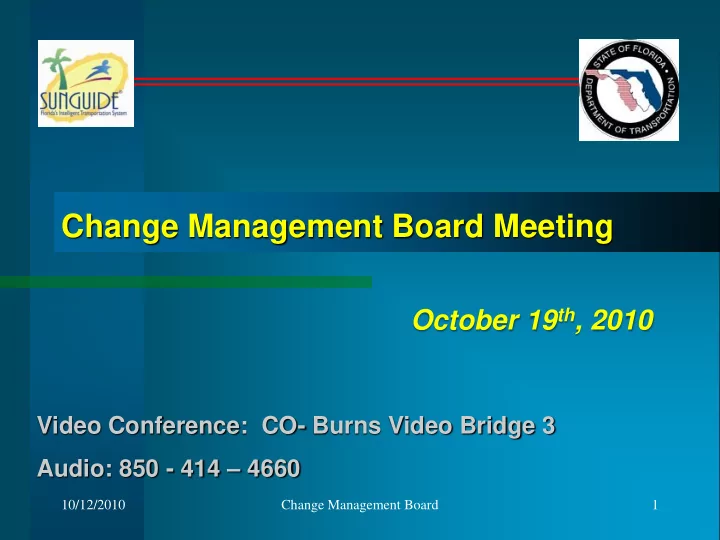

10/12/2010 Change Management Board

Change Management Board Meeting

Video Conference: CO- Burns Video Bridge 3 Audio: 850 - 414 – 4660

October 19th, 2010

1

slide-2
SLIDE 2

10/12/2010 Change Management Board

Welcome and Call for Quorum

Eric Gordin, CMB Chairman

2

slide-3
SLIDE 3

Agenda

10/12/2010 Change Management Board

Time Item Lead 1:30 - 1:35 Welcome and Call for Quorum Gordin 1:35 – 1:40 Previous Meeting Recap and Action Item Review Gordin 1:40 – 2:05 CMB Charter Update (Vote) Issues handled by CMB and not by CMB CMB funding distribution Gordin 2:05 – 2:35 EM Flags (Vote) Miles Ahead DMS (Vote) FL-ATIS Dashboard (Vote) Heller 2:35 – 3:00 District 2 Mobile Application for RR Vega 3:00 – 3:25 Bluetooth in SunGuide – Concept Exploratory Krishnamurthy 3:25 – 3:45 ITS WAN Status Update Video Sharing Across ITS WAN Deasy Packard

3

slide-4
SLIDE 4

Agenda (cont‟)

10/12/2010 Change Management Board

Time Item Lead 3:45 – 4:00 Impath H.264 SunGuide compatibility Packard 4:00 – 4:15 “Pending FDOT Approval” FP issues prioritized by Districts – Progress update Krishnamurthy 4:15 – 4:20 Predict Traffic Jam Vega 4:20 – 4:30 Action Items Review Gordin

4

slide-5
SLIDE 5

10/12/2010 Change Management Board

Change Management Board Previous Meetings Recap and Action Items Review

Eric Gordin

5

slide-6
SLIDE 6

Change Management Board

July 28th - CMB Action Items

  • 1. CO to look for funding contribution required to become a

member of CMB. Complete 2. CO to provide SwRI and District a memorandum regarding travel approval for SwRI. Complete

  • 3. CO to prioritize “Enhancement” Footprints. Complete
  • 4. District to provide CO with a list of current SunGuide
  • concerns. Complete
  • 5. FTE to work with SwRI to specify EM enhancement request.

Complete 6. CO will provide Districts with further information regarding EM Flags Enhancement. Complete

10/12/2010 6

slide-7
SLIDE 7

Change Management Board

July 28th - CMB Action Items

  • 7. SwRI to provide CO with cost estimate for Miles ahead on

DMS enhancement. Complete

  • 8. CO to provide Districts with FL-ATIS dashboard
  • Whitepaper. Complete
  • 9. SwRI to provide CO with cost estimate for SSUG

enhancement requests. Not Complete

  • 10. SwRI to provide CO with cost estimate for weather
  • enhancements. Not Complete
  • 11. CMB members to review CMB Charter document and vote
  • n changes. Not Complete – will do today

10/12/2010 7

slide-8
SLIDE 8

10/12/2010 Change Management Board

Change Management Board CMB Charter Update

Eric Gordin

8

slide-9
SLIDE 9

CMB Charter Update

 Issues handled by CMB

– High level decision/guidance

  • Examples:

– Do we need Inrix within SunGuide? – Weather enhancements in SunGuide?

 Issues not handled by CMB

– SunGuide design details

  • Example: location of drop-down lists, etc.
  • Let SwRI handle SunGuide design details along with

specific District and/or Central Office input.

10/12/2010 9 Change Management Board

slide-10
SLIDE 10

CMB Charter Update

 CMB funding distribution

– March 19, 2008 CMB meeting minutes (pages 2-4)

  • MDX joined as a voting member
  • Discussions regarding voting membership

– CMB voting (new membership)

  • Three (3) criteria:

– Install SunGuide software and pay $50,000 annual fee. – Fund a significant enhancement of SunGuide that provides additional functionality for other users. – Petition to become a new member.

  • SunGuide software users can be non-voting members,

even if they don‟t meet the criteria.

10/12/2010 10 Change Management Board

slide-11
SLIDE 11

CMB Charter Update

 Change Management Process for the Deployment of ITS in the

State of Florida – Document last updated December 17, 2007. – Two Word documents submitted to Districts prior to CMB meeting:

  • „Proposed changes to CMB Charter 100929.docx‟
  • „100722 CMB Change Management Process-v1a.docx‟

10/12/2010 11 Change Management Board

slide-12
SLIDE 12

CMB Charter Update

 Vote

10/12/2010 12 Change Management Board

slide-13
SLIDE 13

10/12/2010 Change Management Board

Change Management Board EM Event Location Publish Flag

Heller/Brown

13

slide-14
SLIDE 14

Event Location Publish Flag

 Currently in SunGuide, all EM event locations are published to

the FL-ATIS system with no way to distinguish which locations should be published and which locations should not.

 Add a flag to EM event locations indicating that they should be

published for public view

Proposed Enhancement

10/12/2010 14 Change Management Board

slide-15
SLIDE 15

Event Location Publish Flag

10/12/2010 15 Change Management Board

slide-16
SLIDE 16

Event Location Publish Flag

 SunGuide will publish all event locations

– New publish flag in the XML for each event location – SunGuide will not block users from publishing events at any location

  • FL-ATIS will determine to post the event or not based on

the publish flag of the location

 Development cost: $26,672  Vote

10/12/2010 16 Change Management Board

slide-17
SLIDE 17

10/12/2010 Change Management Board

Change Management Board Response Plan Addition: “Miles Ahead” for a DMS

Heller/Brown

17

slide-18
SLIDE 18

Miles Ahead for a DMS

 Request have been made to post mileage to an incident on a

DMS sign (i.e. "CRASH 4 MILES AHEAD AT...") but, as there is no automated way to do this, operators have to estimate distances themselves.

 Add an additional field in the response plan message templates

that will allow a user to define a message template with a distance field.

 Distances will be calculated and added to the DMS message

when EM generates the response plan.

Proposed Enhancement

10/12/2010 18 Change Management Board

slide-19
SLIDE 19

Miles Ahead for a DMS

10/12/2010 19 Change Management Board

slide-20
SLIDE 20

Miles Ahead for a DMS

 Distance calculation will be done via the device linking file

– Straight line distance from node to node (virtual or device node) – For curved roads, more virtual nodes would result in higher precision for the generated message

10/12/2010 20 Change Management Board

slide-21
SLIDE 21

Miles Ahead for DMS

 Development cost: $18,363  Vote

10/12/2010 21 Change Management Board

slide-22
SLIDE 22

10/12/2010 Change Management Board

Change Management Board FL-ATIS Dashboard

John Brisco

22

slide-23
SLIDE 23

FL-ATIS Dashboard

Currently Available

– Status web service type – Last time the web service started – Other Status web services that the web service can connect to (data sources) – Other status web services that are connected to the web service (data clients) – Counts of all the data elements by data type and data source – Time and item count of the last update received for each data type and data source – Latitude and Longitude of each data source (as defined in the source‟s configuration file)

10/12/2010 23 Change Management Board

slide-24
SLIDE 24

FL-ATIS Dashboard

 New status web page would be developed that provides a

summary of activity that is visible without expanding any controls – Based on the newer Windows Presentation Foundation technology that has been used in the development of the new SunGuide Operator Map – Organization selections can include the current view of all data sources for each data type and a new view of all data types for each data source – Each detail item display will include a color-coded status update status

Proposed Enhancements

10/12/2010 24 Change Management Board

slide-25
SLIDE 25

FL-ATIS Dashboard

 The status portal web service will be updated to include

additional data items that will be available to the new web page. – Software version information for the web service – Configurable expected update interval for each data type, defaulting to infinite – Elapsed time between updates for each data type from each data source – Status web service type (Collector, Provider) for each data source – Software version information and last start time for each data source

Proposed Enhancements

10/12/2010 25 Change Management Board

slide-26
SLIDE 26

FL-ATIS Dashboard

 Development cost: $42,464  Vote

10/12/2010 26 Change Management Board

slide-27
SLIDE 27

10/12/2010 Change Management Board

Change Management Board Smart Phone Application for Road Rangers

Peter Vega

27

slide-28
SLIDE 28

Smart Phone App for RR

 Current mobile applications for Road Rangers require

laptop or tablet in addition to phone, radio – Each device represents ongoing cost

 Power available in current-generation smart phones

supports Road Ranger functionality without extra device

 Initial concept provides limited functionality to Road

Ranger – Reduced training overhead – Increased Road Ranger focus on vehicles on road

10/12/2010 28 Change Management Board

slide-29
SLIDE 29

SPARR - Features

 Automatic location reporting using on-phone GPS  Notification of dispatch to events

– Audio notification – Visual details of event

 Road Ranger can report Arrived, Departed at event  Road Ranger can set status (Patrolling, Break, etc.)  Road Ranger can create skeleton events

– Where possible, populated from current location – Event must then be managed by TMC operator

 Speed dial buttons in app to call TMC

10/12/2010 Change Management Board 29

slide-30
SLIDE 30

SPARR – Expansion Potential

 Initial scope limited – Future activities discussed

– Road Ranger selection of on-site activities – Road Ranger event editing – Map display of RR location and active events – Turn-by-turn directions to dispatched event – Distribution of on-site photos to TMC personnel

 Future scope may be designed as configurable options

– Allows districts to customize level of Road Ranger interactivity

10/12/2010 Change Management Board 30

slide-31
SLIDE 31

10/12/2010 Change Management Board

Change Management Board Bluetooth Integration in SunGuide

Arun Krishnamurthy

31

slide-32
SLIDE 32

Introduction

 Recently, some districts have shown interest in deploying

Bluetooth. – District 2, District 4 and District 5. – Any others? – Does any district have a timeline for when they will procure Bluetooth devices?

 General interest to have Bluetooth functionality in SunGuide.

10/12/2010 32 Change Management Board

slide-33
SLIDE 33

How Bluetooth Works

 Works similar to probe detectors: automatic vehicle

identification (AVI) and license plate reader (LPR).

Picture taken from a BlueToad marketing document.

10/12/2010 33 Change Management Board

slide-34
SLIDE 34

SunGuide Integration

 Develop driver in “Traffic Detection” subsystem.

10/12/2010 Change Management Board 34

slide-35
SLIDE 35

SunGuide Integration

 Currently, no standard protocol for Bluetooth.  Recommend developing a standard protocol within

SunGuide.

 Alternative, develop a driver for each Bluetooth device.

10/12/2010 Change Management Board 35

slide-36
SLIDE 36

Funding: Bluetooth Integration

 FDOT develop driver for FDOT standard protocol  Vendor specific drivers; FDOT supply standard protocol

driver to vendors – Funded by vendors – Derivative work – Supply tool to test the vendor driver

10/12/2010 Change Management Board 36

slide-37
SLIDE 37

10/12/2010 Change Management Board

Change Management Board ITS WAN Update

Frank Deasy

37

slide-38
SLIDE 38

10/12/2010 Change Management Board

Change Management Board Impath H.264 SunGuide compatibility

Clay Packard

38

slide-39
SLIDE 39

Considerations for Video Sharing

 Stream compatibility (Transport vs. elementary)  IP port assignments

– Multicast stream – Data pass-through

 Use of session announcement protocol (SAP)

– SAP announcements describe video stream – Commonly used for automatic population of video source lists in some (non-SunGuide) decoding applications – Character limitations / differences

 Bitrate and Resolution vs bandwidth  Recommendation: have a working group meeting to go through

these issues for a later CMB decision (SSUG, other?)

10/12/2010 39 Change Management Board

slide-40
SLIDE 40

H.264 SunGuide Compatibility

 Impath and Bosch IP camera have been approved  Both use H.264  Neither uses SNMP (legacy protocol SG uses for MPEG-2

devices)

 Current SG video switching does not work with these

products; however

 The industry is moving to H.264 and use of RTSP and other

methods for command and control (ONVIF, PSIA)

 SwRI needs direction and authorization to pursue support

for new video appliances

10/12/2010 Change Management Board 40

slide-41
SLIDE 41

10/12/2010 Change Management Board

Change Management Board Prioritized-by-Districts “Pending FDOT Approval” FP issues - Update

Arun Krishnamurthy

41

slide-42
SLIDE 42

District prioritized FPs

 Districts provided input on 60 enhancement requests

entered in FPs – Priority 1: 11 issues. SwRI is working on some of these. – Priority 2: 20 issues

10/12/2010 Change Management Board 42

slide-43
SLIDE 43

Upcoming Release / Patch

 Patch will be distributed in the next few weeks:

– GUI enhancements – RR/AVL defect fixes

 Release 5.0.4 (distribute in December, 2010)

– INRIX enhancement – FP fixes – EM Flags – Transcore E6 driver (convert UDP protocol to TCP protocol) - $16,000

10/12/2010 Change Management Board 43

slide-44
SLIDE 44

Upcoming Release (cont.)

 Release 5.1 (distribute in June/July, 2011)

– FP fixes / Enhancement mods – IntelliDrive – DMS multi-threading and DMS blanking – FLATIS Dashboard – Bluetooth

10/12/2010 Change Management Board 44

slide-45
SLIDE 45

10/12/2010 Change Management Board

Change Management Board Predict Traffic Jam

Peter Vega

45

slide-46
SLIDE 46

10/12/2010 Change Management Board

Change Management Board Action Item Review

Eric Gordin

46
