Cell Switch Off Technique Combined with Coordinated Multi-Point (CoMP) Transmission for Energy Efficiency in Beyond-LTE Cellular Networks Gencer Cili, Halim Yanikomeroglu, and F. Richard Yu Department of Systems and Computer Engineering,


slide-1

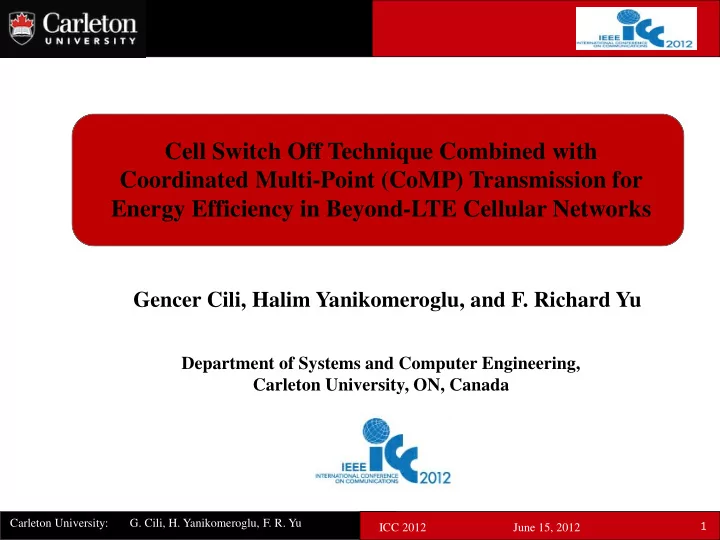

SLIDE 1

Carleton University: G. Cili, H. Yanikomeroglu, F. R. Yu

Cell Switch Off Technique Combined with Coordinated Multi-Point (CoMP) Transmission for Energy Efficiency in Beyond-LTE Cellular Networks

Gencer Cili, Halim Yanikomeroglu, and F. Richard Yu

ICC 2012 June 15, 2012

Department of Systems and Computer Engineering, Carleton University, ON, Canada

1

slide-2
SLIDE 2

Carleton University: G. Cili, H. Yanikomeroglu, F. R. Yu ICC 2012 June 15, 2012

Introduction

  • Energy Efficiency of Cellular Systems became a major performance metric:
  • Increased use of cellular devices -> ๐ท๐‘ƒ2 emission rise in cellular networks
  • Information and Communications Technology is responsible for 2-10% of global energy consumption
  • Access stratum is responsible for 60-80% the whole cellular network energy consumption
  • Energy Efficiency metric: Bits/Joule should be jointly considered with spectral efficiency metric
  • Methods for Energy Efficient Access Networks:
  • Energy efficiency in Base Stations
  • Energy efficiency using Cooperative Base Station Schemes
  • Energy Efficiency using renewable energy resources
  • Energy efficiency via heterogonous networks
  • Cognitive Radio & Cooperative relaying for Energy Efficiency
  • Our contributions
  • LTE-A Downlink CoMP used jointly with traditional Cell Switch Off Schemes
  • Model energy & spectral efficiency of CoMP + Cell Switch Off Schemes
  • Use DL CoMP to serve the users in switched off cell
  • Demonstrate CoMP challenges: Estimation Errors + System Delays

2

slide-3
SLIDE 3

Carleton University: G. Cili, H. Yanikomeroglu, F. R. Yu ICC 2012 June 15, 2012

Overview of Green Access Networks

  • Cell size adjustments according to traffic load fluctuations
  • Cells with the low traffic zoom into zero, and the neighbor cells zoom out by physical adjustments
  • Base stations with low Spectral Efficiency are turned off โ€“ Spectrally efficient BSs serve the users
  • 24- hour traffic routine is analyzed, optimum cell switch off/on periods are found
  • Ratio between the dynamic and the fixed power of a base station: Switch Off decision parameter

Cell Switch Off Suggestion by Academia [6]: 3GPP - Small Cell Switch Off Scheme [15]:

Proposal: Replace antenna tilt/Transmit power increase of active cells by DL CoMP to serve the users in the switched off cell.

3

slide-4
SLIDE 4

Carleton University: G. Cili, H. Yanikomeroglu, F. R. Yu ICC 2012 June 15, 2012

LTE Downlink Transmission and CoMP Procedures

๐‘ง1(๐‘™) โ‹ฎ ๐‘ง๐‘‚(๐‘™) = ๐‘ฆ1(๐‘™) โ‹ฎ ๐‘ฆ๐‘‚(๐‘™) ๐‘ฆ๐‘‚(๐‘™) โ‹ฎ ๐‘ฆ๐‘‚โˆ’1(๐‘™) โ€ฆ โ‹ฎ โ€ฆ ๐‘ฆ2(๐‘™) โ‹ฎ ๐‘ฆ1(๐‘™) โ„Ž1(๐‘™) โ‹ฎ โ„Ž๐‘‚(๐‘™) + ๐‘œ1(๐‘™) โ‹ฎ ๐‘œ๐‘‚(๐‘™) ๐‘ง๐‘‚๐‘‚1 = ๐‘ฆ๐‘‚๐‘‚๐‘‚โ„Ž๐‘‚๐‘‚1 + ๐‘œ๐‘‚๐‘‚1 ๐‘ง๐‘‚๐‘‚1 = ๐บ๐‘‚๐‘‚๐‘‚

๐ผ๐‘Œ๐‘‚๐‘‚๐‘‚๐บ ๐‘‚๐‘‚๐‘‚โ„Ž๐‘‚๐‘‚1 + ๐‘œ๐‘‚๐‘‚1

4

slide-5
SLIDE 5

Carleton University: G. Cili, H. Yanikomeroglu, F. R. Yu ICC 2012 June 15, 2012

LTE Downlink Transmission and CoMP Procedures

CoMP Definition: Dynamic coordination among multiple geographically separated points referred as CoMP cooperating set for downlink transmission and uplink reception Downlink CoMP Schemes: 1) Joint Processing: User Plane Data available at each Transmission Point 2) Coordinated Scheduling/Coordinated Beamforming: User Plane Data @ Serving Cell CoMP Deployment Scenarios: 1) eNB - eNB 2) RRH - RRH 3) eNB โ€“ High Power RRH 4) eNB โ€“ Low Power RRH

5

slide-6
SLIDE 6

Carleton University: G. Cili, H. Yanikomeroglu, F. R. Yu ICC 2012 June 15, 2012

CoMP + Cell Switch Off Model

Cellular Layout + Parameters:

1) 19 eNBs with hexagonal layout 2) Center Cell Switched Off, 3) Remaining 18 eNBs are in CoMP Cooperating & Measurement Set 4) Uniform user distribution in the switched off cell ๐‘— โˆˆ [1, . . , 500] 5) Cooperating Cell IDs: ๐‘œ โˆˆ [1, . . , 18] 6) Channel samples every TTI according to Winner SCME model: ๐‘ข โˆˆ [1, . . , 1000] 7) Each UE-eNB link is modeled independently 8) Large scale path loss model according to ITU- R report M.2135

  • 1500
  • 1000
  • 500

500 1000 1500

  • 1500
  • 1000
  • 500

500 1000 1500 Distance (meters) Distance (meters)

6

slide-7
SLIDE 7

Carleton University: G. Cili, H. Yanikomeroglu, F. R. Yu ICC 2012 June 15, 2012

CoMP + Cell Switch Off Model

CoMP Transmission Set Forming:

  • Serving cell configures the UE for multi-point

measurements for each eNB in CoMP measurement set

  • CSI-RS enables Multi-Point Channel Estimation
  • Actual measured received power from eNB n by user

i at TTI t :

  • ๐‘„

๐‘†๐‘† ๐‘œ, ๐‘ข, ๐‘— = ๐‘„๐‘ˆ๐‘† ๐‘œ โˆ’ ๐‘„๐‘„ ๐‘œ, ๐‘— โˆ’ ๐‘„๐บ๐บ๐บ๐บ๐บ๐บ ๐‘œ, ๐‘—, ๐‘ข

  • Implicit/Explicit multipoint channel feedback obtained at

Serving Cell

  • Received feedback due to estimation error + delay:
  • ๐‘„

๐‘†๐‘†_๐‘“๐‘“๐‘“ ๐‘œ, ๐‘ข, ๐‘— = ๐‘„๐‘†๐‘† ๐‘œ, ๐‘ข โˆ’ โˆ†, ๐‘— + ๐‘„ ๐‘“๐‘“๐‘“(๐œˆ, ๐œ)

  • Thresholded Decision to Form the CoMP Transmission

Set: Serving Cell Power โ€“ Measured cell โ‰ค 3dB

  • Time-varying CoMP Transmission Set: ๐พ๐พ(๐‘—, ๐‘ข)
  • Joint PDSCH transmission + Cross-point scheduling
  • ver certain time/frequency resources

Note: Release-8 devices use CRS for channel estimation (8 REs over RB pair), but Rel -11 CoMP channel estimation uses CSI-RS (1 RE over RB pair per antenna port) = Multi-point channel estimation is more vulnerable to channel estimation errors due to scarce REs to track the channel using autocorrelation functions

7

slide-8
SLIDE 8

Carleton University: G. Cili, H. Yanikomeroglu, F. R. Yu ICC 2012 June 15, 2012

CoMP Performance Metrics - Capacity

  • Joint PDSCH transmission (TM-9) mitigates the Inter-cell Interference

๐‘‡๐‘‡๐‘‡๐‘‡ = ๐‘„๐‘ก๐‘“๐‘“๐‘ก๐บ๐บ๐บ โˆ‘ ๐‘„๐บ + ๐‘„๐‘‚๐‘‚๐บ๐‘ก๐‘“

๐ฟ ๐บ=1

Single Point Transmission ๐‘‡๐‘‡๐‘‡๐‘‡๐ท๐‘‚๐ท๐ท = ๐‘„๐‘ก๐‘“๐‘“๐‘ก๐บ๐บ๐บ + ๐‘„

๐‘˜ + ๐‘„ ๐‘›

โˆ‘ ๐‘„๐บ + ๐‘„๐‘‚๐‘‚๐บ๐‘ก๐‘“

๐ฟ

๐‘—=1 ๐‘—โ‰ ๐‘˜,๐‘›

CoMP Downlink Transmission ๐‘„

๐พ๐‘ˆ(๐‘—, ๐‘ข) =

  • ๐‘„๐‘†๐‘† ๐‘œ, ๐‘ข, ๐‘—

๐บโˆˆ๐พ๐‘ˆ(๐บ,๐‘ข)

๐ท(๐‘—, ๐‘ข) = ๐ถ๐ถ(๐‘—, ๐‘ข) โˆ— log2(1 + ๐‘„

๐พ๐‘ˆ(๐‘—, ๐‘ข)

๐‘„๐‘‚๐‘‚๐บ๐‘ก๐‘“ + โˆ‘ ๐‘„๐‘†๐‘† ๐‘œ, ๐‘ข, ๐‘—

๐บโˆ‰๐พ๐‘ˆ(๐บ,๐‘ข)

) Total received Power from CoMP Transmission Set Perceived Downlink Capacity due to CoMP Note: CoMP transmission set ๐พ๐พ(๐‘—, ๐‘ข) is formed according to delayed and inaccurately estimated channel samples. ๐ถ๐ถ(๐‘—, ๐‘ข) is dependent on the number of RBs assigned to UE

8

slide-9
SLIDE 9

Carleton University: G. Cili, H. Yanikomeroglu, F. R. Yu ICC 2012 June 15, 2012

CoMP Performance Metrics โ€“ Energy Efficiency

CoMP Power Consumption Model Signal Processing Power ๐‘„

๐‘‡๐ทโˆ’๐ท๐‘‚๐ท๐ท = 58 โˆ— (0.87 + 0.1๐‘‡๐ท + 0.03๐‘‡๐ท 2)

Backhauling Power ๐‘„๐ถ๐ผ = ๐ท๐ถ๐ผ 100๐‘๐‘๐‘—๐‘ข๐‘/๐‘๐‘ก๐‘ก โˆ— 50๐ถ Additional Data capacity for CoMP Backhauling ๐ท๐ถ๐ผ =

๐‘‚๐‘‘โˆ— 2๐‘‚๐ท โˆ—๐‘žโˆ—๐‘Ÿ ๐‘ˆ๐‘‡

๐‘๐‘—๐‘ข๐‘/๐‘๐‘ก๐‘ก Total Power Consumption

  • f an eNB using CoMP

๐‘„๐ทoMP = ๐‘‡๐‘ก โˆ— ๐‘‡

๐ท๐‘„ ๐‘ก๐‘“๐‘ก๐‘ข๐‘‚๐‘“

โˆ— ๐‘„๐‘ˆ๐‘† ๐‘„๐‘„๐‘“๐‘“๐‘“ + ๐‘„

๐‘‡๐ท

1 + ๐ท๐ท 1 + ๐ท๐ถ๐ถ + ๐‘„๐ถ๐ผ

๐‘‡๐‘ก = Number of Sectors ๐‘‡

๐‘„๐‘„ ๐‘ก๐‘ก๐‘‘๐‘ก๐‘ก๐‘ก

= Power amplifiers per sector ๐‘„๐‘ˆ๐‘† = DL Transmit Power, ๐ท๐ท = Cooling Loss

๐ท๐ถ๐ถ = Battery Backup ๐‘‡๐ท = Number of points in Joint Transmission ๐‘ž = pilot density ๐‘Ÿ = CSI signalling

๐พ

๐‘‡ = Symbol Period ๐‘„๐‘„๐‘“๐‘“๐‘“ = Power Amplifier Efficiency

Power Consumption Parameters

9

slide-10
SLIDE 10

Carleton University: G. Cili, H. Yanikomeroglu, F. R. Yu ICC 2012 June 15, 2012

CoMP Performance Metrics โ€“ Energy Efficiency

Energy Efficiency =

๐ท๐บ๐‘ž๐บ๐‘ก๐บ๐‘ข๐ท (๐‘๐บ๐‘ข๐‘ก/๐‘ก๐‘“๐‘ก) ๐ท๐‘‚๐‘„๐‘“๐‘“ ๐ท๐‘‚๐บ๐‘ก๐ท๐‘›๐‘ž๐‘ข๐บ๐‘‚๐บ(๐พ๐‘‚๐ท๐พ๐‘“๐‘ก/๐‘ก๐‘“๐‘ก) = ๐‘๐‘—๐‘ข๐‘/๐พ๐พ๐พ๐พ๐‘ก

Time Varying Energy Efficiency Joint Transmission CoMP Operation (๐‘‡๐ท โ‰ฅ 2 ) ๐น๐น(๐‘—, ๐‘ข) = ๐ท(๐‘—, ๐‘ข) ๐‘„๐ท๐‘‚๐ท๐ท + ๐‘‡

๐พ๐‘ˆ(๐บ,๐‘ข) โˆ’ 1 โˆ— ๐‘„๐ท๐‘‚๐ท๐ท โˆ’ ๐‘„๐ถ๐บ๐‘ก๐‘“

Single Point Transmission (๐‘‡๐ท = 1 ) ๐น๐น(๐‘—, ๐‘ข) = ๐ท(๐‘—, ๐‘ข) ๐‘„๐ถ๐บ๐‘ก๐‘“ Notes: 1) ๐‘„๐ถ๐บ๐‘ก๐‘“ has ๐‘„๐ถ๐ผ = 0 since there is not need for multi-point CSI transfer to serving cell 2) ๐‘„

๐‘‡๐ทโˆ’๐ท๐‘‚๐ท๐ท = 58W since ๐‘‡๐ท = 1

10

slide-11
SLIDE 11

Carleton University: G. Cili, H. Yanikomeroglu, F. R. Yu ICC 2012 June 15, 2012

Propagation Model โ€“ Large Scale Pathloss

๐‘„๐‘„๐‘€๐‘‚๐‘‡ ๐‘’๐ถ = 22log10๐‘’ + 28 + 20 log10๐‘”

๐‘ก , 10๐‘› < ๐‘’ < ๐‘’๐ถ๐ท;

๐‘„๐‘„๐‘€๐‘‚๐‘‡ ๐‘’๐ถ = 40log10๐‘’ + 7.8 + 2 log10๐‘”

๐‘ก โˆ’ 18log10โ„Ž๐ถ๐‘‡ โˆ’ ๐พ๐พ๐‘š10โ„Ž๐‘‰๐‘ˆ, ๐‘’๐ถ๐ท < ๐‘’ < 5000๐‘› ;

๐‘„๐‘„๐‘‚๐‘€๐‘‚๐‘‡ ๐‘’๐ถ = 161.04 โˆ’ 7.1 log10 ๐‘„ + 7.5 log10 โ„Ž๐ถ โˆ’ 24.37 โˆ’ 3.7

โ„Ž โ„Ž๐ถ๐‘‡ 2

โˆ— log10 โ„Ž๐ถ๐‘‡ + 43.42 โ€“ 3.1 log10 โ„Ž๐ถ๐‘‡ โˆ— log10 ๐‘’ โˆ’ 3 + 20 log10 ๐‘”

๐‘ก โˆ’ (3.2(log10 11.75โ„Ž๐‘‰๐‘ˆ))2โˆ’ 4.97) ;

๐‘„๐‘„๐พ๐‘ ๐‘„๐พ๐‘‡ = min 18 ๐‘’ , 1 โˆ— 1 โˆ’ ๐‘กโˆ’ ๐บ

63 + ๐‘กโˆ’ ๐บ 63 .

Parameter Value Carrier Frequency (๐‘”

๐‘ก)

2110 Mhz BS (Base Station) Antenna Height (โ„Ž๐ถ๐‘‡) 24 m User Terminal Antenna Height (โ„Ž๐‘‰๐‘ˆ) 0.5 m Average Street Width (L) 20 m Average Building Height (โ„Ž๐ถ) 20 m LoS Shadowing (๐œ๐‘€๐‘‚๐‘‡) 4 dB NLoS Shadowing (๐œ๐‘‚๐‘€๐‘‚๐‘‡) 6 dB Break Point Distance (๐‘’๐ถ๐ท) 337.6 m Transmission Power (๐‘„๐‘ˆ๐‘†) 20 W 11

slide-12
SLIDE 12

Carleton University: G. Cili, H. Yanikomeroglu, F. R. Yu ICC 2012 June 15, 2012

Propagation Model โ€“ Small Scale Fading

โ„Ž๐บ,๐บ ๐‘ข, ๐œ๐พ = ๐‘„๐พ(๐‘ข)๐‘ก๐‘˜2๐‘˜๐‘“๐‘’๐‘š ๐‘ข ๐‘ก๐‘˜2๐‘˜๐‘“

๐‘‘๐œ๐‘š๐‘ก๐‘˜2๐‘˜โˆ…๐‘š๐œ€(๐œ

โˆ’ ๐œ๐พ) ๐‘„๐บ๐บ๐บ๐บ๐บ๐บ ๐‘œ, ๐‘—, ๐‘ข = 10 โˆ— log10[(| โˆ‘ โ„Ž๐บ,๐บ ๐‘ข, ๐œ |

๐‘€ ๐พ=1

2 )2] ๐‘(๐‘ข) = ๐‘„๐พ โˆ— cos 2๐œŒ๐‘”

๐‘ก๐‘ข + 2๐œŒ๐‘” ๐บ๐‘š๐‘ข + ๐œš๐พ ๐‘€ ๐พ=0

Complex Baseband Channel Impulse Response: Received Multipath Signal in Time Domain Received Power Change Due to Small Scale Fading

  • Complex multipath components go through summation due to the narrow band

nature of OFDMA

  • Each UE-CoMP measurement set member have independent channels
  • Main contributors to the multipath phase are ๐‘”

๐บ๐‘š and โˆ…๐พ; 2๐œŒ๐‘” ๐‘ก๐œ๐พ is due to difference

  • f propagation of each multipath delay tap

12

slide-13
SLIDE 13

Carleton University: G. Cili, H. Yanikomeroglu, F. R. Yu ICC 2012 June 15, 2012

Traditional Cell Switch Off vs. CoMP Aided Scheme

  • CoMP aided schemes yield both spectrally and energy efficient systems compared to traditional

cell switch off schemes

  • Increased CoMP Transmission Set Degree improves the DL capacity due to mitigated ICI
  • Non-adaptive increase in CoMP set degree decreases the energy efficiency of the system since the

gained capacity is not worth the power consumption overhead

  • Proof of Concept: Serving cell needs an adaptive thresholded decision mechanism for Joint

PDSCH transmission set clustering.

13

slide-14
SLIDE 14

Carleton University: G. Cili, H. Yanikomeroglu, F. R. Yu ICC 2012 June 15, 2012

Performance Analysis of CoMP Schemes subject to Inaccurate Clustering

Performance Subject to Multi-Point Channel Estimation Errors

14

slide-15
SLIDE 15

Carleton University: G. Cili, H. Yanikomeroglu, F. R. Yu ICC 2012 June 15, 2012

Performance Degradation Due to Multi-Point Channel Estimation Errors

  • ๐‘„๐‘†๐‘†_๐‘“๐‘“๐‘“ ๐‘œ, ๐‘ข, ๐‘— = ๐‘„๐‘†๐‘† ๐‘œ, ๐‘ข โˆ’ โˆ†, ๐‘— + ๐‘„

๐‘“๐‘“๐‘“(๐œˆ, ๐œ)

  • Users that require higher Joint Transmission CoMP sets get affected the most
  • Channel Estimation Errors decrease the used CoMP set degree, eNBs that are supposed to be

part of joint transmission get down-selected due to estimation errors

  • Energy Efficiency and Capacity get affected differently since Capacity degradation is dependent
  • n CoMP set degree and the choice of points however energy efficiency is reliant on

capacity/power trade-off where power consumption is purely dependent on the set degree

15

slide-16
SLIDE 16

Carleton University: G. Cili, H. Yanikomeroglu, F. R. Yu ICC 2012 June 15, 2012

Performance Degradation Due to CoMP System Delay

CoMP Clustering Decision Delay are due to: 1) Exchange of multi-point CSI feedback between the CoMP measurement set members and the serving cell (anchor) โ€“ lack of aggregate feedback 2) Network Topology Limitations causing latency 3) Node Processing & Decision Delay:

  • Received Power Estimation
  • Sorting the members of CoMP measurement set
  • Thresholded Decision

4) Exchange of User Plane payload between the transmission points

  • ๐‘‡โ„Ž โˆ†๐Š๐‘ต, ๐œ๐พ =

๐น[โ„Ž ๐‘ข1, ๐œ๐พ โ„Ž ๐‘ข1, ๐œ๐พ โˆ—] โ‹ฏ ๐น[โ„Ž ๐‘ข1, ๐œ๐พ โ„Ž ๐‘ข๐‘‚, ๐œ๐พ โˆ—] โ‹ฎ โ‹ฑ โ‹ฎ ๐น[โ„Ž ๐‘ข๐‘‚, ๐œ๐พ โ„Ž ๐‘ข1, ๐œ๐พ โˆ—] โ‹ฏ ๐น[โ„Ž ๐‘ข๐‘‚, ๐œ๐พ โ„Ž ๐‘ข๐‘‚, ๐œ๐พ โˆ—]

  • ๐‘„๐‘„๐พ๐‘ โ„Ž ๐‘ข๐บ, ๐œ0 โˆ’ โ„Ž ๐‘ข๐‘˜, ๐œ0

> ๐œ โ‰ค 2(๐‘‡โ„Ž |โˆ†๐‘ข = 0, โˆ†๐œ = 0| โˆ’ ๐‘‡โ„Ž |๐‘ข๐บ โˆ’ ๐‘ข๐‘˜, โˆ†๐œ = 0| ) ๐œ2 โ„

  • ๐‘‡โ„Ž โˆ†๐Š๐‘ต, ๐œ๐พ is a decreasing function with a maximum value at ๐‘‡โ„Ž 0, ๐œ๐พ
  • Increased System delay or High Doppler shift will yield inaccurate clustering

16

slide-17
SLIDE 17

Carleton University: G. Cili, H. Yanikomeroglu, F. R. Yu ICC 2012 June 15, 2012

Performance Degradation Due to CoMP System Delay

Performance degradation under low mobility conditions (๐’˜ = ๐Ÿ•๐Ÿ•๐Ÿ•/๐’Š) Performance degradation under high mobility conditions (๐’˜ = ๐Ÿ๐Ÿ๐Ÿ๐Ÿ•๐Ÿ•/๐’Š)

  • For low coherence time scenarios, CoMP clustering gets affected severely
  • Multi-point channel estimation errors had a direct impact on decreasing the used

joint transmission set degree, whereas system delays create performance degradation just by changing the members of the CoMP set for the same set degree

17

slide-18
SLIDE 18

Carleton University: G. Cili, H. Yanikomeroglu, F. R. Yu ICC 2012 June 15, 2012

CONCLUSION & SUMMARY

  • CoMP aided cell switch off schemes yield both energy and spectra efficient systems
  • Unneccessary increase CoMP set degree decreases the energy efficiency of the system
  • Capacity/Power trade-off for the CoMP systems are achieved by Serving cell

thresholding decision for joint PDSCH transmission set clustering

  • Traditional Cell switch off schemes have the challenge of proper traffic routine

modeling

  • CoMP aided Cell Switch Off schemes are dependent on CSI feedback & clustering

decision accuracy

  • Multi-point channel estimation errors degrade the performance by decreasing the
  • verall average CoMP set degree
  • CoMP system delays degrade the performance by inaccurate choice of transmission set

points while keeping the set degree same

  • Inter-eNB deployment scenario suffers from faulty clustering under High Doppler

conditions

18

slide-19
SLIDE 19

Carleton University: G. Cili, H. Yanikomeroglu, F. R. Yu ICC 2012 June 15, 2012

Future Work

  • โ„Ž

๐‘ข๐‘œ,๐œ๐‘š = [(๐‘‡โ„Ž โˆ†๐‘ข, ๐œ๐พ + ๐œ๐บ๐‘‚๐บ๐‘ก๐‘“

2

๐‘‡๐ท๐‘‚๐ท)โˆ’1๐‘„

โ„Ž โˆ†๐‘ข, ๐œ๐พ ]๐ผ๐’Š

๐‘ข๐‘œ,..,๐‘œโˆ’๐‘+1;๐œ๐‘š

  • ๐น โ„Ž ๐‘ข๐บ, ๐œ๐พ โ„Ž ๐‘ข๐บ, ๐œ๐พ โˆ— + ๐œ๐บ๐‘‚๐บ๐‘ก๐‘“

2

โ‹ฏ ๐น โ„Ž ๐‘ข๐บ, ๐œ๐พ โ„Ž ๐‘ข๐บโˆ’๐ท+1, ๐œ๐พ โˆ— โ‹ฎ โ‹ฑ โ‹ฎ ๐น โ„Ž ๐‘ข๐บโˆ’๐ท+1, ๐œ๐พ โ„Ž ๐‘ข๐บ, ๐œ๐พ โˆ— โ‹ฏ ๐น โ„Ž ๐‘ข๐บโˆ’๐ท+1, ๐œ๐พ โ„Ž ๐‘ข๐บโˆ’๐ท+1, ๐œ๐พ โˆ— + ๐œ๐บ๐‘‚๐บ๐‘ก๐‘“

2 โˆ’1

๐น โ„Ž ๐‘ข๐บ, ๐œ๐พ โ„Ž ๐‘ข๐บ, ๐œ๐พ โˆ— โ‹ฎ ๐น โ„Ž ๐‘ข๐บโˆ’๐ท+1, ๐œ๐พ โ„Ž ๐‘ข๐บ, ๐œ๐พ โˆ—

  • ๐’Š

๐‘ข๐‘œ,..,๐‘œโˆ’๐‘+1;๐œ๐‘š = โ„Ž ๐‘ข๐‘œ,๐œ๐‘š โ‹ฎ โ„Ž ๐‘ข๐‘œโˆ’๐‘+1,๐œ๐‘š

  • Time-varying nature of each multipath delay for each point mentioned in CoMP measurement

set should be tracked individually using estimation/interpolation filter for CIR

  • Tracking will be dependent on multi-point channel estimation each TTI and interpolation of

the results over various subframes

  • Estimation Filter length M should be adapted according to the CoMP set degree observed,

especially for low mobility cases that has high CoMP set degrees increased filter length will improve the performance significantly

19

slide-20
SLIDE 20

Carleton University: G. Cili, H. Yanikomeroglu, F. R. Yu ICC 2012 June 15, 2012

REFERENCES

20

slide-21
SLIDE 21

Carleton University: G. Cili, H. Yanikomeroglu, F. R. Yu ICC 2012 June 15, 2012

THANK YOU!

QUESTIONS ?

21
