CARLA HST Results OR THE HST GRISM CONFIRMATION RESULTS OF THE 20 DENSEST CARLA CANDIDATE CLUSTERS AT 1.4<z<2.8 Gal Noirot +the CARLA Collaboration Daniel Stern, Jol Vernet, Carlos De Breuck, Simona Mei, Audrey Galametz, Dominika

slide-1

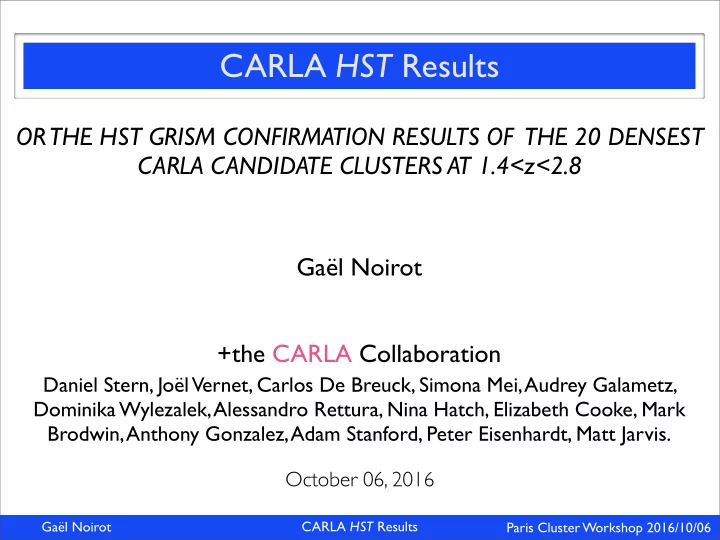

SLIDE 1

CARLA HST Results

Gaël Noirot +the CARLA Collaboration

October 06, 2016

Gaël Noirot CARLA HST Results Paris Cluster Workshop 2016/10/06

OR THE HST GRISM CONFIRMATION RESULTS OF THE 20 DENSEST CARLA CANDIDATE CLUSTERS AT 1.4<z<2.8

Daniel Stern, Joël Vernet, Carlos De Breuck, Simona Mei, Audrey Galametz, Dominika Wylezalek, Alessandro Rettura, Nina Hatch, Elizabeth Cooke, Mark Brodwin, Anthony Gonzalez, Adam Stanford, Peter Eisenhardt, Matt Jarvis.

slide-2
SLIDE 2

Motivation

Few spectroscopically confirmed clusters at z>1.5.

Gaël Noirot CARLA HST Results Paris Cluster Workshop 2016/10/06

Mei+15 + few others, e.g.,

  • Webb+2015 @z=1.709
  • Wang+2016 @z=2.506

=> Need of dedicated surveys spectroscopically confirming high-z clusters.

slide-3
SLIDE 3

CARLA - ‘‘Parent’’ survey

๏ 400hr Warm Spitzer/IRAC [3.6] and [4.5] µm program. ๏ 5.2 x 5.2 arcmin2 per field. ๏ 420 fields targeted around RLAGNs. ๏ 209 HzRGs (type-2), 211 RLQs (type-1). ๏ 1.3 < z < 3.2, L500MHz ≥10^27.5 W/Hz. ๏ Source selection: ([3.6] - [4.5])AB > –0.1 (=> z > 1.3). ๏ CARLA Clusters: fields with >2σ overdensity of red sources.

Wylezalek+2013, 2014.

Gaël Noirot CARLA HST Results Paris Cluster Workshop 2016/10/06

slide-4
SLIDE 4

CARLA HST grism program

Gaël Noirot CARLA HST Results Paris Cluster Workshop 2016/10/06

Primary goals:

๏ Spectroscopically confirm most promising CARLA cluster candidates. ๏ Increase nb of high-z spec-confirmed clusters by factor of several. ๏ Provide benchmark sample for future detailed studies.

(P .I. Stern)

slide-5
SLIDE 5

Gaël Noirot CARLA HST Results Paris Cluster Workshop 2016/10/06

Observations (completed):

๏ 2-orbit per field. ๏ 2x2.3 arcmin2. ๏ 1ksec F140W imaging. ๏ 2x2ksec G141 slitless grism spec.

  • 10800-17000 Å (Ha, OIII, or OII).
  • ~3e-17 erg/cm2/s line detection limit (SFR~20 M⊙/yr at z=2).

CARLA HST grism program

Shallow data => only confirm SF members at z~2. ORIENT 01 ORIENT 02

slide-6
SLIDE 6

Results

Gaël Noirot CARLA HST Results Paris Cluster Workshop 2016/10/06

Field σIRAC zRLAGN hzicl ˜ zcl Nbclm/Nbspec−z NbSp clm/NbSp spec−z CARLA J1358+5752 6.98 1.370 1.368 1.371 14/48 8/23 CARLA J09582904 6.57 1.411 1.392 1.396 8/23 5/12 CARLA J01162052 5.97 1.417 1.425 1.430 12/31 9/22 CARLA J1103+3449 7.98 1.444 1.442 1.443 8/26 4/15 CARLA J11312705 5.97 1.444 1.443 1.445 10/36 6/23 CARLA J1317+3925 6.19 1.569 1.467 1.465 8/40 3/23 CARLA J23550002 6.96 1.500 1.491 1.490 12/46 7/28 CARLA J1129+0951 7.95 1.520 1.528 1.525 12/40 3/16 CARLA J1753+6310 5.77 1.595 1.586 1.587 5/40 1/9 CARLA J1052+0806 6.37 1.641 1.646 1.647 7/42 2/19 CARLA J1300+4009 6.16 1.669 1.675 1.676 8/28 2/10 CARLA J22272705 6.36 1.684 1.692 1.686 7/51 2/28 “” “” “” 1.355 1.357 10/51 3/28 “” “” “” 1.477 1.478 6/51 2/28 CARLA J1510+5958 6.97 1.719 1.725 1.719 6/47 5/24 “” “” “” 0.875 0.875 6/47 1/24 “” “” “” 0.977 0.976 7/47 5/24 CARLA J1018+0530 5.77 1.949 1.952 1.953 8/26 5/18 CARLA J0800+4029 7.77 2.004 1.986 1.986 10/26 4/12 CARLA J20392514 8.95 1.997 1.999 2.000 9/23 3/10 CARLA J1017+6116 7.97 2.800 2.805 2.801 8/43 3/20 “” “” “” 1.235 1.234 5/43 3/20 TNR 2254+1857 5.97 2.164 (2.163) (2.160) (4)/26 (1)/14 J1515+2133 5.79 2.249 (2.262) (2.262) (2)/35 (1)/23 6CSS1054+4459 6.37 2.573 (2.566) (2.566) (2)/40 (0)/19

Noirot+ in prep

slide-7
SLIDE 7

Results

Gaël Noirot CARLA HST Results Paris Cluster Workshop 2016/10/06

Field σIRAC zRLAGN hzicl ˜ zcl Nbclm/Nbspec−z NbSp clm/NbSp spec−z CARLA J1358+5752 6.98 1.370 1.368 1.371 14/48 8/23 CARLA J09582904 6.57 1.411 1.392 1.396 8/23 5/12 CARLA J01162052 5.97 1.417 1.425 1.430 12/31 9/22 CARLA J1103+3449 7.98 1.444 1.442 1.443 8/26 4/15 CARLA J11312705 5.97 1.444 1.443 1.445 10/36 6/23 CARLA J1317+3925 6.19 1.569 1.467 1.465 8/40 3/23 CARLA J23550002 6.96 1.500 1.491 1.490 12/46 7/28 CARLA J1129+0951 7.95 1.520 1.528 1.525 12/40 3/16 CARLA J1753+6310 5.77 1.595 1.586 1.587 5/40 1/9 CARLA J1052+0806 6.37 1.641 1.646 1.647 7/42 2/19 CARLA J1300+4009 6.16 1.669 1.675 1.676 8/28 2/10 CARLA J22272705 6.36 1.684 1.692 1.686 7/51 2/28 “” “” “” 1.355 1.357 10/51 3/28 “” “” “” 1.477 1.478 6/51 2/28 CARLA J1510+5958 6.97 1.719 1.725 1.719 6/47 5/24 “” “” “” 0.875 0.875 6/47 1/24 “” “” “” 0.977 0.976 7/47 5/24 CARLA J1018+0530 5.77 1.949 1.952 1.953 8/26 5/18 CARLA J0800+4029 7.77 2.004 1.986 1.986 10/26 4/12 CARLA J20392514 8.95 1.997 1.999 2.000 9/23 3/10 CARLA J1017+6116 7.97 2.800 2.805 2.801 8/43 3/20 “” “” “” 1.235 1.234 5/43 3/20 TNR 2254+1857 5.97 2.164 (2.163) (2.160) (4)/26 (1)/14 J1515+2133 5.79 2.249 (2.262) (2.262) (2)/35 (1)/23 6CSS1054+4459 6.37 2.573 (2.566) (2.566) (2)/40 (0)/19

Noirot+ in prep

slide-8
SLIDE 8

Results

Field σIRAC zRLAGN hzicl ˜ zcl Nbclm/Nbspec−z NbSp clm/NbSp spec−z CARLA J1358+5752 6.98 1.370 1.368 1.371 14/48 8/23 CARLA J09582904 6.57 1.411 1.392 1.396 8/23 5/12 CARLA J01162052 5.97 1.417 1.425 1.430 12/31 9/22 CARLA J1103+3449 7.98 1.444 1.442 1.443 8/26 4/15 CARLA J11312705 5.97 1.444 1.443 1.445 10/36 6/23 CARLA J1317+3925 6.19 1.569 1.467 1.465 8/40 3/23 CARLA J23550002 6.96 1.500 1.491 1.490 12/46 7/28 CARLA J1129+0951 7.95 1.520 1.528 1.525 12/40 3/16 CARLA J1753+6310 5.77 1.595 1.586 1.587 5/40 1/9 CARLA J1052+0806 6.37 1.641 1.646 1.647 7/42 2/19 CARLA J1300+4009 6.16 1.669 1.675 1.676 8/28 2/10 CARLA J22272705 6.36 1.684 1.692 1.686 7/51 2/28 “” “” “” 1.355 1.357 10/51 3/28 “” “” “” 1.477 1.478 6/51 2/28 CARLA J1510+5958 6.97 1.719 1.725 1.719 6/47 5/24 “” “” “” 0.875 0.875 6/47 1/24 “” “” “” 0.977 0.976 7/47 5/24 CARLA J1018+0530 5.77 1.949 1.952 1.953 8/26 5/18 CARLA J0800+4029 7.77 2.004 1.986 1.986 10/26 4/12 CARLA J20392514 8.95 1.997 1.999 2.000 9/23 3/10 CARLA J1017+6116 7.97 2.800 2.805 2.801 8/43 3/20 “” “” “” 1.235 1.234 5/43 3/20 TNR 2254+1857 5.97 2.164 (2.163) (2.160) (4)/26 (1)/14 J1515+2133 5.79 2.249 (2.262) (2.262) (2)/35 (1)/23 6CSS1054+4459 6.37 2.573 (2.566) (2.566) (2)/40 (0)/19

Gaël Noirot CARLA HST Results Paris Cluster Workshop 2016/10/06

Noirot+ in prep

slide-9
SLIDE 9

Results

Field σIRAC zRLAGN hzicl ˜ zcl Nbclm/Nbspec−z NbSp clm/NbSp spec−z CARLA J1358+5752 6.98 1.370 1.368 1.371 14/48 8/23 CARLA J09582904 6.57 1.411 1.392 1.396 8/23 5/12 CARLA J01162052 5.97 1.417 1.425 1.430 12/31 9/22 CARLA J1103+3449 7.98 1.444 1.442 1.443 8/26 4/15 CARLA J11312705 5.97 1.444 1.443 1.445 10/36 6/23 CARLA J1317+3925 6.19 1.569 1.467 1.465 8/40 3/23 CARLA J23550002 6.96 1.500 1.491 1.490 12/46 7/28 CARLA J1129+0951 7.95 1.520 1.528 1.525 12/40 3/16 CARLA J1753+6310 5.77 1.595 1.586 1.587 5/40 1/9 CARLA J1052+0806 6.37 1.641 1.646 1.647 7/42 2/19 CARLA J1300+4009 6.16 1.669 1.675 1.676 8/28 2/10 CARLA J22272705 6.36 1.684 1.692 1.686 7/51 2/28 “” “” “” 1.355 1.357 10/51 3/28 “” “” “” 1.477 1.478 6/51 2/28 CARLA J1510+5958 6.97 1.719 1.725 1.719 6/47 5/24 “” “” “” 0.875 0.875 6/47 1/24 “” “” “” 0.977 0.976 7/47 5/24 CARLA J1018+0530 5.77 1.949 1.952 1.953 8/26 5/18 CARLA J0800+4029 7.77 2.004 1.986 1.986 10/26 4/12 CARLA J20392514 8.95 1.997 1.999 2.000 9/23 3/10 CARLA J1017+6116 7.97 2.800 2.805 2.801 8/43 3/20 “” “” “” 1.235 1.234 5/43 3/20 TNR 2254+1857 5.97 2.164 (2.163) (2.160) (4)/26 (1)/14 J1515+2133 5.79 2.249 (2.262) (2.262) (2)/35 (1)/23 6CSS1054+4459 6.37 2.573 (2.566) (2.566) (2)/40 (0)/19

Gaël Noirot CARLA HST Results Paris Cluster Workshop 2016/10/06

Noirot+ in prep

slide-10
SLIDE 10

Results

Field σIRAC zRLAGN hzicl ˜ zcl Nbclm/Nbspec−z NbSp clm/NbSp spec−z CARLA J1358+5752 6.98 1.370 1.368 1.371 14/48 8/23 CARLA J09582904 6.57 1.411 1.392 1.396 8/23 5/12 CARLA J01162052 5.97 1.417 1.425 1.430 12/31 9/22 CARLA J1103+3449 7.98 1.444 1.442 1.443 8/26 4/15 CARLA J11312705 5.97 1.444 1.443 1.445 10/36 6/23 CARLA J1317+3925 6.19 1.569 1.467 1.465 8/40 3/23 CARLA J23550002 6.96 1.500 1.491 1.490 12/46 7/28 CARLA J1129+0951 7.95 1.520 1.528 1.525 12/40 3/16 CARLA J1753+6310 5.77 1.595 1.586 1.587 5/40 1/9 CARLA J1052+0806 6.37 1.641 1.646 1.647 7/42 2/19 CARLA J1300+4009 6.16 1.669 1.675 1.676 8/28 2/10 CARLA J22272705 6.36 1.684 1.692 1.686 7/51 2/28 “” “” “” 1.355 1.357 10/51 3/28 “” “” “” 1.477 1.478 6/51 2/28 CARLA J1510+5958 6.97 1.719 1.725 1.719 6/47 5/24 “” “” “” 0.875 0.875 6/47 1/24 “” “” “” 0.977 0.976 7/47 5/24 CARLA J1018+0530 5.77 1.949 1.952 1.953 8/26 5/18 CARLA J0800+4029 7.77 2.004 1.986 1.986 10/26 4/12 CARLA J20392514 8.95 1.997 1.999 2.000 9/23 3/10 CARLA J1017+6116 7.97 2.800 2.805 2.801 8/43 3/20 “” “” “” 1.235 1.234 5/43 3/20 TNR 2254+1857 5.97 2.164 (2.163) (2.160) (4)/26 (1)/14 J1515+2133 5.79 2.249 (2.262) (2.262) (2)/35 (1)/23 6CSS1054+4459 6.37 2.573 (2.566) (2.566) (2)/40 (0)/19

Gaël Noirot CARLA HST Results Paris Cluster Workshop 2016/10/06

Noirot+ in prep

slide-11
SLIDE 11

Some Cases

Gaël Noirot CARLA HST Results Paris Cluster Workshop 2016/10/06

CARLA J2355-0002 Collet+2015

  • RLAGN akin gas-rich BCG of CCC.
  • 7 (+5) Ha emitters at z~1.5.

HST z=1.49 HaE z=1.5 g f c b e a d (Noirot+ in prep)

slide-12
SLIDE 12

Some Cases

Gaël Noirot CARLA HST Results Paris Cluster Workshop 2016/10/06

CARLA J1753+6310 Rettura+ in prep : <z>=1.582 Cooke+2016 HST z=1.58 MOSFIRE z=1.58 HST z=2.1 (Noirot+ in prep)

slide-13
SLIDE 13

Some Cases

Gaël Noirot CARLA HST Results Paris Cluster Workshop 2016/10/06

CARLA J2039-2514 & CARLA J0800+4029 Noirot+2016 (arXiv:1609.04162)

slide-14
SLIDE 14

Some Cases

Gaël Noirot CARLA HST Results Paris Cluster Workshop 2016/10/06

CARLA J2039-2514 & CARLA J0800+4029 Mstar ~2e12 M⊙ ~IDCS J1426.5+3508 @z=1.75, M500 ~2e14 M⊙ (Stanford+12, Brodwin+16) Noirot+2016 (arXiv:1609.04162)

slide-15
SLIDE 15

Some Cases

Gaël Noirot CARLA HST Results Paris Cluster Workshop 2016/10/06

CARLA J2039-2514 & CARLA J0800+4029 Red-sequence of passive galaxies. Red-sequence not formed yet. Noirot+2016 (arXiv:1609.04162)

slide-16
SLIDE 16

Some Cases

Gaël Noirot CARLA HST Results Paris Cluster Workshop 2016/10/06

: z=2.8 starbursting cluster? CARLA J1017+6116 HST z=2.80 HST z=1.24 (Noirot+ in prep) z=2.8 members: SFRs ~ 100-300 M⊙/yr.

slide-17
SLIDE 17

Summary & Prospects

Gaël Noirot CARLA HST Results Paris Cluster Workshop 2016/10/06

Summary:

๏ Efficient confirmation strategy (small 40-orbit HST program, 22 spec-confirmed clusters). ๏16 spec-confirmed clusters associated with RLAGN at 1.4<z<2.8. ๏ Additional data available support the confirmations.

A few prospects:

๏ Obtaining optical data to study CMRs for all confirmed clusters. ๏ Obtaining mm data to study molecular gas on a few confirmed clusters. ๏

Your thoughts on where to go next?

slide-18
SLIDE 18

THANKS

CARLA HST Results

Gaël Noirot CARLA HST Results Paris Cluster Workshop 2016/10/06
