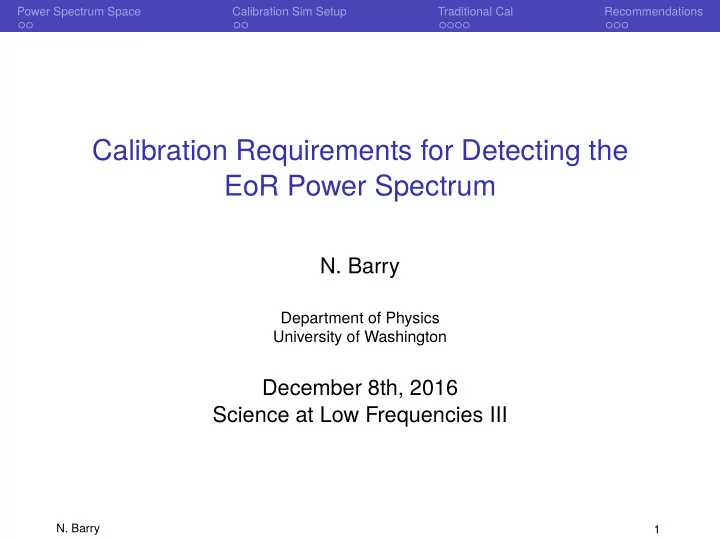

Power Spectrum Space Calibration Sim Setup Traditional Cal Recommendations Calibration Requirements for Detecting the EoR Power Spectrum N. Barry Department of Physics University of Washington December 8th, 2016 Science at Low Frequencies

slide-1
SLIDE 1

Power Spectrum Space Calibration Sim Setup Traditional Cal Recommendations

Calibration Requirements for Detecting the EoR Power Spectrum

  • N. Barry

Department of Physics University of Washington

December 8th, 2016 Science at Low Frequencies III

  • N. Barry

1

slide-2
SLIDE 2

Power Spectrum Space Calibration Sim Setup Traditional Cal Recommendations

The 2D Power Spectrum

By Bryna Hazelton

  • N. Barry

2

Intrinsic Foregrounds EoR Window Foreground Wedge

h

  • r

i z

  • n

p r i m a r y fi e l d

  • f

v i e w

slide-3
SLIDE 3

Power Spectrum Space Calibration Sim Setup Traditional Cal Recommendations

Looking at the 2D Power Spectrum

  • N. Barry

3

slide-4
SLIDE 4

Power Spectrum Space Calibration Sim Setup Traditional Cal Recommendations

  • N. Barry

4

Dirty, calibrated (6950 sources)

slide-5
SLIDE 5

Power Spectrum Space Calibration Sim Setup Traditional Cal Recommendations

  • N. Barry

5

Model, 72% flux (4000 sources)

slide-6
SLIDE 6

Power Spectrum Space Calibration Sim Setup Traditional Cal Recommendations

  • N. Barry

6

Residual, 28% flux (2950 sources)

slide-7
SLIDE 7

Power Spectrum Space Calibration Sim Setup Traditional Cal Recommendations

  • N. Barry

7

Residual, 28% flux (2950 sources)

slide-8
SLIDE 8

Power Spectrum Space Calibration Sim Setup Traditional Cal Recommendations

Residual PS

  • N. Barry

8

slide-9
SLIDE 9

Power Spectrum Space Calibration Sim Setup Traditional Cal Recommendations

Residual PS

  • N. Barry

9

slide-10
SLIDE 10

Power Spectrum Space Calibration Sim Setup Traditional Cal Recommendations

Residual PS

  • N. Barry

10

"perfect calibration" = no calibration errors

slide-11
SLIDE 11

Power Spectrum Space Calibration Sim Setup Traditional Cal Recommendations

Difference – per freq, per pol, per antenna calibration

  • N. Barry

11

slide-12
SLIDE 12

Power Spectrum Space Calibration Sim Setup Traditional Cal Recommendations

Difference – per freq, per pol, per antenna calibration

  • N. Barry

12

slide-13
SLIDE 13

Power Spectrum Space Calibration Sim Setup Traditional Cal Recommendations

Difference – per freq, per pol, per antenna calibration

  • N. Barry

13

slide-14
SLIDE 14

Power Spectrum Space Calibration Sim Setup Traditional Cal Recommendations

  • N. Barry

14

◮ Entire window is saturated

by as much as 107, or an

  • rder of magnitude above

the EoR

◮ Foreground wedge have

been over fit

◮ Measurement of the EoR

impossible!

slide-15
SLIDE 15

Power Spectrum Space Calibration Sim Setup Traditional Cal Recommendations

  • N. Barry

15

slide-16
SLIDE 16

Power Spectrum Space Calibration Sim Setup Traditional Cal Recommendations

Modulation

h(ν) = f(ν) (1 + ∆g cos η0ν) (1) The modulation theorem results in the Fourier transform H(η) = ∆g 2 F(η − η0) + ∆g 2 F(η + η0) + F(η) (2) An order of magnitude estimate of the positive power spectrum

  • f this modified signal is

O(|H(η)|2) ≈ O(|F(η)|2) + O

  • ∆g

2 F(η ± η0)

  • 2

(3)

  • N. Barry

16

slide-17
SLIDE 17

Power Spectrum Space Calibration Sim Setup Traditional Cal Recommendations

Final 1D comparison

  • N. Barry

17

slide-18
SLIDE 18

Power Spectrum Space Calibration Sim Setup Traditional Cal Recommendations

Recommendations

◮ No frequency structure faster than 8 MHz (125 ns) in

instrument

◮ Frequency structure needs to be lower than 1 part in 105 ◮ Validation of calibration techniques

◮ in the space of the measurement ◮ using incomplete models

  • N. Barry

18

slide-19
SLIDE 19

Power Spectrum Space Calibration Sim Setup Traditional Cal Recommendations

For more information...

◮ Barry N., Hazelton B., Sullivan, I. Morales M. F., Pober J.

C., 2016 , MNRAS, doi:10.1093/mnras/stw1380

◮ Trott C. M. and Wayth R. B., 2016, PASA, 33, e019

doi:10.1017/pasa.2016.18.

◮ Patil A. H., Yatawatta S., Zaroubi S., Koopmans L. V. E., de

Bruyn A. G., Jelić V., Ciardi B., Iliev I. T., Mevius M., Pandey V. N., Gehlot B. K., 2016, MNRAS, doi:10.1093/mnras/stw2277

  • N. Barry

19
