Cabling Optimization in a Wind Farm Heuristics Based on Simulated Annealing Masters Thesis Final Presentation May 31, 2016 Sebastian Lehmann I NSTITUTE OF T HEORETICAL I NFORMATICS A LGORITHMICS G ROUP KIT University of the State

slide-1
SLIDE 1

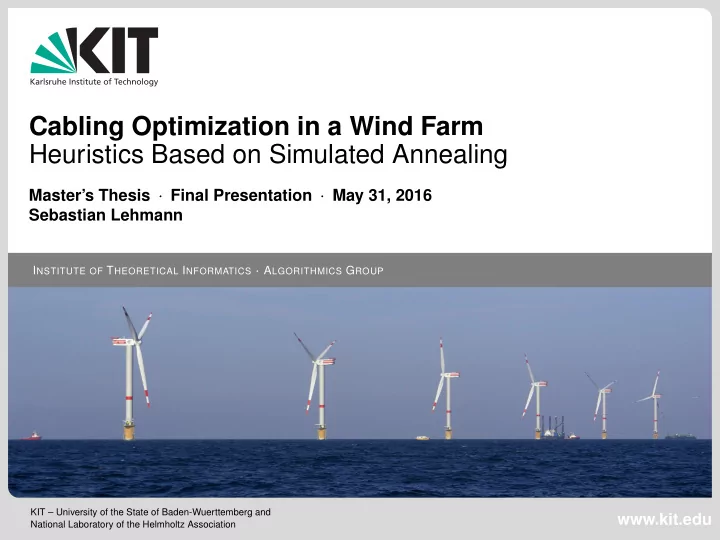

Cabling Optimization in a Wind Farm

Master’s Thesis · Final Presentation · May 31, 2016 Sebastian Lehmann

KIT – University of the State of Baden-Wuerttemberg and National Laboratory of the Helmholtz Association

INSTITUTE OF THEORETICAL INFORMATICS · ALGORITHMICS GROUP

www.kit.edu

Heuristics Based on Simulated Annealing

slide-2
SLIDE 2

Sebastian Lehmann – Heuristics for Wind Farm Cabling Problems Institute of Theoretical Informatics Algorithmics Group

Components in a Wind Farm

1

slide-3
SLIDE 3

Sebastian Lehmann – Heuristics for Wind Farm Cabling Problems Institute of Theoretical Informatics Algorithmics Group

Components in a Wind Farm

Turbines

1

slide-4
SLIDE 4

Sebastian Lehmann – Heuristics for Wind Farm Cabling Problems Institute of Theoretical Informatics Algorithmics Group

Components in a Wind Farm

Grid Point Turbines

1

slide-5
SLIDE 5

Sebastian Lehmann – Heuristics for Wind Farm Cabling Problems Institute of Theoretical Informatics Algorithmics Group

Components in a Wind Farm

Grid Point Turbines 33 kV 155 kV

1

slide-6
SLIDE 6

Sebastian Lehmann – Heuristics for Wind Farm Cabling Problems Institute of Theoretical Informatics Algorithmics Group

Components in a Wind Farm

Grid Point Turbines Substations 33 kV 155 kV

1

slide-7
SLIDE 7

Sebastian Lehmann – Heuristics for Wind Farm Cabling Problems Institute of Theoretical Informatics Algorithmics Group

Components in a Wind Farm

Grid Point Turbines Substations Transport Cables 33 kV 155 kV

1

slide-8
SLIDE 8

Sebastian Lehmann – Heuristics for Wind Farm Cabling Problems Institute of Theoretical Informatics Algorithmics Group

Components in a Wind Farm

Grid Point Turbines Substations Transport Cables Export Cables 33 kV 155 kV

1

slide-9
SLIDE 9

Sebastian Lehmann – Heuristics for Wind Farm Cabling Problems Institute of Theoretical Informatics Algorithmics Group

Components in a Wind Farm

Grid Point Turbines Substations Transport Cables Export Cables 33 kV 155 kV

≤6 turbines, $140 ≤2 turbines, $100 ≤9 turbines, $160

1

slide-10
SLIDE 10

Sebastian Lehmann – Heuristics for Wind Farm Cabling Problems Institute of Theoretical Informatics Algorithmics Group

Transmission Network Expansion Planning

2

slide-11
SLIDE 11

Sebastian Lehmann – Heuristics for Wind Farm Cabling Problems Institute of Theoretical Informatics Algorithmics Group

Transmission Network Expansion Planning

... for a circuit Optimize Cabling Cost ...

2

slide-12
SLIDE 12

Sebastian Lehmann – Heuristics for Wind Farm Cabling Problems Institute of Theoretical Informatics Algorithmics Group

Transmission Network Expansion Planning

... for a substation ... for a circuit Optimize Cabling Cost ...

2

slide-13
SLIDE 13

Sebastian Lehmann – Heuristics for Wind Farm Cabling Problems Institute of Theoretical Informatics Algorithmics Group

Transmission Network Expansion Planning

... for a substation ... for a circuit ... for the full farm Optimize Cabling Cost ...

2

slide-14
SLIDE 14

Sebastian Lehmann – Heuristics for Wind Farm Cabling Problems Institute of Theoretical Informatics Algorithmics Group

Transmission Network Expansion Planning

... for a substation ... for a circuit ... for the full farm Optimize Cabling Cost ... single cable type Berzan et al. (2011): Algorithms for Cable Network Design on Large-scale Wind Farms

http://thirld.com/files/msrp techreport.pdf

2

slide-15
SLIDE 15

Sebastian Lehmann – Heuristics for Wind Farm Cabling Problems Institute of Theoretical Informatics Algorithmics Group

Transmission Network Expansion Planning

... for a substation ... for a circuit ... for the full farm Optimize Cabling Cost ... multiple cable types Berzan et al. (2011): Algorithms for Cable Network Design on Large-scale Wind Farms

http://thirld.com/files/msrp techreport.pdf

2

slide-16
SLIDE 16

Sebastian Lehmann – Heuristics for Wind Farm Cabling Problems Institute of Theoretical Informatics Algorithmics Group

Wind Farm Cable Layout Problem

Given t turbines, s substations (each with capacity), for each edge: cable types (each with cost and capacity)

3

slide-17
SLIDE 17

Sebastian Lehmann – Heuristics for Wind Farm Cabling Problems Institute of Theoretical Informatics Algorithmics Group

Wind Farm Cable Layout Problem

Given find t turbines, s substations (each with capacity), for each edge: cable types (each with cost and capacity) for each edge: the cable type

3

slide-18
SLIDE 18

Sebastian Lehmann – Heuristics for Wind Farm Cabling Problems Institute of Theoretical Informatics Algorithmics Group

Wind Farm Cable Layout Problem

Given find t turbines, s substations (each with capacity), for each edge: cable types (each with cost and capacity) for each edge: the cable type their total cost minimizing

3

slide-19
SLIDE 19

Sebastian Lehmann – Heuristics for Wind Farm Cabling Problems Institute of Theoretical Informatics Algorithmics Group

Wind Farm Cable Layout Problem

Given find subject to t turbines, s substations (each with capacity), for each edge: cable types (each with cost and capacity) for each edge: the cable type their total cost minimizing substation capacity constraints flow conservation constraints cable capacity constraints

3

slide-20
SLIDE 20

Sebastian Lehmann – Heuristics for Wind Farm Cabling Problems Institute of Theoretical Informatics Algorithmics Group

Integer Linear Programming

Given find subject to t turbines, s substations (each with capacity), for each edge: cable types (each with cost and capacity) for each edge: the cable type their total cost minimizing substation capacity constraints cable capacity constraints flow conservation constraints

4

slide-21
SLIDE 21

Sebastian Lehmann – Heuristics for Wind Farm Cabling Problems Institute of Theoretical Informatics Algorithmics Group

Integer Linear Programming

Given find subject to t turbines, s substations (each with capacity), for each edge: cable types (each with cost and capacity) for each edge: the cable type their total cost minimizing substation capacity constraints cable capacity constraints flow conservation constraints

inputs

4

slide-22
SLIDE 22

Sebastian Lehmann – Heuristics for Wind Farm Cabling Problems Institute of Theoretical Informatics Algorithmics Group

Integer Linear Programming

Given find subject to t turbines, s substations (each with capacity), for each edge: cable types (each with cost and capacity) for each edge: the cable type their total cost minimizing substation capacity constraints cable capacity constraints flow conservation constraints

variables

binary variables

4

slide-23
SLIDE 23

Sebastian Lehmann – Heuristics for Wind Farm Cabling Problems Institute of Theoretical Informatics Algorithmics Group

Integer Linear Programming

Given find subject to t turbines, s substations (each with capacity), for each edge: cable types (each with cost and capacity) for each edge: the cable type their total cost minimizing substation capacity constraints cable capacity constraints flow conservation constraints

=

cable chosen? × cable cost

  • bjective

edges cable types

4

slide-24
SLIDE 24

Sebastian Lehmann – Heuristics for Wind Farm Cabling Problems Institute of Theoretical Informatics Algorithmics Group

Meta-Heuristic Optimization Techniques

Tabu Search Hill Climbing Simulated Annealing Ant Colony Optimization Evolutionary Algorithms Stochastic Tunneling Greedy

5

slide-25
SLIDE 25

Sebastian Lehmann – Heuristics for Wind Farm Cabling Problems Institute of Theoretical Informatics Algorithmics Group

Meta-Heuristic Optimization Techniques

Tabu Search Hill Climbing Simulated Annealing Ant Colony Optimization Evolutionary Algorithms Stochastic Tunneling Greedy

Swarm Intelligence Monte-Carlo Local Optimization

5

slide-26
SLIDE 26

Sebastian Lehmann – Heuristics for Wind Farm Cabling Problems Institute of Theoretical Informatics Algorithmics Group

Meta-Heuristic Optimization Techniques

Tabu Search Hill Climbing Simulated Annealing Ant Colony Optimization Evolutionary Algorithms Stochastic Tunneling Greedy

Swarm Intelligence Monte-Carlo Local Optimization

5

slide-27
SLIDE 27

Sebastian Lehmann – Heuristics for Wind Farm Cabling Problems Institute of Theoretical Informatics Algorithmics Group

Simulated Annealing

mutate solution candidates idea: allow worse solutions temporarily

6

slide-28
SLIDE 28

Sebastian Lehmann – Heuristics for Wind Farm Cabling Problems Institute of Theoretical Informatics Algorithmics Group

Simulated Annealing

mutate solution candidates idea: allow worse solutions temporarily

minimize height

6

slide-29
SLIDE 29

Sebastian Lehmann – Heuristics for Wind Farm Cabling Problems Institute of Theoretical Informatics Algorithmics Group

Simulated Annealing

mutate solution candidates idea: allow worse solutions temporarily

minimize height

many local optima

6

slide-30
SLIDE 30

Sebastian Lehmann – Heuristics for Wind Farm Cabling Problems Institute of Theoretical Informatics Algorithmics Group

Simulated Annealing

mutate solution candidates idea: allow worse solutions temporarily

minimize height

many local optima local search

6

slide-31
SLIDE 31

Sebastian Lehmann – Heuristics for Wind Farm Cabling Problems Institute of Theoretical Informatics Algorithmics Group

Simulated Annealing

mutate solution candidates idea: allow worse solutions temporarily

minimize height

many local optima escape local optimum ?

6

slide-32
SLIDE 32

Sebastian Lehmann – Heuristics for Wind Farm Cabling Problems Institute of Theoretical Informatics Algorithmics Group

Simulated Annealing

mutate solution candidates idea: allow worse solutions temporarily

minimize height

many local optima multiple mutations

6

slide-33
SLIDE 33

Sebastian Lehmann – Heuristics for Wind Farm Cabling Problems Institute of Theoretical Informatics Algorithmics Group

Simulated Annealing

mutate solution candidates idea: allow worse solutions temporarily temperature controls acceptance of worse solutions

6

slide-34
SLIDE 34

Sebastian Lehmann – Heuristics for Wind Farm Cabling Problems Institute of Theoretical Informatics Algorithmics Group

Simulated Annealing

mutate solution candidates idea: allow worse solutions temporarily temperature controls acceptance of worse solutions Time hot cool Temperature exponential cooling

6

slide-35
SLIDE 35

Sebastian Lehmann – Heuristics for Wind Farm Cabling Problems Institute of Theoretical Informatics Algorithmics Group

Simulated Annealing

mutate solution candidates idea: allow worse solutions temporarily temperature controls acceptance of worse solutions Time hot cool Temperature exponential cooling likely unlikely

6

slide-36
SLIDE 36

Sebastian Lehmann – Heuristics for Wind Farm Cabling Problems Institute of Theoretical Informatics Algorithmics Group

Simulated Annealing solution candidate

mutation

7

slide-37
SLIDE 37

Sebastian Lehmann – Heuristics for Wind Farm Cabling Problems Institute of Theoretical Informatics Algorithmics Group

Simulated Annealing indirect representation solution candidate

decoding mutation

7

slide-38
SLIDE 38

Sebastian Lehmann – Heuristics for Wind Farm Cabling Problems Institute of Theoretical Informatics Algorithmics Group

Our Representation

8

slide-39
SLIDE 39

Sebastian Lehmann – Heuristics for Wind Farm Cabling Problems Institute of Theoretical Informatics Algorithmics Group

Our Representation

nodes: potential values (permutation of indices)

5 8 7 9 4 6 1 2 3 10

8

slide-40
SLIDE 40

Sebastian Lehmann – Heuristics for Wind Farm Cabling Problems Institute of Theoretical Informatics Algorithmics Group

Our Representation

nodes: potential values (permutation of indices)

5 8 7 9 4 6

forbid some edges

1 2 3 10

8

slide-41
SLIDE 41

Sebastian Lehmann – Heuristics for Wind Farm Cabling Problems Institute of Theoretical Informatics Algorithmics Group

Our Representation

nodes: potential values (permutation of indices)

5 8 7 9 4 6

forbid some edges Decoding each turbine: construct path

1 2 3 10

8

slide-42
SLIDE 42

Sebastian Lehmann – Heuristics for Wind Farm Cabling Problems Institute of Theoretical Informatics Algorithmics Group

Our Representation

nodes: potential values (permutation of indices)

5 8 7 9 4 6

forbid some edges Decoding each turbine: construct path

1 2 3 10

8

slide-43
SLIDE 43

Sebastian Lehmann – Heuristics for Wind Farm Cabling Problems Institute of Theoretical Informatics Algorithmics Group

Our Representation

nodes: potential values (permutation of indices)

5 8 7 9 4 6

forbid some edges Decoding each turbine: construct path

1 2 3 10

8

slide-44
SLIDE 44

Sebastian Lehmann – Heuristics for Wind Farm Cabling Problems Institute of Theoretical Informatics Algorithmics Group

Our Representation

nodes: potential values (permutation of indices)

5 8 7 9 4 6

forbid some edges Decoding each turbine: construct path

1 2 3 10

8

slide-45
SLIDE 45

Sebastian Lehmann – Heuristics for Wind Farm Cabling Problems Institute of Theoretical Informatics Algorithmics Group

Our Representation

nodes: potential values (permutation of indices)

5 8 7 9 4 6

forbid some edges Decoding each turbine: construct path

1 2 3

each edge: find suited cable

10

8

slide-46
SLIDE 46

Sebastian Lehmann – Heuristics for Wind Farm Cabling Problems Institute of Theoretical Informatics Algorithmics Group

Our Representation

nodes: potential values (permutation of indices)

5 8 7 9 4 6

forbid some edges

1 2 3

Mutation

10

8

slide-47
SLIDE 47

Sebastian Lehmann – Heuristics for Wind Farm Cabling Problems Institute of Theoretical Informatics Algorithmics Group

Our Representation

nodes: potential values (permutation of indices)

5 8 7 9 4 6

forbid some edges

1 2 3

Mutation swap node potentials

10

8

slide-48
SLIDE 48

Sebastian Lehmann – Heuristics for Wind Farm Cabling Problems Institute of Theoretical Informatics Algorithmics Group

Our Representation

nodes: potential values (permutation of indices)

5 8 7 9 4 6

forbid some edges

1 2 3

Mutation swap node potentials

10

8

slide-49
SLIDE 49

Sebastian Lehmann – Heuristics for Wind Farm Cabling Problems Institute of Theoretical Informatics Algorithmics Group

Our Representation

nodes: potential values (permutation of indices)

5 8 7 9 4 6

forbid some edges

1 2 3

Mutation swap node potentials

3 8 10

8

slide-50
SLIDE 50

Sebastian Lehmann – Heuristics for Wind Farm Cabling Problems Institute of Theoretical Informatics Algorithmics Group

Our Representation

nodes: potential values (permutation of indices)

5 8 7 9 4 6

forbid some edges

1 2 3

Mutation swap node potentials

3 8 10

8

slide-51
SLIDE 51

Sebastian Lehmann – Heuristics for Wind Farm Cabling Problems Institute of Theoretical Informatics Algorithmics Group

Our Representation

nodes: potential values (permutation of indices)

5 8 7 9 4 6

forbid some edges

1 2 3

Mutation swap node potentials

3 8 10

forbid / allow an edge

8

slide-52
SLIDE 52

Sebastian Lehmann – Heuristics for Wind Farm Cabling Problems Institute of Theoretical Informatics Algorithmics Group

Our Representation

nodes: potential values (permutation of indices)

5 8 7 9 4 6

forbid some edges

1 2 3

Mutation swap node potentials

3 8 10

forbid / allow an edge

8

slide-53
SLIDE 53

Sebastian Lehmann – Heuristics for Wind Farm Cabling Problems Institute of Theoretical Informatics Algorithmics Group

Our Representation

nodes: potential values (permutation of indices)

5 8 7 9 4 6

forbid some edges

1 2 3

Mutation swap node potentials

3 8 10

forbid / allow an edge

8

slide-54
SLIDE 54

Sebastian Lehmann – Heuristics for Wind Farm Cabling Problems Institute of Theoretical Informatics Algorithmics Group

Generating Instances

Turbines & substations evenly distributed (Poisson Disk Sampling) Edges: 6 nearest neighbors + shortcuts Substation capacities: tight vs. loose

9

slide-55
SLIDE 55

Sebastian Lehmann – Heuristics for Wind Farm Cabling Problems Institute of Theoretical Informatics Algorithmics Group

Observations & Problems

good results for medium-sized farms (t < 350: faster than Gurobi) long running time required for large farms

10

slide-56
SLIDE 56

Sebastian Lehmann – Heuristics for Wind Farm Cabling Problems Institute of Theoretical Informatics Algorithmics Group

Observations & Problems

good results for medium-sized farms (t < 350: faster than Gurobi) long running time required for large farms reference solution: run Gurobi for 1h

10

slide-57
SLIDE 57

Sebastian Lehmann – Heuristics for Wind Farm Cabling Problems Institute of Theoretical Informatics Algorithmics Group

Observations & Problems

good results for medium-sized farms (t < 350: faster than Gurobi) long running time required for large farms reference solution: run Gurobi for 1h better results after 30 min

10

slide-58
SLIDE 58

Sebastian Lehmann – Heuristics for Wind Farm Cabling Problems Institute of Theoretical Informatics Algorithmics Group

Observations & Problems

good results for medium-sized farms (t < 350: faster than Gurobi) long running time required for large farms reference solution: run Gurobi for 1h better results after 30 min converges slower than Gurobi

10

slide-59
SLIDE 59

Sebastian Lehmann – Heuristics for Wind Farm Cabling Problems Institute of Theoretical Informatics Algorithmics Group

Observations & Problems

good results for medium-sized farms (t < 350: faster than Gurobi) long running time required for large farms temperature curve: parameter tuning difficult

10

slide-60
SLIDE 60

Sebastian Lehmann – Heuristics for Wind Farm Cabling Problems Institute of Theoretical Informatics Algorithmics Group

Observations & Problems

good results for medium-sized farms (t < 350: faster than Gurobi) long running time required for large farms temperature curve: parameter tuning difficult result depends on random seed

10

slide-61
SLIDE 61

Sebastian Lehmann – Heuristics for Wind Farm Cabling Problems Institute of Theoretical Informatics Algorithmics Group

Observations & Problems

good results for medium-sized farms (t < 350: faster than Gurobi) long running time required for large farms temperature curve: parameter tuning difficult result depends on random seed bad results for tight substation capacities

10

slide-62
SLIDE 62

Sebastian Lehmann – Heuristics for Wind Farm Cabling Problems Institute of Theoretical Informatics Algorithmics Group

Observations & Problems

good results for medium-sized farms (t < 350: faster than Gurobi) long running time required for large farms temperature curve: parameter tuning difficult result depends on random seed bad results for tight substation capacities bad results for many substations

10

slide-63
SLIDE 63

Sebastian Lehmann – Heuristics for Wind Farm Cabling Problems Institute of Theoretical Informatics Algorithmics Group

Dynamic Temperature Curve

temperature curve: parameter tuning difficult

11

slide-64
SLIDE 64

Sebastian Lehmann – Heuristics for Wind Farm Cabling Problems Institute of Theoretical Informatics Algorithmics Group

Dynamic Temperature Curve

Observation: escaping deep local optimum takes long time temperature curve: parameter tuning difficult

11

slide-65
SLIDE 65

Sebastian Lehmann – Heuristics for Wind Farm Cabling Problems Institute of Theoretical Informatics Algorithmics Group

Dynamic Temperature Curve

Observation: escaping deep local optimum takes long time much higher cost somewhat higher cost deep: temperature curve: parameter tuning difficult

11

slide-66
SLIDE 66

Sebastian Lehmann – Heuristics for Wind Farm Cabling Problems Institute of Theoretical Informatics Algorithmics Group

Dynamic Temperature Curve

Observation: escaping deep local optimum takes long time temperature curve: parameter tuning difficult Time hot Temperature exponential cooling cool

11

slide-67
SLIDE 67

Sebastian Lehmann – Heuristics for Wind Farm Cabling Problems Institute of Theoretical Informatics Algorithmics Group

Dynamic Temperature Curve

Observation: escaping deep local optimum takes long time temperature curve: parameter tuning difficult Time hot Temperature exponential cooling Global exploration Local refinement cool

11

slide-68
SLIDE 68

Sebastian Lehmann – Heuristics for Wind Farm Cabling Problems Institute of Theoretical Informatics Algorithmics Group

Dynamic Temperature Curve

Observation: escaping deep local optimum takes long time temperature curve: parameter tuning difficult Time hot Temperature exponential cooling Global exploration Local refinement cool

11

slide-69
SLIDE 69

Sebastian Lehmann – Heuristics for Wind Farm Cabling Problems Institute of Theoretical Informatics Algorithmics Group

Dynamic Temperature Curve

Observation: escaping deep local optimum takes long time temperature curve: parameter tuning difficult Time hot cool Temperature exponential cooling Global exploration Local refinement “frozen”

11

slide-70
SLIDE 70

Sebastian Lehmann – Heuristics for Wind Farm Cabling Problems Institute of Theoretical Informatics Algorithmics Group

Dynamic Temperature Curve

adjust temperature drop velocity to activity activity = avg. probability for accepting worse solution Idea: Observation: escaping deep local optimum takes long time temperature curve: parameter tuning difficult Time hot cool Temperature exponential cooling Global exploration Local refinement “frozen”

11

slide-71
SLIDE 71

Sebastian Lehmann – Heuristics for Wind Farm Cabling Problems Institute of Theoretical Informatics Algorithmics Group

Dynamic Temperature Curve

adjust temperature drop velocity to activity activity = avg. probability for accepting worse solution Idea: Observation: escaping deep local optimum takes long time temperature curve: parameter tuning difficult Time hot Temperature exponential cooling cool Global exploration Local refinement sub-

11

slide-72
SLIDE 72

Sebastian Lehmann – Heuristics for Wind Farm Cabling Problems Institute of Theoretical Informatics Algorithmics Group

Dynamic Temperature Curve better worse

than Gurobi than Gurobi

0% +0.5%

−0.5%

100 200 300 400 Number of turbines t (grouped in steps of 50) standard temperature curve dynamic temperature curve

12

slide-73
