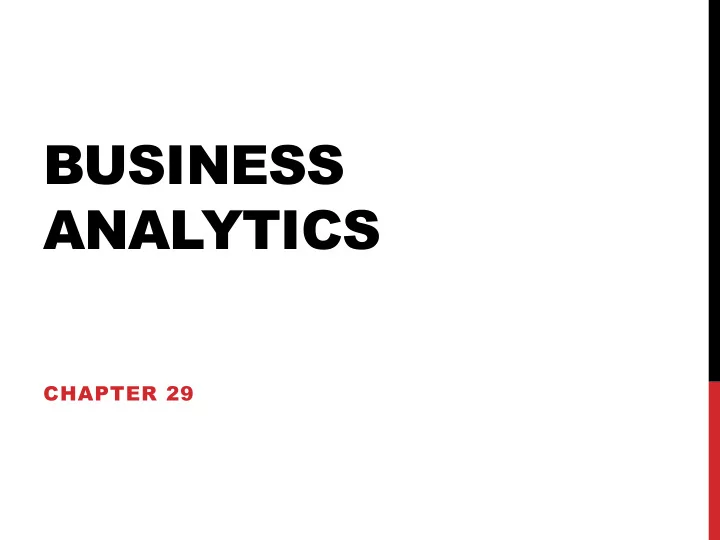

BUSINESS ANALYTICS

CHAPTER 29

LECTURE OUTLINE

• Data warehouses
• Comparison with operational databases
• Multi-dimensional schemas
• Functionality of a data warehouse

2

DATA WAREHOUSES

• Data warehouse
• “A subject-oriented, integrated, nonvolatile, time-variant collection
• f data in support of management’s decisions.” [W.H.Inmon]
• Data comes from multiple databases
• Tools to make business decisions quickly and reliably based on

historical data

• Supported applications
• OLAP (Online Analytical Processing)
• Analysis of complex data from data warehouse
• DSS (Decision Support Systems)
• Also known as EIS (Executive Information Systems)
• Provides data and tools for complex decision-making
• Data mining
• Knowledge discovery: searching data for unanticipated new

knowledge

3

INTEGRATED WAREHOUSE AND DB

• Extract, Transform, and Load (ETL)
• Extracted from multiple, heterogeneous sources.
• Includes data cleaning to ensure validity and consistency
• Back flushing: upgrading the data with cleaned data
• Analyzed data fed back into operating DB and data management

Databases Data Warehouse Cleaning Reformatting Updates/New Data Back Flushing Other Data Inputs OLAP Data Mining Data Metadata DSSI EIS

4

DATA WAREHOUSES VS. DBS

• Operations
• Data warehouses optimized to find data correlations and to support

trend analyses

• Traditional databases are transactional: optimized for access,

update, and integrity assurance

• Data warehouses are less volatile than operational DBs.
• Data currency
• Operational DBs required to maintain up-to-date, detailed data
• Data warehouses characterized by historical data
• Information in data warehouse is relatively coarse grained (“view

from 10,000 ft.”) and refresh policy is carefully chosen, usually incremental.

• Data volume
• Data warehouses may be exceptionally large (7 years of records)
• Data warehouse can be interpreted as a (special) view of the data.

5

MULTI-DIMENSIONAL SCHEMAS

• Multi-dimensional schemas specified using:
• Dimension table
• Consists of tuples of attributes of the dimension.
• Fact table
• Each tuple is a recorded fact.
• Some measured or observed variable(s) and references to

dimension tables.

6

WAREHOUSE FUNCTIONALITY

• Roll-up: Data is summarized with increasing generalization
• E.g., going from daily or weekly reports to annual aggregations
• Drill-Down: Increasing levels of detail are revealed
• E.g., going from national sales to sales from a particular region
• Pivot: Cross tabulation is performed from given perspective
• Slice and dice: Select and project data wrt some dimensions
• Plus traditional operations
• Sorting by ordinal value.
• Selection by value or range.
• Derived attributes: Attributes are computed by operations on stored

derived values.

7

DATA MODELING FOR WAREHOUSES

• OLAP data cube

REGION REG1 REG2 REG3 P123 P124 P125 P126 : : P R O D U C T Two Dimensional Model

: :

Three dimensional data cube P r

• d

u c t F i s c a l Q u a r t e r Q t r 1 Q t r 2 Q t r 3 Q t r 4 Reg 1

P123 P124 P125 P126

Reg 2 Reg 3 R e g i o n

8

roll up drill down

LECTURE SUMMARY

• Glimpse at DBMS support for business analytics
• Role of data warehouses
• OLAP cube
• Model and operations

9
