Broadcast-Multicast Service Controller Discovery via DHCP-Option-Codes draft-chowdhury-dhc-bcmcv4-option-00.txt draft-chowdhury-dhc-bcmcv6-option-00.txt Kuntal Chowdhury, chowdury@nortelnetworks.com Parviz Yegani, pyegani@cisco.com Lila


slide-1

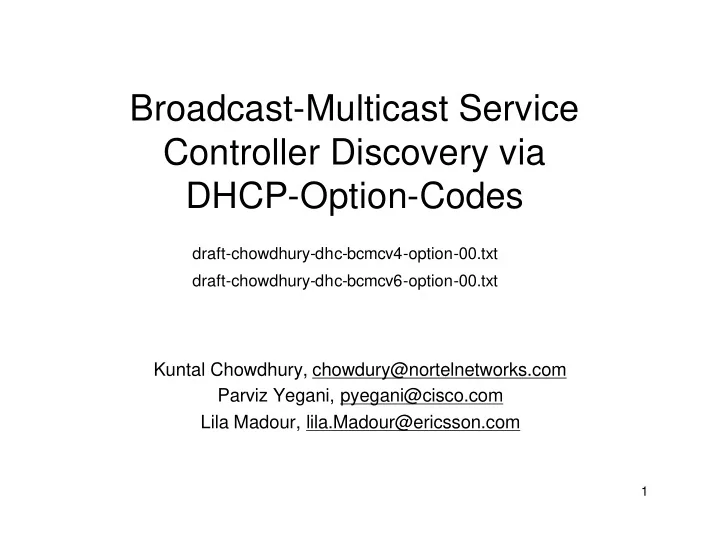

SLIDE 1

1

Broadcast-Multicast Service Controller Discovery via DHCP-Option-Codes

Kuntal Chowdhury, chowdury@nortelnetworks.com Parviz Yegani, pyegani@cisco.com Lila Madour, lila.Madour@ericsson.com

draft-chowdhury-dhc-bcmcv6-option-00.txt draft-chowdhury-dhc-bcmcv4-option-00.txt

slide-2
SLIDE 2

2

Quick Intro: What is BCMCS?

  • BCMCS is the short form of BroadCast

and MultiCast Service over an IP network.

  • This type of service is being developed in

3GPP2 (www.3gpp2.org) at this time.

  • Similar service is also being developed for
  • ther wireless access e.g. 3GPP, OMA.
  • The Service will allow users to receive

variety of content (e.g. video/text) on their handsets over cellular links.

slide-3
SLIDE 3

3

BCMCS architecture (3GPP2)

BCMCS Subscriber Profile Manager Subscriber Profile Database H-AAA S-AAA PDSN BSN BSC/ PCF MS/UIM BCMCS Controller BCMCS Content Server BCMCS Content Provider BCMCS Content Provider MR BCMCS Content Provider Signaling Bearer Path (Original content) Bearer Path (Content may be reformatted) Out of Scope of this document

Home Network Serving Network Third party

DNS DHCP

slide-4
SLIDE 4

4

High Level Operational Overview

  • User’s subscribe to BCMCS service.
  • In a given radio network, the user requests for

content information from the controller.

  • The controller may authenticate and authorize

the user before sending content information.

  • The user’s interaction with the controller is

crucial for the operation of this service.

  • The controller is a local/visited network entity.
  • The user’s/mobiles must discover local controller

IP address for BCMCS information acquisition.

slide-5
SLIDE 5

5

Motivation for using DHCP

  • BCMCS controller is a local network entity.
  • The user’s must discover the address of a

local controller.

  • Address provisioning in the handsets is

not feasible in large public networks.

  • In a roaming situation, the address

provisioning does not work.

  • DHCP is the configuration protocol and it

is the natural protocol of choice.

slide-6
SLIDE 6

6

DHCPv6 options

  • draft-chowdhury-dhc-bcmcv6-option-00.txt
  • Proposes to use stateless DHCP as per RFC

3115.

  • The Client includes appropriate O-R-O in the

Information Request.

  • The Client may also include Client Identifier

Option in the Request.

  • Two options proposed:

– Broadcast Service Controller Domain Name List

  • ption.

– Broadcast Service Controller IPv6 address option.

slide-7
SLIDE 7

7

DHCPv6 options contd.

  • Broadcast Service Controller Domain

Name List option:

0 1 2 3 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+ | OPTION_BCMCS_SERVER_D | option-length | +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+ | Broadcast Control Domain Name List | | ... | +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+

slide-8
SLIDE 8

8

DHCPv6 options contd.

  • Broadcast Service Controller IPv6 address
  • ption:

0 1 2 3 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+ | OPTION_BCMCS_SERVER_A | option-length | +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+ | Broadcast Control server-1 address (IPv6 address) | +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+ | Broadcast Control server-2 address (IPv6 address) | +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+ | ... | +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+

slide-9
SLIDE 9

9

  • Broadcast Service Controller Domain

Name list option:

DHCPv4 options

Code Len enc FQDN(s) of Broadcast Controller +-----+-----+-----+-----+-----+-----+-----+-----+-- | TBD | n | 0 | s1 | s2 | s3 | s4 | s5 | ... +-----+-----+-----+-----+-----+-----+-----+-----+--

  • Broadcast Service Controller IPv4 address
  • ption:

Code Len enc Address 1 Address 2 +-----+-----+-----+-----+-----+-----+-----+-----+-- | TBD | n | 1 | a1 | a2 | a3 | a4 | a1 | ... +-----+-----+-----+-----+-----+-----+-----+-----+--

slide-10
SLIDE 10

10

Next Step?
