Boyd, Metcalfe and Amdahl - Modelling Networked Warfighting Systems - - PowerPoint PPT Presentation

MONASH University 1/29 Computer Science & Software Engineering http://www.csse.monash.edu.au/ Boyd, Metcalfe and Amdahl - Modelling Networked Warfighting Systems Carlo Kopp, BE(Hons), MSc, PhD MIEEE, MAIAA, PEng


slide-1

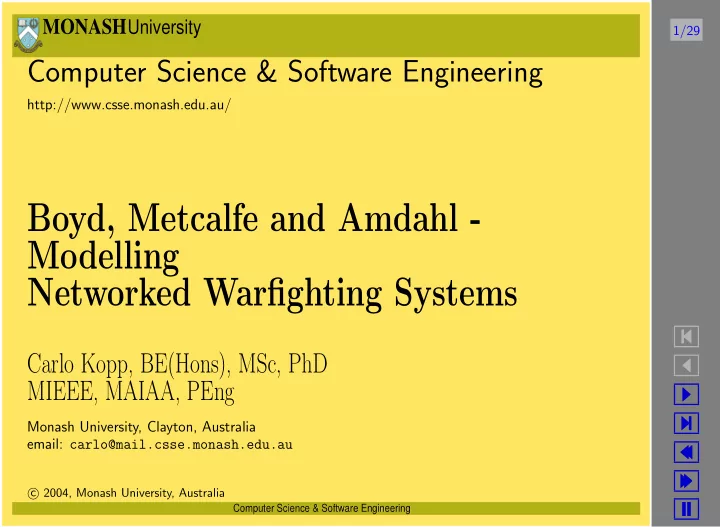

SLIDE 1

MONASHUniversity

Computer Science & Software Engineering Computer Science & Software Engineering Computer Science & Software Engineering

1/29

  • Computer Science & Software Engineering

http://www.csse.monash.edu.au/

Boyd, Metcalfe and Amdahl - Modelling Networked Warfighting Systems

Carlo Kopp, BE(Hons), MSc, PhD MIEEE, MAIAA, PEng

Monash University, Clayton, Australia email: carlo@mail.csse.monash.edu.au

c 2004, Monash University, Australia

slide-2
SLIDE 2

MONASHUniversity

Computer Science & Software Engineering Computer Science & Software Engineering Computer Science & Software Engineering

2/29

  • Defining the Problem
slide-3
SLIDE 3

MONASHUniversity

Computer Science & Software Engineering Computer Science & Software Engineering Computer Science & Software Engineering

3/29

  • How to Quantify NCW Capability Gains?
  • Networked system ‘capability gain’ remains a contentious issue.
  • NCW advocates invoke Metcalfe’s Law and point to square law

gains.

  • NCW critics argue that the number of engagements effected is the

measure of system capability.

  • NCW trials and experiments do indicate measurable capability gains.
  • How do these capability gains arise?
  • How do we quantify these capability gains?
  • How do we maximise these capability gains?
  • How do we minimise an opponent’s capability gains?
slide-4
SLIDE 4

MONASHUniversity

Computer Science & Software Engineering Computer Science & Software Engineering Computer Science & Software Engineering

4/29

  • NCW - Counter-Air Environment
Target Status and Commands Wedgetail Transmits Link 16 Link 16 Link 16

Tanker Link 16 Relay Platform

Tanker Relays Link 16 Over the Radio Horizon Tanker Broadcasts Fuel State and Location Link 16

Wedgetail AEW&C Combat Air Patrol Combat Air Patrol NCW Example RAAF Defensive Counter Air

to Combat Air Patrols
slide-5
SLIDE 5

MONASHUniversity

Computer Science & Software Engineering Computer Science & Software Engineering Computer Science & Software Engineering

5/29

  • NCW - Strike Environment
Link 16 Link 16 Link 16 Relay Platform Strike Package Bypass SAM Sites To Evade Fighters and Wedgetail Threat Tracks Strike Package Uses Link 16 Tanker RAAF Strike / Offensive Counter Air Wedgetail AEW&C Combat Air Patrol NCW Example to Combat Air Patrols Target Status and Commands Wedgetail Transmits Tanker Relays Link 16 Over the Radio Horizon Tanker Broadcasts Fuel State and Location Link 16
slide-6
SLIDE 6

MONASHUniversity

Computer Science & Software Engineering Computer Science & Software Engineering Computer Science & Software Engineering

6/29

  • NCW - Strike Environment
OK OVERCAST

KILLBOX INTERDICTION PERSISTENT BOMBARDMENT/

SV MUNITIONS AUTONOMOUS DATALINK/VOX LOITERING BOMBER 00130 130 U.S. AIR FORCE PERSISTENT SURVEILLANCE PERSISTENT SURVEILLANCE
slide-7
SLIDE 7

MONASHUniversity

Computer Science & Software Engineering Computer Science & Software Engineering Computer Science & Software Engineering

7/29

  • Quantifying Capability Gains
slide-8
SLIDE 8

MONASHUniversity

Computer Science & Software Engineering Computer Science & Software Engineering Computer Science & Software Engineering

8/29

  • NCW vs Boyd’s OODA Loop
  • Boyd’s Observation-Orientation-Decision-Action loop presents an ab-

straction to represent the event loop in an engagement.

  • Vast empirical evidence to support Boyd model - also applicable to

biological ‘predator-prey’ interactions.

  • Players in the event loop Observe environment, Orient themselves

to the situation by forming a model, Decide upon a course of action, and execute that Action.

  • Intelligence Surveillance Reconnaissance (ISR) sensors and systems

collect information and a network distributes that information.

  • Networking accelerates OODA loops by accelerating the Observation-

Orientation phases and improving situational awareness.

slide-9
SLIDE 9

MONASHUniversity

Computer Science & Software Engineering Computer Science & Software Engineering Computer Science & Software Engineering

9/29

  • NCW - A Networked Fabric

A NETWORKED ‘FABRIC’

FRIENDLY AIRSPACE CONTESTED AIRSPACE FEBA FEBA HOSTILE AIRSPACE TANKER TANKER SURVEILLANCE PLATFORM
slide-10
SLIDE 10

MONASHUniversity

Computer Science & Software Engineering Computer Science & Software Engineering Computer Science & Software Engineering

10/29

  • The Incompleteness Problem
  • Representing capability gains using OO phases of OODA loop puts

focus on information domain gains.

  • Real world systems combine information domain and kinetic domain

elements.

  • Using only information domain elements neglects constraining sys-

tem behaviours imposed by kinetic domain elements.

  • The result can be highly optimistic and unrealistic conclusions about

achievable capability gains.

  • Representative modelling of complete system capability gains re-

quires a complete model which can encompass both the OO and DA phases of the Boyd OODA loop.

slide-11
SLIDE 11

MONASHUniversity

Computer Science & Software Engineering Computer Science & Software Engineering Computer Science & Software Engineering

11/29

  • Metcalfe’s Law
  • Metcalfe’s Law asserts that the usefulness or utility of a network

increases with the square of the number of nodes in the network.

  • Empirically demonstrated on the WWW by correlating gains in sales

revenue against number of nodes connected to the network.

  • Metcalfe’s Law is not a predictor of achieved utility, but rather an

indicator of achievable utility.

  • ‘Utility’ is seen in terms of connectivity.
  • Widely cited as a measure of capability gain in networked warfighting

systems.

  • Metcalfe’s Law contains no implicit mechanism to quantify time

domain behaviour in the system.

slide-12
SLIDE 12

MONASHUniversity

Computer Science & Software Engineering Computer Science & Software Engineering Computer Science & Software Engineering

12/29

  • Metcalfe’s Law

Number of Possible Connections [−] Number of Network Nodes [−] 500 600 400 300 200 100 700 800 900 1000 Metcalfe’s Law 100000 200000 300000 400000 500000 600000 700000 800000 900000 1e+06 Metcalfe’s Law

slide-13
SLIDE 13

MONASHUniversity

Computer Science & Software Engineering Computer Science & Software Engineering Computer Science & Software Engineering

13/29

  • Metcalfe’s Law - Time Domain

NK DELAY SNS/PROC NK DELAY ISR ISR ISR SNS/PROC NK OBSERVATION PHASE FUNCTIONAL USER TEMPORAL INTERPRET/ MODEL ORIENTATION PHASE DB NETWORK COLLATE MODEL VALIDATE SNS/PROC NK DELAY SNS/PROC NK SNS/PROC

slide-14
SLIDE 14

MONASHUniversity

Computer Science & Software Engineering Computer Science & Software Engineering Computer Science & Software Engineering

14/29

  • Metcalfe’s Law Limitations
  • Implicit assumption that gains in connectivity produce gains in time

domain performance.

  • Complex time domain dependencies in ISR system and network be-

haviour not accounted for.

  • Network saturation and load effects not accounted for.
  • Effects of hostile jamming not accounted for.
  • Metcalfe’s Law at best a useful predictor of bounds on capability

gain.

slide-15
SLIDE 15

MONASHUniversity

Computer Science & Software Engineering Computer Science & Software Engineering Computer Science & Software Engineering

15/29

  • Kinetic Domain - Decision-Action
  • Completeness in modelling capability gains requires a kinetic do-

main model which can encompass the Decision-Action phases of the OODA loop.

  • Establish what bounds exist on the number of engagements the sys-

tem can produce within a defined time, with some bounded number

  • f elements.
  • Decision processes involve delays since decision-makers often depen-

dent on inputs from superiors and subordinates, introducing queue- ing behaviours into the system.

  • Executing Actions involves sequences of events such as positioning

a platform for an engagement, also introducing queueing behaviours into the system.

slide-16
SLIDE 16

MONASHUniversity

Computer Science & Software Engineering Computer Science & Software Engineering Computer Science & Software Engineering

16/29

  • Kinetic Domain Constraint Example
Queue for Runway, Takeoff Transit to Target Area Queue for Aerial Refuelling Transit to Station Transit from Station Queue for Aerial Refuelling Transit from Await Targeting Directives Orbit Station Target Area Queue for Approach, Land SERIAL WORKLOAD COMPONENT PARALLEL WORKLOAD COMPONENT SERIAL WORKLOAD COMPONENT SERIAL WORKLOAD COMPONENT PARALLEL COMPONENT WORKLOAD Strike Targets
slide-17
SLIDE 17

MONASHUniversity

Computer Science & Software Engineering Computer Science & Software Engineering Computer Science & Software Engineering

17/29

  • Kinetic Domain - Decision-Action
  • In practical terms the system at the Decision-Action level involves

complex mixes of sequential / serial / queueing behaviours, and some parallel behaviours.

  • How do we best model a complex mix of serial and parallel func-

tions?

  • Answer: exploit Amdahl’s Law used in supercomput-

ing.

slide-18
SLIDE 18

MONASHUniversity

Computer Science & Software Engineering Computer Science & Software Engineering Computer Science & Software Engineering

18/29

  • Amdahl’s Law
  • Amdahl’s Law asserts that a large system of ‘processors’ working

in parallel to solve a single problem can never achieve aggregate performance equal to the sum of the achievable performance of each and every individual processor in that system. The idealised ‘linear speedup’ in problem solving cannot be achieved for any real world problem, or: Speedup = (s + p ) / (s + p / N ) = 1 / (s + p / N )

  • where s and p are the serial and parallel time fractions.
  • In Amdahl’s Law, the nature of the workload imposes constraints
  • n behaviour, regardless of the number of elements in the system

performing work. In networked warfighting systems, we thus treat entities performing work as processors in a complex serial / parallel system, executing tasks.

slide-19
SLIDE 19

MONASHUniversity

Computer Science & Software Engineering Computer Science & Software Engineering Computer Science & Software Engineering

19/29

  • Amdahl’s Law

1.31% Serial Fraction 1.7% Serial Fraction 15 25 30 35 40 45 50 Linear (Ideal) Speedup 45 40 35 30 25 Number of CPUs [−] 20 15 10 5 Speedup [−] Amdahl’s Law 5 10 20

slide-20
SLIDE 20

MONASHUniversity

Computer Science & Software Engineering Computer Science & Software Engineering Computer Science & Software Engineering

20/29

  • Boyd vs Metcalf vs Amdahl

D A O O

OBSERVATION ORIENTATION DECISION ACTION Amdahl’s Law Metcalfe’s Law

slide-21
SLIDE 21

MONASHUniversity

Computer Science & Software Engineering Computer Science & Software Engineering Computer Science & Software Engineering

21/29

  • Decision Action Capability Gains
  • Capability of the system in the Decision-Action phases reduces with

the increasing number of ‘serial chains’ within the system.

  • Capability of the system in the Decision-Action phases increases with

the increasing level of parallelism in the system.

  • Complex sequential decision processes thus impair capability regard-

less of networking capability.

  • Maximising the number of platforms, maximising concurrent engage-

ments per platform and maximising platform persistence in proximity to targets maximises parallelism and thus capability.

  • Empirical experience supports conclusions derived from Amdahl’s

Law.

  • Metcalfe and Amdahl models are complementary, not exclusive.
slide-22
SLIDE 22

MONASHUniversity

Computer Science & Software Engineering Computer Science & Software Engineering Computer Science & Software Engineering

22/29

  • Maximising Capability Gains

O A D O

ACTION OBSERVATION ‘MAXIMISE CONNECTIVITY’ ‘MINIMISE SERIAL CHAINS’ ‘MAXIMISE SENSOR CAPABILITY’ DECISION ORIENTATION ‘MAXIMISE PARALLELISM’

23 A22−23 23 A22−23 23 A22−23
slide-23
SLIDE 23

MONASHUniversity

Computer Science & Software Engineering Computer Science & Software Engineering Computer Science & Software Engineering

23/29

  • Minimising an Opponent’s Gains
  • Given two mutually opposed networked systems, maximising own

capability requires:

  • 1. Maximising number of ISR elements
  • 2. Maximising connectivity (and link capacity)
  • 3. Maximising parallelism
  • 4. Minimising serialism
  • Minimising the opponent’s capability requires:
  • 1. Reducing the opponent’s number of ISR elements
  • 2. Minimising the opponent’s connectivity (and link capacity)
slide-24
SLIDE 24

MONASHUniversity

Computer Science & Software Engineering Computer Science & Software Engineering Computer Science & Software Engineering

24/29

  • Minimising Opposing ISR Capability
RADAR ACTIVE LR AAM LAUNCH BOOSTER JETTISON (R−172) MIDCOURSE INERTIAL GUIDANCE R−37 Kh−31 Mod.1 Kh−31 Mod.2 (c) 2003, Carlo Kopp HOMING Counter AWACS/AEW&C Role (2 x Kh−31, R−37 or R−172) R−172 TERMINAL (c) 2003, Carlo Kopp ~215 NMI (R−37/R−172)
slide-25
SLIDE 25

MONASHUniversity

Computer Science & Software Engineering Computer Science & Software Engineering Computer Science & Software Engineering

25/29

  • Minimising Opposing Connectivity
(c) 2003, Carlo Kopp (c) 2003, Carlo Kopp L−BAND HIGH POWER JAMMING

Distance to Datalink Transmitter Distance to Jammer

Su−30/32 Electronic Attack Role (2−5 x High Power Jammer Pods)

slide-26
SLIDE 26

MONASHUniversity

Computer Science & Software Engineering Computer Science & Software Engineering Computer Science & Software Engineering

26/29

  • Minimising Opposing Connectivity
L−BAND HIGH POWER JAMMING ( c ) 1 9 9 8 , 2 4 C a r l
  • K
  • p
p Tanker Orbit Jammer Footprint Datalink Relay Datalink Channel Distance to Datalink Transmitter Distance to Jammer Hostile Support Jammer Wedgetail Orbit Datalink Channel Datalink Channel Inbound Hostiles ISR Data Source Defensive Fighter CAP

THE DATALINK AND ISR JAMMING PROBLEM

slide-27
SLIDE 27

MONASHUniversity

Computer Science & Software Engineering Computer Science & Software Engineering Computer Science & Software Engineering

27/29

  • Conclusions
  • Amdahl’s Law provides a valuable abstraction for modelling the im-

pact of the Decision-Action phases of the OODA loop on system capability gains.

  • Amdahl’s Law complements Metcalfe’s Law by providing for a com-

plete abstraction to model OODA loop behaviour.

  • Amdahl’s Law presents a model which relates achievable numbers
  • f engagements to time.
  • Metcalfe’s Law, conversely, presents capability gains indirectly, as it

measures utility in terms of connectivity.

  • Fusion of Boyd, Metcalfe and Amdahl provides an intellectual frame-

work for understanding capability gains in networked warfighting sys- tems.

slide-28
SLIDE 28

MONASHUniversity

Computer Science & Software Engineering Computer Science & Software Engineering Computer Science & Software Engineering

28/29

  • End Presentation
slide-29
SLIDE 29

MONASHUniversity

Computer Science & Software Engineering Computer Science & Software Engineering Computer Science & Software Engineering

29/29

  • Revision Information

This document is currently at revision level: $Id: CSE-3141-2004.tex,v 1.1 2004/02/06 12:34:52 carlo Exp carlo $
