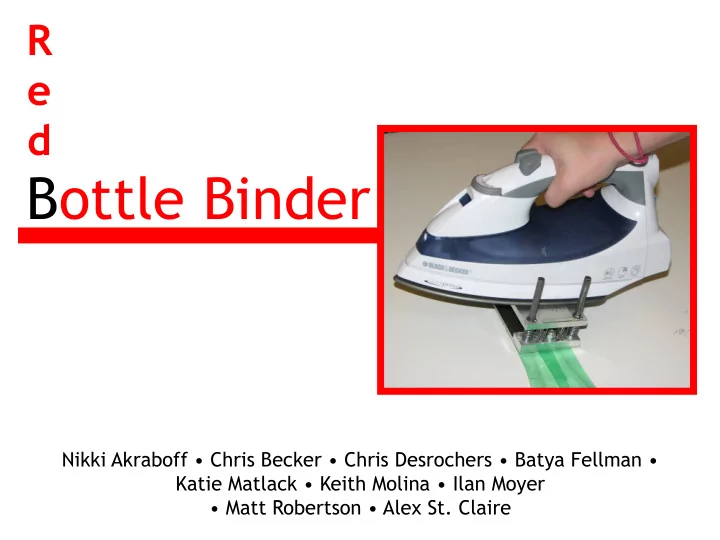

Bottle Binder

Nikki Akraboff • Chris Becker • Chris Desrochers • Batya Fellman • Katie Matlack • Keith Molina • Ilan Moyer

Matt Robertson • Alex St. Claire

R e d

SLIDE 2

Problem and Customer

Prof. David Saiia of Ithaca

used as roofing material.

The image cannot be displayed. Your computer may not have enough memory to open the image, or the image may have been corrupted. Restart your computer, and then open the file again. If the red x still appears, you may have to delete the image and then insert it again.

n

Need for alternative roofing to thatch for villages in Ecuador Need for alternative roofing to thatch for villages in Ecuador

SLIDE 3

Customer Need Product Attribute Engineering Spec

plastic strips strips (min/m2)‏ production)‏ meter of thatch meter of thatch Cost to Bind per m2 ($/ m2)‏ m2)‏ customer requirement)‏ rain ~0% in light rain from interior (Watts/m2)‏ <unknown> Durability to withstand strong winds (~25m/s) strong winds (~25m/s) 2…Other failure modes

SLIDE 4

Design

by iron

p

Binding method

n Pointed tip forms bond

at rim of holes

p

Mock-ups to test automation of hole binding Mock-ups to test automation of hole binding

SLIDE 5

Is Heating the Best Option?

p Need localized heat ~200°C n Using soldering iron: 25 Joules/hole

à ~$.01/m2

n Heat loss due to fins in iron mock-up p Alternatives to heat n Sewing n Other mechanical

fasteners (e.g. staples)‏

SLIDE 6

Other Unresolved Issues

n Need to test shear strength

Need to test shear strength

p p Thatch Specific Issues n Must not trap heat inside house n Must not be permeable to rain

SLIDE 7

Conclusion

p p We need to explore other options for joining

plastic strips. plastic strips.
