Micro and Nanoscale Printing of Sensor Platforms for and Physiological Monitoring, Biomarker and Pathogen Detection Distinguished University Professor, W. L. Smith Professor and Director, NSF Nanoscale Science and Engineering center for


slide-1
SLIDE 1

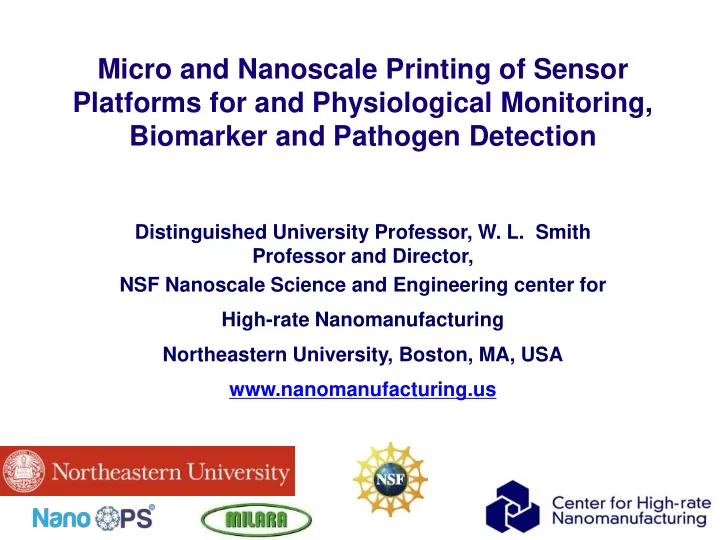

Micro and Nanoscale Printing of Sensor Platforms for and Physiological Monitoring, Biomarker and Pathogen Detection

Distinguished University Professor, W. L. Smith Professor and Director, NSF Nanoscale Science and Engineering center for High-rate Nanomanufacturing Northeastern University, Boston, MA, USA www.nanomanufacturing.us

slide-2
SLIDE 2

Financial and Environmental Cost Commercial electronics manufacturing is still expensive, with fabs costing up to 15 billions and requiring massive quantities of water and power.

2

Motivation: Cost

1990s - $1B-$2B 2016 - $17B

slide-3
SLIDE 3

Can we print any material on any substrate? Motivation: Versatility

slide-4
SLIDE 4

IoT has five key verticals: Wearable Devices, Cars, Homes, Cities, and the Industrial

  • Internet. Impact by 2025 is $3.9-$11.1 Trillions.
  • Wearables
  • Connected Cars
  • Connected

Homes

  • Connected

Cities

  • Industrial

Internet

The IoT can only be enabled by breakthroughs in the cost of ubiquitous sensors for collecting and sharing data

Motivation: IoT (Industry 4.0) Opportunities

The Goldman Sachs Group, Inc. Global Investment Research (2014)

The four industrial revolutions & Industry 4.0; Industrial Internet

slide-5
SLIDE 5
  • Current electronics and 3D printing using inkjet technology is only used

to print antennas for electronics and they can only print down to 20 microns (20,000 nanometers).

  • 20 microns was the silicon electronics scale (line width) in 1975.
  • Cost of a currently printed electronics is 10 to 100 times less than the

cost of current silicon-based sensors.

What is the State of the Art of the Current Printing Technologies?

  • A printing technology is

needed that can print conductive, semiconducting, and insulating materials (inorganic or organic) down to 20nm and 1000 times faster than inkjet.

  • There is need to print Inter-

connected multilayers.

slide-6
SLIDE 6

Beyond 3-D & Electronic Printing:

Nanoscale Offset Printing Advantages

  • Additive
  • High throughput
  • Prints down to 20nm
  • Room temperature and

pressure

  • Prints on flexible or hard

substrates

  • Multi-scale; nano to

macro

  • Material independent
  • Very low energy

consumption

  • Very low capital

investment

Advanced Materials, 2015, 27, pp. 1759–1766.

slide-7
SLIDE 7

W SiO2

Damascene Templates for Nanoscale Offset Printing

Silicon- based Hard Templates PEN PI Polymer-based Templates Assembled SWNT Assembled Particles

Advanced Materials, 2015

slide-8
SLIDE 8

Directed Assembly-based Printing of Interconnects

  • Manufacturing of 3-D nanostructures using directed nanoparticle assembly process. (A and B) NPs suspended in aqueous solution are (A) assembled and (B) fused in the patterned via geometries under an applied AC electric field. (C) Removal
  • f the patterned insulator film after the assembly process produces arrays of 3-D nanostructures on the surface. (D) Scanning electron microscopy (SEM) image of gold nanopillar arrays. 使用纳米颗粒定向自组装工艺制造3D纳米结构。(A和B
)水溶液中的纳米颗粒在交流电场的作用下被组装(A)到孔形的结构中,并熔化(B)形成纳米柱。(C)组装结束后,去除用于形成孔形结构的绝缘薄膜就会出现成列的3D纳米结构。(D)金纳米柱阵列的扫描电镜图片。
  • MC Roco, Nov 2 2014

ACS Nano, April 2014

slide-9
SLIDE 9

10 µm

Particle: 30nm fluorescent (green) silica NPs Assembly time: <10 min

Assembly of NPs into Trench and Vias Over Large Areas

No electrophoretic or Di electrophoretic force is used.

slide-10
SLIDE 10

Nanoscale Science

  • Directed

Assembly and Transfer

Energy Electronics

Flexible Electronics CNTs for Energy Harvesting Assembly of CNTs and NPs for Batteries

What Could We manufacture with Mul scale Offset Prin ng?

SWNT & NP Interconnects SWNT NEMS & MoS2 devices Multi- biomarker Biosensors

1 m m

Drug Delivery

Antennas, EMI Shielding, Radar, Metamaterials

Materials Bio/Med

2-D Assembly of Structural Apps.

Demonstrated Printed Applications

slide-11
SLIDE 11

NanoOPS Includes Six Modules:

  • 1.

Hexagon Frame Module

  • 2.

Template Load Port Module

  • 3.

Directed Assembly Module

  • 4.

Mask Aligner Module

  • 5.

Transfer Module

  • 6.

Template Load Port Module 1 2 3 4 5 6

Fully Automated Nanoscale Offset Printing System (NanoOPS) Prototype was Demonstrated to more than 70 companies

  • The World’s First Nano

Printer with integrated registration and alignment.

NanoOPS Videos on Youtube: From Lab to Fab: Pioneers in Nano- Manufacturing https://www.youtube.com/watch?v=tZeO9I1KEec NanoOPS at Northeastern University https://www.youtube.com/watch?v=2iEjIcog774 NanoOPS - A Nanomanufacturing Breakthrough https://www.youtube.com/watch?v=J4XupF3Zt5U

slide-12
SLIDE 12

The world’s first Nanoscale Printing System for electronics and sensors.

The World’s First Nanoscale Printer for Electronics Awards and Publicity

NanoOPS Includes Six Modules:
  • 1.
Hexagon Frame Module
  • 2.
Template Load Port Module
  • 3.
Directed Assembly Module
  • 4.
Mask Aligner Module
  • 5.
Transfer Module
  • 6.
Template Load Port Module 1 2 3 4 5 6

12

Printed Electronics Conf., Berlin 2016 1000 times faster printing with a 1000 times smaller features than inkjet or 3D printing.

NanoOPS Videos on Youtube: From Lab to Fab: Pioneers in Nano-Manufacturing: https://www.youtube.com/watch?v=tZeO9I1KEec NanoOPS at Northeastern University: https://www.youtube.com/watch?v=2iEjIcog774

slide-13
SLIDE 13

Functionalized SWNTs

4 μ m

25 μm Band-Aid sensor Sensors for Chemicals Sensors for E. coli bacteria, viruses, and other pathogens

Supporting printed electronics for sensor systems

Sensors and Electronics at a Fraction of their Current Cost

Cancer and cardiac diseases. Detection limit is 200 times lower than Current technology

slide-14
SLIDE 14

Electronics

Applications

slide-15
SLIDE 15
  • Flexible transparent n-type MoS2 transistors
  • Heterogeneous SWNTs and MoS2 complimentary invertors
1 μm

100 nm

SWNTs MoS2

Electronics

  • Rose Bengal Molecular Doping of CNT Transistors

Nanotechnology, Vol. 23, (2012). Nanotechnology, Vol. 22, (2011)

  • Appl. Phys. Lett. 97, 1 2010.
slide-16
SLIDE 16

Sensors

slide-17
SLIDE 17

Chemical Sensors

SEM images setup for assembled SWCNT array devices. (e) An optical image of wafer scale sensor devices. (f) Chemical structure of TEMPO molecules. (g) Real-time current changes as a function of conc. H2S gas at 10, 25, 50, 75 and 100 ppm for the functionalized SWCNT sensor.

Analyst, 138, December 2013, Issue 23, pp.7206-7211

slide-18
SLIDE 18
  • Current Sensors are large and consume more energy
  • Most sensors are not wearable, flexible or wireless

Weight: 0.000220462 lbs ($0.5)

Functionali zed SWNTs

4 μ m

25 μ m Our “Band-Aid” sensor uses sweat or tears to detect glucose. And can be used to detect viruses, bacteria, cancer, etc. Our Chemical Hydrogen Sulfide (H2S) Sensors Commercial Glucose Sensors use blood Commercial Chemical Hydrogen Sulfide (H2S) Sensors ($400-$500)

How does state of the art compares?

Commercial Sensors The Sensors developed by the CHN

Weight: 4.15 lbs Weight: 5.5 lbs

slide-19
SLIDE 19

Biomarker Associated disorder High muscle lactate levels Muscle fatigue, ischemia High blood glucose levels Diabetes

Source: FAQ How

  • Diabetes requires strict monitoring
  • f blood glucose levels.
  • Non-invasive, continuous monitoring

can provide keen measurement and therapy.

  • Sweat provides a good pathway for

non-invasive sensing.

  • Sensors can also be used to aid

adopt a healthier lifestyle.

Benefits of continuous glucose sensing

Chao Chen, RSC Adv., 2013,3, 4473-4491

46 9 245 125 50 100 150 200 250 300 Coronoary Disease Muscle Fatigue Diabetes Cancer Billion $

ECONOMIC BURDEN

slide-20
SLIDE 20

Lactate Sensor Design

Enzymatic functionalization Printed Aligned MWCNTs Polymer

slide-21
SLIDE 21

Monitoring Glucose, Lactate and Urea in Sweat

D-glucose (mM) 4 8 12 16 20 Current (A) 0.00 0.03 0.06 0.09 0.12 1st day 3rd day 6th day 8th day 10th day 12th day 14th day Urea (mg/dL) 10 20 30 40 50 Current (A) 0.00 0.05 0.10 0.15 0.20 1st day 2nd day 3rd day 6th day 8th day 9th day 13th day 14th day

D-glucose L-lactate Urea

Lactate (g/L) 0.0 1.0 2.0 3.0 4.0 5.0 Current (A) 0.00 0.04 0.08 0.12 0.16 0.20 1st day 2nd day 3rd day 7th day 8th day 9th day 11th day 13th day 16th day 18th day 20th day 22th day

Redesigned glucose sensor for detection in sweat

slide-22
SLIDE 22

Lactate Sensor Calibration and Testing

* Sensor was used over a week before these results were obtained.

slide-23
SLIDE 23

Lactate Testing in 1X PBS:

Baseline stability decreases over a week

47 47.5 48 48.5 49 49.5 200 400 600 Current (uA) Time (s)

Batch 1 (Sensor A) – Day 7

51.5 52 52.5 53 53.5 200 400 600 800 Current (uA) Time (s)

Batch 1 (Sensor A) – Day 10

Drift

49 50 51 52 100 200 300 400 Curr Current (uA) (uA) Tim Time (s (s)

Batch 1 1 (Se (Sensor A) ) – Day 1

Stable 2 mM 5 mM 10 mM 2 mM 5 mM 10 mM 2 mM 5 mM 20 mM 10 mM

slide-24
SLIDE 24

50.4 50.6 50.8 51 51.2 51.4 51.6 51.8 52 52.2 52.4 50 100 150 200 250 300 350 400 Current (uA) Time (s)

Specificity Test – Day 1

9 mM Lactate Uric acid Glucose 60uM

Lactate Sensor Specificity (1X PBS)

slide-25
SLIDE 25

Inter-Batch Sensitivity Characterization

  • Characterization shows Inter-batch sensitivity
  • Batches were made few weeks apart.
  • Multiple reasons, including difference in CNT assembly, functionalization, and the thickness of the

Ppy\mediator layer affect the error margin. 0.005 0.01 0.015 0.02 0.025 0.03 2 4 6 8 10 12 14 16 18 20 ∆I/Io Concentra on (mM)

Inter Batch Sensi vity

Batch 2 Batch 3 Bacth 1

Ø Ø Ø

slide-26
SLIDE 26

Low Power Requirement

  • Power is only needed when a

measurement is conducted. If a measurement is needed every minute or five minutes, then the voltage is only turned on at that time.

  • Lactate range: 2- 20 mM.
  • 20 – 100 mV applied.
  • A suitable catalytic reaction

mediator can reduce or eliminate the need for constant power.

9.5 10 10.5 11 11.5 12 500 1000 Current (uA) Time (s)

20 mV

46 48 50 52 54 56 58 500 1000 1500 2000 Current (uA) Time (s)

100 mV

slide-27
SLIDE 27

Log adenovirus conc.(pfu/ml)

1 2 3 4 5 6

DR/R0

0.0 0.2 0.4 0.6 0.8 1.0

1st day 3rd day 5th day 8th day Log (E. coli conc. cfu/ml)

0.0 1.0 2.0 3.0 4.0 5.0

DR/R0

0.0 0.2 0.4 0.6 0.8 1.0

Oxytetracycline (mg/L)

50 100 150 200 250

DR/R0

0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4

  • Sensors work in both air and

liquid environments

  • Very high specificity
  • Very high repeatability
  • Possible regeneration
  • Instantaneous response

CNT Sensors for Viruses, Bacteria, Antibiotics in Water

slide-28
SLIDE 28

Nano OPS, Inc. The Future of Nanomanufacturing www.nano-ops.net

slide-29
SLIDE 29

Nano OPS, Inc. has an exclusive license for 30 patents that cover printing processes, printing templates and sensors:

  • 1. Core nanoprinting process technology
  • 2. Core equipment automation technology
  • 3. Core experienced team
  • 2. Printed products expertise:
  • Electronics
  • Chemical Sensors,
  • Bio Sensors for: cancer, antibiotics, physical &

fitness indicator

  • Display applications

Nano OPS, Inc. IP Portfolio

slide-30
SLIDE 30

2nd and 3rd Generation Nano OPS, Inc. Printers

NanoOPS Includes Six Modules:
  • 1.
Hexagon Frame Module
  • 2.
Template Load Port Module
  • 3.
Directed Assembly Module
  • 4.
Mask Aligner Module
  • 5.
Transfer Module
  • 6.
Template Load Port Module 1 2 3 4 5 6

First Generation Nano OPS, 2014 2nd Generation Nano OPS, 2017 3rd Generation Nano OPS, 2018

slide-31
SLIDE 31

Gen 2 Nano OPS Printing System

The second generation NanoOPS printing System, currently being built, has the ability to print nanoscale sensors and electronics on any polymer

  • substrate. The system is fully automated with built-in alignment and

registration, inspection and annealing.

slide-32
SLIDE 32

Summary

  • Printing at the nanoscale introduces a disruptive technology for

making nano and microelectronics that will change the electronics and sensor landscape.

  • Printing nano and micro electronics costs 10 to 100 times less

than conventional fabrication.

  • 1000 times faster printing with a 1000 times smaller patterns than

inkjet or 3D printing.

  • Electronics are printed at ambient temperature and pressure, on

any rigid or flexible substrate, using any conductive, semiconducting

  • r insulating materials (organic or inorganic).
  • Other benefits of printed electronics and sensors are: sustainable

manufacturing, improved performance and the use of any existing and new nanomaterials, etc.

  • This will open the door to many new and innovative applications.
slide-33
SLIDE 33

Summary

  • We demonstrate simple yet scalable methods for the printing and

functionalization of CNT enabled sensors on flexible substrates for detecting lactate in human sweat.

  • The sensors are capable of real-time continuous monitoring of

lactate in ionic solutions and are active for at least ten days.

  • The sensors also show minimal intra-batch variation, which points

to the reproducibility and practicality of the technique.

  • Baseline stability of CNT-based biosensors has been thoroughly

discussed in the Supplementary Information section.

  • The directed assembly-based printing method can easily be

extended to the manufacture of sensors for the detection of other metabolites such as glucose, urea and creatinine, etc.

slide-34
SLIDE 34

Thank you

  • Prof. and Director Ahmed Busnaina

Northeastern University a.busnaina@northeastern.edu www.nano.neu.edu www.nanomanufacturing.us
