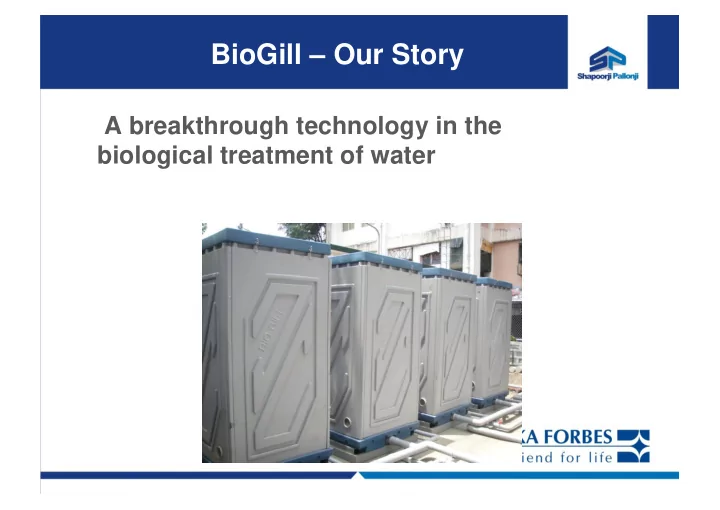

A breakthrough technology in the biological treatment of water
BioGill – Our Story
SLIDE 2
- Microorganisms are nature’s
premium decomposers and recyclers that grow and consume best in a high nutrient, high oxygen environment.
- BioGill technology delivers this
perfect environment
- The Nano-particulate structure of
BioGill membranes allows microorganisms to easily colonise the vertical membrane and grow into a dense vibrant biomass.
- The vertical nature of the
membranes allows for compact bioreactors that delivers a large membrane area with a high volume treatment capacity.
The Science behind BioGills
SLIDE 3
BioGills are an enclosed biological factory that acts as both “stomach” & “lung” in the cleaning of water. Patented Nano-Ceramic Membranes™ provide the perfect air (high oxygen TRANSFER) & liquid (high nutrient) interface. Each BioGill delivers a treating biomass 5 to 15 times that of competing biological wastewater treatment systems.
Ground-Breaking Technology
The result: Accelerated treatment at low cost and low energy.
SLIDE 4
(known as “gills’) are formed into a loop pair separated by a spacer to allow for airflow.
compacted vertically in a Treatment Core.
- Wastewater is dispersed over
the gills and then gravity-fed through the core.
- Nutrients are quickly removed
as wastewater contacts the biofilm on the gills.
NMB: End Elevation
Inlet Manifold Gill Air Pump Gill Assembly
How BioGills Work
SLIDE 5
How BioGills work
SLIDE 6
- Low operating costs
- Low energy consumption
- Long system life, reliable &
durable membrane
- Low maintenance
- Simple to operate
- Cost effective to install
- Silent with reduced odour
- Self-optimising biology
Commercial Advantages
Treatment Tank Bio-Gill
SLIDE 7 BioGill - IP Protection
Application No. Country P 06 01 05050 Argentina 2005243606 Australia 2566841 Canada 200580020449.3 China 05739899.2 Europe 179311 Israel 04458/CHENP/06 India 2007-516879 Japan 2012-47931 Japan 2006-7026646 Republic of Korea PA/a/06/013421 Mexico 551783 New Zealand 200607993-3 Singapore 11/569201 USA 2006/09979
SLIDE 8 Temperature: Bacterial Biomass 20-35 °C Fungal Biomass 15-25 °C (Yeast is similar to Fungal Biomass) Mixed Biomass 20-30 °C pH: For BOD removal 6.5-8.0 (preferred is 7.0±0.5) For Nitrogen removal 7.0-8.0 Low temperatures reduces BOD or nitrogen removal considerably. Once BioGills start working they generate enough heat to raise the temperature of gills by 2-5 °C depending upon the metabolized carbon or nitrogen. BioGill membranes can be seeded with selected organisms for selected contaminant removal like yeast for “phosphorus” removal.
Working Parameters
SLIDE 9
Applications
SEGMENTS VALUE PROPOSITIONS RESULTS
INDUSTRIAL Small footprint Low cost Performance Over a 24-hour period, BOD can be reduced up to 92%. SEWAGE Small footprint Low cost High performance Low energy Up to 96% BOD removal and up to 76% Nitrogen Removal. AQUACULTURE High performance Low Cost Low Energy Removes waste nutrients including ammonia. Reduces water exchange, and improves water quality.
SLIDE 10 We have taken this Australian- designed technology and re-designed it to create a product form of BioGill that is:
The “smarts” of the BioGill is the “gill”. This can be loaded into any sized- system – from the smallest units (fish tank) right through to large industrial projects.
Design
SLIDE 11
Australia: Membrane production, Design + Engineering China: Plastic housing + Spacers India: Stainless Steel Frames Components can be delivered direct to site with assembly anywhere in the world.
Manufacturing
BioGill controls the manufacturing of the “gills”. (100,000M² can fit into a shipping container).
SLIDE 12
Product
Designed & engineered for global distribution; Low cost component manufacturing Compact shipping Simple installation Moving to complete plastic units to reduce weight.
SLIDE 13 Product
1 x BioGill Housed 1 x BioGill, Un- housed 4 x 4 configuration = 16 un-housed for industrial site Footprint 1150 mm* 1150mm 1060mm * 1060mm 4800mm * 4800mm Membrane M2 246m2 246m2 3936m2 Height 2420 mm 2100 2100
SLIDE 14 Trends in wastewater treatment
BioGill ideally placed for future
Regulation s driving
treatment for industry Increase in demand for effective biological treatment Low cost & low energy solutions for developing Asian countries Government push to decentralise waste treatment Upgrading
infrastructu re in developed countries
SLIDE 15
Project Gallery
Australia - Industrial Manila - Sewage Vietnam Aquaculture Fiji – Resort and Tourism
