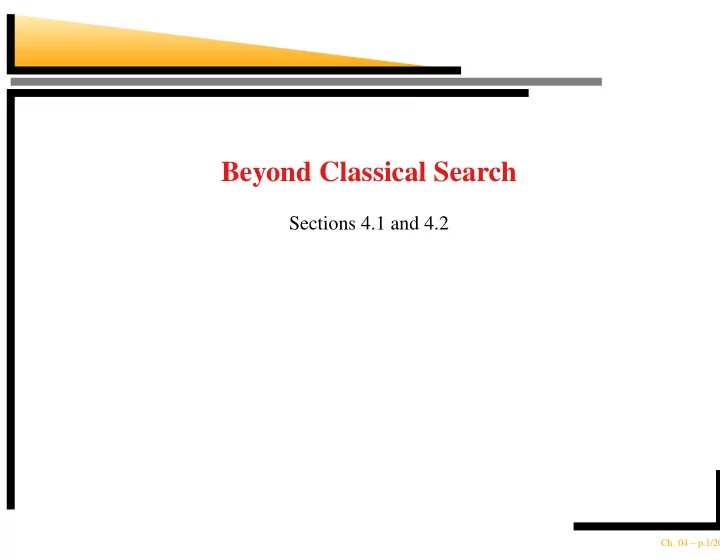

Beyond Classical Search

Sections 4.1 and 4.2

• Ch. 04 – p.1/20

Outline

Iterative improvement algorithms Hill climbing Simulated annealing Local beam search Genetic algorithms References: The slides were adapted to the 3rd edition of Russell and Norvig’s textbook using the slides for the 2nd edition.

• Ch. 04 – p.2/20

Iterative improvement algorithms

In many optimization problems, the path is irrelevant; the goal state itself is the solution Then state space = set of “complete” configurations the goal is one of the following to find the optimal configuration, e.g., TSP to find the configuration that satisfies constraints, e.g., timetable In such cases, can use iterative improvement algorithms: keep a single “current” state, try to improve it Constant space, suitable for online as well as offline search

• Ch. 04 – p.3/20

Example: travelling salesperson problem

Start with any complete tour, perform pairwise exchanges

ABEDCA A B C D E ABCDEA A B C D E A B C D E

2-opt heuristic: Remove two edges (usually crossing), and connect the fragments in a different way

• Ch. 04 – p.4/20

Example: n-queens problem

Put n queens on an n × n board with no two queens on the same row, column, or diagonal Move a queen to reduce number of conflicts

• Ch. 04 – p.5/20

Hill-climbing (or gradient ascent/descent)

function HILL-CLIMBING (problem) returns a state that is a local maximum current ← MAKE-NODE(problem.INITIAL-STATE) loop do neighbor ← a highest-valued successor of current if neighborVALUE ≤ current.VALUE then return current.STATE current ← neighbor

• Ch. 04 – p.6/20

8-queens with hill-climbing

The heuristic cost function h is the number of pairs

• f attacking queens (directly or indirectly)

The h for the state below is 17 (3+4+2+3+2+2+1) the numbers in the squares show the value of h when the queen is moved to that space

14 18 17 15 14 18 14 14 14 14 14 12 16 12 13 16 17 14 18 13 14 17 15 18 15 13 15 13 12 15 15 13 15 12 13 14 14 14 16 12 14 12 12 15 16 13 14 12 14 18 16 16 16 14 16 14

• Ch. 04 – p.7/20

8-queens with hill-climbing(cont’d)

To find a successor: move a single queen to another square in the same column. The figure shows a local maximum: there is one attack but every successor has a higher cost

• Ch. 04 – p.8/20

Local maxima in hill-climbing

“Like climbing Everest in thick fog with amnesia” Problem: depending on initial state, can get stuck on local maxima

current state

• bjective function

state space global maximum local maximum “flat” local maximum shoulder

In continuous spaces, problems w/ choosing step size, slow convergence

• Ch. 04 – p.9/20

Ridges in hill-climbing

Ridges result in a sequence of local maxima that is very difficult for greedy algorithms to navigate

• Ch. 04 – p.10/20

Variants of hill-climbing

Stochastic hill-climbing chooses at random from among the uphill moves; the probability of selection can vary with the steepness of the uphill move First-choice hill-climbing implements stochistic hill-climbing by generating successors randomly until one is generated that is better than the current state. Random-restart hill-climbing conducts a series of hill-climbing searches from randomly generated initial states Note that hill-climbing never moves downward

• Ch. 04 – p.11/20

Simulated annealing

Idea: escape local maxima by allowing some “bad” moves but gradually decrease their size and frequency Devised by Metropolis et al., 1953, for physical process modelling Widely used in VLSI layout, airline scheduling, etc.

• Ch. 04 – p.12/20

Simulated annealing algorithm

function SIMULATED-ANNEALING (problem, schedule) returns a solution state inputs: problem, a problem schedule, a mapping from time to “temperature” local variables: T, a “temperature” controlling the probability of downward steps current ← MAKE-NODE(problem.INITIAL-STATE) for t ← 1 to ∞ do T ← schedule(t) if T = 0 then return current next ← a randomly selected successor of current ∆E ← VALUE[next] - VALUE[current] if ∆E > 0 then current ← next else current ← next only with probability e∆E/T

• Ch. 04 – p.13/20

Properties of simulated annealing

At fixed “temperature” T, state occupation probability reaches Boltzman distribution p(x) = αe

E(x) kT

T decreased slowly enough = ⇒ always reach best

state Is this necessarily an interesting guarantee??

• Ch. 04 – p.14/20

Local beam search

Idea: keep track of k states rather than just one. Start with k randomly generated states At each step, generate all the successors of the k states. If one is a goal, halt. Otherwise, select the best k states. Can be viewed as parallel and interacting random searches Stochastic beam search helps alleviate the problem

• f diversity within the k states: rather than choosing

the best k among the successors, choose randomly where the probability is higher for better successors

• Ch. 04 – p.15/20

Genetic algorithms

Idea: Maintain a population of k states similar to local beam search but use genetically inspired methods to generate the successors Crossover means taking portions of the parents to generate a child Mutation means a random change in the individual

• Ch. 04 – p.16/20

Genetic algorithm

function GENETIC-ALGORITHM (problem, FITNESS-FUNCTION) returns an individual inputs: population, a set of individuals FITNESS-FUNCTION, measures the fitness of an individual repeat new-population ← empty set for i = 1 to SIZE(population) do x ← RANDOM-SELECTION(population, FITNESS-FUNCTION) y ← RANDOM-SELECTION(population, FITNESS-FUNCTION) child ← REPRODUCE(x,y) if (small random probability) then child ← MUTATE(child) add child to new-population population ← new-population until some individual is fit enough, or enough time has elapsed return best individual in population, according to FITNESS-FUNCTION

• Ch. 04 – p.17/20

Reproduction algorithm

function REPRODUCE (x,y) returns an individual inputs: x,y, parent individuals n ← length(x) c ← random number from 1 to n return APPEND ( SUBSTRING(x, 1, c), SUBSTRING(y, c+1, n) )

• Ch. 04 – p.18/20

Crossover in 8-queens

The shaded columns at the parents are lost, the unshaded columns are retained.

+ =

• Ch. 04 – p.19/20

Iterative algorithms for CSPs

Hill-climbing, simulated annealing typically work with “complete” states, i.e., all variables assigned To apply to CSPs: allow states with unsatisfied constraints

• perators reassign variable values

Variable selection: randomly select any conflicted variable Value selection by min-conflicts heuristic: choose value that violates the fewest constraints i.e., hillclimb with h(n) = total number of violated constraints

• Ch. 04 – p.20/20
