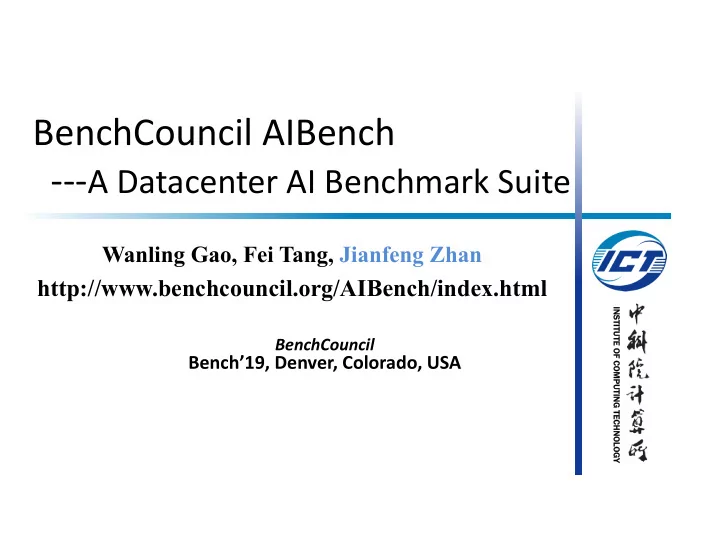

BenchCouncil AIBench --- A Datacenter AI Benchmark Suite Wanling - - PowerPoint PPT Presentation

INSTITUTE O OF C COMPUTING T TECHNOLOGY

BenchCouncil AIBench

• --A Datacenter AI Benchmark Suite

Wanling Gao, Fei Tang, Jianfeng Zhan

http://www.benchcouncil.org/AIBench/index.html

BenchCouncil

Bench’19, Denver, Colorado, USA

AIBench Bench’19

Why Datacenter AI?

§ AI is widely employed to augment Internet services

n

processing images, video, speech, and audio n There is an urgent need for datacenter AI benchmarks

AIBench Bench’19

Challenge 1# Isolation

n Confidential issues of workloads and datasets

n Isolation！

n There is no publicly available industry-scale

Internet service benchmark

AIBench Bench’19

Challenge 2# Microservice based Architecture

n A collection of loosely coupled services

n Various modules and complex execution path n massive scale and complex hierarchy of infrastructure

End-to-end benchmark that models the critical paths and primary modules is needed

Component 1 Merged results

Request st Resp sponse se

…

Component n Splitted suboperations

AIBench Bench’19

Challenge 3# Diversity of workloads and models

Bianco, S., Cadene, R., Celona, L., and Napoletano, P. Benchmark analysis of representativ e deep neural network architectures . IEEE Access, 6:64270– 64277, 2018.

AIBench Bench’19

Challenge 4# Domain-specific metrics

n Time-to-accuracy

n State-of-the-art accuracy

n Throughput n Latency n Tail latency

AIBench Bench’19

Challenge 5# More vs. Less

n Workload characterization

n SPECCPU 2017 (43), PARSEC3.0 (30), TPC-DS (99)

n Performance ranking (Benchmarketing)

n top500

AIBench Bench’19

Challenge 6# Inconsistency

n Inconsistent benchmarking requirements

Portability Reality

Earlier stage of architecture research Later stage of architecture research Micro or Component ? Application benchmark ?

AIBench Bench’19

Requirements

n Industry-scale

n critical paths and primary modules of business AI scenario

• AI-related and non AI-related components

n A modular framework design

n Collectively as a whole end-to-end application n Individually as a micro or component benchmark

n Representativeness and coverage

n Diverse AI problem domains and datasets are needed

AIBench Bench’19

Outline

n AIBench Overview

n Tasks, Models, Datasets, Metrics

n How to use AIBench n Preliminary Results n Conclusion

AIBench Bench’19

BenchCouncil AIBench

n A Datacenter AI Benchmark Suite

n Contributors: many companies and top

universities

• Alibaba, Microsoft, Paypal, Tencent, etc

http://www.benchcouncil.org/AIBench/index.html

Wanling Gao, Fei Tang, Lei Wang, Jianfeng Zhan, Chunxin Lan, Chunjie Luo, et al. AIBench: An Industry Standard Internet Service AI Benchmark Suite. Technical Report 2019. arXiv preprint arXiv:1908.08998.

AIBench Bench’19

AIBench Overview

n

The First end-to-end industry- standard AI benchmark suite

n

Industry-scale Internet services

• critical paths and primary modules
• AI-related and non AI-related

n

A highly extensible, configurable, and flexible benchmark framework

n

16 prominent AI problem domains

n

Multiple loosely coupled modules

• Individually

– Micro/Component benchmarks

• Collectively

– Application benchmarks

AIBench Bench’19

Sixteen AI Problem Domains

n Text Processing (4)

n Text-to-Text translation, Text summarization, Learning to rank,

Recommendation

n Image Processing (8)

n Image classification, Image generation, Image-to-text, Image-to-Image,

Face embedding, Object detection, Image compression, Spatial transformer

n Audio Processing (1)

n Speech recognition

n Video Processing (1)

n Video prediction

n 3D Data Processing (2)

n 3D face recognition, 3D object reconstruction

AIBench Bench’19

End-to-End: E-commerce Search

n

Query generator：simulate concurrent users and send query requests

n

Online Module：personalized searching and recommendations

n

Offline Module：a training stage to generate a learning model

n

Data storage module：data storage, e.g., user database, product database

AIBench Bench’19

Component Benchmark (16)

AIBench Bench’19

BenchCouncil International Competitions

n DC-AI-C1 Image classification n DC-AI-C8 3D face recognition n DC-AI-C10 Recommendation n Competition papers are available soon!

AIBench Bench’19

Image Classification

n Extract different thematic classes within an image

n a supervised learning problem to define a set of target

classes and train a model to recognize

n ResNet neural network, Dataset：ImageNet2012, 100GB+

AIBench Bench’19

Image Generation

n Mimic the distribution of data and generate image

data

n Dataset：LSUN，about million labelled image data n Model: WGAN algorithm

AIBench Bench’19

Text-to-Text Translation

n Translates text from one language to another

n Model: Transformer n Dataset：WMT English-German (4.5MB training text data)

AIBench Bench’19

Image-to-Image

n Converts an image from one representation of a

specific scene to another scene or representation

n Model: cycle- GAN algorithm n Datasets： Cityscapes from 50+ cities（300MB）

AIBench Bench’19

Speech-to-Text

n Recognizes and translates the spoken language to

text

n Model：deep speech 2 n Dataset：LibriSpeech, 1000+ hours‘ speech data

AIBench Bench’19

Object Detection

n Detects the objects within an image

n Model：Faster R-CNN algorithm n Dataset：MSCOCO2014

• 82783 training samples, 40504 Validation samples,

40775 test samples（20GB+）

AIBench Bench’19

Image-to-Text

n Generates the description of an image

automatically

n Model：Neural Image Caption model n Dataset：MSCOCO2014

AIBench Bench’19

Face Embedding

n Transforms a facial image to a vector in embedding

space

n Model：FaceNet algorithm n Dataset：VGGFace2

• 36GB training data，1.9GB test data

AIBench Bench’19

3D Face Recognition

n Recognize the 3D facial information from an image

n Model：3D face models n Dataset：Intellifusion data set，77,715 samples from 253

face IDs

AIBench Bench’19

Video Prediction

n Predicts the future video through predicting

previous frames transformation

n Model：motion-focused predictive models n Dataset： Robot pushing dataset

• 59000 samples, 100GB+

AIBench Bench’19

Image Compression

n Full-resolution lossy image compression

n Model：recurrent neural networks n Dataset：ImageNet2012，100GB+

AIBench Bench’19

Recommendation

n Collaborative filtering-based movie

recommendations

n Model：Collaborative filtering algorithm n Dataset： MovieLens

• 20,000,000 movie ratings data

AIBench Bench’19

3D Object Reconstruction

n Predicts and reconstructs 3D objects

n Model：a convolutional encoder-decoder network n Dataset：ShapeNet

• 51,3000 different 3D data covering 5 object categories

AIBench Bench’19

Text Summarization

n Generate the text summary

n Model：sequence-to-sequence model n Dataset： Gigaword

• 10,000,000 text data, Four billion words

AIBench Bench’19

Spatial Transformer

n Performs spatial transformations

n Model：spatial transformer networks n Dataset：MNIST

• 60000 training samples, 10000 test samples

AIBench Bench’19

Learning to Rank

n Machine-learned ranking for recommender system

n Model: ranking distillation n Dataset: Gowalla

• Social network data: 196,591 nodes and 950,327 edges

AIBench Bench’19

Micro Benchmark (12)

AIBench Bench’19

AIBench Inference Specification

n Inference System under Test

Query Generator

Ø Concurrency Ø Arriving rate Ø Distribution Ø Thinking time

System under Test Monitoring Tools Result Outputs

Ø Accuracy Ø Latency Ø Tail Latency Ø Throughput

Datasets

AIBench Bench’19

Inference Metrics

n Online Inference (Accuracy-ensured)

n Latency, Tail latency n Latency-bounded throughput

n Offline Inference (Accuracy-ensured)

n Throughput, Energy consumption

n Accuracy-ensured:

n Accuracy deviation with target accuracy is within

2%

AIBench Bench’19

AIBench Training Specification

n Training System under Test

System under Test Monitoring Tools Result Outputs

Ø Accuracy Ø Latency Ø Tail Latency Ø Throughput

Datasets

AIBench Bench’19

Training Metrics

n Offline Training

n Time-to-accuracy n Energy-to-accuracy n Throughput

• Running 1000 epochs
• Hyper parameter settings should be able to achieve

target accuracy

AIBench Bench’19

Benchmark Guideline

n Online Server

n Each component can be distributed deployed on a

large cluster

AIBench Bench’19

Benchmark Guideline

n Offline Analytics

n Single GPU, Multi GPUs, Distributed versions

• TensorFlow implementation
• PyTorch implementation

n Example distributed training setting

AIBench Bench’19

Outline

n AIBench Overview

n Tasks, Models, Datasets, Metrics

n How to use AIBench n Preliminary Results n Conclusion

AIBench Bench’19

General Steps to Use AIBench

n General steps to run the benchmarks

n Prepare the package of AIBench n Prepare the environments of the selected software stack n Prepare corresponding data set n Run the scripts or commands (User Manual!)

• Micro benchmarks

– run-tensorflow.sh (TensorFlow), run-pthread.sh (Pthreads)

• Component benchmarks

– run_train_time.sh (Training stage), run_val_time.sh (Inference stage)

• Application benchmarks

– Start online and offline modules » neo4j, Elasticsearch, Recommender, Search-planer

AIBench Bench’19

How to Download AIBench

n http://www.benchcouncil.org/AIBench/download.html

n User Manual

n

http://www.benchcouncil.org/AIBench/files/AIBench-User-Manual.pdf

AIBench Bench’19

Directory Structure

AIBench Micro Benchmark Pthreads 12 benchmarks 12 benchmarks TensorFlow TensorFlow 16 benchmarks Component Benchmark PyTorch 16 benchmarks Offline Module 10 benchmarks Online Module Online benchmarks Application Benchmark

AIBench Bench’19

AIBench Framework

n http://125.39.136.212:8090/AIBench/aibench_framework

AIBench Bench’19

Application Benchmarks

n http://125.39.136.212:8090/AIBench/aibench_application_benchmark

AIBench Bench’19

Component Benchmarks

n http://125.39.136.212:8090/AIBench/DC_AIBench_Component

AIBench Bench’19

Micro Benchmarks

n http://125.39.136.212:8090/AIBench/DC_AIBench_Micro

AIBench Bench’19

BenchCouncil Testbed

n http://www.benchcouncil.org/testbed.html n Provide container-based AIBench images

n Log in and apply for nodes !

n Provide pretrained AI models

AIBench Bench’19

Image-to-Text (TensorFlow)

n Generates the description of an image

automatically

n Model：Neural Image Caption model n Dataset：MSCOCO2014

n Steps:

n Apply for nodes on testbed n Training or inference

cd DC_AIBench_Component/TensorFlow/Image_to_Text/tf-models/research/im2txt

./run_train_time.sh ./run_val_time.sh

AIBench Bench’19

Image Classification (PyTorch)

n Extract different thematic classes within an


n ResNet neural network, Dataset：ImageNet2012,

100GB+

n Steps:

n Apply for nodes on testbed n Training or inference

cd DC_AIBench_Component/PyTorch/Image_classification

./run_train_time.sh ./run_val_time.sh

AIBench Bench’19

Text-to-Text (PyTorch)

n Translates text from one language to another

n Model: Transformer n Dataset：WMT English-German

n Steps:

n Apply for nodes on testbed n Training or inference

cd DC_AIBench_Component/PyTorch/Text_to_Text

./run_train_time.sh ./run_val_time.sh

AIBench Bench’19

Outline

n AIBench Overview

n Tasks, Models, Datasets, Metrics

n How to use AIBench n Preliminary Results n Conclusion

AIBench Bench’19

Latency of Online Server

n AI components change the critical path significantly

n

34.29 vs.. 49.07 milliseconds for average latency

n Model depth and size limit QoS

n

99th percentile latency increasing from 149.12 to 5335.12 milliseconds when model increasing from 184 MB to 253 MB

n AI-related components suffer from higher cache misses

n

61 vs.. 37 for L2 cache misses per Kilo instructions

AIBench Bench’19

Offline Training

n SM Efficiency

n Different models have different execution efficiency n Learning_to_rank has the lowest efficiency

AIBench Bench’19

Runtime Breakdown

n Six categories

n using nvprof to trace the running time breakdown and find the

hotspot functions that occupy more than 80% of running time in total

AIBench Bench’19

Hotspot Functions

AIBench Bench’19

Stall Breakdown

n Top two stalls

n memory dependency stalls, execution dependency stalls

AIBench Bench’19

Outline

n AIBench Overview

n Tasks, Models, Datasets, Metrics

n How to use AIBench n Preliminary Results n Conclusion

AIBench Bench’19

Conclusion

n AIBench Website：

http://www.benchcouncil.org/AIBench/index.html

n Please refer to user manual for more details !

AIBench Bench’19

Publications

n Benchmarking

n

AIBench: An Industry Standard Internet Service AI Benchmark Suite. Technical Report, 2019.

n

AIBench: Towards Scalable and Comprehensive Datacenter AI Benchmarking. Bench18.

n

HPC AI500: A Benchmark Suite for HPC AI Systems. Bench18.

n

Edge AIBench: Towards Comprehensive End-to-end Edge Computing Benchmarking. Bench18.

n

AIoT Bench: Towards Comprehensive Benchmarking Mobile and Embedded device

• Intelligence. Bench18.

n

Data Motifs: A Lens Towards Fully Understanding Big Data and AI Workloads. PACT’18.

n

BigDataBench: a Big Data Benchmark Suite from Internet Services. HPCA’14

n

Data Motif-based Proxy Benchmarks for Big Data and AI Workloads. IISWC 2018.

n

Auto-tuning Spark Big Data Workloads on POWER8: Prediction-Based Dynamic SMT . PACT’16

n

CVR: Efficient Vectorization of SpMV on X86 Processors. CGO’18.

n

Characterizing data analysis workloads in data centers. IISWC 13 best paper award.

AIBench Bench’19
