Belgian OCW program Capt DEVROE Sven S3 TOX (BEL) EOD Group Brussels - 22 Apr 15 1 Overview Historical aspects DOVO: tasks and organisation Old Chemical Weapons (OCW) Identification Disposal of OCW 2 3 4 5 6 1.5

slide-1
SLIDE 1

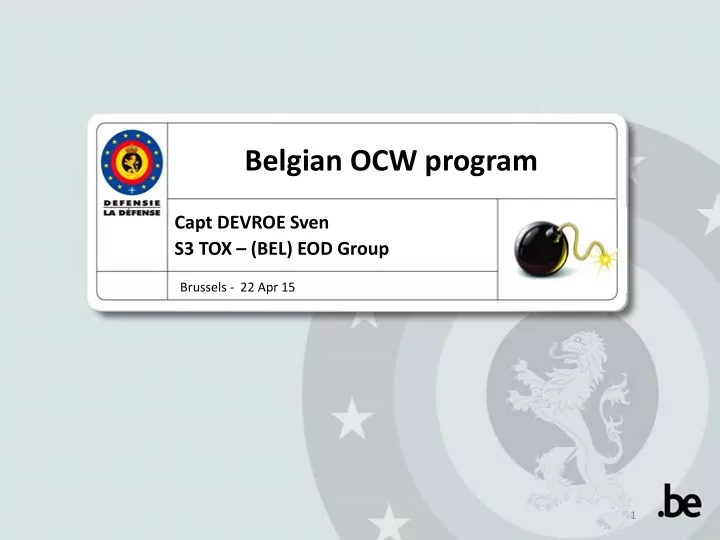

Belgian OCW program

Capt DEVROE Sven S3 TOX – (BEL) EOD Group

Brussels - 22 Apr 15

1

slide-2
SLIDE 2

Overview

  • Historical aspects
  • DOVO: tasks and organisation
  • Old Chemical Weapons (OCW)
  • Identification
  • Disposal of OCW

2

slide-3
SLIDE 3

3

slide-4
SLIDE 4

4

slide-5
SLIDE 5

5

slide-6
SLIDE 6

6

slide-7
SLIDE 7

7

1.5 Billion shells

slide-8
SLIDE 8

8

slide-9
SLIDE 9

9

5 % Chemical shells

slide-10
SLIDE 10

10

slide-11
SLIDE 11

11

Lack of quality control and…

slide-12
SLIDE 12

12

… muddy terrain caused…

slide-13
SLIDE 13

13

… 30 % Duds

slide-14
SLIDE 14

14

slide-15
SLIDE 15

15

Yearly: 3000 Interventions 200 T Ammo

slide-16
SLIDE 16
  • 1. Clearance Ammunition WW I & WW II and obsolete Ammunition
  • 2. Dismantling Toxic Ammunition WW I
  • 3. Technical assistance to the Juridical Authorities (IEDD)
  • 4. Instruction and training
  • 5. Missions abroad

DOVO: tasks

16

slide-17
SLIDE 17

BRUSSELS

POELKAPELLE ZEEBRUGGE MEERDAAL

POELKAPELLE MEERDAAL

IEDD EOD Tox Diving School EOD School

17

EOD EOD

24/7 EOD Teams on stand-by! CMD: 3 Teams IEDD: 2 Teams Upscaling of # of teams possible

slide-18
SLIDE 18

Old Chemical Weapons

Appearance Identification

Leichte Gasmine (DEU) 7,6 cm 750 g CG Livens (GBR) 19,5cm 15,5 Kg CG

Condition

Unarmed - Armed Fired – not fired Corrosion Leaking OCW Broken fuzes

L F K Gr (7,7 cm)

More than 100 product combinations possible!

CG, CLARK I/II, HD, AC, Chlorosulfonic acid, Arsenic trioxide, Stannic Chloride, Iodo ethylacetate, Cyanogen bromide, Phenylbromoarsine, Cyanogen chloride,…

18

slide-19
SLIDE 19

19

LIQUID SOLID

slide-20
SLIDE 20

OMG

Dismantling

CDC IDG

Non destructive IDF

Inflow

Daily found WWI ammunitions

Identified OCW Platform

15239

OCW Non OCW

Non OCW Platform CED Scrap

slide-21
SLIDE 21

OCW? Visual IDF

N Y ?

X-ray

Non OCW

OCW?

N ?

OCW? NAA

N Y

15239

OCW

7 27 47 67 87 107 127 147 167 187 2150 2170 2190 2210 2230 2250 2270 data background 2223 keV 2230 keV E / keV counts inelastic scattering H 2 2 2 3 ke V S 2 2 3 0 ke V

21

slide-22
SLIDE 22

OMG (Dismantling)

  • Concept of dismantling OCWs with liquid filling

Drilling

Drilling Analysis

22

slide-23
SLIDE 23

Milling Milling Cut Ctl room

Drilling Analysis Milling

23

slide-24
SLIDE 24

Toxic elements Energetic elements Toxic waste to be incinerated

Drilling Analysis Milling Energetic elements Emptying

  • r “Plug”

CDC Waste

Waste

Toxic Elements

24

slide-25
SLIDE 25

EXPLO OFFGAS TREATMENT

CDC (Contained Detonation Chamber)

25

slide-26
SLIDE 26
  • Concept destruction OCWs by donor charge

Donor charge

26

slide-27
SLIDE 27

Donor charge Preparation CDC

27

slide-28
SLIDE 28

Donor charge Preparation CDC Detonation Offgas treatment

Proces flow diagram

Detonation Offgas Treatment 28

slide-29
SLIDE 29

Donor charge Preparation CDC Detonation Offgas treatment Waste management

29

slide-30
SLIDE 30

Static Detonation Chamber (SDC)

30

Start of construction: Jan 16 Ops by end 2016

slide-31
SLIDE 31

31Dec14 31Dec14

slide-32
SLIDE 32

18419 EA on 31Dec14

slide-33
SLIDE 33

Q uestions ?

33
