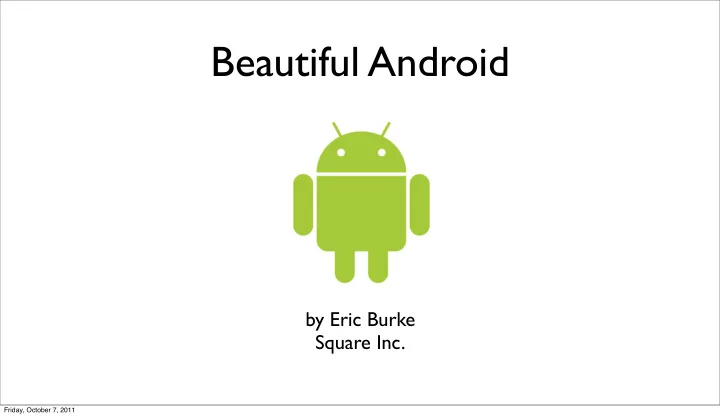

Beautiful Android

by Eric Burke Square Inc.

Friday, October 7, 2011

slide-2
SLIDE 2

Android Developers?

Friday, October 7, 2011

slide-3
SLIDE 3

Friday, October 7, 2011

slide-4
SLIDE 4

Friday, October 7, 2011

slide-5
SLIDE 5

Friday, October 7, 2011

slide-6
SLIDE 6

Friday, October 7, 2011

slide-7
SLIDE 7

Friday, October 7, 2011

slide-8
SLIDE 8

Time for Code

Friday, October 7, 2011

slide-9
SLIDE 9

public class EditablePhoto extends View { @Override protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) { int measuredWidth = getDefaultSize( getSuggestedMinimumWidth(), widthMeasureSpec); int measuredHeight = getDefaultSize( getSuggestedMinimumHeight(), heightMeasureSpec); // Ensure this view is always square. int min = Math.min(measuredHeight, measuredWidth); setMeasuredDimension(min, min); } }

Keep it Square

Friday, October 7, 2011

slide-10
SLIDE 10

public class EditablePhoto extends View { @Override protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) { int measuredWidth = getDefaultSize( getSuggestedMinimumWidth(), widthMeasureSpec); int measuredHeight = getDefaultSize( getSuggestedMinimumHeight(), heightMeasureSpec); // Ensure this view is always square. int min = Math.min(measuredHeight, measuredWidth); setMeasuredDimension(min, min); } }

Keep it Square

Friday, October 7, 2011

slide-11
SLIDE 11

public class EditablePhoto extends View { @Override protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) { int measuredWidth = getDefaultSize( getSuggestedMinimumWidth(), widthMeasureSpec); int measuredHeight = getDefaultSize( getSuggestedMinimumHeight(), heightMeasureSpec); // Ensure this view is always square. int min = Math.min(measuredHeight, measuredWidth); setMeasuredDimension(min, min); } }

Keep it Square

Friday, October 7, 2011

slide-12
SLIDE 12

Friday, October 7, 2011

slide-13
SLIDE 13

Let’s round these corners.

Friday, October 7, 2011

slide-14
SLIDE 14

Path clip = new Path(); clip.addRoundRect(...); canvas.clipPath(clip); canvas.drawBitmap(photo, 0, 0, null); canvas.restore();

Don’t Do This.

Friday, October 7, 2011

slide-15
SLIDE 15

Ugly Corners

Friday, October 7, 2011

slide-16
SLIDE 16

public class EditablePhoto extends View { private Bitmap image; private Drawable placeholder; private Bitmap framedPhoto; ... @Override protected void onDraw(Canvas canvas) { if (placeholder == null && image == null) return; if (framedPhoto == null) { createFramedPhoto(Math.min(getWidth(), getHeight())); } canvas.drawBitmap(framedPhoto, 0, 0, null); } ...

Lazy Bitmap

Friday, October 7, 2011

slide-17
SLIDE 17

public class EditablePhoto extends View { private Bitmap image; private Drawable placeholder; private Bitmap framedPhoto; ... @Override protected void onDraw(Canvas canvas) { if (placeholder == null && image == null) return; if (framedPhoto == null) { createFramedPhoto(Math.min(getWidth(), getHeight())); } canvas.drawBitmap(framedPhoto, 0, 0, null); } ...

Lazy Bitmap

Friday, October 7, 2011

slide-18
SLIDE 18

public class EditablePhoto extends View { private Bitmap image; private Drawable placeholder; private Bitmap framedPhoto; ... @Override protected void onDraw(Canvas canvas) { if (placeholder == null && image == null) return; if (framedPhoto == null) { createFramedPhoto(Math.min(getWidth(), getHeight())); } canvas.drawBitmap(framedPhoto, 0, 0, null); } ...

Lazy Bitmap

Friday, October 7, 2011

slide-19
SLIDE 19

public class EditablePhoto extends View { private Bitmap image; private Drawable placeholder; private Bitmap framedPhoto; ... @Override protected void onDraw(Canvas canvas) { if (placeholder == null && image == null) return; if (framedPhoto == null) { createFramedPhoto(Math.min(getWidth(), getHeight())); } canvas.drawBitmap(framedPhoto, 0, 0, null); } ...

Lazy Bitmap

Friday, October 7, 2011

slide-20
SLIDE 20

Alpha Compositing

Source: http://en.wikipedia.org/wiki/Alpha_compositing

Friday, October 7, 2011

slide-21
SLIDE 21

private void createFramedPhoto(int size) { // Start with either the placeholder or the image. Drawable imageDrawable = (image != null) ? new BitmapDrawable(image) : placeholder; Bitmap output = Bitmap.createBitmap(size, size, Bitmap.Config.ARGB_8888); Canvas canvas = new Canvas(output); RectF outerRect = new RectF(0, 0, size, size); float outerRadius = size / 18f;

Offscreen Bitmap

Friday, October 7, 2011

slide-22
SLIDE 22

private void createFramedPhoto(int size) { // Start with either the placeholder or the image. Drawable imageDrawable = (image != null) ? new BitmapDrawable(image) : placeholder; Bitmap output = Bitmap.createBitmap(size, size, Bitmap.Config.ARGB_8888); Canvas canvas = new Canvas(output); RectF outerRect = new RectF(0, 0, size, size); float outerRadius = size / 18f;

Offscreen Bitmap

Friday, October 7, 2011

slide-23
SLIDE 23

private void createFramedPhoto(int size) { // Start with either the placeholder or the image. Drawable imageDrawable = (image != null) ? new BitmapDrawable(image) : placeholder; Bitmap output = Bitmap.createBitmap(size, size, Bitmap.Config.ARGB_8888); Canvas canvas = new Canvas(output); RectF outerRect = new RectF(0, 0, size, size); float outerRadius = size / 18f;

Offscreen Bitmap

Friday, October 7, 2011

slide-24
SLIDE 24

private void createFramedPhoto(int size) { // Start with either the placeholder or the image. Drawable imageDrawable = (image != null) ? new BitmapDrawable(image) : placeholder; Bitmap output = Bitmap.createBitmap(size, size, Bitmap.Config.ARGB_8888); Canvas canvas = new Canvas(output); RectF outerRect = new RectF(0, 0, size, size); float outerRadius = size / 18f;

Offscreen Bitmap

Friday, October 7, 2011

slide-25
SLIDE 25

Draw a Red Rectangle

Paint paint = new Paint(Paint.ANTI_ALIAS_FLAG); paint.setColor(Color.RED); canvas.drawRoundRect(outerRect, outerRadius, outerRadius, paint);

Friday, October 7, 2011

slide-26
SLIDE 26

Transparent Corners

paint.setXfermode(new PorterDuffXfermode( PorterDuff.Mode.SRC_IN));

Friday, October 7, 2011

slide-27
SLIDE 27

// Compose the image with the red rectangle. paint.setXfermode(new PorterDuffXfermode(PorterDuff.Mode.SRC_IN)); imageDrawable.setBounds(0, 0, size, size); // Save the layer to apply the paint. canvas.saveLayer(outerRect, paint, Canvas.ALL_SAVE_FLAG); imageDrawable.draw(canvas); canvas.restore();

Composing the Image

Friday, October 7, 2011

slide-28
SLIDE 28

// Compose the image with the red rectangle. paint.setXfermode(new PorterDuffXfermode(PorterDuff.Mode.SRC_IN)); imageDrawable.setBounds(0, 0, size, size); // Save the layer to apply the paint. canvas.saveLayer(outerRect, paint, Canvas.ALL_SAVE_FLAG); imageDrawable.draw(canvas); canvas.restore();

Composing the Image

Friday, October 7, 2011

slide-29
SLIDE 29

// Compose the image with the red rectangle. paint.setXfermode(new PorterDuffXfermode(PorterDuff.Mode.SRC_IN)); imageDrawable.setBounds(0, 0, size, size); // Save the layer to apply the paint. canvas.saveLayer(outerRect, paint, Canvas.ALL_SAVE_FLAG); imageDrawable.draw(canvas); canvas.restore();

Composing the Image

Friday, October 7, 2011

slide-30
SLIDE 30

// Compose the image with the red rectangle. paint.setXfermode(new PorterDuffXfermode(PorterDuff.Mode.SRC_IN)); imageDrawable.setBounds(0, 0, size, size); // Save the layer to apply the paint. canvas.saveLayer(outerRect, paint, Canvas.ALL_SAVE_FLAG); imageDrawable.draw(canvas); canvas.restore();

Composing the Image

Drawing over the red rectangle.

Friday, October 7, 2011

slide-31
SLIDE 31

// Compose the image with the red rectangle. paint.setXfermode(new PorterDuffXfermode(PorterDuff.Mode.SRC_IN)); imageDrawable.setBounds(0, 0, size, size); // Save the layer to apply the paint. canvas.saveLayer(outerRect, paint, Canvas.ALL_SAVE_FLAG); imageDrawable.draw(canvas); canvas.restore();

Composing the Image

Friday, October 7, 2011

slide-32
SLIDE 32

Rounded Corners

Friday, October 7, 2011

slide-33
SLIDE 33

Framing the Photo

  • 1. Create offscreen bitmap.

Friday, October 7, 2011

slide-34
SLIDE 34

Framing the Photo

  • 2. Draw an opaque rounded rectangle.

Friday, October 7, 2011

slide-35
SLIDE 35

Framing the Photo

  • 3. Set the Porter Duff mode.

paint.setXfermode(new PorterDuffXfermode(PorterDuff.Mode.SRC_OUT));

Friday, October 7, 2011

slide-36
SLIDE 36

Framing the Photo

  • 4. Draw a translucent rounded rectangle.

Transparent center viewport.

Friday, October 7, 2011

slide-37
SLIDE 37

Friday, October 7, 2011

slide-38
SLIDE 38

Friday, October 7, 2011

slide-39
SLIDE 39

Friday, October 7, 2011

slide-40
SLIDE 40

plastic_background.xml

<shape xmlns:android="http://schemas.android.com/apk/res/android"> <!-- Nearly white at the top, light gray at the bottom. --> <gradient android:startColor="#fff7f7f7" android:endColor="#ffe2e3e5" android:angle="270"/> </shape>

res/drawable/plastic_background.xml

Friday, October 7, 2011

slide-41
SLIDE 41

PlasticLinearLayout

public class PlasticLinearLayout extends LinearLayout { public PlasticLinearLayout(Context context, AttributeSet attrs) { super(context, attrs); // The subtle gradient draws behind everything. setBackgroundResource(R.drawable.plastic_window_background); } }

Friday, October 7, 2011

slide-42
SLIDE 42

Friday, October 7, 2011

slide-43
SLIDE 43

Friday, October 7, 2011

slide-44
SLIDE 44

Triangular Shine

private void createShinePath() { int width = getWidth(); int height = (int) (0.85 * getHeight()); shinePath = new Path(); shinePath.moveTo(0, 0); shinePath.lineTo(width, 0); shinePath.lineTo(width, height); shinePath.close(); shinePaint.setShader(new LinearGradient(0, 0, 0, height, 0x66ffffff, 0x10ffffff, CLAMP)); }

Friday, October 7, 2011

slide-45
SLIDE 45

Triangular Shine

private void createShinePath() { int width = getWidth(); int height = (int) (0.85 * getHeight()); shinePath = new Path(); shinePath.moveTo(0, 0); shinePath.lineTo(width, 0); shinePath.lineTo(width, height); shinePath.close(); shinePaint.setShader(new LinearGradient(0, 0, 0, height, 0x66ffffff, 0x10ffffff, CLAMP)); }

Friday, October 7, 2011

slide-46
SLIDE 46

Triangular Shine

private void createShinePath() { int width = getWidth(); int height = (int) (0.85 * getHeight()); shinePath = new Path(); shinePath.moveTo(0, 0); shinePath.lineTo(width, 0); shinePath.lineTo(width, height); shinePath.close(); shinePaint.setShader(new LinearGradient(0, 0, 0, height, 0x66ffffff, 0x10ffffff, CLAMP)); }

Friday, October 7, 2011

slide-47
SLIDE 47

Friday, October 7, 2011

slide-48
SLIDE 48

public class PlasticLinearLayout extends LinearLayout { private final Paint shinePaint = new Paint(Paint.ANTI_ALIAS_FLAG); private Path shinePath; public PlasticLinearLayout(Context context, AttributeSet attrs) { super(context, attrs); // The subtle gradient draws behind everything. setBackgroundResource(R.drawable.plastic_background); } @Override protected void dispatchDraw(Canvas canvas) { if (shinePath == null) { createShinePath(); } // Draw the shine behind the children. canvas.drawPath(shinePath, shinePaint); // Draw the children. super.dispatchDraw(canvas); }

Friday, October 7, 2011

slide-49
SLIDE 49

public class PlasticLinearLayout extends LinearLayout { private final Paint shinePaint = new Paint(Paint.ANTI_ALIAS_FLAG); private Path shinePath; public PlasticLinearLayout(Context context, AttributeSet attrs) { super(context, attrs); // The subtle gradient draws behind everything. setBackgroundResource(R.drawable.plastic_background); } @Override protected void dispatchDraw(Canvas canvas) { if (shinePath == null) { createShinePath(); } // Draw the shine behind the children. canvas.drawPath(shinePath, shinePaint); // Draw the children. super.dispatchDraw(canvas); }

Friday, October 7, 2011

slide-50
SLIDE 50

public class PlasticLinearLayout extends LinearLayout { private final Paint shinePaint = new Paint(Paint.ANTI_ALIAS_FLAG); private Path shinePath; public PlasticLinearLayout(Context context, AttributeSet attrs) { super(context, attrs); // The subtle gradient draws behind everything. setBackgroundResource(R.drawable.plastic_background); } @Override protected void dispatchDraw(Canvas canvas) { if (shinePath == null) { createShinePath(); } // Draw the shine behind the children. canvas.drawPath(shinePath, shinePaint); // Draw the children. super.dispatchDraw(canvas); }

Friday, October 7, 2011

slide-51
SLIDE 51

public class PlasticLinearLayout extends LinearLayout { private final Paint shinePaint = new Paint(Paint.ANTI_ALIAS_FLAG); private Path shinePath; public PlasticLinearLayout(Context context, AttributeSet attrs) { super(context, attrs); // The subtle gradient draws behind everything. setBackgroundResource(R.drawable.plastic_background); } @Override protected void dispatchDraw(Canvas canvas) { if (shinePath == null) { createShinePath(); } // Draw the shine behind the children. canvas.drawPath(shinePath, shinePaint); // Draw the children. super.dispatchDraw(canvas); }

Friday, October 7, 2011

slide-52
SLIDE 52

public class PlasticLinearLayout extends LinearLayout { private final Paint shinePaint = new Paint(Paint.ANTI_ALIAS_FLAG); private Path shinePath; public PlasticLinearLayout(Context context, AttributeSet attrs) { super(context, attrs); // The subtle gradient draws behind everything. setBackgroundResource(R.drawable.plastic_background); } @Override protected void dispatchDraw(Canvas canvas) { if (shinePath == null) { createShinePath(); } // Draw the shine behind the children. canvas.drawPath(shinePath, shinePaint); // Draw the children. super.dispatchDraw(canvas); }

Friday, October 7, 2011

slide-53
SLIDE 53

public class PlasticLinearLayout extends LinearLayout { private final Paint shinePaint = new Paint(Paint.ANTI_ALIAS_FLAG); private Path shinePath; public PlasticLinearLayout(Context context, AttributeSet attrs) { super(context, attrs); // The subtle gradient draws behind everything. setBackgroundResource(R.drawable.plastic_background); } @Override protected void dispatchDraw(Canvas canvas) { if (shinePath == null) { createShinePath(); } // Draw the shine behind the children. canvas.drawPath(shinePath, shinePaint); // Draw the children. super.dispatchDraw(canvas); }

Friday, October 7, 2011

slide-54
SLIDE 54

@Override protected void onLayout(boolean changed, int l, int t, int r, int b) { super.onLayout(changed, l, t, r, b); // Invalidate the path whenever the size changes. shinePath = null; } /** * Creates a triangle shape that draws the subtle glossy * shine. */ private void createShinePath() { ... } }

Friday, October 7, 2011

slide-55
SLIDE 55

@Override protected void onLayout(boolean changed, int l, int t, int r, int b) { super.onLayout(changed, l, t, r, b); // Invalidate the path whenever the size changes. shinePath = null; } /** * Creates a triangle shape that draws the subtle glossy * shine. */ private void createShinePath() { ... } }

Friday, October 7, 2011

slide-56
SLIDE 56

Usage

<com.squareup.ui.PlasticLinearLayout xmlns:android="http://schemas.android.com/apk/res/android" android:layout_width="fill_parent" android:layout_height="fill_parent" android:orientation="vertical" > ...normal layout here </com.squareup.ui.PlasticLinearLayout>

Friday, October 7, 2011

slide-57
SLIDE 57

Takeaways

  • Subtle gradients FTW
  • Test with bright, primary colors
  • Invalidate drawables when bounds change

Friday, October 7, 2011

slide-58
SLIDE 58

Recommended Tools

xScope DigitalColor Meter

Friday, October 7, 2011

slide-59
SLIDE 59

Custom Attributes

<declare-styleable name="EditablePhoto"> <attr name="caption" format="string"/> <attr name="captionSize" format="dimension"/> <attr name="placeholder" format="reference"/> </declare-styleable>

res/values/attrs.xml

Friday, October 7, 2011

slide-60
SLIDE 60

Attribute Namespace

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android" xmlns:square="http://schemas.android.com/apk/res/com.squareup" android:orientation="vertical" android:layout_width="fill_parent" android:layout_height="fill_parent" android:gravity="center_horizontal|top" >

Your Application Package

Friday, October 7, 2011

slide-61
SLIDE 61

Referencing Attributes

<com.squareup.EditablePhoto android:layout_width="@dimen/merchant_photo" android:layout_height="@dimen/merchant_photo" square:caption="@string/edit" square:captionSize="@dimen/merchant_caption" square:placeholder="@drawable/merchant_placeholder" />

Friday, October 7, 2011

slide-62
SLIDE 62

public EditablePhoto(Context context, AttributeSet attrs) { super(context, attrs); TypedArray a = context.obtainStyledAttributes(attrs, R.styleable.EditablePhoto, 0, 0); placeholder = a.getDrawable( R.styleable.EditablePhoto_placeholder); caption = a.getString( R.styleable.EditablePhoto_caption); captionSize = a.getDimension( R.styleable.EditablePhoto_captionSize, getResources().getDimension( R.dimen.editable_photo_default_caption_size)); a.recycle(); ... }

Friday, October 7, 2011

slide-63
SLIDE 63

Small targets are hard to tap.

Friday, October 7, 2011

slide-64
SLIDE 64

Invisible TouchDelegate

Friday, October 7, 2011

slide-65
SLIDE 65

public static void expandTouchArea(final View bigView, final View smallView) { // Posting ensures the big view has a non-zero size. bigView.post(new Runnable() { @Override public void run() { // Touch delegates require local coordinates. Rect rect = new Rect(0, 0, bigView.getWidth(), bigView.getHeight()); bigView.setTouchDelegate(new TouchDelegate(rect, smallView)); } }); }

TouchDelegate

Friday, October 7, 2011

slide-66
SLIDE 66

public static void expandTouchArea(final View bigView, final View smallView) { // Posting ensures the big view has a non-zero size. bigView.post(new Runnable() { @Override public void run() { // Touch delegates require local coordinates. Rect rect = new Rect(0, 0, bigView.getWidth(), bigView.getHeight()); bigView.setTouchDelegate(new TouchDelegate(rect, smallView)); } }); }

TouchDelegate

Friday, October 7, 2011

slide-67
SLIDE 67

public static void expandTouchArea(final View bigView, final View smallView) { // Posting ensures the big view has a non-zero size. bigView.post(new Runnable() { @Override public void run() { // Touch delegates require local coordinates. Rect rect = new Rect(0, 0, bigView.getWidth(), bigView.getHeight()); bigView.setTouchDelegate(new TouchDelegate(rect, smallView)); } }); }

TouchDelegate

Friday, October 7, 2011

slide-68
SLIDE 68

Fitts’s Law

  • Speed & Accuracy trade off
  • Make targets big and close

Friday, October 7, 2011

slide-69
SLIDE 69

Friday, October 7, 2011

slide-70
SLIDE 70

Round Corners

Friday, October 7, 2011

slide-71
SLIDE 71

FrameLayout RoundCornerViewport

Friday, October 7, 2011

slide-72
SLIDE 72

public class RoundCornerViewport extends FrameLayout { @Override protected void dispatchDraw(Canvas canvas) { // Clip to a round rect shape. This will leave some // jagged pixels around the rounded corners. canvas.save(Canvas.CLIP_SAVE_FLAG); canvas.clipPath(roundRectPath); // Draw the child view, but only the part inside the // clip path shows. super.dispatchDraw(canvas); canvas.restore(); // Cover up the jagged pixels with this border. canvas.drawRoundRect(boundsRect, cornerRadius, cornerRadius, borderLinePaint); } }

Friday, October 7, 2011

slide-73
SLIDE 73

public class RoundCornerViewport extends FrameLayout { @Override protected void dispatchDraw(Canvas canvas) { // Clip to a round rect shape. This will leave some // jagged pixels around the rounded corners. canvas.save(Canvas.CLIP_SAVE_FLAG); canvas.clipPath(roundRectPath); // Draw the child view, but only the part inside the // clip path shows. super.dispatchDraw(canvas); canvas.restore(); // Cover up the jagged pixels with this border. canvas.drawRoundRect(boundsRect, cornerRadius, cornerRadius, borderLinePaint); } }

Friday, October 7, 2011

slide-74
SLIDE 74

public class RoundCornerViewport extends FrameLayout { @Override protected void dispatchDraw(Canvas canvas) { // Clip to a round rect shape. This will leave some // jagged pixels around the rounded corners. canvas.save(Canvas.CLIP_SAVE_FLAG); canvas.clipPath(roundRectPath); // Draw the child view, but only the part inside the // clip path shows. super.dispatchDraw(canvas); canvas.restore(); // Cover up the jagged pixels with this border. canvas.drawRoundRect(boundsRect, cornerRadius, cornerRadius, borderLinePaint); } }

Friday, October 7, 2011

slide-75
SLIDE 75

public class RoundCornerViewport extends FrameLayout { @Override protected void dispatchDraw(Canvas canvas) { // Clip to a round rect shape. This will leave some // jagged pixels around the rounded corners. canvas.save(Canvas.CLIP_SAVE_FLAG); canvas.clipPath(roundRectPath); // Draw the child view, but only the part inside the // clip path shows. super.dispatchDraw(canvas); canvas.restore(); // Cover up the jagged pixels with this border. canvas.drawRoundRect(boundsRect, cornerRadius, cornerRadius, borderLinePaint); } }

Friday, October 7, 2011

slide-76
SLIDE 76

Jagged Corner.

Friday, October 7, 2011

slide-77
SLIDE 77

public class RoundCornerViewport extends FrameLayout { @Override protected void dispatchDraw(Canvas canvas) { // Clip to a round rect shape. This will leave some // jagged pixels around the rounded corners. canvas.save(Canvas.CLIP_SAVE_FLAG); canvas.clipPath(roundRectPath); // Draw the child view, but only the part inside the // clip path shows. super.dispatchDraw(canvas); canvas.restore(); // Cover up the jagged pixels with this border. canvas.drawRoundRect(boundsRect, cornerRadius, cornerRadius, borderLinePaint); } }

Thick Line

Friday, October 7, 2011

slide-78
SLIDE 78

android:imeOptions="actionDone"

Friday, October 7, 2011

slide-79
SLIDE 79

passwordField.setOnEditorActionListener( new TextView.OnEditorActionListener() { @Override public boolean onEditorAction( TextView v, int actionId, KeyEvent event) { if (actionId == EditorInfo.IME_ACTION_DONE) { doneClicked(passwordField); return true; } return false; } });

Friday, October 7, 2011

slide-80
SLIDE 80

passwordField.setOnEditorActionListener( new TextView.OnEditorActionListener() { @Override public boolean onEditorAction( TextView v, int actionId, KeyEvent event) { if (actionId == EditorInfo.IME_ACTION_DONE) { doneClicked(passwordField); return true; } return false; } });

Friday, October 7, 2011

slide-81
SLIDE 81

android:imeOptions=”actionNext” android:inputType=”phone” android:inputType=”textPersonName|textCapWords” etc...

More to Explore

Friday, October 7, 2011

slide-82
SLIDE 82

Thinking of using ViewFlipper?

Friday, October 7, 2011

slide-83
SLIDE 83

Friday, October 7, 2011

slide-84
SLIDE 84

Bug 6191

Fatal bug prior to Honeycomb: http://code.google.com/p/android/issues/detail?id=6191

Friday, October 7, 2011

slide-85
SLIDE 85

SafeViewFlipper

@Override protected void onDetachedFromWindow() { try { super.onDetachedFromWindow(); } catch (IllegalArgumentException e) { stopFlipping(); } }

http://pastie.org/1086467

Friday, October 7, 2011

slide-86
SLIDE 86

Friday, October 7, 2011

slide-87
SLIDE 87

getChildDrawingOrder(...) drawChild(...) canvas.clipRect(...) canvas.translate(...) canvas.rotate(...)

Friday, October 7, 2011

slide-88
SLIDE 88

Holograms

Start with three images:

Friday, October 7, 2011

slide-89
SLIDE 89

Hologram Interface

public interface Hologram { /** * Adjusts the hologram display. * * @param value ranges from -1..1. */ void update(float value); }

Friday, October 7, 2011

slide-90
SLIDE 90

public class HologramView extends View implements Hologram { private final Bitmap baseImage; private final Bitmap redOverlay; private final Bitmap blueOverlay; private final Paint overlayPaint = new Paint(); private float value; ... @Override public void draw(Canvas canvas) { canvas.drawBitmap(baseImage, 0, 0, null); Bitmap overlay = (value >= 0) ? redOverlay : blueOverlay; int overlayAlpha = Math.abs((int) 255 * value);

  • verlayPaint.setAlpha(overlayAlpha);

canvas.drawBitmap(overlay, 0, 0, overlayPaint); } @Override public void update(float value) { this.value = value; invalidate(); } }

Friday, October 7, 2011

slide-91
SLIDE 91

public class HologramView extends View implements Hologram { private final Bitmap baseImage; private final Bitmap redOverlay; private final Bitmap blueOverlay; private final Paint overlayPaint = new Paint(); private float value; ... @Override public void draw(Canvas canvas) { canvas.drawBitmap(baseImage, 0, 0, null); Bitmap overlay = (value >= 0) ? redOverlay : blueOverlay; int overlayAlpha = Math.abs((int) 255 * value);

  • verlayPaint.setAlpha(overlayAlpha);

canvas.drawBitmap(overlay, 0, 0, overlayPaint); } @Override public void update(float value) { this.value = value; invalidate(); } }

Friday, October 7, 2011

slide-92
SLIDE 92

public class HologramView extends View implements Hologram { private final Bitmap baseImage; private final Bitmap redOverlay; private final Bitmap blueOverlay; private final Paint overlayPaint = new Paint(); private float value; ... @Override public void draw(Canvas canvas) { canvas.drawBitmap(baseImage, 0, 0, null); Bitmap overlay = (value >= 0) ? redOverlay : blueOverlay; int overlayAlpha = Math.abs((int) 255 * value);

  • verlayPaint.setAlpha(overlayAlpha);

canvas.drawBitmap(overlay, 0, 0, overlayPaint); } @Override public void update(float value) { this.value = value; invalidate(); } }

Friday, October 7, 2011

slide-93
SLIDE 93

public class HologramView extends View implements Hologram { private final Bitmap baseImage; private final Bitmap redOverlay; private final Bitmap blueOverlay; private final Paint overlayPaint = new Paint(); private float value; ... @Override public void draw(Canvas canvas) { canvas.drawBitmap(baseImage, 0, 0, null); Bitmap overlay = (value >= 0) ? redOverlay : blueOverlay; int overlayAlpha = Math.abs((int) 255 * value);

  • verlayPaint.setAlpha(overlayAlpha);

canvas.drawBitmap(overlay, 0, 0, overlayPaint); } @Override public void update(float value) { this.value = value; invalidate(); } }

Friday, October 7, 2011

slide-94
SLIDE 94

public class HologramView extends View implements Hologram { private final Bitmap baseImage; private final Bitmap redOverlay; private final Bitmap blueOverlay; private final Paint overlayPaint = new Paint(); private float value; ... @Override public void draw(Canvas canvas) { canvas.drawBitmap(baseImage, 0, 0, null); Bitmap overlay = (value >= 0) ? redOverlay : blueOverlay; int overlayAlpha = Math.abs((int) 255 * value);

  • verlayPaint.setAlpha(overlayAlpha);

canvas.drawBitmap(overlay, 0, 0, overlayPaint); } @Override public void update(float value) { this.value = value; invalidate(); } }

Friday, October 7, 2011

slide-95
SLIDE 95

public class HologramView extends View implements Hologram { private final Bitmap baseImage; private final Bitmap redOverlay; private final Bitmap blueOverlay; private final Paint overlayPaint = new Paint(); private float value; ... @Override public void draw(Canvas canvas) { canvas.drawBitmap(baseImage, 0, 0, null); Bitmap overlay = (value >= 0) ? redOverlay : blueOverlay; int overlayAlpha = Math.abs((int) 255 * value);

  • verlayPaint.setAlpha(overlayAlpha);

canvas.drawBitmap(overlay, 0, 0, overlayPaint); } @Override public void update(float value) { this.value = value; invalidate(); } }

Friday, October 7, 2011

slide-96
SLIDE 96

Accelerometer Listener

@Override public void onSensorChanged(SensorEvent sensorEvent) { final float ax = sensorEvent.values[0]; final float ay = sensorEvent.values[1]; final float az = sensorEvent.values[2]; // Sum typically ranges from approximately -16...16 float sum = ax + ay + az; // Dividing by 4 looks nice. Smaller denominators make the // hologram shift more quickly. float value = (float) Math.sin(sum / 4); delegate.update(value); }

Friday, October 7, 2011

slide-97
SLIDE 97
  • Averages the accelerometer readings
  • Contains an array, length = 8
  • Smooths the otherwise jittery signal

Boxcar Filter

Friday, October 7, 2011

slide-98
SLIDE 98

Demo

Friday, October 7, 2011

slide-99
SLIDE 99

Questions

eric@squareup.com

Friday, October 7, 2011
