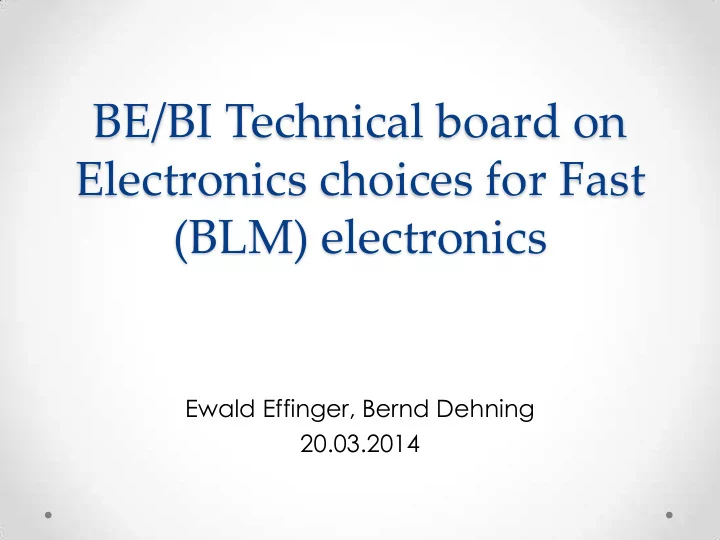

BE/BI Technical board on Electronics choices for Fast (BLM) electronics Ewald Effinger, Bernd Dehning 20.03.2014
Outline • Detector overview Diamond Detector with Cascade Schemes (Cividec detector with copper o cable) Optical diamond detector from CMS & DESY (BCM1F4LHC) o BLMED Installation Overview o • Motivation for a new Fast DAQ Technical Specification of Fast DAQ o System propositions o • Solution CERN made or outside company FMC based system (BI development) o Tender System 1 – System 5 o • System Compare
New Diamond Detector Cascade Schemes Detector signal split in two signal paths (direct and 40dB amplified) • Monitoring of complete dynamic range possible • No need to access tunnel to exchange amplifier for different users •
Optical diamond detector (BCM1F4LHC) All detector signal arrive on the same position • Easy access of data acquisition system • Lower dynamic range •
BLMED Installation Overview Acc IP Position Detector LHC 2 BLMED.04L2.B1I10_TCTVB.4L2 CIVIDEC LHC 3 BLMED.06L3.B1I10_TCP.6L3.B1 CIVIDEC LHC 3 BLMED.06R3.B2E10_TCP.6R3.B2 CIVIDEC LHC 6 BLMED.04L6.B2I10_TCSG.4L6.B2 CIVIDEC LHC 6 BLMED.04R6.B1E10_TCSG.4R6.B1 CIVIDEC LHC 7 BLMED.06L7.B1E10_TCHSS.6L7 CIVIDEC LHC 7 BLMED.06R7.B2I10_TCHSS.6R7 CIVIDEC LHC 8 BLMED.04R8.B2C10_TCTVB.4R8 CIVIDEC SPS 4 MSE 41876 CIVIDEC SPS 6 TPSG 61773 CIVIDEC LHC 2 BLMED.04L2.B1C10_TDI.4L2.B1 BCM1F4LHC LHC 8 BLMED.04R8.B2C10_TDI.4R8.B2 BCM1F4LHC LHC 4 BLMED.05L4.B1C10_BGI BCM1F4LHC LHC 4 BLMED.05R4.B2C10_BGI BCM1F4LHC LHC 5 BLMED.04L5.B1I10_TCTVA.4L5.B1 BCM1F4LHC LHC 5 BLMED.04R5.B2I10_TCTVA.4R5.B2 BCM1F4LHC Following detectors are foreseen to be installed while LS1 and LS2 • 1 detector for Fast Servospill in the SPS TT20 (LS1) • 1 detector for HiLumi in the LHC (LS1) • 8 detectors for Booster dump (LS2) • 12 (?) detectors for PS (LS2) •
Motivation for a new Fast DAQ More reliability of data acquisition in • compare with windows based LeCroy Scope Decrease rental cost for scopes • (450CHF per month and scope) o Less complicated set up for BCM1F detector • Supported and maintained by DESY o Complex data treatment structure o Single data acquisition system for both • detector types Equal readout and data treatment for both • detectors
Technical Specification of Fast DAQ Analogue bandwidth DC – 500 MHz V In min 10 mVpp V In max 10 Vpp 7V RMS Acquisition: Resolution 8/10/12 bit Solution specific Sampling rate 1Gs/s (2.5ns – 1ns) Sampling length 10ms -1.0s @ 1Gs/s per channel selectable Buffer @ 8 bit 10k – 1G (points) = 240kbit – 24Gbit (4Gbyte) 4 Channels Buffer@ 12 bit 10k – 1G (points) = 360kbit – 36Gbit ( 3 Channels Trigger system: Signal input Edge (Threshold set with 10bit DAC) Min. 5mV Ext. Input 2 Edge TTL signal Software trigger On event via data transmission Histogram: Resolution 1.55671875ns (57024 bins) Bunch length / 16 Trigger threshold min. 5mV 10 bit DAC Counter 20-24 bit per bin Update rate 1s Scaler: Trigger threshold min. 5mV 10 bit DAC Counter 20-24 bit Update rate 1s Controller or FPGA software: Source code User accessible for modifications Preferable Drivers & Control software Driver Open source Linux Preferable Control Linux Preferable
System propositions • 8 - 10 - 12 bit solution possible • 3 – 4 channel per system needed • Splitter and/or optical input • can be separated form DAQ • In case of a modular system more than 4 channel possible • Parallel processing of Histogram and Loss versus time mode preferable
FMC based system (BI development) • System based on BI VFC board • Digitizer FMC board, 8/10/12 ADC 1GSPS, no memory on the board. • VME 64 create and Linux CPU needed per system • Not compatible with dead lines of project Series production of VFC (start end of 2014) o Tender for FMC card o • FPGA and CPU Software form BI needed
Tender System 1 • Custom made MTCA 4 Channel 1.25GSPS 10bit ADC • Virtex 6 FPAG and DDR3 memory interface • FPGA software done by vendor • Create and single board computer and MCH not included (not included in the offer) • Offer not compatible with dead line • CPU software not mentioned
Tender System 2 • 3 * 1 Channel 1.6GSPS 12bit ADC • FPGA board with Kintex -7 and 2 Gbit RAM • 2.3 GHz Quad-Core PXI Express Controller • 8-Slot 3U PXI Express Chassis with AC - Up to 7 GB/s • Modular system, stand alone • Compatible with dead line • CPU and FPGA Software consulted by vendor
Tender System 3 • 1 * 4 Channel 1.25 GSPS 8bit ADC with Xilinx Virtex 5, 16 GB compact flash card • 1 * 2 Channel 2.5 GSPS 8 bit ADC with Xilinx Virtex 5 • Mother board NANO-PV-D5251with Intel Atom D525 1.8 GHz and 4GB RAM, Linux based software. • 5 Gbit/s connection between ADC and CPU . • Compatible with dead lines • CPU and FPGA Software included in the offer
Tender System 4 • No specified description given in the offer • New custom made development all requirements should be fulfilled • Compatible with dead lines
Tender System 5 • 1 * 4 Channel 1GSPS 12bit ADC with Virtex 6 and 1 Gbit RAM • Analogue frontend with selectable gain • Linux based CPU to connected to ADC and data treatment. • 19 “ chassis, stand alone system • CPU and FPGA Software included in the offer
System Compare Important Technical Aspects BI/BL Man power System Dead line Comments Storage per Ch Resolution Rate FPGA CPU Production BI/BL 8 MByte 10 bit 1 GSPS Yes Yes Yes No Tender for FMC needed Tender 1 1.25 GByte 10 bit 1.25 GSPS No Yes No No Offer is without chassis and CPU Tender 2 2 GByte 12 bit 1.6 GSPS Yes Yes No Yes Modular system, Onsight consualtion Tender 3 4 GByte 8 bit 1.25 GSPS No No No Yes QT GUI exist, Future option 12 bit Tender 4 1.5 GByte 12 bit 1 GSPS No No No Yes Completely new development Tender 5 250 MByte 12 bit 1 GSPS No No No Yes Future option 8 Gbyte Values in grey correspond to specified values !
