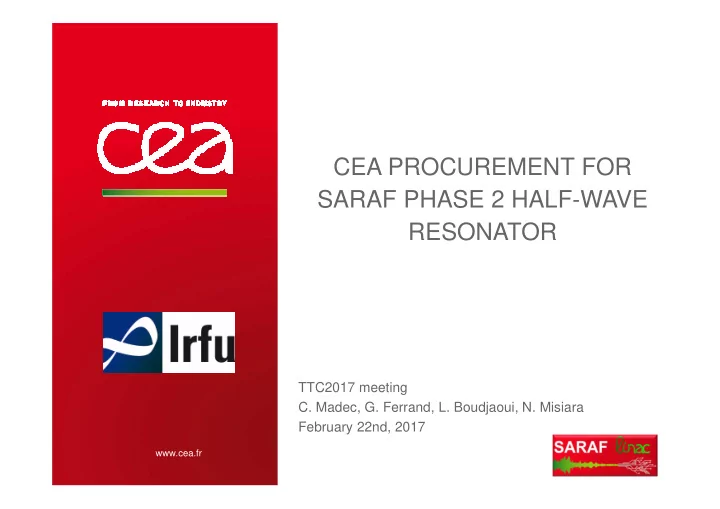

CEA PROCUREMENT FOR SARAF PHASE 2 HALF-WAVE RESONATOR

| PAGE 1

TTC2017 meeting

• C. Madec, G. Ferrand, L. Boudjaoui, N. Misiara

February 22nd, 2017

SARAF PHASE 2 – CEA DELIVERABLES

| PAGE 2

• C. Madec - CEA procurement for SARAF phase 2 half-wave resonator

SARAF Phase II: accelerator built in Israel for nuclear physics application producing 40MeV p+ or 35MeV deuterons. Phase I : already in operation with a source, LEBT, RFQ, Cryomodule For Phase II, CEA has been contracted to deliver MEBT and SCL including diagnostics and LCS SARAF-LINAC-SNRC Source + LEBT SARAF-LINAC-CEA cooling cryogenics

P.S. LCS LCS

RFQ

P.S.

HEBT + targets

SARAF PHASE 2 CEA SCL DELIVERABLES

| PAGE 6

• Cryomodules : 2 low-β 0.091 +2 high-β 0.181 housing –
• SC HWR cavities: 6-7 low-β and 7 high-β with associated couplers and tuners
• Solenoid Packages: 6 – 4
• Local Control System
• Warm section
• Valves box

Low-β cavity (×12+1) High-β cavity (×14) SC Magnets (×20) Couplers/Tuners (×26+1)

• C. Madec - CEA procurement for SARAF phase 2 half-wave resonator

FULLY EQUIPPED CAVITY - LB

| PAGE 4

Equipped cavity With helium tank. Power coupler Frequency Tuning System

• C. Madec - CEA procurement for SARAF phase 2 half-wave resonator

PROCUREMENT

The call for tender was divided in 2 lots :

• Manufacturing of a prototype Low beta cavity and of 12 (+1) Low

beta cavities

• Manufacturing of a prototype high beta cavity and of 14 high beta

cavities The 2 lots could be ordered to 2 different companies or one.

| PAGE 5

• C. Madec - CEA procurement for SARAF phase 2 half-wave resonator

PROCUREMENT

Foreseen manufacturing plan for prototypes :

• manufacture of the bare cavities
• chemistry, HPR, Test at CEA
• Heat Treatment at company
• chemistry, HPR, Test at CEA
• jacketting of the cavities at company
• chemistry, HPR, Test at CEA
• acceptance of the cavity

Once prototype are accepted, the Production Readiness Review launches the manufacturing of the serie cavities.

| PAGE 6

• C. Madec - CEA procurement for SARAF phase 2 half-wave resonator

PROCUREMENT PLAN

• International call for tender
• Choice of the vendor on technical and financial offer

with validation of SARAF project management (1 or 2 vendor)

• Kick off
• Review of manufacturing file
• Manufacturing of a prototype of each beta
• Test and validation of the two prototypes at CEA
• Production Readiness Review to launch the serie
• Manufacturing of the cavities
• Test and validation of the cavities at CEA before

assembly in the cryomodule

| PAGE 7

• C. Madec - CEA procurement for SARAF phase 2 half-wave resonator

THANKS FOR YOUR ATTENTION QUESTIONS
