BASIC PRINCIPLES OF PHOTOTHERMAL TECHNIQUES AND THEIR APPLICATIONS. - - PowerPoint PPT Presentation

Nov 14, 2023 194 likes •761 views

Instituto Politcnico Nacional Centro de Investigacin en Ciencia Aplicada y Tecnologa Avanzada CICATA, Legaria 694. Col. Irrigacin, C.P. 11500, Mxico D.F., Mxico http://www.cicata.ipn.mx BASIC PRINCIPLES OF PHOTOTHERMAL TECHNIQUES

slide-1
SLIDE 1

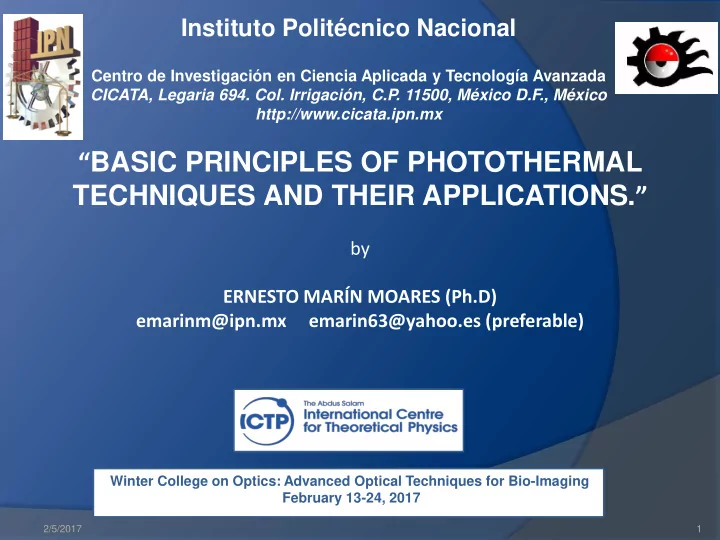

Instituto Politécnico Nacional

Centro de Investigación en Ciencia Aplicada y Tecnología Avanzada CICATA, Legaria 694. Col. Irrigación, C.P. 11500, México D.F., México http://www.cicata.ipn.mx

“BASIC PRINCIPLES OF PHOTOTHERMAL TECHNIQUES AND THEIR APPLICATIONS.”

by ERNESTO MARÍN MOARES (Ph.D) emarinm@ipn.mx emarin63@yahoo.es (preferable)

2/5/2017 1

Winter College on Optics: Advanced Optical Techniques for Bio-Imaging February 13-24, 2017

slide-2
SLIDE 2

2/5/2017 2

RESEARCH CENTRE ON APPLIED SCIENCE AND ADVANCED TECHNOLOGY (CICATA) NATIONAL POLYTECHICAL INSTITUTE (IPN), MEXICO CITY http://www.cicata.ipn.mx

MASTER AND PHD PROGRAMS IN ADVANCED TECHNOLOGY MASTER AND PHD PROGRAMS IN PHYSICS EDUCATION MASTER AND PHD PROGRAMS IN MATHEMATICS EDUCATION Research Areas 1- Nanotechnology and Functional Materials 2- Biomaterials. 2- Instrumentation and Characterization PHOTOTHERMAL TECHNIQUES LABORATORY Since 2011 Graduate Programms of International Competence PNPC-CONACyT  Scholarships (also for foreign students)

slide-3
SLIDE 3

2/5/2017 3

OUTLINE: 1. THE PHOTOACOUSTIC EFFECT

  • WHY TO USE THE PA EFFECT FOR MATERIALS CHARACTERIZATION ?
  • HEAT GENERATION AFTER LIGHT ABSORPTION:
  • THE PHOTOACOUSTIC TECHNIQUE: EXPERIMENTAL SET-UP. WHAT IS

MEASURED? 2. THERMAL WAVES PHYSICS

  • OPTICAL ABSORPTION AND LIGHT INTO HEAT ENERGY CONVERSION

THREE MODES OF HEAT TRANSFER

  • 1 D HEAT CONDUCTION: THE HEAT DIFFUSION EQUATION
  • THERMAL WAVES AND THEIR PROPERTIES

3. THE PHOTOTHERMAL TECHNIQUES

  • BESIDES PHOTOACOUSTICS: HOW TO DETECT?
  • SOME PHOTOTHERMAL TECHNIQUES
  • 4. SELECTED APPLICATIONS :
  • SPECTROSCOPY
  • CALORIMETRY: THERMAL PROPERTIES MEASUREMENT
  • DEPTH PROFILING
  • IMAGING

A LITTLE BIT OF HISTORY: REDISCOVERING 19 CENTURY DISCOVERIES BY MODERN SCIENCE

slide-4
SLIDE 4

2/5/2017 4

1ST PART: THE PHOTOACOUSTIC EFFECT “HEARING LIGHT”

slide-5
SLIDE 5

I have heard articulate speech produced by sunlight, I have heard a ray of the sun laugh and cough and sing! I have been able to heard a shadow, and I have even perceived by ear the passage of a cloud across the sun´s disk…can imagination picture what the future of this invention is to be…

  • A. G. Bell. Fragment of 1880´ Brief to Charles Sumner Tainter

2/5/2017 5

Alexander Graham Bell (1847-1922)

Bell, A. G., Am. J. of Sci. 20, 305 (1880).

1880: the discovery

Bell, A. G. y Tainter, S., Photophone United State Patent No. 235, 496, (1880).

slide-6
SLIDE 6

SPECTROPHONE BELL´S EXPERIMENTAL SET-UP TO STUDY THE PHOTOACOUSTIC EFFECT The Manufacturer and Builder Volume 0013 Issue 7 p. 156 (July 1881)

2/5/2017 6

slide-7
SLIDE 7

2/5/2017 7

HOME WORK: DEMONSTRATING THE PHOTOACOUSTIC EFFECT WITH A STETHOSCOPE

  • Lat. Am. J. Phys. Educ. Vol. 2, No. 2, May 2008
slide-8
SLIDE 8

2/5/2017 8

OTHER “KITCHEN” EXPERIMENTS

Rush, W. F. and Heubler, E. 1982 Am. J. Phys. 50 669. Campbell, C. and Laherrere 1998 J. Sci. Am. 78 278. Euler, M., Niemann, K. and Müller, A. 2000 Phys. Teacher 38 356 Euler, M., Phys. Teacher 2001 39 406.

slide-9
SLIDE 9

2/5/2017 9

To hearing tube Modulated light beam Stethoscope head

Sound waves Light absorption Light energy into heat conversion Heat diffusion

Mechanisms involved in the generation of the photoacoustic signal

INTERPRETATION OF HOMEWORK RESULTS

MOTIVATION: WHY TO USE SUCH EFFECT FOR MATERIALS CHARACTERIZATION

Elastic properties Optical properties e.g. Conversion Efficiency Thermal properties

slide-10
SLIDE 10

2/5/2017 10

RAW ESTIMATION: ORDERS OF MAGNITUDE T= ? Power: 0.1 mW Duration: 5.0 ms  Q = 5.0  10-7 J 1.0 cm3 of air density ~ 1.2  10-3 g/cm3  m = 1.2  10-3 g Q = m c T cair = 1.0 J/gK  T = 4.2  10-4 K P= ? Before de light pulse P0V = nRT0 After de pulse (P0+P)V = nR(T0+ T)  P = P0 (T / T0 )  P = 4.0  10-2 Pa Light pulse P0 = 1.01  105 Pa T0 = 300 K

  • A. M. Mansanares, Short Course at V International Conference on Surfaces, Materials and Vacuum

September 24 -28, 2012 Tuxtla Gutiérrez, Chiapas, Mexico

MOTIVATION: HOW TO DETECT SO SMALL VARIATIONS IN PRESSURE (OR TEMPERATURE) ?

slide-11
SLIDE 11

2/5/2017 11

Bell A G 1881 Nature 24 42 Tyndall J 1881 Proc. R. Soc. Lond. 31 307 Roentgen W 1881 Phil. Mag. 11 308

. . .

Viengerov, M. L. 1938 Dokl. Akad. Nauk. SSSR 19 687 Luft K F 1954 C. R. Hebd. Seances Acad. Sci. 238 1651

EARLY WORKS

slide-12
SLIDE 12

2/5/2017 12

PHOTOACOUSTIC SPECTROSCOPY  First theoretical model  First applications

1970s The rediscovery

slide-13
SLIDE 13

2/5/2017 13

slide-14
SLIDE 14

2/5/2017 14

Schema of a typical experimental set-up

  • F. Gordillo Delgado, 2011 “Photoacoustic technique applied to the strengthening of clean agriculture”
  • Ph. D. Thesis, CICATA-Legaria México D.F.
slide-15
SLIDE 15

2/5/2017 15

Small TSmall Signal to Noise RatioPhase sensitive detection: The Lock-in Amplifier (LIA)

LIA in a Nut Shell

S = A cos (t + ) + n signal to be measured A: signal amplitude; : signal phase =2f: angular frequency n: noise at f r = 2 cos (t) r’ = 2 sin (t) p = S  r = A cos ()+A cos (2t + )+2n cos (t) p' = S  r’ = A sin ()+A sin (2t + )+2n sin (t) X and Y real (in-phase) and imaginary (quadrature) parts of the complex number A exp (i) ; i = (-1)1/2 A = (X2 + Y2)1/2  = atan (Y/X) X = A cos() Y = A sin() SR810 LIA from Stanford Research Systems ~ $ 4000 CICATA-FPGA LIA Field Programmable Gate Array FPGA Spartan-3E ~ $ 400

slide-16
SLIDE 16

2/5/2017

16

Wavelength ()-resolved experiments (PA-spectroscopy)(f-fixed) Time-resolved (both f and  fixed) Monitoring of dynamic processes Modulation frequency (f)-resolved ( fixed) Determination of transport parameters

slide-17
SLIDE 17

2/5/2017 17

2ND PART: THERMAL WAVE PHYSICS

slide-18
SLIDE 18

2/5/2017 18

OPTICAL ABSORPTION Absorbance Molar Concentration [M] Molar Absorptivity Coefficient [M-1m-1] (-dependent) Light Intensity [Wm-2] I (x=0) Optical absorption coefficient Light penetration depth = 1/ Transmitance

* * * * * * +

 Reflectance

slide-19
SLIDE 19

2/5/2017 19

LIGHT INTO HEAT ENERGY CONVERSION

amount of heat generated per volume unit of the sample in an element of thickness dx at depth x

quantum efficiency for heating = produced heat / incident energy + 

slide-20
SLIDE 20

2/5/2017 20

THREE MODES OF HEAT TRANSFER 1- Convection Heat flux density [W/m2] Convection heat transfer coefficient Newton’s law 2- Radiation Stefan-Boltzmann law T-T0 << T0  Radiation heat transfer coefficient 3- Conduction Fourier´s law 1D, homogeneous and isotropic samples, T small  Conduction heat transfer coefficient

slide-21
SLIDE 21

2/5/2017 21

Thermal resistance (against conduction) Ohm´s law for thermal conduction  R: resistance (against convection-radiation) Biot´s number : fraction of material’s thermal resistance that

  • posses to convection-radiation heat losses
slide-22
SLIDE 22

2/5/2017 22

* ** *** ** *** + * +  Heat diffusion equation Thermal diffusivity FOURIER´S LAW + ENERGY CONSERVATION LAW  HEAT DIFFUSION EQUATION

slide-23
SLIDE 23

2/5/2017 23

Thermal conductivity versus thermal diffusivity

Closed circles: metals; squares: ceramics; triangles: glasses; open squares: polymers; open circles: liquids; crosses: gases

Slope ~ C = k /α ~ 3106 Jm-3 K-1 α

slide-24
SLIDE 24

2/5/2017 24

THERMAL WAVES AND THEIR PROPERTIES

Isotropic and homogeneus semi-infinite solid + Superficial uniform light absorption (1D) +  = 1 + R=0 + neglecting heat losses (with HL see )

HDE BC  Wave number Thermal diffusion length Thermal effusivity ~ k because the almost constancy of C THERMAL WAVE EQUATION Thermal properties determination is possible !

slide-25
SLIDE 25

2/5/2017 25

Thermal impedance Amplitude Phase

x 0 m

l

e T0

T

        m x T exp Thermal diffusion length Wave-length Phase velocity Group velocity THERMAL WAVES AND THEIR PROPERTIES

slide-26
SLIDE 26

2/5/2017 26

THERMAL WAVES AND THEIR PROPERTIES Temperature continuity at x=0 (negligible interfacial termal resistance)  Heat flux continuity at x=0 (see Fourier´s law)  Behavior at interfaces (normal incidence) Reflection and transmission coefficients

slide-27
SLIDE 27

2/5/2017 27

Orders of magnitude

Depth profiling and imaging are posible ! THERMAL WAVES AND THEIR PROPERTIES

slide-28
SLIDE 28

Jean Baptiste Joseph Fourier (1768-1830)

2/5/2017 28

1800s: The years of the discovery “The problem of the earth crust temperature is one of the most beatifull applications of the heat transfer theory”

  • J. B. J. Fourier

Home work: A very simple photothermal experiment

slide-29
SLIDE 29

Adrien Marie Legendre (left) and Joseph Fourier (right)

Boilly, Julien-Leopold. (1820). Album de 73 Portraits-Charge Aquarelle’s des Membres de I’Institute (water colour portrait #29). Biliotheque de l’Institut de France.

2/5/2017 29

  • T. N. Narasimhan 1999 Fourier´s heat conduction equation: History, influence, and connections. Reviews of Geophysics 37 151

(1822´s Théorie Analytiqúe de la chaleur was first developed in 1807 under the name Théorie de la propagation de la Chaleur dans les Solides)

slide-30
SLIDE 30
  • A. J. Ångström, Ann. Phys. Chem. 64:33 (1861)

2/5/2017 30

Another 19th Century discovery: The Ångström method for thermal diffusivity measurement

slide-31
SLIDE 31

2/5/2017 31

amount of heat generated per volume unit of the sample in an element of thickness dx at depth x

THERMAL WAVES (with distributed heat source)

Isotropic and homogeneus semi-infinite solid + Bulk uniform light absorption (1D) +   1 + R  0 + neglecting heat losses

 ()  Spectroscopy is possible !

slide-32
SLIDE 32

2/5/2017 32

3RD PART: THE PHOTOTHERMAL TECHNIQUES

slide-33
SLIDE 33

2/5/2017 33

PRINCIPLES OF PHOTOTHERMAL TECHNIQUES

Besides using a microphone: How to detect?

slide-34
SLIDE 34

2/5/2017 34

Thermal lens and photothermal modulated photoreflectance microscopy Thermal lens spectroscopy Photothermal (multi) beam deflection and photothermal lock-in shadowgraphy Photothermal Infrared thermography Photothermal Infrared radiometry Photopyroelectric/acoustic microscopy Photoacoustic spectroscopy Photopyroelectric technique Photothermal techniques available at Photothermal Techniques Laboratory, CICATA-Legaria

slide-35
SLIDE 35

Mirage effect (BEAM DEFLECTION)

2/5/2017 35

Another example of a photothermal technique:

Wednesday 9.00 h Photothermal digital lock-in shadowgraph technique for materials thermal characterization (signal and image digital processing) ( Leonardo Building - Budinich Lecture Hall ) !!

slide-36
SLIDE 36

2/5/2017 36

4TH PART: SELECTED APPLICATIONS

slide-37
SLIDE 37

PA SPECTROSCOPY AND DEPTH PROFILING

slide-38
SLIDE 38

2/5/2017 38

More Spectroscopic Applications: Thermal lens spectroscopy:

  • Prof. A. Marcano, Wednesday 15 and Thursday 16, 11.00 h

Thermal lens microscopy:

  • Prof. M. Franko Monday 20 and Tuesday 21, 11.00 h

+ some experimental sessions

slide-39
SLIDE 39

2/5/2017 39

Amplitude Phase THERMAL CHARACTERIZATION BY SLOPE METHOD LOG (AMPLITUDE × 1/2 ) VERSUS  1/2 PHASE VERSUS  1/2 STRAIGH LINE WITH SLOPE = L /(2) 1/2

L

L L L L LOG (AMPLITUDE ) VERSUS L PHASE VERSUS L STRAIGH LINE WITH SLOPE = (/2) 1/2 FREQUENCY DEPENDENT INSTRUMENTAL FACTOR CAN AFFECT BOTH AMPLITUDE AND PHASE  NORMALIZATION PROCEDURES, EXPERIMENTAL ARTIFACTS, ETC STRAIGHFORWARD PROCEDURES

slide-40
SLIDE 40

2/5/2017 40

slide-41
SLIDE 41

2/5/2017 41

THE THERMAL WAVE RESONATOR CAVITY METHOD

slide-42
SLIDE 42

2/5/2017 42

slide-43
SLIDE 43

2/5/2017 43

Thermal characterization of thin filaments

slide-44
SLIDE 44

2/5/2017 44

slide-45
SLIDE 45

2/5/2017 45

Thermal properties characterization: Photothermal shadowgraph technique:

  • Prof. E. Marin, Wednesday 15, 9.00 h

+ SOME EXPERMENTAL SESSIONS

slide-46
SLIDE 46

2/5/2017 46

Photothermal pump-probe optical methods are very useful for both spectroscopy and thermal characterization, e.g. thermal lens technique Thermal lens spectroscopy (see Franko and Marcano forthcoming courses) Δ𝜃 𝜃0 = 1 𝜃0 𝑒𝜃 𝑒𝑈 Δ𝑈

slide-47
SLIDE 47

2/5/2017 47

Graphene: 2D (semi) metal: a lattice of hexagonally arranged carbon

  • atoms. The potential to produce graphene using a super abundant

chemical element, and the possibility of its functionalization, make it a particular laboratory for basic research in 2D systems.

Signal ~ number of layers  imaging

slide-48
SLIDE 48

2/5/2017 48

Images taken with a modulated thermoreflectance set-up

slide-49
SLIDE 49

2/5/2017 49

Modulated optical reflectance microscopy Δ𝑆 𝑆0 = 1 𝑆0 𝑒𝑆 𝑒𝑈 Δ𝑈

slide-50
SLIDE 50

2/5/2017 50

  • E. Hernández Rosales et al in preparation
slide-51
SLIDE 51

05/02/2017 51

  • E. Cedeño, Master Thesis, CICATA-IPN, México, August 2013

The sensor: A PZT from a commercial buzzer

A photothermal microscope at CICATA-Legaria. Imaging

slide-52
SLIDE 52

05/02/2017 52

Optical image f=6 kHz Resolution 0.02 mm (7533 pixels) Amplitude image Phase image Lottery Ticket “Raspe y Gane” Imaging

slide-53
SLIDE 53

05/02/2017 53

CdTe/CdS/Glass Imaging Optical Photoacoustic Glass CdS CdTe

slide-54
SLIDE 54

2/5/2017 54

ACKNOWLEDGEMENTS

COLLABORATORS: MANY COLLEAGUES (IN MEXICO AND ABROAD) AND STUDENTS INSTITUTIONS:

slide-55
SLIDE 55

2/5/2017 55

Thank you!
