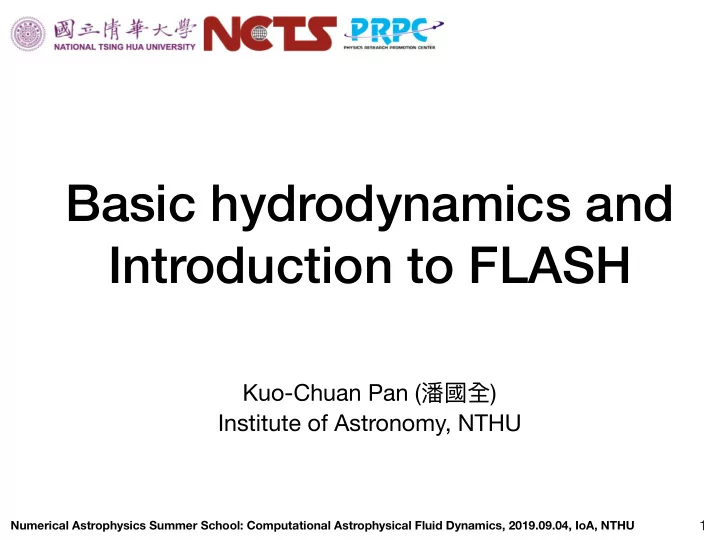

SLIDE 1

Numerical Astrophysics Summer School: Computational Astrophysical Fluid Dynamics, 2019.09.04, IoA, NTHU

1

Basic hydrodynamics and Introduction to FLASH

Kuo-Chuan Pan (潘國全) Institute of Astronomy, NTHU

SLIDE 2

2

Outline:

Astrophysical fluids
Basic hydrodynamic equations
Introduction to the FLASH code

NA School: Comp. Astrophysical Fluid Dynamics, Sep 4-6, 2019, IoA, NTHU

SLIDE 3

Why we need simulations in Astronomy?

We receive and record, but we do not

experiment or perturb (too distant)

Astrophysical systems involve extreme

conditions that cannot be replicated in lab (mostly)

Timescales are >> human lifetime (mostly)

NA School: Comp. Astrophysical Fluid Dynamics, Sep 4-6, 2019, IoA, NTHU

3

SLIDE 4

Telescope Astrophysical object Detectors Data reduction / Calibration

Observation

DATA

Observation and Computation Analogies

Mathematical Model Supercomputer DATA Data analysis / Visualization

PN

cool

Codes

Simulation 4

NA School: Comp. Astrophysical Fluid Dynamics, Sep 4-6, 2019, IoA, NTHU

SLIDE 5

Frontier Astronomy Research

Observational Astronomy Theoretical Astrophysics Computational Astrophysics Hypothesis Observations Formulation Realization Validation Postdiction, Prediction Michael Norman (1997)

5

NA School: Comp. Astrophysical Fluid Dynamics, Sep 4-6, 2019, IoA, NTHU

SLIDE 6

Astrophysical Problems

Planets (~ Earth radius) Stars/Binaries (~0.1-1000 AU) Planetary disk (~100-1000 AU) Interstellar medium (~10-100 pc) Galaxy (~50 kpc) Galaxy clusters (~1 Mpc) Large scale structure (~1 Gpc)

6

NA School: Comp. Astrophysical Fluid Dynamics, Sep 4-6, 2019, IoA, NTHU

6

SLIDE 7

Astrophysical Simulations

2012 ApJ, 750, 151 2012 ApJ, 746, 74 2009 MNRAS 398, 1082 2005 ApJS 160, 28 2013MNRAS

2018 ApJ

7

NA School: Comp. Astrophysical Fluid Dynamics, Sep 4-6, 2019, IoA, NTHU

7

SLIDE 8

Fluid Approximation

To solve the gas dynamics equations,
ne could use N-body method if we

know the force between two particles.

However, the number of particles is

usually huge (NA=1023). It is impossible to use direct N-body method to study the gas dynamics. -> Fluid

8

NA School: Comp. Astrophysical Fluid Dynamics, Sep 4-6, 2019, IoA, NTHU

8

SLIDE 9

Fluid Approximation (continue)

L >> λmfp

<latexit sha1_base64="A+i98ATuwWo9K2AUbMFdinZkek8=">AB/3icbVBPS8MwHE3nvzn/VQUvXoJD8DTaKehpDL148DBbcJaSpqmW1iSliQVRt3Br+LFgyJe/Rre/DZmWw+6+SDweO/3+P3ywpRpR3n2yotLa+srpXKxubW9s79u5eRyWZxKSNE5bI+xApwqgbU01I/epJIiHjHTD4dXE7z4QqWgi7vQoJT5HfUFjipE2UmAf3MBGA3rMJCIU5J7kMfpOLCrTs2ZAi4StyBVUKAV2F9elOCME6ExQ0r1XCfVfo6kpiRcXLFEkRHqI+6RkqECfKz6f3j+GxUSIYJ9I8oeFU/Z3IEVdqxEMzyZEeqHlvIv7n9TIdX/g5FWmicCzRXHGoE7gpAwYUmwZiNDEJbU3ArxAEmEtamsYkpw57+8SDr1mntaq9+eVZuXR1lcAiOwAlwTlogmvQAm2AwSN4Bq/gzXqyXqx362M2WrKzD74A+vzB7JElU=</latexit>

T >> τcoll

<latexit sha1_base64="JzZ5jwemKs9qjTxWXhqtJoF0+9E=">AB/XicbVDLSsNAFL3xWesrPnZuBovgqiRV0FUpunFZoS9oQphMp+3QySTMTIQair/ixoUibv0Pd/6N0zYLbT1w4XDOvTP3njDhTGnH+bZWVtfWNzYLW8Xtnd29fvgsKXiVBLaJDGPZSfEinImaFMzWknkRHIaftcHQ79dsPVCoWi4YeJ9SP8ECwPiNYGymwjxuoWkWexmQeTJC5kU+CeySU3ZmQMvEzUkJctQD+8vrxSNqNCEY6W6rpNoP8NSM8LpOiliaYjPCAdg0VOKLKz2bT9CZUXqoH0tTQqOZ+nsiw5FS4yg0nRHWQ7XoTcX/vG6q+9d+xkSairI/KN+ypGO0TQK1GOSEs3HhmAimdkVkSGWmGgTWNGE4C6evExalbJ7Ua7cX5ZqN3kcBTiBUzgHF6gBndQhyYQeIRneIU368l6sd6tj3nripXPHMEfWJ8/XH6UiQ=</latexit>

, Mean free path , Collision time scale

Exercise: Consider the air in this room

ρ ∼ 10−3 g/cm3, µ ∼ 28mp, T ∼ 300 K

<latexit sha1_base64="m2XjDjqjtSgx1hefcFBaPuJUtw=">ACKHicbZDLSsNAFIYnXmu9RV26GWwEF1qTdmF3Ft0Ibir0Bk1bJtNpO3QmCTMToYT6Nm58FTcinTrkzhps9DWAwM/38OZ87vhYxKZdtTY2V1bX1jM7OV3d7Z3ds3Dw7rMogEJjUcsEA0PSQJoz6pKaoYaYaCIO4x0vBGt4nfeCRC0sCvqnFI2hwNfNqnGCmNua15YphAF1JOXTsTnxRnFhwcIm51Sla59ByeTQ3CyXIu2GCqnNQtG3r6b5r5uy8PSu4LJxU5EBala757vYCHiK8yQlC3HDlU7RkJRzMgk60aShAiP0IC0tPQRJ7Idzw6dwFNerAfCP18BWf090SMuJRj7ulOjtRQLnoJ/M9rRapfasfUDyNFfDxf1I8YVAFMUoM9KghWbKwFwoLqv0I8RAJhpbPN6hCcxZOXRb2Qd4r5wkMhV75J48iAY3ACzoADrkAZ3IEKqAEMnsEr+ACfxovxZnwZ03nripHOHIE/ZXz/ABjIoRE=</latexit>

Cross section σ ∼ 3 × 10−15 cm2

<latexit sha1_base64="mambz7N7ThaAgYcCbQ+8zgdybKI=">ACHXicbVC7TsMwFHXKq5RXgJHFokVioUpSEIwVXRiLRB9Sk1aO67ZW7SyHaQqKh/Cwq+wMIAQAwvib3DaDNByJMvH59yr63v8iFGpLOvbyK2srq1v5DcLW9s7u3vm/kFThrHApIFDFoq2jyRhNCANRUj7UgQxH1GWv64lvqteyIkDYM7NYmIx9EwoAOKkdJSzyviVBKAlO37DkSjrkCOqLwp0FeVEQtvqJmf2xbT0gHmp65R6ZtEqWzPAZWJnpAgy1Hvmp9sPcxJoDBDUnZsK1JegoSimJFpwY0liRAeoyHpaBogPdVLZtN4YlW+nAQCn0CBWfq74EcSkn3NeVHKmRXPRS8T+vE6vBlZfQIoVCfB80CBmUIUwjQr2qdCxsIkmCAuq/wrxCAmElQ60oEOwF1deJk2nbFfKzq1TrF5nceTBETgGp8AGl6AKbkAdNAGj+AZvI348l4Md6Nj3lpzsh6DsEfGF8/+if7w=</latexit>

RMS speed of nitrogen v ∼ q

8kT πµ ∼ 5 × 104 cm/s

<latexit sha1_base64="Qd4lhLzqkC7HcCqFoB0Y2EY7f9U=">ACOnicbVC7ThtBFJ0lvGIeMUmZoRBojK7JghKRJo0SBAwIHmNTu+a0aexzJzF8labX6Lhq+go6BJkShKywcwfhS8jSjo3Pu1b3JkUDsPwPpj6MD0zOzf/sbKwuLT8qbry+dSZ3HJociONPU+YAyk0NFGghPMAlOJhLOk/3on12DdcLoExk0Fasp0UqOEMvdapHPw+OqcsAutSkVAu0pgearl3T2AnlvyuLRZxaxovd/klZxJmgscrLcuxv0xiFAkej8OLb2i+uNl2nWgvr4Qj0LYkmpEYmOxU7+Ku4bkCjVwy51pRmG7YBYFl1BW4txBxnif9aDlqWZ+XrsYnV7Sda90aWqsfxrpSH3eUTDl3EAlvlIxvHSvaH4ntfKMd1tF0JnOYLm40FpLikaOsyRdoUFjnLgCeNW+F0pv2Q+J/RpV3wI0euT35LTRj3aqjeOGrW9/Ukc8+QrWSUbJCI7ZI/8IekSTi5IQ/kD/kb3Aa/g3/B/3HpVDp+UJeIHh8AlJ6rIM=</latexit>

τcoll ∼ (nσv)−1 ∼ 3 × 10−10 sec

<latexit sha1_base64="aKTG/YG1E/O4qCrYkfdjElItw=">ACLHicbVDLSgMxFM3Ud32NunQTrIuLDPtQpdiNy4r2Fbo1J0xqaZIbkTqEM9X/c+CuCuFDErd9hps5CWw+EHM65Nzf3hLHgBjzv3SksLC4tr6yuFdc3Nre23Z3dpokSTVmDRiLStyExTHDFGsBsNtYMyJDwVrhsJb5rRHThkfqBsYx60gyULzPKQErd3aYQAk6aBlti+JiY4MFziY5XdA0nw6OQuPfVzuYoD4JIZ7HuZ6k0OHwyjXbfklb0p8Dzxc1JCOepd9yXoRTSRTAEVxJi278XQSYkGTgWbFIPEsJjQIRmwtqWK2JGdLrsB9ZpYf7kbZHAZ6qvztSIo0Zy9BWSgL3ZtbLxP+8dgL9807KVZwAU/RnUD8RGCKcJYd7XDMKYmwJoZrbv2J6TzShYPMt2hD82ZXnSbNS9qvlynWldHGZx7GK9tEBOkY+OkMX6ArVUQNR9Iie0Rt6d56cV+fD+fwpLTh5zx76A+frG4KzpeQ=</latexit>

λmfp ∼ (nσ)−1 ∼ 3 × 10−5 cm

<latexit sha1_base64="cXule+3v6zlYz0qLy32x8msujq8=">ACKnicbVDLTgIxFO3gC/E16tJNI5jgQjIDMbpE3bjERB4Jg6RTOtDQdiZtx4RM8Hfc+CtuWGiIWz/EArNQ8CZNT845N/fe40eMKu04Uyuztr6xuZXdzu3s7u0f2IdHDRXGEpM6DlkoWz5ShFB6pqRlqRJIj7jDT94d1Mbz4TqWgoHvUoIh2O+oIGFCNtqK59U/CYcfdQN/EkhzyIxtBTlMOimP19js6fkgs3JSvQ05QTBV3HsJfjwgvmXTvlJx5wVXgpiAP0qp17YnXC3HMidCYIaXarhPpToKkpiRc6LFYkQHqI+aRsokBnYSeanjuGZYXowCKV5QsM5+7sjQVypEfeNkyM9UMvajPxPa8c6uO4kVESxJgIvBgUxgzqEs9xgj0qCNRsZgLCkZleIB0girE26OROCu3zyKmiUS26lVH4o56u3aRxZcAJOQRG4ApUwT2ogTrA4BW8gw/wab1ZE2tqfS2sGSvtOQZ/yvr+AVGepVM=</latexit>

9

NA School: Comp. Astrophysical Fluid Dynamics, Sep 4-6, 2019, IoA, NTHU

9

SLIDE 10

Fluid Approximation (continue)

L >> λmfp

<latexit sha1_base64="A+i98ATuwWo9K2AUbMFdinZkek8=">AB/3icbVBPS8MwHE3nvzn/VQUvXoJD8DTaKehpDL148DBbcJaSpqmW1iSliQVRt3Br+LFgyJe/Rre/DZmWw+6+SDweO/3+P3ywpRpR3n2yotLa+srpXKxubW9s79u5eRyWZxKSNE5bI+xApwqgbU01I/epJIiHjHTD4dXE7z4QqWgi7vQoJT5HfUFjipE2UmAf3MBGA3rMJCIU5J7kMfpOLCrTs2ZAi4StyBVUKAV2F9elOCME6ExQ0r1XCfVfo6kpiRcXLFEkRHqI+6RkqECfKz6f3j+GxUSIYJ9I8oeFU/Z3IEVdqxEMzyZEeqHlvIv7n9TIdX/g5FWmicCzRXHGoE7gpAwYUmwZiNDEJbU3ArxAEmEtamsYkpw57+8SDr1mntaq9+eVZuXR1lcAiOwAlwTlogmvQAm2AwSN4Bq/gzXqyXqx362M2WrKzD74A+vzB7JElU=</latexit>

T >> τcoll

<latexit sha1_base64="JzZ5jwemKs9qjTxWXhqtJoF0+9E=">AB/XicbVDLSsNAFL3xWesrPnZuBovgqiRV0FUpunFZoS9oQphMp+3QySTMTIQair/ixoUibv0Pd/6N0zYLbT1w4XDOvTP3njDhTGnH+bZWVtfWNzYLW8Xtnd29fvgsKXiVBLaJDGPZSfEinImaFMzWknkRHIaftcHQ79dsPVCoWi4YeJ9SP8ECwPiNYGymwjxuoWkWexmQeTJC5kU+CeySU3ZmQMvEzUkJctQD+8vrxSNqNCEY6W6rpNoP8NSM8LpOiliaYjPCAdg0VOKLKz2bT9CZUXqoH0tTQqOZ+nsiw5FS4yg0nRHWQ7XoTcX/vG6q+9d+xkSairI/KN+ypGO0TQK1GOSEs3HhmAimdkVkSGWmGgTWNGE4C6evExalbJ7Ua7cX5ZqN3kcBTiBUzgHF6gBndQhyYQeIRneIU368l6sd6tj3nripXPHMEfWJ8/XH6UiQ=</latexit>

, Mean free path , Collision time scale

Exercise: In ISM

10

NA School: Comp. Astrophysical Fluid Dynamics, Sep 4-6, 2019, IoA, NTHU

10

Cross section σ ∼? cm2

<latexit sha1_base64="4Dq1RNdxAa+Li7WRChbCOEJco5o=">ACDXicbVC7TsMwFHXKq5RXgJHFokFiqpIywEZF8Yi0YfUhspxndaq7US2g1RF5QNY+BUWBhBiZWfjb3DaDNByJMvH59yr63uCmFGlXfbKqysrq1vFDdLW9s7u3v2/kFLRYnEpIkjFslOgBRhVJCmpqRTiwJ4gEj7WBcz/z2PZGKRuJWT2LiczQUNKQYaSP1bacuI6WgIjh7Q6en6JAjaC4OL50HzJ27qtO3y27FnQEuEy8nZCj0be/eoMIJ5wIjRlSqu5sfZTJDXFjExLvUSRGOExGpKuoQJxovx0ts0UnhlAMNImiM0nKm/O1LElZrwFRypEdq0cvE/7xuosMLP6UiTjQReD4oTBjUEcyigQMqTQxsYgjCkpq/QjxCEmFtAiyZELzFlZdJq1rxzirVm2q5dpXHUQRH4BicAg+cgxq4Bg3QBg8gmfwCt6sJ+vFerc+5qUFK+85BH9gf4ALseaUw=</latexit>

number density n ∼? cm−3

<latexit sha1_base64="hS7SI3+hvDO379QV4+Z9SH3gHo=">ACDHicbVC5TgMxFPRyhnAFKGkskg0RLtJAR0RNJRBIoeULJHXeUms2N6V7UWKVqGn4VdoKECIlg+g429wjgISRrI0mpmn5zdhzJk2nvftLC2vrK6tZzaym1vbO7u5vf2ajhJFoUojHqlGSDRwJqFqmOHQiBUQEXKoh4OrsV+/B6VZJG/NMIZAkJ5kXUaJsVI7l5eJCEHhDkjNzBC7Erc0E/jCfaDCvUtPSyPXpryCNwFeJP6M5NEMlXbuq9WJaCJAGsqJ1k3fi02QEmUY5TDKthINMaED0oOmpZI0E6OWaEj63Swd1I2ScNnqi/J1IitB6K0CYFMX09743F/7xmYrnQcpknBiQdLqom3BsIjxuBneYAmr40BJCFbN/xbRPFKHG9pe1JfjzJy+SWrHglwrFm2K+fDmrI4MO0RE6QT46Q2V0jSqoih6RM/oFb05T86L8+58TKNLzmzmAP2B8/kDhXuZ+g=</latexit>

SLIDE 11

Fluid Approximation (continue)

L >> λmfp

<latexit sha1_base64="A+i98ATuwWo9K2AUbMFdinZkek8=">AB/3icbVBPS8MwHE3nvzn/VQUvXoJD8DTaKehpDL148DBbcJaSpqmW1iSliQVRt3Br+LFgyJe/Rre/DZmWw+6+SDweO/3+P3ywpRpR3n2yotLa+srpXKxubW9s79u5eRyWZxKSNE5bI+xApwqgbU01I/epJIiHjHTD4dXE7z4QqWgi7vQoJT5HfUFjipE2UmAf3MBGA3rMJCIU5J7kMfpOLCrTs2ZAi4StyBVUKAV2F9elOCME6ExQ0r1XCfVfo6kpiRcXLFEkRHqI+6RkqECfKz6f3j+GxUSIYJ9I8oeFU/Z3IEVdqxEMzyZEeqHlvIv7n9TIdX/g5FWmicCzRXHGoE7gpAwYUmwZiNDEJbU3ArxAEmEtamsYkpw57+8SDr1mntaq9+eVZuXR1lcAiOwAlwTlogmvQAm2AwSN4Bq/gzXqyXqx362M2WrKzD74A+vzB7JElU=</latexit>

T >> τcoll

<latexit sha1_base64="JzZ5jwemKs9qjTxWXhqtJoF0+9E=">AB/XicbVDLSsNAFL3xWesrPnZuBovgqiRV0FUpunFZoS9oQphMp+3QySTMTIQair/ixoUibv0Pd/6N0zYLbT1w4XDOvTP3njDhTGnH+bZWVtfWNzYLW8Xtnd29fvgsKXiVBLaJDGPZSfEinImaFMzWknkRHIaftcHQ79dsPVCoWi4YeJ9SP8ECwPiNYGymwjxuoWkWexmQeTJC5kU+CeySU3ZmQMvEzUkJctQD+8vrxSNqNCEY6W6rpNoP8NSM8LpOiliaYjPCAdg0VOKLKz2bT9CZUXqoH0tTQqOZ+nsiw5FS4yg0nRHWQ7XoTcX/vG6q+9d+xkSairI/KN+ypGO0TQK1GOSEs3HhmAimdkVkSGWmGgTWNGE4C6evExalbJ7Ua7cX5ZqN3kcBTiBUzgHF6gBndQhyYQeIRneIU368l6sd6tj3nripXPHMEfWJ8/XH6UiQ=</latexit>

, Mean free path , Collision time scale

Exercise: In ISM

Cross section σ ∼ 3 × 10−15 cm2

<latexit sha1_base64="mambz7N7ThaAgYcCbQ+8zgdybKI=">ACHXicbVC7TsMwFHXKq5RXgJHFokVioUpSEIwVXRiLRB9Sk1aO67ZW7SyHaQqKh/Cwq+wMIAQAwvib3DaDNByJMvH59yr63v8iFGpLOvbyK2srq1v5DcLW9s7u3vm/kFThrHApIFDFoq2jyRhNCANRUj7UgQxH1GWv64lvqteyIkDYM7NYmIx9EwoAOKkdJSzyviVBKAlO37DkSjrkCOqLwp0FeVEQtvqJmf2xbT0gHmp65R6ZtEqWzPAZWJnpAgy1Hvmp9sPcxJoDBDUnZsK1JegoSimJFpwY0liRAeoyHpaBogPdVLZtN4YlW+nAQCn0CBWfq74EcSkn3NeVHKmRXPRS8T+vE6vBlZfQIoVCfB80CBmUIUwjQr2qdCxsIkmCAuq/wrxCAmElQ60oEOwF1deJk2nbFfKzq1TrF5nceTBETgGp8AGl6AKbkAdNAGj+AZvI348l4Md6Nj3lpzsh6DsEfGF8/+if7w=</latexit>

number density n ∼ 1 cm−3

<latexit sha1_base64="LU1Md6v/Z310uiHJL2XsUg0Wdw=">ACDHicbVC5TgMxFPSGK4QrQEljkUWiIdpNCigjaCiDRA4pWSKv85JYsb0r24sUrUJPw6/QUIAQLR9Ax9/gHAUkjGRpNDNPz2/CmDNtPO/byaysrq1vZDdzW9s7u3v5/YO6jhJFoUYjHqlmSDRwJqFmOHQjBUQEXJohMOrid+4B6VZJG/NKIZAkL5kPUaJsVInX5CJCEHhLkjNzAi7Erc1E9h3H6hw79Kz8ti1Ka/oTYGXiT8nBTRHtZP/ancjmgiQhnKidcv3YhOkRBlGOYxz7URDTOiQ9KFlqSQCdJBOjxnjE6t0cS9S9kmDp+rviZQIrUcitElBzEAvehPxP6+VmN5FkDIZJwYknS3qJRybCE+awV2mgBo+soRQxexfMR0QRaix/eVsCf7iycukXir65WLplSoXM7ryKIjdIxOkY/OUQVdoyqIYoe0TN6RW/Ok/PivDsfs2jGmc8coj9wPn8Ab6mZ7A=</latexit>

λmfp ∼ (nσ)−1 ∼ 1015 cm

<latexit sha1_base64="uzBmFTcRhK41OySi/LGAOpPBVDI=">ACIXicbVBLTwIxGOziC/G16tFLI5jgQbKLMXIkevGIiTwSFki3dKGh7W7argnZ4E/x4l/x4kFjuBn/jAX2oOAkTScz86X9xo8YVdpxvqzM2vrG5lZ2O7ezu7d/YB8eNVQYS0zqOGShbPlIEUYFqWuqGWlFkiDuM9L0R7czv/lIpKheNDjiHQ4GgaUIy0kXp2peAxk+6jXuJDnkQTaCnKIdFMbsHJ13kws3FV2nm7hXk8IT5j075ScOeAqcVOSBylqPXvq9UMcyI0ZkiptutEupMgqSlmZJLzYkUihEdoQNqGCsSJ6iTzDSfwzCh9GITSHKHhXP09kSCu1Jj7JsmRHqplbyb+57VjHVQ6CRVRrInAi4eCmEdwldsE8lwZqNDUFYUvNXiIdIqxNqTlTgru8iplEvuZal8X85Xb9I6suAEnIicME1qI7UAN1gMEzeAXv4MN6sd6sT2u6iGasdOY/IH1/QPY0aIM</latexit>

τcoll ∼ (nσv)−1 ∼ 109 sec ∼ 40 yrs

<latexit sha1_base64="1ZxfwrJA5B7Xc7PU/teWzolA6Uo=">ACL3icbVDLTgIxFO3gC/E16tJNI5jgQjKDJuqOaGJcYiKPhAHSKQUa2s6k7ZCQCXyRG3+FjTEa49a/sMAsFD1J05Nz7r3tPX7IqNKO82qlVlbX1jfSm5mt7Z3dPXv/oKqCSGJSwQELZN1HijAqSEVTzUg9lARxn5GaP7id+bUhkYoG4lGPQtLkqCdol2KkjdS273KeRlE79iSHZhobQ09RDvNidvc4gsPTVnzmJrLrtOLrcW6iCIa5uXLh5CYjqdp21ik4c8C/xE1IFiQot+2p1wlwxInQmCGlGq4T6maMpKaYkXHGixQJER6gHmkYKhAnqhnP9x3DE6N0YDeQ5gN5+rPjhxpUbcN5Uc6b5a9mbif14j0t2rZkxFGki8OKhbsSgDuAsPNihkmDNRoYgLKn5K8R9JBHWJuKMCcFdXvkvqRYL7nmh+FDMlm6SONLgCByDPHDBJSiBe1AGFYDBE5iCN/BuPVsv1of1uShNWUnPIfgF6+sb+VunKQ=</latexit>

11

NA School: Comp. Astrophysical Fluid Dynamics, Sep 4-6, 2019, IoA, NTHU

11

SLIDE 12

12

NA School: Comp. Astrophysical Fluid Dynamics, Sep 4-6, 2019, IoA, NTHU

12

Sun

SLIDE 13

13

NA School: Comp. Astrophysical Fluid Dynamics, Sep 4-6, 2019, IoA, NTHU

13

Star forming region (S106)

Image credit: NASA

SLIDE 14

14

Cas A Supernova Remnant

NA School: Comp. Astrophysical Fluid Dynamics, Sep 4-6, 2019, IoA, NTHU

14

Image credit: NASA

SLIDE 15

15

Bullet cluster

NA School: Comp. Astrophysical Fluid Dynamics, Sep 4-6, 2019, IoA, NTHU

15

Image credit: NASA

0.5 Mpc

SLIDE 16

Astrophysical Fluids

https://youtu.be/ICxC5ekWnUc

16

NA School: Comp. Astrophysical Fluid Dynamics, Sep 4-6, 2019, IoA, NTHU

16

SLIDE 17

Astrophysical fluids

Different with

Earth-bound fluid

Wide range of

physical Conditions

Sun Neutron star Earth ISM IGM Molecular cloud SgrA* 17

NA School: Comp. Astrophysical Fluid Dynamics, Sep 4-6, 2019, IoA, NTHU

17

SLIDE 18

Astrophysical fluids

Sun Neutron star Earth ISM IGM Molecular cloud SgrA*

Magnetic fields are often

important

Compressibility is often

important

Occasionally self-gravitating

and relativistic

Non-ideal process are often

unimportant

Sometimes involves

interactions with non- thermal process and strong radiation fields

18

NA School: Comp. Astrophysical Fluid Dynamics, Sep 4-6, 2019, IoA, NTHU

18

SLIDE 19

Governing equations

19

NA School: Comp. Astrophysical Fluid Dynamics, Sep 4-6, 2019, IoA, NTHU

19

The governing equations for ideal (inviscid)

hydrodynamics. The main physical ideas are

simple:

Mass is conserved (1 constraint)
Momentum is conserved (3 constraints)
Energy is conserved (1 constraint)

variables: ρ, v, and u

<latexit sha1_base64="xwCuFwfhBSEpDNWYiYoSBjw12gU=">ACFXicbVDLTgIxFO3gC/GFunTCYuCJnBhcYV0Y1LTOSRACF3OgUaOu2k7ZCQCT/hxl9x40Jj3Jq482/sAsFT9Lck3PuTe89fsSZNq7WTW1jc2t7LbuZ3dvf2D/OFRQ8tYEVonkvV8kFTzgStG2Y4bUWKQuhz2vRHt6nfHFOlmRQPZhLRbgDwfqMgLFSL18ag2Jgu/U1LnbUBZLtvqSB3oS2pKMp1YBEeBiXOzlC27ZnQGvEm9BCmiBWi/1QkiUMqDOGgdtzI9NQBlGOJ3mOrGmEZARDGjbUgEh1d1kdtUn1klwH2p7BMGz9TfEwmEOl3SdoZghnrZS8X/vHZs+lfdhIkoNlSQ+Uf9mGMjcRoRDpixPCJUAUs7tiMgQFxNgczYEb/nkVdKolL2LcuW+UqjeLOLIohN0is6Rhy5RFd2hGqojgh7RM3pFb86T8+K8Ox/z1oyzmDlGf+B8/gDZnJ1W</latexit>

Gas density Gas velocity Gas internal energy

ρ

<latexit sha1_base64="94wfdLRBjCkyTC3Y5p5yTs2egQ=">AB63icbVDLSgNBEOz1GeMr6tHLYBA8hd0o6DHoxWME84BkCbOT2eyQeSwzs0I+QUvHhTx6g9582+cTfagiQUNRVU3V1Rypmxv/tra1vbG5tl3bKu3v7B4eVo+O2UZkmtEUV7obYUM5k7RlmeW0m2qKRcRpJxrf5X7niWrDlHy0k5SGAo8kixnBNpf6OlGDStWv+XOgVRIUpAoFmoPKV3+oSCaotIRjY3qBn9pwirVlhNZuZ8ZmIyxiPac1RiQU04nd86Q+dOGaJYaVfSorn6e2KhTETEblOgW1ilr1c/M/rZTa+CadMpmlkiwWxRlHVqH8cTRkmhLJ45gopm7FZEa0ysi6fsQgiWX14l7XotuKzVH6qjdsijhKcwhlcQADX0IB7aEILCTwDK/w5gnvxXv3Phata14xcwJ/4H3+ACD6jks=</latexit>

v

<latexit sha1_base64="NSH9wM7Ar3PVRHh2MFc4hD/zv8=">AB9XicbVDLSgMxFL1TX7W+qi7dBIvgqsxUQZdFNy4r2Ae0Y8lk0jY0kwxJplKG/ocbF4q49V/c+Tdm2lo64GQwzn3kpMTxJxp47rfTmFtfWNzq7hd2tnd2z8oHx61tEwUoU0iuVSdAGvKmaBNwynVhRHAWctoPxbea3J1RpJsWDmcbUj/BQsAEj2FjpsRdIHupZK90MuXK27VnQOtEi8nFcjR6Je/eqEkSUSFIRxr3fXc2PgpVoYRTmelXqJpjMkYD2nXUoEjqv10nqGzqwSoFU9giD5urvjRHOotmJyNsRnrZy8T/vG5iBtd+ykScGCrI4qFBwpGRKsAhUxRYvjUEkwUs1kRGWGFibFlWwJ3vKXV0mrVvUuqrX7y0r9Jq+jCdwCufgwRXU4Q4a0AQCp7hFd6cJ+fFeXc+FqMFJ985hj9wPn8AUZCTCw=</latexit>

u

<latexit sha1_base64="wnFhQNKUlf0HWa+NJZ/ckTw+BdQ=">AB6HicbVBNS8NAEJ3Ur1q/qh69LBbBU0mqoMeiF48t2FpoQ9lsJ+3azSbsboQS+gu8eFDEqz/Jm/GbZuDtj4YeLw3w8y8IBFcG9f9dgpr6xubW8Xt0s7u3v5B+fCoreNUMWyxWMSqE1CNgktsGW4EdhKFNAoEPgTj25n/8IRK81jem0mCfkSHkoecUWOlZtovV9yqOwdZJV5OKpCj0S9/9QYxSyOUhgmqdzE+NnVBnOBE5LvVRjQtmYDrFrqaQRaj+bHzolZ1YZkDBWtqQhc/X3REYjrSdRYDsjakZ62ZuJ/3nd1ITXfsZlkhqUbLEoTAUxMZl9TQZcITNiYglitbCRtRZmx2ZRsCN7y6ukXat6F9Va87JSv8njKMIJnMI5eHAFdbiDBrSAcIzvMKb8+i8O/Ox6K14OQzx/AHzucP4vuM/Q=</latexit>

SLIDE 20

Coordinates

20

NA School: Comp. Astrophysical Fluid Dynamics, Sep 4-6, 2019, IoA, NTHU

20

Eulerian Lagrangian

SLIDE 21

Conservational laws

21

NA School: Comp. Astrophysical Fluid Dynamics, Sep 4-6, 2019, IoA, NTHU

21

The conservational laws can be written in what is called “conservation form”:

∂t(U) = r · F

<latexit sha1_base64="Y4O/rJ8DK0W2+zOcWoXfRigo3s=">ACFnicbVBNSwMxEM36bf2qevQSLIeWnaroBdBFMSjgm2Fbimz2bQGs8mSzApl6a/w4l/x4kERr+LNf2O29uDXg5DHezPMzItSKSz6/oc3MTk1PTM7N19aWFxaXimvrjWtzgzjDalNlcRWC6F4g0UKPlVajgkeSt6Oak8Fu3Fih1SUOUt5JoK9ETzBAJ3XL1TAFgwJkF7cbO/SQVmoIJAQxZrpGkZWwHifvy02G3XPFr/gj0LwnGpELGO+W38NYsyzhCpkEa9uBn2InL0YyYelMLM8BXYDfd52VEHCbScfnTWkW06JaU8b9xTSkfq9I4fEFqu5ygTw2v72CvE/r51h76CTC5VmyBX7GtTLJEVNi4xoLAxnKAeOADPC7UrZNRhg6JIsuRC3yf/Jc16Ldit1S/2KkfH4zjmyAbZJNskIPvkiJyRc9IgjNyRB/JEnr179F78V6/Sie8c86+QHv7ROaZ5u</latexit>

F

<latexit sha1_base64="V8aPCvjH4x79g4eTHpmW42o9M=">AB+HicbVDLSgMxFL1TX7U+OurSTbAIrspMFXRZFMRlBfuAdiZTKYNzWSGJCPUoV/ixoUibv0Ud/6NmXYW2nog5HDOveTk+AlnSjvOt1VaW9/Y3CpvV3Z29/ar9sFhR8WpJLRNYh7Lno8V5UzQtma014iKY58Trv+5Cb3u49UKhaLBz1NqBfhkWAhI1gbaWhX0cCPeaCmkbmy29nQrjl1Zw60StyC1KBAa2h/DYKYpBEVmnCsVN91Eu1lWGpGOJ1VBqmiCSYTPKJ9QwWOqPKyefAZOjVKgMJYmiM0mqu/NzIcqTyamYywHqtlLxf/8/qpDq+8jIk1VSQxUNhypGOUd4CpikRPOpIZhIZrIiMsYSE26qpgS3OUvr5JOo+6e1xv3F7XmdVFHGY7hBM7AhUtowh20oA0EUniGV3iznqwX6936WIyWrGLnCP7A+vwB15OTNg=</latexit>

U

<latexit sha1_base64="PEhrdXtU5tToVGh4QPZ07hn1c/A=">AB6HicbVBNS8NAEJ3Ur1q/qh69LBbBU0mqoMeiF48tmFpoQ9lsJ+3azSbsboRS+gu8eFDEqz/Jm/GbZuDtj4YeLw3w8y8MBVcG9f9dgpr6xubW8Xt0s7u3v5B+fCopZNMfRZIhLVDqlGwSX6huB7VQhjUOBD+HoduY/PKHSPJH3ZpxiENOB5BFn1Fip6fKFbfqzkFWiZeTCuRo9Mpf3X7CshilYJq3fHc1AQTqgxnAqelbqYxpWxEB9ixVNIYdTCZHzolZ1bpkyhRtqQhc/X3xITGWo/j0HbG1Az1sjcT/M6mYmugwmXaWZQsWiKBPEJGT2NelzhcyIsSWUKW5vJWxIFWXGZlOyIXjL6+SVq3qXVRrzctK/SaPowgncArn4MEV1OEOGuADA4RneIU359F5cd6dj0VrwclnjuEPnM8fsnuM3Q=</latexit>

Density of a quantity Flux density for that quantity

Z

V

(r · F ) dV = I

S

F · ndS

<latexit sha1_base64="Ap73pE2/3UVwDNqw3paXvJmShI=">ACT3icbVFBSyMxFM5UV23dbt63Mtji+Beyowu6GVBFBaPFW0VmlIymUwbzCRD8kYoQ/+hF735N/ayhxUx052Da30Q8vF93+O9fIlzJR2G4WPQWFn9sLa+0Wxtfvy09bn9ZXvgTG56HOjL2OmRNKatFHiUpc51awLFbiKr45rfSrW2GdNPoSZ7kYZWyiZSo5Q0+N2ymVGscDoEqkuAdUs1gxoDwxCDQ2KnGzF/lrzlQKydT/A7JAH4CNVXfxZJnqVHPIblojdudsBsuCpZBVIMOqas3bj/QxPAiExq5Ys4NozDHUcksSq7EvEULJ3LGb9hED3ULBNuVC7ymMOuZxJIjfVHIyzY1x0ly1y1ndmDKfurVaR72nDAtOjUSl1XqDQ/N+gtFCABqpwIZFWcFQzDxi30u8KfMos4+i/oAohevkZTDY70YH3f3zH53jkzqODfKVfCN7JCKH5JickR7pE07uyG/ylzwF98Gf4LlRWxtBDXbIf9VovgDvErPc</latexit>

“Gauss’s Theorem" or "divergence theorem”

F

<latexit sha1_base64="PfKtAJFRnjHMo8OwSjq5S1mVQxc=">AB9XicdVBLSwMxGMzWV62vqkcvwSJ4WrLtYru3oiAeK9gHtGvJZrNtaPZBklXK0v/hxYMiXv0v3vw3ZtsKjoQMsx8H5mMl3AmFUIfRmFldW19o7hZ2tre2d0r7x90ZJwKQtsk5rHoeVhSziLaVkx2ksExaHadebXOR+94KyeLoRk0T6oZ4FLGAEay0dDvwYu7Laiv7HI2LFeQ6TQaDrIhMm2E7HpVk5rjOGcIWiaowKWaA3L7wM/JmlI0U4lrJvoUS5GRaKEU5npUEqaYLJBI9oX9MIh1S62Tz1DJ5oxYdBLPSJFJyr3zcyHMo8mp4MsRrL314u/uX1UxU03IxFSapoRBYPBSmHKoZ5BdBnghLFp5pgIpjOCskYC0yULqkS/j6KfyfdKqmVTOr13aleb6sowiOwDE4BRaogya4Ai3QBgQI8ACewLNxbzwaL8brYrRgLHcOwQ8Yb5+MgpM2</latexit>

F

<latexit sha1_base64="PfKtAJFRnjHMo8OwSjq5S1mVQxc=">AB9XicdVBLSwMxGMzWV62vqkcvwSJ4WrLtYru3oiAeK9gHtGvJZrNtaPZBklXK0v/hxYMiXv0v3vw3ZtsKjoQMsx8H5mMl3AmFUIfRmFldW19o7hZ2tre2d0r7x90ZJwKQtsk5rHoeVhSziLaVkx2ksExaHadebXOR+94KyeLoRk0T6oZ4FLGAEay0dDvwYu7Laiv7HI2LFeQ6TQaDrIhMm2E7HpVk5rjOGcIWiaowKWaA3L7wM/JmlI0U4lrJvoUS5GRaKEU5npUEqaYLJBI9oX9MIh1S62Tz1DJ5oxYdBLPSJFJyr3zcyHMo8mp4MsRrL314u/uX1UxU03IxFSapoRBYPBSmHKoZ5BdBnghLFp5pgIpjOCskYC0yULqkS/j6KfyfdKqmVTOr13aleb6sowiOwDE4BRaogya4Ai3QBgQI8ACewLNxbzwaL8brYrRgLHcOwQ8Yb5+MgpM2</latexit>

SLIDE 22

Continuity equation

∂ρ ∂t + r · (ρv) = 0

<latexit sha1_base64="dUBsrN4bCT5H6ytEHTBdCz2GjaE=">ACNHicbVBNSwMxEM36WetX1aOXYBEUoexWQS9C0YvgpYJVoVvKbDbBrPJkmQLZdkf5cUf4kUED4p49TeYrQU/6kDImzdvmJkXJxp47pPztT0zOzcfGmhvLi0vLJaWVu/0jJVhLaI5FLdBKApZ4K2DOc3iSKQhxweh3cnhb16wFVmklxaYJ7cTQEyxiBIylupVzP1JAMj8BZRhw7Ku+zL9Tk+M97AsIOGCfhNLgnUKB/UDyUA9j+5WzQb6Lj7Fb7laqbs0dBZ4E3hU0Tia3cqDH0qSxlQYwkHrtucmpMVswmnedlPNU2A3EKPti0UEFPdyUZH53jbMiGOpLJPGDxif3ZkEOtiQ6uMwfT131pB/ldrpyY6mRMJKmhgnwNilLrhcSFgzhkihLDhxYAUczuikfrIvG+lyY4P09eRJc1Wvefq1+cVBtnIztKFNtIV2kIcOUQOdoSZqIYLu0CN6Qa/OvfPsvDnvX9IpZ9yzgX6F8/EJBlKqUw=</latexit>

ρ

<latexit sha1_base64="94wfdLRBjCkyTC3Y5p5yTs2egQ=">AB63icbVDLSgNBEOz1GeMr6tHLYBA8hd0o6DHoxWME84BkCbOT2eyQeSwzs0I+QUvHhTx6g9582+cTfagiQUNRVU3V1Rypmxv/tra1vbG5tl3bKu3v7B4eVo+O2UZkmtEUV7obYUM5k7RlmeW0m2qKRcRpJxrf5X7niWrDlHy0k5SGAo8kixnBNpf6OlGDStWv+XOgVRIUpAoFmoPKV3+oSCaotIRjY3qBn9pwirVlhNZuZ8ZmIyxiPac1RiQU04nd86Q+dOGaJYaVfSorn6e2KhTETEblOgW1ilr1c/M/rZTa+CadMpmlkiwWxRlHVqH8cTRkmhLJ45gopm7FZEa0ysi6fsQgiWX14l7XotuKzVH6qjdsijhKcwhlcQADX0IB7aEILCTwDK/w5gnvxXv3Phata14xcwJ/4H3+ACD6jks=</latexit>

v

<latexit sha1_base64="NSH9wM7Ar3PVRHh2MFc4hD/zv8=">AB9XicbVDLSgMxFL1TX7W+qi7dBIvgqsxUQZdFNy4r2Ae0Y8lk0jY0kwxJplKG/ocbF4q49V/c+Tdm2lo64GQwzn3kpMTxJxp47rfTmFtfWNzq7hd2tnd2z8oHx61tEwUoU0iuVSdAGvKmaBNwynVhRHAWctoPxbea3J1RpJsWDmcbUj/BQsAEj2FjpsRdIHupZK90MuXK27VnQOtEi8nFcjR6Je/eqEkSUSFIRxr3fXc2PgpVoYRTmelXqJpjMkYD2nXUoEjqv10nqGzqwSoFU9giD5urvjRHOotmJyNsRnrZy8T/vG5iBtd+ykScGCrI4qFBwpGRKsAhUxRYvjUEkwUs1kRGWGFibFlWwJ3vKXV0mrVvUuqrX7y0r9Jq+jCdwCufgwRXU4Q4a0AQCp7hFd6cJ+fFeXc+FqMFJ985hj9wPn8AUZCTCw=</latexit>

Gas density Gas velocity

22

NA School: Comp. Astrophysical Fluid Dynamics, Sep 4-6, 2019, IoA, NTHU

22

Z

V

(r · F ) dV = I

S

F · ndS

<latexit sha1_base64="Ap73pE2/3UVwDNqw3paXvJmShI=">ACT3icbVFBSyMxFM5UV23dbt63Mtji+Beyowu6GVBFBaPFW0VmlIymUwbzCRD8kYoQ/+hF735N/ayhxUx052Da30Q8vF93+O9fIlzJR2G4WPQWFn9sLa+0Wxtfvy09bn9ZXvgTG56HOjL2OmRNKatFHiUpc51awLFbiKr45rfSrW2GdNPoSZ7kYZWyiZSo5Q0+N2ymVGscDoEqkuAdUs1gxoDwxCDQ2KnGzF/lrzlQKydT/A7JAH4CNVXfxZJnqVHPIblojdudsBsuCpZBVIMOqas3bj/QxPAiExq5Ys4NozDHUcksSq7EvEULJ3LGb9hED3ULBNuVC7ymMOuZxJIjfVHIyzY1x0ly1y1ndmDKfurVaR72nDAtOjUSl1XqDQ/N+gtFCABqpwIZFWcFQzDxi30u8KfMos4+i/oAohevkZTDY70YH3f3zH53jkzqODfKVfCN7JCKH5JickR7pE07uyG/ylzwF98Gf4LlRWxtBDXbIf9VovgDvErPc</latexit>

“Gauss’s Theorem" or "divergence theorem”

F

<latexit sha1_base64="PfKtAJFRnjHMo8OwSjq5S1mVQxc=">AB9XicdVBLSwMxGMzWV62vqkcvwSJ4WrLtYru3oiAeK9gHtGvJZrNtaPZBklXK0v/hxYMiXv0v3vw3ZtsKjoQMsx8H5mMl3AmFUIfRmFldW19o7hZ2tre2d0r7x90ZJwKQtsk5rHoeVhSziLaVkx2ksExaHadebXOR+94KyeLoRk0T6oZ4FLGAEay0dDvwYu7Laiv7HI2LFeQ6TQaDrIhMm2E7HpVk5rjOGcIWiaowKWaA3L7wM/JmlI0U4lrJvoUS5GRaKEU5npUEqaYLJBI9oX9MIh1S62Tz1DJ5oxYdBLPSJFJyr3zcyHMo8mp4MsRrL314u/uX1UxU03IxFSapoRBYPBSmHKoZ5BdBnghLFp5pgIpjOCskYC0yULqkS/j6KfyfdKqmVTOr13aleb6sowiOwDE4BRaogya4Ai3QBgQI8ACewLNxbzwaL8brYrRgLHcOwQ8Yb5+MgpM2</latexit>

F

<latexit sha1_base64="PfKtAJFRnjHMo8OwSjq5S1mVQxc=">AB9XicdVBLSwMxGMzWV62vqkcvwSJ4WrLtYru3oiAeK9gHtGvJZrNtaPZBklXK0v/hxYMiXv0v3vw3ZtsKjoQMsx8H5mMl3AmFUIfRmFldW19o7hZ2tre2d0r7x90ZJwKQtsk5rHoeVhSziLaVkx2ksExaHadebXOR+94KyeLoRk0T6oZ4FLGAEay0dDvwYu7Laiv7HI2LFeQ6TQaDrIhMm2E7HpVk5rjOGcIWiaowKWaA3L7wM/JmlI0U4lrJvoUS5GRaKEU5npUEqaYLJBI9oX9MIh1S62Tz1DJ5oxYdBLPSJFJyr3zcyHMo8mp4MsRrL314u/uX1UxU03IxFSapoRBYPBSmHKoZ5BdBnghLFp5pgIpjOCskYC0yULqkS/j6KfyfdKqmVTOr13aleb6sowiOwDE4BRaogya4Ai3QBgQI8ACewLNxbzwaL8brYrRgLHcOwQ8Yb5+MgpM2</latexit>

SLIDE 23

Convective derivative

23

NA School: Comp. Astrophysical Fluid Dynamics, Sep 4-6, 2019, IoA, NTHU

23

Consider a fluid element

v = dr dt ,

<latexit sha1_base64="6UQ8JUTf3Sn6qA3ofvVgt8LE4q4=">ACFXicbVDLSsNAFJ3UV62vqEs3g0VwUpSBd0IRTcuK9gHNKFMJpN26CQTZiaFEvITbvwVNy4UcSu482+ctFnU1gPDHM65l3v8WJGpbKsH6O0tr6xuVXeruzs7u0fmIdHckTgUkbc8ZFz0OSMBqRtqKkV4sCAo9Rre+C73uxMiJOXRo5rGxA3RMKIBxUhpaWDWHI8zX05D/aWTDN5AJxAIp/6iLrIs9VWG5hVq27NAFeJXZAqKNAamN+Oz3ESkhqTs21as3BQJRTEjWcVJIkRHqMh6WsaoZBIN51dlcEzrfgw4EK/SMGZutiRolDmC+rKEKmRXPZy8T+vn6jg2k1pFCeKRHg+KEgYVBzmEUGfCoIVm2qCsKB6V4hHSKeidJAVHYK9fPIq6Tq9kW98XBZbd4WcZTBCTgF58AGV6AJ7kELtAEGT+AFvIF349l4NT6Mz3lpySh6jsEfGF+/WNKgMg=</latexit>

a = dv dt ,

<latexit sha1_base64="P/VfZnYMPM/z6nRcB8MpLVzrq5g=">ACFXicbVDLSsNAFJ3UV62vqEs3g0VwUpSBd0IRTcuK9gHNKFMJpN26CQTZiaFEvITbvwVNy4UcSu482+ctFnU1gPDHM65l3v8WJGpbKsH6O0tr6xuVXeruzs7u0fmIdHckTgUkbc8ZFz0OSMBqRtqKkV4sCAo9Rre+C73uxMiJOXRo5rGxA3RMKIBxUhpaWDWHI8zX05D/aUogzfQCQTCqb+oT7Is9VWG5hVq27NAFeJXZAqKNAamN+Oz3ESkhqTs21as3BQJRTEjWcVJIkRHqMh6WsaoZBIN51dlcEzrfgw4EK/SMGZutiRolDmC+rKEKmRXPZy8T+vn6jg2k1pFCeKRHg+KEgYVBzmEUGfCoIVm2qCsKB6V4hHSKeidJAVHYK9fPIq6Tq9kW98XBZbd4WcZTBCTgF58AGV6AJ7kELtAEGT+AFvIF349l4NT6Mz3lpySh6jsEfGF+/PJ+gIQ=</latexit>

a = dv(r, t) dt

<latexit sha1_base64="nF+KZMxGK3qzWe3Y3VgHFk14lJk=">ACJnicbVDLSgMxFM3UV62vqks3waJUkDLTLnRhoeDGZQX7gLaUTCbThmYeJHcKZivceNP+AFuXFRE3PkB/oJg+ljU1gMhJ+fcS+49di4AtP8NFJr6xubW+ntzM7u3v5B9vCoroJIUlajgQhk0yaKCe6zGnAQrBlKRjxbsIY9uJ34jSGTigf+A4xC1vFIz+cupwS01M2W23YgHDXy9BWTBJdx25WExs6iPkzyi095CRdJEjuQdLM5s2BOgVeJNSe5Sqn5/HNufle72XHbCWjkMR+oIEq1LDOETkwkcCpYkmlHioWEDkiPtT1icdUJ56umeAzrTjYDaQ+PuCputgRE09NRtSVHoG+WvYm4n9eKwL3uhNzP4yA+XT2kRsJDAGeZIYdLhkFMdKEUMn1rJj2iY4JdLIZHYK1vPIqRcLVqlQvNdp3KAZ0ugEnaI8stAVqA7VEU1RNEjekFj9GY8Ga/Gu/ExK0Z85j9AfG1y9lxqtK</latexit>

= ∂v ∂t + ∂v ∂r · ∂r ∂t

<latexit sha1_base64="mWY+S8dazQD2+wNf/rTdtycY9mg=">ACTXicfVHLSgMxFM3UR2t9jbp0EyKIJSZdqELhYIblxXsAzqlZDKZNpiZDEmUIb5NH/AjeDOf3DhxoWiYqYtaFvxQuBwzrk3uSduxKhUlvVk5JaWV1bzhbXi+sbm1ra5s9uUPBaYNDBnXLRdJAmjIWkoqhpR4KgwGWk5d5eZnprSISkPLxRo4h0A9QPqU8xUprqmR68gI4vE6cCAlFEYPD9AerFJ78p4sUOtjat4jZmb0zJVtsYF4E9BaVatX3eWQ913vmo+NxHAckVJghKTu2Falukg3EjKRFJ5YkQvgW9UlHwxAFRHaTcRopPNSMB30u9AkVHLO/OxIUSDkKXO0MkBrIeS0j/9I6sfLPugkNo1iRE8u8mO9IdZtNCjgmDFRhogLKh+K8QDpHNR+gOKOgR7fuVF0KyU7Wq5cq3TOAeTKoB9cACOgQ1OQ1cgTpoAzuwQt4A+/Gg/FqfBhfE2vOmPbsgZnK5b8BITm5aQ=</latexit>

= ∂v ∂t + (v · r)v

<latexit sha1_base64="tPIiEzXp2TvwAnPbJ5lxCy4GEv8=">ACHnicbVDLSgMxFM34tr6qLt0ERakIZaZFdKEguHFZwdZCZyh30kwbmskMSaZQhvkSN/6ICzcuFBFc6T/4C4JpK6itBwKHc+7l5hw/5kxp2363pqZnZufmFxZzS8srq2v59Y2aihJaJVEPJ1HxTlTNCqZprTeiwphD6n1373fOBf96hULBJXuh9TL4S2YAEjoI3UzB/iU+wGEkjqxiA1A4572Q/XGT7AhR52SvS2BXgc9jHvWZ+xy7aQ+BJ4nyTnbNy/e5z/6oNPOvbisiSUiFJhyUajh2rL10cIVwmuXcRNEYSBfatGogJAqLx3Gy/CuUVo4iKR5QuOh+nsjhVCpfuibyRB0R417A/E/r5Ho4NhLmYgTQUZHQoSkzrCg65wi0lKNO8bAkQy81dMOmDK0qbRnCnBGY8SWqlolMuli5NGydohAW0hbZRATnoCJ2hC1RBVUTQDbpHj+jJurUerGfrZTQ6ZX3vbKI/sN6+AExFpQc=</latexit>

≡ Dv Dt

<latexit sha1_base64="4tP6a28jLClu43w8FV/y0hljG8=">AB/nicbVC7SgNBFJ31GeNrVaxsBoNiFXaTQguLgCksI5gHZJcwO5lNhsw+nLkbCMuCv2JjoYitjT9h5z/4C4KTR6GJBy4czrmXe+/xYsEVWNansbS8srq2ntvIb25t7+yae/sNFSWSsjqNRCRbHlFM8JDVgYNgrVgyEniCNb3B1dhvDplUPApvYRQzNyC9kPucEtBSxzEDrtL+BA7viQ0rQ6ztApZxyxYRWsCvEjsGSlUyq371Prq9YxP5xuRJOAhUAFUaptWzG4KZHAqWBZ3kUiwkdkB5raxqSgCk3nZyf4ROtdLEfSV0h4In6eyIlgVKjwNOdAYG+mvfG4n9eOwH/wk15GCfAQjpd5CcCQ4THWeAul4yCGlCqOT6Vkz7ROcAOrG8DsGef3mRNEpFu1ws3eg0LtEUOXSEjtEZstE5qBrVEN1RFGKHtATejbujUfjxXidti4Zs5kD9AfG2w87+Jle</latexit>

Convective derivate

Rewrite continuity equation

∂tρ = r · (ρv)

<latexit sha1_base64="fsnR1CKXZ2insp0uvezpHVZ0/so=">ACH3icbVDLSgMxFM34rPVdamLoAh1YZmpoC4UBDcuFawKnVLuZFIbzCRDckcoQ7/BH3Djr3TjQhFx54e4N9O68HUg5HDOvdx7T5RKYdH372x8YnJqenSTHl2bn5hsbK0fGF1ZhvMC21uYrAcikUb6BAya9SwyGJL+Mbo4L/KWGyu0OsdeylsJXCvREQzQSe3KbpiCQGyjTQ0XU0P6TYNFUQSaMhijbQ6lMNIy9j2Evflt/2tdmXDr/lD0L8k+CIbR2t3YfVjcHfaryFsWZwhUyCdY2Az/FVl7MZpL3y2FmeQrsBq501EFCbetfHhfn246JaYdbdxTSIfq94cElvs5ioTwK797RXif14zw85+KxcqzZArNhrUySRFTYuwaCwMZyh7jgAzwu1KWRcMHSRl0Iwe+T/5KLei3YqdXPXBoHZIQSWSXrpEoCskeOyAk5JQ3CyD0ZkCfy7D14j96L9zoqHfO+elbID3jvn6y7pdg=</latexit>

= (v · r)ρ ρ(r · v)

<latexit sha1_base64="6NvTD8pX1r1nIWU6eEuMVEQ2ek=">ACGHicbZDLSgMxFIYz9VbrbdSlLoJFaBfWmbrQhULBjcsK9gKdUjJp2oZmkiHJFErpM3TlxldxI6KI2+58EPdmOl1o64GQn+8/h+T8fsio0o7zZaVWVtfWN9Kbma3tnd09e/+gqkQkMalgwYSs+0gRjmpaKoZqYeSoMBnpOb3b2O/NiBSUcEf9DAkzQB1Oe1QjLRBLfv8Bp7B3AB6uC09DjyGcp7sicMjq9cgub+IN+ys07BmRVcFu5cZEvHEy/3/Topt+yp1xY4CgjXmCGlGq4T6uYISU0xI+OMFykSItxHXdIwkqOAqOZotgYnhrSh0hzeEazujviREKlBoGvukMkO6pRS+G/3mNSHeumiPKw0gTjpOHOhGDWsA4JdimkmDNhkYgLKn5K8Q9JBHWJsuMCcFdXHlZVIsF96JQvDdpXIOk0uAInIAcMElKIE7UAYVgMEjeAZv4N16sl6sD+szaU1Z85lD8Kes6Q+gRaFf</latexit>

∂tρ + (v · r)ρ = ρ(r · v)

<latexit sha1_base64="2/YaNgbeAKbqPkOxZcXziK1Gp3E=">ACKXicbVDLSgMxFM34rPVdamLYBEqYpmpC10oFNy4rGC10BnKnTS1oZlkSDKFUvwG/8KNf+HajYKibv0G96YzXaj1QODknHu5954w5kwb1313pqZnZufmcwv5xaXldXC2vqlokitE4kl6oRgqacCVo3zHDaiBWFKOT0KuydjvyrPlWaSXFhBjENIrgWrMIGCu1ClU/BmUY8JbBvupKvIdLfeyTtrR/ASGH3VQ+wfuZX8rUcUl/t1UoumU3BZ4k3pgUq1u3funr4bWKjz7bUmSiApDOGjd9NzYBMPRFoTm7yfaBoD6cE1bVoqIKI6GKaX3uAdq7RxRyr7hMGp+rNjCJHWgyi0lRGYrv7rjcT/vGZiOkfBkIk4MVSQbFAn4dhIPIoNt5mixPCBJUAUs7ti0gUFxNhw8zYE7+/Jk+SyUvYOypVzm8YxypBDm2gblZCHDlEVnaEaqiOC7tAjekGvzr3z5Lw5H1nplDPu2UC/4Hx+A8YyqCg=</latexit>

Dρ Dt = ρ(r · v)

<latexit sha1_base64="N/UYpNiO3RO4TezZtKAqfek5wM=">ACEnicbVDLSgMxFM3UV62vUZdugkXRhWmLnShULALlxWsFjqlZNKMDc0kQ3JHKEO/wY2/4kZQEbeu3PkP/oJg2rQ6oELJ+fcS+49YSK4Ac97d3JT0zOzc/n5wsLi0vKu7p2YVSqKatTJZRuhMQwSWrAwfBGolmJA4Fuwx7J0P/8pw5U8h37CWjG5kjzilICV2u5uEGlCsyoOdFcNsioM8DHeGz52AklCQXBAOwrw9W7bLXolbwT8l/jfpFjZbzx8bnsftb7FnQUTWMmgQpiTNP3EmhlRAOng0KQWpYQmiPXLGmpZLEzLSy0UkDvGWVDo6UtiUBj9SfExmJjenHoe2MCXTNpDcU/OaKUSHrYzLJAUm6fijKBUYFB7mgztcMwqibwmhmtdMe0SmxHYFAs2BH/y5L/kolzy90vlM5vGERojzbQJtpBPjpAFXSKaqiOKLpBd+gRPTm3zr3z7LyMW3PO98w6+gXn9Qt3l6Bl</latexit>

Continuity equation

SLIDE 24

Momentum equation

24

NA School: Comp. Astrophysical Fluid Dynamics, Sep 4-6, 2019, IoA, NTHU

24

What accelerations act on a fluid element?

a = rp ρ

<latexit sha1_base64="5BusnYQRkLHy9+23o/CJtiaqPC8=">ACEXicbVA9SwNBEN2L3/Hr1NJmUYQ0hrtYmEJBsLFUMImQC2Fus5cs2ds9dveEcFwpdjY2/hAbC0UstbOz8L+4Sw0+mDZx3szMwLE8608bwPpzA1PTM7N79QXFxaXl19brWqaK0BqRXKqLEDTlTNCaYbTi0RiENOG2H/eOg3LqnSTIpzM0hoK4auYBEjYKzUdktBKHlHD2L7ZDjQ7yLg0gByQIBIQec5FmgejJvu9te2RsB/yX+N9k+qr5eXd9+3p23fegI0kaU2EIB62bvpeYVgbKMJpXgxSTRMgfejSpqUCYqpb2eiHO9YpYMjqewTBo/Unx0ZxHq4tK2MwfT0pDcU/OaqYmqrYyJDVUkPGgKOXYSDyMB3eYosTwgSVAFLO7YtIDm4exIRZtCP7kyX9JvVL298qVM5vGARpjHm2iLVRCPtpHR+gEnaIaIugG3aNH9OTcOg/Os/MyLi043z0b6Becty9IF6G4</latexit>

This gives us the Euler equations

Dv Dt = rp ρ

<latexit sha1_base64="7/CMVkFBe0iK5ol/wVa2ZSvlZqk=">ACHXicbVC7SgNBFJ2NrxhfUubwSDYGHajYAqFgCksI5gHZEOYncwmQ2ZnlpnZQFi2FD/ARmz8FRsLg1jYiIX/4iSx0MQDwxzOuZd7/FCRpW27U8rtbC4tLySXs2srW9sbmW3d2pKRBKTKhZMyIaHFGUk6qmpFGKAkKPEbqXv9i7NcHRCoq+LUehqQVoC6nPsVIG6mdPXF9iXBchq4nWEcNA/PFgySJyzo5h0dwarsceQzBMIld2RNJO5uz8/YEcJ4PyRXKo5ubu+7ivt7LvbETgKCNeYIaWajh3qVoykpiRJONGioQI91GXNA3lKCqFU+uS+CBUTrQF9I8ruFE/d0Ro0CNFzeVAdI9NeuNxf+8ZqT9YiumPIw04Xg6yI8Y1AKOo4IdKgnWbGgIwpKaXSHuIZOHNoFmTAjO7MnzpFbIO8f5wpVJ4wxMkQZ7YB8cAgecghK4BVQBRg8gCfwAkbWo/VsvVpv09KU9dOzC/7A+vgGbD+nKQ=</latexit>

∂ρv ∂t + r · (ρvv + P · I) = 0

<latexit sha1_base64="+QtjLXmZJmLNpsk0LaWvmZ0v/jA=">ACcHicbVFNSxBEO0ZP2I2ala9BKk4iL4AcuMCuYSkHjR2wpZFXaWpanx23s6R6e4RlmLP/z1t+RC75BelZB/xYC5p+/V4Vf0qzgU3Ngj+eP7c/MLih6WPrU/LK6uf2vrV0YVmrI+VULpmxgNE1yvuVWsJtcM8xiwa7ju7Nav75n2nAlf9tJzoYZ3kqecorWUaP2Q5RqpGWUo7YcBUR6rCKlUjMJHNXq7yvqmfZVnAkcRYIEQ0URZ236uYeR9Ar8l/oZQX1R4A/AQIWqN2J+gG04BZEDagQ5rojdqPUaJokTFpqUBjBmGQ2FZz0kFq1pRYViO9A5v2cBiRkzw3JqWAU7jkgVdodaWHKvqwoMTP1jC4zQzs2b7WafE8bFDb9MSy5zAvLJH1qlBbONwW1+5BwzagVEweQau5mBTpGtwHrdlSbEL798iy4OuyGR93Dy+PO6a/GjiXylWyTXRKSE3JKzkmP9Aklf70Nb9Pb8v75X/xv/venVN9rajbIq/D3/wPM8rs9</latexit>

r

SLIDE 25

Momentum equation

25

NA School: Comp. Astrophysical Fluid Dynamics, Sep 4-6, 2019, IoA, NTHU

25

What accelerations act on a fluid element?

a = rp ρ

<latexit sha1_base64="5BusnYQRkLHy9+23o/CJtiaqPC8=">ACEXicbVA9SwNBEN2L3/Hr1NJmUYQ0hrtYmEJBsLFUMImQC2Fus5cs2ds9dveEcFwpdjY2/hAbC0UstbOz8L+4Sw0+mDZx3szMwLE8608bwPpzA1PTM7N79QXFxaXl19brWqaK0BqRXKqLEDTlTNCaYbTi0RiENOG2H/eOg3LqnSTIpzM0hoK4auYBEjYKzUdktBKHlHD2L7ZDjQ7yLg0gByQIBIQec5FmgejJvu9te2RsB/yX+N9k+qr5eXd9+3p23fegI0kaU2EIB62bvpeYVgbKMJpXgxSTRMgfejSpqUCYqpb2eiHO9YpYMjqewTBo/Unx0ZxHq4tK2MwfT0pDcU/OaqYmqrYyJDVUkPGgKOXYSDyMB3eYosTwgSVAFLO7YtIDm4exIRZtCP7kyX9JvVL298qVM5vGARpjHm2iLVRCPtpHR+gEnaIaIugG3aNH9OTcOg/Os/MyLi043z0b6Becty9IF6G4</latexit>

This gives us the Euler equations

Dv Dt = rp ρ

<latexit sha1_base64="7/CMVkFBe0iK5ol/wVa2ZSvlZqk=">ACHXicbVC7SgNBFJ2NrxhfUubwSDYGHajYAqFgCksI5gHZEOYncwmQ2ZnlpnZQFi2FD/ARmz8FRsLg1jYiIX/4iSx0MQDwxzOuZd7/FCRpW27U8rtbC4tLySXs2srW9sbmW3d2pKRBKTKhZMyIaHFGUk6qmpFGKAkKPEbqXv9i7NcHRCoq+LUehqQVoC6nPsVIG6mdPXF9iXBchq4nWEcNA/PFgySJyzo5h0dwarsceQzBMIld2RNJO5uz8/YEcJ4PyRXKo5ubu+7ivt7LvbETgKCNeYIaWajh3qVoykpiRJONGioQI91GXNA3lKCqFU+uS+CBUTrQF9I8ruFE/d0Ro0CNFzeVAdI9NeuNxf+8ZqT9YiumPIw04Xg6yI8Y1AKOo4IdKgnWbGgIwpKaXSHuIZOHNoFmTAjO7MnzpFbIO8f5wpVJ4wxMkQZ7YB8cAgecghK4BVQBRg8gCfwAkbWo/VsvVpv09KU9dOzC/7A+vgGbD+nKQ=</latexit>

∂ρv ∂t + r · (ρvv + P · I) = 0

<latexit sha1_base64="+QtjLXmZJmLNpsk0LaWvmZ0v/jA=">ACcHicbVFNSxBEO0ZP2I2ala9BKk4iL4AcuMCuYSkHjR2wpZFXaWpanx23s6R6e4RlmLP/z1t+RC75BelZB/xYC5p+/V4Vf0qzgU3Ngj+eP7c/MLih6WPrU/LK6uf2vrV0YVmrI+VULpmxgNE1yvuVWsJtcM8xiwa7ju7Nav75n2nAlf9tJzoYZ3kqecorWUaP2Q5RqpGWUo7YcBUR6rCKlUjMJHNXq7yvqmfZVnAkcRYIEQ0URZ236uYeR9Ar8l/oZQX1R4A/AQIWqN2J+gG04BZEDagQ5rojdqPUaJokTFpqUBjBmGQ2FZz0kFq1pRYViO9A5v2cBiRkzw3JqWAU7jkgVdodaWHKvqwoMTP1jC4zQzs2b7WafE8bFDb9MSy5zAvLJH1qlBbONwW1+5BwzagVEweQau5mBTpGtwHrdlSbEL798iy4OuyGR93Dy+PO6a/GjiXylWyTXRKSE3JKzkmP9Aklf70Nb9Pb8v75X/xv/venVN9rajbIq/D3/wPM8rs9</latexit>

r

Your exercise!

SLIDE 26

Internal Energy equation

26

NA School: Comp. Astrophysical Fluid Dynamics, Sep 4-6, 2019, IoA, NTHU

26

From first law of thermodynamics,

d✏ = Tds − pdV,

<latexit sha1_base64="MwAK7Jm+9A4dMYP9dH8ACe04aFk=">ACA3icbVC7SgNBFJ2Nrxhfq4KFNoNBsNCwGwstFAI2lhHygmQJs7OzyeDs7DAzqyxLwMbvsLOxUMTWn7DzA/wPJ49CEw9cOJxzL/fe4wtGlXacLys3N7+wuJRfLqysrq1v2JtbDRUnEpM6jlksWz5ShFO6pqRlpCEhT5jDT9m8uh37wlUtGY13QqiBehHqchxUgbqWvBrBDhKIs5vAC1mCg4DEUMGgcwa5dErOCHCWuBNSrOw07kT6/Vjt2p+dIMZJRLjGDCnVdh2hvQxJTEjg0InUQgfIN6pG0oRxFRXjb6YQAPjBLAMJamuIYj9fdEhiKl0sg3nRHSfTXtDcX/vHaiwzMvo1wkmnA8XhQmDOoYDgOBAZUEa5YagrCk5laI+0girE1sBROCO/3yLGmUS+5JqXxt0jgHY+TBHtgHh8AFp6ACrkAV1AEG9+AJvIBX68F6t6s93FrzprMbIM/sD5+AyfmN4=</latexit>

dV = d ✓1 ρ ◆ = −dρ ρ2

<latexit sha1_base64="aSisVqrOfkBmaJbk7BiA9l6N+wI=">ACJnicbVDLSsNAFJ34rPVdelmsAh1YUnqQlELBV24rGBboalMpm0QycPZm6ErL3P7rxJ/wANy4qIu78FKdpF74ODBzOZc79ziR4ApM8OYm19YXFrOreRX19Y3Ngtb20VxpKyBg1FKG8dopjgAWsAB8FuI8mI7wjWcgYXE791z6TiYXADw4h1fNILuMcpAS1C1W3iavYxbZgHpSw7UlCEytNbNkPU2xL3uvDgU5MjUPsZkZm31XSbqFols0M+C+xZqRYO316OBtdVuvdwth2Qxr7LAqiFJty4ygkxAJnAqW5u1YsYjQAemxtqYB8ZnqJNmZKd7Xiou9UOoXAM7U7xMJ8ZUa+o5O+gT6rc3Ef/z2jF4J52EB1EMLKDTRV4sMIR40hl2uWQUxFATQiXf8W0T3QhoJvN6xKs3yf/Jc1K2ToqV651G+doihzaRXuohCx0jGroCtVRA1E0Qs9ojF6NR+PFeDPep9E5Yzazg37A+PwCjOynoA=</latexit>

d✏ ≡ d ✓u ⇢ ◆ = du ⇢ − ud⇢ ⇢2 = −pdV = pd⇢ ⇢2

<latexit sha1_base64="qoTU6WX9oXMiZ3iIPIvLI9T+yAc=">ACZ3icbVHNbhMxGPQuPy3hpylFCImLoUIqh0a74VBEqVQJDhyLRNJK2RB5vd8mVr2sT9XilbM+/Bc/ASvfXOhbfA2UQI2o5kaTwzn2yPcyOFwyS5jOJbt+/cXVu/17n/4OGje7m46HT3nIYcC21PcmZAykUDFCghBNjgVW5hOP89MPCPz4D64RWX3BuYFyxqRKl4AyDNOmeFzQD4TUKpBvXpzRoEgocYdmpW89k2d2ZluaGbFdIav6cHKP46u9SvpHbfql/7TUjuUkOLYSCG3piYdLeTXtKCXifpimwfv5f/Hx4OjSfciKzT3FSjkjk3ShOD45pZFxC08m8A8P4KZvCKFDFKnDju2poa+CUtBS27AU0lb9d6JmlXPzKg/JiuHMXfUW4k3eyGP5dlwLZTyC4suDSi8paronRbCAkc5D4RxK8JdKZ+x0AeGr+mEtKrT75Ohv1e+qbX/xzaeE+WCfPyUuyQ1KyRw7J3JEBoSTX1En2oqeRL/jfhp/GwZjaPVzBb5D/GLP4Hou0A=</latexit> <latexit sha1_base64="wEWkBcRpBlvUPtU+bpJNGlN5fGs=">AB6HicdZDLSgMxFIYzXmu9V0KEiyCqyEzLW0FwYIbly3YC7RDyaSZNjZzIckIZejSlRsXirj1Kdz6Cu58Bn0IM62Civ4Q+Pn+c8g5x404kwqhV2NufmFxaTmzkl1dW9/YzG1tN2UYC0IbJOShaLtYUs4C2lBMcdqOBMW+y2nLHZ2meuSCsnC4FyNI+r4eBAwjxGsNKqjXi6PzKNKyS6WIDIRKlu2lRq7XCwUoaVJqvzJ89vV3lP9vdbLvXT7IYl9GijCsZQdC0XKSbBQjHA6yXZjSNMRnhAO9oG2KfSaDTuCBJn3ohUK/QMEp/d6RYF/Kse/qSh+rofydpfCvrBMr+IkLIhiRQMy+8iLOVQhTLeGfSYoUXysDSaC6VkhGWKBidK3yeojfG0K/zdN27QKpl1H+eoxmCkDdsE+OAQWKIMqOAM10AEUHANbsGdcWHcGPfGw6x0zvjs2QE/ZDx+AOlGkXM=</latexit>

Du Dt = u + p ρ Dρ Dt = ∂u ∂t + (v · r)u = (u + p)r · v

<latexit sha1_base64="hZjEiDxp9xraCDikmGNj+dzDU/s=">ACZXicbVHLSiNBFK1uZzRmfEQd3MzCQhmIiKFbF7pQCEwWs4wUSEdwu1KtSlSXdXUIxDaXsp8wGz8JpfuXLiZzfzGVNJh8DEXCs4956nIozrQJgifPX/jwcXGpslz9tLK6tl7b2LzU0ipCO0Ryqa5j0JQzQTuGU6vM0UhjTm9ikfpvrVmCrNpPhJhntpXAjWMIGEf1a7dRoDkLVvkLVPgc1z29iAr8kgNZTEnWrPm1UyUgTIMOHbef9jpB7g+jshAGhwJiDnsW2c5rLst9+cMLuVxv7YXNIJZ4fcgnIO95unD3c9fz/ftfu0xGkhiUyoM4aB1Nwy08unZxNOi2pkNc2AjOCGdh0UkFLdy2cpFfirYwY4kcotYfCMfenIdV6ksZuMgUz1G+1Kfk/rWtNctrLmcisoYKUByXWZSHxNHI8YIoSwycOAFHM3RWTIbgIjfuYqgshfPvk9+DyqBEeN4uXBpnqKwK+oJ2UR2F6AQ10XfURh1E0G+v4m14m94f9X/7G+Xo74392yhV+Xv/AVlR7t+</latexit>

Combine internal energy equation with the momentum equation

∂ρE ∂t + r · [(ρE + P)v] = 0

<latexit sha1_base64="yKzgJ4V0JWRaeH25bGlk429zCyA=">ACTnicbVFdixMxFM3Urzp+VX305WIRVoQysyu4LwuLIvhYwe4uNEPJZO60YTPJkNxZKMP8Ql/EN3+GLz4opm2oO56IeRwzr3JyUlea+UpSb5Eg2vXb9y8Nbwd37l7/6D0cNHJ942TuJMWm3dWS48amVwRo0ntUORZVrPM3P3/T6QU6r6z5QOsas0osjSqVFBSoxQh56YRseS0cKaGBu5WFt90fgjp4AdyIXAvgsrAEXGNJ8xj2tr1Bnj4Hnltd+HUVtri96MI5armiDOAIkXo3EySTYFV0G6A2O2q+li9JkXVjYVGpJaeD9Pk5qytvckNXYxbzWQp6LJc4DNKJCn7WbODp4FpgCSuvCMgQb9u+JVlS+txo6K0Erf1nryf9p84bKw6xVpm4IjdxeVDYhIwt9tlAoh5L0OgAhnQpeQa5EyJfCD/QhpJefBWc7E/Sg8n+5fj49e7OIbsCXvK9ljKXrFj9o5N2YxJ9pF9Zd/Zj+hT9C36Gf3atg6i3cxj9k8Nhr8B1baxoA=</latexit>

Total Energy equation

E = 1 2v2 + ✏

<latexit sha1_base64="jzOFCsiorRPsKtCRoLtEdQaGFuY=">ACB3icbVDLSsNAFJ34rPVdSnIYBEoSR0I1QFMFlBfuAJpbJ9KYdOnkwMymUkJ0bf8WNC0Xc+gvu/BsnbRfaemDgcM653LnHizmTyjS/jYXFpeWV1cJacX1jc2u7tLPbkFEiKNRpxCPR8ogEzkKoK6Y4tGIBJPA4NL3Bde43hyAki8J7NYrBDUgvZD6jRGmpUzq4wZfY8QWhqZWldoaHDzY+wQ7EkvE8UDYr5h4nlhTUkZT1DqlL6cb0SAUFOpGxbZqzclAjFKIes6CQSYkIHpAdtTUMSgHT8R0ZPtJKF/uR0C9UeKz+nkhJIOUo8HQyIKovZ71c/M9rJ8q/cFMWxomCkE4W+QnHKsJ5KbjLBFDFR5oQKpj+K6Z9oktRurqiLsGaPXmeNOyKdVqx787K1atpHQW0jw7RMbLQOaqiW1RDdUTRI3pGr+jNeDJejHfjYxJdMKYze+gPjM8fe36Xzw=</latexit>

Volume per unit mass

SLIDE 27

Summary: Euler equations

∂ρ ∂t + r · (ρv) = 0

<latexit sha1_base64="dUBsrN4bCT5H6ytEHTBdCz2GjaE=">ACNHicbVBNSwMxEM36WetX1aOXYBEUoexWQS9C0YvgpYJVoVvKbDbBrPJkmQLZdkf5cUf4kUED4p49TeYrQU/6kDImzdvmJkXJxp47pPztT0zOzcfGmhvLi0vLJaWVu/0jJVhLaI5FLdBKApZ4K2DOc3iSKQhxweh3cnhb16wFVmklxaYJ7cTQEyxiBIylupVzP1JAMj8BZRhw7Ku+zL9Tk+M97AsIOGCfhNLgnUKB/UDyUA9j+5WzQb6Lj7Fb7laqbs0dBZ4E3hU0Tia3cqDH0qSxlQYwkHrtucmpMVswmnedlPNU2A3EKPti0UEFPdyUZH53jbMiGOpLJPGDxif3ZkEOtiQ6uMwfT131pB/ldrpyY6mRMJKmhgnwNilLrhcSFgzhkihLDhxYAUczuikfrIvG+lyY4P09eRJc1Wvefq1+cVBtnIztKFNtIV2kIcOUQOdoSZqIYLu0CN6Qa/OvfPsvDnvX9IpZ9yzgX6F8/EJBlKqUw=</latexit>

∂ρv ∂t + r · (ρvv + P · I) = 0

<latexit sha1_base64="+QtjLXmZJmLNpsk0LaWvmZ0v/jA=">ACcHicbVFNSxBEO0ZP2I2ala9BKk4iL4AcuMCuYSkHjR2wpZFXaWpanx23s6R6e4RlmLP/z1t+RC75BelZB/xYC5p+/V4Vf0qzgU3Ngj+eP7c/MLih6WPrU/LK6uf2vrV0YVmrI+VULpmxgNE1yvuVWsJtcM8xiwa7ju7Nav75n2nAlf9tJzoYZ3kqecorWUaP2Q5RqpGWUo7YcBUR6rCKlUjMJHNXq7yvqmfZVnAkcRYIEQ0URZ236uYeR9Ar8l/oZQX1R4A/AQIWqN2J+gG04BZEDagQ5rojdqPUaJokTFpqUBjBmGQ2FZz0kFq1pRYViO9A5v2cBiRkzw3JqWAU7jkgVdodaWHKvqwoMTP1jC4zQzs2b7WafE8bFDb9MSy5zAvLJH1qlBbONwW1+5BwzagVEweQau5mBTpGtwHrdlSbEL798iy4OuyGR93Dy+PO6a/GjiXylWyTXRKSE3JKzkmP9Aklf70Nb9Pb8v75X/xv/venVN9rajbIq/D3/wPM8rs9</latexit>

∂ρE ∂t + r · [(ρE + P)v] = 0

<latexit sha1_base64="yKzgJ4V0JWRaeH25bGlk429zCyA=">ACTnicbVFdixMxFM3Urzp+VX305WIRVoQysyu4LwuLIvhYwe4uNEPJZO60YTPJkNxZKMP8Ql/EN3+GLz4opm2oO56IeRwzr3JyUlea+UpSb5Eg2vXb9y8Nbwd37l7/6D0cNHJ942TuJMWm3dWS48amVwRo0ntUORZVrPM3P3/T6QU6r6z5QOsas0osjSqVFBSoxQh56YRseS0cKaGBu5WFt90fgjp4AdyIXAvgsrAEXGNJ8xj2tr1Bnj4Hnltd+HUVtri96MI5armiDOAIkXo3EySTYFV0G6A2O2q+li9JkXVjYVGpJaeD9Pk5qytvckNXYxbzWQp6LJc4DNKJCn7WbODp4FpgCSuvCMgQb9u+JVlS+txo6K0Erf1nryf9p84bKw6xVpm4IjdxeVDYhIwt9tlAoh5L0OgAhnQpeQa5EyJfCD/QhpJefBWc7E/Sg8n+5fj49e7OIbsCXvK9ljKXrFj9o5N2YxJ9pF9Zd/Zj+hT9C36Gf3atg6i3cxj9k8Nhr8B1baxoA=</latexit>

ρ

<latexit sha1_base64="94wfdLRBjCkyTC3Y5p5yTs2egQ=">AB63icbVDLSgNBEOz1GeMr6tHLYBA8hd0o6DHoxWME84BkCbOT2eyQeSwzs0I+QUvHhTx6g9582+cTfagiQUNRVU3V1Rypmxv/tra1vbG5tl3bKu3v7B4eVo+O2UZkmtEUV7obYUM5k7RlmeW0m2qKRcRpJxrf5X7niWrDlHy0k5SGAo8kixnBNpf6OlGDStWv+XOgVRIUpAoFmoPKV3+oSCaotIRjY3qBn9pwirVlhNZuZ8ZmIyxiPac1RiQU04nd86Q+dOGaJYaVfSorn6e2KhTETEblOgW1ilr1c/M/rZTa+CadMpmlkiwWxRlHVqH8cTRkmhLJ45gopm7FZEa0ysi6fsQgiWX14l7XotuKzVH6qjdsijhKcwhlcQADX0IB7aEILCTwDK/w5gnvxXv3Phata14xcwJ/4H3+ACD6jks=</latexit>

v

<latexit sha1_base64="NSH9wM7Ar3PVRHh2MFc4hD/zv8=">AB9XicbVDLSgMxFL1TX7W+qi7dBIvgqsxUQZdFNy4r2Ae0Y8lk0jY0kwxJplKG/ocbF4q49V/c+Tdm2lo64GQwzn3kpMTxJxp47rfTmFtfWNzq7hd2tnd2z8oHx61tEwUoU0iuVSdAGvKmaBNwynVhRHAWctoPxbea3J1RpJsWDmcbUj/BQsAEj2FjpsRdIHupZK90MuXK27VnQOtEi8nFcjR6Je/eqEkSUSFIRxr3fXc2PgpVoYRTmelXqJpjMkYD2nXUoEjqv10nqGzqwSoFU9giD5urvjRHOotmJyNsRnrZy8T/vG5iBtd+ykScGCrI4qFBwpGRKsAhUxRYvjUEkwUs1kRGWGFibFlWwJ3vKXV0mrVvUuqrX7y0r9Jq+jCdwCufgwRXU4Q4a0AQCp7hFd6cJ+fFeXc+FqMFJ985hj9wPn8AUZCTCw=</latexit>

E = 1 2v2 + ✏

<latexit sha1_base64="jzOFCsiorRPsKtCRoLtEdQaGFuY=">ACB3icbVDLSsNAFJ34rPVdSnIYBEoSR0I1QFMFlBfuAJpbJ9KYdOnkwMymUkJ0bf8WNC0Xc+gvu/BsnbRfaemDgcM653LnHizmTyjS/jYXFpeWV1cJacX1jc2u7tLPbkFEiKNRpxCPR8ogEzkKoK6Y4tGIBJPA4NL3Bde43hyAki8J7NYrBDUgvZD6jRGmpUzq4wZfY8QWhqZWldoaHDzY+wQ7EkvE8UDYr5h4nlhTUkZT1DqlL6cb0SAUFOpGxbZqzclAjFKIes6CQSYkIHpAdtTUMSgHT8R0ZPtJKF/uR0C9UeKz+nkhJIOUo8HQyIKovZ71c/M9rJ8q/cFMWxomCkE4W+QnHKsJ5KbjLBFDFR5oQKpj+K6Z9oktRurqiLsGaPXmeNOyKdVqx787K1atpHQW0jw7RMbLQOaqiW1RDdUTRI3pGr+jNeDJejHfjYxJdMKYze+gPjM8fe36Xzw=</latexit>

p

<latexit sha1_base64="YCRLqY3FYFMPr169IibebwVZHg=">AB6HicbVBNS8NAEJ3Ur1q/qh69LBbBU0mqoMeiF48t2FpoQ9lsJ+3azSbsboQS+gu8eFDEqz/Jm/GbZuDtj4YeLw3w8y8IBFcG9f9dgpr6xubW8Xt0s7u3v5B+fCoreNUMWyxWMSqE1CNgktsGW4EdhKFNAoEPgTj25n/8IRK81jem0mCfkSHkoecUWOlZtIvV9yqOwdZJV5OKpCj0S9/9QYxSyOUhgmqdzE+NnVBnOBE5LvVRjQtmYDrFrqaQRaj+bHzolZ1YZkDBWtqQhc/X3REYjrSdRYDsjakZ62ZuJ/3nd1ITXfsZlkhqUbLEoTAUxMZl9TQZcITNiYglitbCRtRZmx2ZRsCN7y6ukXat6F9Va87JSv8njKMIJnMI5eHAFdbiDBrSAcIzvMKb8+i8O/Ox6K14OQzx/AHzucP2eM+A=</latexit>

✏

<latexit sha1_base64="S940j+PXnpyPoS6EHFdj/RxnHVw=">AB73icbVBNS8NAEJ3Ur1q/qh69LBbBU0mqoMeiF48V7Ae0oWy2k3bpZhN3N0IJ/RNePCji1b/jzX/jts1BWx8MPN6bYWZekAiujet+O4W19Y3NreJ2aWd3b/+gfHjU0nGqGDZLGLVCahGwSU2DTcCO4lCGgUC28H4dua3n1BpHsHM0nQj+hQ8pAzaqzU6WGiuYhlv1xq+4cZJV4OalAjka/NUbxCyNUBomqNZdz02Mn1FlOBM4LfVSjQlYzrErqWSRqj9bH7vlJxZUDCWNmShszV3xMZjbSeRIHtjKgZ6WVvJv7ndVMTXvsZl0lqULFojAVxMRk9jwZcIXMiIklClubyVsRBVlxkZUsiF4y+vklat6l1Ua/eXlfpNHkcRTuAUzsGDK6jDHTSgCQwEPMrvDmPzovz7nwsWgtOPnMf+B8/gBOH5Ak</latexit>

E

<latexit sha1_base64="oW7OyFl8fZOuY5qYrNXg+guGckE=">AB6HicbVDLSgNBEOyNrxhfUY9eBoPgKexGQY9BETwmYB6QLGF20puMmZ1dZmaFEPIFXjwo4tVP8ubfOEn2oIkFDUVN91dQSK4Nq7eTW1jc2t/LbhZ3dvf2D4uFRU8epYthgsYhVO6AaBZfYMNwIbCcKaRQIbAWj25nfekKleSwfzDhBP6IDyUPOqLFS/a5XLldw6ySryMlCBDrVf86vZjlkYoDRNU647nJsafUGU4EzgtdFONCWUjOsCOpZJGqP3J/NApObNKn4SxsiUNmau/JyY0nocBbYzomaol72Z+J/XSU147U+4TFKDki0WhakgJiazr0mfK2RGjC2hTHF7K2FDqigzNpuCDcFbfnmVNCtl76JcqV+WqjdZHk4gVM4Bw+uoAr3UIMGMEB4hld4cx6dF+fd+Vi05pxs5hj+wPn8AZo7jM0=</latexit>

u

<latexit sha1_base64="wnFhQNKUlf0HWa+NJZ/ckTw+BdQ=">AB6HicbVBNS8NAEJ3Ur1q/qh69LBbBU0mqoMeiF48t2FpoQ9lsJ+3azSbsboQS+gu8eFDEqz/Jm/GbZuDtj4YeLw3w8y8IBFcG9f9dgpr6xubW8Xt0s7u3v5B+fCoreNUMWyxWMSqE1CNgktsGW4EdhKFNAoEPgTj25n/8IRK81jem0mCfkSHkoecUWOlZtovV9yqOwdZJV5OKpCj0S9/9QYxSyOUhgmqdzE+NnVBnOBE5LvVRjQtmYDrFrqaQRaj+bHzolZ1YZkDBWtqQhc/X3REYjrSdRYDsjakZ62ZuJ/3nd1ITXfsZlkhqUbLEoTAUxMZl9TQZcITNiYglitbCRtRZmx2ZRsCN7y6ukXat6F9Va87JSv8njKMIJnMI5eHAFdbiDBrSAcIzvMKb8+i8O/Ox6K14OQzx/AHzucP4vuM/Q=</latexit>

u = ⇢✏

<latexit sha1_base64="HQ2fdqdAXxk7nTiJH7EXYnqzJ/s=">AB+nicbVBNSwMxEM36WetXq0cvwSJ4KrtV0ItQ9OKxgv2A7lKy6Wwbmk2WJKuU2p/ixYMiXv0l3vw3Zts9aOuDgcd7M8zMCxPOtHdb2dldW19Y7OwVdze2d3bL5UPWlqmikKTSi5VJyQaOBPQNMxw6CQKSBxyaIejm8xvP4DSTIp7M04giMlAsIhRYqzUK5VTfIV9NZTYh0QznmkVt+rOgJeJl5MKytHolb78vqRpDMJQTrTuem5iglRhlEO06KfakgIHZEBdC0VJAYdTGanT/GJVfo4ksqWMHim/p6YkFjrcRzazpiYoV70MvE/r5ua6DKYMJGkBgSdL4pSjo3EWQ64zxRQw8eWEKqYvRXTIVGEGptW0YbgLb68TFq1qndWrd2dV+rXeRwFdISO0Sny0AWqo1vUQE1E0SN6Rq/ozXlyXpx352PeuLkM4foD5zPH1Dlk2Y=</latexit>

Continuity equation Momentum equation Energy equation

Gas density Gas velocity Gas pressure Gas specific internal energy Gas specific total energy Gas internal energy

27

NA School: Comp. Astrophysical Fluid Dynamics, Sep 4-6, 2019, IoA, NTHU

27 Stress tensor Unit tensor

SLIDE 28

∂ρv ∂t + r · (ρvv + P · I) = ρrΦ

<latexit sha1_base64="J60F1tWtmb29vfYFwPqh75+NPCw=">ACgnicbVFRT9swEHYyBqwb0I1HXk5USGyIktBJ8ASYi/jrUgrIDVdXEcauHYke1UqL8EP4Wb/wacEqkAeWkz9/353vfBfnghsbBI+e/2np8/LK6pfW129r6xvt7z+ujCo0ZQOqhNI3MRomuGQDy61gN7lmMWCXcd3f2r9esq04Ur+s7OcjTK8lTzlFK2jxu37KNVIyhHbTkKiPREQRQrkZhZ5o5WOa2q/7KtYA8ibFAiGiLOx+lLFw34N+E/9KS+qnwBw6ny/Kdy83J/w1rjdCbrB3GARhA3okMb64/ZDlChaZExaKtCYRjkdlTWnVPBqlZUGJYjvcNbNnRQYsbMqJyPsIdxySQKu1cWpizrzNKzEzdtYvM0E7Me60mP9KGhU2PRyWXeWGZpC+F0sJNUkG9D0i4ZtSKmQNINXe9Ap2g24l1W6uHEL7/8iK4OuyGve7h5e/O2XkzjlWyRbJLgnJETkjf0mfDAglT96O1/UO/CX/lx/6vZdQ32tyNskb80+eAfwEwOs=</latexit>

Summary: Euler equations + Gravity

∂ρ ∂t + r · (ρv) = 0

<latexit sha1_base64="dUBsrN4bCT5H6ytEHTBdCz2GjaE=">ACNHicbVBNSwMxEM36WetX1aOXYBEUoexWQS9C0YvgpYJVoVvKbDbBrPJkmQLZdkf5cUf4kUED4p49TeYrQU/6kDImzdvmJkXJxp47pPztT0zOzcfGmhvLi0vLJaWVu/0jJVhLaI5FLdBKApZ4K2DOc3iSKQhxweh3cnhb16wFVmklxaYJ7cTQEyxiBIylupVzP1JAMj8BZRhw7Ku+zL9Tk+M97AsIOGCfhNLgnUKB/UDyUA9j+5WzQb6Lj7Fb7laqbs0dBZ4E3hU0Tia3cqDH0qSxlQYwkHrtucmpMVswmnedlPNU2A3EKPti0UEFPdyUZH53jbMiGOpLJPGDxif3ZkEOtiQ6uMwfT131pB/ldrpyY6mRMJKmhgnwNilLrhcSFgzhkihLDhxYAUczuikfrIvG+lyY4P09eRJc1Wvefq1+cVBtnIztKFNtIV2kIcOUQOdoSZqIYLu0CN6Qa/OvfPsvDnvX9IpZ9yzgX6F8/EJBlKqUw=</latexit>

ρ

<latexit sha1_base64="94wfdLRBjCkyTC3Y5p5yTs2egQ=">AB63icbVDLSgNBEOz1GeMr6tHLYBA8hd0o6DHoxWME84BkCbOT2eyQeSwzs0I+QUvHhTx6g9582+cTfagiQUNRVU3V1Rypmxv/tra1vbG5tl3bKu3v7B4eVo+O2UZkmtEUV7obYUM5k7RlmeW0m2qKRcRpJxrf5X7niWrDlHy0k5SGAo8kixnBNpf6OlGDStWv+XOgVRIUpAoFmoPKV3+oSCaotIRjY3qBn9pwirVlhNZuZ8ZmIyxiPac1RiQU04nd86Q+dOGaJYaVfSorn6e2KhTETEblOgW1ilr1c/M/rZTa+CadMpmlkiwWxRlHVqH8cTRkmhLJ45gopm7FZEa0ysi6fsQgiWX14l7XotuKzVH6qjdsijhKcwhlcQADX0IB7aEILCTwDK/w5gnvxXv3Phata14xcwJ/4H3+ACD6jks=</latexit>

v

<latexit sha1_base64="NSH9wM7Ar3PVRHh2MFc4hD/zv8=">AB9XicbVDLSgMxFL1TX7W+qi7dBIvgqsxUQZdFNy4r2Ae0Y8lk0jY0kwxJplKG/ocbF4q49V/c+Tdm2lo64GQwzn3kpMTxJxp47rfTmFtfWNzq7hd2tnd2z8oHx61tEwUoU0iuVSdAGvKmaBNwynVhRHAWctoPxbea3J1RpJsWDmcbUj/BQsAEj2FjpsRdIHupZK90MuXK27VnQOtEi8nFcjR6Je/eqEkSUSFIRxr3fXc2PgpVoYRTmelXqJpjMkYD2nXUoEjqv10nqGzqwSoFU9giD5urvjRHOotmJyNsRnrZy8T/vG5iBtd+ykScGCrI4qFBwpGRKsAhUxRYvjUEkwUs1kRGWGFibFlWwJ3vKXV0mrVvUuqrX7y0r9Jq+jCdwCufgwRXU4Q4a0AQCp7hFd6cJ+fFeXc+FqMFJ985hj9wPn8AUZCTCw=</latexit>

E = 1 2v2 + ✏

<latexit sha1_base64="jzOFCsiorRPsKtCRoLtEdQaGFuY=">ACB3icbVDLSsNAFJ34rPVdSnIYBEoSR0I1QFMFlBfuAJpbJ9KYdOnkwMymUkJ0bf8WNC0Xc+gvu/BsnbRfaemDgcM653LnHizmTyjS/jYXFpeWV1cJacX1jc2u7tLPbkFEiKNRpxCPR8ogEzkKoK6Y4tGIBJPA4NL3Bde43hyAki8J7NYrBDUgvZD6jRGmpUzq4wZfY8QWhqZWldoaHDzY+wQ7EkvE8UDYr5h4nlhTUkZT1DqlL6cb0SAUFOpGxbZqzclAjFKIes6CQSYkIHpAdtTUMSgHT8R0ZPtJKF/uR0C9UeKz+nkhJIOUo8HQyIKovZ71c/M9rJ8q/cFMWxomCkE4W+QnHKsJ5KbjLBFDFR5oQKpj+K6Z9oktRurqiLsGaPXmeNOyKdVqx787K1atpHQW0jw7RMbLQOaqiW1RDdUTRI3pGr+jNeDJejHfjYxJdMKYze+gPjM8fe36Xzw=</latexit>

p

<latexit sha1_base64="YCRLqY3FYFMPr169IibebwVZHg=">AB6HicbVBNS8NAEJ3Ur1q/qh69LBbBU0mqoMeiF48t2FpoQ9lsJ+3azSbsboQS+gu8eFDEqz/Jm/GbZuDtj4YeLw3w8y8IBFcG9f9dgpr6xubW8Xt0s7u3v5B+fCoreNUMWyxWMSqE1CNgktsGW4EdhKFNAoEPgTj25n/8IRK81jem0mCfkSHkoecUWOlZtIvV9yqOwdZJV5OKpCj0S9/9QYxSyOUhgmqdzE+NnVBnOBE5LvVRjQtmYDrFrqaQRaj+bHzolZ1YZkDBWtqQhc/X3REYjrSdRYDsjakZ62ZuJ/3nd1ITXfsZlkhqUbLEoTAUxMZl9TQZcITNiYglitbCRtRZmx2ZRsCN7y6ukXat6F9Va87JSv8njKMIJnMI5eHAFdbiDBrSAcIzvMKb8+i8O/Ox6K14OQzx/AHzucP2eM+A=</latexit>

✏

<latexit sha1_base64="S940j+PXnpyPoS6EHFdj/RxnHVw=">AB73icbVBNS8NAEJ3Ur1q/qh69LBbBU0mqoMeiF48V7Ae0oWy2k3bpZhN3N0IJ/RNePCji1b/jzX/jts1BWx8MPN6bYWZekAiujet+O4W19Y3NreJ2aWd3b/+gfHjU0nGqGDZLGLVCahGwSU2DTcCO4lCGgUC28H4dua3n1BpHsHM0nQj+hQ8pAzaqzU6WGiuYhlv1xq+4cZJV4OalAjka/NUbxCyNUBomqNZdz02Mn1FlOBM4LfVSjQlYzrErqWSRqj9bH7vlJxZUDCWNmShszV3xMZjbSeRIHtjKgZ6WVvJv7ndVMTXvsZl0lqULFojAVxMRk9jwZcIXMiIklClubyVsRBVlxkZUsiF4y+vklat6l1Ua/eXlfpNHkcRTuAUzsGDK6jDHTSgCQwEPMrvDmPzovz7nwsWgtOPnMf+B8/gBOH5Ak</latexit>

E

<latexit sha1_base64="oW7OyFl8fZOuY5qYrNXg+guGckE=">AB6HicbVDLSgNBEOyNrxhfUY9eBoPgKexGQY9BETwmYB6QLGF20puMmZ1dZmaFEPIFXjwo4tVP8ubfOEn2oIkFDUVN91dQSK4Nq7eTW1jc2t/LbhZ3dvf2D4uFRU8epYthgsYhVO6AaBZfYMNwIbCcKaRQIbAWj25nfekKleSwfzDhBP6IDyUPOqLFS/a5XLldw6ySryMlCBDrVf86vZjlkYoDRNU647nJsafUGU4EzgtdFONCWUjOsCOpZJGqP3J/NApObNKn4SxsiUNmau/JyY0nocBbYzomaol72Z+J/XSU147U+4TFKDki0WhakgJiazr0mfK2RGjC2hTHF7K2FDqigzNpuCDcFbfnmVNCtl76JcqV+WqjdZHk4gVM4Bw+uoAr3UIMGMEB4hld4cx6dF+fd+Vi05pxs5hj+wPn8AZo7jM0=</latexit>

u

<latexit sha1_base64="wnFhQNKUlf0HWa+NJZ/ckTw+BdQ=">AB6HicbVBNS8NAEJ3Ur1q/qh69LBbBU0mqoMeiF48t2FpoQ9lsJ+3azSbsboQS+gu8eFDEqz/Jm/GbZuDtj4YeLw3w8y8IBFcG9f9dgpr6xubW8Xt0s7u3v5B+fCoreNUMWyxWMSqE1CNgktsGW4EdhKFNAoEPgTj25n/8IRK81jem0mCfkSHkoecUWOlZtovV9yqOwdZJV5OKpCj0S9/9QYxSyOUhgmqdzE+NnVBnOBE5LvVRjQtmYDrFrqaQRaj+bHzolZ1YZkDBWtqQhc/X3REYjrSdRYDsjakZ62ZuJ/3nd1ITXfsZlkhqUbLEoTAUxMZl9TQZcITNiYglitbCRtRZmx2ZRsCN7y6ukXat6F9Va87JSv8njKMIJnMI5eHAFdbiDBrSAcIzvMKb8+i8O/Ox6K14OQzx/AHzucP4vuM/Q=</latexit>

u = ⇢✏

<latexit sha1_base64="HQ2fdqdAXxk7nTiJH7EXYnqzJ/s=">AB+nicbVBNSwMxEM36WetXq0cvwSJ4KrtV0ItQ9OKxgv2A7lKy6Wwbmk2WJKuU2p/ixYMiXv0l3vw3Zts9aOuDgcd7M8zMCxPOtHdb2dldW19Y7OwVdze2d3bL5UPWlqmikKTSi5VJyQaOBPQNMxw6CQKSBxyaIejm8xvP4DSTIp7M04giMlAsIhRYqzUK5VTfIV9NZTYh0QznmkVt+rOgJeJl5MKytHolb78vqRpDMJQTrTuem5iglRhlEO06KfakgIHZEBdC0VJAYdTGanT/GJVfo4ksqWMHim/p6YkFjrcRzazpiYoV70MvE/r5ua6DKYMJGkBgSdL4pSjo3EWQ64zxRQw8eWEKqYvRXTIVGEGptW0YbgLb68TFq1qndWrd2dV+rXeRwFdISO0Sny0AWqo1vUQE1E0SN6Rq/ozXlyXpx352PeuLkM4foD5zPH1Dlk2Y=</latexit>

Continuity equation Momentum equation Energy equation

Gas density Gas velocity Gas pressure Gas specific internal energy Gas specific total energy Gas internal energy Gravitational Potential

∂ρE ∂t + r · [(ρE + P)v] = ρv · rΦ

<latexit sha1_base64="SF0qiUpFMskgfx859uLbpK17e0=">ACc3icbVFNa9wEJXdr9T92rbQSw4dsi2klCx2GkgvhdBS6HEL3SwMosy2sRWTLSOLAY/4H+vN76L3rpvfLa0DTpgNDjzZun0UxWK+kwjn8G4a3bd+7e27kfPXj46PGTydNnp840losFN8rY84w5oaQWC5SoxHltBasyJc6yi09/uxSWCeN/oabWqQVW2tZSM7QU6vJd1pYxltaM4uSKaC2NPC5+0tgB2+BapYpBpTnBoEqUeAygv1B69PzN0Azo3K3qfwVtZed95HrElOAD3AwmF5RbAWD12g8L2W0mkzjWbwNuAmSEUzJGPV5AfNDW8qoZEr5twyiWtM275xrkQX0caJmvELthZLDzWrhEvb7cw6eO2ZHApj/dEIW/ZqRcsq13frlRXD0l3P9eT/csGi/dpK3XdoNB8eKho/CAN9AuAXFrBUW08YNxK3yvwkvkloF9TP4Tk+pdvgtPDWfJudvj1aHrycRzHDtkle2SfJOSYnJAvZE4WhJNfwYvgZQDB73A3AtfDdIwGuek38iPgDmge7GA=</latexit>

Φ

<latexit sha1_base64="SIWhw4cDOJI1oTS6WRyjqImg48=">AB63icbVBNS8NAEJ3Ur1q/qh69LBbBU0lqQY9FLx4r2A9oQ9lsN83S3U3Y3Qgl9C948aCIV/+QN/+NmzYHbX0w8Hhvhpl5QcKZNq7ZQ2Nre2d8q7lb39g8Oj6vFJV8epIrRDYh6rfoA15UzSjmG036iKBYBp71gepf7vSeqNIvlo5kl1Bd4IlnICDa5NGxHbFStuXV3AbROvILUoEB7VP0ajmOSCioN4Vjrgecmxs+wMoxwOq8MU0TKZ4QgeWSiyo9rPFrXN0YZUxCmNlSxq0UH9PZFhoPROB7RTYRHrVy8X/vEFqwhs/YzJDZVkuShMOTIxyh9HY6YoMXxmCSaK2VsRibDCxNh4KjYEb/XldJt1L2reuOhWvdFnGU4QzO4RI8uIYW3EMbOkAgmd4hTdHOC/Ou/OxbC05xcwp/IHz+QPkB4j</latexit>

28

NA School: Comp. Astrophysical Fluid Dynamics, Sep 4-6, 2019, IoA, NTHU

28

r2Φ = 4πGρ

<latexit sha1_base64="LNOBnYisaDXC0SzMRi+oYWDQOs=">ACBHicbVDLSsNAFJ3UV62vqMtuBovgqiS1oBuh6EKXFewDmlgm0kzdDITZiZCV248VfcuFDErR/hzr9x2mahrQcuHM65l3vCRJGlXacb6uwsrq2vlHcLG1t7+zu2fsHbSVSiUkLCyZkN0CKMpJS1PNSDeRBMUBI51gdDX1Ow9EKir4nR4nxI/RkNOQYqSN1LfLHkcBQ/c16DUjCi9g3UsovIaejETfrjhVZwa4TNycVECOZt/+8gYCpzHhGjOkVM91Eu1nSGqKGZmUvFSRBOERGpKeoRzFRPnZ7IkJPDbKAIZCmuIaztTfExmKlRrHgemMkY7UojcV/N6qQ7P/YzyJNWE4/miMGVQCzhNBA6oJFizsSEIS2puhThCEmFtciuZENzFl5dJu1Z1T6u123qlcZnHUQRlcAROgAvOQAPcgCZoAQwewTN4BW/Wk/VivVsf89aClc8cgj+wPn8A52CWVg=</latexit>

Poisson equation

SLIDE 29

Summary: Lagrangian form

ρ

<latexit sha1_base64="94wfdLRBjCkyTC3Y5p5yTs2egQ=">AB63icbVDLSgNBEOz1GeMr6tHLYBA8hd0o6DHoxWME84BkCbOT2eyQeSwzs0I+QUvHhTx6g9582+cTfagiQUNRVU3V1Rypmxv/tra1vbG5tl3bKu3v7B4eVo+O2UZkmtEUV7obYUM5k7RlmeW0m2qKRcRpJxrf5X7niWrDlHy0k5SGAo8kixnBNpf6OlGDStWv+XOgVRIUpAoFmoPKV3+oSCaotIRjY3qBn9pwirVlhNZuZ8ZmIyxiPac1RiQU04nd86Q+dOGaJYaVfSorn6e2KhTETEblOgW1ilr1c/M/rZTa+CadMpmlkiwWxRlHVqH8cTRkmhLJ45gopm7FZEa0ysi6fsQgiWX14l7XotuKzVH6qjdsijhKcwhlcQADX0IB7aEILCTwDK/w5gnvxXv3Phata14xcwJ/4H3+ACD6jks=</latexit>

v

<latexit sha1_base64="NSH9wM7Ar3PVRHh2MFc4hD/zv8=">AB9XicbVDLSgMxFL1TX7W+qi7dBIvgqsxUQZdFNy4r2Ae0Y8lk0jY0kwxJplKG/ocbF4q49V/c+Tdm2lo64GQwzn3kpMTxJxp47rfTmFtfWNzq7hd2tnd2z8oHx61tEwUoU0iuVSdAGvKmaBNwynVhRHAWctoPxbea3J1RpJsWDmcbUj/BQsAEj2FjpsRdIHupZK90MuXK27VnQOtEi8nFcjR6Je/eqEkSUSFIRxr3fXc2PgpVoYRTmelXqJpjMkYD2nXUoEjqv10nqGzqwSoFU9giD5urvjRHOotmJyNsRnrZy8T/vG5iBtd+ykScGCrI4qFBwpGRKsAhUxRYvjUEkwUs1kRGWGFibFlWwJ3vKXV0mrVvUuqrX7y0r9Jq+jCdwCufgwRXU4Q4a0AQCp7hFd6cJ+fFeXc+FqMFJ985hj9wPn8AUZCTCw=</latexit>

E = 1 2v2 + ✏

<latexit sha1_base64="jzOFCsiorRPsKtCRoLtEdQaGFuY=">ACB3icbVDLSsNAFJ34rPVdSnIYBEoSR0I1QFMFlBfuAJpbJ9KYdOnkwMymUkJ0bf8WNC0Xc+gvu/BsnbRfaemDgcM653LnHizmTyjS/jYXFpeWV1cJacX1jc2u7tLPbkFEiKNRpxCPR8ogEzkKoK6Y4tGIBJPA4NL3Bde43hyAki8J7NYrBDUgvZD6jRGmpUzq4wZfY8QWhqZWldoaHDzY+wQ7EkvE8UDYr5h4nlhTUkZT1DqlL6cb0SAUFOpGxbZqzclAjFKIes6CQSYkIHpAdtTUMSgHT8R0ZPtJKF/uR0C9UeKz+nkhJIOUo8HQyIKovZ71c/M9rJ8q/cFMWxomCkE4W+QnHKsJ5KbjLBFDFR5oQKpj+K6Z9oktRurqiLsGaPXmeNOyKdVqx787K1atpHQW0jw7RMbLQOaqiW1RDdUTRI3pGr+jNeDJejHfjYxJdMKYze+gPjM8fe36Xzw=</latexit>

p

<latexit sha1_base64="YCRLqY3FYFMPr169IibebwVZHg=">AB6HicbVBNS8NAEJ3Ur1q/qh69LBbBU0mqoMeiF48t2FpoQ9lsJ+3azSbsboQS+gu8eFDEqz/Jm/GbZuDtj4YeLw3w8y8IBFcG9f9dgpr6xubW8Xt0s7u3v5B+fCoreNUMWyxWMSqE1CNgktsGW4EdhKFNAoEPgTj25n/8IRK81jem0mCfkSHkoecUWOlZtIvV9yqOwdZJV5OKpCj0S9/9QYxSyOUhgmqdzE+NnVBnOBE5LvVRjQtmYDrFrqaQRaj+bHzolZ1YZkDBWtqQhc/X3REYjrSdRYDsjakZ62ZuJ/3nd1ITXfsZlkhqUbLEoTAUxMZl9TQZcITNiYglitbCRtRZmx2ZRsCN7y6ukXat6F9Va87JSv8njKMIJnMI5eHAFdbiDBrSAcIzvMKb8+i8O/Ox6K14OQzx/AHzucP2eM+A=</latexit>

✏

<latexit sha1_base64="S940j+PXnpyPoS6EHFdj/RxnHVw=">AB73icbVBNS8NAEJ3Ur1q/qh69LBbBU0mqoMeiF48V7Ae0oWy2k3bpZhN3N0IJ/RNePCji1b/jzX/jts1BWx8MPN6bYWZekAiujet+O4W19Y3NreJ2aWd3b/+gfHjU0nGqGDZLGLVCahGwSU2DTcCO4lCGgUC28H4dua3n1BpHsHM0nQj+hQ8pAzaqzU6WGiuYhlv1xq+4cZJV4OalAjka/NUbxCyNUBomqNZdz02Mn1FlOBM4LfVSjQlYzrErqWSRqj9bH7vlJxZUDCWNmShszV3xMZjbSeRIHtjKgZ6WVvJv7ndVMTXvsZl0lqULFojAVxMRk9jwZcIXMiIklClubyVsRBVlxkZUsiF4y+vklat6l1Ua/eXlfpNHkcRTuAUzsGDK6jDHTSgCQwEPMrvDmPzovz7nwsWgtOPnMf+B8/gBOH5Ak</latexit>

E

<latexit sha1_base64="oW7OyFl8fZOuY5qYrNXg+guGckE=">AB6HicbVDLSgNBEOyNrxhfUY9eBoPgKexGQY9BETwmYB6QLGF20puMmZ1dZmaFEPIFXjwo4tVP8ubfOEn2oIkFDUVN91dQSK4Nq7eTW1jc2t/LbhZ3dvf2D4uFRU8epYthgsYhVO6AaBZfYMNwIbCcKaRQIbAWj25nfekKleSwfzDhBP6IDyUPOqLFS/a5XLldw6ySryMlCBDrVf86vZjlkYoDRNU647nJsafUGU4EzgtdFONCWUjOsCOpZJGqP3J/NApObNKn4SxsiUNmau/JyY0nocBbYzomaol72Z+J/XSU147U+4TFKDki0WhakgJiazr0mfK2RGjC2hTHF7K2FDqigzNpuCDcFbfnmVNCtl76JcqV+WqjdZHk4gVM4Bw+uoAr3UIMGMEB4hld4cx6dF+fd+Vi05pxs5hj+wPn8AZo7jM0=</latexit>

u

<latexit sha1_base64="wnFhQNKUlf0HWa+NJZ/ckTw+BdQ=">AB6HicbVBNS8NAEJ3Ur1q/qh69LBbBU0mqoMeiF48t2FpoQ9lsJ+3azSbsboQS+gu8eFDEqz/Jm/GbZuDtj4YeLw3w8y8IBFcG9f9dgpr6xubW8Xt0s7u3v5B+fCoreNUMWyxWMSqE1CNgktsGW4EdhKFNAoEPgTj25n/8IRK81jem0mCfkSHkoecUWOlZtovV9yqOwdZJV5OKpCj0S9/9QYxSyOUhgmqdzE+NnVBnOBE5LvVRjQtmYDrFrqaQRaj+bHzolZ1YZkDBWtqQhc/X3REYjrSdRYDsjakZ62ZuJ/3nd1ITXfsZlkhqUbLEoTAUxMZl9TQZcITNiYglitbCRtRZmx2ZRsCN7y6ukXat6F9Va87JSv8njKMIJnMI5eHAFdbiDBrSAcIzvMKb8+i8O/Ox6K14OQzx/AHzucP4vuM/Q=</latexit>

u = ⇢✏

<latexit sha1_base64="HQ2fdqdAXxk7nTiJH7EXYnqzJ/s=">AB+nicbVBNSwMxEM36WetXq0cvwSJ4KrtV0ItQ9OKxgv2A7lKy6Wwbmk2WJKuU2p/ixYMiXv0l3vw3Zts9aOuDgcd7M8zMCxPOtHdb2dldW19Y7OwVdze2d3bL5UPWlqmikKTSi5VJyQaOBPQNMxw6CQKSBxyaIejm8xvP4DSTIp7M04giMlAsIhRYqzUK5VTfIV9NZTYh0QznmkVt+rOgJeJl5MKytHolb78vqRpDMJQTrTuem5iglRhlEO06KfakgIHZEBdC0VJAYdTGanT/GJVfo4ksqWMHim/p6YkFjrcRzazpiYoV70MvE/r5ua6DKYMJGkBgSdL4pSjo3EWQ64zxRQw8eWEKqYvRXTIVGEGptW0YbgLb68TFq1qndWrd2dV+rXeRwFdISO0Sny0AWqo1vUQE1E0SN6Rq/ozXlyXpx352PeuLkM4foD5zPH1Dlk2Y=</latexit>

Continuity equation Momentum equation Energy equation

Gas density Gas velocity Gas pressure Gas specific internal energy Gas specific total energy Gas internal energy Gravitational Potential

Φ

<latexit sha1_base64="SIWhw4cDOJI1oTS6WRyjqImg48=">AB63icbVBNS8NAEJ3Ur1q/qh69LBbBU0lqQY9FLx4r2A9oQ9lsN83S3U3Y3Qgl9C948aCIV/+QN/+NmzYHbX0w8Hhvhpl5QcKZNq7ZQ2Nre2d8q7lb39g8Oj6vFJV8epIrRDYh6rfoA15UzSjmG036iKBYBp71gepf7vSeqNIvlo5kl1Bd4IlnICDa5NGxHbFStuXV3AbROvILUoEB7VP0ajmOSCioN4Vjrgecmxs+wMoxwOq8MU0TKZ4QgeWSiyo9rPFrXN0YZUxCmNlSxq0UH9PZFhoPROB7RTYRHrVy8X/vEFqwhs/YzJDZVkuShMOTIxyh9HY6YoMXxmCSaK2VsRibDCxNh4KjYEb/XldJt1L2reuOhWvdFnGU4QzO4RI8uIYW3EMbOkAgmd4hTdHOC/Ou/OxbC05xcwp/IHz+QPkB4j</latexit>

29

NA School: Comp. Astrophysical Fluid Dynamics, Sep 4-6, 2019, IoA, NTHU

29

Dρ Dt = ρr · v

<latexit sha1_base64="XWGg/YIP960Xj+XSUftyMCGQ+zw=">ACEnicbVDLSgMxFM3UV62vqks3QVF0YZmpC10oFHThUsFqoTOUTJpQzPJkNwRyjDf4MZfcSOoiFtX7vwHf0EwbV1o9cCFk3PuJfeMBHcgOu+O4WJyanpmeJsaW5+YXGpvLxyaVSqKatTJZRuhMQwSWrAwfBGolmJA4Fuwp7xwP/6pw5W8gH7Cgph0JI84JWClVnHjzSh2Qn2dVfl2Qnk+AjvDl/YlyQUBPu0rQBft8obsUdAv8l3jfZqO01Hj63I+zVvnNbyuaxkwCFcSYpucmEGREA6eC5SU/NSwhtEc6rGmpJDEzQTY8KcebVmnjSGlbEvBQ/TmRkdiYfhzazphA14x7A/E/r5lCdBkXCYpMElH0WpwKDwIB/c5pREH1LCNXc7opl9iMwKZYsiF4yf/JZfVirdXqZ7bNA7RCEW0htbRNvLQPqhU3SG6oiG3SHtGTc+vcO8/Oy6i14HzPrKJfcF6/AFjgoFQ=</latexit>

Dv Dt = rp ρ rΦ

<latexit sha1_base64="KMaxiNV+HTEsLcbDK8vQA3d107M=">ACH3icbZC7SgNBFIZn4y3G26qlzWAQbAy7ETSFQsAUlhHMBbIhzE5mkyGzs8vMbCAsW4oPYGNh46vYCoidil8FydZC038YeDnO+dw5vxuyKhUljU2MguLS8sr2dXc2vrG5pa5vVOXQSQwqeGABaLpIkY5aSmqGKkGQqCfJeRhju4mNQbQyIkDfi1GoWk7aMepx7FSGnUMU8cTyAcV+AwiSsqgefwCKbI4chlCIZJ7Ih+kEx4Spxqn3bMvFWwpoLzxv4x+XLp5eb27u+2jE/nW6AI59whRmSsmVboWrHSCiKGUlyTiRJiPA9UhLW458Itvx9L4EHmjShV4g9OMKTunviRj5Uo58V3f6SPXlbG0C/6u1IuWV2jHlYaQIx+kiL2JQBXASFuxSQbBiI20QFlT/FeI+0ukoHWlOh2DPnjxv6sWCfVwoXuk0zkCqLNgD+AQ2OAUlMElqIawOABPIFX8GY8Gs/Gu/GRtmaMn5ld8EfG+BsnyKY2</latexit>

Du Dt = (u + p)r · v

<latexit sha1_base64="VvmBZsbkZA95ka5N4zIxg/Byu6Y=">ACEHicbVDLSsNAFJ3UV62vqEs3g8UXYknahS4UBLtwWcFqoQlMp3YoZNJmLkplNBPcOvuHGhiFuX7vwHf0Fw2rQ6oELh3Pu5d57gkRwDY7zbuWmpmdm5/LzhYXFpeUVe3XtSsepoqxOYxGrRkA0E1yOnAQrJEoRqJAsOugezb0r3tMaR7LS+gnzI/IjeQhpwSM1LJ3vFARmlVxOsiqMAn+ADvpvJHvYkCQTBHm3HgHstu+iUnBHwX+J+k+JpfH0ue181Fr2m9eOaRoxCVQrZuk4CfEQWcCjYoeKlmCaFdcsOahkoSMe1no4cGeMsobRzGypQEPFJ/TmQk0rofBaYzItDRk95Q/M9rphAe+RmXSQpM0vGiMBUYjxMB7e5YhRE3xBCFTe3YtohJiEwGRZMCO7ky3/JVbnkVkrlC5PGMRojzbQJtpFLjpEp+gc1VAdUXSL7tEjerLurAfr2XoZt+as75l19AvW6xevmp7M</latexit>

SLIDE 30

Equation of State (EoS)

Need an Equation of State to close system

f equations.

P = (γ − 1)u = nkBT

<latexit sha1_base64="eOZN7/QnC+5wlAF9e3aRLmbmYIw=">AC3icbVC7SgNBFJ2Nrxhfq5Y2Q4IQC8NuFLQRQmwsI+QF2WZnUySITOzy8ysEJb0Nv6KjYUitv6AnX/jJNlCEw9cOJxzL/feE8aMKu0431ZubX1jcyu/XdjZ3ds/sA+P2ipKJCYtHLFIdkOkCKOCtDTVjHRjSRAPGemE49uZ3kgUtFINPUkJj5HQ0EHFCNtpMAuNuANLHtDxDmC5+4ZTKARBwHqSc5rE9hM7BLTsWZA64SNyMlkKER2F9eP8IJ0JjhpTquU6s/RJTEj04KXKBIjPEZD0jNUIE6Un85/mcJTo/ThIJKmhIZz9fdEirhSEx6aTo70SC17M/E/r5fowbWfUhEnmgi8WDRIGNQRnAUD+1QSrNnEIQlNbdCPEISYW3iK5gQ3OWXV0m7WnEvKtX7y1KtnsWRByegCMrABVegBu5A7QABo/gGbyCN+vJerHerY9Fa87KZo7BH1ifP4Ool5E=</latexit>

For ideal gas,

n = ρ/m

<latexit sha1_base64="qtGP7GEczl1KYbaQhXwc1aESDW8=">AB83icbVDLSgNBEOz1GeMr6tHLYBA8xd0o6EUIevEYwTwgu4TZyWwyZB7LzKwQn7DiwdFvPoz3vwbJ8keNLGgoajqprsrTjkz1ve/vZXVtfWNzcJWcXtnd2+/dHDYNCrThDaI4kq3Y2woZ5I2LOctlNsYg5bcXDu6nfeqLaMCUf7SilkcB9yRJGsHVSKNENCvVAoXMkuqWyX/FnQMskyEkZctS7pa+wp0gmqLSEY2M6gZ/aIy1ZYTSTHMDE0xGeI+7TgqsaAmGs9unqBTp/RQorQradFM/T0xsKYkYhdp8B2YBa9qfif18lsch2NmUwzSyWZL0oyjqxC0wBQj2lKLB85golm7lZEBlhjYl1MRdCsPjyMmlWK8FpfpwWa7d5nEU4BhO4AwCuIa3EMdGkAghWd4hTcv8168d+9j3ri5TNH8Afe5w8K65Bi</latexit>

T

<latexit sha1_base64="wuUeoCr40AnIpr753sXM0828Vs=">AB6HicbVDLSgNBEOyNrxhfUY9eBoPgKexGQY9BLx4TyAuSJcxOepMxs7PLzKwQr7AiwdFvPpJ3vwbJ8keNLGgoajqprsrSATXxnW/ndzG5tb2Tn63sLd/cHhUPD5p6ThVDJsFrHqBFSj4BKbhuBnUQhjQKB7WB8P/fbT6g0j2XDTBL0IzqUPOSMGivVG/1iyS27C5B14mWkBlq/eJXbxCzNEJpmKBadz03Mf6UKsOZwFmhl2pMKBvTIXYtlTRC7U8Xh87IhVUGJIyVLWnIQv09MaWR1pMosJ0RNSO96s3F/7xuasJbf8plkhqUbLkoTAUxMZl/TQZcITNiYglitbCRtRZmx2RsCN7qy+ukVSl7V+VK/bpUvcviyMZnMleHADVXiAGjSBAcIzvMKb8+i8O/Ox7I152Qzp/AHzucPsPeM3A=</latexit>

kB

<latexit sha1_base64="ul8eZvR3x12+KNVYgJMyL7K3anM=">AB8HicbVDLSgNBEOz1GeMr6tHLYBA8hd0o6DHEi8cI5iHJEmYns8mQeSwzs0JY8hVePCji1c/x5t84SfagiQUNRVU3V1Rwpmxv/tra1vbG5tF3aKu3v7B4elo+OWUakmtEkUV7oTYUM5k7RpmeW0k2iKRcRpOxrfzvz2E9WGKflgJwkNBR5KFjOCrZMex/2spwWqT/ulsl/x50CrJMhJGXI0+qWv3kCRVFBpCcfGdAM/sWGtWE02mxlxqaYDLGQ9p1VGJBTZjND56ic6cMUKy0K2nRXP09kWFhzERErlNgOzL3kz8z+umNr4JMyaT1FJFovilCOr0Ox7NGCaEsnjmCimbsVkRHWmFiXUdGFECy/vEpa1UpwWaneX5Vr9TyOApzCGVxANdQgztoQBMICHiGV3jztPfivXsfi9Y1L585gT/wPn8Ag4WQNw=</latexit>

γ = Cv/Cp

<latexit sha1_base64="wAL2V/u2MDADs8pDmW4L0nr6jxA=">AB+3icbVDLSsNAFL3xWesr1qWbwSK4qkVdCMUu3FZwT6gDWEynbRDZ5IwMymW0F9x40IRt/6IO/GaZuFth64l8M59zJ3TpBwprTjfFtr6xubW9uFneLu3v7BoX1Uaqk4lYQ2Scxj2QmwopxFtKmZ5rSTSIpFwGk7GNVnfntMpWJx9KgnCfUEHkQsZARrI/l2qTfAQmB0i+r+GF2Ynvh2ak4c6BV4uakDkav3V68ckFTShGOluq6TaC/DUjPC6bTYSxVNMBnhAe0aGmFBlZfNb5+iM6P0URhLU5FGc/X3RoaFUhMRmEmB9VAtezPxP6+b6vDGy1iUpJpGZPFQmHKkYzQLAvWZpETziSGYSGZuRWSIJSbaxFU0IbjLX14lrWrFvaxUH67Ktbs8jgKcwCmcgwvXUIN7aEATCDzBM7zCmzW1Xqx362MxumblO8fwB9bnD5Uktg=</latexit>

Number density Temperature Boltzmann constant Adiabatic index

Isothermal EoS:
Polytropic EoS:

γ = 1

<latexit sha1_base64="EXuTpgLwT1Fyd1lq0N1a4yzTmlE=">AB8XicbVDLSgNBEOz1GeMr6tHLYBA8hd0o6EUIevEYwTwWULvZJIMmZldZmaFEPIXjwo4tW/8ebfOEn2oIkFDUVN91dUSK4sb7/7a2srq1vbOa28ts7u3v7hYPDuolTVmNxiLWzQgNE1yxmuVWsGaiGcpIsEY0vJ36jSemDY/Vgx0lLJTYV7zHKVonPb7KCWSaxJ0CkW/5M9AlkmQkSJkqHYKX+1uTFPJlKUCjWkFfmLDMWrLqWCTfDs1LE6xD5rOapQMhOZxdPyKlTuqQXa1fKkpn6e2KM0piRjFynRDswi95U/M9rpbZ3FY65SlLFJ0v6qWC2JhM3ydrhm1YuQIUs3drYQOUCO1LqS8CyFYfHmZ1Mul4LxUvr8oVm6yOHJwDCdwBgFcQgXuoAo1oKDgGV7hzTPei/fufcxbV7xs5gj+wPv8AS5Jj+8=</latexit>

P = Kργ

<latexit sha1_base64="eQ6/ufHGfmgA/TtXMTMLizFAYrE=">AB/HicbVDLSsNAFJ3UV62vaJduBovgqiRV0I1QdCO4qWAf0MQymU7bofMIMxMhPorblwo4tYPcefOG2z0NYDFw7n3Mu90Qxo9p43rdTWFldW98obpa2tnd29z9g5aWicKkiSWTqhMhTRgVpGmoYaQTK4J4xEg7Gl9P/fYjUZpKcW/SmIQcDQUdUIyMlXpuQEv4S0M1Eg+ZMEQcY4mPbfiVb0Z4DLxc1IBORo9yvoS5xwIgxmSOu78UmzJAyFDMyKQWJjHCYzQkXUsF4kSH2ez4CTy2Sh8OpLIlDJypvycyxLVOeWQ7OTIjvehNxf+8bmIGF2FGRZwYIvB80SBh0Eg4TQL2qSLYsNQShBW1t0I8QgphY/Mq2RD8xZeXSatW9U+rtbuzSv0qj6MIDsEROAE+OAd1cAMaoAkwSMEzeAVvzpPz4rw7H/PWgpPlMEfOJ8/a/KT/w=</latexit>

P = ρc2

s

<latexit sha1_base64="u+kl/NYXWu6FvUj0cf7aw1uDF8=">AB9XicbVBNSwMxEJ2tX7V+VT16CRbBU9mtBb0IRS8eK9gPaLclm2b0GyJFmlLP0fXjwo4tX/4s1/Y9ruQVsfDzem2FmXhBzpo3rfju5tfWNza38dmFnd2/oHh41NQyUYQ2iORStQOsKWeCNgwznLZjRXEUcNoKxrczv/VIlWZSPJhJTP0IDwULGcHGSr06ukZdNZKI9HWv0i+W3LI7B1olXkZKkKHeL351B5IkERWGcKx1x3Nj46dYGUY4nRa6iaYxJmM8pB1LBY6o9tP51VN0ZpUBCqWyJQyaq78nUhxpPYkC2xlhM9L3kz8z+skJrzyUybixFBFovChCMj0SwCNGCKEsMnlmCimL0VkRFWmBgbVMG4C2/vEqalbJ3Ua7cV0u1myOPJzAKZyDB5dQgzuoQwMIKHiGV3hznpwX5935WLTmnGzmGP7A+fwBwGWRYQ=</latexit>

30

NA School: Comp. Astrophysical Fluid Dynamics, Sep 4-6, 2019, IoA, NTHU

30

SLIDE 31

Finite Volume Method

See Hsi-Yu Schive’s lecture tomorrow

31

NA School: Comp. Astrophysical Fluid Dynamics, Sep 4-6, 2019, IoA, NTHU

31

U n

ij

<latexit sha1_base64="gK7IVhyN3zF/iHcSzEsND8KB1qk=">AB73icbVBNTwIxEJ3FL8Qv1KOXRmLieyiR6JXjxi4gIJrKRbulBpu2vbNSEb/oQXDxrj1b/jzX9jgT0o+JXt6bycy8MOFMG9f9dgorq2vrG8XN0tb2zu5ef+gqeNUEeqTmMeqHWJNOZPUN8xw2k4UxSLktBWOrqd+64kqzWJ5Z8YJDQeSBYxgo2V2n4vYw+Te9krV9yqOwNaJl5OKpCj0St/dfsxSQWVhnCsdcdzExNkWBlGOJ2UuqmCSYjPKAdSyUWVAfZ7N4JOrFKH0WxsiUNmqm/JzIstB6L0HYKbIZ60ZuK/3md1ESXQcZkhoqyXxRlHJkYjR9HvWZosTwsSWYKGZvRWSIFSbGRlSyIXiLy+TZq3qnVrt+eV+lUeRxGO4BhOwYMLqMNMAHAhye4RXenEfnxXl3PuatBSefOYQ/cD5/AD1BkBk=</latexit>

U n

i+1,j

<latexit sha1_base64="14fQIyOPEh8OtAnLv1WvEHG9tpQ=">AB8nicbVBNSwMxEM3Wr1q/qh69BIsgKGW3CnosevFYwW0L27Vk07SNzSZLMiuUpT/DiwdFvPprvPlvTNs9aPXBwO9GWbmRYngBlz3yksLa+srhXSxubW9s75d29plGpsynSijdjohgkvmAwfB2olmJI4Ea0Wj6nfemTacCXvYJywMCYDyfucErBS4HczfuKdPkzuZbdcavuDPgv8XJSQTka3fJnp6doGjMJVBjAs9NIMyIBk4Fm5Q6qWEJoSMyYIGlksTMhNns5Ak+skoP95W2JQHP1J8TGYmNGceR7YwJDM2iNxX/84IU+pdhxmWSApN0vqifCgwKT/HPa4ZBTG2hFDN7a2YDokmFGxKJRuCt/jyX9KsVb2zau32vFK/yuMogN0iI6Rhy5QHd2gBvIRQo9oRf06oDz7Lw57/PWgpP7KNfcD6+AYG7kL8=</latexit>

U n

i−1,j

<latexit sha1_base64="Ik9ksjKjDudGkwQVWgjoWaSGx4=">AB8nicbVBNSwMxEM3Wr1q/qh69BIvgQctuFfRY9OKxgtsWtmvJpmkbm02WZFYoS3+GFw+KePXePfmLZ70OqDgcd7M8zMixLBDbjul1NYWl5ZXSulzY2t7Z3yrt7TaNSTZlPlVC6HRHDBJfMBw6CtRPNSBwJ1opG1O/9ci04UrewThYUwGkvc5JWClwO9m/NQ7eZjcy2654lbdGfBf4uWkgnI0uXPTk/RNGYSqCDGBJ6bQJgRDZwKNil1UsMSQkdkwAJLJYmZCbPZyRN8ZJUe7itSwKeqT8nMhIbM4j2xkTGJpFbyr+5wUp9C/DjMskBSbpfFE/FRgUnv6Pe1wzCmJsCaGa21sxHRJNKNiUSjYEb/Hlv6RZq3pn1drteaV+lcdRAfoEB0jD12gOrpBDeQjihR6Qi/o1QHn2Xlz3uetBSef2Ue/4Hx8A4TPkME=</latexit>

U n

i,j−1

<latexit sha1_base64="s5aJj7/dOVSbFtHIJ9M0a6eiyWU=">AB8nicbVBNSwMxEM3Wr1q/qh69BIvgQctuFfRY9OKxgtsWtmvJpmkbm02WZFYoS3+GFw+KePXePfmLZ70OqDgcd7M8zMixLBDbjul1NYWl5ZXSulzY2t7Z3yrt7TaNSTZlPlVC6HRHDBJfMBw6CtRPNSBwJ1opG1O/9ci04UrewThYUwGkvc5JWClwO9m/OTh1Jvcy2654lbdGfBf4uWkgnI0uXPTk/RNGYSqCDGBJ6bQJgRDZwKNil1UsMSQkdkwAJLJYmZCbPZyRN8ZJUe7itSwKeqT8nMhIbM4j2xkTGJpFbyr+5wUp9C/DjMskBSbpfFE/FRgUnv6Pe1wzCmJsCaGa21sxHRJNKNiUSjYEb/Hlv6RZq3pn1drteaV+lcdRAfoEB0jD12gOrpBDeQjihR6Qi/o1QHn2Xlz3uetBSef2Ue/4Hx8A4U/kME=</latexit>

U n

i,j+1

<latexit sha1_base64="aw9XeJp3+oTa5DocfJGE0Ps3FhI=">AB8nicbVBNSwMxEM3Wr1q/qh69BIsgKGW3CnosevFYwW0L27Vk07SNzSZLMiuUpT/DiwdFvPprvPlvTNs9aPXBwO9GWbmRYngBlz3yksLa+srhXSxubW9s75d29plGpsynSijdjohgkvmAwfB2olmJI4Ea0Wj6nfemTacCXvYJywMCYDyfucErBS4Hczfvpw4k3uZbdcavuDPgv8XJSQTka3fJnp6doGjMJVBjAs9NIMyIBk4Fm5Q6qWEJoSMyYIGlksTMhNns5Ak+skoP95W2JQHP1J8TGYmNGceR7YwJDM2iNxX/84IU+pdhxmWSApN0vqifCgwKT/HPa4ZBTG2hFDN7a2YDokmFGxKJRuCt/jyX9KsVb2zau32vFK/yuMogN0iI6Rhy5QHd2gBvIRQo9oRf06oDz7Lw57/PWgpP7KNfcD6+AYIvkL8=</latexit>

Initial conditions of all

hydrodynamics variables at time step n=0 (a given EoS)

Boundary conditions at

simulation boundaries

Evolve hydrodynamics

variables with a time step dt

SLIDE 32

FLASH Code

32

NA School: Comp. Astrophysical Fluid Dynamics, Sep 4-6, 2019, IoA, NTHU

32

SLIDE 33

FLASH Code: summary

3D AMR HD/MHD multi-physics code
Mainly developed at FLASH center at University of

Chicago (http://flash.uchicago.edu)

Contribution from many individual groups
Written principally in Fortran, with some C and Python (>

1 million lines; 25% are comments)

Current release version 4.6.1
> 700 scientists around the world
> 1000 publications

33

NA School: Comp. Astrophysical Fluid Dynamics, Sep 4-6, 2019, IoA, NTHU

33

SLIDE 34

FLASH Code: Requirements

Fortran compiler
MPI - Message Passing Interface
HDF5 - Hierarchical Data Format

34

NA School: Comp. Astrophysical Fluid Dynamics, Sep 4-6, 2019, IoA, NTHU

34

SLIDE 35

FLASH Code: research applications

Thermonuclear flashes
High energy density physics (HEDP)
Fluid—structure interaction
Star formation
Star-star & Star-plantets interactions
Core-collapse supernova
Galaxy-galaxy cluster
Magnetic field amplification
Turbulence
Cosmology
… (more)

35

NA School: Comp. Astrophysical Fluid Dynamics, Sep 4-6, 2019, IoA, NTHU

35

SLIDE 36

FLASH Code: Physic solvers

Hydrodynamics: unspilt PPM, WENO; split PPM; 2T + Radiation
Magneto-hydrodynamics (MHD): unspilt staggered mesh; split 8-wave
Equation of State (EoS): idea gas; degenerate ionized plasma; nuclear,..
Radiation Transfer: multi-group flux-limited diffusion
Diffusion and Conduction: implicit with AMR
Laser Energy Deposition: geometric optics with inverse Bremsstrahlung
Opacity: constant; multi-material tabular
Particles: tracer; massive; sink; charged
Nuclear Burning
Gravity: constant; point mass; planar; self-gravity
Cosmology
Heating and Cooling as source terms
Magnetic Resistivity; Conductivity
Primordial Chemistry

36

NA School: Comp. Astrophysical Fluid Dynamics, Sep 4-6, 2019, IoA, NTHU

36

SLIDE 37

FLASH Code: Physic solvers

Hydrodynamics: unspilt PPM, WENO; split PPM; 2T + Radiation
Magneto-hydrodynamics (MHD): unspilt staggered mesh; split 8-wave
Equation of State (EoS): idea gas; degenerate ionized plasma; nuclear,..
Radiation Transfer: multi-group flux-limited diffusion
Diffusion and Conduction: implicit with AMR
Laser Energy Deposition: geometric optics with inverse Bremsstrahlung
Opacity: constant; multi-material tabular
Particles: tracer; massive; sink; charged
Nuclear Burning
Gravity: constant; point mass; planar; self-gravity
Cosmology
Heating and Cooling as source terms
Magnetic Resistivity; Conductivity
Primordial Chemistry

37

NA School: Comp. Astrophysical Fluid Dynamics, Sep 4-6, 2019, IoA, NTHU

37

SLIDE 38

FLASH Code: Infrastructure

Driver: split; unsplit
Grid: uniform Grid; Adaptive Mesh Refinement (AMR)
GridParticles: Lagrangian framework
GridSolvers: multigrid; multipole; Barnes-Hut Tree; PFFT; direct solvers
IO: Hierarchical Data Format 5 (HDF5); PnetCDF
Multispecies
Runtime parameters
Monitor: MPI Timers; Hooks for TAU

38

NA School: Comp. Astrophysical Fluid Dynamics, Sep 4-6, 2019, IoA, NTHU

38 Block structure PARAMESH AMR

SLIDE 39

39

NA School: Comp. Astrophysical Fluid Dynamics, Sep 4-6, 2019, IoA, NTHU

39 See the afternoon lectures for data analysis and visualization

SLIDE 40

FLASH Code: research applications

Highly modular (setup.py)

40

NA School: Comp. Astrophysical Fluid Dynamics, Sep 4-6, 2019, IoA, NTHU

40

SLIDE 41

FLASH Code: Simulation Domain

AMR

41

NA School: Comp. Astrophysical Fluid Dynamics, Sep 4-6, 2019, IoA, NTHU

41 Leaf blocks (blockID)

SLIDE 42

FLASH Code: Simulation Domain

Blocks

42

NA School: Comp. Astrophysical Fluid Dynamics, Sep 4-6, 2019, IoA, NTHU

42

The grid is composed of

blocks

FLASH4: all blocks are of same

size

May cover different fractions of

the physical domain, depending on a block's resolution

Data storage area for each

block reserves space for some layers of guard cells

Size of guard cells can be

changed by putting a line “GUARDCELLS 6" in the Config file. Default is 4.

SLIDE 43

FLASH Code: Variables

Density: DENS_VAR
Velocities: VELX_VAR, VELY_VAR, VELZ_VAR
Temperature: TEMP_VAR
Pressure: PRES_VAR
Specific internal energy: EINT_VAR

43

NA School: Comp. Astrophysical Fluid Dynamics, Sep 4-6, 2019, IoA, NTHU

43

SLIDE 44

Simulations

All sample simulations can be found in

FLASH/source/Simulation/SimulationMain/

A simulation requires the following 5 files:
Config
Makefile:
Simulation_data.F90
Simulation_init.F90
Simulation_initBlock.F90

44

NA School: Comp. Astrophysical Fluid Dynamics, Sep 4-6, 2019, IoA, NTHU

44

SLIDE 45

Design a FLASH simulation

All sample simulations can be found in

FLASH/source/Simulation/SimulationMain/

A simulation requires the following 5 files:
Config
Makefile:
Simulation_data.F90
Simulation_init.F90
Simulation_initBlock.F90

45

NA School: Comp. Astrophysical Fluid Dynamics, Sep 4-6, 2019, IoA, NTHU

45

SLIDE 46

A simple explosion simulation

46

NA School: Comp. Astrophysical Fluid Dynamics, Sep 4-6, 2019, IoA, NTHU

46

SLIDE 47

The initial condition

47

NA School: Comp. Astrophysical Fluid Dynamics, Sep 4-6, 2019, IoA, NTHU

47

“reflect” BC. “reflect” BC. “reflect” BC. “reflect” BC. 1 1

ρ = 1

<latexit sha1_base64="JCvtLRoZBpCa8LUzX8wF/w/+pk=">AB7XicbVC7SgNBFL0bXzG+opaKDAbBKuzGQhshaGOZgHlAsoTZyWwyOjuzMwKYUlpb2OhiK2/kO+w8xv8CSePQhMPXDicy/3hPEnGnjul9OZml5ZXUtu57b2Nza3snv7tW1TBShNSK5VM0Aa8qZoDXDKfNWFEcBZw2gvrsd94oEozKW7NIKZ+hHuChYxgY6V6W/XlpdfJF9yiOwFaJN6MFMqHo+r349Go0sl/truSJBEVhnCsdctzY+OnWBlGOB3m2omMSb3uEdblgocUe2nk2uH6MQqXRKZUsYNF/T6Q40noQBbYzwqav572x+J/XSkx4adMxImhgkwXhQlHRqLx6jLFCWGDyzBRDF7KyJ9rDAxNqCcDcGbf3mR1EtF76xYqto0rmCKLBzAMZyCB+dQhuoQA0I3METvMCrI51n5815n7ZmnNnMPvyB8/EDAh2SdA=</latexit>

v = 0

<latexit sha1_base64="g18QO7yHWlq3nN/t0rXb1kL0ck=">AB+XicbVDLSgMxFL3js46vUZdugkVwVWbqQjfFohuXFewD2qFkMmkbmskMSaZQhv6JGxF3PoR7t2If2Om7UJbD4QczrmXnJwg4Uxp1/2VlbX1jc2C1v29s7u3r5zcNhQcSoJrZOYx7IVYEU5E7Sumea0lUiKo4DTZjC8yf3miErFYnGvxwn1I9wXrMcI1kbqOk4niHmoxpG5stGk4nadoltyp0DLxJuT4tWHXUmevuxa1/nshDFJIyo04Viptucm2s+w1IxwOrE7qaIJkPcp21DBY6o8rNp8gk6NUqIerE0R2g0VX9vZDhSeTgzGWE9UIteLv7ntVPdu/QzJpJU0FmD/VSjnSM8hpQyCQlmo8NwUQykxWRAZaYaFOWbUrwFr+8TBrlkndeKt+5xeo1zFCAYziBM/DgAqpwCzWoA4ERPMAzvFiZ9Wi9Wm+z0RVrvnMEf2C9/wAkepb6</latexit>

✏in = 1

<latexit sha1_base64="A151GQzafv1BQMPpkGFQCPVwUA=">AB/nicbZC7SgNBFIZnvcZ4WxVtbAaDYBV2Y6GNEGJjmYC5QHYJs5OzyZDZ2WVmVghLwFexsVCrQ/gE9jZ+CxOLoUm/jDw8Z9zOGf+IOFMacf5slZW19Y3NnNb+e2d3b19+CwoeJUqjTmMeyFRAFnAmoa6Y5tBIJAo4NIPB7aTefACpWCzu9TABPyI9wUJGiTZWxz72IFGMG8w8GWEmRvgGux274BSdqfAyuHMolE9q32xc+ah27E+vG9M0AqEpJ0q1XSfRfkakZpTDKO+lChJCB6QHbYOCRKD8bHr+CJ8bp4vDWJonNJ6vycyEik1jALTGRHdV4u1iflfrZ3q8NrPmEhSDYLOFoUpxzrGkyxwl0mgmg8NECqZuRXTPpGEapNY3oTgLn5GRqlontZLNVMGhU0Uw6dojN0gVx0hcroDlVRHVGUoSf0gl6tR+vZGltvs9YVaz5zhP7Iev8BMoaYqw=</latexit>

✏out = 10−5

<latexit sha1_base64="0JCFwj1wgaiB8eilSviOJcOPhzY=">ACBXicbZC7SgNBFIZn4y3G26pgo8VgEGwMuxHRgixsUzAXC7htnJBkyM7vMzAph2cbGV7FJoYitjU9gZ+OzOLkUGv1h4OM/53Dm/EHEqNKO82lFhaXleyq7m19Y3NLXt7p67CWGJSwyELZTNAijAqSE1TzUgzkgTxgJFGMLga1xt3RCoaihs9jIjPU/QLsVIG6tH3gkUpQZTDzJYRjrF5C17lNTs7Stp13Cs5E8C+4M8iX9qpfdFR+r7TtD68T4pgToTFDSrVcJ9J+gqSmJE058WKRAgPUI+0DArEifKTyRUpPDJOB3ZDaZ7QcOL+nEgQV2rIA9PJke6r+drY/K/WinX3wk+oiGJNBJ4u6sYM6hCOI4EdKgnWbGgAYUnNXyHuI4mwNsHlTAju/Ml/oV4suKeFYtWkUQZTZcE+OATHwAXnoASuQXUAb34BE8gWfrwRpZL9brtDVjzWZ2wS9Zb98cApta</latexit>

SLIDE 48

Config

48

NA School: Comp. Astrophysical Fluid Dynamics, Sep 4-6, 2019, IoA, NTHU

48

SLIDE 49

Using a Flash Unit

49

NA School: Comp. Astrophysical Fluid Dynamics, Sep 4-6, 2019, IoA, NTHU

49

REQUIRES physics/EoS
Default: physics/Eos/EosMain/Gamma

SLIDE 50

Makefile

50

NA School: Comp. Astrophysical Fluid Dynamics, Sep 4-6, 2019, IoA, NTHU

50

SLIDE 51

Simulation_data.F90

51

NA School: Comp. Astrophysical Fluid Dynamics, Sep 4-6, 2019, IoA, NTHU

51

SLIDE 52

Simulation_init.F90

52

NA School: Comp. Astrophysical Fluid Dynamics, Sep 4-6, 2019, IoA, NTHU

52

SLIDE 53

Simulation_init.F90

53

NA School: Comp. Astrophysical Fluid Dynamics, Sep 4-6, 2019, IoA, NTHU

53

SLIDE 54

Simulation_initBlock.F90

54

NA School: Comp. Astrophysical Fluid Dynamics, Sep 4-6, 2019, IoA, NTHU

54

SLIDE 55

Simulation_initBlock.F90

55

NA School: Comp. Astrophysical Fluid Dynamics, Sep 4-6, 2019, IoA, NTHU

55

SLIDE 56

Setup the Simulation

56

NA School: Comp. Astrophysical Fluid Dynamics, Sep 4-6, 2019, IoA, NTHU

56

A machine depend Makefile.h

SLIDE 57

Setup the Simulation

57

NA School: Comp. Astrophysical Fluid Dynamics, Sep 4-6, 2019, IoA, NTHU

57

Run a setup script

A simple example A more complicated example

SLIDE 58

Setup the Simulation

58

NA School: Comp. Astrophysical Fluid Dynamics, Sep 4-6, 2019, IoA, NTHU

58

SLIDE 59

Setup shortcuts

59

NA School: Comp. Astrophysical Fluid Dynamics, Sep 4-6, 2019, IoA, NTHU

59

SLIDE 60

Setup shortcuts (continues)

60

NA School: Comp. Astrophysical Fluid Dynamics, Sep 4-6, 2019, IoA, NTHU

60

SLIDE 61

Compile source codes

61

NA School: Comp. Astrophysical Fluid Dynamics, Sep 4-6, 2019, IoA, NTHU

61

An object/ folder will be generated

SLIDE 62

Run Flash

62

NA School: Comp. Astrophysical Fluid Dynamics, Sep 4-6, 2019, IoA, NTHU

62

Requires

the executable file flash4 and the runtime parameter file flash.par

SLIDE 63

Runtime Parameters (flash.par)

63

NA School: Comp. Astrophysical Fluid Dynamics, Sep 4-6, 2019, IoA, NTHU

63

SLIDE 64

Runtime Parameters

64

NA School: Comp. Astrophysical Fluid Dynamics, Sep 4-6, 2019, IoA, NTHU

64

SLIDE 65

Runtime Parameters

65

NA School: Comp. Astrophysical Fluid Dynamics, Sep 4-6, 2019, IoA, NTHU

65

SLIDE 66

Outputs

66

NA School: Comp. Astrophysical Fluid Dynamics, Sep 4-6, 2019, IoA, NTHU

66

my_sim.log
my_sim.dat
my_sim_hdf5_chk_*
my_sim_hdf5_plt_cnt_*

SLIDE 67

67

NA School: Comp. Astrophysical Fluid Dynamics, Sep 4-6, 2019, IoA, NTHU

67 See the afternoon lectures for data analysis and visualization

SLIDE 68

Runtime parameters documentation

http://flash.uchicago.edu/site/flashcode/

user_support/rpDoc_4p61.py

68

NA School: Comp. Astrophysical Fluid Dynamics, Sep 4-6, 2019, IoA, NTHU

68

SLIDE 69

FLASH API

http://flash.uchicago.edu/site/flashcode/

user_support/robodoc-FLASH4_4p61/

69

NA School: Comp. Astrophysical Fluid Dynamics, Sep 4-6, 2019, IoA, NTHU

69

SLIDE 70

Happy coding!

70

NA School: Comp. Astrophysical Fluid Dynamics, Sep 4-6, 2019, IoA, NTHU

70
