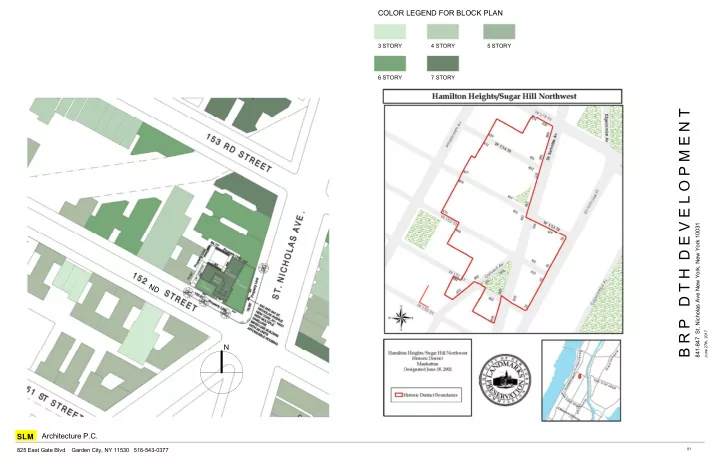

COLOR LEGEND FOR BLOCK PLAN 3 STORY 4 STORY 5 STORY 6 STORY 7 STORY B R P D T H D E V E L O P M E N T 841-847 St. Nicholas Ave New York, New York 10031 ND June 27th, 2017 N Architecture P.C. SLM 825 East Gate Blvd Garden City, NY

slide-1
SLIDE 1

3 STORY

COLOR LEGEND FOR BLOCK PLAN

6 STORY 4 STORY 7 STORY 5 STORY

ND SLM

825 East Gate Blvd Garden City, NY 11530 516-543-0377

Architecture P.C.

B R P D T H D E V E L O P M E N T

841-847 St. Nicholas Ave New York, New York 10031

June 27th, 2017 01

N

slide-2
SLIDE 2

SLM

825 East Gate Blvd Garden City, NY 11530 516-543-0377

Architecture P.C.

B R P D T H D E V E L O P M E N T

841-847 St. Nicholas Ave New York, New York 10031

June 27th, 2017 02

VIEW OF ORIGNIAL RESIDENCE

APPROXIMATELY 1940

VIEW OF ORIGNIAL RESIDENCE

APPROXIMATELY 1940

VIEW OF EXISTING SITE

Saint Nicholas Avenue 2017

LOOKING NORTH ON ST. NICHOLAS AVENUE

Saint Nicholas Avenue 2017

slide-3
SLIDE 3

SLM

825 East Gate Blvd Garden City, NY 11530 516-543-0377

Architecture P.C.

B R P D T H D E V E L O P M E N T

841-847 St. Nicholas Ave New York, New York 10031

June 27th, 2017 03

VIEW FROM ST. NICHOLAS AND 152ND VIEW OF SITE TODAY VIEW LOOKING EAST ON 152ND 889 ST. NICHOLAS & 155TH VIEW LOOKING WEST ON 153RD & ST. NICHOLAS VIEW LOOKING WEST ON 153RD

slide-4
SLIDE 4

SLM

825 East Gate Blvd Garden City, NY 11530 516-543-0377

Architecture P.C.

B R P D T H D E V E L O P M E N T

841-847 St. Nicholas Ave New York, New York 10031

June 27th, 2017 04

BUILDING SET BACK BRICK CORBELINGS BRICK CORBEL CORNER RAILING WITH DOUBLE HORIZONTAL BAND STONE QUOINING 1 INCH INSET

slide-5
SLIDE 5

1ST FLOOR 0' - 0" 2ND FLOOR 12' - 0" 3RD FLOOR 21' - 0" 4TH FLOOR 30' - 0" 5TH FLOOR 39' - 0" 6TH FLOOR 48' - 0" 7TH FLOOR 58' - 0" ROOF 67' - 0" STAIR BULKHEAD 77' - 0"

Stair Bulkhead w/ stucco finish and metal coping Norman Brick Maroon colonial PTAC Grille telegrey1 metal (typ.) Metal Double hung Window Telegrey1 by Quaker Precast stone cornice Precast stone Horizontal course Brick corbeling Metal railing black 8" 9' - 4" Precast stone quoining w/ base Double hung window telegrey1 Metal paneling telegrey1

TOP OF PARAPET 62' - 4" ROOF PARAPET 71' - 4" T.O. WALL 69' - 4" BULKHEAD PARAPET 78' - 6"

Exterior light, by LBL Lighting typ.

SLM

825 East Gate Blvd Garden City, NY 11530 516-543-0377

Architecture P.C.

B R P D T H D E V E L O P M E N T

841-847 St. Nicholas Ave New York, New York 10031

June 27th, 2017 05

3/32" = 1'-0" 1 FRONT ELEVATION (EAST)

slide-6
SLIDE 6

1ST FLOOR 0' - 0" 2ND FLOOR 12' - 0" 3RD FLOOR 21' - 0" 4TH FLOOR 30' - 0" 5TH FLOOR 39' - 0" 6TH FLOOR 48' - 0" 7TH FLOOR 58' - 0" ROOF 67' - 0" STAIR BULKHEAD 77' - 0"

Norman Brick finish Double hung window and PTAC Grille Telegrey1 by Quaker Brick corbeling (3) course brick intervals Metal Clad Cornice black Steel Railing black Precast stone Quoining w/ precast stone base Storefront windows grey w/ base 11 1 Metal awing w/ signage grey Planter w/ steel railing

  • n concrete curb

Metal railing black srubs w/ planter Bulkhead w/ stucco Brick red

TOP OF PARAPET 62' - 4" ROOF PARAPET 71' - 4" T.O. WALL 69' - 4" BULKHEAD PARAPET 78' - 6" SLM

825 East Gate Blvd Garden City, NY 11530 516-543-0377

Architecture P.C.

B R P D T H D E V E L O P M E N T

841-847 St. Nicholas Ave New York, New York 10031

June 27th, 2017 06

3/32" = 1'-0" 1 SIDE ELEVATION (SOUTH)

slide-7
SLIDE 7

1ST FLOOR 0' - 0" 2ND FLOOR 12' - 0" 3RD FLOOR 21' - 0" 4TH FLOOR 30' - 0" 5TH FLOOR 39' - 0" 6TH FLOOR 48' - 0" 7TH FLOOR 58' - 0" ROOF 67' - 0" STAIR BULKHEAD 77' - 0"

12' - 0" 9' - 0" 9' - 0" 9' - 0" 9' - 0" 10' - 0" 9' - 0" 10' - 0" 67' - 0" BRICK FINISH 10'-0" FROM FRONT FACADE STUCCO FINISH BRICK 10' - 0"

TOP OF PARAPET 62' - 4" ROOF PARAPET 71' - 4" T.O. WALL 69' - 4" BULKHEAD PARAPET 78' - 6"

STUCCO FINISH METAL DOUBLE HUNG WINDOWS W/ PTAC GRILLE TELEGREY1 BY QUAKER PARAPET AT FRONT FACADE

SLM

825 East Gate Blvd Garden City, NY 11530 516-543-0377

Architecture P.C.

B R P D T H D E V E L O P M E N T

841-847 St. Nicholas Ave New York, New York 10031

June 27th, 2017 07

3/32" = 1'-0" 1 REAR ELEVATION (WEST)

slide-8
SLIDE 8

1ST FLOOR 0' - 0" 2ND FLOOR 12' - 0" 3RD FLOOR 21' - 0" 4TH FLOOR 30' - 0" 5TH FLOOR 39' - 0" 6TH FLOOR 48' - 0" 7TH FLOOR 58' - 0" ROOF 67' - 0" STAIR BULKHEAD 77' - 0" CELLAR FLOOR

  • 9' - 0"

Double hung Window w/ PTAC Grille Stucco Wall finish Metal Coping black Steel Fence at Rear Yard 9' - 0" 12' - 0" 9' - 0" 9' - 0" 9' - 0" 9' - 0" 10' - 0" 9' - 0" 10' - 0" 67' - 0" Metal railing black

TOP OF PARAPET 62' - 4" ROOF PARAPET 71' - 4" T.O. WALL 69' - 4" BULKHEAD PARAPET 78' - 6" SLM

825 East Gate Blvd Garden City, NY 11530 516-543-0377

Architecture P.C.

B R P D T H D E V E L O P M E N T

841-847 St. Nicholas Ave New York, New York 10031

June 27th, 2017 08

3/32" = 1'-0" 1 SIDE ELEVATION (NORTH)

slide-9
SLIDE 9

1ST FLOOR 0' - 0" 2ND FLOOR 12' - 0" 3RD FLOOR 21' - 0" 4TH FLOOR 30' - 0" 5TH FLOOR 39' - 0" 6TH FLOOR 48' - 0" 7TH FLOOR 58' - 0" ROOF 67' - 0" STAIR BULKHEAD 77' - 0" CELLAR FLOOR

  • 9' - 0"

Parapet Roof

1 10 9' - 0" 12' - 0" 9' - 0" 9' - 0" 9' - 0" 9' - 0" 10' - 0" 9' - 0" 10' - 0" 58' - 0" 8" 11' - 4" 8" 8' - 4" 8" 8' - 4" 8" 8' - 4" 8" 8' - 4" 8" 9' - 4" 8"

TOP OF PARAPET 62' - 4" ROOF PARAPET 71' - 4" T.O. WALL 69' - 4" BULKHEAD PARAPET 78' - 6" SLM

825 East Gate Blvd Garden City, NY 11530 516-543-0377

Architecture P.C.

B R P D T H D E V E L O P M E N T

841-847 St. Nicholas Ave New York, New York 10031

June 27th, 2017 09

3/32" = 1'-0" 1 LONGITUDINAL SECTION

slide-10
SLIDE 10

1ST FLOOR 0' - 0" 2ND FLOOR 12' - 0" 3RD FLOOR 21' - 0" 4TH FLOOR 30' - 0" 5TH FLOOR 39' - 0" 6TH FLOOR 48' - 0" 7TH FLOOR 58' - 0" ROOF 67' - 0" STAIR BULKHEAD 77' - 0" CELLAR FLOOR

  • 9' - 0"

9' - 0" 12' - 0" 9' - 0" 9' - 0" 9' - 0" 9' - 0" 10' - 0" 9' - 0" 67' - 0" 6" 8' - 4" 8" 11' - 4" 8" 8' - 4" 8" 8' - 4" 8" 8' - 4" 8" 8' - 4" 8" 9' - 4" 8" 8' - 4" 8" 10' - 0"

TOP OF PARAPET 62' - 4" ROOF PARAPET 71' - 4" T.O. WALL 69' - 4" BULKHEAD PARAPET 78' - 6"

Precast stone cornice Roof cornice, metal color black Brick corbeling

SLM

825 East Gate Blvd Garden City, NY 11530 516-543-0377

Architecture P.C.

B R P D T H D E V E L O P M E N T

841-847 St. Nicholas Ave New York, New York 10031

June 27th, 2017 10

3/32" = 1'-0" 1 TRANSVERSE SECTION

slide-11
SLIDE 11

6TH FLOOR 48' - 0" 7TH FLOOR 58' - 0"

2' - 8" 2' - 0 3/4" 2 1/4" ALUMINUM TELEGREY1 DOUBLE HUNG WINDOW METAL PANEL TELEGREY1 PTAC GRILLE TELEGREY1 PRECAST STONE CORNICE 1' - 4"

SLM

825 East Gate Blvd Garden City, NY 11530 516-543-0377

Architecture P.C.

B R P D T H D E V E L O P M E N T

841-847 St. Nicholas Ave New York, New York 10031

June 27th, 2017 11

1/2" = 1'-0" 1 ENLARGED WINDOW ELEVATION

slide-12
SLIDE 12

1ST FLOOR 0' - 0" 2ND FLOOR 12' - 0" 3RD FLOOR 21' - 0"

12' - 0" 9' - 0" 8" 2' - 8" 6' - 8" 2' - 0" 8" 2' - 8" 5' - 0" 8" 8"

3RD FLOOR 21' - 0" 4TH FLOOR 30' - 0" 5TH FLOOR 39' - 0"

9' - 0" 9' - 0" 8" 8' - 4" 8" 8' - 4" 8" 8' - 4" 8' - 4"

5TH FLOOR 39' - 0" 6TH FLOOR 48' - 0" 7TH FLOOR 58' - 0" TOP OF PARAPET 62' - 4"

9' - 4" 8" 9' - 4" 8" 9' - 0" 10' - 0" 4' - 4" 8" 8' - 4" 8" 8' - 4" 14 3 Typ. 14 1 Typ. 14 2 Typ. 2' - 2 1/2" 3' - 5"

SLM

825 East Gate Blvd Garden City, NY 11530 516-543-0377

Architecture P.C.

B R P D T H D E V E L O P M E N T

841-847 St. Nicholas Ave New York, New York 10031

June 27th, 2017 12

1/2" = 1'-0" 1 WALL SECTION 1/2" = 1'-0" 2 WALL SECTION 1/2" = 1'-0" 3 WALL SECTION

slide-13
SLIDE 13

1ST FLOOR 0' - 0" 2ND FLOOR 12' - 0" 3RD FLOOR 21' - 0" CELLAR FLOOR

  • 9' - 0"

8' - 4" 8" 8' - 4" 8" 8' - 4" 11' - 4" 8" 9' - 0" 12' - 0" 9' - 0" planted area metal railing with curb 4"

3RD FLOOR 21' - 0" 4TH FLOOR 30' - 0" 5TH FLOOR 39' - 0"

9' - 0" 9' - 0" 8" 8' - 4" 8" 8' - 4" 8" 8' - 4" 8' - 4" 4"

5TH FLOOR 39' - 0" 6TH FLOOR 48' - 0" 7TH FLOOR 58' - 0" TOP OF PARAPET 62' - 4"

10' - 0" 9' - 0" 4' - 4" 8" 9' - 4" 8" 8' - 4" 8" 9' - 4" 8' - 4" 14 2 Typ.

FIBERGLASS CORNICE

SLM

825 East Gate Blvd Garden City, NY 11530 516-543-0377

Architecture P.C.

B R P D T H D E V E L O P M E N T

841-847 St. Nicholas Ave New York, New York 10031

June 27th, 2017 13

1/2" = 1'-0" 1 WALL SECTION 1/2" = 1'-0" 2 WALL SECTION 1/2" = 1'-0" 3 WALL SECTION

slide-14
SLIDE 14

TREATED WD BLOCKING (TYP.) WINDOW FRAME (TYP.) STRUCTURAL PRECAST LINTEL -SEE STRUCT DWGS. (TYP.) WATER RESISTANT GWB @ WINDOW RETURNS (TYP.) MORTAR DRAINAGE SYSTEM (TYP.) GALVANIZED STEEL LINTEL SEE STRUCT. DWGS CONTINUOUS FLASHING (TYP.) CONTINUOUS SEALANT W/ BACKEROD AROUND WINDOW(TYP.)

TYPICAL DETAIL @ WINDOW HEADER

1

SCALE: 1 1/2"=1'-0

UNDERSIDE OF FLOOR PLANK PAINTED FINISH METAL FLASHING

TYPICAL DETAIL @ WINDOW SILL

2

SCALE: 1 1/2"=1'-0 TREATED WD BLOCKING (TYP.) RIGID INSULATION (TYP.) VAPOR/AIR BARRIER (TYP.) 5/8" GYP. BD. (TYP.) 8" CMU (TYP.) 1-5/8" METAL STUD CONTINUOUS SEALANT W/ BACKEROD AROUND WINDOW(TYP.) FACEBRICK AIR SPACE (TYP.)

A/C Unit

CONTINUOUS SEALANT W/ BACKER ROD AROUND WINDOW (TYP.) WOOD APRON

1/8" 3/4" 1/4" 8" 10" MAX. - 4" MIN. 4'-4" 3'-6" WEEP HOLE @ 24" O.C. HORIZONTALLY (TYP.)

  • CONT. FLASHING

(TYP.) GALVANIZED METAL PLATE (TYP.)

  • CONT. FLASHING

(TYP.) RIGID INSULATION (TYP.) STEEL ANGLE SEE

  • STRUCT. DWGS.

SEALANT W/ BACKEROD AROUND WINDOW (TYP.) CANT STRIP (TYP.) MODIFIED BITUMEN MEMBRANE ENERGY STAR WHITE 20 YEAR WARRANTY (TYP.) RIGID INSULATION (TYP.) COVER BD. (TYP.) HORIZONTAL REINFORCEMENT @ 16" O.C. (TYP.) SEALANT (TYP.) BASE FLASHING (TYP.) 8" CMU (TYP.)

  • CONT. FLASHING (TYP.)

FILL W/ SOLID GROUT (TYP.) T.O. ROOF

T.O.PARAPET

TREATED WD. BLOCKING (TYP.) VAPOR BARRIER (TYP.) FIBERGLASS ROOF CORNICE @ PARAPET BRICK FINISH, TYP.

SLM

825 East Gate Blvd Garden City, NY 11530 516-543-0377

Architecture P.C.

B R P D T H D E V E L O P M E N T

841-847 St. Nicholas Ave New York, New York 10031

June 27th, 2017 14

TYPICAL ROOF DETAIL

SCALE: 1 1/2"

3

slide-15
SLIDE 15

1' - 1" 1" 5" Metal railing black balaster placement @ 5" O.C. concrete curb w/ precast coping color davis outback 677 2 15 Metal railing black Precast coping stone Concrete curb wall Planted area Concrete footing 1' - 0" 3' - 0" Outline of building 6" HIGH METAL BUILDING SIGN 8" x.25" STEEL SUPPORT 2' - 6"

SLM

825 East Gate Blvd Garden City, NY 11530 516-543-0377

Architecture P.C.

B R P D T H D E V E L O P M E N T

841-847 St. Nicholas Ave New York, New York 10031

June 27th, 2017 15

3/16" = 1'-0" 1 RAILING ELEVATION 3/8" = 1'-0" 2 SECTION @ PLANTED AREA 1" = 1'-0" 3 SIGNAGE DETAIL

slide-16
SLIDE 16

LEGEND 2 BR DTH PUBLIC Calculating...

CL. CL. CL. CL. CL. CL. CL. TABLE TABLE SIDE YARD INNER COURT MAILBOX PLANTER, TYP.

1 09 1 10

  • EXISTING

GRATE EXISTING GRATE

EXISTING CONCRETE PAVING WITH STEEL CURB NEW TO MATCH EXISTING EXISTING TREE NEW TREE NEW TREE

  • 2

15

CRAWL SPACE CRAWL SPACE DETENTION TANK

1 09 1 10

  • 2

15

SLM

825 East Gate Blvd Garden City, NY 11530 516-543-0377

Architecture P.C.

B R P D T H D E V E L O P M E N T

841-847 St. Nicholas Ave New York, New York 10031

June 27th, 2017 16

1/16" = 1'-0" 2 1ST FLOOR 1/16" = 1'-0" 1 CELLAR FLOOR

PROGRAM: CELLAR FLOOR FIRST FLOOR UNIT TYPE NO 2 BEDROOM 2

slide-17
SLIDE 17

LEGEND 1BR 2 BR PUBLIC STUDIO Calculating...

CL. CL. CL. CL. CL. CL. CL. CL. CL. CL. CL. CL. CL. CL. CL.

1 09

DN DN

1 10

CL. CL. CL. CL. CL. CL. CL. CL. CL.

1 09 1 10 MECHANICAL ROOF FAN MECHANICAL ROOF FAN

SLM

825 East Gate Blvd Garden City, NY 11530 516-543-0377

Architecture P.C.

B R P D T H D E V E L O P M E N T

841-847 St. Nicholas Ave New York, New York 10031

June 27th, 2017 17

1/16" = 1'-0" 1 TYPICAL FLOOR PLAN 1/16" = 1'-0" 2 SEVENTH FLOOR PLAN

PROGRAM: TYPICAL FLOOR UNIT TYPE NO 0 BEDROOM 3 1 BEDROOM 2 2 BEDROOM 2 SEVENTH FLOOR UNIT TYPE NO 2 BEDROOM 2

slide-18
SLIDE 18

1 10 1 09 Roof exhuast fan see detail

SLM

825 East Gate Blvd Garden City, NY 11530 516-543-0377

Architecture P.C.

B R P D T H D E V E L O P M E N T

841-847 St. Nicholas Ave New York, New York 10031

June 27th, 2017 18

1/16" = 1'-0" 1 ROOF

slide-19
SLIDE 19

SLM

825 East Gate Blvd Garden City, NY 11530 516-543-0377

Architecture P.C.

B R P D T H D E V E L O P M E N T

841-847 St. Nicholas Ave New York, New York 10031

June 27th, 2017 19

NORTH VIEW FROM 152ND STREET

slide-20
SLIDE 20

SLM

825 East Gate Blvd Garden City, NY 11530 516-543-0377

Architecture P.C.

B R P D T H D E V E L O P M E N T

841-847 St. Nicholas Ave New York, New York 10031

June 27th, 2017 20

NORTH VIEW FROM 151ST STREET

slide-21
SLIDE 21

SLM

825 East Gate Blvd Garden City, NY 11530 516-543-0377

Architecture P.C.

B R P D T H D E V E L O P M E N T

841-847 St. Nicholas Ave New York, New York 10031

June 27th, 2017 21

SOUTH PERSPECTIVE

slide-22
SLIDE 22

SLM

825 East Gate Blvd Garden City, NY 11530 516-543-0377

Architecture P.C.

B R P D T H D E V E L O P M E N T

841-847 St. Nicholas Ave New York, New York 10031

June 27th, 2017 22

CONTEXT: CORNER WINDOW AT 492 WEST 152ND STREET CONTEXT: WINDOW PANEL WITH BLACK WINDOWS AT 853 NICHOLAS AVE. CONTEXT: LIME STONE BASE AND BLACK TOP FLOOR WINDOWS AT 846 NICHOLAS AVE. CONTEXT: BRICK CORBELING ON UPPER FLOORS ALTERNATING WITH STANDARD RUNNING BOND CONTEXT: LIMESTONE BASE WITH METAL CORNICE

slide-23
SLIDE 23

SLM

825 East Gate Blvd Garden City, NY 11530 516-543-0377

Architecture P.C.

B R P D T H D E V E L O P M E N T

841-847 St. Nicholas Ave New York, New York 10031

June 27th, 2017 23

STOREFRONT AWNING WRAPPING CORNER OF WEST 152ND STREET & ST.NICHOLAS AVENUE 889 ST.NICHOLAS - STORE FRONT ON CORNER OF ST.NICHOLAS AVENUE & W 155TH STREET CORNER STREET FRONT ON ST.NICHOLAS AVENUE & WEST 153RD STREET WEST 152ND STREET DANCE THEATER OF HARLEM WEST 152ND STREET DANCE THEATER OF HARLEM WEST 152ND STREET DANCE THEATER OF HARLEM

slide-24
SLIDE 24

SLM

825 East Gate Blvd Garden City, NY 11530 516-543-0377

Architecture P.C.

B R P D T H D E V E L O P M E N T

841-847 St. Nicholas Ave New York, New York 10031

June 27th, 2017 24

QUAKER: WINDOW AND PTAC LOVER SYSTEM AND METAL PANEL COLOR: TELEGREY1 GLEN GHERY:BRICK SIZE NORMAN 2 1/4"X 11 5/8" COLOR: MAROON COLONIAL DAVIS COLORS: PRECAST STONE PIGMENT COLOR: OUTBACK 677 LBL LIGHTING: WALL MOUNTED LIGHT FIXTURE COLOR: BLACK DAVIS COLORS: PRECAST STONE PIGMENT COLOR: BRICK RED 160
