04/07/2017 Artifact to represent the PIRATE at Vopaks innovation lab Jasmijn de Vries Creative Technology Supervisor: Edwin Dertien 04/07/2017 Contents Context Process of creating the artifact - Challenge - Ideation - Research

SLIDE 1

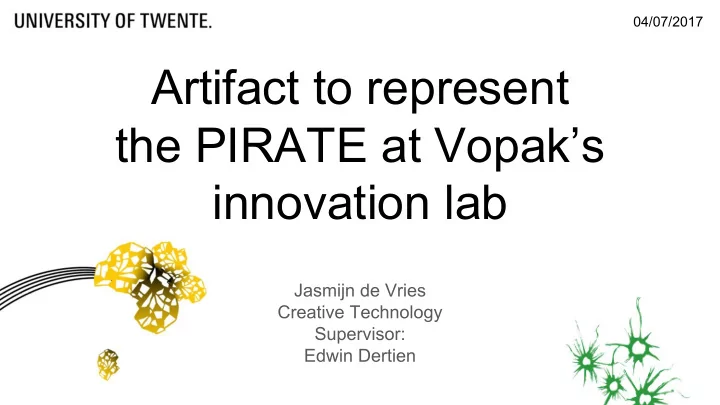

Artifact to represent the PIRATE at Vopak’s innovation lab

Jasmijn de Vries Creative Technology Supervisor: Edwin Dertien

04/07/2017

SLIDE 2

Context

Challenge
Research Question
Background
Research
State of the Art

04/07/2017

Process of creating the artifact

Ideation
Specification
Realisation
Evaluation
Conclusion
Future work
Acknowledgements

SLIDE 3

Challenge

Explain PIRATE
Representing RaM and UT
Get people excited and interested
Grab attention
Meeting room and office

04/07/2017

SLIDE 4

Research question

How should an informative, promotional, interactive artifact for Vopak about the RaM team, the University of Twente, and the PIRATE be designed?

04/07/2017

SLIDE 5

Background

SLIDE 6

PIRATE

RaM
Inspects pipes for damage and

deformations

Multiple pipe diameters
90◦ bends

Pipe Inspection Robot for AuTonomous Exploration

04/07/2017

SLIDE 7

Vopak

Biggest company in their field
Store and transport: liquid, gas,

chemical, and oil products

Many pipes
Want something to represent their

future using the PIRATE

04/07/2017

SLIDE 8

Research

SLIDE 9

When does visual media, asking for attention, become an annoyance?

Documentary: There are no bad vegetables

Should look like effort was put into it
Destroy
Disrupt
Devalue
Morals

04/07/2017

SLIDE 10

What are the suitable kinds of interactivity to get a passerby to notice an informative installation?

Literature review

04/07/2017

SLIDE 11

Definition interactivity

Interactivity is the level to which the user has the perception of their ability to influence, with effort, an artifact through their choice, participation and control. This perception is influenced by how the artifact responds, monitors, communicates, creates a sense of place, and is in real-time.

04/07/2017

SLIDE 12

Get a passerby to notice an installation

Change blindness

04/07/2017

SLIDE 13

State of the Art

SLIDE 14

State of the Art

Attention grabbing installations
Informative installations
Advertising installations

04/07/2017

Desk research, literature research, and observations NEMO

SLIDE 15

State of the Art

Grabbing attention:

Light
Movement

Keep attention:

Competition
Multiple outcomes
Not annoying
Provokes curiosity
Wanting to finish a task

04/07/2017

Figure out installation:

Easy interface

Get message across:

Relate back to the product
Play
Text
Pictures
Video
Physical models

SLIDE 16

State of the Art

Grabbing attention:

Light
Movement

Keep attention:

Competition
Multiple outcomes
Not annoying
Provokes curiosity
Wanting to finish a task

04/07/2017

Figure out installation:

Easy interface

Get message across:

Relate back to the product
Play
Text
Pictures
Video
Physical models

SLIDE 17

Ideation

SLIDE 18

Ideation

04/07/2017

SLIDE 19

Ideation

04/07/2017

SLIDE 20

Ideation

04/07/2017

SLIDE 21

Ideation

Pipe maze with miniature PIRATE
1:1 model for size reference
Screens for information
User can navigate

04/07/2017

SLIDE 22

Specification

SLIDE 23

Specification

Durable and sturdy
Everything will be shown on one big

screen

Miniature PIRATE will be virtual inside

real world pipes

Easy to take apart

04/07/2017

Structure

SLIDE 24

Specification

Information layout
Introduction
How it moves
How it sees
The inventors
Implementation Vopak
Indicators
Buttons

04/07/2017

Interface

SLIDE 25

Specification

No animations
No indicators

04/07/2017

Paper Prototype Testing

10 participants
Overall positive
No skip button

SLIDE 26

Realisation

SLIDE 27

Realisation

04/07/2017

Building the table

SLIDE 28

Realisation

04/07/2017

Building the table

SLIDE 29

Realisation

04/07/2017

Building the table

SLIDE 30

Realisation

04/07/2017

Building the table

SLIDE 31

Realisation

Screen
Computer
Arduino
Buttons

04/07/2017

Hardware

SLIDE 32

Realisation

Arduino code
Reads buttons
Processing
Moves PIRATE
Imports information
Shows information

04/07/2017

Software

SLIDE 33

Realisation

04/07/2017

Design choices

Easily interchangeable information
1:1 itself can be taken out
Signs not attached
Picture, video and text information can

be changed without touching code

Portability and replacing parts
Wheels
Fabric can be tucked away
Top tier removable
Connectors buttons
Mesh not attached
1:1 casing not attached
Screen and computer removable

SLIDE 34

Evaluation

SLIDE 35

Evaluation

Informative
Keep attention
Easy to use
Get attention
Not annoying

04/07/2017

Qualitative user test: part 1 and

part 2

Assignments
Questionnaire
Observations
Expert Evaluation - in the future

SLIDE 36

Evaluation

5 participants
Overall positive
Change Start & assignment 2

04/07/2017

User test Part 1

SLIDE 37

Evaluation

20 participants
Interface easy to understand
Artifact aesthetically pleasing
Placement information logical
Subject was clear

04/07/2017

User test Part 2

Noticed by passersby

SLIDE 38

Conclusion

Informative
Keep attention
Easy to use
Get attention
Not annoying

04/07/2017

How should an informative, promotional, interactive artifact for Vopak about the RaM team, the University of Twente, and the PIRATE be designed? Promising!

SLIDE 39

Future work

Implementation at innovation lab
Attention grabbing
Distracting
Minor change to interface
RaM provide content

04/07/2017

SLIDE 40

Acknowledgements

Edwin Dertien
Mathijs Kossen
Erik Analbers
Daniel van Pel
(Jelle van Dijk)
User test participants

04/07/2017

SLIDE 41

Thank you
