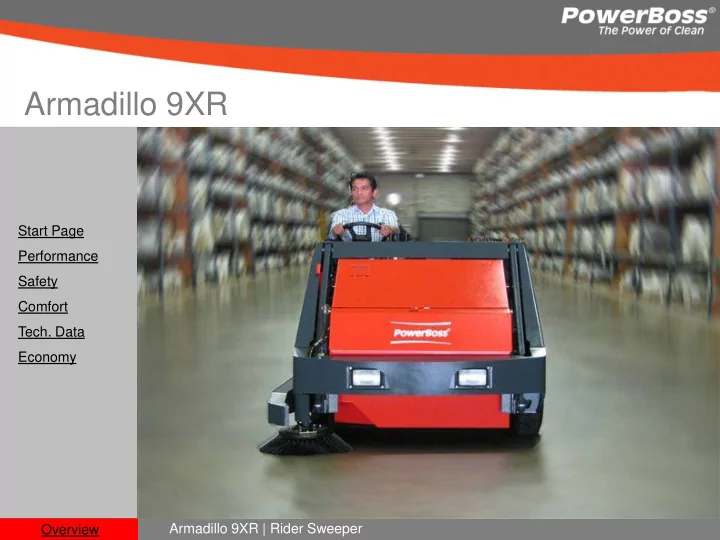

An extremely robust machine with excellent sweeping power even under the most difficult applications and conditions. The Armadillo 9XR boasts an entirely solid steel framework. Cast iron rear counterweights, robust collision protection for the side brushes, and the use of predominantly steel components, give the Armadillo 9XR a long machine life, even during rugged everyday use.

Created for the toughest applications

Overview Armadillo 9XR | Rider Sweeper

Armadillo 9XR

• The Armadillo 9XR has a full-hydraulic sweeping drive that can

handle even the largest amounts of dirt and debris. With a working width of 62” (157 cm) the debris is conveyed into a hopper, which holds up to 1500 lbs (680 kg) – for up to 269,097 ft² (25,000 m²) of cleaned surface per hour.

• Large pneumatic wheels with heavy industrial tires and a powerful

hydraulic drive ensure reliable propulsion. They also contribute to the comfort and safety of the operator, particularly on uneven

• floors. The smooth-running rear steering guarantees the highest

degree of maneuverability.

Powerful cylindrical main broom and side broom units

Start page Performance Safety Comfort

• Tech. Data

Economy

Overview

Armadillo 9XR

Armadillo 9XR | Rider Sweeper

RTR (Rotary Trash Relocator) The enhanced hopper filling system A 22 cf (600 litre) hopper combined with the unique RTR System yields the perfect blend of running time and economy. The capacity

• f a forward-throwing machine with the RTR Systyem is thus

increased by over 50%.

• 1. Dirt build-up
• n the under side
• 2. Activate the RTR System

(dirt transfer)

• 3. Hopper capacity is free

again for continued sweeping

Start page Performance Safety Comfort

• Tech. Data

Economy

Overview

Armadillo 9XR

The sturdy steel hopper may be lifted and emptied up to a height of 62” (1.6 meters) for convenient disposal of up to 1,500 lbs (500 kg)

• f debris in one operation.

Armadillo 9XR | Rider Sweeper

Comfortable Disposal

Start page Performance Safety Comfort

• Tech. Data

Economy

Overview

Armadillo 9XR

High climbing ability

As a result of the powerful hydraulic drive, inclines of up to 16% can be over- come without difficulty. Hydraulic rear steering gives the operator the experenc

• f safe accurate

maneuverablebility.

Armadillo 9XR | Rider Sweeper Start page Performance Safety Comfort

• Tech. Data

Economy

Overview

Armadillo 9XR

Armadillo 9XR | Rider Sweeper

A dust free environment The single large panel filter offers a total area of over 120 sq ft (11 m²) and a degree of separation of > 99 %. During operation dust is removed from the air and disposed of in the hopper.

Start page Performance Safety Comfort

• Tech. Data

Economy

Overview

Armadillo 9XR

Armadillo 9XR | Rider Sweeper Start page Performance Safety Comfort

• Tech. Data

Economy

Please take a seat The operators compartment is clearly laid out and simply

• rganized. The comfortable

seat as well as the adjustable steering wheel can easily be adapted to any operator. Heavy duty lever operation for all sweeping functions is very

• convenient. The high seating

position guarantees all-round

• visibility. All important

instruments and indicator warning lights are within direct view of the operator.

Overview

Armadillo 9XR

Armadillo 9XR | Rider Sweeper

Large debris

Large items, which cannot be swept up, can be thrown into the hopper conveniently and simply by opening the hopper lid – nothing has to stay on the floor!

Start page Performance Safety Comfort

• Tech. Data

Economy

Overview

Armadillo 9XR

• The main sweeping broom

is changed easily and a handy adjustment for the main broom and side brushes ensures consistent sweeping results.

• The main and side

sweeping brooms can be changed without the use of tools.

Armadillo 9XR | Rider Sweeper

Operator and service friendliness

Start page Performance Safety Comfort

• Tech. Data

Economy

Overview

Armadillo 9XR

Armadillo 9XR | Rider Sweeper

See and be seen:

Standard lighting equipment consists of front headlights and rear lights.

Start page Performance Safety Comfort

• Tech. Data

Economy

Overview

Overhead guard Left side brush

Options Armadillo 9XR

Air condition Comfort cab Side broom vaccum

Armadillo 9XR

Armadillo 9XR | Rider Sweeper Start page Performance Safety Comfort

• Tech. Data

Economy

Overview Start page Performace Safety Comfort

• Tech. Data

Economy

Armadillo 9XR

Model Armadillo 9XR Armadillo 9XR LPG

Sweeping path inchs 62" (157 cm) 62" (157 cm) With 1. side broom (2.s.b) in inch 62 (76) 62 (76) Theor.area performance (1.s.b.) in m² 200,000 200,000 Pract.area perform.(1.s.b.) in m² (-20%) 160,000 160,000 Hopper capacity in cb ft & litres 22cf (600 L) 22cf (600 L) Dump height in inch & cm 62" (162) 62" (162) Sweeping pattern in inch 62" 62" Filter qty/ type 1 Panel Filter 1 Panel Filter Filter area sq ft & m² 120 sq ft (11.15) 120 sq ft (11.15) Climbing ability % 16 16 Engine producer Kubota/Diesel GM Power in kW/HP 26,5 / 37.5 41/55 Power in kW/HP at reduced speed 26,5/2150 33/2150

• No. of cylinder /type

4 4 Fuel tank size in gal & litres & pounds 8 gal (30 L) 32 lb Working speed in miles/hour & km/h 8 m/h (13 km/h) 8m/h (13 km/h) Unladen weight in lb & kg 3,800 (1710) 3800 (1710) Width in inch & mm 60" (1524 mm) 60" (1524 mm) Length in inch & mm 110" (2790 mm) 110" (2790 mm) Height in inch & mm 58" (1470 mm) 58" (1470 mm) Height in inch & mm with (o.h.g) 87" (2200 mm) 87" (2200 mm)

Armadillo 9XR | Rider Sweeper

Overview

Armadillo 9XR

Daily maintenance Daily maintenance is made easy and safe as a result of the unique swivel mechanism for the complete drive unit, resulting in greater operational safety and reduced repair costs. The fully hydraulic machine drive also enables considerable savings in terms of operational and maintenance costs as a result of doing away with costly belt drives.

Armadillo 9XR | Rider Sweeper Start page Performance Safety Comfort

• Tech. Data

Economy

Overview

Armadillo 9XR

Armadillo 9XR | Rider Sweeper

• Check that you have chosen the correct version
• f the machine by having a tailor made economy

calculation done by your PowerBoss sales

• representative. Because:

Asset costs* Service costs* Energy costs* Ownership costs*

22 % 3 % 18 % 57 %

The price is only the tip of the Iceberg

Based on an Armadillo 9XR 184,800 sq ft sweeping area, 200 man-days per year, amortization over 7 years

Start page Performance Safety Comfort

• Tech. Data

Economy
