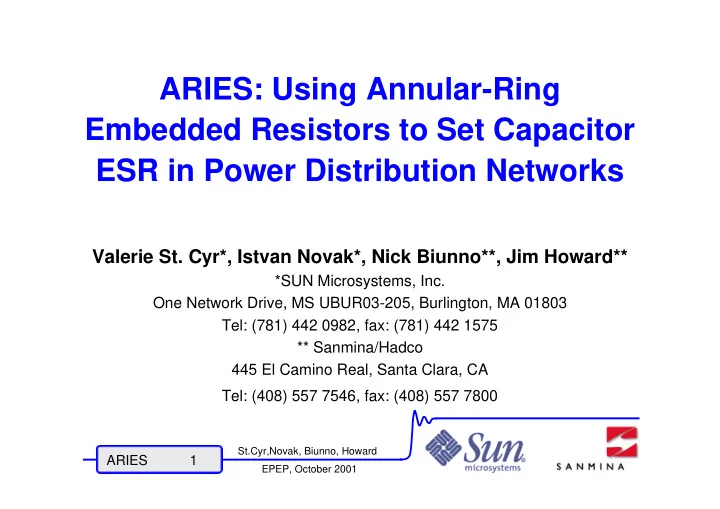

ARIES: Using Annular-Ring Embedded Resistors to Set Capacitor ESR in Power Distribution Networks Valerie St. Cyr*, Istvan Novak*, Nick Biunno**, Jim Howard** *SUN Microsystems, Inc. One Network Drive, MS UBUR03-205, Burlington, MA 01803 Tel:

slide-1
SLIDE 1

St.Cyr,Novak, Biunno, Howard

ARIES 1

EPEP, October 2001

ARIES: Using Annular-Ring Embedded Resistors to Set Capacitor ESR in Power Distribution Networks

Valerie St. Cyr*, Istvan Novak*, Nick Biunno**, Jim Howard**

*SUN Microsystems, Inc. One Network Drive, MS UBUR03-205, Burlington, MA 01803 Tel: (781) 442 0982, fax: (781) 442 1575 ** Sanmina/Hadco 445 El Camino Real, Santa Clara, CA Tel: (408) 557 7546, fax: (408) 557 7800

slide-2
SLIDE 2

St.Cyr,Novak, Biunno, Howard

ARIES 2

EPEP, October 2001

Outline

  • Introduction
  • Distributed Matched Bypassing
  • Annular Buried Resistor
  • ARIES
  • Test board performance
  • Implementation
  • Conclusions
slide-3
SLIDE 3

St.Cyr,Novak, Biunno, Howard

ARIES 3

EPEP, October 2001

  • DMB = Distributed Matched Bypassing
  • ABR = Annular Buried Resistor
  • ARIES = Annular Resistive Interstitial Element,

Screened-in

Dictionary

slide-4
SLIDE 4

St.Cyr,Novak, Biunno, Howard

ARIES 4

EPEP, October 2001

Distributed Matched Bypassing (1)

log f

first capacitor bank second capacitor bank power source

f12 f23 R2 log Z R1 (ω*C1)-1 ω*L2

  • DET
  • EAVP
  • AVP

1 2 2 1

C L R R = =

slide-5
SLIDE 5

St.Cyr,Novak, Biunno, Howard

ARIES 5

EPEP, October 2001

  • Elements:

– Power-ground planes over (thin) laminate – A small number of SAME VALUE capacitors (2.2UF IDC) – Few bulk capacitors

  • Controlled-ESR capacitors
  • Smooth impedance profile
  • Suppresses plane resonances, and
  • Avoids antiresonances among

– Capacitors, and – Capacitors and planes

Distributed Matched Bypassing (2)

slide-6
SLIDE 6

St.Cyr,Novak, Biunno, Howard

ARIES 6

EPEP, October 2001

  • Conventional designs use C, ESR and ESL

Resonances depend on all three >> – Hard to simulate all combinations – ESR for present capacitors cannot be specified

  • DMB relies on a user-defined series resistance

(ABR) of bypass capacitors – Lowest number of capacitors – Straightforward positioning – C and ESL variations matter much less – Fewer combinations >>more predictable result – Components are equal >> increased reliability >> shared dissipation

Distributed Matched Bypassing (3)

slide-7
SLIDE 7

St.Cyr,Novak, Biunno, Howard

ARIES 7

EPEP, October 2001

ABR

Annular Buried Resistor

T D1 D2

Via Plane Resistor Pad

slide-8
SLIDE 8

St.Cyr,Novak, Biunno, Howard

ARIES 8

EPEP, October 2001

ARIES

Annular Resistive Interstitial Element, Screened-in

  • Blind vias
  • 130-180pH loop inductance

Printed resistors Eight-terminal capacitor

Top metal layer GND layer PWR layer

slide-9
SLIDE 9

St.Cyr,Novak, Biunno, Howard

ARIES 9

EPEP, October 2001

Test Board

  • 10”x5” outline
  • 2 pairs of 2-mil cores
  • 1” square grid test

points (PTH)

  • Offset 1” square grid

for ARIES

slide-10
SLIDE 10

St.Cyr,Novak, Biunno, Howard

ARIES 10

EPEP, October 2001

Test Board Impedance Log-Log

Impedance magnitude [ohm]

1.E-03 1.E-02 1.E-01 1.E+00 1.E+05 1.E+06 1.E+07 1.E+08 1.E+09 Frequency [Hz]

No-R With-R Bare

Self impedance 2”x2” from corner

slide-11
SLIDE 11

St.Cyr,Novak, Biunno, Howard

ARIES 11

EPEP, October 2001

Impedance magnitude [ohm] 0.0E+00 5.0E-02 1.0E-01 1.5E-01 2.0E-01 0.E+00 2.E+08 4.E+08 6.E+08 8.E+08 1.E+09 Frequency [Hz]

No-R With-R Bare

Test Board Impedance Lin-Lin

Self impedance 2”x2” from corner

slide-12
SLIDE 12

St.Cyr,Novak, Biunno, Howard

ARIES 12

EPEP, October 2001

number of caps caps area [sq inch] 304 4.1288 94 0.9664

Implementation

slide-13
SLIDE 13

St.Cyr,Novak, Biunno, Howard

ARIES 13

EPEP, October 2001

Conclusions

  • Smooth, optimum impedance profile is achieved by

DMB (AVP, EAVP, DET)

  • DMB requires user-defined ESR
  • ABR is used to add series resistance to (ceramic)

capacitors

  • ARIES implementation:
  • 130-180pH ESL
  • 1-1000MHz coverage
slide-14
SLIDE 14

1 2 3 4 5 6 7 8 9 10 100 300 500 0.001 0.01 0.1 1

Istvan Novak, October 2001

Impedance profile in ohms of 10”x5” 2x2-mil plane pairs with 26x2.2uF capacitors with 0.72-ohm ARIES at 100kHz

slide-15
SLIDE 15

1 2 3 4 5 6 7 8 9 10 100 300 500 0.001 0.01 0.1 1

Istvan Novak, October 2001

Impedance profile in ohms of 10”x5” 2x2-mil plane pairs with 26x2.2uF capacitors with 0.72-ohm ARIES at 150kHz

slide-16
SLIDE 16

1 2 3 4 5 6 7 8 9 10 100 300 500 0.001 0.01 0.1 1

Istvan Novak, October 2001

Impedance profile in ohms of 10”x5” 2x2-mil plane pairs with 26x2.2uF capacitors with 0.72-ohm ARIES at 200kHz

slide-17
SLIDE 17

1 2 3 4 5 6 7 8 9 10 100 300 500 0.001 0.01 0.1 1

Istvan Novak, October 2001

Impedance profile in ohms of 10”x5” 2x2-mil plane pairs with 26x2.2uF capacitors with 0.72-ohm ARIES at 300kHz

slide-18
SLIDE 18

1 2 3 4 5 6 7 8 9 10 100 300 500 0.001 0.01 0.1 1

Istvan Novak, October 2001

Impedance profile in ohms of 10”x5” 2x2-mil plane pairs with 26x2.2uF capacitors with 0.72-ohm ARIES at 500kHz

slide-19
SLIDE 19

1 2 3 4 5 6 7 8 9 10 100 300 500 0.001 0.01 0.1 1

Istvan Novak, October 2001

Impedance profile in ohms of 10”x5” 2x2-mil plane pairs with 26x2.2uF capacitors with 0.72-ohm ARIES at 750kHz

slide-20
SLIDE 20

1 2 3 4 5 6 7 8 9 10 100 300 500 0.001 0.01 0.1 1

Istvan Novak, October 2001

Impedance profile in ohms of 10”x5” 2x2-mil plane pairs with 26x2.2uF capacitors with 0.72-ohm ARIES at 1MHz

slide-21
SLIDE 21

1 2 3 4 5 6 7 8 9 10 100 300 500 0.001 0.01 0.1 1

Istvan Novak, October 2001

Impedance profile in ohms of 10”x5” 2x2-mil plane pairs with 26x2.2uF capacitors with 0.72-ohm ARIES at 1.5MHz

slide-22
SLIDE 22

1 2 3 4 5 6 7 8 9 10 100 300 500 0.001 0.01 0.1 1

Istvan Novak, October 2001

Impedance profile in ohms of 10”x5” 2x2-mil plane pairs with 26x2.2uF capacitors with 0.72-ohm ARIES at 2MHz

slide-23
SLIDE 23

1 2 3 4 5 6 7 8 9 10 100 300 500 0.001 0.01 0.1 1

Istvan Novak, October 2001

Impedance profile in ohms of 10”x5” 2x2-mil plane pairs with 26x2.2uF capacitors with 0.72-ohm ARIES at 3MHz

slide-24
SLIDE 24

1 2 3 4 5 6 7 8 9 10 100 300 500 0.001 0.01 0.1 1

Istvan Novak, October 2001

Impedance profile in ohms of 10”x5” 2x2-mil plane pairs with 26x2.2uF capacitors with 0.72-ohm ARIES at 5MHz

slide-25
SLIDE 25

1 2 3 4 5 6 7 8 9 10 100 300 500 0.001 0.01 0.1 1

Istvan Novak, October 2001

Impedance profile in ohms of 10”x5” 2x2-mil plane pairs with 26x2.2uF capacitors with 0.72-ohm ARIES at 7.5MHz

slide-26
SLIDE 26

1 2 3 4 5 6 7 8 9 10 100 300 500 0.001 0.01 0.1 1

Istvan Novak, October 2001

Impedance profile in ohms of 10”x5” 2x2-mil plane pairs with 26x2.2uF capacitors with 0.72-ohm ARIES at 10MHz

slide-27
SLIDE 27

1 2 3 4 5 6 7 8 9 10 100 300 500 0.001 0.01 0.1 1

Istvan Novak, October 2001

Impedance profile in ohms of 10”x5” 2x2-mil plane pairs with 26x2.2uF capacitors with 0.72-ohm ARIES at 15MHz

slide-28
SLIDE 28

1 2 3 4 5 6 7 8 9 10 100 300 500 0.001 0.01 0.1 1

Istvan Novak, October 2001

Impedance profile in ohms of 10”x5” 2x2-mil plane pairs with 26x2.2uF capacitors with 0.72-ohm ARIES at 20MHz

slide-29
SLIDE 29

1 2 3 4 5 6 7 8 9 10 100 300 500 0.001 0.01 0.1 1

Istvan Novak, October 2001

Impedance profile in ohms of 10”x5” 2x2-mil plane pairs with 26x2.2uF capacitors with 0.72-ohm ARIES at 30MHz

slide-30
SLIDE 30

1 2 3 4 5 6 7 8 9 10 100 300 500 0.001 0.01 0.1 1

Istvan Novak, October 2001

Impedance profile in ohms of 10”x5” 2x2-mil plane pairs with 26x2.2uF capacitors with 0.72-ohm ARIES at 50MHz

slide-31
SLIDE 31

1 2 3 4 5 6 7 8 9 10 100 300 500 0.001 0.01 0.1 1

Istvan Novak, October 2001

Impedance profile in ohms of 10”x5” 2x2-mil plane pairs with 26x2.2uF capacitors with 0.72-ohm ARIES at 75MHz

slide-32
SLIDE 32

1 2 3 4 5 6 7 8 9 10 100 300 500 0.001 0.01 0.1 1

Istvan Novak, October 2001

Impedance profile in ohms of 10”x5” 2x2-mil plane pairs with 26x2.2uF capacitors with 0.72-ohm ARIES at 100MHz

slide-33
SLIDE 33

1 2 3 4 5 6 7 8 9 10 100 300 500 0.001 0.01 0.1 1

Istvan Novak, October 2001

Impedance profile in ohms of 10”x5” 2x2-mil plane pairs with 26x2.2uF capacitors with 0.72-ohm ARIES at 150MHz

slide-34
SLIDE 34

1 2 3 4 5 6 7 8 9 10 100 300 500 0.001 0.01 0.1 1

Istvan Novak, October 2001

Impedance profile in ohms of 10”x5” 2x2-mil plane pairs with 26x2.2uF capacitors with 0.72-ohm ARIES at 200MHz

slide-35
SLIDE 35

1 2 3 4 5 6 7 8 9 10 100 300 500 0.001 0.01 0.1 1

Istvan Novak, October 2001

Impedance profile in ohms of 10”x5” 2x2-mil plane pairs with 26x2.2uF capacitors with 0.72-ohm ARIES at 300MHz

slide-36
SLIDE 36

1 2 3 4 5 6 7 8 9 10 100 300 500 0.001 0.01 0.1 1

Istvan Novak, October 2001

Impedance profile in ohms of 10”x5” 2x2-mil plane pairs with 26x2.2uF capacitors with 0.72-ohm ARIES at 500MHz

slide-37
SLIDE 37

1 2 3 4 5 6 7 8 9 10 100 300 500 0.001 0.01 0.1 1

Istvan Novak, October 2001

Impedance profile in ohms of 10”x5” 2x2-mil plane pairs with 26x2.2uF capacitors with 0.72-ohm ARIES at 750MHz

slide-38
SLIDE 38

1 2 3 4 5 6 7 8 9 10 100 300 500 0.001 0.01 0.1 1

Istvan Novak, October 2001

Impedance profile in ohms of 10”x5” 2x2-mil plane pairs with 26x2.2uF capacitors with 0.72-ohm ARIES at 1000MHz
