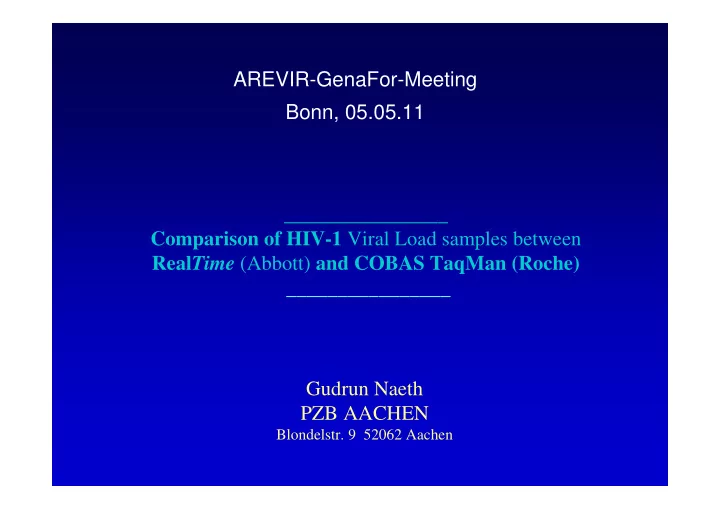

AREVIR-GenaFor-Meeting Bonn, 05.05.11 ________________ Comparison - - PowerPoint PPT Presentation

________________ Comparison of HIV-1 Viral Load samples between RealTime (Abbott) and COBAS TaqMan (Roche) ________________ Gudrun Naeth PZB AACHEN

• Blondelstr. 9 52062 Aachen

AREVIR-GenaFor-Meeting Bonn, 05.05.11

PZB PZB PZB

AACHEN AACHEN AACHEN

Introduction Introduction

Low Level Viremia Comparision of Roche COBAS TaqMan vs.

Abbott m2000

Results

PZB PZB PZB

AACHEN AACHEN AACHEN

Transient Transient low low level level viremia viremia during during ART ART

date ART HIV-1 RNA CD4 absolute CD4 relative 01.2001 AZT 3TC EFV 11.2001 AZT 3TC LPV/r 03.2002 <50 643 33 01.2003 TDF 3TC LPV/r 04.2004 <50 03.2005 47 01.2006 01.2007 <40 (det.) 641 37 01.2008 <40 (non det.) 617 31 02.2009 <40 (det.) 715 33 05.2009 59 617 31 07.2009 <40 641 37 11.2009 72 675 38 01.2010 40 659 37 05.2010 71 615 37

69

PZB PZB PZB

AACHEN AACHEN AACHEN

Current Current Treatment Treatment Recomendations Recomendations

goal of therapy virologic failure <20-50 copies/ml >50 copies/ml

„evaluate virologic failure“

1 Deutsche AIDS-Gesellschaft e.V. (DAIG). Deutsch-Österreichische Leitlinien zur Antiretroviralen Therapie der HIV-1-Infektion (04.02.2010). 2 European AIDS Clinical Society (EACS). Guidelines. Clinical Management and Treatment of HIV-infected Adults in Europe. Version 5-3. 2011. 3 International AIDS Society (IAS). Recommendations. Antiretroviral Treatment of Adult HIV Infection. 2010. 4 Department of Health and Human Services (DHHS). Guidelines for the Use of Antiretroviral Agents in HIV-1 infected Adults and Adolescents (2011).

Europe2 2x >50 copies/ml International3 <50 copies/ml (PCR) <75 copies/ml (bDNA) 2x >50 copies/ml (PCR) 2x >75 copies/ml (bDNA) <50 copies/ml Germany1 2x >200 copies/ml <48 copies/ml International4

PZB PZB PZB

AACHEN AACHEN AACHEN

HIV HIV-

• viral

viral load load measurements measurements and and resistance resistance analysis analysis

(PZB Aachen) (PZB Aachen)

Genotypic resistance analysis: reverse transcriptase and protease

number of measurments

n=910

61,2 % 61,1 %

<50 cop/ml <40 cop/ml

66,2 % 63,7%

<40 cop/ml <40 cop/ml

n=1.353 n=1.243

Braun P., 13 MAT, 2010 7.719 28.06.2010

71,6% <40 Kop/ml

40-100 copies/ml: 4,2% 101-1000 copies/ml: 5,9% >1000 copies/ml: 17,8%

PZB PZB PZB

AACHEN AACHEN AACHEN

1 10 100 1.000 10.000 100.000 1.000.000

Nov 07 Jan 08 Feb 08 Mrz 08 Apr 08 Jun 08 Jan 09 Jan 10 Jan 11

HIV RNA [Kopien/ml] 200 400 600 800 1.000 CD4 [Zellen/µl]

antiretroviral therapy

Therapy Therapy success success = = viral viral load load below below detection detection limit limit?? ??

detection limit Abbott RealTime: 40 copies/ml Roche TaqMan: 20 copies/ml Siemens Versant kPCR: 37 copies/ml

PZB PZB PZB

AACHEN AACHEN AACHEN

Abbott m2000 / Roche Abbott m2000 / Roche TaqMan TaqMan v 1.0 v 1.0

Automated COBAS AmpliPrep COBAS TaqMan Gag 1,0 mL 20-10.000.000 copies/mL Automated m2000sp m2000rt Pol IN 0,6 mL 40-10.000.000 copies/mL Cobas Ampli-Prep Cobas TaqMan HIV-1 assay Abbott Real Time HIV-1 assay

PZB PZB PZB

AACHEN AACHEN AACHEN

Reproducibility and Precision

Two real-time PCR assays with international standards and serial dilutions of a patient sample

• 40,000 IU/ml = 24,000 copies/ml
• Three dilutions: 1x102, 5x102, and 1x103 copies/ml
• 20-fold measurement
• 100,000 IU/ml = 60,000 copies/ml
• Five dilutions: 1x102, 2.5x102, 5x102, 1x103, and 2.5x103 copies/ml
• 20-fold measurement for lowest viral load and 10-fold for other dilutions

PEI-Standard (Paul-Ehrlich-Institut) WHO-Standard (World-Health-Organisation) Patient Sample (PZB Aachen)

• Seven dilutions: 5x101, 1x102, 1x103, 1x104, 5x104, 1x105 and 5x105 copies/ml
• 10-fold measurement

Braun P., Ehret R., Wiesmann F, et al. Comparison of four commercial quantitative HIV-1 assays. Clin Chem Lab Med; 2007; 45: 93-99

PZB PZB PZB

AACHEN AACHEN AACHEN

20-fold measurement

PEI-Standard

Reproducibility and Precision

1x102 5x102 1x103

B

R2=0,72

CAP/CTM v 1.0

1x102 5x102 1x103

A

R2=0,91

m1000/m2000rt

32% CV 16% CV 16% CV 56% CV 49% CV 41% CV

Braun P., Ehret R., Wiesmann F, et al. Comparison of four commercial quantitative HIV-1 assays. Clin Chem Lab Med; 2007; 45: 93-99

PZB PZB PZB

AACHEN AACHEN AACHEN

WHO-Standard

Reproducibility and Precision

20 (10)-fold measurement

1x102 2,5x102 5x102 1x103 2,5x103 1x102 2,5x102 5x102 1x103 2,5x103

C D

R2=0,96 R2=0,88 Nominal level [copies/ml] Nominal level [copies/ml] Measurement [copies/ml] Measurement [copies/ml]

m1000/2000rt CAP/CTM v 1.0

23% CV 15% CV 21% CV 12% CV 14% CV 48% CV 22% CV 20% CV 47% CV 25% CV

Braun P., Ehret R., Wiesmann F, et al. Comparison of four commercial quantitative HIV-1 assays. Clin Chem Lab Med; 2007; 45: 93-99

PZB PZB PZB

AACHEN AACHEN AACHEN

1,7 2,0 3,0 4,0 4,7 5,0 5,7 10 100 1000 10000 100000 1000000

Expected concentrations in log copies/ml

Measurement [copies/ml]

m2000rt m2000rt TaqMan TaqMan v 1.0 v 1.0

1,7 2,0 3,0 4,0 4,7 5,0 5,7 18% CV 11% CV 18% CV 9% CV 19% CV 34% CV 23% CV 36% CV 39% CV 37% CV

Reproducibility and Precision

Clinical Sample

10% CV 28% CV

PZB PZB PZB

AACHEN AACHEN AACHEN

Correlation on Clinical Samples m2000rt versus TaqMan v 1.0

TaqMan minus m2000rt Differences (mean) in log10 copies/mL = 0,22 R2: 0,937

TaqMan [log copies/mL] m2000rt [log copies/mL]

Braun P., Ehret R., Wiesmann F, et al. Comparison of four commercial quantitative HIV-1 assays. Clin Chem Lab Med; 2007; 45: 93-99

PZB PZB PZB

AACHEN AACHEN AACHEN

Comparison between Roche TaqMan (version 2) and Abbott m2000 Evaluation: Low Evaluation: Low level level viremia viremia

Slides not available Results in press, 2011

PZB PZB PZB

AACHEN AACHEN AACHEN

Retrospective analysis of plasma samples (detectable and undetectable viral load) with RealTime and TaqMan v. 2.0

5 Groups (10 patients, 5 measuring points) Group 1: VL <40 copies/ml (not detected) Group 2: VL <40 copies/ml (detected not + detected) Group 3: VL <40 copiesn/ml (not detected) Group 4: VL >40 – 100 copies/ml Group 5: VL >40 – 200 copies/ml

PZB PZB PZB

AACHEN AACHEN AACHEN

Retrospective Analysis

Date Previous value m2000 CTM 6 24.08.2010 41 63 116 17.08.2009 87 87 206 19.02.2009 79 73 192 20.10.2008 193 91 219 18.07.2008 120 97 168 Example

PZB PZB PZB

AACHEN AACHEN AACHEN

Thank you for your attention!
