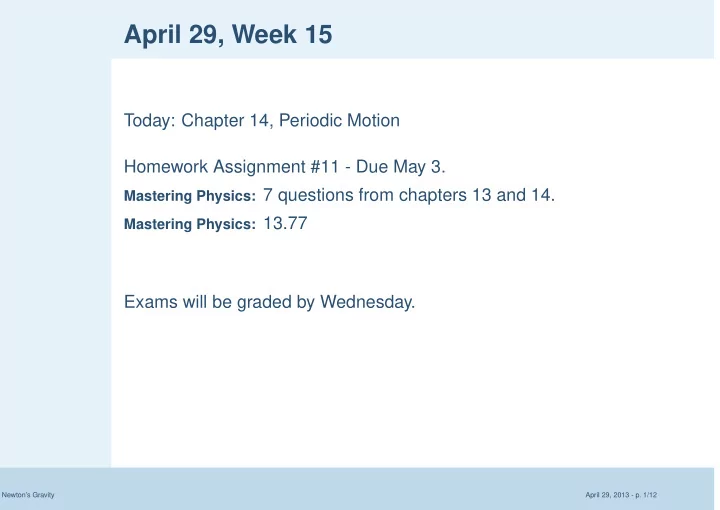

Newton’s Gravity April 29, 2013 - p. 1/12

April 29, Week 15

Today: Chapter 14, Periodic Motion Homework Assignment #11 - Due May 3.

Mastering Physics: 7 questions from chapters 13 and 14. Mastering Physics: 13.77

Exams will be graded by Wednesday.

slide-2
SLIDE 2

Newton’s Gravity April 29, 2013 - p. 2/12

Periodic Motion

Periodic Motion or Oscillation - Any repeated motion.

slide-3
SLIDE 3

Newton’s Gravity April 29, 2013 - p. 2/12

Periodic Motion

Periodic Motion or Oscillation - Any repeated motion. Terms:

slide-4
SLIDE 4

Newton’s Gravity April 29, 2013 - p. 2/12

Periodic Motion

Periodic Motion or Oscillation - Any repeated motion. Terms: Cycle - One complete round trip.

slide-5
SLIDE 5

Newton’s Gravity April 29, 2013 - p. 2/12

Periodic Motion

Periodic Motion or Oscillation - Any repeated motion. Terms: Cycle - One complete round trip. Amplitude, A - Maximum displacement from zero.

slide-6
SLIDE 6

Newton’s Gravity April 29, 2013 - p. 2/12

Periodic Motion

Periodic Motion or Oscillation - Any repeated motion. Terms: Cycle - One complete round trip. Amplitude, A - Maximum displacement from zero. Period, T - Time for one cycle.

slide-7
SLIDE 7

Newton’s Gravity April 29, 2013 - p. 2/12

Periodic Motion

Periodic Motion or Oscillation - Any repeated motion. Terms: Cycle - One complete round trip. Amplitude, A - Maximum displacement from zero. Period, T - Time for one cycle. Frequency, f - The number of cycles per time.

slide-8
SLIDE 8

Newton’s Gravity April 29, 2013 - p. 2/12

Periodic Motion

Periodic Motion or Oscillation - Any repeated motion. Terms: Cycle - One complete round trip. Amplitude, A - Maximum displacement from zero. Period, T - Time for one cycle. Frequency, f - The number of cycles per time. f = 1 T

slide-9
SLIDE 9

Newton’s Gravity April 29, 2013 - p. 2/12

Periodic Motion

Periodic Motion or Oscillation - Any repeated motion. Terms: Cycle - One complete round trip. Amplitude, A - Maximum displacement from zero. Period, T - Time for one cycle. Frequency, f - The number of cycles per time. f = 1 T Unit: 1 s = Hz (Hertz)

slide-10
SLIDE 10

Newton’s Gravity April 29, 2013 - p. 3/12

Simple Harmonic Motion

Simple Harmonic Motion (SHM) - The simplest type of periodic

  • motion. Occurs when a mass is connected to a spring with no

friction.

slide-11
SLIDE 11

Newton’s Gravity April 29, 2013 - p. 3/12

Simple Harmonic Motion

Simple Harmonic Motion (SHM) - The simplest type of periodic

  • motion. Occurs when a mass is connected to a spring with no

friction.

slide-12
SLIDE 12

Newton’s Gravity April 29, 2013 - p. 3/12

Simple Harmonic Motion

Simple Harmonic Motion (SHM) - The simplest type of periodic

  • motion. Occurs when a mass is connected to a spring with no

friction.

slide-13
SLIDE 13

Newton’s Gravity April 29, 2013 - p. 3/12

Simple Harmonic Motion

Simple Harmonic Motion (SHM) - The simplest type of periodic

  • motion. Occurs when a mass is connected to a spring with no

friction. x

slide-14
SLIDE 14

Newton’s Gravity April 29, 2013 - p. 3/12

Simple Harmonic Motion

Simple Harmonic Motion (SHM) - The simplest type of periodic

  • motion. Occurs when a mass is connected to a spring with no

friction. − → F

el

x

slide-15
SLIDE 15

Newton’s Gravity April 29, 2013 - p. 3/12

Simple Harmonic Motion

Simple Harmonic Motion (SHM) - The simplest type of periodic

  • motion. Occurs when a mass is connected to a spring with no

friction. − → F

el

x − → F = m− → a

slide-16
SLIDE 16

Newton’s Gravity April 29, 2013 - p. 3/12

Simple Harmonic Motion

Simple Harmonic Motion (SHM) - The simplest type of periodic

  • motion. Occurs when a mass is connected to a spring with no

friction. − → F

el

x − → F = m− → a −Fel = max

slide-17
SLIDE 17

Newton’s Gravity April 29, 2013 - p. 3/12

Simple Harmonic Motion

Simple Harmonic Motion (SHM) - The simplest type of periodic

  • motion. Occurs when a mass is connected to a spring with no

friction. − → F

el

Fel = kx x − → F = m− → a −Fel = max

slide-18
SLIDE 18

Newton’s Gravity April 29, 2013 - p. 3/12

Simple Harmonic Motion

Simple Harmonic Motion (SHM) - The simplest type of periodic

  • motion. Occurs when a mass is connected to a spring with no

friction. − → F

el

Fel = kx x − → F = m− → a −Fel = max −kx = max

slide-19
SLIDE 19

Newton’s Gravity April 29, 2013 - p. 3/12

Simple Harmonic Motion

Simple Harmonic Motion (SHM) - The simplest type of periodic

  • motion. Occurs when a mass is connected to a spring with no

friction. − → F

el

Fel = kx x − → F = m− → a −Fel = max −kx = max ax = − k mx

slide-20
SLIDE 20

Newton’s Gravity April 29, 2013 - p. 4/12

Simple Harmonic Motion II

Simple Harmonic Motion (SHM) - The simplest type of periodic

  • motion. Occurs when a mass is connected to a spring with no

friction. − → F

el

Fel = kx x −kx = max

slide-21
SLIDE 21

Newton’s Gravity April 29, 2013 - p. 4/12

Simple Harmonic Motion II

Simple Harmonic Motion (SHM) - The simplest type of periodic

  • motion. Occurs when a mass is connected to a spring with no

friction. − → F

el

Fel = kx x −kx = max vx = dx dt

slide-22
SLIDE 22

Newton’s Gravity April 29, 2013 - p. 4/12

Simple Harmonic Motion II

Simple Harmonic Motion (SHM) - The simplest type of periodic

  • motion. Occurs when a mass is connected to a spring with no

friction. − → F

el

Fel = kx x −kx = max ax = dvx dt vx = dx dt

slide-23
SLIDE 23

Newton’s Gravity April 29, 2013 - p. 4/12

Simple Harmonic Motion II

Simple Harmonic Motion (SHM) - The simplest type of periodic

  • motion. Occurs when a mass is connected to a spring with no

friction. − → F

el

Fel = kx x −kx = max ax = d2x dt2 ax = dvx dt vx = dx dt

slide-24
SLIDE 24

Newton’s Gravity April 29, 2013 - p. 5/12

Simple Harmonic Motion III

Simple Harmonic Motion (SHM) - The simplest type of periodic

  • motion. Occurs when a mass is connected to a spring with no

friction. − → F

el

Fel = kx x −kx = md2x dt2 ax = d2x dt2 ax = dvx dt vx = dx dt

slide-25
SLIDE 25

Newton’s Gravity April 29, 2013 - p. 5/12

Simple Harmonic Motion III

Simple Harmonic Motion (SHM) - The simplest type of periodic

  • motion. Occurs when a mass is connected to a spring with no

friction. − → F

el

Fel = kx x −kx = md2x dt2 d2x dt2 = − k m

  • x

Differential Equation for SHM

slide-26
SLIDE 26

Newton’s Gravity April 29, 2013 - p. 6/12

Simple Harmonic Motion IV

Simple Harmonic Motion (SHM) - The simplest type of periodic

  • motion. Occurs when a mass is connected to a spring with no

friction. − → F

el

Fel = kx x d2x dt2 = − k m

  • x
slide-27
SLIDE 27

Newton’s Gravity April 29, 2013 - p. 6/12

Simple Harmonic Motion IV

Simple Harmonic Motion (SHM) - The simplest type of periodic

  • motion. Occurs when a mass is connected to a spring with no

friction. − → F

el

Fel = kx x d2x dt2 = − k m

  • x

In Calculus: f ′′ = −cf

slide-28
SLIDE 28

Newton’s Gravity April 29, 2013 - p. 6/12

Simple Harmonic Motion IV

Simple Harmonic Motion (SHM) - The simplest type of periodic

  • motion. Occurs when a mass is connected to a spring with no

friction. − → F

el

Fel = kx x d2x dt2 = − k m

  • x

In Calculus: f ′′ = −cf x = A cos (ωt + φ)

slide-29
SLIDE 29

Newton’s Gravity April 29, 2013 - p. 6/12

Simple Harmonic Motion IV

Simple Harmonic Motion (SHM) - The simplest type of periodic

  • motion. Occurs when a mass is connected to a spring with no

friction. − → F

el

Fel = kx x d2x dt2 = − k m

  • x

In Calculus: f ′′ = −cf x = A cos (ωt + φ) Amplitude

slide-30
SLIDE 30

Newton’s Gravity April 29, 2013 - p. 6/12

Simple Harmonic Motion IV

Simple Harmonic Motion (SHM) - The simplest type of periodic

  • motion. Occurs when a mass is connected to a spring with no

friction. − → F

el

Fel = kx x d2x dt2 = − k m

  • x

In Calculus: f ′′ = −cf x = A cos (ωt + φ) Amplitude

Phase Angle

slide-31
SLIDE 31

Newton’s Gravity April 29, 2013 - p. 6/12

Simple Harmonic Motion IV

Simple Harmonic Motion (SHM) - The simplest type of periodic

  • motion. Occurs when a mass is connected to a spring with no

friction. − → F

el

Fel = kx x d2x dt2 = − k m

  • x

In Calculus: f ′′ = −cf x = A cos (ωt + φ) Amplitude Angular frequency, ω = 2πf = 2π T

Phase Angle

slide-32
SLIDE 32

Newton’s Gravity April 29, 2013 - p. 7/12

Amplitude

Amplitude - Maximum distance from zero.

slide-33
SLIDE 33

Newton’s Gravity April 29, 2013 - p. 7/12

Amplitude

Amplitude - Maximum distance from zero. x = cos t

slide-34
SLIDE 34

Newton’s Gravity April 29, 2013 - p. 7/12

Amplitude

Amplitude - Maximum distance from zero. x = cos t

slide-35
SLIDE 35

Newton’s Gravity April 29, 2013 - p. 7/12

Amplitude

Amplitude - Maximum distance from zero. x = cos t

slide-36
SLIDE 36

Newton’s Gravity April 29, 2013 - p. 7/12

Amplitude

Amplitude - Maximum distance from zero. x = cos t 1 −1

slide-37
SLIDE 37

Newton’s Gravity April 29, 2013 - p. 7/12

Amplitude

Amplitude - Maximum distance from zero. x = cos t 1 −1 x = A cos t

slide-38
SLIDE 38

Newton’s Gravity April 29, 2013 - p. 7/12

Amplitude

Amplitude - Maximum distance from zero. x = cos t 1 −1 x = A cos t

slide-39
SLIDE 39

Newton’s Gravity April 29, 2013 - p. 7/12

Amplitude

Amplitude - Maximum distance from zero. x = cos t 1 −1 x = A cos t

slide-40
SLIDE 40

Newton’s Gravity April 29, 2013 - p. 7/12

Amplitude

Amplitude - Maximum distance from zero. x = cos t 1 −1 x = A cos t A −A

slide-41
SLIDE 41

Newton’s Gravity April 29, 2013 - p. 8/12

Phase Angle

Phase Angle - φ, Units: rad. Shifts the Cosine to start wherever needed.

slide-42
SLIDE 42

Newton’s Gravity April 29, 2013 - p. 8/12

Phase Angle

Phase Angle - φ, Units: rad. Shifts the Cosine to start wherever needed. x = A cos t

slide-43
SLIDE 43

Newton’s Gravity April 29, 2013 - p. 8/12

Phase Angle

Phase Angle - φ, Units: rad. Shifts the Cosine to start wherever needed. x = A cos t x = A cos

  • t + π

4

slide-44
SLIDE 44

Newton’s Gravity April 29, 2013 - p. 8/12

Phase Angle

Phase Angle - φ, Units: rad. Shifts the Cosine to start wherever needed. x = A cos t x = A cos

  • t + π

4

slide-45
SLIDE 45

Newton’s Gravity April 29, 2013 - p. 8/12

Phase Angle

Phase Angle - φ, Units: rad. Shifts the Cosine to start wherever needed. x = A cos t x = A cos

  • t + π

4

slide-46
SLIDE 46

Newton’s Gravity April 29, 2013 - p. 8/12

Phase Angle

Phase Angle - φ, Units: rad. Shifts the Cosine to start wherever needed. x = A cos t x = A cos

  • t + π

4

  • x = A cos
  • t + π

2

slide-47
SLIDE 47

Newton’s Gravity April 29, 2013 - p. 8/12

Phase Angle

Phase Angle - φ, Units: rad. Shifts the Cosine to start wherever needed. x = A cos t x = A cos

  • t + π

4

  • x = A cos
  • t + π

2

  • = − sin t
slide-48
SLIDE 48

Newton’s Gravity April 29, 2013 - p. 9/12

Angular Frequency

Angular Frequency - ω = 2πf = 2π T Units: rad/s

slide-49
SLIDE 49

Newton’s Gravity April 29, 2013 - p. 9/12

Angular Frequency

Angular Frequency - ω = 2πf = 2π T Units: rad/s x = A cos t

slide-50
SLIDE 50

Newton’s Gravity April 29, 2013 - p. 9/12

Angular Frequency

Angular Frequency - ω = 2πf = 2π T Units: rad/s x = A cos t

slide-51
SLIDE 51

Newton’s Gravity April 29, 2013 - p. 9/12

Angular Frequency

Angular Frequency - ω = 2πf = 2π T Units: rad/s x = A cos t

T = 2π

slide-52
SLIDE 52

Newton’s Gravity April 29, 2013 - p. 9/12

Angular Frequency

Angular Frequency - ω = 2πf = 2π T Units: rad/s x = A cos t

T = 2π

x = A cos (2πt)

slide-53
SLIDE 53

Newton’s Gravity April 29, 2013 - p. 9/12

Angular Frequency

Angular Frequency - ω = 2πf = 2π T Units: rad/s x = A cos t

T = 2π

x = A cos (2πt)

slide-54
SLIDE 54

Newton’s Gravity April 29, 2013 - p. 9/12

Angular Frequency

Angular Frequency - ω = 2πf = 2π T Units: rad/s x = A cos t

T = 2π

x = A cos (2πt)

T = 1

slide-55
SLIDE 55

Newton’s Gravity April 29, 2013 - p. 9/12

Angular Frequency

Angular Frequency - ω = 2πf = 2π T Units: rad/s x = A cos t

T = 2π

x = A cos (2πt)

T = 1

x = A cos 2π

3 t

slide-56
SLIDE 56

Newton’s Gravity April 29, 2013 - p. 9/12

Angular Frequency

Angular Frequency - ω = 2πf = 2π T Units: rad/s x = A cos t

T = 2π

x = A cos (2πt)

T = 1

x = A cos 2π

3 t

slide-57
SLIDE 57

Newton’s Gravity April 29, 2013 - p. 9/12

Angular Frequency

Angular Frequency - ω = 2πf = 2π T Units: rad/s x = A cos t

T = 2π

x = A cos (2πt)

T = 1

x = A cos 2π

3 t

  • T = 3
slide-58
SLIDE 58

Newton’s Gravity April 29, 2013 - p. 10/12

General Solution

slide-59
SLIDE 59

Newton’s Gravity April 29, 2013 - p. 10/12

General Solution

x = A cos (ωt + φ)

slide-60
SLIDE 60

Newton’s Gravity April 29, 2013 - p. 10/12

General Solution

x = A cos (ωt + φ)

slide-61
SLIDE 61

Newton’s Gravity April 29, 2013 - p. 10/12

General Solution

x = A cos (ωt + φ) A −A

slide-62
SLIDE 62

Newton’s Gravity April 29, 2013 - p. 10/12

General Solution

x = A cos (ωt + φ) A −A

T = 2π ω

slide-63
SLIDE 63

Newton’s Gravity April 29, 2013 - p. 10/12

General Solution

x = A cos (ωt + φ) A −A

T = 2π ω

Differential Equation for SHM: d2x dt2 = − k m

  • x
slide-64
SLIDE 64

Newton’s Gravity April 29, 2013 - p. 10/12

General Solution

x = A cos (ωt + φ) A −A

T = 2π ω

Differential Equation for SHM: d2x dt2 = − k m

  • x

v = dx dt = −ωA sin (ωt + φ)

slide-65
SLIDE 65

Newton’s Gravity April 29, 2013 - p. 10/12

General Solution

x = A cos (ωt + φ) A −A

T = 2π ω

Differential Equation for SHM: d2x dt2 = − k m

  • x

v = dx dt = −ωA sin (ωt + φ) d2x dt2 = −ω2A cos (ωt + φ)

slide-66
SLIDE 66

Newton’s Gravity April 29, 2013 - p. 10/12

General Solution

x = A cos (ωt + φ) A −A

T = 2π ω

Differential Equation for SHM: d2x dt2 = − k m

  • x

v = dx dt = −ωA sin (ωt + φ) d2x dt2 = −ω2A cos (ωt + φ) = −ω2x

slide-67
SLIDE 67

Newton’s Gravity April 29, 2013 - p. 10/12

General Solution

x = A cos (ωt + φ) A −A

T = 2π ω

Differential Equation for SHM: d2x dt2 = − k m

  • x

v = dx dt = −ωA sin (ωt + φ) d2x dt2 = −ω2A cos (ωt + φ) = −ω2x

slide-68
SLIDE 68

Newton’s Gravity April 29, 2013 - p. 10/12

General Solution

x = A cos (ωt + φ) A −A

T = 2π ω

Differential Equation for SHM: d2x dt2 = − k m

  • x

v = dx dt = −ωA sin (ωt + φ) d2x dt2 = −ω2A cos (ωt + φ) = −ω2x ω2 = k m

slide-69
SLIDE 69

Newton’s Gravity April 29, 2013 - p. 10/12

General Solution

x = A cos (ωt + φ) A −A

T = 2π ω

Differential Equation for SHM: d2x dt2 = − k m

  • x

v = dx dt = −ωA sin (ωt + φ) d2x dt2 = −ω2A cos (ωt + φ) = −ω2x ω2 = k m

  • ω =
  • k

m

slide-70
SLIDE 70

Newton’s Gravity April 29, 2013 - p. 11/12

SHM Exercise

Three position-versus-time graphs are shown. Assuming the mass was the same for each, in which case was the spring constant largest?

slide-71
SLIDE 71

Newton’s Gravity April 29, 2013 - p. 11/12

SHM Exercise

Three position-versus-time graphs are shown. Assuming the mass was the same for each, in which case was the spring constant largest? (a) t x

2 4 6 8

slide-72
SLIDE 72

Newton’s Gravity April 29, 2013 - p. 11/12

SHM Exercise

Three position-versus-time graphs are shown. Assuming the mass was the same for each, in which case was the spring constant largest? (a) t x

2 4 6 8

(b) t x

2 4 6 8

slide-73
SLIDE 73

Newton’s Gravity April 29, 2013 - p. 11/12

SHM Exercise

Three position-versus-time graphs are shown. Assuming the mass was the same for each, in which case was the spring constant largest? (a) t x

2 4 6 8

(b) t x

2 4 6 8

(c) t x

2 4 6 8

slide-74
SLIDE 74

Newton’s Gravity April 29, 2013 - p. 11/12

SHM Exercise

Three position-versus-time graphs are shown. Assuming the mass was the same for each, in which case was the spring constant largest? (a) t x

2 4 6 8

(b) t x

2 4 6 8

(c) t x

2 4 6 8

(d) The spring constant is the same for each

slide-75
SLIDE 75

Newton’s Gravity April 29, 2013 - p. 11/12

SHM Exercise

Three position-versus-time graphs are shown. Assuming the mass was the same for each, in which case was the spring constant largest? (a) t x

2 4 6 8

(b) t x

2 4 6 8

(c) t x

2 4 6 8

(d) The spring constant is the same for each (e) There is not enough information to determine

slide-76
SLIDE 76

Newton’s Gravity April 29, 2013 - p. 11/12

SHM Exercise

Three position-versus-time graphs are shown. Assuming the mass was the same for each, in which case was the spring constant largest? (a) t x

2 4 6 8

(b) t x

2 4 6 8

(c) t x

2 4 6 8

(d) The spring constant is the same for each (e) There is not enough information to determine

slide-77
SLIDE 77

Newton’s Gravity April 29, 2013 - p. 11/12

SHM Exercise

Three position-versus-time graphs are shown. Assuming the mass was the same for each, in which case was the spring constant largest? (a) t x

2 4 6 8

T = 2π ω and ω =

  • k

m ⇒ T = 2π m k So the largest spring constant would have the shortest period (and largest frequency)

slide-78
SLIDE 78

Newton’s Gravity April 29, 2013 - p. 12/12

SHM Exercise II

Three position-versus-time graphs are shown. Assuming the spring constant was the same for each, in which case was the mass largest?

slide-79
SLIDE 79

Newton’s Gravity April 29, 2013 - p. 12/12

SHM Exercise II

Three position-versus-time graphs are shown. Assuming the spring constant was the same for each, in which case was the mass largest? (a) t x

2 4 6 8

slide-80
SLIDE 80

Newton’s Gravity April 29, 2013 - p. 12/12

SHM Exercise II

Three position-versus-time graphs are shown. Assuming the spring constant was the same for each, in which case was the mass largest? (a) t x

2 4 6 8

(b) t x

2 4 6 8

slide-81
SLIDE 81

Newton’s Gravity April 29, 2013 - p. 12/12

SHM Exercise II

Three position-versus-time graphs are shown. Assuming the spring constant was the same for each, in which case was the mass largest? (a) t x

2 4 6 8

(b) t x

2 4 6 8

(c) t x

2 4 6 8

slide-82
SLIDE 82

Newton’s Gravity April 29, 2013 - p. 12/12

SHM Exercise II

Three position-versus-time graphs are shown. Assuming the spring constant was the same for each, in which case was the mass largest? l (a) t x

2 4 6 8

(b) t x

2 4 6 8

(c) t x

2 4 6 8

(d) The mass is the same for each

slide-83
SLIDE 83

Newton’s Gravity April 29, 2013 - p. 12/12

SHM Exercise II

Three position-versus-time graphs are shown. Assuming the spring constant was the same for each, in which case was the mass largest? (a) t x

2 4 6 8

(b) t x

2 4 6 8

(c) t x

2 4 6 8

(d) The mass is the same for each (e) There is not enough information to determine

slide-84
SLIDE 84

Newton’s Gravity April 29, 2013 - p. 12/12

SHM Exercise II

Three position-versus-time graphs are shown. Assuming the spring constant was the same for each, in which case was the mass largest? (a) t x

2 4 6 8

(b) t x

2 4 6 8

(c) t x

2 4 6 8

(d) The mass is the same for each (e) There is not enough information to determine

slide-85
SLIDE 85

Newton’s Gravity April 29, 2013 - p. 12/12

SHM Exercise II

Three position-versus-time graphs are shown. Assuming the spring constant was the same for each, in which case was the mass largest? (c) t x

2 4 6 8

T = 2π m k So the largest mass would have the longest period (and smallest frequency)
