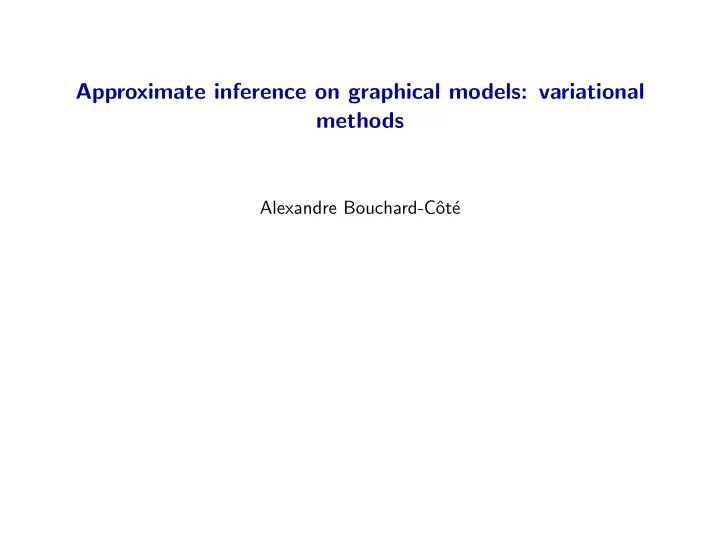

Approximate inference on graphical models: variational methods

Alexandre Bouchard-Cˆ

• t´

e

Exact inference in general graphs. . .

• Recall: we now have an exact, general and “efficient” inference algorithm: the

Junction-Tree algorithm

• Why should you care about approximate inference?

Exact inference in general graphs is hard

• Running time of JT is exponential in the max clique size of the JT
• Don’t have to look very far to find graphs were JT is arbitrary slow

We need approximate inference

• A very hot topic in the Machine Learning community
• Lots of important, open problems
• Next lectures: Markov Chain Monte Carlo (MCMC) algorithms
• Today: a completely different approach. . .

Variational methods for approximate inference

• Framework:

– Cast the inference problem into a variational (optimization) problem – Relax (simplify) the variational problem

Variational vs. sampling approaches

Sampling Variational + Converges to the true answer Generally very fast Large toolbox and literature Deterministic algorithms − Mixing can be slow Approximation can be poor Assessing convergence Approximation can fail

Program

• Specific examples of variational methods
• Outline of the unifying theory
• Examples revisited

Examples

Examples will be on the good old Ising model

• An undirected graphical model structured as a lattice in Rd
• Sufficient statistics φ(xs, xt) = xsxt, xu ∈ {−1, +1} encourage agreement of

neighbors: Pθ(X = x) = exp

(s,t)∈E

θs,txsxt − A(θ)

• .
• We will actually use xu ∈ {0, 1} in the derivations to slightly simplify the

derivations

Importance and physical interpretation

• For grid in dimension > 2, encapsulates the full hardness of inference
• Originates from statistical physics: model for a crystal structure

– vertices represent spin of particles – edges represent bonds

• Demonstration. . .

Example 1: Loopy Belief Propagation

• Run max-product, even if you are not supposed to. . .

Mt→s(xs) ∝

• xt∈{0,1}

φs,t(xs, xt)φt(xt)

• u∈N(t)−{s}

Mu→t(xt)

• t sends message to s when it has received the messages from all the other

neighbors: with this protocol, makes sense only on trees

Example 1: Loopy Belief Propagation

• t sends message to s when it has received the messages from all the other

neighbors: with this protocol, makes sense only on trees

• On trees, the following protocol is equivalent: initialize the messages to one,

then, at every iteration, all nodes send a message using what they received from the previous iteration

• Makes sense on arbitrary graphs!
• Does it work?

Example 2: Naive mean field

• A simpler coordinate ascent algorithm

µu ← 1 1 + exp

• − 2

s∈N(u)−{u} θs,uµs

• Our goal is to make sense out of these algorithms

Unifying theory

The plan

• Focus on computing A(θ) and µ(θ) = Eθφ(X)
• Construct an optimization problem s.t.

– A(θ) is its maximum value – µ(θ) is the maximizing argument

• Relax/simplify this optimization problem

How to construct a variational formulation for A?

• Key concept: convex duality (recall A is convex. . . )
• Two equivalent ways to specify convex functions

Convex Duality

• The convex conjugate of f : Rd → R ∪ {+∞}, denoted f ∗ makes this

equivalence explicit: f ∗(y) := sup

x∈Rd

• y, x − f(x)
• ,
• set f ∗(x) = +∞ for unbounded values: f ∗ : Rd → R ∪ {+∞}.

Geometric picture

• Warning: for pedagogical reasons, assume for now that f is univariate, twice

differentiable and strictly convex (can be made more general!!)

• “f acts on points, f ∗ acts on tangents”

Connection with our problem

• We will show that for convex f:

f ∗∗ := (f ∗)∗ = f

• Using this with f = A and expanding the definition of convex conjugacy:

A(θ) = A∗∗(θ) = sup

x

• θ, x − A∗(x)
• ,

a variational formulation.

f ∗∗ = f (1)

• First, let us fix some y0 ∈ R and find a “closed form” for f ∗(y0):

f ∗(y0) := sup

x∈Rd

• xy0 − f(x)
• ,
• Use differentiability and convexity to apply the derivative test:

d dx

• xy0 − f(x)
• = y0 − f ′(x) = 0 ⇒ f ′(xmax) = y0
• Observation: f strictly convex ⇒ f ′ strictly increasing ⇒ the function

x → f ′(x) is invertible

f ∗∗ = f (1)

• First, let us fix some y0 ∈ R and find a “closed form” for f ∗(y0):

f ∗(y0) := sup

x∈Rd

• xy0 − f(x)
• ,
• Use differentiability and convexity to apply the derivative test:

d dx

• xy0 − f(x)
• = 0 ⇒ f ′(xmax) = y0 ⇒ xmax = f ′−1(y0)
• Plug this in xy0 − f(x) to get f ∗:

f ∗(y) =

• yxmax − f(xmax)
• = yf ′−1(y) − f(f ′−1(y))

f ∗∗ = f (2)

• We can repeat the same process on

f ∗∗(y0) := sup

x∈Rd

• xy0 − f ∗(x)
• ,

using the expression f ∗(x) = xf ′−1(x) − f(f ′−1(x)) we found in the previous slide.

• f ∗′ looks bad at first but things cancel out:

f ∗′ = d dx

• xf ′−1(x) − f(f ′−1(x))
• = f ′−1(x) + x(f ′−1′(x))f ′′(x) − f ′(f ′−1(x))
• x

(f ′−1′(x))f ′′(x) = f ′−1(x)

f ∗∗ = f (3)

• This actually yields an alternate, implicit characterization of the convex

conjugate (in the context of our restricted assumptions): f ∗′(x) = f ′−1(x)

• can already see from this equation applied twice that f ∗∗ = f up to a constant
• Applying the derivative test as in slide (1) of the derivation and using this

result, we get f ∗∗ = f (check).

Caveat

• There was a problem with this derivation:
• f ′(f ′−1(x)) = x only defined for x in the image of f ′, ℑ(f ′)
• Set to +∞ otherwise
• In inference of A setting: will correspond to constraints on the realizable mean

parameters

Example: Bernouilli random variable

• P(X = x) ∝ exp(θx) for x ∈ {0, 1}, θ ∈ R
• A(θ) = log(1 + exp(θ))
• Let’s compute A∗ using the formula we derived:

A∗(µ) =

• µA′−1(µ) − A(A′−1(µ))

for µ ∈ ℑ(A′), +∞

• therwise

.

• By the way, recall: Eθφ(X) = A′(θ), here φ(x) = x, that explains the notation

Example: Bernouilli random variable

• A(θ) = log(1 + exp(θ)),
• A′(θ) =

exp θ 1+exp θ,

• A′−1(µ) = log

µ 1−µ, for µ ∈ ℑ(A′) = (0, 1)

Plug-in these in A∗(µ) = µA′−1(µ) − A(A′−1(µ))

• A(θ) = log(1 + exp(θ)),
• A′−1(µ) = log

µ 1−µ, for µ ∈ ℑ(A′) = (0, 1)

• Get, for µ ∈ ℑ(A′) = (0, 1):

A∗(µ) = µA′−1(µ) − A(A′−1(µ)) = µ log µ 1 − µ − log

• 1 + exp log

µ 1 − µ

• = µ log µ + (1 − µ) log(1 − µ)
• Does that look familiar?

General expression for A∗

• This is the negative entropy!
• This actually holds in general: let Hµ := −Eµ log pµ(X) be the entropy of the

r.v. characterized by the moment parameters µ, then A∗(µ) =

• −Hµ

if µ ∈ M +∞

• therwise
• Here, M := ℑ(A′) is the set of realizable mean parameters

Negative entropy interpretation

• General derivation: for µ ∈ M :

A∗(µ) = θ(µ), µ − A(θ(µ)) = θ(µ), Eθ(µ)φ(X) − log Z(θ(µ)) = Eθ(µ) log expθ(µ), φ(X) − Eθ(µ) log Z(θ(µ)) = Eθ(µ) log expθ(µ), φ(X) Z(θ(µ)) = Eθ(µ) log pµ(X) = −Hµ

Finally, a variational formulation

• Given θ0, the following optimization problem:

sup

µ

• θ0, µ + Hµ
• such that µ ∈ M ,

– has optimal value A(θ0),

• Moreover: it is maximized by µ = Eθφ(X):

– value µmax achieving the sup is s.t. θ0 = A∗′(µmax) – using A∗′(x) = A′−1(x), get µmax = A′(θ0) – hence µmax = Eθ0φ(X)

Finally, a variational formulation

• Given θ0, the following optimization problem:

sup

µ

• θ0, µ + Hµ
• such that µ ∈ M ,

– has optimal solution A(θ0), – is maximized by µ = Eθφ(X)

• How can we relax this optimization problem?

– restrict M to a subset, ˜ M ⊂ M on which Hµ is easy to compute – approximate Hµ

Examples, revisited

Mean field: a relaxation on M

• Mean field as a relaxation on M
• Recall:

removing edges in a graph. model ⇒ adding independence constraints ⇒ smaller set of realizable mean parameters

• Formally:

˜ M := {µs,t : µs,t = µsµt}

On ˜ M , the entropy decomposes

• For µ ∈

˜ M , we have (by Hammersley-Clifford): −Hµ = Eθ(µ) log

• s∈V

ps(Xs; θ(µ)) =

• s∈V
• µs log µs + (1 − µs) log(1 − µs)
• So the variational formulation

sup

µ

• θ0, µ + Hµ
• such that µ ∈ M ,

takes the form: sup

µ (s,t)∈E

θs,tµsµt −

• s∈V
• µs log µs + (1 − µs) log(1 − µs)
• such that µ ∈

˜ M = {µs,t : µs,t = µsµt},

Easy to solve this optimization problem

• It is easy to solve with succesive coordinate maximization
• Pick a coordinate µu, compute gradient of objective
• (s,t)∈E

θs,tµsµt −

• s∈V
• µs log µs + (1 − µs) log(1 − µs)
• with respect to µu:

d dµu (. . . ) =

• v∈N(u)−{u}

θu,vµv − µu µu + log µu + 1 − µu µu − 1 − log(1 − µi)

• Set it to zero and get the naive mean field algorithm:

µu ← 1 1 + exp

• −

v∈N(u)−{u} θu,vµv

Loopy BP: a relaxation on M and Hµ

• Mean field used an inner approximation of M
• Loopy BP uses:

– an outer approximation on M and – also an approximation on the entropy Hµ

• Key idea: Bethe approximation:

HBethe(µ) :=

• s∈V

Hs(µs) −

• (s,t)∈E

Is,t(µs,t)

• See “A Variational Principle for Graphical Models”, Wainwright and Jordan for

more details

Extensions

• Variational formulations suggest useful extensions
• e.g., in the mean field approximation, instead of restricting M to completely

factorized graph. model, use spanning tree:

Summary

• It is useful to cast inference hard inference problems into optimization problems
• How to cast?

– Fundamental idea from convex analysis: functions have a dual representation: a locus of points and a set of supporting tangents – Convex conjugate function f ∗ has f ∗∗ = f for convex f

• Get: Given θ0, the following optimization problem:

sup

µ

• θ0, µ + Hµ
• such that µ ∈ M ,

– has optimal solution A(θ0), – is maximized by µ = Eθφ(X)

Summary

• Then, relax the optimization problem. Two approaches
• 1. relaxation on the realizable parameters M
• 2. approximation of Hµ
• We have seen two specific examples:

– mean field, an instance of (1) (inner relaxation) – loopy BP, a combination of (1) and (2) (outer relaxation, Bethe approximation)

• Additional readings:

– “A Variational Principle for Graphical Models”, Wainwright and Jordan – “Tutorial on variational approximation methods”, T. Jaakkola
