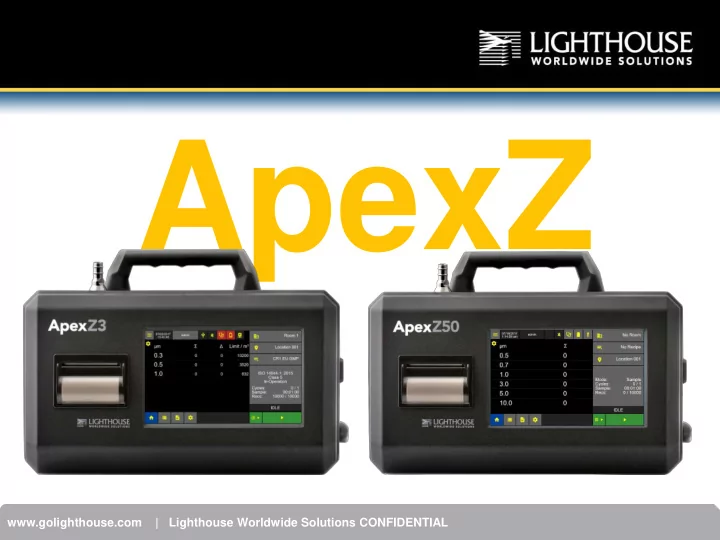

ApexZ

OurGoal

Be the best particle data collection device in the world, first…

…then add the features that reduce risk, reduce time spend working with the data, and add value to our customers.

OurGoal

DataIntegrity Portability DataCollection Clean-ability

Every data record includes a health check of all sensor components.

Self Diagnostics

• Each data record contains

diagnostic information about the sensor

• Dirty Sensor
• Laser Failure
• Photo Detector Failure
• Flow Errors
• Helps ensure compliance

between calibrations

SelfDiagnostics

DataIntegrity

SelfDiagnostics

DataIntegrity

DataIntegrity

Compliance

with Industry Standards

• ISO 21501-4
• JJF 1190-2008
• 21 CFR Part 11: Computerized Systems
• EU GMP Annex 11: Computerized

Systems

• CE Marking

Portability

Portability

Portability

The Lightest 1 CFM and 100 LPM Portable Particle Counter

Description Apex Z Climet PMS HACH No batteries 7.05lbs (3.19 kg) 11lbs (4.99 kg) 13.2 (6kg) 16.6lbs (7.55kg) One battery 8.40lbs (3.81 kg) 14.25lbs (6.46 kg) 14.85 (6.7kg) 18lbs (8.16 kg) Two batteries 9.75lbs (4.42 kg) N/A 16.5 (7.5kg) 19.5lbs (8.84 kg)

Portability

WeightComparison

Description Apex Z Climet HACH PMS Dimensions 12.7” x 6.2” x 8.9” 8.65” x 8.5” x 9.5” 12.5” x 10” x 8” 11.9” x 12.9” x 10.2” Total Footprint 80.1” 80.7” 100” 121.3” Total Volume 707 cubic in 698 cubic in 1,000 cubic in 1,565 cubic in

Portability

SizeComparison

DataCollection …Let the instrument work for you instead of you working for the instrument

DataCollection

SmartBatteries

All Day Battery Life DataCollection Z3 11hrs Z50 8hrs

SmartBatteries

Hot Swappable DataCollection External Chargers Available Operates with 1 or 2 Batteries

DataCollection

Lighted Handle for status and alarms

DataCollection

AppControl

Start and Stop Instruments Build, Download, and Upload Instrument Configurations

User names User passwords Location names Recipes Room names Reports

FleetManagement

DataCollection

Build Save and Send Complete Instrument Configurations that include….

FleetManagement

DataCollection

Instrument Configurations can be transferred via USB Key or the Basecamp App

• Instrument configuration can

easily be exported out to a USB key and then imported to another particle counter or saved as a backup.

• Backup instrument

configuration

• Clone instruments
• E-mail configuration

Configuration Import/Export

DataCollection

UserInterface

DataCollection

MainScreen

DataCollection

Customizable Main Screen

DataCollection

Up to 3 columns of information Display your data or alarms in any configuration

MultipleViews

DataCollection

SampleMode

Quick sample set-up directly from the main screen

DataCollection

RoutineSamplin g S i m p l i f i e d

Routine sampling is much simpler with “rooms” and “grid view”

DataCollection

Rooms

Rooms allow you to only see the locations and recipes that you use in the room you are in. This eliminates the need to scroll through a long list of locations or recipes when moving between rooms

DataCollection

Choose your Room

DataCollection

DataCollection

Select your Recipe

You only have to scroll through recipes for the room you’re in

DataCollection

Select your Location

Only scroll through the locations in the room you are in

GridView

DataCollection

• Reduces operator sampling errors by

highlighting which sample locations have been completed and which are left to sample.

• Box color changes based on status:
• Grey = Needs to be sampled
• Green = Sample complete and

data is under a warning or alarm limit.

• Red = Sample complete and data

is over an alarm threshold

GridView

DataCollection

AuditTrail

• Tracks all changes and
• perations within the unit.
• Who is logged in
• What changes where made
• What time the changes where

made

• The audit trail can be

exported and saved for future reference.

• Storage of 20,000 messages

DataCollection

TempHumidity

• External Temp/Humidity Sensor
• Temp: 32-122°F(0-50°C) ±1°F
• Hum: 0-100% ±3%
• Plugs directly into ApexZ SmartPort

DataCollection

ZeroCount

• Integrated Zero Count

Button allows the user to zero count the unit without having to leave a recipe.

• Zero count data is

saved to a separate location so it does not effect sample data/certification.

Zero Count Button

DataCollection

• Administrator
• Can Create new users
• Can access Configuration
• Full use of the Instrument
• peration and sample

settings

UserLevels

DataCollection

• Power User
• Full use of the Instrument
• peration and sample

settings

UserLevels

DataCollection

• Operator
• Full use of instrument pre-

configured recipes and sample settings

UserLevels

DataCollection

CleanAbility Wipedown your ApexZ with Confidence

CleanAbility

Z3

• 0.3µm-10.0µm Particle size
• 1.0 CFM Flowrate
• Self-Diagnostics
• Sealed VHP Compatible enclosure
• Integrated status lights
• Hot swappable Smart Batteries
• WI-FI, Ethernet, and USB data transfer options
• 10,000 sample records, 1,000 Locations 50

recipes and 50 report sessions

• Battery:11 hours nominal use

Summary

Z50

• 0.5µm-10.0µm Particle size
• 100 LPM Flowrate
• Self-Diagnostics
• Sealed VHP Compatible enclosure
• Integrated status lights
• Hot swappable Smart Batteries
• WI-FI, Ethernet, and USB data transfer options
• 10,000 sample records, 1,000 Locations 50

recipes and 50 report sessions

• Battery: 8 hours nominal use

Summary

Let the ApexZ work for you
