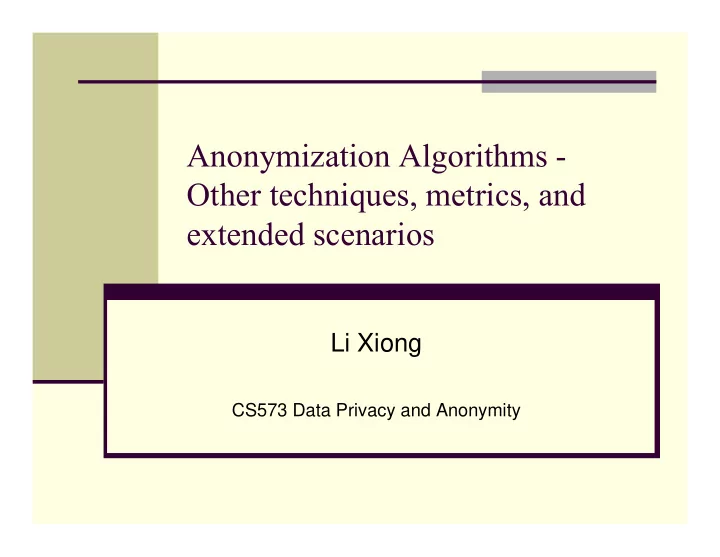

Anonymization Algorithms - Other techniques, metrics, and extended scenarios

Li Xiong

CS573 Data Privacy and Anonymity

So far

 k-anonymity (protect identity disclosure)  Anonymization algorithms

 Generalization and suppression  Microaggregation and clustering

 Privacy principles beyond k-anonymity

 l-diversity, t-closeness (protect attribute

disclosure)

 m-invariance (protect continuous publishing)

Agenda

 Other anonymization technique

 Anatomization

 Information metrics  Extended scenarios

Anonymization methods

 Non-perturbative: don't distort the data

 Generalization  Suppression

 Perturbative: distort the data

 Microaggregation/clustering  Additive noise

 Anatomization and permutation

 De-associate relationship between QID and

sensitive attribute

tuple ID Age Sex Zipcode Disease 1 (Bob) 23 M 11000 pneumonia 2 27 M 13000 Dyspepsia 3 35 M 59000 Dyspepsia 4 59 M 12000 pneumonia 5 61 F 54000 flu 6 65 F 25000 stomach pain 7 (Alice) 65 F 25000 flu 8 70 F 30000 bronchitis table 1 tuple ID Age Sex Zipcode Disease 1 [21,60] M [10001, 60000] pneumonia 2 [21,60] M [10001, 60000] Dyspepsia 3 [21,60] M [10001, 60000] Dyspepsia 4 [21,60] M [10001, 60000] pneumonia 5 [61,70] F [10001, 60000] flu 6 [61,70] F [10001, 60000] stomach pain 7 [61,70] F [10001, 60000] flu 8 [61,70] F [10001, 60000] bronchitis table 2

Problems with k-anonymity and l-diversity

Query A: SELECT COUNT(*) FROM Microdata WHERE Disease = 'pneumonia' AND Age <= 30 AND Zipcode IN [10001,20000]

Querying generalized table

• R1 and R2 are the anonymized QID groups
• Q is the query range
• p = Area(R1 ∩ RQ)/Area(R1) = (10*10)/(50*40) = 0.05
• Estimated Answer for A: 2(0.05) = 0.1

Concept of the Anatomy Algorithm

• Release 2 tables, quasi-identifier table (QIT) and sensitive

table (ST)

• Use the same QI groups (satisfy l-diversity), replace the

sensitive attribute values with a Group-ID column

• Then produce a sensitive table with Disease statistics

tuple ID Age Sex Zipcode Group-ID 1 23 M 11000 1 2 27 M 13000 1 3 35 M 59000 1 4 59 M 12000 1 5 61 F 54000 2 6 65 F 25000 2 7 65 F 25000 2 8 70 F 30000 2 QIT

Group-ID Disease Count 1 headache 2 1 pneumonia 2 2 bronchitis 1 2 flu 2 2 stomach ache 1 ST

Concept of the Anatomy Algorithm

• Does it satisfy k-anonymity? l-diversity?
• Query results?

tuple ID Age Sex Zipcode Group-ID 1 23 M 11000 1 2 27 M 13000 1 3 35 M 59000 1 4 59 M 12000 1 5 61 F 54000 2 6 65 F 25000 2 7 65 F 25000 2 8 70 F 30000 2 QIT

Group-ID Disease Count 1 headache 2 1 pneumonia 2 2 bronchitis 1 2 flu 2 2 stomach ache 1 ST

SELECT COUNT(*) FROM Microdata WHERE Disease = 'pneumonia' AND Age <= 30 AND Zipcode IN [10001,20000]

Specifications of Anatomy

• T is representation of the microdata to be published
• T has d QI attributes Aqi1, Aqi2, ..., Aqid and a sensitive

attribute As

• Each Aqii (1 ≤ i ≤ d ) is either numerical or categorical, but As

can only be categorical because of l-diversity

• t is a tuple within T and Aqii is the value of t with [d + 1] as

the As value

• With the above stated, we can consider t to be a point in a

(d +1)-dimensional data space regarded as DS

Specifications of Anatomy cont.

DEFINITION 1. (Partition/QI-group) A partition is several subsets of T and only allow each tuple to belong to one subset Subsets are know as QI-groups and are denoted as follows QI1, QI2, ...,QIm

Specifications of Anatomy cont.

DEFINITION 2. (l-diverse partition) A partition is considered l-diverse if it conforms to the following: v is the most frequent sensitive value in a QI-group QIj and cj(v) is the number of tuples that match v cj(v)/|QIj| ≤ 1/l |QIj| is the number of tuples of QIj c1(dyspepsia) = c1(pneumonia) = 2 and c2(flu) = 2 |QI1| = |QI2| = 4 so this satisfies the condition 2/4 ≤ 1/2

Specifications of Anatomy cont.

DEFINITION 3. (Anatomy) With a given l-diverse partition anatomy will create QIT and ST tables QIT will be constructed as the following: (Aqi1, Aqi2, ..., Aqid, Group-ID) ST will be constructed as the following: (Group-ID, As, Count)

Privacy properties

THEOREM 1. Given a pair of QIT and ST inference of the sensitive value of any individual is at mos 1/l

Age Sex Zipcode Group-ID Disease Count 23 M 11000 1 dyspepsia 2 23 M 11000 1 pneumonia 2 27 M 13000 1 dyspepsia 2 27 M 13000 1 pneumonia 2 35 M 59000 1 dyspepsia 2 35 M 59000 1 pneumonia 2 59 M 12000 1 dyspepsia 2 59 M 12000 1 pneumonia 2 61 F 54000 2 bronchitis 1 61 F 54000 2 flu 2 61 F 54000 2 stomachache 1 65 F 25000 2 bronchitis 1 65 F 25000 2 flu 2 65 F 25000 2 stomachache 1 65 F 25000 2 bronchitis 1 65 F 25000 2 flu 2 65 F 25000 2 stomachache 1 70 F 30000 2 bronchitis 1 70 F 30000 2 flu 2 70 F 30000 2 stomachache 1

Comparison with generalization

• Compare with generalization on two assumptions:

A1: the adversary has the QI-values of the target individual A2: the adversary also knows that the individual is definitely in the microdata If A1 and A2 are true, anatomy is as good as generalization 1/l holds true If A1 is true and A2 is false, generalization is stronger If A1 and A2 are false, generalization is still stronger

Preserving Data Correlation

• Examine the correlation between Age and Disease in T using

probability density function pdf

• Example: t1

tuple ID Age Sex Zipcode Disease 1 (Bob) 23 M 11000 pneumonia 2 27 M 13000 Dyspepsia 3 35 M 59000 Dyspepsia 4 59 M 12000 pneumonia 5 61 F 54000 flu 6 65 F 25000 stomach pain 7 (Alice) 65 F 25000 flu 8 70 F 30000 bronchitis table 1

Preserving Data Correlation cont.

• To re-construct an approximate pdf of t1 from the

generalization table:

tuple ID Age Sex Zipcode Disease 1 [21,60] M [10001, 60000] pneumonia 2 [21,60] M [10001, 60000] Dyspepsia 3 [21,60] M [10001, 60000] Dyspepsia 4 [21,60] M [10001, 60000] pneumonia 5 [61,70] F [10001, 60000] flu 6 [61,70] F [10001, 60000] stomach pain 7 [61,70] F [10001, 60000] flu 8 [61,70] F [10001, 60000] bronchitis table 2

Preserving Data Correlation cont.

• To re-construct an approximate pdf of t1 from the QIT and

ST tables:

tuple ID Age Sex Zipcode Group-ID 1 23 M 11000 1 2 27 M 13000 1 3 35 M 59000 1 4 59 M 12000 1 5 61 F 54000 2 6 65 F 25000 2 7 65 F 25000 2 8 70 F 30000 2 QIT

Group-ID Disease Count 1 headache 2 1 pneumonia 2 2 bronchitis 1 2 flu 2 2 stomach ache 1 ST

Preserving Data Correlation cont.

• To figure out a more rigorous comparison, calculate the “L2

distance” with the following equation: The distance for anatomy is 0.5 while the distance for generalization is 22.5

• Anatomy provides for better re-constructions of the

probability density functions of all tuples.

Preserving Data Correlation cont.

• measure the error for each pdf by using the following

formula: Objective: for all tuples t in T and obtain a minimal re- construction error (RCE):

Nearly-Optimal Anatomizing Algorithm

• They propose an efficient algorithm for anatomizing tables

that will minimize the RCE

• The resulting QIT and ST achieves an RCE that only

deviates from the lower bound by a factor < 1 + 1/n, where n is the size of T

• This algorithm has linear I/O complexity O(n/b) where b is

the page size

Nearly-Optimal Anatomizing Algorithm cont.

PROPERTY 1. At the end

• f the group-creation

phase, each non-empty bucket has only one tuple. PROPERTY 2. The set S' always includes at least

• ne QI-group.

PROPERTY 3. After the residue-assignment phase, each QI group has at least l tuples with distinct senstive attribute value

Experiments

• dataset CENSUS that contained the personal information of

500k American adults containing 9 discrete attributes

• Created two sets of microdata tables

Set 1: 5 tables denoted as OCC-3, ..., OCC-7 so that OCC-d (3 ≤ d ≤ 7) uses the first d as QI-attributes and Occupation as the sensitive attribute As Set 2: 5 tables denoted as SAL-3, ..., SAL-7 so that SAL-d (3 ≤ d ≤ 7) uses the first d as QI-attributes and Salary-class as the sensitive attribute As g

Experiments cont.

Experiments cont.

Experiments cont.

Experiments cont.

Conclusion

• Anatomy was designed to overcome the problem of

generalization of losing too much data and still obtain privacy

• Anatomy has a significantly lower error rate as compared

with generalization

• Several items would require further research
• Multiple sensitive attributes
• Effective mining of patterns in microdata

Agenda

 Other anonymization technique

 Anatomization

 Information metrics  Extended scenarios

Information Metrics

 General purpose metrics  Special purpose metrics  Trade-off metrics

General Purpose Metrics

 General idea: measure “similarity” between the

• riginal data and the anonymized data

 Minimal distortion metric (Samarati 2001; Sweeney

2002, Wang and Fung 2006)

 Charge a penalty to each instance of a value

generalized or suppressed (independently of

• ther records)

 ILoss (Xiao and Tao 2006)

 Charge a penalty when a specific value is

generalized

General Purpose Metrics cont.

 Discernibility Metric (DM) (K-OPTIMIZE,

Mondrian, l-diversity …)

 Charge a penalty to each record for being

indistinguishable from other records

Special Purpose Metrics

 Classification: Classification metric (CM)

(Iyengar 2002)

 Charge a penalty for each record suppressed

• r generalized to a group in which the record’s

class is not the majority class

 Query

 Query error: count queries  Query imprecision: overlapped range

Extended Scenarios

 Multiple release publishing  Continuous release publishing  Collaborative/distributed publishing

Other types of data

 High dimensional transaction data

 Market basket, web queries

 Moving objects data

 Location based services

 Textual data
