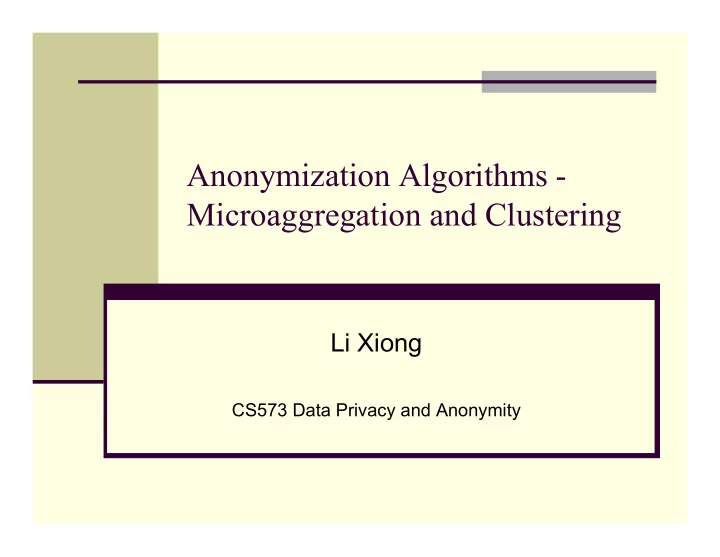

Anonymization Algorithms - Microaggregation and Clustering

Li Xiong

CS573 Data Privacy and Anonymity

Anonymization using Microaggregation or Clustering

 Practical Data-Oriented Microaggregation for

Statistical Disclosure Control, Domingo-Ferrer, TKDE 2002

 Ordinal, Continuous and Heterogeneous k-anonymity

through microaggregation, Domingo-Ferrer, DMKD 2005

 Achieving anonymity via clustering, Aggarwal, PODS

2006

 Efficient k-anonymization using clustering techniques,

Byun, DASFAA 2007

Anonymization Methods

Perturbative: distort the data

statistics computed on the perturbed dataset should not differ

significantly from the original

microaggregation, additive noise

Non-perturbative: don't distort the data

generalization: combine several categories to form new less

specific category

suppression: remove values of a few attributes in some

records, or entire records

Types of data

 Continuous: attribute is numeric and arithmetic

• perations can be performed on it

 Categorical: attribute takes values over a finite set and

standard arithmetic operations don't make sense

Ordinal: ordered range of categories

≤, min and max operations are meaningful

Nominal: unordered

only equality comparison operation is meaningful

Measure tradeoffs

k-Anonymity: a dataset satisfies k-anonymity for k > 1 if at least k records exist for each combination of quasi- identifier values assuming k-anonymity is enough protection against disclosure risk, one can concentrate on information loss measures

 Satisfying k-anonymity using generalization and

suppression is NP-hard

 Computational cost of finding the optimal generalization  How to determine the subset of appropriate

generalizations

semantics of categories and intended use of data e.g., ZIP code:

{08201, 08205} -> 0820* makes sense {08201, 05201} -> 0*201 doesn't

Critique of Generalization/Suppression

Problems cont.

 How to apply a generalization

globally

may generalize records that don't need it

locally

difficult to automate and analyze number of generalizations is even larger

 Generalization and suppression on

continuous data are unsuitable

a numeric attribute becomes categorical and loses its numeric semantics

Problems cont.

 How to optimally combine generalization and

suppression is unknown

 Use of suppression is not homogenous

suppress entire records or only some attributes of some records blank a suppressed value or replace it with a neutral value

Microaggregation/Clustering

 Two steps:

 Partition original dataset into clusters of similar

records containing at least k records

 For each cluster, compute an aggregation

• peration and use it to replace the original

records

 e.g., mean for continuous data, median for

categorical data

Advantages:

 a unified approach, unlike combination of generalization

and suppression

 Near-optimal heuristics exist  Doesn't generate new categories  Suitable for continuous data without removing their

numeric semantics

Advantages cont.

 Reduces data distortion

 K-anonymity requires an attribute to be

generalized or suppressed, even if all but one tuple in the set have the same value.

 Clustering allows a cluster center to be

published instead, “enabling us to release more information.”

Original Table

Age Salary Amy 25 50 Brian 27 60 Carol 29 100 David 35 110 Evelyn 39 120

2-Anonymity with Generalization

Age Salary Amy 20-30 50-100 Brian 20-30 50-100 Carol 20-30 50-100 David 30-40 100-150 Evelyn 30-40 100-150

Generalization allows pre-specified ranges

2-Anonymity with Clustering

Age Salary Amy [25-29] [50-100] Brian [25-29] [50-100] Carol [25-29] [50-100] David [35-39] [110-120] Evelyn [35-39] [110-120]

Cluster centers ([27,70], [37,115]) published 27=(25+27+29)/3 70=(50+60+100)/3 37=(35+39)/2 115=(110+120)/2

Another example: no common value among each attribute

Generalization vs. clustering

 Generalized version of the table would need to

suppress all attributes.

 Clustered Version of the table would publish the

cluster center as (1, 1, 1, 1), and the radius as 1.

Anonymization using Microaggregation or Clustering

 Practical Data-Oriented Microaggregation for

Statistical Disclosure Control, Domingo-Ferrer, TKDE 2002

 Ordinal, Continuous and Heterogeneous k-anonymity

through microaggregation, Domingo-Ferrer, DMKD 2005

 Achieving anonymity via clustering, Aggarwal, PODS

2006

 Efficient k-anonymization using clustering techniques,

Byun, DASFAA 2007

Multivariate microaggregation algorithm

 MDAV-generic: Generic version of MDAV algorithm

(Maximum Distance to Average Vector) from previous papers

 Works with any type of data (continuous, ordinal,

nominal), aggregation operator and distance calculation

MDAV-generic(R: dataset, k: integer) while |R| ≥ 3k

• 1. compute average record ~x of all records in R
• 2. find most distant record xr from ~x
• 3. find most distant record xs from xr
• 4. form two clusters from k-1 records closest to xr and k-1

closest to xs

• 5. Remove the clusters from R and run MDAV-generic on

the remaining dataset end while if 3k-1 ≤ |R| ≤ 2k

• 1. compute average record ~x of remaining records in R
• 2. find the most distant record xr from ~x
• 3. form a cluster from k-1 records closest to ~x
• 4. form another cluster containing the remaining records

else (fewer than 2k records in R) form a new cluster from the remaining records

MDAV-generic for continuous attributes

 use arithmetic mean and Euclidean distance  standardize attributes (subtract mean and divide by

standard deviation) to give them equal weight for computing distances

 After MDAV-generic, destandardize attributes

xij is value of k-anonymized jth attribute for the ith record m1

0(j) and m2(j) are mean and variance of the k-anonymized jth attribute

u1

0(j) and u2(j)

are mean and variance of the original jth attribute

MDAV-generic for ordinal attributes

 The distance between two categories a and b in an

attribute Vi:

dord(a,b) = (|{i| ≤ i < b}|) / |D(Vi)|

i.e., the number of categories separating a and b divided

by the number of categories in the attribute

Nominal attributes

 The distance between two values is defined according to

equality: 0 if they're equal, else 1

Empirical Results

 Continuous attributes

 From the U.S. Current Population Survey (1995)

 1080 records described by 13 continuous attributes  Computed k-anonymity for k = 3, ..., 9 and quasi-

identifiers with 6 and 13 attributes

 Categorical attributes

 From the U.S. Housing Survey (1993)

 Three ordinal and eight nominal attributes  Computed k-anonymity for k = 2, ..., 9 and quasi-

identifiers with 3, 4, 8 and 11 attributes

IL measures for continuous attributes

 IL1 = mean variation of individual attributes in original

and k-anonymous datasets

 IL2 = mean variation of attribute means in both datasets  IL3 = mean variation of attribute variances  IL4 = mean variation of attribute covariances  IL5 = mean variation of attribute Pearson's correlations  IL6 = 100 times the average of IL1-6

 MDAV-generic preserves means and variances  The impact on the non-preserved statistics grows with the quasi- identifier length, as one would expect  For a fixed-quasi-identifier length, the impact on the non-preserved statistics grows with k

IL measures for categorical attributes

 Dist: direct comparison of original and protected values

using a categorical distance

 CTBIL': mean variation of frequencies in contingency

tables for original and protected data (based on another paper by Domingo-Ferrer and Torra)

 ACTBIL': CTBIL' divided by the total number of cells

in all considered tables

 EBIL: Entropy-based information loss (based on another

paper by Domingo-Ferrer and Torra)

Ordinal attribute protection using median

Ordinal attribute protection using convex median

Anonymization using Microaggregation or Clustering

 Practical Data-Oriented Microaggregation for

Statistical Disclosure Control, Domingo-Ferrer, TKDE 2002

 Ordinal, Continuous and Heterogeneous k-anonymity

through microaggregation, Domingo-Ferrer, DMKD 2005

 Achieving anonymity via clustering, Aggarwal, PODS

2006

 Efficient k-anonymization using clustering techniques,

Byun, DASFAA 2007

r-Clustering

 Attributes from a table are first redefined as

points in metric space.

 These points are clustered, and then the cluster

centers are published, rather than the original quasi-identifiers.

 r is the lower bound on the number of members

in each cluster.

 r is used instead of k to denote the minimum

degree of anonymity because k is typically used in clustering to denote the number of clusters.

Data published for clusters

 Three features are published for the clustered

data

 the quasi-identifying attributes of the cluster

center

 the number of points within the cluster  the set of sensitive values for the cluster

(which remain unchanged, as with k- anonymity)

 A measure of the quality of the clusters will

also be published.

Defining the records in metric space

 Some attributes, such as age and height, are

easily mapped to metric space.

 Others, such as zip may first need to be

converted, for example to longitude and latitude.

 Some attributes may need to be scaled, such as

location, which may differ by thousands of miles.

 Some attributes such as race or nationality may

not convert to points in metric space easily.

How to measure the quality of the cluster

 Measures how much it distorts the original data.  Maximum radius (r-GATHER problem)

 Maximum radius of all clusters

 Cellular cost (r-CELLULAR CLUSTERING problem)

 Each cluster incurs a “facility cost” to set up the

cluster center.

 Each cluster incurs a “service cost” which is equal to

the radius times the number of points in the cluster

 Sum of the facility and services costs for each of the

clusters.

25 points, radius 10 14 points, radius 8 17 points, radius 7

Points arranged in clusters

Cluster quality measurements

 Maximum radius = 10  Facility cost plus service cost:

• Facility cost = f(c)
• Service cost = (17 x 7) + (14 x 8) + (25 x 10)

= 481

r-GATHER problem

 “The r-Gather problem is to cluster n points in

a metric space into a set of clusters, such that each cluster has at least r points. The

• bjective is to minimize the maximum radius

among the clusters.”

“Outlier” points

 r-GATHER and r-CELLULAR CLUSTERING,

like k-anonymity, are sensitive to outlier points (i.e., points which are far removed from the rest of the data).

 The clustering solutions in this paper are

generalized to allow an e fraction of outliers to be removed from the data, that is, e fraction of the tuples can be suppressed.

(r,e)-GATHER Clustering

 The (r, e)-GATHER clustering formulation of

the problem allows an e fraction of the outlier points to be unclustered (i.e., these tuples are suppressed).

 The paper finds that there is a polynomial

time algorithm that provides a 4- approximation for the (r,e)-GATHER problem.

r-CELLULAR CLUSTERING defined

 The CELLULAR CLUSTERING problem is

to arrange n points into clusters with each

cluster has at least r points and with the

minimum total cellular cost.

(r,e)-CELLULAR CLUSTERING

 There is also a (r,e)-CELLULAR

CLUSTERING problem in which an e fraction

• f the points can be excluded.

 The details of the constant-factor

approximation of this problem are deferred to the full version of this paper.

Anonymization using Microaggregation or Clustering

 Practical Data-Oriented Microaggregation for

Statistical Disclosure Control, Domingo-Ferrer, TKDE 2002

 Ordinal, Continuous and Heterogeneous k-anonymity

through microaggregation, Domingo-Ferrer, DMKD 2005

 Achieving anonymity via clustering, Aggarwal, PODS

2006

 Efficient k-anonymization using clustering techniques,

Byun, DASFAA 2007

41

Anonymization And Clustering

 k-Member Clustering Problem

 From a given set of n records, find a set of clusters such

that

 Each cluster contains at least k records, and  The total intra-cluster distance is minimized.

 The problem is NP-complete

42

Distance Metrics

 Distance metric for records

 Measure the dissimilarities between two data

points

 Sum of all dissimilarities between corresponding

attributes.

• Numerical values
• Categorical values

43

Distance between two numerical values

 Definition

Let D be a finite numeric

• domain. Then the

normalized distance between two values vi, vj  D is defined as: where |D| is the domain size measured by the difference between the maximum and minimum values in D.

Age Country Occupation Salary Diagnosis r1 41 USA Armed-Forces ≥50K Cancer r2 57 India Tech-support <50K Flu r3 40 Canada Teacher <50K Obesity r4 38 Iran Tech-support ≥50K Flu r5 24 Brazil Doctor ≥50K Cancer r6 45 Greece Salesman <50K Fever

Example 1 Distance between r1 and r2 with respect to Age attribute is |57-41|/|57-24| = 16/33 = 0.4848.. Example 2 Distance between r5 and r6 with respect to Age attribute is |24-45|/|57-24| = 21/33 = 0.6363..

44

Distance between two categorical values

 Equally different to each

• ther.

 0 if they are the same  1 if they are different

 Relationships can be

easily captured in a taxonomy tree.

Taxonomy tree of Country Taxonomy tree of Occupation

45

Distance between two categorical values

 Definition

Let D be a categorical domain and TD be a taxonomy tree defined for D. The normalized distance between two values vi, vj  D is defined as: where  (x, y) is the subtree rooted at the lowest common ancestor of x and y, and H(T) represents the height of tree T.

Taxonomy tree of Country

Example: The distance between India and USA is 3/3 = 1. The distance between India and Iran is 2/3 = 0.66.

46

Distance between two records

 Definition

Let QT = {N1, . . . ,Nm, C1, . . . ,Cn} be the quasi-identifier of table T , where Ni(i = 1, . . . ,m) is an attribute with a numeric domain and Ci(i = 1, . . . , n) is an attribute with a categorical domain. The distance of two records r1, r2  T is defined as: where δN is the distance function for numeric attribute, and δC is the distance function for categorical attribute.

47

Distance between two records Continued…

Taxonomy tree of Country Taxonomy tree of Occupation

Age Country Occupation Salary Diagno sis r1 41 USA Armed-Forces ≥50K Cancer r2 57 India Tech-support <50K Flu r3 40 Canada Teacher <50K Obesity r4 38 Iran Tech-support ≥50K Flu r5 24 Brazil Doctor ≥50K Cancer r6 45 Greece Salesman <50K Fever

Example the distance between the r1 and r2 is (16/33) + (3/3) + 1 = 2.485. the distance between the r1 and r3 is (1/33) + (1/3) + 1 = 1.363.

48

Cost Function - Information loss (IL)

 The amount of distortion (i.e., information loss) caused by the

generalization process. Note: Records in each cluster are generalized to share the same quasi-identifier value that represents every original quasi- identifier value in the cluster.

 Definition: Let e = {r1, . . . , rk} be a cluster (i.e., equivalence

class). Then the amount of information loss in e, denoted by IL(e), is defined as: where |e| is the number of records in e, |N| represents the size of numeric domain N, (Cj) is the subtree rooted at the lowest common ancestor of every value in Cj, and H(T) is the height

• f tree T.

49

Cost Function - Information loss (IL)

Taxonomy tree of Country

Age Country Occupation Salary Diagnosis r1 41 USA Armed-Forces ≥50K Cancer r2 57 India Tech-support <50K Flu r3 40 Canada Teacher <50K Obesity r4 38 Iran Tech-support ≥50K Flu r5 24 Brazil Doctor ≥50K Cancer r6 45 Greece Salesman <50K Fever

IL(e1) = 3 • D(e1) D(e1) = (41-24)/33 + (2/3) + 1 = 2.1818… IL(e1) = 3 • 2.1818…= 6.5454…

Age Country Occupation Salary Diagnosis 41 USA Armed-Forces ≥50K Cancer 40 Canada Teacher <50K Obesity 24 Brazil Doctor ≥50K Cancer

Cluster e1

Example

IL(e2) = 3 • D(e2) D(e2) = (57-24)/33 + (3/3) + 1 = 3 IL(e2) = 3 • 3 = 9

Age Country Occupation Salary Diagnosis 41 USA Armed-Forces ≥50K Cancer 57 India Tech-support <50K Flu 24 Brazil Doctor ≥50K Cancer

Cluster e2

50

Greedy k-member clustering algorithm

51

Diversity Metrics

The Equal Diversity metric (ED)

 assumes all sensitive attribute

values are equally sensitive where φ(e, s) = 1 if every record in e has the same s value; φ(e, s) = 0,

• therwise.

Modification to the greedy algorithm:

Sensitive Diversity metric (SD)

 assumes there are two types of

values in a sensitive attribute:

 truly-sensitive  not-so-sensitive

where ψ(e, s) = 1 if every record in e has the same s value that is truly- sensitive; ψ(e, s) = 0, otherwise Modification to the greedy algorithm

52

classification metric (CM)

 preserve the correlation between quasi-

identifier and class labels (non-sensitive values)

Where N is the total number of records, and Penalty(row r) = 1 if r is suppressed or the class label of r is different from the class label of the majority in the equivalence group. Modification to the greedy algorithm:

53

Experimentl Results

 Experimentl Setup

 Data: Adult dataset from the UC Irvine Machine Learning

Repository

 10 attributes (2 numeric, 7 categorical, 1 class)

 Compare with 2 other algorithms

 Median partitioning (mondrian algorithm)  k-Nearest neighbor

54

Experimentl Results

55

Conclusion

 Transforming the k-anonymity problem to the

k-member clustering problem

 Overall the Greedy Algorithm produced better

results compared to other algorithms at the cost of efficiency
