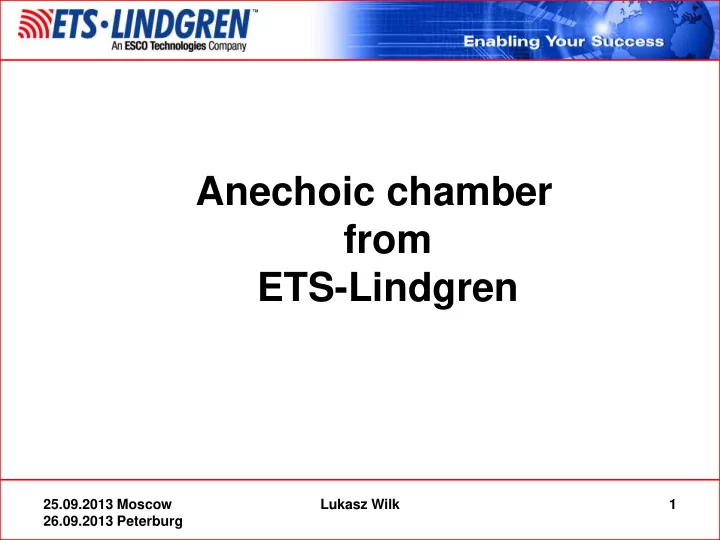

Anechoic chamber from ETS-Lindgren

25.09.2013 Moscow 26.09.2013 Peterburg 1 Lukasz Wilk

Production Plant Eura, FI

2

Overall Assessment

An anechoic chamber is a construction project that can take several months to complete. It is usually a significant investment with a projected life cycle of typically > 10 years. In order to make the right choice a potential buyer should assess the supplier on the following issues :

– Project capability – Technical performance – Commercial conditions – Financial risk

Project Capability

• Supplier’s Reference list
• Supplier’s Mechanical engineering/design

capability

• Supplier’s Manufacturing capability
• Supplier’s Installation capability
• Supplier’s RF engineering/design capability
• 3rd party evidence of compliance

Commercial

• Price

– What is included ? – What is excluded ?

• Terms and Conditions

– Warranty – Delivery schedule

• Sub contract

– How much of the scope is sub contracted

Financial Risk

• Ability to complete the project

– Size of company vs project value – Credit limit – Assets – Debt

• Ability to support after sales service

– Spare parts – Maintenance

Buying from a low bidder

• Price is low – Why ?
• Hidden costs ?
• Risk is higher ?

– Lower quality

• Unable to service/maintenance = lost revenue

– Smaller company – Long term issues

• Unable to service/maintenance = lost revenue

– Delivery issues

• Delays = extra costs/lost revenue

– Extra cost involved in managing the project

8

Michael Faraday (1791-1867) Faraday was a British chemist and physicist who contributed significantly to the study of electromagnetism and electrochemistry.

9

Faraday’s Law demo

10

Magnetic Field Lines Around a Wire,

http://www.m agnet.fsu.ed u/education/t utorials/java/ fieldlines/ind ex.html

Current Wire Magnetic Field

11

EM Wave

12

WAVES

Sinusoidal waves of various frequencies; the bottom waves have higher frequencies than those above. The horizontal axis represents time.

13

Basics

wavelength = Speed of light / Frequency

Wavelength : metres Speed of light : 300 000 000 metres per second (108 Million Km/h) Frequency: Hz

14

Faraday cage

• A Faraday cage is an

enclosure formed by conducting material, or by a mesh of such material.

• Such an enclosure

blocks out external static electrical fields.

• Faraday cages are

named after physicist Michael Faraday, who built one in 1836.

15

Faraday cage

• Electronic components or

systems that require an environment free of electromagnetic interference may be done a so-called screen room.

• These screen rooms are

completely enclosed by sheet metal.

• The metal layers are

connected to earth ground to dissipate any electric currents generated from the external electromagnetic fields

Main Shield Technologies

16

Modular S81 Enclosure (Sandwitch) Modular S101 Enclosure (Pan-type)

Modular S81 Panels

17

Construction The Series 81 Shielded Enclosure consists of shielded modular panel sections that are assembled with a clamping system into a self-supporting room structure. Sheets of 28-gauge galvanized steel are laminated to a 3/4-inch, high-density particle and/or plywood board core. Each panel section provides excellent stability to airborne moisture-induced warping and structure strength that lend to its rugged structural design. Series 81 panels are joined together with an extruded “hat and flat” and “cove” clamping system to provide uniform and consistent pressure contact against the shielded panel mating surfaces. These structural clamping sections are zinc-plated to resist corrosion and are joined with self-taping zinc-plated fasteners spaced four inches on center to ensure a secure shield. The corners of the shielded room are secured with precision-machined trihedral end cap sections. To maintain electrical isolation, a 6-mil dielectric vapor barrier and 1/8" dielectric underlayment are placed beneath the shielded floor

• panels. Counter-sunk floor screws in the clamping system ensure

a smooth floor surface. Attractive vinyl floor tiles are applied with adhesives over the exposed steel surface as a durable wearing

• surface. In addition, the Series 81 enclosure can be converted into

a ferrite-lined and/or conventional absorber-lined anechoic

• chamber. This feature makes it a truly flexible shielding solution.

Modular S101 Panels

18

Description

The Series 101 rooms can be dismantled and reinstalled, enlarged or modified due to the panel system. Only the gasket and the fasteners have to be replaced. No special tools nor welding are necessary during the installation. No maintenance is necessary after installation. The modular structure allows for very flexible adaptation to the customer's needs and

• requirements. Both the size and shape of the room can be designed to meet the individual

needs of the customer. As only the system (distance of holes and increments in the outer dimensions) and the panel joint are standardized, Series 101 is not limited to the use of only a few standard size panels. However, the automated manufacturing technology utilizes the advantages of high quantity production of standardized panels. The same manufacturing technology can be applied to different materials such as hot galvanized steel and aluminum. The requirements can be realized by using same machinery, thus enabling cost-effective solutions and a competitive price-quality-ratio. The panel system provides a reliable and high performance shielding, as the panels are jointed with special gasket. However, at the same time the number of fasteners can be minimized, which also shortens the assembly time. The Series 101 panels can be bolted from inside or from outside, depending on the purpose and requirements. The shielded room can also include a combination of flat sides inside and

• utside.

When installing the enclosure from inside (flat side outside), the enclosure can be assembled in close proximity(e.g. without a supporting structure as close as 5 cm) of existing walls of the parent building and the panel bendings (flanges) can be used for installing inner lining or absorber rails when appropriate. When installing the enclosure from outside (flat side inside), the hanging from the support structure does not penetrate the shielding and the inside is flat. This is required in partial discharge / high voltage testing halls as well as when either ferrites or absorbers are glued directly onto the walls and ceiling. Please note that the space required for the installation work is about 800 mm all around, also above the roof. As the Series 101 corner joint is identical to the intermediate joint no additional supports or special constructions are needed. The corners have equally reliable attenuation as the rest of the enclosure. Electromagnetic interference has no chance: no way in or no way out, as the case may be. This is just an example epitomizing that the Series 101 enclosure forms a carefully designed entity with painstaking attention to detail.

Shielding Effectiveness

typical SE values pending on door tpye / RF-components

19

S81 Enclosure S101 Enclosure (RFD-100 door)

Field Frequency Pan (S101) Sandwich (S81) Magnetic 1 kHz 45 dB 20 dB Magnetic 10 kHz 85 dB 56 dB Magnetic 100 kHz 105 dB 100 dB Magnetic 1 MHz 120 dB 110 dB Magnetic 10 MHz 125 dB 110 dB Electric 100 MHz 125 dB 110 dB Electric 1 GHz 125 dB 110 dB Plane Wave 10 GHz 125 dB 100 dB Plane Wave 18 GHz 125 dB 80 dB Plane Wave 40 GHz 125 dB

• Note : Performances stated must be measured without absorber

Basic Swing Doors

21

S501 Door for S81 Enclosure RFD Door for S101 Enclosure

22

RF-Shielded Double Door

23

RF-Shielded Sliding Door

24

Anechoic Chamber Swing Door

25

Anechoic Chamber Sliding Door

26

Anechoic Chamber Sliding Door

27

Large Shielded Sliding Door

28

Shielded Enclosure Accessories

29

Shielded Enclosure Accessories

Filter out of factory Stevenage, UK

The Absorber Family 1

Ferrite Tile . Magnetic Losses Preferred technology for Low frequencies (up to 2GHz), it has low profile (7mm max). It cannot be used for high frequencies

The Absorber Family 2

Microwave Pyramidal absorber. Electric Losses Preferred technology for High frequencies It can be used for low frequencies if size (length) is increased

The Absorber Family 3 Hybrid Absorber .

Electric and Magnetic Losses Preferred technology for EMC

• Applications. foam has to have

special low carbon content for good matching with ferrite tile at the bottom. At High frequencies its performance is not as good as MW pyramid of equal size.

34

Anechoic Chambers

• An anechoic chamber is

a shielded room designed to attenuate waves.

• An RF anechoic chamber

is designed to suppress the reflected electromagnetic waves, from the internal surfaces.

35

Anechoic Chambers

• In a well-designed anechoic

chamber, the equipment under test receive RF signals from the signal source, not reflected from another part of the chamber.

• This ensures the integrity of

the testing being conducted.

• Furthermore, the shielding
• f the chamber limits

interference from equipment located outside

• f the chamber.

36

Anechoic Chambers

• They are lined with an absorbent

material, such as carbon- impregnated foam shaped into pyramids.

• The pyramidal shape acts to resist

and dissipate the electromagnetic waves.

• Testing is done in anechoic

chambers to analyze the properties of antennas and other electronics that are susceptible to radio or microwave interference.

37

Anechoic Chambers

• Anechoic chambers range

from small compartments to chambers as large as aircraft hangars.

• The size of an anechoic

chamber depends on the size

• f the objects to be tested and

the frequency range of the radio or microwave signals used.

38

Anechoic Chambers

• Radio frequency interference (RFI) is

the unwanted reception of radio signals and can be problematic to the other electronic equipment onboard aircraft and other vehicles.

• Radio frequency interference sources

include

– lightning, – electrical equipment, – fluorescent lighting, – cell phones, – and transmitting equipment from radio stations.

• RFI testing helps determine which

frequencies affect particular electronic systems and provide clues to reducing the risks to communication devices or developing measures to counter the interference.

39

Turn-key Solution

Antennas

RF numerical modeling

Mechanical design

Fabrication Measurement

Low frequency immunity horns

EMC / OTA Positioners

EMC Field Sensors

Shielded Doors, CCTV Cameras and Filters

Products made from various sources are never perfect in terms of compliance

47 / 91

Don’t like it, choose ETS-Lindgren. Designed, made, installed with related test equipment: ETS-Lindgren !!!

48

Service

• Design & construction
• Project management
• On site project management / supervision
• Full installation / shield test
• Maintenance

Summary Chamber Capabilities

Standard MIL STD 461 CISPR25 IEC 61000-4-3 CISPR 16-1-4 NSA CISPR 16-1-4 sVSWR

Distance

1m 1m 3m* 3m 5m 10m 3m 5m 10m

Chamber Test

T T R R R R R R R

Start Frequency

80MHz 70MHz 80MHz 30MHz 30MHz 30MHz 1GHz 1GHz 1GHz

Stop Frequency

40GHz 2.5GHz 6GHz 1GHz 1GHz 1GHz 6GHz 6GHz 6GHz

Pre- Compliant Compact

T T R T T T T T T

MIL STD 461

R T T T T T T T T

CISPR 25

R R T T T T T T T

Compliant 3 meter

R R R R T T R T T

5 meter

R R R R R T R R T

10 meter

R R R R R R R R R
