1

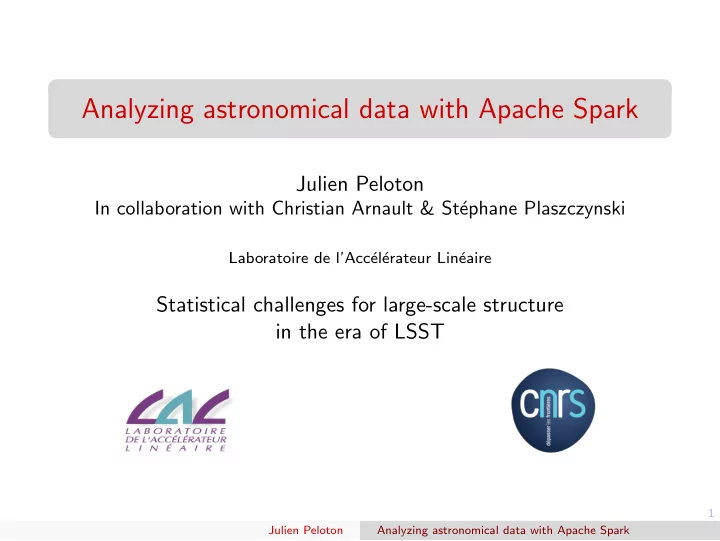

Analyzing astronomical data with Apache Spark

Julien Peloton

In collaboration with Christian Arnault & St´ ephane Plaszczynski

Laboratoire de l’Acc´ el´ erateur Lin´ eaire

Statistical challenges for large-scale structure in the era of LSST

Julien Peloton Analyzing astronomical data with Apache Spark

2

Motivation

On the one hand... Future telescopes will collect huge amount of data (O(1) TB/day). This is unprecedented in the field of astronomy. ... on the other hand. Big data communities deal with such data volumes (and even more!) for many years. An efficient framework to tackle Big data problems is Apache Spark.

Julien Peloton Analyzing astronomical data with Apache Spark

3

Apache Spark

Apache Spark is a cluster-computing framework. Started as a research project at UC Berkeley in 2009. Open Source License (Apache 2.0). Used by +1000 companies over the world.

Julien Peloton Analyzing astronomical data with Apache Spark

4

Apache Spark, Hadoop & HDFS

Credo: ”It is cheaper to move computation rather than data”. Spark was initially developed to overcome limitations in the MapReduce paradigm (Read → Map → Reduce). To work, Spark needs

a cluster manager a distributed storage system (e.g. HDFS).

Julien Peloton Analyzing astronomical data with Apache Spark

5

Data sources

Spark has built-in data sources, but mostly naively structured. A popular file format to store and manipulate data is FITS. FITS format has a complex/heterogeneous structure (image/table HDU, header, data block). Structured data source formats require specific implementation to distribute the data.

Julien Peloton Analyzing astronomical data with Apache Spark

6

Handling FITS data in Spark: several challenges

How do we read a FITS file in Scala? How do we access the data of a distributed FITS file across machines?

Julien Peloton Analyzing astronomical data with Apache Spark

7

spark-fits

Seamlessly integrate with Apache Spark: a simple ”drag-and-drop” of a FITS file in e.g. HDFS gives you full access to all the framework! There is support for catalogs (images in preparation). API for Scala, Python, R, and Java https://github.com/JulienPeloton/spark-fits

Julien Peloton Analyzing astronomical data with Apache Spark

8

spark-fits API: quick start

In Scala

// Define a DataFrame with the data from the first HDU val df = spark.read.format("com.sparkfits") .option("hdu", 1) .load("hdfs://...") // The DataFrame schema is inferred from the header df.show(4) +----------+---------+----------+-----+-----+ | target| RA| Dec|Index|RunId| +----------+---------+----------+-----+-----+ |NGC0000000| 3.448297| -0.338748| 0| 1| |NGC0000001| 4.493667| -1.441499| 1| 1| |NGC0000002| 3.787274| 1.329837| 2| 1| |NGC0000003| 3.423602| -0.294571| 3| 1| +----------+---------+----------+-----+-----+

Julien Peloton Analyzing astronomical data with Apache Spark

9

spark-fits API: quick start

In Python

## Define a DataFrame with the data from the first HDU df = spark.read.format("com.sparkfits")\ .option("hdu", 1)\ .load("hdfs://...") ## The DataFrame schema is inferred from the header df.show(4) +----------+---------+----------+-----+-----+ | target| RA| Dec|Index|RunId| +----------+---------+----------+-----+-----+ |NGC0000000| 3.448297| -0.338748| 0| 1| |NGC0000001| 4.493667| -1.441499| 1| 1| |NGC0000002| 3.787274| 1.329837| 2| 1| |NGC0000003| 3.423602| -0.294571| 3| 1| +----------+---------+----------+-----+-----+

Julien Peloton Analyzing astronomical data with Apache Spark

10

I/O performances

VirtualData @ Universit´ e Paris-Sud: 1 driver + 9 executors 9 × 17 Intel Core Processors (Haswell) @ 2GB RAM @ 2.6GHz

Julien Peloton Analyzing astronomical data with Apache Spark

11

Scala, Python, Java, and R API

spark-fits written in Scala, but takes advantage of Spark’s interfacing mechanisms. Same kind of performances across different API as far as IO is concerned. First iteration Later iterations

25 50 75 100

Iteration time (s)

84.0 2.4

(Scala API)

First iteration Later iterations

96.0 2.7

(Python API)

Julien Peloton Analyzing astronomical data with Apache Spark

12

First application: LSST-like catalogs

Problematic: Distribute galaxy catalog data (> 1010

• bjects), and manipulate the data efficiently using

spark-fits. Data set: LSST-like data from CoLoRe, 110 GB (10 years target).

a Ref: Just count the data (I/O reference). b Shells: Split the data into redshift shells with ∆z = 0.1, project into Healpix maps, and reduce the data.

Julien Peloton Analyzing astronomical data with Apache Spark

13

First application: LSST-like catalogs (shells)

LSST 1Y - redshift 0.1-0.2

• 1

1

LSST 1Y - redshift 0.2-0.3

• 1

1

LSST 1Y - redshift 0.3-0.4

• 1

1

LSST 1Y - redshift 0.4-0.5

• 1

1

Julien Peloton Analyzing astronomical data with Apache Spark

14

spark-fits at NERSC

Although not ideal, Spark can be used to process data stored in HPC-style shared file systems. Process 1.2 TB on Cori (NERSC) with spark-fits, using 40 Haswell nodes (1280 cores total). First iteration Later iterations

20 40 60

Iteration time (s)

69.5 2.4

(1 OST)

First iteration Later iterations

57.1 2.1

(8 OSTs)

Julien Peloton Analyzing astronomical data with Apache Spark

15

Conclusion & perspectives

A set of new tools for Astronomy to enter in the Big Data era Library to manipulate FITS in Scala. Spark connector to distribute FITS data across machines, and perform efficient data exploration. Proof of concept:

Demonstrate robustness against wide range of data set sizes. Distribute up to 1.2 TB of FITS data across machines, and make data exploration interactively.

Perspectives Keep extending the tools, e.g. to manipulate image HDU. Develop scientific cases, and integrate it in the current efforts. Your collaboration is welcome!

Julien Peloton Analyzing astronomical data with Apache Spark

16

Backup: First application: LSST-like catalogs

Problematic: Distribute galaxy catalog data (> 1010

• bjects), and manipulate the data efficiently using

spark-fits. Data set: LSST-like data from CoLoRe, 110 GB (10 years target).

a Ref: Just count the data (I/O reference). b Shells: Split the data into redshift shells with ∆z = 0.1, project into Healpix maps, and reduce the data. c Neighbours: Find all galaxies in the catalogs contained in a circle of center (x0, y0) and radius 1 deg, and reduce the data. d Cross-match: Find common objects between two set of catalogs with size 110 GB and 3.5 GB, respectively, and reduce the data.

Julien Peloton Analyzing astronomical data with Apache Spark

17

Backup: Distribution(s) of FITS

Problematic: How to distribute and manipulate the data of a FITS file?

Julien Peloton Analyzing astronomical data with Apache Spark

18

Backup: Distribution(s) of FITS

Problematic: How to distribute and manipulate the data of a FITS file?

Julien Peloton Analyzing astronomical data with Apache Spark

19

Backup: Spark, Scala, and Python

In the Scala world, there is no real equivalent to the numpy, matplotlib, scipy packages. Using the Jep package, we can interface Scala to the Python world. Installation:

Pip install: pip install jep --user Build with sbt: unmanagedBase := file("/path/to/python3.5/site-packages/jep")

Julien Peloton Analyzing astronomical data with Apache Spark

20

Backup: HDF5

https://github.com/valiantljk/h5spark https://www.hdfgroup.org/downloads/spark-connector

Julien Peloton Analyzing astronomical data with Apache Spark
