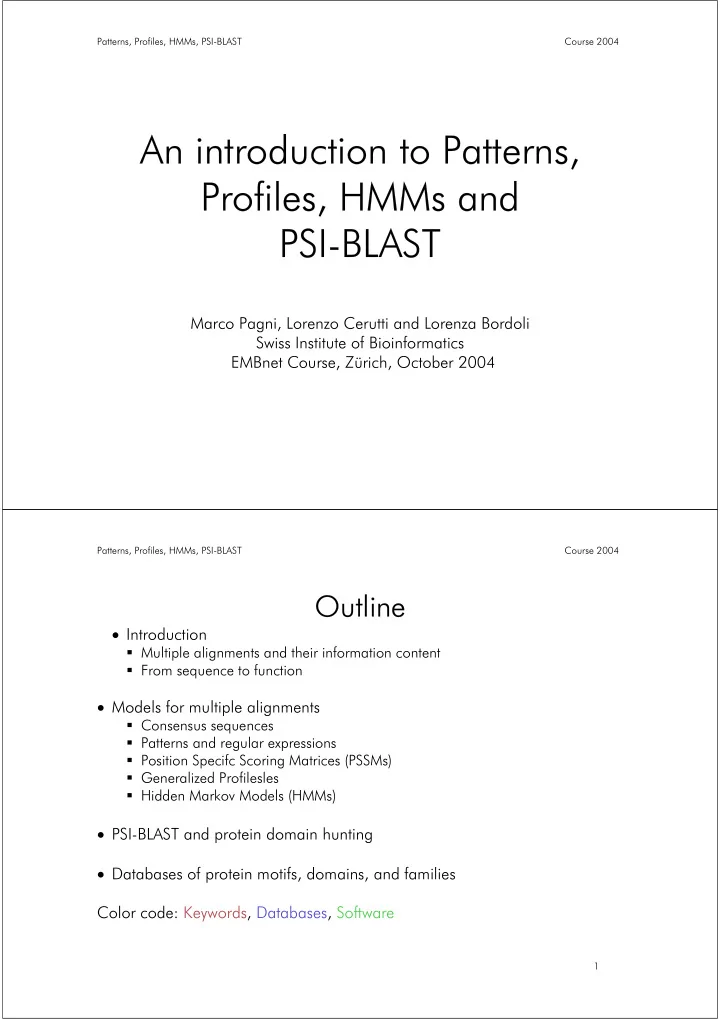

SLIDE 1

Patterns, Profiles, HMMs, PSI-BLAST Course 2004

An introduction to Patterns, Profiles, HMMs and PSI-BLAST

Marco Pagni, Lorenzo Cerutti and Lorenza Bordoli Swiss Institute of Bioinformatics EMBnet Course, Zürich, October 2004

Patterns, Profiles, HMMs, PSI-BLAST Course 2004 1

Outline

Introduction

Multiple alignments and their information content From sequence to function

Models for multiple alignments

Consensus sequences Patterns and regular expressions Position Specifc Scoring Matrices (PSSMs) Generalized Profilesles Hidden Markov Models (HMMs)

PSI-BLAST and protein domain hunting Databases of protein motifs, domains, and families Color code: Keywords, Databases, Software

SLIDE 2

Patterns, Profiles, HMMs, PSI-BLAST

Multiple alignments

2 Patterns, Profiles, HMMs, PSI-BLAS

Multiple sequence alignment (MSA)

The alignment of multiple sequences is a method of choice to detect conserved

regions in protein or DNA sequences.

These particular regions are usually associated with:

Signals (promoters, signatures for phosphorylation, cellular location, ...);
Structure (correct folding, protein-protein interactions...);
Chemical reactivity (catalytic sites,... ).
The information represented by these conserved regions can be used to align

sequences, search similar sequences in the databases or annotate new sequences.

Different methods exist to build models of these conserved regions:
Consensus sequences;
Patterns;
Position Specific Score Matrices (PSSMs);
Profiles;
Hidden Markov Models (HMMs),
... and a few others.

3

SLIDE 3

Patterns, Profiles, HMMs, PSI-BLAST

Example: Multiple alignments reflect secondary structures

STA3_MOUSE ZA70_MOUSE ZA70_HUMAN PIG2_RAT MATK_HUMAN SEM5_CAEEL P85B_BOVIN VAV_MOUSE YES_XIPHE TXK_HUMAN PIG2_HUMAN YKF1_CAEEL SPK1_DUGTI STA6_HUMAN STA4_MOUSE SPT6_YEAST . A E G Q N E A K N T E W Q K . E E E E E D E G D Q S D E Y E Q R A A A A A V A T A A V A V K A E E E E V E N E E E E F E T E E R E R D Q V E G R H K Q K S R D A H K M Q L K I L L L L S L L Y I L L L L L L L L L L L L L L L L K Y M Q K R T L R Q D M L L R S L S R P K D N L Q E N K N K S | 10 . A G . . P . . P . Y . I . . . . . . . . . . . . . C . . . . . . . . . . . . . . . M . . . . . . . . . . . . . . . E . . . . . . . . . . . . . . . T . . . . . T G A I . T . . G E G . G . D . K M Q P P V T R N S G . L E K K P A T R E R P S E K K . Q P M E P D D D D D D D R E D N K D P R G G G G G G G G G G G G G G G G | 20 T L K A L H T T T A T D T T T E F F F F F F F Y F F F Y Y F F F L L L L L L L L L I L V I L L V L L L I V V V V I V V V I L L I R R R R R R R R R R R R R R R R F Q P K E Q D Q E D E L P F F Q S C R R S C A R S S S S S S S S E L K E A E S V E R E D R D E S S R E G R S S K T . T P . S S R S . . . . . K . . . . . . . . . | 30 K S . T H S I D T H F K K E H G E L Q D P P Q T K L P P E I L D G G G . G G G A G G N G N G G D G G T S D E E E A S D E S G G H . . . . . . . . . . . P . . . . . . . . . . . . . . . R . . . . . . . . . . . . . . . S . . . . V Y Y Y Y F Y F Y Y Y Y Y I I L T V A A V S T A S T T I A T T V F L L I L I L I L I L L L I F I | 40 T S S T C S T S S S S S S A T T W L L F V V L I L V F V V H W W V V I R S R R K R F W M R V V K E H Y A F F K Y D M R F D I D L K D G R G Q G N W G S N F R Q D D V K G R D G V D A G N D G S K I . . . . . . . E R . K E Q . D S . . . . . . . T R . L K D . . G . . . . . . . K S . D K G . . K . . . . . . . . T . E K . . . | 50 T . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Q . . . . . . . . . . . . . . . I . . . . . . . G E . N I S . . Q . . . . . . . D A . S C P . . S R T K D S N E N A R S I Q E L V F V V V V N V C I V V V I N F E H Y K I Q K K K K Q K K E G Q P H H H H H L H H H H H H N E H Y F Y C Y F . I Y Y C F F I V I | 60 T P L R R K I K K Q R V Q Q R D K I I I V V K I I I I I I P F I Q E S N L L V M R K R N K F H Q Q R Q R H R F T K K S S T S S E L Q D D R D H S L N T V L A V L N L K G D Q R E D D M E Q K E E STA3_MOUSE ZA70_MOUSE ZA70_HUMAN PIG2_RAT MATK_HUMAN SEM5_CAEEL P85B_BOVIN VAV_MOUSE YES_XIPHE TXK_HUMAN PIG2_HUMAN YKF1_CAEEL SPK1_DUGTI STA6_HUMAN STA4_MOUSE SPT6_YEAST N N A R G N D G N S E N D D P K M G G . . G G . G G G K E L . E S . . . . . . . . . G . K . . N F . . . . . . . . . T . . . . P | 70 A . . . . . . . . . . . . . . L E . . . . . . . . . . . . . . . I . . . . . . . . . . . . . . A I . . . . . . . . . . . . . . L M . . . . . . . . . L . . . . G G T K H H . . . G Q K . G . . K Y Y Y F L K H L Y W Y Y I S . V K A C V T Y Y Y Y Y Y F S I Y L I I I L I Y G R I V L V Y R N I M A P G D L F I T A T N S S K V | 80 D G E T E W S T T E D N V L G D . G G S A A E E R R N N N G R N A K T A V V P K T H L M I D L Q T A K Y F K L K Q A R S R R S K . . . . . . T A . . . . N . . . . . . . . . . . . . . . . . . . N H F F F F F F F F F F F I A Y I C D E C N C R M Q R N P R L N L G T S N S S G S S R T N D A D V P L L L L V L L I M I I L F L | 90 S A W V M N V L Q P Y Q L A A D P E Q E D E D E M E A Q T Q D Q L L L L M L L L L L L M L L I I V C V V V V I V V I I L I K L I Y Q E S E A T E K W Q S Q N R V L F Y Y H Y H F H Y H H F L D E Y Y L Y Y H Y Y Y H Y Y Y Y Y Y

4 Patterns, Profiles, HMMs, PSI-BLAST

Example: Multiple alignments reflect secondary structures

5

SLIDE 4

Patterns, Profiles, HMMs, PSI-BLAST 5.1

From Sequence to Function

Patterns, Profiles, HMMs, PSI-BLAST 5.2

From Sequence to Function

Protein of unknown function?

Comparison to full-length sequence database (e.g. BLAST, FASTA) Scanning a database of protein domains and families

Protein function is modular, specific domains for specific function (e.g. DNA binding

domain of a transcription factor)

Detecting domains with a specific function lets us guess at the function of the whole

protein (hopefully)

SLIDE 5

BLAST Subject Transcription Factor: known function Protein: unknown function

DNA bdg. domain Activation domain: Function 1

Query sequence

?

=> DNA Bdg. Protein

Patterns, Profiles, HMMs, PSI-BLAST

MSA Model (HMM, PSSM,…) for

DNA bdg. Function

MSA Model for

Activation Function 1

MSA Model for

Activation Function 2

Protein: unknown function

HMMs, PSSM,… HMMs, PSSM,…

DNA bdg. Protein with Activation Function 2

Patterns, Profiles, HMMs, PSI-BLAST

SLIDE 6

Patterns, Profiles, HMMs, PSI-BLAST

Consensus sequences

6 Patterns, Profiles, HMMs, PSI-BLAST

Consensus sequences

The consensus sequence method is the simplest method to build a model

from a multiple sequence alignment.

The consensus sequence is built using the following rules:
Majority wins.
Skip too much variation.

7

SLIDE 7

Patterns, Profiles, HMMs, PSI-BLAST

How to build consensus sequences

Search databases

K K Y F E D R A P S S L E P K G C P L E C R T T F M

G G G G G H H H H H E E E E E G K G F L V K Y E R G G G G G K Y G P T V F R K T V E S G F | K D R C M L R G G P G G G A A A P G L L G S Y Y E A A S I C

G H E G V G K V V K L G A G A F Y G R S R G G Y I 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 Consensus: GHE**G*****G***

8 Patterns, Profiles, HMMs, PSI-BLAST

Consensus sequences

Advantages:
This method is very fast and easy to implement.
Limitations:
Models have no information about variations in the columns.
Very dependent on the training set.
No scoring, only binary result (YES/NO).
When I use it?
Useful to find highly conserved signatures, as for example enzyme restriction sites for

DNA.

9

SLIDE 8

Patterns, Profiles, HMMs, PSI-BLAST

Pattern matching

10 Patterns, Profiles, HMMs, PSI-BLAST

Pattern syntax

A pattern describes a set of alternative sequences, using a single expression.

In computer science, patterns are known as regular expressions.

The Prosite syntax for patterns:
uses the standard IUPAC one-letter codes for amino acids (G=Gly, P=Pro, ...),
each element in a pattern is separated from its neighbor by a ’-’,
the symbol ’X’ is used where any amino acid is accepted,
ambiguities are indicated by square parentheses ’[ ]’ ([AG] means Ala or Gly),
amino acids that are not accepted at a given position are listed between a pair of curly

brackets ’{ }’ ({AG} means any amino acid except Ala and Gly),

repetitions are indicated between parentheses ’( )’ ([AG](2,4) means Ala or Gly between

2 and 4 times, X(2) means any amino acid twice),

a pattern is anchored to the N-term and/or C-term by the symbols ’<’ and ’>’ respectively.

11

SLIDE 9

Patterns, Profiles, HMMs, PSI-BLAST

Pattern syntax: an example

The following pattern

<A-x-[ST](2)-x(0,1)-{V} means:

an Ala in the N-term,
followed by any amino acid,
followed by a Ser or Thr twice,
followed or not by any residue,
followed by any amino acid except Val.

12 Patterns, Profiles, HMMs, PSI-BLAST

How to build a pattern

Search databases

K K Y F E D R A P S S R T T F M L E P K G C P L E C

G G G G G H H H H H E E E E E G K G F L V K Y E R G G G G G K Y G P T V F R K T V E S G F | K D R C M L R G G P G G G A A A P G L L G S Y Y E A A S I C

G H E G V G K V V K L G A G A F Y G R S R G G Y I 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 G−H−E−X(2)−G−X(5)−[GA]−X(3) Pattern:

13

SLIDE 10

Patterns, Profiles, HMMs, PSI-BLAST

Pattern examples

Example of short signatures:
Post-translational signatures:
Protein splicing signature:

[DNEG]-x-[LIVFA]-[LIVMY]-[LVAST]-H-N-[STC]

Tyrosine kinase phosphorylation site:

[RK]-x(2)-[DE]-x(3)-Y or [RK]-x(3)-[DE]-x(2)-Y

DNA-RNA interaction signatures:
Histone H4 signature:

G-A-K-R-H

p53 signature:

M-C-N-S-S-C-[MV]-G-G-M-N-R-R

Enzymes:
L-lactate dehydrogenase active site:

[LIVMA]-G-[EQ]-H-G-[DN]-[ST]

Ubiquitin-activating enzyme signature:

P-[LIVM]-C-T-[LIVM]-[KRH]-x-[FT]-P

14 Patterns, Profiles, HMMs, PSI-BLAST

Patterns: Conclusion

Patterns and PSSMs are appropriate to build models of short sequence signa-

tures.

Advantages:
Pattern matching is fast and easy to implement.
Models are easy to design for anyone with some training in biochemistry.
Models are easy to understand for anyone with some training in biochemistry.
Limitations:
Poor model for insertions/deletions (indels).
Small patterns find a lot of false positives. Long patterns are very difficult to design.
Poor predictors that tend to recognize only the sequence of the training set.
No scoring system, only binary response (YES/NO).
When I use patterns?
To search for small signatures or active sites.
To communicate with other biologists.

15

SLIDE 11

Patterns, Profiles, HMMs, PSI-BLAST

Patterns: beyond the conclusion

Patterns can be automatically extracted (discovered) from a set of unaligned

sequences by specialized programs.

Pratt, Splash and Teiresas are three of these specialized programs.
Today machine learning is a very active research field
Such automatic patterns are usually distinct from those designed by an expert

with some knowledge of the biochemical literature.

16 Patterns, Profiles, HMMs, PSI-BLAST

Position Specific Scoring Matrice (PSSM)

17

SLIDE 12

Patterns, Profiles, HMMs, PSI-BLAST

How to build a PSSM

A PSSM is based on the frequencies of each residue in a specific position
f a multiple alignment.

0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 5 0 0 2 0 5 1 0 1 0 2 3 1 1 0 0 0 5 0 1 0 0 0 1 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 1 0 2 0 0 0 0 0 0 0 0 0 0 0 0 0 2 1 0 2 0 0 0 0 1 0 0 1 0 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 1 0 0 1 1 0 0 0 0 0 0 0 0 0 0 0 0 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 1 0 0 0 0 0 0 1 0 0 0 0 1 1 0 1 1 0 1 0 0 0 0 0 0 5 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 1

G G G G G H H H H H E E E E E G K G F L V K Y E R G G G G G K Y G P T V F R K T V E S G F | K D R C M L R G G P G G G A A A P G L L G S Y Y E A A S I C

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 A C D E F G H I K L M N P Q R S T V W Y

Column 1: fA,1 = 0

5 = 0, fG,1 = 5 5 = 1, ...

Column 2: fA,2 = 0

5 = 0, fH,2 = 5 5 = 1, ...

...
Column 15: fA,15 = 2

5 = 0.4, fC,15 = 1 5 = 0.2, ... 18 Patterns, Profiles, HMMs, PSI-BLAST

Pseudo-counts

Some observed frequencies usually equal 0. This is a consequence of the limited

number of sequences that is present in a MSA.

Unfortunately, an observed frequency of 0 might imply the exclusion of the

corresponding residue at this position (this was the case with patterns).

One possible trick is to add a small number to all observed frequencies. These

small non-observed frequencies are referred to as pseudo-counts.

From the previous example with a pseudo-counts of 1:
Column 1: f ′

A,1 = 0+1 5+20 = 0.04, f ′ G,1 = 5+1 5+20 = 0.24, ...

Column 2: f ′

A,2 = 0+1 5+20 = 0.04, f ′ H,2 = 5+1 5+20 = 0.24, ...

...
Column 15: f ′

A,15 = 2+1 5+20 = 0.12, f ′ C,15 = 1+1 5+20 = 0.08, ...

There exist more sophisticated methods to produce more “realistic” pseudo-

counts, and which are based on substitution matrix or Dirichlet mixtures.

19

SLIDE 13

Patterns, Profiles, HMMs, PSI-BLAST

Computing a PSSM

The frequency of every residue determined at every position has to be compared

with the frequency at which any residue can be expected in a random

sequence.

For example, let’s postulate that each amino acid is observed with an identical

frequency in a random sequence. This is a quite simplistic null model.

The score is derived from the ratio of the observed to the expected frequencies.

More precisely, the logarithm of this ratio is taken and refereed to as the log-

likelihood ratio: Scoreij = log(

f ′

ij

qi )

where Scoreij is the score for residue i at position j, f ′

ij is the relative

frequency for a residue i at position j (corrected with pseudo-counts) and qi is the expected relative frequency of residue i in a random sequence.

20 Patterns, Profiles, HMMs, PSI-BLAST

Example

The complete position specific scoring matrix calculated from the previous

example:

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 A
