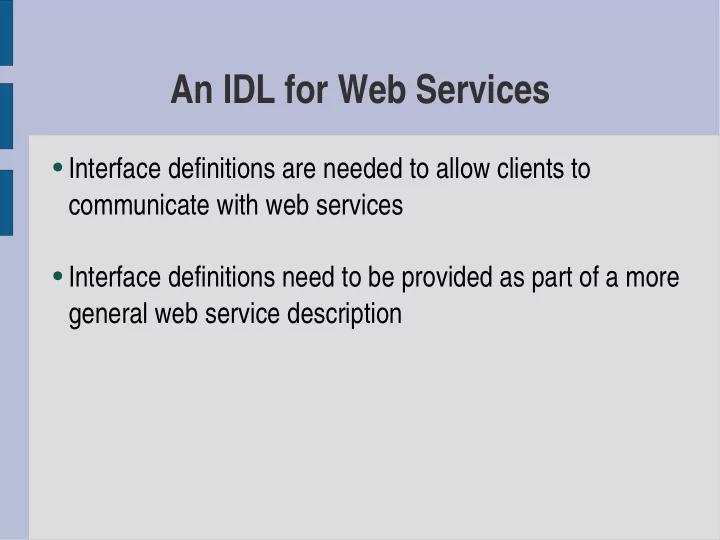

An IDL for Web Services

• Interface definitions are needed to allow clients to

communicate with web services

• Interface definitions need to be provided as part of a more

general web service description

Web Service Descriptions

• Service descriptions specify (1) how the messages are

to be communicated and (2) the URI of the service

• Service descriptions are written in XML (so are

accessible from any programming technology)

• The description forms the basis of an agreement

between a client and a server

• The IDL is generally used to generate client stubs which

automatically implement the correct behaviour for the client

WSDL

• Web Services Description Language (WSDL) is

commonly used for service descriptions

• WSDL 2.0 is a working draft of the W3C
• It defines an XML schema for representing the

components of a service description

• Included are standards for element name definitions,

types, messages, interfaces, bindings and services

WSDL Requests and Replies

message name =

"ShapeList_newShape "

type = "ns:GraphicalObject

"

part name ="GraphicalObject_1" tns ﾐ target namespace xsd ﾐ XML schema definitions message name =

"ShapeList_newShapeResponse "

part name=

"result "

type = "xsd:int

"

More on WSDL

• The abstract part of the description includes a set of

definitions of the types used by the service, in particular the types of the values exchanged in messages

• The concrete part specifies how and where the service

may be contacted

• The inherent modularity of a WSDL definition allows its

components to be combined in different ways - the same interface may be used with different bindings or locations

Web Service Clients and Servers

• All that the client and the server need is to have a

common idea about the messages to be exchanged

• When a clients sends messages to a web service, the

latter decides what operation to perform and what type

• f message to send back to the client, on the basis of

the type of the message it received

WSDL Interfaces

• The collection of operations belonging to a web service

are grouped together in an XML element named "interface"

• Each operation must specify the message exchange

pattern between the client and server

Message Exchange Patterns

Name In-Out In-Only Robust In-Only Out-In Out-Only Robust Out-Only Client Server Delivery Fault message Request Reply may replace Reply Request no fault message Request guaranteed may be sent Reply Request may replace Reply Request no fault message Request guaranteed may send fault

Messages sent by

WSDL Inheritance

• Any WSDL interface may extend one or more other

WSDL interfaces

• This is a simple form of inheritance
• However, recursive definitions of interfaces is NOT

allowed

WSDL Concrete Part

• The concrete part of a WSDL document consists of the

binding and the service, that is, the choice of protocols and the choice of endpoint or server address

• When you see “binding” think protocol
• When you see “service” think end-point or address

Binding and Services

• The binding section in a WSDL document says which

message formats and form of external data representation are to be used

• Web services frequently use SOAP, HTTP and MIME
• Each service element in a WSDL document specifies the

name of the server and one or more endpoints (or ports) where an instance of the service may be contacted

WSDL Use

• Complete WSDL documents can be accessed via their

URLs by clients and servers, either directly or indirectly via a directory service

• Tools are available for generating WSDL definitions from

information provided via a graphical user interface, removing the need for users to be involved in the complex details and structure of WSDL

• WSDL definitions can also be generated from interface

definitions written in other languages

Web Service Directory Services

• The Universal Directory and Discovery Service (UDDI)

provides both a name service and a directory service

• WSDL service descriptions may be looked up by name

(white pages) or by attribute (yellow pages)

• They may also be accessed directly via their URLs,

which is convenient for developers who are designing client programs that use the service

UDDI Lookup

• UDDI provides an API for looking up services based on two

sets of query operations

• The get_xxx set of operations - retrieves an entity based on

a key value

• The find_xxx set of operations - retrieves a set of entities

that match a set of search criteria

• UDDI also provides a notify/subscribe interface by which

clients register interest in a particular set of entities in a UDDI registry and get change notification messages (synchronously or asynchronously) sent to them

Coordination of Web Services

• Many useful web services applications involve several

requests that need to be done in a particular order

• There's also a need for client web services to be

provided with a description of a particular protocol to follow when interacting with other web services

The Travel Agent Service

hotel booking

a

Travel Agent flight booking

a

hire car booking

a

Service Client flight booking

b

hotel booking

b

hire car booking

b

The Travel Agent Scenario

• 1. The client asks the travel agent service for information about a set of services; for example, flights,

car hire and hotel bookings.

• 2. The travel agent service collects prices and availability information and sends it to the client, which

chooses one of the following on behalf of the user: (a) refine the query, possibly involving more providers to get more information, then repeat step 2; (b) make reservations; (c) quit.

• 3. The client requests a reservation and the travel agent service checks availability.
• 4. Either all are available;
• r for services that are not available;

either alternatives are offered to the client who goes back to step 3;

• r the client goes back to step 1.
• 5. Take deposit.
• 6. Give the client a reservation number as a confirmation.
• 7. During the period until the final payment, the client may modify or cancel reservations

Achieving Coordination

• Distributed transaction technologies play a big part here!
• The W3C (and others) are working towards the definition
• f higher-level services
• Notable work in this area includes WS-Coordination

Web Service Choreography

• W3C use the term "choreography" to refer to a language based on

WSDL for defining coordination

• Intended to support interactions between web services which are

generally managed by different companies and organizations

• Described in terms of the sets of observable interactions between

pairs of web services, which forms the basis of the contract between the participants

• The use of a common choreography description by a set of

collaborating web services should result in more robust services with better interoperability

• The W3C have released early draft standards that describe CDL -

the Choreography Definition Language

Securing Web Services

• As web services are based (almost exclusively) on XML, security

comes down to protecting the text-based XML communications

• Obviously, documents shared over the Internet also need to be

authenticated

• The W3C have developed XML security technologies that

support signing, key management and encryption

• Another approach is WS-Security, which concerns itself with

applying message integrity, message confidentiality and single message authentication to SOAP

• XML security depends on new tags that can be used to indicate

the beginning and end of sections of encrypted or signed data and of signatures

XML Security Requirements

• To be able to encrypt either an entire document or just

some selected parts of it

• To be able to sign either an entire document of just some

selected parts of it

• To add to a document that is already signed and to sign

the result

• To add to a document that already contains encrypted

sections and to encrypt part of the new version, possibly including some of the already encrypted sections

• To authorize various users to view different parts of a

document

Requirements: Algorithms and Keys

• The standard should specify a suite of algorithms to be

provided to an implementation of XML security

• The algorithms used for encryption and authentication of a

particular document must be selected from that suite and the name of the algorithms must be referenced with the XML document itself

• Appropriate keys must be chosen, without any negotiation

with those parties that may access the document in the future

• Requirement - to help the users of secure documents with

finding the necessary keys, to make it possible for cooperating users to help one another with keys

Canonical XML

• Designed for use with digital signatures, which are used to

guarantee that the information content of a document has not been changed

• XML elements are canonicalized before being signed and

the name of the canonicalization algorithm is stored with the signature

• This (obviously) enables the same algorithm to be used

when the signature is validated upon receipt

XML Signature Algorithms

Type of algorithm Name of algorithm Required reference Message digest SHA-1 Required Section 7.4.3 Encoding base64 Required [Freed and Borenstein 1996] Signature DSA with SHA-1 Required [NIST 1994] (asymmetric) RSA with SHA-1 Recommended Section 7.3.2 MAC signature (symmetric) HMAC-SHA-1 Required Section 7.4.2 and Krawczyk et al. [1997] Canonicalization Canonical XML Required Page 810

XML Encryption Algorithms

Type of algorithm Name of algorithm Required reference Block cipher TRIPLEDES, AES 128 required Section 7.3.1 AES-192

• ptional

Encoding base64 required [Freed and Borenstein 1996] Key transport RSA-v1.5, RSA-OAEP required Section 7.3.2 [Kaliski and Staddon 1998] Symmetric key wrap (signature by shared key) TRIPLEDES KeyWrap, AES-128 KeyWrap, AES 256KeyWrap required [Housley 2002] AES-192 KeyWrap

• ptional

Key agreement Diffie-Hellman

• ptional

[Rescorla, 1999] AES-256

A Web Services Case Study

Using web services technology as the basis for building multi-user, geographically dispersed Grid Services

What is a Grid?

• The name "grid" is used to refer to middleware that is designed to

enable the sharing of resources on a very large scale

• Grids are used by groups of users in different organizations who are

collaborating on the solution of problems requiring large numbers of computers to solve them, either by sharing data or by sharing computing power

• Grids typically run on heterogeneous computer hardware

environments (and often have no choice)

• Management is needed to coordinate the use of resources to ensure

that clients get what they need and that services can afford to supply it

• Sophisticated security techniques are required to ensure that the

proper use is made of resources in this type of environment

A Grid Example - WWT

• The World-Wide-Telescope (WWT) - deploying the resources

shared by the astronomy community

• Astronomy data consists of archives of observations, which

covers a particular period of time, a part of the electromagnetic spectrum (optical, x-ray, radio) and a particular area of the sky

• Astronomers freely share their results with one another (so

security tends not to be an issue - everyone trusts everyone else)

• Immense archives of data are gathered by many teams and

managed locally - data amounts grow exponentially and data is used by astronomers from all over the world

WWT Requirements and Aim

• Any project that manages an astronomy data archive must make

it accessible to other researchers

• This task implies considerable overhead in addition to the
• riginal task of data acquisition, analysis and storage
• Additionally, derived data needs to be accompanied by

metadata describing the parameters of the pipelines (processes) through which it was sent (producing this can amount to a considerable expense for the project that owns the original data)

• Overall aim: to unify the world's astronomy archives into a giant

database containing astronomy literature, images, raw data, derived datasets and simulated/simulation data

Data-Intensive Scientific Applications

• Data is collected by way of scientific instruments
• The data is archived at different sites whose locations can

be anywhere in the world

• Data is managed by teams of scientists from many different
• rganizations
• A large amount of raw data (terabytes and petabytes) is

captured

• Computer programs will be used to analyze and make

summaries of the raw data (classify, calibrate, catalog)

Science and the Internet

• The nature of the Internet makes all "open" digital archives available

to any scientist anywhere in the world

• Typically, a scientist is only interested in a smaller subset of the

entire archive

• It is, therefore, often infeasible (or plain stupid) to transfer the entire

archive to the remote user

• Note: FTP and WEB access is not the way to go here!
• In-place processing of the archive needs to be provided to the

remote user/scientist

• The fact that data is processed at many different sites provides an

inbuilt parallelism that effectively divides the immense task being undertaken (which has echoes of P2P technologies)

Application Requirements

• R1 - remote access to local resources needs to be provided
• R2 - processing of data needs to occur at the site which

stores/manages the archive (to minimize data transfers)

• R3 - the local resource manager needs to be able to dynamically

create service instances based on a subset of the data

• R4 - metadata is required to describe (1) the characteristics of the

data in the archive and (2) the characteristics of the service managing that data

• R5 - a discovery service is needed to provide access to the above

metadata

• R6 – management software is required to manage queries, handle

data transfers and perform advance reservation of resources

Requirements and Services

• Standard web services can provide for the first two

requirements, R1 and R2

• Grid middleware can provide for the four remaining

requirements, R3 to R6

• Grids are also used for computationally-intensive

applications such as image-analysis

• Grid resource management is concerned with allocating

computing resources and balancing loads

• Even when privacy is not an issue, the ability to establish

the identity of the people who created the data may be important within a grid environment

The Open Grid Services Architecture

• A standard framework for grid-based applications –

OGSA

• OGSA is built on top of a set of web services
• The Globus Toolkit implements the architecture

The OGSA

Application specific grid services

web services application specific OGSI

services: naming, service data (metadata)

OGSA services: directory, management, security

service creation and deletion, fault model, service groups

GridService e.g. interfaces

e.g. astronomy, biomedical informatics, high-energy physics

Factory grid service interfaces standard

Application Level Grid Services

• Web services that implement standard grid-service

interfaces

• An interface to the set of data (the "service data")

contains metadata about the service

• The context in which a service runs must provide a

factory with the ability to create new service instances and to stop them when they are done

OGSA Services Layer

• OGSA - Open Grid Services Architecture
• A directory service
• A management service
• A security service

OGSI Services Layer

• OGSI - Open Grid Services Infrastructure
• The implementation of a scheme for the naming of service

instances

• The definition of standard service data elements to be

implements together with their set and get operations

• The interface to the factory for creating new service

instances and operations to end them

• A fault model for all grid services to use
• Notification services - supporting publishers/subscribers
• Service groups - adding/removing members, etc.

Example Grid Applications

Description of the project Reference

• 1. Aircraft engine maintenance using fault histories and

sensors for predictive diagnostics www.cs.york.ac.uk/dame

• 2. Telepresence for predicting the effects of

earthquakes on buildings, using simulations and test sites www.neesgrid.org

• 3. Bio-medical informatics network providing

researchers with access to experiments and visualizations of results nbcr.sdsc.edu

• 4. Analysis of data from the CMS high energy particle

detector at CERN by physicists world-wide over 15 years www.uscms.org

• 5. Testing the effects of candidate drug molecules for

their effect on the activity of a protein, by performing parallel computations using idle desktop computers [Taufer et al. 2003] [Chien 2004

• 6. Use of the Sun Grid Engine to enhance aerial

photographs by using spare capacity on a cluster of web servers www.globexplorer.com

• 7. The butterfly Grid supports multiplayer games for

very large numbers of players on the internet over the Globus toolkit www.butterfly.net

• 8. The Access Grid supports the needs of small group

collaboration, for example by providing shared workspaces www.accessgrid.org

The Globus Toolkit

• Providing software that integrates and standardizes the

functions required by a family of scientific applications built

• n grids
• The functions include directory services, security and

resource management

• Aside: the OGSA standards evolved from version 2 of

Globus

• Globus 3 was released in 2002 and is developed/maintained

by the Globus Alliance (www.globus.org)

Globus in Action

• Grid service instances and factories are deployed in a

runtime environment call a grid-service "container"

• Containers deal with the dynamic creation and

management of service instances with global names; the simple access to the state of service instances; the security of the service including looking after credentials, signing of messages, encryption and authorization

Globus Security Services

• Based on the protection of SOAP messages
• WS Security is used, as is XML Signature and XML

Encryption

• X.509 certificates are used to provide a credentials

service

Web Services Summary

• Providing a programmers API to Internet-based applications

and data (this is NOT web browsing!)

• Not necessarily part of the web browser/web server

paradigm

• SOAP and REST are two of the popular enabling

technologies, with XML a core technology

• Security is an important issue
• Grid services are an excellent example of using web

services as an infrastructural component
