An Empirical Performance Study of Chapel Programming Language Nan Dun and Kenjiro Taura The University of Tokyo dun@logos.ic.i.u-tokyo.ac.jp Monday, May 21, 12 Background Modern parallel machines Massive parallelism: 100K~ cores

SLIDE 1

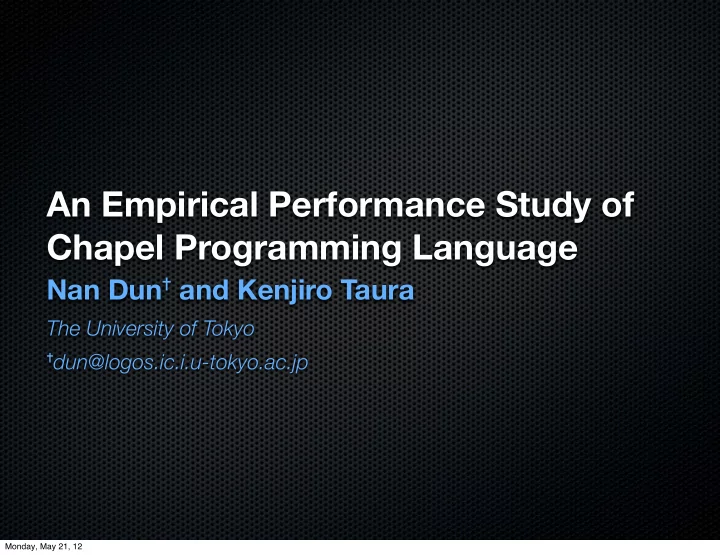

An Empirical Performance Study of Chapel Programming Language

Nan Dun✝ and Kenjiro Taura

The University of Tokyo

✝dun@logos.ic.i.u-tokyo.ac.jp

Monday, May 21, 12

SLIDE 2

Background

Modern parallel machines Massive parallelism: 100K~ cores Heterogenous architecture: CPUs + GPGPUs Modern parallel programming languages Programmability, portability, robustness, performance Chapel, X10, and Fortress, etc.

Monday, May 21, 12

SLIDE 3

Motivation

Programmability has been well illustrated Abstract of parallelism Performance is yet unknown Performance implications Performance tuning Language improvements

10 20 30 Chapel C

My First FMM Program in Chapel Relative Elapsed Time

The performance should not surprise newbies...

Monday, May 21, 12

SLIDE 4

Agenda

Short overview of Chapel Approach Evaluation Microbenchmark results Suggestions for writing efficient Chapel programs N-body FMM results Conclusions

Monday, May 21, 12

SLIDE 5

The Chapel Language

Developed by Cray Inc, initiated by HPCS in 2003 Designed to improve programmability Global view model vs. fragmented model Abstract of parallelism (task, data parallelism, etc.) Object-oriented, generic programming For more details: http://chapel.cray.com

Monday, May 21, 12

SLIDE 6

Evaluation Approach

Chapel benchmarks: data structures, language features, etc. Intermediate C code Executable Equivalent C Implementation Executable Assembly code Assembly code

Performance Results Comparisons Comparisons

Monday, May 21, 12

SLIDE 7

Environment

Xeon 2.33GHz 8 core CPU, 32GB MEM Linux 2.6.26, GCC 4.6.2, Chapel 1.4.0 Compile options

$ chpl -o prog --fast prog.chpl // Chapel $ gcc -o prog -O3 -lm prog.c // C Use “--savec” to keep intermediate C code “$CHPL_COMM=none” for single locale, malloc series used

Synthesized benchmarks from N-Body simulations

Monday, May 21, 12

SLIDE 8

Primitive Types (1/3)

0.2 0.4 0.6 0.8 1 add sub mul div

Relative Performance (vs. Cref)

int(32) vs. C int32 int(64) vs. C int64 real(32) vs. C float real(64) vs. C double

var res: int(32); for i in 1..N do res = res + i;

while (...) { T1 = ((_real32)(i); T2 = (resReal32 + T1); resReal32 = T2; i = ...; } .L1046: cvtsi2ss %eax, %xmm0 addl $1, %eax cmpl %eax, %r12d addss %xmm2, %xmm0 movaps %xmm0, %xmm2 jge .L1046 The redundant instruction can be removed by combining T2 assignments

Monday, May 21, 12

SLIDE 9

Primitive Types (2/3)

0.2 0.4 0.6 0.8 1 add sub mul div

Relative Performance (vs. Cref)

int vs. C int real vs. C double

while (T80) { _ret42 = arrInt; _ret43 = (_ret42->origin); _ret_10 = (&(_ret42->blk)); _ret_x110 = (*_ret_10)[0]; T82 = (i5 * _ret_x110); T83 = (_ret43 + T82); _ret44 = (_ret42->factoredOffs); T84 = (T83 - _ret44); T85 = (_ret42->data); T86 = (&((T85)->_data[T84])); _ret45 = *(T86); T87 = (resInt / _ret45); resInt = T87; T88 = (i5 + 1); i5 = T88; T89 = (T88 != end5); T80 = T89; } $ gcc ... -ftree-vectorize -ftree- vectorizer-verbose=5

var arr: [1..N] int; // int and real for d in arr.domain do res = res + arr(d); // read only

Monday, May 21, 12

SLIDE 10

Primitive Types (3/3)

0.2 0.4 0.6 0.8 1 asg add sub mul div

Relative Performance (vs. Cref)

int vs. C int real vs. C double var arr: [1..N] int; // int and real for d in arr.domain do arr(d) = arr(d) + d; // read + write

# Assembly of Chapel C mappings .L1046: cvtsi2sd %edx, %xmm1 addl $1, %edx movsd (%rax), %xmm0 divsd %xmm1, %xmm0 movsd %xmm0, (%rax) addq %rcx, %rax cmpl %edx, %r12d jne .L1046 # Assembly of hand-written C .L32: leal (%rsi,%rax), %ecx movsd (%rdx,%rax,8), %xmm0 cvtsi2sd %ecx, %xmm1 divsd %xmm1, %xmm0 movsd %xmm0, (%rdx,%rax,8) addq $1, %rax cmpq %rdi, %rax jne .L32

LEA instruction is executed by a separate addressing unit

Monday, May 21, 12

SLIDE 11

Structured Types (1/3)

var Tuple: (real, real, real); var 2D_Tuple: (Tuple, Tuple, Tuple);

Tuple Record

record Record { var x, y, z: real } record 2D_Record { var x, y, z: Record; }

C Mapping of Tuple C Mapping of Record

double Tuple[3]; double Tuple[3][3]; struct Record { double x, y, z; } struct 2D_Record { struct Record x, y, z; }

Monday, May 21, 12

SLIDE 12

Structured Types (2/2)

0.2 0.4 0.6 0.8 1 asg add sub mul div

Relative Performance (vs. Cref) tuple vs. C array tuple+ vs. C array record vs. C struct record+ vs. C struct 2D-tuple vs. C 2D-array 2D-tuple+ vs. C 2D-array 2D-record vs. C 2D-struct 2D-record+ vs. C 2D-struct

Walk through the array and manipulate each element

Monday, May 21, 12

SLIDE 13

Structured Types (3/3)

Redundant address substitution in 2D-Tuple Asm: 197 vs. 33 of Cref Complex for GCC to optimize Data references Redundant operations May be related to construction

f heterogenous tuple

while (...) { _tmp_37 = (&(_ret57[0])); _tmp_x139 = (*_tmp_37)[0]; _tmp_x239 = (*_tmp_37)[1]; _tmp_x339 = (*_tmp_37)[2]; ... chpl__tupleRestHelper(...) ... T297[0] = _tmp_x139; T297[1] = _tmp_x239; T297[0] = _tmp_x339; ... }

Monday, May 21, 12

SLIDE 14

Iterators for Loops (1/2)

iter myIter(min: int, max: int, step: int = 1) { while min <= max { yield min; min += step; } } // Nested loops var dom = [1..N]; // or 1..N for i in 1..M do for j in [1..N] do ...; // domain for j in 1..N do ...; // range for j in dom do ...; // pre-defined domain for j in myIter(1, N) do ...; // iterator

Monday, May 21, 12

SLIDE 15

Iterators for Loops (2/2)

1E+02 1E+03 1E+04 1E+05 1E+06 Inner Loop=1 Inner loop=100 Elapsed Time (usec, log-scale)

Domain Range Pre-defined domain Iterator

890x 42x 3.x [1..N] (1..N) 1..N

// Domain chpl__buildDomainExpr(...); while (loop_variable) { ... } chpl__autoDestroy(...); // Range _build_range(...); while (loop_variable) { ... } // Pre-defined domain _ret10 = dom; ... _ret12 = (T45._low); _ret13 = (T45._high); ... while (loop_variable) { ... } // User defined iterator while (loop_variable) { ... }

6x 1.2x

Monday, May 21, 12

SLIDE 16

Domain and Array

1E+00 1E+01 1E+02 1E+03 1E+04 1E+05 1E+06 1E+07 alloc add sub mul div

Relative Performance (vs. Cref)

1D-Rect 1D-Associate 2D-Rect 2D-Associate 3D-Rect 3D-Associate 1E+02 1E+03 1E+04 1E+05 1E+06 1E+07 alloc add sub mul div

var rctDom3D: domain(3) = [1..N, 1..N, 1..N]; // rectangular domain var rctArr3D: [rctDom3D] real; var irrDom3D: domain(3*int); // irregular domain var irrArr3D: [irrDom3D] real;

Domain i.e. index set Array i.e. space allocation

Monday, May 21, 12

SLIDE 17

Domain Maps (1/2)

var space = [1..N, 1..N]; var blockSpace = space dmapped Block(space); var arrBlock: [blockSpace] real; var cyclicSpace = space dmapped Cyclic(space); var arrCyclic: [cyclicSpace] real; var blkCycSpace = space dmapped BlockCyclic(space); var arrBlkCyc: [blkCycSpace] real; var replicatedSpace = space dmapped ReplicatedDist(); var arrRep: [replicatedSpace] real; for d in arr.domain do on Locales(here.id) do /* arithmetic on arr(d) */

1 1 8 4 1

L0 L1 L2 L3 L4 L5 L6 L7

di 1 1 8 4

Block Distribution Cyclic Distribution

Monday, May 21, 12

SLIDE 18

Domain Maps (2/2)

1E+04 1E+05 1E+06 1E+07 1E+08 1E+09

asg (wo) add sub mul div Elapsed Time (usec, log-scale)

1E+03 1E+04 1E+05 1E+06

asg (wo) add sub mul div Elapsed Time (usec, log-scale) Block ro Block rw Cyclic ro Cyclic rw BlockCyclic ro BlockCyclic rw Replicated ro Replicated rw

Single Locale Two Locales

300Kbps achieved << 434Mbps measured by Iperf

Monday, May 21, 12

SLIDE 19

Speedup FMM Application

Manipulate a large array of structured elements Use record instead of tuple Optimize small inner loop Auxiliary data structure Use rectangular domain instead of associative domain Reduce locks to improve scalability (increase computation in some cases)

Monday, May 21, 12

SLIDE 20

Molecular Dynamics (1/2)

Fast Multipole Method Calculate the N-body interactions in O(N) time

0.2 0.4 0.6 0.8 1 T

a l I n i t L e a p F r

( 1 ) B u i l d N e b r L i s t E v a l F

c e s M u l t i p

e C a l c W a l l F

c e s A p p l y T h e r m

e a p F r

( 2 ) Relative Performance (vs. Serial Cref)

Parallel Version Serial Version

Monday, May 21, 12

SLIDE 21

Molecular Dynamics (2/2)

1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 Speedup # of Threads

N=8^3 N=16^3 N=32^3 N=64^3

Monday, May 21, 12

SLIDE 22

Related Work

Evaluations of the Chapel language Programmability [Chamberlain et al. ’06,’07,’08,’11] Performance potential [Barrett et al. ’08] HPCC benchmark [Chamberlain et al. ’11] 95% for EP STREAM & 50% for Random Access Task parallel feature [Weiland et al. ’09] On GPGPU [Ren et al. ’11]

Monday, May 21, 12

SLIDE 23

Conclusions

Chapel can achieve comparable performance to C 70%~ on single locale (w/ current v1.4.0) User should be aware of performance implications Choose proper data structure Write program in proper structure Current performance penalties are FIXABLE By improving the Chapel compiler

Monday, May 21, 12

SLIDE 24

Questions?
