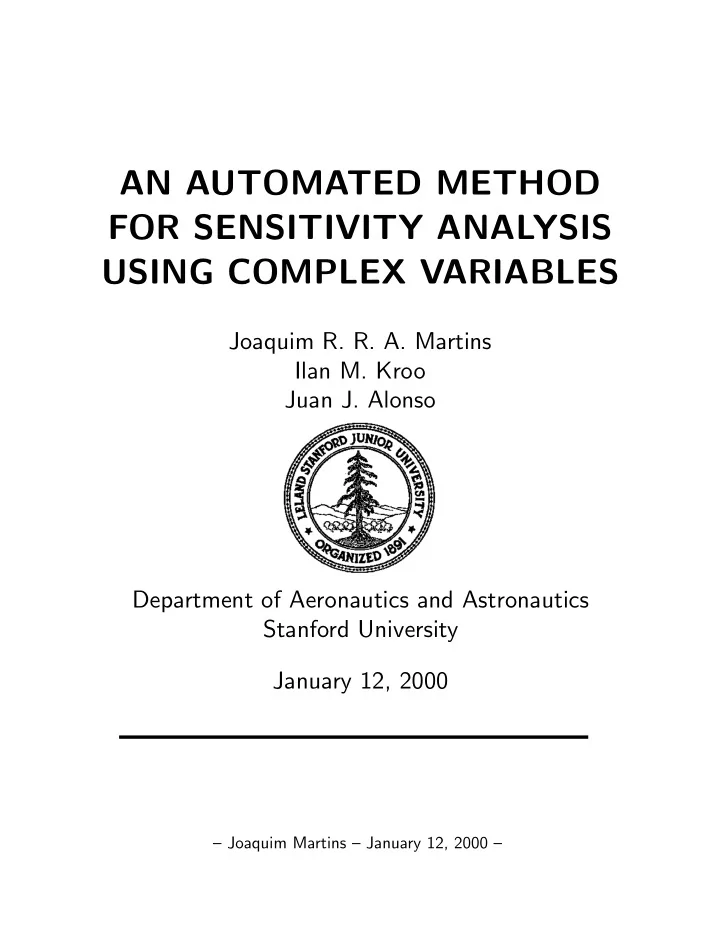

AN AUTOMATED METHOD FOR SENSITIVITY ANALYSIS USING COMPLEX VARIABLES

Joaquim R. R. A. Martins Ilan M. Kroo Juan J. Alonso Department of Aeronautics and Astronautics Stanford University January 12, 2000

– Joaquim Martins – January 12, 2000 –

Outline

• Background on complex-step and other sensitivity

analysis methods

• Theory

– First derivative approximations – Higher derivative approximations

• Implementation of the complex-step in algorithms

– Fortran functions and operators – Automatic implementation

• Results

– Structural sensitivities – Aerodynamic sensitivities

• Conclusions

– Joaquim Martins – January 12, 2000 – 1

Sensitivity Analysis Methods

• Finite-Difference Methods
• ADIFOR
• Analytic Methods
• Complex-Step:

– Lyness & Moler, 1967: nth derivative approximation by integration in the complex plane – Squire & Trapp, 1998: Simple formula for first derivative, f ′ ≈ Im[f(x + ih)]/h – Newman, Anderson & Whitfield, 1998: Aero-structural code – Anderson, Whitfield & Nielsen, 1999: 3D Navier-Stokes with turbulence model

– Joaquim Martins – January 12, 2000 – 2

Finite-Difference Derivative Approximations

From Taylor series expansion.

• Forward-difference:

f ′(x) ≈ f(x + h) − f(x) h + O(h)

• Central-difference:

f ′(x) ≈ f(x + h) − f(x − h) 2h + O(h2) Any finite-difference formula subject to subtractive cancellation.

– Joaquim Martins – January 12, 2000 – 3

Cauchy-Riemann Equations

• Extension of rational numbers to solve x2 = 2:

Define w = a + √ 2b where a, b are rational. Derivative of f(w): ∂f ∂w = ∂f ∂a = √ 2∂f ∂b.

• Extension of real numbers to solve x2 = −1:

Define z = x + iy, where x, y are real. Derivative of f(z): ∂f ∂z = ∂f ∂y = i∂f ∂x . Define f(z) = u(z) + iv(z), ∂u ∂x = ∂v ∂y, ∂u ∂y = −∂v ∂x. Complex number really just one number.

– Joaquim Martins – January 12, 2000 – 4

Complex-Step Derivative Approximation

• From Cauchy-Riemann:

∂u ∂x = lim

h→0

v(x + i(y + h)) − v(x + iy) h . For a real functions of a real variable, y = 0, u(x) = f(x) and v(x) = 0, then, ∂f ∂x = lim

h→0

Im [f (x + ih)] h .

• From Taylor series expansion, step ih:

f(x+ih) = f(x)+ihf ′(x)−h2f ′′(x) 2! −ih3f ′′′(x) 3! +. . . ⇒ f ′(x) = Im [f(x + ih)] h + h2f ′′′(x) 3! + . . . No subtraction!

– Joaquim Martins – January 12, 2000 – 5

Simple Numerical Example

• Estimate derivative at x = 1.5 of the function,

f(x) = ex √ sin3x + cos3x

• ✥✧✦✩★✫✪✭✬✯✮✱✰✳✲✵✴✷✶✸✮✩✪

ε =

• f ′ − f ′

ref

• /
• f ′

ref

• – Joaquim Martins – January 12, 2000 –

6

Higher Derivative Approximations

• General form of Cauchy’s Integral,

f (n)(z) = n! 2πi

• Γ

f(ξ) (ξ − z)n+1dξ.

• Discretize using a trapezoidal-rule, integrate around

circle z + rei, f (n)(z) ≈ n! mr

m−1

• j=0

f

• z + rei2πj

m

• ei2πjn

m

.

• Fixed r, use more points for better approximation.

Bound on error.

• With finite-difference, have to decrease h for better

accuracy.

• First derivative formula can be derived from this...

...but it is the only one that does not involve subtraction.

– Joaquim Martins – January 12, 2000 – 7

Complex Functions and Operators in Fortran

• Relational operators

– Used with if statements to direct the execution thread. – Complex algorithm must follow same thread. – Therefore, compare only the real parts. – Also, max, min, etc.

• Arithmetic functions and operators:

– Most of these have a mathematical standard definition that is analytic. – Some of them are implemented in Fortran. – Exception: abs ∂u ∂x = ∂v ∂y =

• −1

⇐ x < 0 +1 ⇐ x > 0 abs(x + iy) =

• −x − iy

⇐ x < 0 +x + iy ⇐ x ≥ 0 .

– Joaquim Martins – January 12, 2000 – 8

Overloaded Functions

abs ✘ abs(z) =

• −z

⇐ x < 0 +z ⇐ x ≥ 0 tan ✔ tan(z) = e−iz−eiz

e−iz+eiz

asin ✔ arcsin(z) = −i log[iz + (1 − z2)

1 2]

acos ✔ arccos(z) = −i log[z + (z2 − 1)

1 2]

atan ✔ arctan(z) = i

2 log

• 1−iz

1+iz

• sinh

✔ sinh(z) = ez−e−z

2

cosh ✔ cosh(z) = ez+e−z

2

tanh ✔ tanh(z) = ez−e−z

ez+e−z

dim ✘ dim(z1, z2) =

• z1 − z2

⇐ x1 > x2 ⇐ x1 ≤ x2 sign ✘ sign(z1, z2) =

• +|x1|

⇐ x2 ≥ 0 −|x1| ⇐ x2 < 0 max ✘ max(z1, z2) =

• z1

⇐ x1 ≥ x2 z2 ⇐ x1 < x2 min ✘ min(z1, z2) =

• z1

⇐ x1 ≤ x2 z2 ⇐ x1 > x2

– Joaquim Martins – January 12, 2000 – 9

Automatic Implementation

• Cookbook procedure:

– Substitute all real type variable declarations with complex declarations. – Define all functions and operators that are not defined for complex arguments. – A complex-step can then be added to the desired variable and the derivative can be estimated by f ′ ≈ Im[f(x + ih)]/h.

• Fortran 77: write new subroutines, substitute some
• f the intrinsic function calls by the subroutine

names, e.g. abs by c abs. But ... need to know variable types in original code.

• Fortran

90: can

• verload

intrinsic functions and operators, including comparison operators. Compiler knows variable types and chooses correct version of the function or operator.

• Complexify.py: Python script processes code.

complexify.f90: overloaded definitions.

– Joaquim Martins – January 12, 2000 – 10

Structural Sensitivities: Finite Element Solver

• FESMEH, finite element solver used in MDO.
• Triangular plates and truss elements.
• Wing modeled with spars, ribs and skin.
• Spars and ribs modeled with plates and trusses.

– Joaquim Martins – January 12, 2000 – 11

Sensitivity Estimates vs. Step Size

• Sensitivity of truss stress w.r.t. truss area.

• ✥✧✦✩★✫✪✭✬✯✮✱✰✳✲✵✴✩✶✷✮✩✪

• Finite-difference:

reasonable estimate, if you’re lucky...

• Complex-step: practically insensitive to step size.

– Joaquim Martins – January 12, 2000 – 12

Computational Accuracy and Cost

Method Sample Sensitivity Complex –39.049760045804646 ADIFOR –39.049760045809059 Analytic –39.049760045805281 FD –39.049724352820375

• Finite-difference is worst.
• Other methods achieve the solver’s precision.

Method Time Memory Complex 1.00 1.00 ADIFOR 2.33 8.09 Analytic 0.58 2.42 FD 0.88 0.72

• Analytic: best, but not easy to implement.
• ADIFOR: costly.
• Complex-step: good compromise.
• Caveat: ratios depend on problem.

– Joaquim Martins – January 12, 2000 – 13

Aerodynamic Sensitivities: FLO82

RAE 2822 Airfoil α = 3.0o, M∞ = 0.70

1.20 0.80 0.40 0.00

• 0.40
• 0.80
• 1.20
• 1.60
• 2.00

Cp

+ + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + ++++++++++++++ + + +++++++++++++++++++ + + + + + + + + +

• 2D, cell-centered, finite volume Euler solver.
• Multigrid.
• Implicit residual smoothing.
• Artificial dissipation options: JST, CUSP, ECUSP

and HCUSP.

• Same numerical schemes as FLO87 and FLO107.

– Joaquim Martins – January 12, 2000 – 14

Sensitivity Estimates vs. Step Size

∂CD/∂M∞

10

−30

10

−20

10

−10

10

−8

10

−6

10

−4

10

−2

10

Step Size, h Normalized Error, ε

Complex−Step Finite−difference

– Joaquim Martins – January 12, 2000 – 15

Convergence of Sensitivity Estimates

50 100 150 10

−10

10

−5

10 10

5

10

10

Number of Iterations Residual

Complex−Step Finite−difference Average density residual

• Both estimates converge at same rate as solver.

– Joaquim Martins – January 12, 2000 – 16

Aerodynamic Sensitivity Results

Sensitivity Complex FD ∂CL/∂α 12.37054751691092 12.370726665267277 ∂CD/∂α 0.8602380269441042 0.86024234610682058 ∂CM/∂α –0.5026301652982372 –0.5026313670830616 ∂CL/∂M∞ 3.2499722985150532 3.2499447577549727 ∂CD/∂M∞ 0.43978671505102005 0.43978998888818932 ∂CM/∂M∞ –0.99037388394690016 –0.9903747405504145

• Imaginary part of result converged to the same number of digits

real part.

– Joaquim Martins – January 12, 2000 –

Drag Coefficient Sensitivity to Hicks-Henne “Bump” Functions

10 20 30 40 50 1 2 3 4 5 6 7 8 9 10 11

Design Points Drag Coefficient Sensitivity

Complex−Step Finite−difference

Method Time Memory Complex 1.00 1.00 FD 0.31 0.55

– Joaquim Martins – January 12, 2000 – 18

Conclusions

• The theory behind the application of the complex-

step method to real-world numerical algorithms was introduced.

• The implementation of the complex-step method

was successfully automated.

• The sensitivity results given by this method have

been further validated and shown to be very accurate.

• Unlike finite-differencing, the complex-step method

is relatively insensitive to the step size.

• The complex-step method is now an attractive

alternative to ADIFOR.

– Joaquim Martins – January 12, 2000 – 19

Further Work

• Continue to work on Complexify.py.

Need feedback from users.

• Apply the method to other solvers.
• More detailed stability and convergence analysis.
• Compare with CFD adjoint results.

– Joaquim Martins – January 12, 2000 – 20
