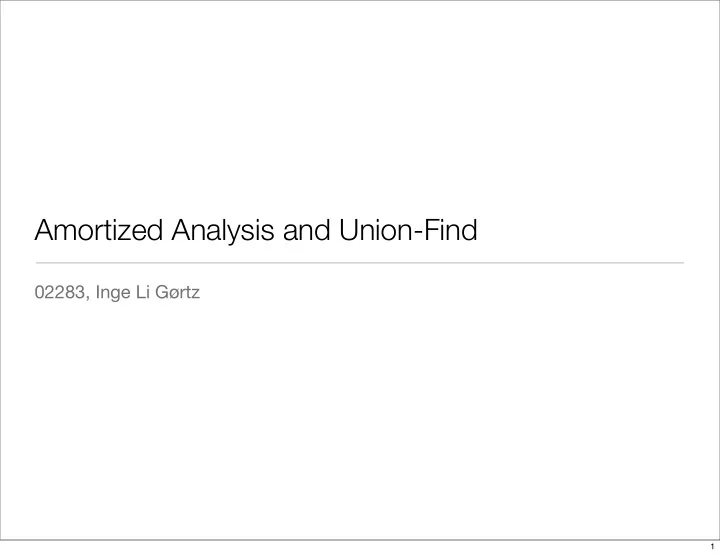

Amortized Analysis and Union-Find

02283, Inge Li Gørtz

1

Today

• Amortized analysis
• 3 different methods
• 2 examples
• Union-Find data structures
• Worst-case complexity
• Amortized complexity

2

Amortized Analysis

• Amortized analysis.
• Average running time per operation over a worst-case sequence of
• perations.
• Time required to perform a sequence of data operations is

averaged over all the operations performed.

• Motivation: traditional worst-case-per-operation analysis can give

too pessimistic bound if the only way of having an expensive

• peration is to have a lot of cheap ones before it.
• Different from average case analysis: average over time, not input.

3

Amortized Analysis

• Methods.
• Aggregate method
• Accounting method
• Potential method

4

Aggregate method

• Aggregate.
• Determine total cost.
• Amortized cost = total cost/#operations.

5

Dynamic Tables

• Doubling strategy.
• Start with empty array of size 1.
• Insert: If array is full create a new array of double the size and

reinsert all elements.

• Analysis: n insert operations. Assume n is a power of 2.
• Number of insertions 1 + 2 + 4 + ... + 2log n = O(n).
• Total cost: O(n).
• Amortized cost per insert: O(1).

6

Accounting method

• Accounting.
• Some types of operations are overcharged.
• Credit allocated with elements in the data structure used to pay for

subsequent operations

• Total credit non-negative at all times -> total amortized cost an

upper bound on the actual cost.

7

Dynamic Tables

• Amortized costs:
• Amortized cost of insertion: 3
• 1 for own insertion
• 1 for its first reinsertion.
• 1 to pay for reinsertion of one of the items that have already

been reinserted once.

8

Dynamic Tables

• Analysis: keep 2 credits on each element in the array that is beyond

the middle.

• table not full: insert costs 1, and we have 2 credits to save.
• table full, i.e., doubling: half of the elements have 2 credits each.

Use these to pay for reinsertion of all in the new array.

• Amortized cost per operation: 3.

2 2 2 x x x x x x x x x x x 2 2 2 2 2 2 2 2 x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x

9

Example: Stack with MultiPop

• Stack with MultiPop.
• Push(e): push element e onto stack.
• MultiPop(k): pop top k elements from the stack
• Worst case: Implement via linked list or array.
• Push: O(1).
• MultiPop: O(k).
• Amortized cost per operation: 2.

10

Stack: Aggregate Analysis

• Amortized analysis. Sequence of n Push and MultiPop operations.
• Each object popped at most once for each time it is pushed.
• #pops on non-empty stack ≤ #Push operations ≤ n.
• Total time O(n).
• Amortized cost per operation: 2n/n = 2.

11

Stack: Accounting Method

• Amortized analysis. Sequence of n Push and MultiPop operations.
• Pay 2 credits for each Push.
• Keep 1 credit on each element on the stack.
• Amortized cost per operation:
• Push: 2
• MultiPop: 1 (to pay for pop on empty stack).

12

Potential method

• Potential functions.
• Prepaid credit (potential) associated with the data structure (money

in the bank).

• Can be used to pay for future operations.
• Ensure there is always enough “money in the bank”.
• Amortized cost of an operation: potential cost plus increase in

potential due to the operation.

• Di: data structure after i operations
• Potential function Φ(Di) maps Di onto a real value.
• amortized cost = actual cost + Δ(Di) = actual cost + Φ(Di) - Φ(Di-1).

13

Potential Functions

• Amortized cost:
• amortized cost = actual cost + Δ(Di) = actual cost + Φ(Di) - Φ(Di-1).
• Stack.
• Φ(Di) = #elements on the stack.
• amortized cost of Push = 1 + Δ(Di) = 2.
• amortized cost of MultiPop(k): If k’=min(k,|S|) elements are popped.
• if S ≠ ∅: amortized cost = k‘+ Φ(Di) -Φ(Di-1) = k’ - k’ = 0.
• if S = ∅: amortized cost = 1 + Δ(Di) = 1.

14

Potential Functions

• Amortized cost:
• amortized cost = actual cost + Δ(Di) = actual cost + Φ(Di) - Φ(Di-1).
• Dynamic tables
• Φ(Di) =
• L = current array size, k = number of elements in array.
• amortized cost of insertion:
• Array not full: amortized cost = 1 + 2 = 3
• Array full (doubling): Actual cost = L + 1, Φ(Di-1) = L, Φ(Di)=2:

amortized cost = L + 1 + (2 - L) = 3.

• 2(k − L/2)

if k ≥ L/2

• therwise

15

Amortized Cost vs Actual Cost

• Total cost:
• ∑ amortized cost = ∑(actual cost + Δ(Di)) =∑ actual cost + Φ(Dn) -

Φ(D0).

• ∑ actual cost = ∑ amortized cost + Φ(D0) - Φ(Dn).
• If potential always nonnegative and Φ(D0) = 0 then

∑ actual cost ≤ ∑ amortized cost.

16

Potential Method

• Summary:
• 1. Pick a potential function, Φ, that will work (art).
• 2. Use potential function to bound the amortized cost of the
• perations you're interested in.
• 3. Bound Φ(D0) - Φ(Dfinal)
• Techniques to find potential functions: if the actual cost of an
• peration is high, then decrease in potential due to this operation

must be large, to keep the amortized cost low.

17

Union-Find Data Structures

18

Union-Find Data Structure

• Union-Find data structure:
• Makeset(x): Create a singleton set containing x and return its identifier.
• Union(A,B): Combine the sets identified by A and B into a new set, destroying

the old sets. Return the identifier of the new set.

• Find(x): Return the identifier of the set containing x.
• Only requirement for identifier: find(x) = find(y) iff x and y are in the same set.
• Applications: Connectivity, Kruskal’s algorithm for MST, ...

19

A Simple Union-Find Data Structure

• Quick-Union:
• Each set represented by a tree. Elements are represented by nodes. Root is

also identifier.

• Make-Set(x): Create a new node x. Set p(x) = x.
• Find(x): Follow parent pointers to the root. Return the root.
• Union(A,B): Make root(B) a child of root(A).

20

A Simple Union-Find Data Structure

• Quick-Union:
• Union(A,B): Make root(B) a child
• f root(A).

1 2 3 4 5 6 7 8 9 1 2 3 4 5 6 7 8 9 1 2 3 4 5 6 7 8 9 1 2 3 4 5 6 7 8 9 1 2 3 4 5 6 7 8 9

Union(3,1) Union(7,5) Union(7,8) Union(3,7)

21

A Simple Union-Find Data Structure

• Quick-Union:
• Each set represented by a tree. Elements are represented by nodes. Root is

also identifier.

• Make-Set(x): Create a new node x. Set p(x) = x.
• Find(x): Follow parent pointers to the root. Return the root.
• Union(A,B): Make root(B) a child of root(A).
• Analysis:
• Make-Set(x) and Union(A,B): O(1)
• Find(x): O(h), where h is the height of the tree containing x. Worst-case O(n).

22

A Simple Union-Find Data Structure

• Quick Find:
• Each set represented by a tree of height at most one. Elements are

represented by nodes. Root is also identifier.

• Make-Set(x): Create a new node x. Set p(x) = x and size(x) = 1.
• Find(x): Follow parent pointer to root. Return root.
• Union(A,B): Move all elements from smallest set to larger set (change parent

pointers). I.e., set p(B) = A and size(A) = size(A) + size(B).

23

A Simple Union-Find Data Structure

• Quick Find:
• Union(A,B): Move all elements

from smallest set to larger set (change parent pointers).

1 2 3 4 5 6 7 8 9 1 2 3 4 5 6 7 8 9 1 2 3 4 5 6 7 8 9 1 2 3 4 5 6 7 8 9

Union(3,1) Union(7,5) Union(7,8) Union(3,7)

1 2 3 4 5 6 7 8 9

24

A Simple Union-Find Data Structure

• Quick Find:
• Each set represented by a tree of height at most one. Elements are

represented by nodes. Root is also identifier.

• Make-Set(x): Create a new node x. Set p(x) = x and size(x) = 1.
• Find(x): Follow parent pointer to root. Return root.
• Union(A,B): Move all elements from smallest set to larger set (change parent

pointers). I.e., set p(B) = A and size(A) = size(A) + size(B).

• Analysis:
• Make-Set(x) and Find(x): O(1)
• Union(A,B): O(n)

25

Amortized Complexity of Quick-Find

• Amortized analysis: Consider a sequence of k Unions.
• Observation 1: How many elements can be touched by the k Unions?
• Consider an element x:
• What can we say about the size of the set containing x before and after a

union that changes x’s parent pointer?

• How large can the set containing x be after the m Unions?
• How many times can x’s parent pointer be changed?

26

Amortized Complexity of Quick-Find

• Amortized analysis:
• Each time x’s parent pointer changes the size of the set containing it at least

doubles.

• At most 2k elements can be touched by k unions.
• Size of set containing x after k unions at most 2k.
• x’s parent pointer is updated at most lg(2k) times.
• In total O(k log k) parent pointers updated in a sequence of k unions.
• Amortized time per union: O(log k).
• Lemma. Using the Quick-Find data structure a Find operation takes worst case

time O(1), a Make-Set operation time O(1), and a sequence of n Union

• perations takes time O(n log n).

27

A Better Union-Find Data Structure

• Union-by-Weight or Union-by-Rank.
• Union-by-Weight. Make the root of the smallest tree a child of the root of the

bigger tree.

• Union-by-Rank. Each node x has an integer rank(x) associated.
• Make-Set(x): Create a new node x. Set p(x) = x and rank(x) = 0.
• Find(x): Follow parent pointers to the root. Return the root.
• Union(A,B): 3 cases:
• rank(A) > rank(B). Make B a child of A.
• rank(A) < rank(B). Make A a child of B.
• rank(A) = rank(B). Make B a child of A and set rank(A) = rank(A)+1.

28

Analysis of Union-by-Rank

• Increasing ranks.
• rank(x) < rank(p(x)).
• A root of set containing x: Find(x) takes O(rank(A)+1) time.
• rank(A) ≤ lg n: Show |A| ≥ 2rank(A) by induction.
• A=Makeset(x): rank(A)=0 and |A| = 20 = 1.
• A=Union(B,C): 2 cases
• rank(A)=rank(B) or rank(A)=rank(C): ok, since set only got larger.
• rank(B)=rank(C)=k and rank(A)=k+1.

|A| = |B| + |C| ≥ 2k + 2k = 2k+1.

• Lemma. Using the Union-by-Rank data structure a Find operation takes worst

case time O(log n), and a Make-Set or Union operation takes time O(1).

29

Path Compression

• Path compression. After each Find(x) operation, for all nodes y on the path from

x to the root, set p(y) = x.

• Example. Find(6).

1 2 3 4 5 6 7 8 9 1 2 3 4 5 6 7 8 9

30

Path Compression

• Path compression. After each Find(x) operation, for all nodes y on the path from

x to the root, set p(y) = x.

• Tarjan: Union-by-Rank and path compression. Starting from an empty data

structure the total time of n Makes-Set operations, at most n Union operations, and m Find operations takes time O(n + m α(n)).

• α(n). Extremely slowly growing inverse Ackermann’s function.
• Analysis complicated, but algorithm simple.
• 2 one-pass variants path halving and path splitting. Same asymptotic running

time.

31

• Ackermann’s function
• Inverse Ackermann:
• Grows extremely slowly.

Ackermann’s function

Ak(j) =

• j + 1

if k = 0, A(j+1)

k−1 (j)

if k ≥ 1. α(n) = min{k : Ak(1) ≥ n}.

32

• Potential function
• Potential of node x after i operations:
• Potential of forest after i operations:
• Auxiliary functions: (for x, where rank(x) >0)
• Properties:

(1) (2)

Path Compression: Analysis

Φi(x) =

• x

φi(x). φi(x). level(x) = max{k : rank(p(x)) ≥ Ak(rank(x))}. 1 ≤ iter(x) ≤ rank(x). iter(x) = max{j : rank(p(x)) ≥ A(j)

level(x)(rank(x))}

0 ≤ level(x) < α(n)

33

• Potential function
• Potential of forest after i operations:
• Properties:

(1) (2) (3) (4) If x not root and rank(x) > 0,

Path Compression: Analysis

Φi(x) =

• x

φi(x). 1 ≤ iter(x) ≤ rank(x).

φi(x) =

• α(n) · rank(x)

if x root or rank(x) = 0 (α(n) − level(x)) · rank(x) − iter(x) if x not root and rank(x) ≥ 1.

0 ≤ φi(x) ≤ α(n) · rank(x). φi(x) < α(n) · rank(x).

0 ≤ level(x) < α(n)

34

• Potential function
• Potential of forest after i operations:
• Makeset(x): O(1)
• Union(A,B) og Find(x): O(α(n))
• Lemma 1. Suppose x not root, and ith operation Union or Find. Then
• x’s potential cannot increase
• if x has positive rank and iter or level changes, then x’s potential

decrease by at least 1.

Path Compression: Analysis

Φi(x) =

• x

φi(x).

φi(x) =

• α(n) · rank(x)

if x root or rank(x) = 0 (α(n) − level(x)) · rank(x) − iter(x) if x not root and rank(x) ≥ 1.

35

• Lemma 1. Suppose x not root, and ith operation Union or Find. Then
• x’s potential cannot increase
• if x has positive rank and iter or level changes, then x’s potential

decrease by at least 1.

• Proof:
• x not root => rank(x) unchanged
• n does not change => α(n)
• rank(x) = 0: ok

Path Compression: Analysis

36

• Lemma 1. Suppose x not root, and ith operation Union or Find. Then
• x’s potential cannot increase
• if x has positive rank and iter or level changes, then x’s potential

decrease by at least 1.

• Proof: rank(x)>0
• level increases monotonically over time
• level unchanged => iter either increase or unchanged
• both unchanged: ok

Path Compression: Analysis

37

• Lemma 1. Suppose x not root, and ith operation Union or Find. Then
• x’s potential cannot increase
• if x has positive rank and iter or level changes, then x’s potential

decrease by at least 1.

• Proof: rank(x)>0
• level unchanged and iter increases: iter increase by at least 1.
• level increases:
• level increases by at least 1 => (α(n)-level)rank(x)-iter(x) drops by

at least rank(x).

• iter might decrease at most rank(x)-1
• x’s potential decrease by at least 1.

Path Compression: Analysis

38

• Lemma 1. Suppose x not root, and ith operation Union or Find. Then
• x’s potential cannot increase
• if x has positive rank and iter or level changes, then x’s potential

decrease by at least 1.

• Lemma. The amortized cost of Union(A,B) is O(α(n)).
• Assume B made parent of A.
• Real cost 1. Show increase in potential at most α(n).
• Only A’s, B’s and the children of B’s potential can change.
• potential of B’s children can only decrease.
• A: decreases due to property 4 (before operation it was α(n)rank(A)).
• B: root both before and after. rank increase by at most 1 => potential
• f B increases with at most α(n).

Path Compression: Analysis

39

• Lemma 1. Suppose x not root, and ith operation Union or Find. Then
• x’s potential cannot increase
• if x has positive rank and iter or level changes, then x’s potential

decrease by at least 1.

• Lemma. The amortized cost of Find(x) is O(α(n)).
• Real cost s = length of path.
• Show decrease in potential at least max{0, s - α(n)+2}.
• No nodes potential increase: (Lemma + rank of root unchanged).
• Show at least max{0, s - α(n)+2} nodes’ potential decrease with

at least 1.

• Amortized cost = s - max{0, s - α(n)+2} = O(α(n)).

Path Compression: Analysis

40

• Show at least max{0, s - α(n)+2} nodes’ potential decrease with at least 1.
• x node such that
• rank(x) > 0
• x has an ancestor y (not the root) with level(x) = level(y) before the Find
• peration.
• x’s potential decrease by at least 1: k = level(x), i = iter(x) before Find.
• Before Find operation
• After: rank(p(x)) = rank(p(y)), rank(p(y)) not decreased, and rank(x) unchanged:
• Either iter(x) or level (x) increases. Lemma 1 implies potential of x decreases.

Path Compression: Analysis

rank(p(y)) ≥ Ak(rank(y)) ≥ Ak(rank(p(x)) ≥ Ak(Ai

k(rank(x))

= A(i+1)

k

(rank(x)). Ak(rank(p(x))) ≥ A(i+1)

k

(rank(x))

41

Summary

• Amortized analysis.
• 2 Examples: Dynamic tables, stack with multipop.
• Union-Find Data Structure.
• Union-by-Rank + path compression: worst case + amortized bounds.

42
