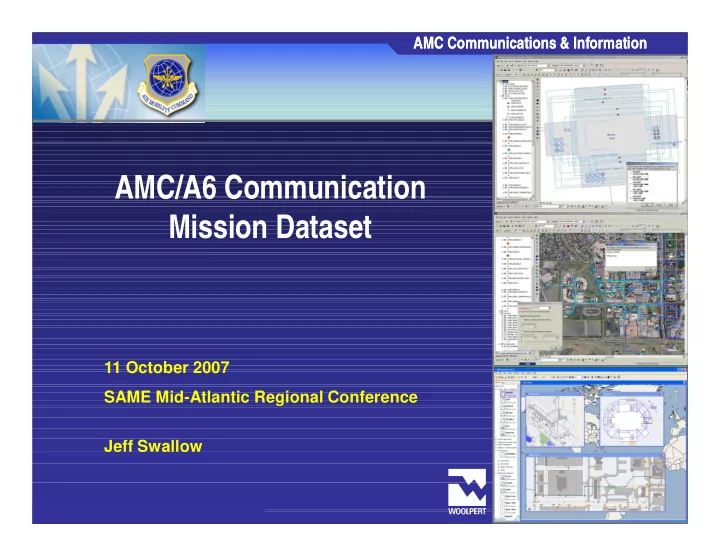

AMC/A6 Communication Mission Dataset

11 October 2007 SAME Mid-Atlantic Regional Conference Jeff Swallow

slide-2
SLIDE 2

AMC Communications & Information AMC Communications & Information

AMC CMDS Project

Background – FY05 to FY06

  • HQ AMC/A6 made a strategic investment in the

mapping of Communications infrastructure at 12 AMC locations

  • Accurately locating “outside plant”

communications infrastructure

  • Providing a baseline Communications Mission

Data Set (CMDS), consistent with GeoBase CIP

  • Defining a clear and viable sustainment strategy

for the CMDS by Communication Planners, Cable shops, and other stakeholders

slide-3
SLIDE 3

AMC Communications & Information AMC Communications & Information

AMC CMDS Project

Process

  • Initial compilation of redlined hardcopy maps and

electronic Communications & Information Systems Installation Record (CSIRs) source documents

  • All enclosed structures (manholes, handholes,

pullboxes, vaults, poles) were captured using survey grade accuracy GPS consistent with USAF Combat Information Transport System (CITS) requirements.

slide-4
SLIDE 4

AMC Communications & Information AMC Communications & Information

AMC CMDS Project

Deliverables

  • Each installation included a connected and

attributed “point and line” Comm-Path network, suitable for display with CIP and other MDS’s in the GeoBase intranet-accessible map services

  • Linear structures were attributed to distinguish

between direct bury and conduit. Enclosed structures were attributed with an ID

  • Constructed in accordance with 38th Engineering

Installation Group (EIG) protocols and current SDSFIE

slide-5
SLIDE 5

AMC Communications & Information AMC Communications & Information

AMC CMDS Project

Pilot Study

  • The initial scope only required minimal

attribution, and no visualization of what is happening at each enclosure

  • For Scott AFB and Dover AFB, a request for a

pilot implementation of the CMDS through full conversion of the CSIR drawing records.

  • Included placing individual communications cable

features and attributes within the ducts, manholes, and trenches of the Comm-Path

slide-6
SLIDE 6

AMC Communications & Information AMC Communications & Information

AMC CMDS Project

Lessons Learned

  • Time difference between GPS’ing just enclosed

structures and GPS’ing both enclosed structures and previously marked comm path is minimal. Marked comm path removes the need to search for enclosed structures.

  • Best Workflow is to compile manholes, then

comm path, then duct openings in manholes, then cables

  • Divide work for different crews/compilers by grid

so they are converting in different geographic areas

slide-7
SLIDE 7

AMC Communications & Information AMC Communications & Information

AMC CMDS Project

Current Implementation Activities (FY07)

  • Create CMDS for additional AMC bases
  • McChord AFB, MacDill AFB: Near Complete
  • McGuire AFB, Travis AFB, Fairchild AFB: Initiated
  • Training & “Baton Pass” to CS
  • Develop draft Communications Mission Data Set

Concept of Operations (CMDS CONOPS)

  • Expect Command Converted to CMDS During FY08
slide-8
SLIDE 8

AMC Communications & Information AMC Communications & Information

AMC CMDS Project

AMC Operational CONOPS

= Implementation Plan

  • 38th EIG responsible for CVC

A6 requires CONOPS for

  • Further investments
  • Installation-level adoption
  • Clear roles & responsibilities
  • Business Processes
  • Data Application

Architecture

CONOPS also critical for formalizing external Service Level Agreements…

slide-9
SLIDE 9

AMC Communications & Information AMC Communications & Information

AMC CMDS Project

Current Situation:

CSIR CAD Drawing Set

  • Paper-space section maps at

fixed scale

  • Obsolete infrastructure

backdrop, invariable

  • Electronic version-control at

38th EIG

  • Latest data version is red-

lined hardcopy at Base

  • Paper Maps copied &

recopied for users

  • Query = “Read Annotation”

New Business Process:

CMDS & CVC

  • Geo-referenced, seamless map

layers (zoom & pan)

  • Overlays CIP, aerial imagery &
  • ther GeoBase data sets
  • Each installation is its own

Data Steward

  • Latest data is electronic and

updated by base Comm

  • View and edit through Web

browser map services

  • Ready for Flexible Query &

Analysis through variety of software tools

  • Self-Service Print Capability
slide-10
SLIDE 10

AMC Communications & Information AMC Communications & Information

C4ISR Infrastructure Planning System (CIPS)

  • Managing Communications Planning & Investments

Geospatial: Plays nicely with other MDS CS activities “escalating questions”

  • Where exactly are Comm assets located?
  • What are those Comm assets at each location?
  • What is theoretical capacity and how much used?

Why is it an Enabling Capability?

Objective 1: Facilitate dig permits & minimize line cuts Objective 2: Complete Comm Asset Characterization for O&M Objective 3: Effective Planning [Base Blueprint & ER]

Need: Query for Duct/Cable Capacity & Impacted Systems Need: CMDS links to TeleManagement Sys, Cable Records, etc.

AMC CMDS Project

slide-11
SLIDE 11

AMC Communications & Information AMC Communications & Information

AMC CMDS Project

Most Complex AF Mission Data Set (MDS)

  • Multidirectional, Multiple Media, High

Granularity

  • Currently handled via Hardcopy “CSIR

Process”

  • Microstation Drawing Records

Communications MDS (CMDS)

  • Significant Achievement by 38th EIG/GF
  • Comprehensive, well-designed data model
  • Captures “Outside Plant”

Path/Cable/Equipment

  • Geospatial Data consistent w/CIP & other

MDS’s

Example

slide-12
SLIDE 12

AMC Communications & Information AMC Communications & Information

AMC CMDS Project

slide-13
SLIDE 13

AMC Communications & Information AMC Communications & Information

Questions? Questions?

Jeff Swallow (757) 398-6898 jeffrey.swallow@woolpert.com Wayne Yingling (618) 632-7004 wayne.yingling@woolpert.com
