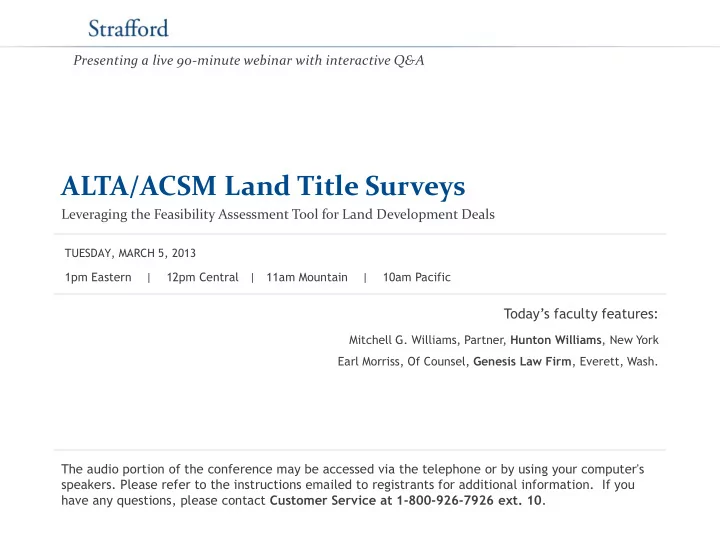

ALTA/ACSM Land Title Surveys

Leveraging the Feasibility Assessment Tool for Land Development Deals Today’s faculty features:

1pm Eastern | 12pm Central | 11am Mountain | 10am Pacific

The audio portion of the conference may be accessed via the telephone or by using your computer's

• speakers. Please refer to the instructions emailed to registrants for additional information. If you

have any questions, please contact Customer Service at 1-800-926-7926 ext. 10.

TUESDAY, MARCH 5, 2013

Presenting a live 90-minute webinar with interactive Q&A

Mitchell G. Williams, Partner, Hunton Williams, New York Earl Morriss, Of Counsel, Genesis Law Firm, Everett, Wash.

Sound Quality If you are listening via your computer speakers, please note that the quality of your sound will vary depending on the speed and quality of your internet connection. If the sound quality is not satisfactory and you are listening via your computer speakers, you may listen via the phone: dial 1-866-871-8924 and enter your PIN when prompted. Otherwise, please send us a chat or e-mail sound@straffordpub.com immediately so we can address the problem. If you dialed in and have any difficulties during the call, press *0 for assistance. Viewing Quality To maximize your screen, press the F11 key on your keyboard. To exit full screen, press the F11 key again.

For CLE purposes, please let us know how many people are listening at your location by completing each of the following steps:

• In the chat box, type (1) your company name and (2) the number of

attendees at your location

• Click the SEND button beside the box

FOR LIVE EVENT ONLY

If you have not printed the conference materials for this program, please complete the following steps:

• Click on the + sign next to “Conference Materials” in the middle of the left-

hand column on your screen.

• Click on the tab labeled “Handouts” that appears, and there you will see a

PDF of the slides for today's program.

• Double click on the PDF and a separate page will open.
• Print the slides by clicking on the printer icon.

Strafford Publications Webinar Tuesday, March 5, 2013 Presented by:

Mitchell Williams Partner mwilliams@hunton.com Hunton & Williams LLP 200 Park Avenue 52nd Floor New York, NY 10166

5

ALTA/ACSM LAND SURVEYS

• What is ALTA?
• What is ACSM?
• What is NSPS?
• What is an ALTA/ACSM land survey?

6

CODES OF PRACTICE

• Provide a uniform set of guidelines and requirements for land

surveys, and establish a standard of care

• State Codes of Practice
• State and local Surveyor’s association standards
• Minimum Standard Detail Requirements for ALTA/ACSM Land

Title Surveys

• 1946: ACSM issued technical standards for title surveys
• 1962: ACSM joined with ALTA to issue the first ALTA/ACSM title survey

code

• 2011: The most recent version of the ALTA/ACSM Code

7

TYPES OF LAND SURVEYS

• Boundary Survey
• Construction Survey
• “As Built” survey
• Topographic survey
• Title Survey

8

WHAT DOES A TITLE SURVEY TYPICALLY SHOW?

• The location of the Property described in the deed and its record

boundary lines

• The location and nature of the improvements on the Property and their

relationship to the record boundary lines, as well as improvements on adjoining property that are close to or over the record boundary lines

• The location of easements of record affecting the Property, and visible

evidence of possible easements that are not of record

• Adjoining streets
• Discrepancies between the record boundaries of the Property and the

record boundary lines of all adjoining property, as well as with physical lines of occupation

• This is not an exhaustive list

9

WHAT DOES A TITLE SURVEY TYPICALLY NOT SHOW, UNLESS SPECIFICALLY REQUESTED?

• Zoning information
• Flood Zones
• Minimum setback lines, unless contained in a recorded document
• Ownership
• Underground improvements; e.g., pipes, electrical lines, other

utilities, unless there is visible surface evidence that they may exist.

• This is not an exhaustive list

10

WHAT IS A LAND SURVEY?

• It is a report to a client by a licensed land surveyor of the results of his or her review of recorded

documents affecting the surveyed property, his or her observations and measurements in the field, and his or her professional opinion regarding the location of the property boundary lines and their relationship to the improvements on the property and the record boundary lines of the adjoining properties.

• This report is typically presented in the form of a “map of survey” or a “survey map”, and in

particularly complex case, may be supplemented by a written report.

• It is an opinion, not a guaranty. Two surveyors may reasonably disagree as to the location of a

corner or a boundary line, particularly if there are ambiguous descriptions, conflicting lines of

• ccupation, etc. Unless the adjoining landowners agree in a recorded writing, only a Court can

legally resolve a boundary dispute.

• If the dispute does goes to court, it is the surveyor’s field notes, calculations and recorded

documents that are required to be produced as evidence.

11

WHEN AND WHY DO YOU NEED A NEW SURVEY?

• Because things change. Fences may be moved, buildings expanded, or additional
• nes built. The flood zone designation may have changed because of revisions to

the flood zone maps. There may have been a condemnation for a street widening. Neighbors may have built some encroachments onto the property.

• Is it certified to YOU? If not, you may have no recourse to the Surveyor if the

survey is incorrect. Is it signed and sealed by a licensed land surveyor? Was it done in accordance with an acceptable Code of Practice? Are there items that you want to know about that were not required to be shown by the Code used?

• Is there an adequate legal description of record? If not, e.g., the description relies
• n physical monuments that may or may not still exist, on a water boundary, or on

the location of the boundaries of adjoining owners, then another opinion on the boundaries may be advisable, and with recent developments in technology, a more precise measurement of the Property may be warranted.

12

ALTA/ACMS Land Title Surveys

Earl Morriss, Esq. Genesis Law Firm, PLLC 2918 Colby Avenue #211 Everett, WA 98201 Earl@genesislawfirm.com

13

Section 2: Requesting a Survey

• Written Authorization
• Scope of Work
• Selecting a Surveyor

14

Section 3: Standard of Care

• Effective Date
• Other Requirements and Standards of Practice
• The Normal Standard of Care
• Boundary Resolution
• Measurement Standards

15

Section 4: Records Search

• “Record Documents” to Surveyor
• Who Provides? (not necessarily title company)
• What is the“most recent” title commitment?
• Need to Bifurcate Title and Survey in Contract—

need Title and documents of record in order to get Survey

• Adjoining Land: Need Title Company to provide

Deeds to Adjacent Land

16

Section 5: Field Work

• Performed on the ground and include
• Monuments
• Rights of Way and Access
• Lines of Possession, Improvements
• Buildings
• Easements
• Cemeteries
• Water Features

17

Section 6: Plat or Map

• Legal Description Discrepancy (Section 6(B)(i))
• In dueling legal descriptions, who wins?
• Surveyor’s certification assumes a closed metes and bounds

description

• Disclosure of Gaps and Overlaps (Section 6(B)(vii))
• Does surveyor need to resolve gaps and overlaps?
• Plotting easements and servitudes (Section 6(C)(i) and (ii))
• No definition of “plottable”

18

Section 7: Surveyor Certification

• Section 7 only requires the unaltered standard survey

certification

• What are the lender’s requirements—no more ‘long form’?
• Will surveyors or surveyor’s insurers allow successors and

assigns as part of the survey’s certified parties?

• Can include local certification requirements under Section

7

19

Section 8: Surveyor Deliverables

• Copies of Plat or Map
• Hard Copies
• Digital Copies: Does lender or title company require

embossed seal?

• Recordable Form
• Recorded or Filed

20

RECORDS RESEARCH

• Records required: current legal descriptions of subject property and all adjoining

properties

• Copies of all recorded easements and covenants burdening or benefitting

the property

• Copies of all documents mentioned in any of the documents listed above
• All other information and documents the surveyor needs to comply with

requests for additional items the client requests to be shown, including items on table A.

• Responsible for providing the required records: the person ordering the survey,

typically the title company

21

22

Table A

23

Table A

24

Table A

25

Table A

26

Table A

27

Table A

28

Table A

29

Table A

30

Table A

31

Table A

Effective Use of Surveys

• Questions?
