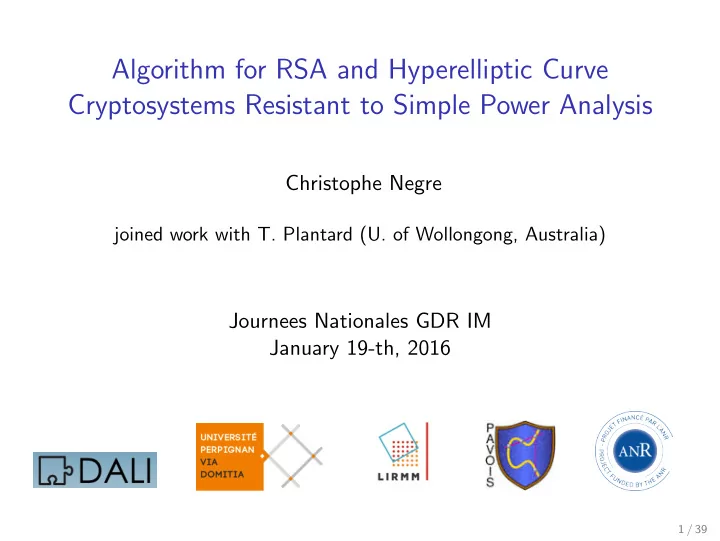

Algorithm for RSA and Hyperelliptic Curve Cryptosystems Resistant to - - PowerPoint PPT Presentation

Algorithm for RSA and Hyperelliptic Curve Cryptosystems Resistant to Simple Power Analysis

Christophe Negre ici

joined work with T. Plantard (U. of Wollongong, Australia)

Journees Nationales GDR IM January 19-th, 2016

1 / 39

Outline

1

Regular exponentiation in RSA cryptosystem RSA encryption Simple power analysis Proposed counter-measure

2

Extension to Hyper-elliptic curve Diffie-Hellmann key exchange Elliptic curve Hyperelliptic curve Proposed regular scalar multiplication

3

Differential power analysis and counter-measures Differential power analysis Counter-measures

4

Conclusion

2 / 39

Outline

1

Regular exponentiation in RSA cryptosystem RSA encryption Simple power analysis Proposed counter-measure

2

Extension to Hyper-elliptic curve Diffie-Hellmann key exchange Elliptic curve Hyperelliptic curve Proposed regular scalar multiplication

3

Differential power analysis and counter-measures Differential power analysis Counter-measures

4

Conclusion

3 / 39

Outline

1

Regular exponentiation in RSA cryptosystem RSA encryption Simple power analysis Proposed counter-measure

2

Extension to Hyper-elliptic curve Diffie-Hellmann key exchange Elliptic curve Hyperelliptic curve Proposed regular scalar multiplication

3

Differential power analysis and counter-measures Differential power analysis Counter-measures

4

Conclusion

4 / 39

RSA encryption

Public key: a modulus N = pq and e a public exponent. Private key: the exponent d satisfying ed = 1 mod (p − 1)(q − 1).

5 / 39

RSA encryption

Public key: a modulus N = pq and e a public exponent. Private key: the exponent d satisfying ed = 1 mod (p − 1)(q − 1).

• Encryption. A message m ∈ {0, . . . , N − 1} is encrypted as

c = me mod N

• Decryption. c ∈ {0, . . . , N − 1} is decrypted

m = cd mod N Correct since: gcd(m, N) = 1 ⇒ m(p−1)(q−1) ≡ 1 mod N

5 / 39

Square-and-multiply exponentiation

Let e = (eℓ−1, . . . , e0)2, we compute me mod N as follows r ← 1 for i from ℓ − 1 downto 0 do r ← r2 mod N r ← r × mei mod N end for return r

6 / 39

Square-and-multiply exponentiation

Let e = (eℓ−1, . . . , e0)2, we compute me mod N as follows r ← 1 for i from ℓ − 1 downto 0 do r ← r2 mod N r ← r × mei mod N end for return r Init.: r = 1 Loop 1 : 12 × meℓ−1 Loop 2 : (meℓ−1)2meℓ−2 = m2eℓ−1+eℓ−2 Loop 3 : (m2eℓ−1+eℓ−2)2meℓ−3 = m4eℓ−1+2eℓ−2+eℓ−3 Etc.

6 / 39

Outline

1

Regular exponentiation in RSA cryptosystem RSA encryption Simple power analysis Proposed counter-measure

2

Extension to Hyper-elliptic curve Diffie-Hellmann key exchange Elliptic curve Hyperelliptic curve Proposed regular scalar multiplication

3

Differential power analysis and counter-measures Differential power analysis Counter-measures

4

Conclusion

7 / 39

Simple power analysis

Consumption of a circuit computing me mod N: squaring = multiplication

8 / 39

Counter-measure of the litterature: square-always

Re-express multiplications as squarings: ab = ((a + b)2 − a2 − b2)/2

Square-and-multiply-always (Clavier et al. 2011)

r ← 1 m′ ← m2 mod N for i from ℓ − 1 downto 0 do r ← r2 mod N if ei = 1 then r ← ((r + m)2 − m′ − r2)/2 mod N end if end for return r Cost = 3ℓ/2 squarings. Drawback: non constant computation time.

9 / 39

Counter-measure of the litterature : square-and-multiply-always

Renders the exponentiation regular and constant time.

Square-and-multiply-always Coron 99

r ← 1 for i from ℓ − 1 downto 0 do r ← r2 mod N if ei = 1 then r ← r × m mod N else r′ ← r × m mod N end if end for return r Cost = ℓ multiplications and ℓ squarings.

10 / 39

Outline

1

Regular exponentiation in RSA cryptosystem RSA encryption Simple power analysis Proposed counter-measure

2

Extension to Hyper-elliptic curve Diffie-Hellmann key exchange Elliptic curve Hyperelliptic curve Proposed regular scalar multiplication

3

Differential power analysis and counter-measures Differential power analysis Counter-measures

4

Conclusion

11 / 39

Proposed counter-measure

Strategy: multiplicative splitting of m m = m−1 × m1 mod N with m0, m1 ∼ = √ N

1: r ← m−1 2: for i from ℓ − 1 downto 0

do

3:

if ei = 0 then

4:

r ← r2 × m0

5:

else

6:

r ← r2 × m1

7:

end if

8: end for 9: r ← r × m0 10: return r

12 / 39

Proposed counter-measure

Strategy: multiplicative splitting of m m = m−1 × m1 mod N with m0, m1 ∼ = √ N

1: r ← m−1 2: for i from ℓ − 1 downto 0

do

3:

if ei = 0 then

4:

r ← r2 × m0

5:

else

6:

r ← r2 × m1

7:

end if

8: end for 9: r ← r × m0 10: return r

Correctness: At beginning of loop i: r = mα × m−1

12 / 39

Proposed counter-measure

Strategy: multiplicative splitting of m m = m−1 × m1 mod N with m0, m1 ∼ = √ N

1: r ← m−1 2: for i from ℓ − 1 downto 0

do

3:

if ei = 0 then

4:

r ← r2 × m0

5:

else

6:

r ← r2 × m1

7:

end if

8: end for 9: r ← r × m0 10: return r

Correctness: At beginning of loop i: r = mα × m−1 If ei = 0: r 2 × m0 = m2αm−1

12 / 39

Proposed counter-measure

Strategy: multiplicative splitting of m m = m−1 × m1 mod N with m0, m1 ∼ = √ N

1: r ← m−1 2: for i from ℓ − 1 downto 0

do

3:

if ei = 0 then

4:

r ← r2 × m0

5:

else

6:

r ← r2 × m1

7:

end if

8: end for 9: r ← r × m0 10: return r

Correctness: At beginning of loop i: r = mα × m−1 If ei = 0: r 2 × m0 = m2αm−1 If ei = 1: r 2 × m1 = (m2αm1m−1

0 ) × m−1

= m2α+1m−1

12 / 39

Proposed counter-measure

Strategy: multiplicative splitting of m m = m−1 × m1 mod N with m0, m1 ∼ = √ N

1: r ← m−1 2: for i from ℓ − 1 downto 0

do

3:

if ei = 0 then

4:

r ← r2 × m0

5:

else

6:

r ← r2 × m1

7:

end if

8: end for 9: r ← r × m0 10: return r

Correctness: At beginning of loop i: r = mα × m−1 If ei = 0: r 2 × m0 = m2αm−1 If ei = 1: r 2 × m1 = (m2αm1m−1

0 ) × m−1

= m2α+1m−1 After loop i: r = m2α+ei × m−1

0 .

12 / 39

Euclidean algorithm. Principle.

Let a, b ∈ N with a ≥ b ≥ 0 gcd(a, b) = gcd(a − qb, b) for all q ∈ Z.

13 / 39

Euclidean algorithm. Principle.

Let a, b ∈ N with a ≥ b ≥ 0 gcd(a, b) = gcd(a − qb, b) for all q ∈ Z. Sequence of modular reductions r0 ← a r1 ← b r2 ← r0 mod r1 r3 ← r1 mod r2 . . . ri ← ri−2 mod ri−1 . . . gcd(a, b) is the last ri = 0.

13 / 39

Euclidean algorithm. Principle.

Let a, b ∈ N with a ≥ b ≥ 0 gcd(a, b) = gcd(a − qb, b) for all q ∈ Z. Sequence of modular reductions r0 ← a r1 ← b r2 ← r0 mod r1 r3 ← r1 mod r2 . . . ri ← ri−2 mod ri−1 . . . gcd(a, b) is the last ri = 0.

Extended Euclidean algorithm

Compute u and v such that ua + vb = gcd(a, b) as follows:

1 We set:

u0 = 1, v0 = 0 u1 = 0, v1 = 1

2 We iterate:

u0a + v0b = r0 u1a + v1b = r1 × (−q1) u2a + v2b = r2

13 / 39

Euclidean algorithm. Principle.

Let a, b ∈ N with a ≥ b ≥ 0 gcd(a, b) = gcd(a − qb, b) for all q ∈ Z. Sequence of modular reductions r0 ← a r1 ← b r2 ← r0 mod r1 r3 ← r1 mod r2 . . . ri ← ri−2 mod ri−1 . . . gcd(a, b) is the last ri = 0.

Extended Euclidean algorithm

Compute u and v such that ua + vb = gcd(a, b) as follows:

1 We set:

u0 = 1, v0 = 0 u1 = 0, v1 = 1

2 We iterate:

u0a + v0b = r0 u1a + v1b = r1 × (−q1) u2a + v2b = r2 × (−q2) u3a + v3b = r3

13 / 39

Euclidean algorithm. Principle.

Let a, b ∈ N with a ≥ b ≥ 0 gcd(a, b) = gcd(a − qb, b) for all q ∈ Z. Sequence of modular reductions r0 ← a r1 ← b r2 ← r0 mod r1 r3 ← r1 mod r2 . . . ri ← ri−2 mod ri−1 . . . gcd(a, b) is the last ri = 0.

Extended Euclidean algorithm

Compute u and v such that ua + vb = gcd(a, b) as follows:

1 We set:

u0 = 1, v0 = 0 u1 = 0, v1 = 1

2 We iterate:

u0a + v0b = r0 u1a + v1b = r1 × (−q1) u2a + v2b = r2 × (−q2) u3a + v3b = r3 ×(−q3) u4a + v4b = r4 ×(−q4) . . .

13 / 39

Multiplicative splitting of m

We have m and N and we want m = m−1 × m1 mod N with m0, m1 ∼ = √ N Extended Euclidean algorithm computes

m r0 v0 N u0

14 / 39

Multiplicative splitting of m

We have m and N and we want m = m−1 × m1 mod N with m0, m1 ∼ = √ N Extended Euclidean algorithm computes

m r1 N u1 v1

14 / 39

Multiplicative splitting of m

We have m and N and we want m = m−1 × m1 mod N with m0, m1 ∼ = √ N Extended Euclidean algorithm computes

m r2 v2 N u2

14 / 39

Multiplicative splitting of m

We have m and N and we want m = m−1 × m1 mod N with m0, m1 ∼ = √ N Extended Euclidean algorithm computes

m r3 v3 N u3

14 / 39

Multiplicative splitting of m

We have m and N and we want m = m−1 × m1 mod N with m0, m1 ∼ = √ N Extended Euclidean algorithm computes

m r3 v3 N u3

we stop when ui, ri ∼ = N1/2 uim + viN = ri ⇒ m = u−1

i

× ri mod N. and m0 = ui and m1 = ri are good!

14 / 39

Complexity comparison

Exponent of size ℓ bits. Integer modulo N on t computer words. Multiplication/squaring in O(t2).

Property Algorithm #word op. Timing in 103CC 2040bits 3070bits None Square-and-multiply 7.5ℓt2 + O(ℓt) 14201 46287 Reg. Multiply-always 9ℓt2 + O(ℓt) 16178 52171 Square-always 9ℓt2 + O(ℓt) 18020 58766 Reg. and CT Square-and-mult-always 10.5ℓt2 + O(ℓt) 19738 63292 Montgomery-ladder 10.5ℓt2 + O(ℓt) 21803 70389 Montgomery-ladder opt. 9ℓt2 + O(ℓt) 18124 57401 Proposed 7.5ℓt2 + O(ℓt) 15203 47540

• Reg. =Regular and CT=Constant time.

15 / 39

Outline

1

Regular exponentiation in RSA cryptosystem RSA encryption Simple power analysis Proposed counter-measure

2

Extension to Hyper-elliptic curve Diffie-Hellmann key exchange Elliptic curve Hyperelliptic curve Proposed regular scalar multiplication

3

Differential power analysis and counter-measures Differential power analysis Counter-measures

4

Conclusion

16 / 39

Outline

1

Regular exponentiation in RSA cryptosystem RSA encryption Simple power analysis Proposed counter-measure

2

Extension to Hyper-elliptic curve Diffie-Hellmann key exchange Elliptic curve Hyperelliptic curve Proposed regular scalar multiplication

3

Differential power analysis and counter-measures Differential power analysis Counter-measures

4

Conclusion

17 / 39

Diffie-Hellmann key exchange

Alice and Bob agree on a group (G, +, O) and a generating point of the group P.

Bob Alice

18 / 39

Diffie-Hellmann key exchange

Alice and Bob agree on a group (G, +, O) and a generating point of the group P.

Bob Alice

a ← random() b ← random() 18 / 39

Diffie-Hellmann key exchange

Alice and Bob agree on a group (G, +, O) and a generating point of the group P.

Bob Alice

a ← random() Computes A = a · P Computes B = b · P b ← random() 18 / 39

Diffie-Hellmann key exchange

Alice and Bob agree on a group (G, +, O) and a generating point of the group P.

Bob Alice

sends B sends A

Computes A = a · P a ← random() b ← random() Computes B = b · P 18 / 39

Diffie-Hellmann key exchange

Alice and Bob agree on a group (G, +, O) and a generating point of the group P.

Bob Alice

sends B sends A

Computes A = a · P a ← random() Computes B = b · P b ← random() Computes K = b · A Computes K = a · B

Shared secret key K = a · b · P

18 / 39

Diffie-Hellmann key exchange

Alice and Bob agree on a group (G, +, O) and a generating point of the group P.

Bob Alice

sends B sends A

Computes A = a · P a ← random() Computes B = b · P b ← random() Computes K = b · A Computes K = a · B

Shared secret key K = a · b · P

Discrete log problem: given A in < P > find a such that A = a · P.

18 / 39

Diffie-Hellmann key exchange

Alice and Bob agree on a group (G, +, O) and a generating point of the group P.

Bob Alice

sends B sends A

Computes A = a · P a ← random() Computes B = b · P b ← random() Computes K = b · A Computes K = a · B

Shared secret key K = a · b · P

Discrete log problem: given A in < P > find a such that A = a · P.

The main operation is the scalar multiplication a · P.

18 / 39

Outline

1

Regular exponentiation in RSA cryptosystem RSA encryption Simple power analysis Proposed counter-measure

2

Extension to Hyper-elliptic curve Diffie-Hellmann key exchange Elliptic curve Hyperelliptic curve Proposed regular scalar multiplication

3

Differential power analysis and counter-measures Differential power analysis Counter-measures

4

Conclusion

19 / 39

Group law for an elliptic curve y 2 = x3 − 2x + 1

x

P = (xP, yP) Q = (xQ, yQ)

20 / 39

Group law for an elliptic curve y 2 = x3 − 2x + 1

x

P = (xP, yP) Q = (xQ, yQ) R = P + Q

Addition (chord): xR = λ − xP − xQ yR = yP − λ(xR − xP) with λ = yP−yQ

xP−xQ

20 / 39

Group law for an elliptic curve y 2 = x3 − 2x + 1

x

P = (xP, yP) Q = (xQ, yQ) R = P + Q

Addition (chord): xR = λ − xP − xQ yR = yP − λ(xR − xP) with λ = yP−yQ

xP−xQ

x

P = (xP, yP) R = 2P

Doubling (tangent)

20 / 39

Scalar multiplication : k · P

x

P 2P

Double-and-add for k · P R ← O for i = ℓ − 1 to 0 do R ← 2 · R if ki = 1 then R ← R + P endif endfor return(R) Scalar multiplication: 7P 2 · P 3P = (2P) + P 6P = 2 · (3P) 7P = (6P) + P

21 / 39

Scalar multiplication : k · P

x

P 2P 3P

Double-and-add for k · P R ← O for i = ℓ − 1 to 0 do R ← 2 · R if ki = 1 then R ← R + P endif endfor return(R) Scalar multiplication: 7P 2 · P 3P = (2P) + P 6P = 2 · (3P) 7P = (6P) + P

21 / 39

Scalar multiplication : k · P

x

P 3P 6P

Double-and-add for k · P R ← O for i = ℓ − 1 to 0 do R ← 2 · R if ki = 1 then R ← R + P endif endfor return(R) Scalar multiplication: 7P 2 · P 3P = (2P) + P 6P = 2 · (3P) 7P = (6P) + P

21 / 39

Scalar multiplication : k · P

x

P 6P 7P

Double-and-add for k · P R ← O for i = ℓ − 1 to 0 do R ← 2 · R if ki = 1 then R ← R + P endif endfor return(R) Scalar multiplication: 7P 2 · P 3P = (2P) + P 6P = 2 · (3P) 7P = (6P) + P

21 / 39

Outline

1

Regular exponentiation in RSA cryptosystem RSA encryption Simple power analysis Proposed counter-measure

2

Extension to Hyper-elliptic curve Diffie-Hellmann key exchange Elliptic curve Hyperelliptic curve Proposed regular scalar multiplication

3

Differential power analysis and counter-measures Differential power analysis Counter-measures

4

Conclusion

22 / 39

Hyperelliptic curve H : y 2 = x5 − 5x + 4x

x

23 / 39

Hyperelliptic curve H : y 2 = x5 − 5x + 4x

x

P0 P1

Goup elements: pair of points D = P0 + P1

• n H encoded as

u(x) = (x − x0)(x − x1) v(x) = x2 + v1x + v0 such that v(x0) = y0 v(x1) = y1

23 / 39

Hyperelliptic curve H : y 2 = x5 − 5x + 4x

x

P0 P1

Goup elements: pair of points D = P0 + P1

• n H encoded as

u(x) = (x − x0)(x − x1) v(x) = x2 + v1x + v0 such that v(x0) = y0 v(x1) = y1

23 / 39

Hyperelliptic curve H : y 2 = x5 − 5x + 4x

x

P0 P1 P2 P3

Goup elements: pair of points D = P0 + P1

• n H encoded as

u(x) = (x − x0)(x − x1) v(x) = x2 + v1x + v0 such that v(x0) = y0 v(x1) = y1 Addition of D = P0 + P1 and D′ = P2 + P3:

23 / 39

Hyperelliptic curve H : y 2 = x5 − 5x + 4x

x

P0 P1 P2 P3

Goup elements: pair of points D = P0 + P1

• n H encoded as

u(x) = (x − x0)(x − x1) v(x) = x2 + v1x + v0 such that v(x0) = y0 v(x1) = y1 Addition of D = P0 + P1 and D′ = P2 + P3:

◮ Let the curve going through all Pis.

C : y = w3x3 + w2x2 + w1x + w0.

23 / 39

Hyperelliptic curve H : y 2 = x5 − 5x + 4x

x

P0 P1 P2 P3 Q0 Q1

Goup elements: pair of points D = P0 + P1

• n H encoded as

u(x) = (x − x0)(x − x1) v(x) = x2 + v1x + v0 such that v(x0) = y0 v(x1) = y1 Addition of D = P0 + P1 and D′ = P2 + P3:

◮ Let the curve going through all Pis.

C : y = w3x3 + w2x2 + w1x + w0.

◮ H ∩ C = {P0, P1, P2, P3, Q0, Q1}. 23 / 39

Hyperelliptic curve H : y 2 = x5 − 5x + 4x

x

P0 P1 P2 P3 Q0 Q1

• Q0
• Q1

Goup elements: pair of points D = P0 + P1

• n H encoded as

u(x) = (x − x0)(x − x1) v(x) = x2 + v1x + v0 such that v(x0) = y0 v(x1) = y1 Addition of D = P0 + P1 and D′ = P2 + P3:

◮ Let the curve going through all Pis.

C : y = w3x3 + w2x2 + w1x + w0.

◮ H ∩ C = {P0, P1, P2, P3, Q0, Q1}. ◮ D + D′ =

Q0 + Q1.

23 / 39

Outline

1

Regular exponentiation in RSA cryptosystem RSA encryption Simple power analysis Proposed counter-measure

2

Extension to Hyper-elliptic curve Diffie-Hellmann key exchange Elliptic curve Hyperelliptic curve Proposed regular scalar multiplication

3

Differential power analysis and counter-measures Differential power analysis Counter-measures

4

Conclusion

24 / 39

Scalar multiplication on H with half-size splitting

Proposed regular scalar multiplication k · D

while IsIrreducible(u(x)) do D ← 2 · D k ← k/2 mod # < D > end while Factorize u(x) = (x − x0)(x − x1) D0 ← (x − xi, v(xi)), D1 ← (x − xi, v(xi)) R ← −D0 for i = ℓ − 1 to 0 do R ← 2 · R if ki = 0 then R ← R + D0 else R ← R + D1 end if end for R ← R + D0 return R

25 / 39

Scalar multiplication on H with half-size splitting

Proposed regular scalar multiplication k · D

while IsIrreducible(u(x)) do D ← 2 · D k ← k/2 mod # < D > end while Factorize u(x) = (x − x0)(x − x1) D0 ← (x − xi, v(xi)), D1 ← (x − xi, v(xi)) R ← −D0 for i = ℓ − 1 to 0 do R ← 2 · R if ki = 0 then R ← R + D0 else R ← R + D1 end if end for R ← R + D0 return R

25 / 39

Scalar multiplication on H with half-size splitting

Proposed regular scalar multiplication k · D

while IsIrreducible(u(x)) do D ← 2 · D k ← k/2 mod # < D > end while Factorize u(x) = (x − x0)(x − x1) D0 ← (x − xi, v(xi)), D1 ← (x − xi, v(xi)) R ← −D0 for i = ℓ − 1 to 0 do R ← 2 · R if ki = 0 then R ← R + D0 else R ← R + D1 end if end for R ← R + D0 return R

25 / 39

Factorization u(x) = x2 + u1x + u0

We work in the field Fp = Z/pZ and use u(x) = (x − −u1 + √ ∆ 2 )(x + −u1 − √ ∆ 2 ) where ∆ = u2

1 − 4u0.

26 / 39

Factorization u(x) = x2 + u1x + u0

We work in the field Fp = Z/pZ and use u(x) = (x − −u1 + √ ∆ 2 )(x + −u1 − √ ∆ 2 ) where ∆ = u2

1 − 4u0.

IsIrreducible:

1

Test if ∆ is a square-root with the Jacobi symbol ∆ p

• =

1 if ∆ is a square −1 if ∆ is not a square

26 / 39

Factorization u(x) = x2 + u1x + u0

We work in the field Fp = Z/pZ and use u(x) = (x − −u1 + √ ∆ 2 )(x + −u1 − √ ∆ 2 ) where ∆ = u2

1 − 4u0.

IsIrreducible:

1

Test if ∆ is a square-root with the Jacobi symbol ∆ p

• =

1 if ∆ is a square −1 if ∆ is not a square

2

Jacobi symbol computation: ∆ = 2α∆′ and ∆′ odd ∆ p

• =

2 p α × ∆′ p

• and then use for a and b odd

a b

• = (−1)

(a−1)(b−1) 4

b mod a a

• 26 / 39

Factorization u(x) = x2 + u1x + u0

We work in the field Fp = Z/pZ and use u(x) = (x − −u1 + √ ∆ 2 )(x + −u1 − √ ∆ 2 ) where ∆ = u2

1 − 4u0.

IsIrreducible:

1

Test if ∆ is a square-root with the Jacobi symbol ∆ p

• =

1 if ∆ is a square −1 if ∆ is not a square

2

Jacobi symbol computation: ∆ = 2α∆′ and ∆′ odd ∆ p

• =

2 p α × ∆′ p

• and then use for a and b odd

a b

• = (−1)

(a−1)(b−1) 4

b mod a a

• Square root computation: if p ≡ 3 mod 4 then

√ ∆ = ∆

p−3 4 +1

mod p. For other kinds of p ⇒ an exponentiation + a few squares.

26 / 39

Complexity comparison for scalar multiplication on H(Fp)

Regular scalar multiplication

• Op. formula

Cost Montgomery-ladder (Kummer) Duquesne ℓ(62M + 4S) Double-and-add-always Costello-Hisil ℓ(52M + 11S) Proposed Costello-Hisil + Proposed ℓ(49M + 9S) + O(1) M=Multiplication, S=Squaring, ℓ is the bit length of k.

27 / 39

Outline

1

Regular exponentiation in RSA cryptosystem RSA encryption Simple power analysis Proposed counter-measure

2

Extension to Hyper-elliptic curve Diffie-Hellmann key exchange Elliptic curve Hyperelliptic curve Proposed regular scalar multiplication

3

Differential power analysis and counter-measures Differential power analysis Counter-measures

4

Conclusion

28 / 39

Outline

1

Regular exponentiation in RSA cryptosystem RSA encryption Simple power analysis Proposed counter-measure

2

Extension to Hyper-elliptic curve Diffie-Hellmann key exchange Elliptic curve Hyperelliptic curve Proposed regular scalar multiplication

3

Differential power analysis and counter-measures Differential power analysis Counter-measures

4

Conclusion

29 / 39

Differential power analysis: principle

data1

b=1

.

30 / 39

Differential power analysis: principle

data1

b=1

data2

b=0

.

30 / 39

Differential power analysis: principle

data1

b=1

data2

b=0

data3

b=0

data4

b=1

data5

b=1

data6

b=0

data7

b=0

data8

b=1

.

30 / 39

Differential power analysis: principle

data1

b=1

data2

b=0

data3

b=0

data4

b=1

data5

b=1

data6

b=0

data7

b=0

data8

b=1

. Guess b = 1 Guess b = 0

30 / 39

Differential power analysis: principle

data1

b=1

data2

b=0

data3

b=0

data4

b=1

data5

b=1

data6

b=0

data7

b=0

data8

b=1

. Guess b = 1 Guess b = 0 ( trace blue) − ( trace red)

30 / 39

Differential power analysis: principle

data1

b=1

data2

b=0

data3

b=0

data4

b=1

data5

b=1

data6

b=0

data7

b=0

data8

b=1

.

30 / 39

Differential power analysis: principle

data1

b=1

data2

b=0

data3

b=0

data4

b=1

data5

b=1

data6

b=0

data7

b=0

data8

b=1

. Guess b = 1 Guess b = 0 ( trace blue) − ( trace red)

30 / 39

Differential power analysis: real life

loop 1 e1 = 1 loop 2 e2 = 0 loop 3 e3 = 1 loop 4 e4 = 0 loop 5 e5 =??

m

31 / 39

Differential power analysis: real life

loop 1 e1 = 1 r1 loop 2 e2 = 0 r2 loop 3 e3 = 1 r3 loop 4 e4 = 0 r4 loop 5 e5 =??

m

0 r5

r′

5 1

31 / 39

Differential power analysis: real life

loop 1 e1 = 1 r1 loop 2 e2 = 0 r2 loop 3 e3 = 1 r3 loop 4 e4 = 0 r4 loop 5 e5 =??

m

0 r5

r′

5 1

trace 1 trace 2 trace 3 . . . . . . . . . . . . trace L

31 / 39

Differential power analysis: real life

loop 1 e1 = 1 r1 loop 2 e2 = 0 r2 loop 3 e3 = 1 r3 loop 4 e4 = 0 r4 loop 5 e5 =??

m

0 r5

r′

5 1

trace 1 trace 2 trace 3 . . . . . . . . . . . . trace L

correct guess wrong guess

Differentials:

31 / 39

Outline

1

Regular exponentiation in RSA cryptosystem RSA encryption Simple power analysis Proposed counter-measure

2

Extension to Hyper-elliptic curve Diffie-Hellmann key exchange Elliptic curve Hyperelliptic curve Proposed regular scalar multiplication

3

Differential power analysis and counter-measures Differential power analysis Counter-measures

4

Conclusion

32 / 39

Counter-measures to DPA: message blinding

Approach 1: pick a random α ∈ [1, N], set β = (αe)−1 mod N m′ = m × α mod N c = m′e × β mod N

33 / 39

Counter-measures to DPA: message blinding

Approach 1: pick a random α ∈ [1, N], set β = (αe)−1 mod N m′ = m × α mod N c = m′e × β mod N Approach 2:

◮ Montgomery Multiplication:

q ← −a × b × N−1 mod M r ← (a × b + q × N)/M

33 / 39

Counter-measures to DPA: message blinding

Approach 1: pick a random α ∈ [1, N], set β = (αe)−1 mod N m′ = m × α mod N c = m′e × β mod N Approach 2:

◮ Montgomery Multiplication:

q ← −a × b × N−1 mod M r ← (a × b + q × N)/M which satisfies r ≡ a × b × M−1 mod N.

33 / 39

Counter-measures to DPA: message blinding

Approach 1: pick a random α ∈ [1, N], set β = (αe)−1 mod N m′ = m × α mod N c = m′e × β mod N Approach 2:

◮ Montgomery Multiplication:

q ← −a × b × N−1 mod M r ← (a × b + q × N)/M which satisfies r ≡ a × b × M−1 mod N.

◮ Montgomery representation:

a = aM mod N leads to

• a ×

b × M−1 mod N = ab mod N

33 / 39

Counter-measures to DPA: message blinding

Approach 1: pick a random α ∈ [1, N], set β = (αe)−1 mod N m′ = m × α mod N c = m′e × β mod N Approach 2:

◮ Montgomery Multiplication:

q ← −a × b × N−1 mod M r ← (a × b + q × N)/M which satisfies r ≡ a × b × M−1 mod N.

◮ Montgomery representation:

a = aM mod N leads to

• a ×

b × M−1 mod N = ab mod N ⇒ randomized M with the residue number system.

33 / 39

Exponent randomization (Coron 99)

We have φ = (p − 1)(q − 1) and N = pq an RSA integer, then md+α·φ mod N = md mod N for all α ∈ N. φ = #E(Fq) for an (hyper)elliptic curve P ∈ E(Fq) the (d + αφ) · P = d · P for all α ∈ N. Coron in 1999 propose to randomise an exponent d as d + αφ with α ∈ {0, 1}20.

34 / 39

Problem can arise (Ciet-Joye 2003):

The NIST B233 curve has order φ φ = (1000000000000000000000000000000000000000000000000000 00000000000000000000000000000000000000000000000000000 00000000000100111110100101110100111001110010111110001 01001101001001000100000001100011101001001100000001111 0011111110000011010111)2 Then if we compute α · φ with α of 20 bits we get

α · φ = (∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ 000000000000000000 000000000000000000000000000000000000000000000000000000 0000000000000000000000 ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗)2

In d + α · φ a big part of the bits of d are not blinded.

35 / 39

Randomisation with signed representation

Signed recoding (Ha-Moon 2002):

◮ Let ¯

1 = −1, then we have 1000001 = 100001¯ 1 = 10001¯ 1¯ 1 = 1001¯ 1¯ 1¯ 1 . . .

36 / 39

Randomisation with signed representation

Signed recoding (Ha-Moon 2002):

◮ Let ¯

1 = −1, then we have 1000001 = 100001¯ 1 = 10001¯ 1¯ 1 = 1001¯ 1¯ 1¯ 1 . . .

◮ Let k = ℓ−1

i=0 ki2i can be recoded

k =

ℓ−1

• i=0

k′

i 2i with ki ∈ {0, 1, ¯

1} and there is 3ℓ/2ℓ such recoding, in average.

36 / 39

Randomisation with signed representation

Signed recoding (Ha-Moon 2002):

◮ Let ¯

1 = −1, then we have 1000001 = 100001¯ 1 = 10001¯ 1¯ 1 = 1001¯ 1¯ 1¯ 1 . . .

◮ Let k = ℓ−1

i=0 ki2i can be recoded

k =

ℓ−1

• i=0

k′

i 2i with ki ∈ {0, 1, ¯

1} and there is 3ℓ/2ℓ such recoding, in average.

Bad recoding (Fouque et al. 2004): let Pj = (k0, . . . , kj)2 · P and P′

j = (k′ 0, . . . , k′ j)2 · P

then we have P′

j = Pj or P′ j = Pj − 2jP.

36 / 39

Outline

1

Regular exponentiation in RSA cryptosystem RSA encryption Simple power analysis Proposed counter-measure

2

Extension to Hyper-elliptic curve Diffie-Hellmann key exchange Elliptic curve Hyperelliptic curve Proposed regular scalar multiplication

3

Differential power analysis and counter-measures Differential power analysis Counter-measures

4

Conclusion

37 / 39

Conclusion

We proposed a half-size splitting approach which works well for regular modular exponentiation, works well for regular scalar multiplication on hyperelliptic curves, but not so good on elliptic curves. Some challenge remains to counter-act side channel analysis: Good randomizations. Threat of horizontal attacks: use technique of DPA on a single trace. Require to inject randomisation all along computations, without too much penalty.

38 / 39

Thank you for your attention. Any questions ?

39 / 39
