SLIDE 1
10/21/2014 1

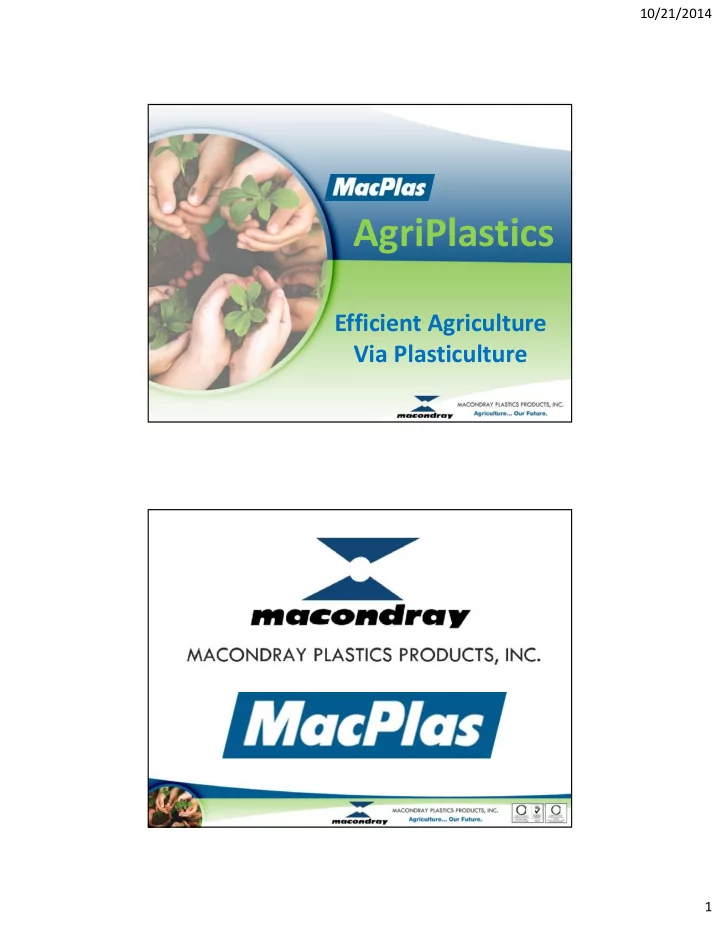

Efficient Agriculture Via Plasticulture
10/21/2014 2
Layunin po ng macplas na makapaghatid ng SOLUSYON sa problemang AGRIKULTURAL ng mga MAGSASAKA
AgriPlastics Efficient Agriculture Via Plasticulture 1 10/21/2014 - - PDF document
AgriPlastics Efficient Agriculture Via Plasticulture 1 10/21/2014 - - PDF document
10/21/2014 AgriPlastics Efficient Agriculture Via Plasticulture 1 10/21/2014 Layunin po ng macplas na makapaghatid ng SOLUSYON sa problemang AGRIKULTURAL ng mga MAGSASAKA 2 10/21/2014 3 10/21/2014 4 10/21/2014 5 10/21/2014 6
SLIDE 2
SLIDE 3
10/21/2014 3
SLIDE 4
10/21/2014 4
SLIDE 5
10/21/2014 5
SLIDE 6
10/21/2014 6
SLIDE 7
10/21/2014 7
SLIDE 8
10/21/2014 8
LABORATORY FACILITY LABORATORY FACILITY
SLIDE 9
10/21/2014 9
LABORATORY FACILITY LABORATORY FACILITY
SLIDE 10
10/21/2014 10
SLIDE 11
10/21/2014 11
SLIDE 12
10/21/2014 12
SLIDE 13
10/21/2014 13
Recycled Pellets
SLIDE 14
10/21/2014 14
SLIDE 15
10/21/2014 15
SLIDE 16
10/21/2014 16
SLIDE 17
10/21/2014 17
SLIDE 18
10/21/2014 18
SLIDE 19
10/21/2014 19
The agri-academy was conceptualized to create modules or package of technologies on the application of plastics to Philippine agriculture.
SLIDE 20
10/21/2014 20
Vegetable
Production Technology
Seed to Harvest NATURAL FERMENTED SOLUTION (NFS)
SLIDE 21
10/21/2014 21
Lacatan Production Technologies Seminar
February 15, 2014 Negros Farmers Weekend Market Bacolod City
SLIDE 22
10/21/2014 22
High Value Products Geared Towards The Banana Sector and Other Customers in Agriculture and Aquaculture Industries
Plasticulture in Banana Production
SLIDE 23
10/21/2014 23
POLYBAG - IMPREGNATED BANANA BUNCH SHROUD POLYBAG - IMPREGNATED BANANA BUNCH SHROUD
SLIDE 24
10/21/2014 24
POLYBAG - IMPREGNATED BANANA BUNCH SHROUD POLYBAG NON IMPREGNATED BANANA BUNCH SHROUD
SLIDE 25
10/21/2014 25
POLYBAG NON IMPREGNATED BANANA BUNCH SHROUD
Benefits of Banana Bunch Shroud:
- A. protect fruits from insect pests,
- B. to shorten development of fruits (hasten
maturity),
- C. good physical appearance of fruits (smooth,
clean and glossy).
SLIDE 26
10/21/2014 26
Mealybugs
Scale Insects
SLIDE 27
10/21/2014 27
POLYBAG NON IMPREGNATED BANANA BUNCH SHROUD
TWINE
SLIDE 28
10/21/2014 28
TWINE
Propping is done to prevent fruit loss due to strong winds and prevent tipping over of bunch. High tensile strength
- f MacPlas Polytwine
is critical to support weight of developing bunch.
SLIDE 29
10/21/2014 29
FRUIT HARVESTER MARKER
Agriplastics in Rice Production
SLIDE 30
10/21/2014 30
PLASTIC ROW MULCH – RICE PADDY
Plastic mulch in dikes
- Eliminate manual weeding of dikes
- Eliminate herbicide use
- Prevents water seepage
- Eliminates labor in dike repair as dikes are
preserved
- Rat control
SLIDE 31
10/21/2014 31
PLASTIC ROW MULCH – RICE PADDY PLASTIC ROW MULCH – RICE PADDY
SLIDE 32
10/21/2014 32
Agriplastic film as matting in seedling production (dapog method)
Plasticulture in Pineapple Production
SLIDE 33
10/21/2014 33
Fruit Bagging to prevent Sun Burn
Polomolok, South Cotabato
SLIDE 34
10/21/2014 34
Bukidnon
Un-mulched Pineapples 7 months old With Plastic Mulch 7 Months old
Plasticulture in Tobacco Production
SLIDE 35
10/21/2014 35
BLACK FILM – ROOFING
Air Drying of Burley Tobacco
Products Designed to Promote Crop Cultivation, Fruit Protection, Pest Management, Water Containment, and Environmental Conservation
SLIDE 36
10/21/2014 36
Plant Nurseries
SEEDLING BAGS
SLIDE 37
10/21/2014 37
PLASTICULTURE IN VEGETABLE PRODUCTION
PLASTIC ROW MULCH
SLIDE 38
10/21/2014 38
PLASTIC ROW MULCH BENEFITS
Advantages of Plastic Mulch Use
- 1. Earlier planting dates
- Use of plastic mulch alters soil temperature.
- It intercepts sunlight warming the soil
allowing earlier planting as well as encouraging faster growth
SLIDE 39
10/21/2014 39
Advantages of Plastic Mulch Use
- 2. Increased growth
- Higher levels of carbon dioxide accumulates
under the plastic.
- It comes out through the holes made in the
plastic for the plants ad a “chimney effect” is created – resulting in localized concentrations of CO2 for actively growing leaves.
- Plant growth on mulch is often at least twice than
- n bare soil.
- Black plastic mulch can result in 2-14 days earlier
harvest.
Advantages of Plastic Mulch Use
- 3. Soil moisture retention
- Plastic mulches reduce amount of water lost
due to evaporation.
- Less water needed for irrigation
- Mulches also aid in evenly distributing
moisture to the soil which reduces plant stress.
SLIDE 40
10/21/2014 40
Advantages of Plastic Mulch Use
- 4. Weed management
- Plastic mulches prevent sunlight from
reaching the soil which can inhibit most annual and perennial weeds.
Advantages of Plastic Mulch Use
- 5. Reduction in the leaching of fertilizer
- Water runs off the impervious mulch resulting
to maximum utilization of fertilizer.
- Drip irrigation, used with plastic mulch,
eliminates use of flood or furrow irrigation that applies large quantities of water into the
- soil. This tends to leach nitrogen and other
nutrients below the root zone.
SLIDE 41
10/21/2014 41
Advantages of Plastic Mulch Use
- Drip irrigation applies lower amounts of water
with fertilizers injected and thus these fertilizers are applied to the root zone as needed.
- This reduces the amount of fertilizer needed for
adequate plant growth compared to broadcast method.
- With less leaching, water quality is protected.
- Fertilizer utilization is optimized as competition
from weeds is eliminated.
Advantages of Plastic Mulch Use
- 6. Improved crop quality
- Plastic mulches keep fruits off the soil
- No soil splash on plants, this decreases fruit
rot as well as keeps fruits and vegetables clean.
SLIDE 42
10/21/2014 42
Advantages of Plastic Mulch Use
- 7. Reduction in soil compaction
- Plastic mulch decreases the crusting effect of
rain and sunlight.
- Reduced weeds mean decreased need for
mechanical cultivation.
- Soil covered by the mulch stays loose and well
aerated.
- Roots have access to adequate oxygen and
microbial activity is excellent.
Advantages of Plastic Mulch Use
- 8. Reduction in root damage
- Since there is no need to cultivate the soil, rot
damage due to cultivation is eliminated.
- This leads to overall growth of the plant.
SLIDE 43
10/21/2014 43
Advantages of Plastic Mulch Use
- 9. Less crop flooding in wet weather
- Crop drowning is reduced.
- Plant stress due to excess soil moisture is
avoided.
Advantages of Plastic Mulch Use
- 10. Aphids control
- The reflective properties of the aluminum
faced plastic have been shown to interfere with the movement of aphids which spread some viral diseases.
SLIDE 44
10/21/2014 44
PLASTIC ROW MULCH PLASTIC ROW MULCH
SLIDE 45
10/21/2014 45
PLASTIC ROW MULCH PLASTIC ROW MULCH Less mortality and faster, vigorous growth in bulb
- nions.
SLIDE 46
10/21/2014 46
PLASTIC ROW MULCH PLASTIC TREE MULCH
SLIDE 47
10/21/2014 47
PLASTIC TREE MULCH PLASTIC TREE MULCH
SLIDE 48
10/21/2014 48
PLASTIC TREE MULCH PLASTIC TREE MULCH
SLIDE 49
10/21/2014 49
TWINE
Twine
- Basically used for support of plants to prevent
them from toppling.
- UV treated – will not disintegrated under sun
exposure
- High tensile strength, can be re-used and
recycled.
SLIDE 50
10/21/2014 50
TWINE TWINE
SLIDE 51
10/21/2014 51
TUNNEL FILM – ROW COVERS
TUNNEL FILM – ROW COVER
SLIDE 52
10/21/2014 52
- Protects rows of crops against excessive rains
and strong winds that occur during the rainy season.
- Rainshelters- specifically designed to mitigate
the impact of raindrops on crops that may result to leaf, flower and fruit damage.
- Kinetic energy of bigger raindrops injure plant
cell providing entry to harmful organisms resulting to diseases.
- Lower half portion of shelter is open to allow
- pen air temperature and humidity.
SLIDE 53
10/21/2014 53
- Tomato and leafy vegetables are the common
crops grown under rainshelter especially during hot-wet months.
- UV stabilized, does not easily disintegrate
even under continuous exposure to sunlight and wind.
- If used as row cover, it covers the entire row of
crops only during continuous heavy rains, in case no rain is expected, the plastic sheet is rolled up and covers only the topmost portion
- f the structure.
SLIDE 54
10/21/2014 54
TUNNEL FILM – ROW COVER TUNNEL FILM – ROW COVER
SLIDE 55
10/21/2014 55
TUNNEL FILM TUNNEL FILM – Rain Shelter
SLIDE 56
10/21/2014 56
TUNNEL FILM – Rain Shelter TUNNEL FILM – Solar Dryer
SLIDE 57
10/21/2014 57
Solar dryer
- Uses specialized film that utilizes solar energy
by converting it to heat.
- Shortens drying period of products by
blocking outgoing IR radiation (IR block).
- Protects products from rain, insects, rats and
dust from the surroundings.
TUNNEL FILM – Solar Dryer
SLIDE 58
10/21/2014 58
SLIDE 59
10/21/2014 59
SLIDE 60
10/21/2014 60
TUNNEL FILM – Solar Dryer
SLIDE 61
10/21/2014 61
TUNNEL FILM – Solar Dryer TUNNEL FILM – Solar Dryer
SLIDE 62
10/21/2014 62
TUNNEL FILM – Solar Dryer TUNNEL FILM – Solar Dryer
SLIDE 63
10/21/2014 63
AGRIPLASTICS FOR WATER CONTAINMENT
BLACK FILM - POND LINER
SLIDE 64
10/21/2014 64
Pondliners
- Serves as a hydraulic barrier for pond dikes
and bottoms.
- Durable film that hinders seepage preventing
water loss.
- Power cost for pumping is kept manageable
- Also inhibits reverse seepage, helps preserve
biosecurity as it prevents external (possibly contaminated) water from entering into the pond.
- Where the edges of the pond are installed, the
film also prevents weed growth.
- Protects dikes from the current and wave
motion created by paddle wheel aerators thereby preventing soil erosion and collapse
- f dike wells.
- Cost effective compared to cement plastering
and cementing.
- Can last from 7-10 years.
SLIDE 65
10/21/2014 65
BLACK FILM – WATER RESERVOIR For Rainwater Harvesting, Cavite BLACK FILM – WATER RESERVOIR
SLIDE 66
10/21/2014 66
BLACK FILM - SALT LINER BLACK FILM - SALT LINER
SLIDE 67
10/21/2014 67
BLACK FILM - SALT LINER BLACK FILM - SALT LINER
SLIDE 68
10/21/2014 68
BLACK FILM – POULTRY CURTAIN BLACK FILM – POULTRY CURTAIN
SLIDE 69
10/21/2014 69
CUTFLOWER PRODUCTION: BLACK FILM FOR ROOFING
SLIDE 70
10/21/2014 70
URBAN CONTAINER GARDENING: GROW BAG GROW BAG
SLIDE 71
10/21/2014 71
GROW BAG
Grow bags
- Ideally for vertical urban gardening where
space is limited.
- Recyclable PE bag used for growing leafy
vegetables, herbs and fruits.
- Availability:
– 250 mm x 1200 mm x 150 um – Also in continuous (100 m) rolls
SLIDE 72
10/21/2014 72
GROW BAG GROW BAG
SLIDE 73
10/21/2014 73
GROW BAG GROW BAG – Costales Farm
SLIDE 74
10/21/2014 74
GROW BAG GROW BAG
SLIDE 75
10/21/2014 75
AGRIPLASTICS IN ANIMAL PRODUCTION
Silage bags
- Basically used for silaging.
- Silage – fermented, high moisture stored
fodder which can be fed to ruminants.
- Made by placing cut green vegetation and
placing them inside the Silage bag.
- Air must be excluded.
- Resulting fodder is highly digestible and
palatable to cattles.
SLIDE 76
10/21/2014 76
- Provides fresh feed all year round.
- With good packaging, silages can be stored for
many years.
SILAGE BAG
SLIDE 77
10/21/2014 77
SILAGE BAG SILAGE BAG
SLIDE 78
10/21/2014 78
SILAGE BAG SILAGE BAG
SLIDE 79
10/21/2014 79
SILAGE BAG SILAGE BAG
SLIDE 80
10/21/2014 80
SILAGE BAG GROW BAG
SLIDE 81
10/21/2014 81
SILAGE BAG SILAGE BAG
SLIDE 82
10/21/2014 82
Fruit & Crop Shroud Fruit & Crop Shroud
SLIDE 83
10/21/2014 83
Fruit & Crop Shroud
Innovative Plastic Film Solutions for Various Agro-Industrial Requirements
SLIDE 84
10/21/2014 84
Tuna Bags
Other Products:
- Banana Cluster bags
- Vacuum and polyliners (banana
packaging)
- Dessicated coconut bag
- Banana chips bag
- Chicken bags
- Fry bags (Aquaculture)
SLIDE 85
10/21/2014 85
Grain Bag
Promotion of Material Reduction, Reuse, Recycling as our Commitment to the Environment and Vigilance in Addressing the Urgent Challenge of Climate Change
SLIDE 86
10/21/2014 86
Re-use: Banana Polybag and Polytwine
POLY BAG
Macplas Team Recycling
PP - STRAP PP - FILM PP -TWINE
SLIDE 87
10/21/2014 87
Macplas Team Recycling
- 100,000.0
200,000.0 300,000.0 400,000.0 500,000.0 600,000.0 2006 2007 2008 2009 2010 2011 2012 2013 2014 15,474.2 228,738.85 416,380.00 377,320.00 557,780.00 530,680.00 569,120.00 485,520.00 218,000.00
Total Ouput ( FG ) From Dec. 2006 to June 2014
3,399,013 kg = Total recycled pellets produced from 2006 up to present
Rainwater Harvesting-Water Impoundment
SLIDE 88
10/21/2014 88
Fruit & Crop Shroud Tree Shroud Reduced pesticide application. “Rainshelter” as protection to flowers from strong winds and heavy rain.
SLIDE 89
10/21/2014 89
Tree Shroud
Agriplastics and Organic Agriculture
SLIDE 90
10/21/2014 90
Organic standards of many countries (including the Philippines) allows the use of agriplastics on organic farms. Organic standards allow the use of polyethylene and polypropylene based products as long as they are not incorporated into the soil and they are removed and disposed of in an environmentally responsible manner.
/TeamMacPlas
SLIDE 91
10/21/2014 91
