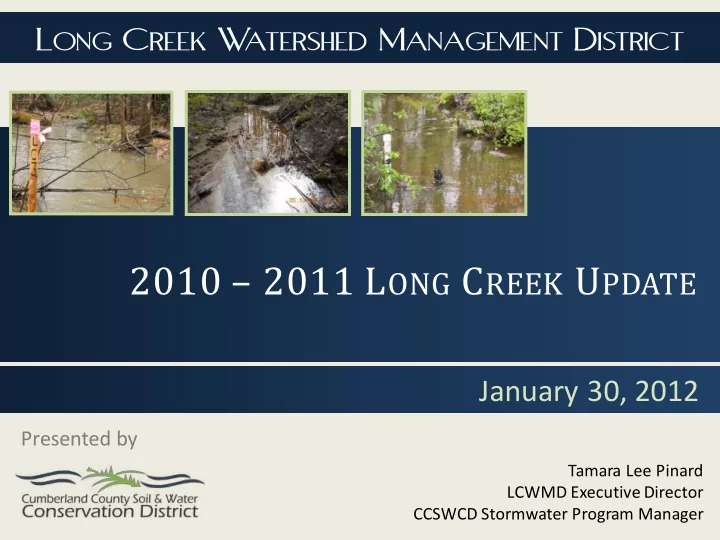

LONG CREEK W

ATERSHED MANAGEMENT DISTRICT

2010 – 2011 LONG CREEK UPDATE

January 30, 2012

Presented by

Tamara Lee Pinard LCWMD Executive Director CCSWCD Stormwater Program Manager

Agenda

• 1. Welcome

David Russell, Board Vice President

• 2. Water Quality & Project Overview

Tamara Lee Pinard, Executive Director

• 3. Financial Overview

Curtis Bohlen, Treasurer

• 4. Maine DEP Perspective

Don Witherill, Division of Watershed Management

• 5. Coffee, Social Hour, Meet the Experts

Long Creek Governing Board

Dan Bacon, Board President David Russell, Board VP Curtis Bohlen, Treasurer David Thomes, Secretary John Branscom Brian Goldberg Craig Gorris Jim Hughes Gerard Jalbert John O’Hara Ed Palmer Adam Pitcher Tom Raymond Doug Roncarati Steve Tibbetts

Long Creek Technical Advisory Committee

Luci Benedict, USM Jeff Dennis, MDEP Fred Dillon, South Portland Zach Henderson, Woodard & Curran Ryan Hodgman, MDOT Tom Raymond, ecomaine Robyn Saunders, GZA Geoenvironmental

Colonel Westbrook Business Park Maine Mall Jetport Sable Oaks Golf Course

Watershed Statistics

Total Watershed Acreage = 2240 (3.5 sq miles) Total Impervious Acreage = 739 (33%) Total Miles of Streams ~ 10 miles

What is the big picture problem?

Long Creek and its tributaries do not meet state water quality standards

What is the big picture problem?

Urbanization is Hard on Streams

• Vegetation along

the stream is removed

Urbanization is Hard on Streams

• Vegetation along

the stream is removed

• Impervious surfaces

heat and speed water to the stream

Urbanization is Hard on Streams

• Vegetation along

the stream is removed

• Impervious surfaces

heat and speed water to the stream

• Streams channelize,

floodplains fill

Urbanization is Hard on Streams

• Vegetation along

the stream is removed

• Impervious surfaces

heat and speed water to the stream

• Streams channelize,

floodplains fill

• Increased pollutant

load

Long Creek is Impaired

• Stream flow has been

altered

Long Creek is Impaired

• Stream flow has been

altered

• Lack of woody debris

Long Creek is Impaired

• Stream flow has been

altered

• Lack of woody debris
• Dissolved oxygen is low

Long Creek is Impaired

• Stream flow has been

altered

• Lack of woody debris
• Dissolved oxygen is low
• High levels of toxic

substances

Long Creek is Impaired

• Stream flow has been

altered

• Lack of woody debris
• Dissolved oxygen is low
• High levels of toxic

substances

• High levels of chloride

Sondes Monitoring sites permanent & rotating

Blanchette Brook South Branch North Branch Main Stem

Consistently does not meet standards Frequently does not meet standards Occasionally does not meet standards Meets standards

Blanchette Brook Main Stem North Branch South Branch

Dissolved Oxygen

Dissolved Oxygen: Blanchette Brook

Dissolved Oxygen: Main Stem, Site 5

Dissolved Oxygen: Main Stem, Site 2

Blanchette Brook Main Stem North Branch South Branch

Chloride

100 200 300 400 500 600 700 500 1000 1500 2000 2500 03/18/11 04/07/11 04/27/11 05/17/11 06/06/11 06/26/11 07/16/11 08/05/11 Specific Conductivity Chloride

230 µg/L

Groundwater Inflow

First Flush End of Storm

Spring Melt Late Spring Rain

Site 03 (North Branch) Spring 2011

Chloride during Spring Runoff

Specific Conductance (us/cm) Chloride (mg/L)

Blanchette Brook Main Stem North Branch South Branch

Metals

Blanchette Brook Main Stem North Branch South Branch

Nutrients

PAHs (Polycyclic Aromatic Hydrocarbons)

• Detected two PAH

chemicals commonly associated with coal tar sealants

Blanchette Brook Main Stem North Branch South Branch

Macroinvertebrates

Monitoring Summary

The data collected during 2010 and 2011 suggest the following:

– Temperature and dissolved oxygen are major stressors in the upper portion of the watershed. – Chloride is a major stressor in the south and north branches. – Metals and nutrients are stressors throughout the watershed. – Water quantity is a known issue throughout the watershed and is being analyzed further.

Educational Partners

• Service learning projects with

Unity College (Dr. Lois Ongley).

• Street Dust and stream sediment

core sampling/evaluation with University of Southern Maine (Dr. Luci Benedict).

What issues are we addressing?

• Implement non-structural measures

– Chlorides, Metals, Nutrients

• Treat 150 impervious acres

– Volume of water (stream flow), metals, nutrients, dissolved oxygen, temperature

• Implement 10 stream habitat mitigation sites

– Dissolved oxygen, temperature, in-stream habitat, fish passage

Goal: Meet Water Quality Standards by 2020

• Implement non-structural measures

– Vacuum sweeping, catch basin cleaning – Operation & Maintenance Plans – Targeted education – Land use planning & standards promoting LID

• Treat 150 impervious acres

– 26.33 acres treated (18%)

• Implement 10 stream habitat mitigation sites

– 2 completed (20%)

Non-structural - Sweeping

Non-structural – Catch Basin Cleaning

Non-structural – Site/BMP Inspections

• 115 site inspections completed
• Reports will go out to landowners in February

Non-structural measures – Winter Maintenance

• Observe snow storage and revise plans
• Potentially group properties into salt usage areas

E-24 – Philbrook Avenue E-02 – Maine Mall Road C-11 – Darling Avenue A1-03 – Mall Plaza

What Projects Have We Completed?

Philbrook Avenue Retrofits

Impervious Cover Treated: 2.12 acres Project Cost: $435,104

Maine Mall Road Porous Asphalt

Impervious Cover Treated: 2.5 acres Project Cost: $368,122

Darling Avenue, South Portland

After Before

Impervious Cover Treated: 7.21 acres Project Cost: $564,189

After 1” rain

Darling Avenue, South Portland Conveyance Soil Filter

Before After

Mall Plaza Phase I Priority Retrofit

Impervious Cover Treated: 11 acres Project Cost: $700,818

Under Construction

Soil Media Filter - After a 3.75” rainstorm Completed Soil Media Filter

Mall Plaza Phase II Priority Retrofit

Impervious Cover Treated: 3.5 acres Project Cost: $287,617

Blanchette Brook, Westbrook

Blanchette Brook, Westbrook

Blanchette Brook, Westbrook

Blanchette Brook, Westbrook

2012: Thomas Drive, Westbrook

$410,000 budget for design & construction Proposed treatment: 15 of 33 acres

2013: Catchment C-08 – North Branch

$400K budget for design & construction Proposed treatment: 16 of 30 acres impervious

2014: Catchment E-24 – South Branch

$600K budget for design & construction Proposed treatment: 35 of 66 acres impervious

2015: Catchment A1-14 & A1-03

MDOT to complete design & construction Budget: $400K Proposed treatment: 9.4 of 20 impervious acres along Maine Mall Road

2015: Sections 2 & 6 Stream Restoration

Budget: $500K Proposed project:

• Section 2 - Enhance

streamside plantings & explore in-stream restoration

• Section 6 - “Chop &

drop” trees to create bug and fish habitat

2016: Section 7 Stream Restoration

Budget: $500K Proposed project:

• Address parking lot

discharge & related eroded bank

• Restore floodplain

next to retention basin

Mallside

2017: Section 4 Stream Restoration

Budget: $600K Proposed project: Remove detention basin and restore the floodplain along this stretch stream

Cornerbrook

2018: Sections 10, 5 & 8 Stream Restoration

Budget: $600K Proposed project: Retrofit culvert for fish passage, address eroding stream banks associated with high stream volumes and stormwater outfalls

North Branch

2019: Catchment E-34 – South Branch

Budget:$600K Proposed treatment: up to 48 acres Proposed project: Retrofit existing dry detention basin in cooperation with redevelopment of TJ Maxx shopping plaza

2020: Section 9 Stream Restoration

Budget: $600K Proposed project: Culvert retrofitted to restore fish passage

Clark’s Pond Parkway

Landowner Obligations

• Pay Assessments on time

– Budget for next fiscal year mailed Feb 1 – Next year’s assessments mailed April 1 – Fiscal Year - July 1 – June 30 – Invoicing biannually - January & July

• Provide easements for BMPs in Plan

Landowner Obligations – talk to us!

Tell us when you have plans to …

• Construct new impervious
• Redevelop
• Sell your property
• Resurface pavement
• Change contractors for

winter maintenance or landscaping

Landowner Obligations

• Implement Operation & Maintenance Plans

– Maintenance of BMPs (if you installed it, you maintain it) – Winter maintenance – Landscaping – Vacuum sweeping – Catch basin cleaning – Inspection of BMPs

Areas for Exploration – Coal Tar Sealants

• Coal tar-based sealcoat produces 30 times

more PAHs than no sealcoat.

• PAHs may harm fish and, under some

conditions, pose a risk of cancer to humans.

Areas for Exploration - Chlorides

• Determine what BMPs

should be used

• Porous pavement or

not??

What’s Next?

• Assessment of vacuum sweeping

and catch basin cleaning frequencies

• Further evaluation of chlorides and winter

maintenance practices

• Work with landowners regarding coal tar-

based sealants, winter maintenance and landscaping practices

Markers of Success

General Permit 88% Pending 2% Non- compliant 6% Individual 3% Landowner Participation 127 designated parcels

Thank you

www.restorelongcreek.org tamara@cumberlandswcd.org

LONG CREEK W

ATERSHE SHED MANAGEMENT DISTRI RICT

Long Creek Watershed Management District

Financial Status

Unaudited Balance Sheet1

ASSETS Bank Account $576,637 Accounts Receivable 2,833 Total Current Assets $579,470 Monitoring Equipment $25,425 Completed Projects 2,428,428 Construction In Progress 80,244 Accumulated Depreciation

• 53,654

Total Fixed Assets $2,480,4442 Other Assets 17,756 Total Assets $3,077,6702 LIABILITIES Accounts Payable $19,523 Other 4,198 Total Current Liabilities $23,7202 ME Municipal Bond Bank 1,515,166 Total Long Term Liabilities $1,515,166 Total Liabilities 1,538,886 Equity 1,538,784 Total Liabilities and Equity $3,077,670

1 Statement as of December 31, 2011 2Totals do not add exactly due to rounding

LCWMD Financial Management

• Basics

– Fiscal Year – July 1 through June 30 – Financial Controls Policy – Annual Audits – Annual Budgets approved by Board by end of January

• Recent Financial Management Tasks

– Finalization of Chart of Accounts – Establishment of depreciation policies – AUDITED resolution of “Startup”

Where is the Money Going?

ADMIN. 7%

• CONSTR. &

MAINT. 59%

GOOD HOUSEKEEPING 23%

MONITORING 11%

FY 2012 July – December Expense Breakdown Total: $417,370

This represents the audited adjusted journal entries to bring over activities from CCSWCD accounts.

Total: $1,414,257

ADMIN 14%

• CONSTR. &

MAINT. 61%

GOOD HOUSEKEEPING,

17% MONITORING 8%

FY2011 Expense Breakdown
