Ampelmann motion compensated cargo transfers offshore Agenda 1. Introduction to Ampelmann 2. Development of motion compensated cargo transfers 3. Future pillars for innovation 2 1) Introduction to Ampelmann 3 The incentive Berlin:

slide-1
SLIDE 1

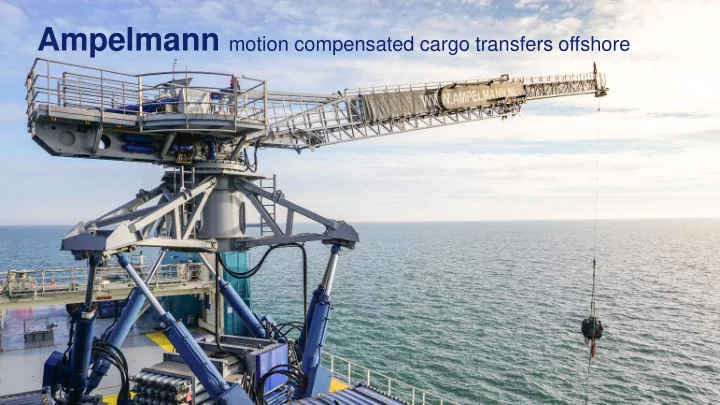

Ampelmann motion compensated cargo transfers offshore

slide-2
SLIDE 2

2

Agenda

  • 1. Introduction to Ampelmann
  • 2. Development of motion compensated cargo transfers
  • 3. Future pillars for innovation
slide-3
SLIDE 3

3

1) Introduction to Ampelmann

slide-4
SLIDE 4

4

The incentive

  • Berlin:

Offshore wind conference

  • Key focus:

Problem to transfer people to the offshore wind turbines

slide-5
SLIDE 5

5

The problem

slide-6
SLIDE 6

6

The vision

“Make offshore access, as easy as crossing the street”

slide-7
SLIDE 7

7

From concept to product

2003-2006: The solution Inspiration Prototype

slide-8
SLIDE 8

8

From concept to product

slide-9
SLIDE 9

9

The first project

slide-10
SLIDE 10

10

2) Motion compensated cargo transfers

Lifting Trolleys over the gangway Offering a stabilized load

slide-11
SLIDE 11

11

2) Offering a stabilized load

Lifting Trolleys over the gangway Offering a stabilized load

slide-12
SLIDE 12

12

  • Basket at end of the gangway
  • Offers a stabilized load up to 100 KG
  • Manual loading and offloading

Cargo in Basket

slide-13
SLIDE 13

13

  • Basket at end of the gangway
  • Offers a stabilized load up to 100 KG
  • Manual loading and offloading

Cargo in Basket

slide-14
SLIDE 14

14

  • Platform on top of gangway
  • Offers a stabilized load up to 300 KG
  • Loading and offloading by crane

Butler

slide-15
SLIDE 15

15

  • Platform on top of gangway
  • Offers a stabilized load up to 300 KG
  • Loading and offloading by crane

Butler

slide-16
SLIDE 16

16

  • Platform on top of the hexapod
  • Offers a stabilized load up to 65 ton
  • to present heavy and/or fragile loads to

a platform crane​

Atlas

slide-17
SLIDE 17

17

Trolleys over the gangway

Lifting Trolleys over the gangway Offering a stabilized load

slide-18
SLIDE 18

18

  • Trolley for standard Ampelmann gangway
  • Transfer up to 100 KG
  • Electric trolley

Cargo trolley

slide-19
SLIDE 19

19

  • Trolley for standard Ampelmann gangway
  • Transfer up to 100 KG
  • Electric trolley

Cargo trolley 0.7 m

slide-20
SLIDE 20

20

  • pallets size trolley over wider gangway
  • Transfer up to 400 KG
  • Lift to allow stepless cargo transfer
  • Electric

A400

slide-21
SLIDE 21

21

Lifting

Lifting Trolleys over the gangway Offering a stabilized load

slide-22
SLIDE 22

22

  • Cargo Transfer Solution 1
  • Hoist cargo up to 8000 KG
  • Land crane on top of hexapod
  • Lessons learned for motion compensated lifting

CTS 1

slide-23
SLIDE 23

23

  • Cargo Transfer Solution 2
  • Hoist cargo up to 8000 KG
  • Slow transition from personnel transfers

to cargo transfers

CTS 2

slide-24
SLIDE 24

24

E1000

  • E-type system with hoist function
  • Hoist cargo up to 1000 KG
  • 10 projects
  • 5 systems
  • 8.5 mln KG cargo transfered
slide-25
SLIDE 25

25

E1000

People transfers Cargo transfers up to 1000 kg Change out between personnel transfer mode and cargo transfer mode in <1 minute!

slide-26
SLIDE 26

26

slide-27
SLIDE 27

27

3) Future pillars for innovation

Less Weight & Energy More Cargo Automation Full service

slide-28
SLIDE 28

28

Thank you for listening!

slide-29
SLIDE 29

29

Back up slides

slide-30
SLIDE 30

30

Back up slide E1000

1 2 5 4 3 6
