AEAD Ciphers for Highly Constrained Networks Ren Struik e-mail: - - PowerPoint PPT Presentation

DIAC 2013 August 13, 2013

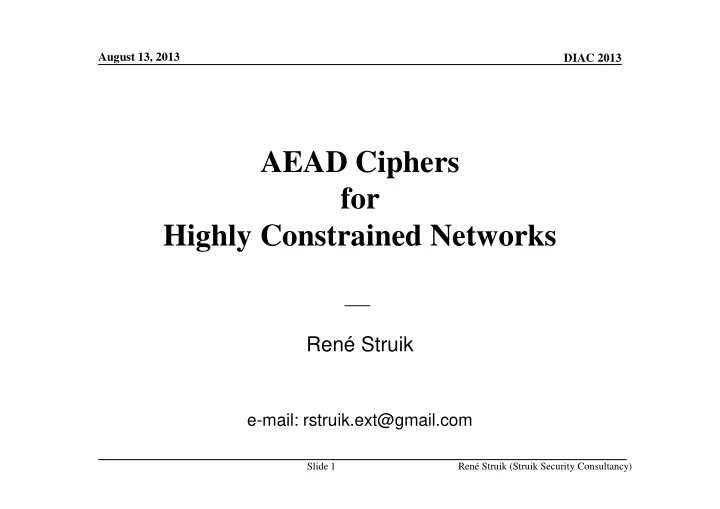

AEAD Ciphers for Highly Constrained Networks

René Struik (Struik Security Consultancy) Slide 1

René Struik

e-mail: rstruik.ext@gmail.com

DIAC 2013 August 13, 2013

Outline

1. Highly Constrained Networks − Examples & Use Case Scenarios − Constraints 2. Efficient Crypto Constructs − AEAD Ciphers − Layering Aspects 3. Maintaining State − Per-Layer Keys, Nonces, & AEADs

René Struik (Struik Security Consultancy) Slide 2

− Per-Layer Keys, Nonces, & AEADs − “Re-use” Across Layers 4. Implementation Cost − Cost of Single Construct − Incremental Cost 5. Conclusions & Future Directions

DIAC 2013 August 13, 2013

René Struik (Struik Security Consultancy) Slide 3

Highly Constrained Networks − Examples & Use Case Scenarios − Constraints

DIAC 2013 August 13, 2013

René Struik (Struik Security Consultancy) Slide 4

Wheeling-Pittsburg Steel Corporation

Photo courtesy Dust Networks

DIAC 2013 August 13, 2013

René Struik (Struik Security Consultancy) Slide 5

The Promise of Wireless

The Economist, April 28, 2007

DIAC 2013 August 13, 2013

Examples of Sensor and Control Networks

Consumer Electronics PC Peripherals, Toys, and Gaming Industrial Process Control & Factory Automation Smart Metering Building Automation & Control (HVAC) Supply Chain Management Asset Tracking & Localization Homeland Security

René Struik (Struik Security Consultancy) Slide 6

Homeland Security Environmental Monitoring Healthcare & Remote Patient Monitoring Catch phrase: “Internet of Things” 2008: more “things” connected to Internet than people 2020: est. more than 31B [1] -50B [2] interconnected objects Benefit wireless industrial sensors [3]: ♦ Efficiency gain: 25% ♦ emission reduction: 10% ♦ significant reduction ‘wiring cost’

[1] Intel (September 11, 2011); [2] Cisco (July 15, 2011); [3] US DOE Roadmap (2006)

DIAC 2013 August 13, 2013

Wireless Networking Standards

Wireless Local Area Networks (WLANs) IEEE 802.11 family (WiFi Alliance) Mesh Networking (802.11s) Fast Authentication (802.11ai) WiFi Alliance Wireless Personal Area Networks (WPANs) 802.15.1 (Bluetooth Alliance) 802.15.4 (ZigBee Alliance, Wireless HART, ISA SP100.11a) 802.15.6 (“Body Area Networks”)

René Struik (Struik Security Consultancy) Slide 7

802.15.6 (“Body Area Networks”) Bluetooth ‘Lite’ Body Area Networks Networking IETF: Routing (RoLL), Applications (CoRE), Home Area Networking (HomeNet) Other: Ubiquitous Computing DRM, Networked Gaming NFC Forum e-Payments […]

DIAC 2013 August 13, 2013

Constraints (1)

Constraints for Sensor Networks High throughput is not essential, but rather Low energy consumption: Lifetime of 1 year with 2 AAA batteries (@750 mAh, 2V) yields 85µA average power consumption, thus forcing ‘sleepy’ devices (802.15.4 uses 40-60 mW for Tx/Rx) Low manufacturing cost: Low cost devices force small memory, limited computing capabilities (clock frequency: 4-16 Mhz; 10-32 kbytes ROM, 1-4 kbytes RAM, possibly no flash)

René Struik (Struik Security Consultancy) Slide 8

(clock frequency: 4-16 Mhz; 10-32 kbytes ROM, 1-4 kbytes RAM, possibly no flash) Constraints for Adhoc Networks No centralized management: No online availability of fixed infrastructure (so, decentralized key management) Promiscuous behavior: Short-lived communications between devices that may never have met before (so, trust establishment and maintenance difficult) Unreliability: Devices are cheap consumer-style devices, without physical protection (so, no trusted platform on device)

DIAC 2013 August 13, 2013

Constraints (2)

Security Constraints for Adhoc Networks Decentralized key management: Due to no online availability fixed infrastructure, but also very ‘sleepy’ nodes Flexible configuration and trust management: Due to promiscuous, adhoc behavior, but also survivability requirements Low impact of key compromise: Due to unavailability of trusted platform (tamper-proofing, etc.) Automatic lifecycle management:

René Struik (Struik Security Consultancy) Slide 9

Automatic lifecycle management: Due to virtual absence of human factor, after initialization Security Design Constraints for Sensor Networks Implementation efficiency: protocols should use similar cryptographic building blocks Parallelism: design protocols have the similar message flows Low communication overhead: protocols must avoid message expansion if possible

DIAC 2013 August 13, 2013

René Struik (Struik Security Consultancy) Slide 10

Efficient Crypto Constructs − AEAD Ciphers − Layering Aspects

DIAC 2013 August 13, 2013

Communication and Computational Overhead Matters

TsCCAOffset

CCA TX Packet

TsRxAckDelay AWT

RX ACK prepare to receive T1 T2 T4 T3

Transmitter Unallocated Slot Slot frame cycle Allocated Slot

= transmitting packet = receiver on = receiving packet

Example: IEC 62951 (w/HART)

Data rate: 250 kbps Max time jitter: 1 ms −best in class: 0.2 ms Power: 10 mW Energy: 0.32µJ/octet Latency: 32µs/octet AES-128: < 25 µW René Struik (Struik Security Consultancy) Slide 11

Timeslot with Acknowledged Transmission

End of timeslot Start of timeslot

TsTxOffset

RX Packet TX ACK

TsRxOffset PWT

prepare to receive

TsTxAckDelay

process packet, prepare to ack R1 R2 R3

Receiver

AWT = receiving packet PWT = TsACKWaitTime = TsPacketWaitTime

Typical frame: 60 octets. Cost: 2,120µs = 200µs (listen) + 1,920µs (60×32µs) = 21.2 µJ Communication cost savings: 8 octets = 256µs latency=2.56µJ (+14% energy efficiency) Computational cost (in HW): AES-128 ≈ 0.2µJ Trade-off: Reduced communication cost ↔ Increased computational cost (& latency)

DIAC 2013 August 13, 2013

Light-Weight Crypto Mode of Operation

Are we focusing on the right problem? Light-weight crypto:

• Focus on low-footprint, low-latency ciphers (Present, Hummingbird, etc.)
• From energy consumption perspective, mode of operation more important

Typical frame: 60 octets. Cost: 2,120µs = 200µs (listen) + 1,920µs (60×32µs) = 21.2 µJ Communication cost savings: 8 octets = 256µs latency=2.56µJ (+14% energy efficiency)

René Struik (Struik Security Consultancy) Slide 12

Communication cost savings: 8 octets = 256µs latency=2.56µJ (+14% energy efficiency) Computational cost (in HW): AES-128 ≈ 0.2µJ Cost of crypto: 1% of communication cost Trade-off: Reduced communication cost ↔ Increased computational cost (& latency) Example:

• Shaving off 8 octets may justify making symmetric-key crypto 10× more expensive

DIAC 2013 August 13, 2013

Network Layering, Protocols, Interfaces

Transport Application

Application protocol

5 4

Layer

APDU TPDU

Unit

Transport Application

Transport protocol

René Struik (Struik Security Consultancy) Slide 13 Data Link Physical Network Data Link Physical Network Data Link Physical Network Data Link Physical Network

Device A “Tunnel” Device Router

3 2 1 NPDU Frame Bits Data Link Physical Network

Device B

DIAC 2013 August 13, 2013

Network Layering, without Crypto

Transport Application Data AH Data AH Data TH Transport Application 5 4

Layer

APDU TPDU

Unit

René Struik (Struik Security Consultancy) Slide 14 Data Link Physical Network

Device A

AH Data TH NH AH Data TH NH DH AH Data TH NH DH PH Data Link Physical Network

Device B

3 2 1 DF DF NPDU Frame Bits Crypto OFF Crypto ON (Conf. & Auth.)

DIAC 2013 August 13, 2013

Network Layering, with Traditional Crypto

Transport Application Data AH Data AC AH Data TH AC TC Transport Application 5 4

Layer

APDU TPDU

Unit

Example: Triple-Layer Crypto

René Struik (Struik Security Consultancy) Slide 15 Data Link Physical Network

Device A

AH Data TH AC TC NH AH Data TH AC TC NH DH DC AH Data TH AC TC NH DH DC PH Data Link Physical Network

Device B

3 2 1 DF DF NPDU Frame Bits Data expansion due to crypto*

*ignoring security admin in headers

Crypto OFF Crypto ON (Conf. & Auth.) 8B 4B 8B 2B

DIAC 2013 August 13, 2013

Network Communications, with Traditional Crypto

Transport Application

Application protocol

5 4

Layer

APDU TPDU

Unit

Transport Application

Transport protocol

Example: Triple-Layer Crypto

René Struik (Struik Security Consultancy) Slide 16 Data Link Physical Network Data Link Physical Network Data Link Physical Network Data Link Physical Network

Device A “Tunnel” Device Router

3 2 1 NPDU Frame Bits Data Link Physical Network

Device B

Crypto OFF Crypto ON (Conf. & Auth.)

All crypto processing yields explicit verdict on data authenticity, via Message Authentication Code, but at a cost (data expansion)

DIAC 2013 August 13, 2013

Network Layering, with “NEW” Crypto

Transport Application Data AH Data AC AH Data TH AC ∅ Transport Application 5 4

Layer

APDU TPDU

Unit

Example: Triple-Layer Crypto

René Struik (Struik Security Consultancy) Slide 17 Data Link Physical Network

Device A

AH Data TH AC ∅ NH AH Data TH AC ∅ NH DH ∅ AH Data TH AC ∅ NH DH ∅ PH Data Link Physical Network

Device B

3 2 1 DF DF NPDU Frame Bits Reduced expansion due to crypto*

*ignoring security admin in headers

Crypto OFF Crypto ON (Conf. & Auth.) Crypto ON (without Data Expansion) DISSOLVED! 8B 4B 8B 2B

× × × × × × × ×

DIAC 2013 August 13, 2013

Network Communications, with “NEW” Crypto

Transport Application

Application protocol

5 4

Layer

APDU TPDU

Unit

Transport Application

Transport protocol

Example: Triple-Layer Crypto

René Struik (Struik Security Consultancy) Slide 18 Data Link Physical Network Data Link Physical Network Data Link Physical Network Data Link Physical Network

Device A “Tunnel” Device Router

3 2 1 NPDU Frame Bits Data Link Physical Network

Device B

Crypto OFF Crypto ON (Conf. & New Auth.) Crypto ON (without Data Expansion)

All crypto processing yields implicit verdict on data authenticity, via catastrophic error produced as soon as data is modified

DIAC 2013 August 13, 2013

Incoming Processing, with “NEW” Crypto

Transport Application ∆ατα AH Data AC AH Data TH AC ∅ Transport Application 5 4

Layer

APDU TPDU

Unit

How would this work?

atastrophic Error

Corrupted packet Corrupted data René Struik (Struik Security Consultancy) Slide 19 Data Link Physical Network

Device A

AH Data TH AC ∅ NH AH Data TH AC ∅ NH DH ∅ AH Data TH AC ∅ NH DH ∅ PH Data Link Physical Network

Device B

3 2 1 DF DF NPDU Frame Bits Reduced expansion due to crypto*

*ignoring security admin in headers

Crypto OFF Crypto ON (Conf. & Auth.) Crypto ON (without Data Expansion)

Cata

Modified (encrypted) frame Corrupted (decrypted) frame DISSOLVED! 8B 4B 8B 2B

× × × × × × × ×

DIAC 2013 August 13, 2013

“New” Crypto Mode of Operation

Applications to cryptographic protocol layering

• Significant reduction in cryptographic data expansion at lower layers
• No1 cryptographic rejection of modified packets “in flight”
• Still possible to reject corrupted packets “in flight”, if protocol layers have built-in

redundancy that can easily be checked (usually the case, due to header info, etc.) Example: ZigBee per-packet Security Overhead Reduction Total security expansion ZigBee: 34 octets = 22 (NWK layer) + 12 (APL layer)

René Struik (Struik Security Consultancy) Slide 20

Total security expansion ZigBee: 34 octets = 22 (NWK layer) + 12 (APL layer) − Reduction of per-packet crypto/security overhead, to at most 8 octets in total only − Potential for significant other header overhead reduction (non-security-related) Much more payload data left for application data (≈50% more, without fragmentation) Caveat: Cannot be realized with existing CCM* mode of operation implementation Other applications: “storage encryption”, “key wrap” Cryptographic property: Encryption with Authenticity from Redundancy in Plaintext Requirements: (a) Works also with tiny plaintext; (b) Respects existing hardware

1 Some cryptographic rejection possible, if some redundancy sprinkled-in (e.g., by padding with fixed 16-bit string)

DIAC 2013 August 13, 2013

René Struik (Struik Security Consultancy) Slide 21

Maintaining State − Per-Layer Keys, Nonces, & AEADs − “Reuse” Across Layers

DIAC 2013 August 13, 2013

Network Layering, with Crypto Modes of Operation

Transport Application Data AH Data AC AH Data TH AC TC Transport Application 5 4

Layer

APDU TPDU

Unit

Example: Triple-Layer Crypto

René Struik (Struik Security Consultancy) Slide 22 Data Link Physical Network

Device A

AH Data TH AC TC NH AH Data TH AC TC NH DH DC AH Data TH AC TC NH DH DC PH Data Link Physical Network

Device B

3 2 1 DF DF NPDU Frame Bits Data expansion due to crypto*

*ignoring security admin in headers

Crypto OFF Crypto ON (Conf. & Auth.) 8B 4B 8B 2B

DIAC 2013 August 13, 2013

Network Layering, with Traditional Layering of Keying Material

Transport Application Transport Application 5 4

Layer

APDU TPDU

Unit

Example: Triple-Layer Crypto

Ka, Na, La Kt, Nt, Lt Ka, Na, La Kt, Nt, Lt René Struik (Struik Security Consultancy) Slide 23 Data Link Physical Network

Device A

Data Link Physical Network

Device B

3 2 1 NPDU Frame Bits

*ignoring security admin in headers

Crypto OFF Crypto ON (Conf. & Auth.) Kd, Nd, Ld Kd, Nd, Ld

Each layer has its own keying material (key, nonces), but this comes at a cost (replication of key storage, key management)

DIAC 2013 August 13, 2013

Network Layering, with Light-Weight Layering of Keying Material

Transport Application Transport Application 5 4

Layer

APDU TPDU

Unit

Example: Triple-Layer Crypto

Tag La Tag Lt Tag,La Tag Lt René Struik (Struik Security Consultancy) Slide 24 Data Link Physical Network

Device A

Data Link Physical Network

Device B

3 2 1 NPDU Frame Bits Crypto OFF Crypto ON (Conf. & Auth.) Tag Ld Tag,Ld Key, Nonce Key, Nonce

Each layer reuses same keying material (key, nonces), but does salt this at each layer (reduced key storage & key management)

DIAC 2013 August 13, 2013

Light-Weight Layering of Keying Material

Applications to cryptographic protocol layering

• Keying material (keys, nonces) stored on per-device level, not on per-layer level
• Re-use of same keying material and same AEAD across layers, with per-layer

“salting” of AEAD instantiation Example: OCB mode with variable-size authentication tags: − OCB w/ 128-bit tag: Nonce128 = (tag128 || Nonce) − OCB w/ 64-bit tag: Nonce64 = (tag64 || Nonce)

René Struik (Struik Security Consultancy) Slide 25

− OCB w/ 64-bit tag: Nonce64 = (tag64 || Nonce) Note: See IETF CFRG draft draft-cfrg-ocb-03 (with cautionary language…) Cryptographic property: Instantiation of “salted” AEAD modes has same effect as if logically distinct keying material and AEAD parameters used at each layer Requirements: (a) Small-size “Salt”; (b) “Salting” cheap (compared to, e.g., hashing)

DIAC 2013 August 13, 2013

René Struik (Struik Security Consultancy) Slide 26

Implementation Cost − Cost of Single Construct − Incremental Cost

DIAC 2013 July 3, 2013

Putting Trust in Devices

Conventional Approach

• Trusted implementation of crypto,

including side channel resistance

• Trusted security policy routines
• Secure and authentic key storage
• Secure RNG (or RNG seed)

Security Policies Key Management Applications (Some) authenticity

1. Borrow/steal across layers:

René Struik (Struik Security Consultancy) Slide 27

Device

AES AES RNG ECC AES K seed (d, Q) Keys Crypto Functions Security Functions Confidentiality, authenticity Authenticity

1. Borrow/steal across layers: − “Reuse” crypto primitives − “Reuse” keying material 2. Borrow/steal functionality other constructs: − Intel PCLMULQDQ Instruction − Non-crypto support on module 3. Exploit trade-offs: − Energy cost computation, communication Objective: Best overall ‘fit’, not per construct

DIAC 2013 August 13, 2013

René Struik (Struik Security Consultancy) Slide 28

Conclusions & Future Directions

DIAC 2013 August 13, 2013

Conclusions & Future Directions

Light-Weight Crypto:

• Performance Crypto Mode of Operation is right metric, not Crypto Cipher
• Energy cost very important (e.g., in energy harvesting applications)
• Crypto cost should not ignore cost of data expansion (in small packet deployments)

− Authentication tags may be “evil” (authenticity is not) Constrained Devices:

• Focus on performance individual construct (e.g., “need for speed”) less important

René Struik (Struik Security Consultancy) Slide 29

• Focus on performance individual construct (e.g., “need for speed”) less important

in constrained networks; holistic/system-wide performance is right metric

• Reuse, reuse, reuse… amongst crypto constructs, keying material, stack layers, …

Be aware of eco-system that is under development (IETF 6lowpan, roll, core, dice) Collaboration? Happy to! I have worked on ciphers for constrained networks, but still lots of work remaining

• Better efficiency, simple proofs, algorithmic tricks, real implementations
• Both inside/outside CAESAR competition

DIAC 2013 August 13, 2013

Further Reading

Cryptographic Modes of Operation: 1.

• P. Rogaway, M. Bellare, “Encode-then-Encipher Encryption: How to Exploit Nonces or Redundancy in

Plaintexts for Efficient Cryptography,” in AsiaCrypt’00, T. Okamoto, Ed., Lecture Notes in Computer Science, Vol. 1976, Springer, 2000. 2. J.H. An, M. Bellare, “Does Encryption with Redundancy Provide Authenticity?,” in EUROCRYPT’01,

• B. Pfitzmann, Ed., Lecture Notes in Computer Science, Vol. 2045, pp. 512-528, Springer, 2001.

Finite Field Arithmetic: 3.

• S. Gueron, M.E. Kounavis, “Carry-Less Multiplication and Its Usage for Computing The GCM Mode,”

softwarecommunity.intel.com, No. 3787, April 11, 2008. 4.

• J. Taverne, A. Faz-Hernández, D.F. Aranha, F. Rodríguez-Henríquez, D. Hankerson, J. López,

René Struik (Struik Security Consultancy) Slide 30

4.

• J. Taverne, A. Faz-Hernández, D.F. Aranha, F. Rodríguez-Henríquez, D. Hankerson, J. López,

“Software Implementation of Binary Elliptic Curves: Impact of the Carry-less Multiplier on Scalar Multiplication,” IACR ePrint 2011-170.
